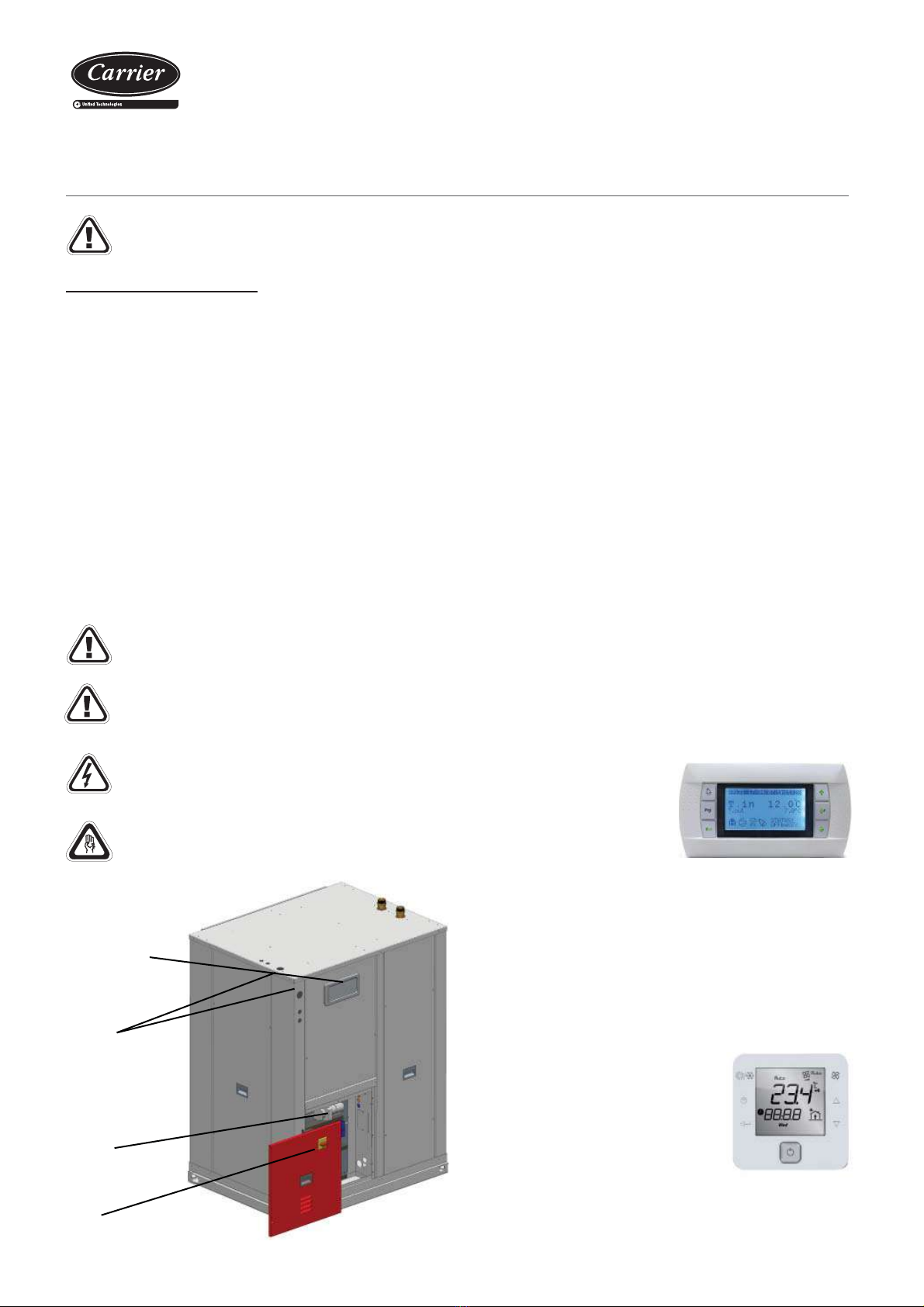

Carrier 30PA Manual

INSTALLATION, OPERATION AND
MAINTENANCE INSTRUCTIONS
30PA/PH/PAC/PHC
Nominal cooling capacity 17,7 - 36,0 kW
Nominal heating capacity 21,8 - 42,6 kW
50 Hz
Ductable air-cooled scroll chillers and heat pumps
Original document

Ductable air-cooled scroll
chillers and heat pumps
3
Contents
1. Introduction .......................................................................................................................................................................................................5
2. Operation limits .................................................................................................................................................................................................5
3. Safety advice.....................................................................................................................................................................................................6
4. Available configurations ....................................................................................................................................................................................6
5. Technical characteristics ...................................................................................................................................................................................7
6. Unit identification...............................................................................................................................................................................................9
7. Transport and handling ...................................................................................................................................................................................10
Transport.........................................................................................................................................................................................................10
Discharging of the unit ....................................................................................................................................................................................10
Positioning on site...........................................................................................................................................................................................10
Centre of gravity coordinates ..........................................................................................................................................................................10
8. Location and assembling ................................................................................................................................................................................11
Location designation .......................................................................................................................................................................................11
Minimum free space for commissioning and maintenance operations ...........................................................................................................11
Anchorage for silent-blocks.............................................................................................................................................................................12
Sound level .....................................................................................................................................................................................................12
9. Checking before commissioning .....................................................................................................................................................................13
Electrical connections .....................................................................................................................................................................................13
Checks in the centrifugal fan: STD version.....................................................................................................................................................14
Checks on the plug-fan: HEE version .............................................................................................................................................................14
Air ducts connections......................................................................................................................................................................................15
Hydraulic connections.....................................................................................................................................................................................16
Condensate drain connection .........................................................................................................................................................................20
10. Options............................................................................................................................................................................................................21
Condensation pressure control .......................................................................................................................................................................21
Air filter ............................................................................................................................................................................................................21
Cooling recovery circuit (optional)...................................................................................................................................................................22
11. Safety elements ..............................................................................................................................................................................................24
Location of the control and safety elements....................................................................................................................................................25
12. Commissioning................................................................................................................................................................................................25
Checks prior to commissioning .......................................................................................................................................................................25
Possible problems at commissioning..............................................................................................................................................................27
Operational checks .........................................................................................................................................................................................27
13. Maintenance....................................................................................................................................................................................................28
14. Control and analysis of breakdowns................................................................................................................................................................31
Annex I: Quick overview of the installation............................................................................................................................................................32

Ductable air-cooled scroll
chillers and heat pumps
5

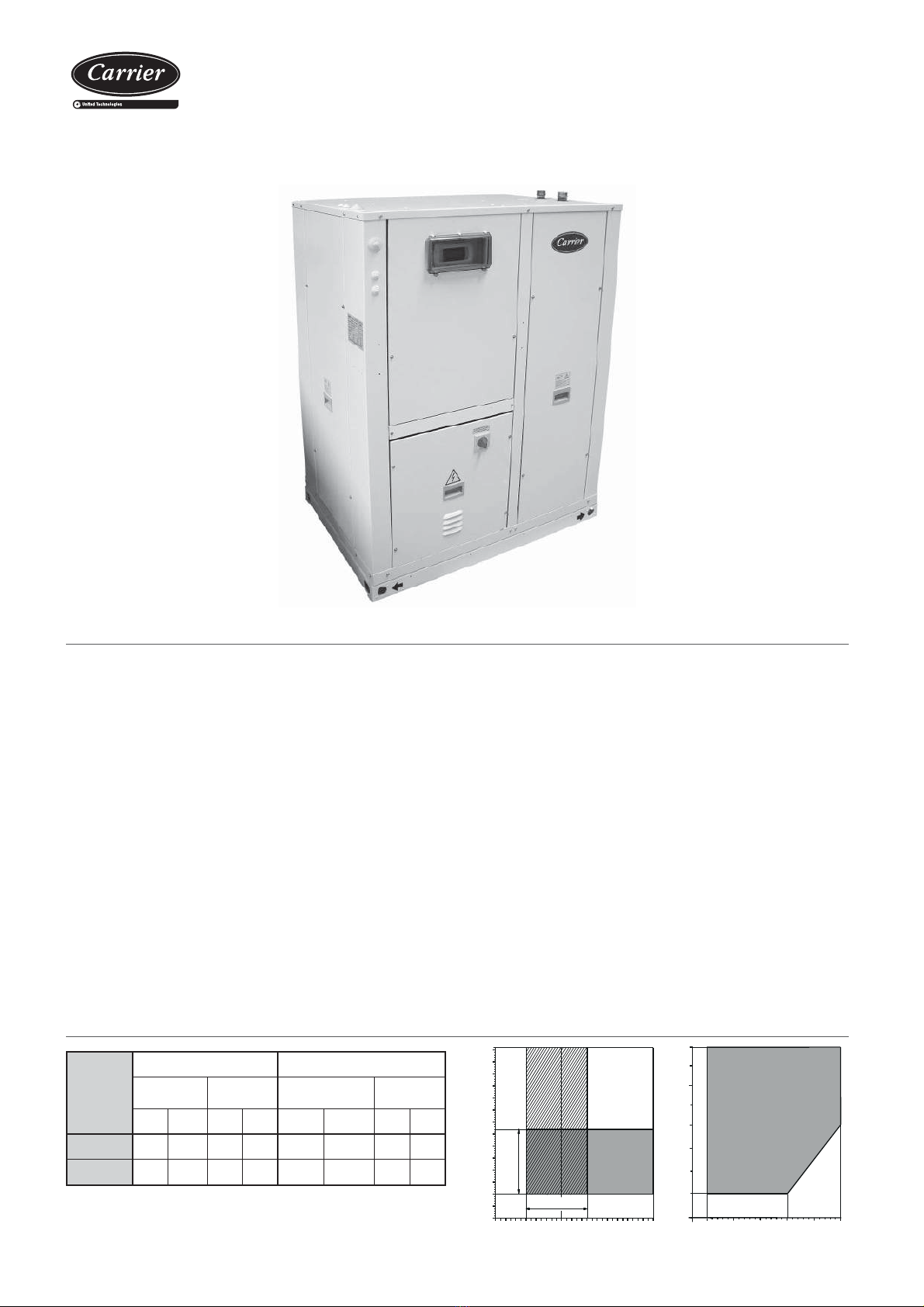

1. INTRODUCTION
2. OPERATION LIMITS
• 30PA/PAC
Air-cooled water chillers.
• 30PH/PHC
Reversible heat pump units for operation in negative outdoor
temperatures (greater than -15ºC WB) for water heating and cooling.
Defrosting by reversing the cycle.
After manufacturing, all units are charged with refrigerant and
are tested at the factory, verifying the correct operation of all their
components within the operating range for which they are intended.
The units comply with European Directives: Machinery 2006/42/EC -
EMC 2014/30/EU - LVD 2014/35/EU - PED 2014/68/EC (Category 2)
- RoHS 2011/65/EU - Eco-design 2009/125/CE - Eco-labelling 2010/30/
EU; and with Harmonised Standard: EN 378-2:2012.
Those in charge of the installation, commissioning, operation and
maintenance of the unit must know the instructions contained in this
brochure and the specific technical characteristics of the installation place.
The 30PA/PH cooling only and reversible heat pumps are compact
outdoor air/water units.
Available in two versions:
• STD (Standard)
• HEE (High Energy Effi ciency)
These units have been made for operation indoors in the production
of hot and/or cold water, applicable to heating, cooling, and industry.
They are equipped with centrifugal fan (STD version) or electronic plug-
fan (HEE version), plate exchanger, hermetic scroll compressor, and
electronic control with microprocessor, components optimised for the
R-410A refrigerant.
This range is also offered with an integrated circulation pump:
30PAC/PHC.
The entire range also has the option to include a desuperheater circuit
that allows for the production of hot water at a temperature greater than
in the condensation circuits.
+18+50-7
-15
+46
+55+50+45+30
+20
+10
+0
-10
-15
+12
Outdoor temperature °C DB
Mandatory glycol
Outlet water temp. in the evaporator °C
Condensation
pressure control
Outdoor temperature °C DB
Outlet water tem
p
. in the condenser °C
With control of the condensation pressure operating up to -15ºC.
Minimum outlet temperature. With the option of glycol water for lower
temperature operation from 5ºC to -7ºC.
Series
Cooling mode Heating mode
Air Water
(outlet T.)
Air Water
(outlet T.)
Max. Min. Max. Min. Max. Min. Max. Min.
30PA/PAC 46ºC 12ºC 18ºC 5ºC -- -- -- --
30PH/PHC 46ºC 12ºC 18ºC 5ºC 20ºC DB -15ºC DB 55ºC 30ºC

Ductable air-cooled scroll
chillers and heat pumps
6

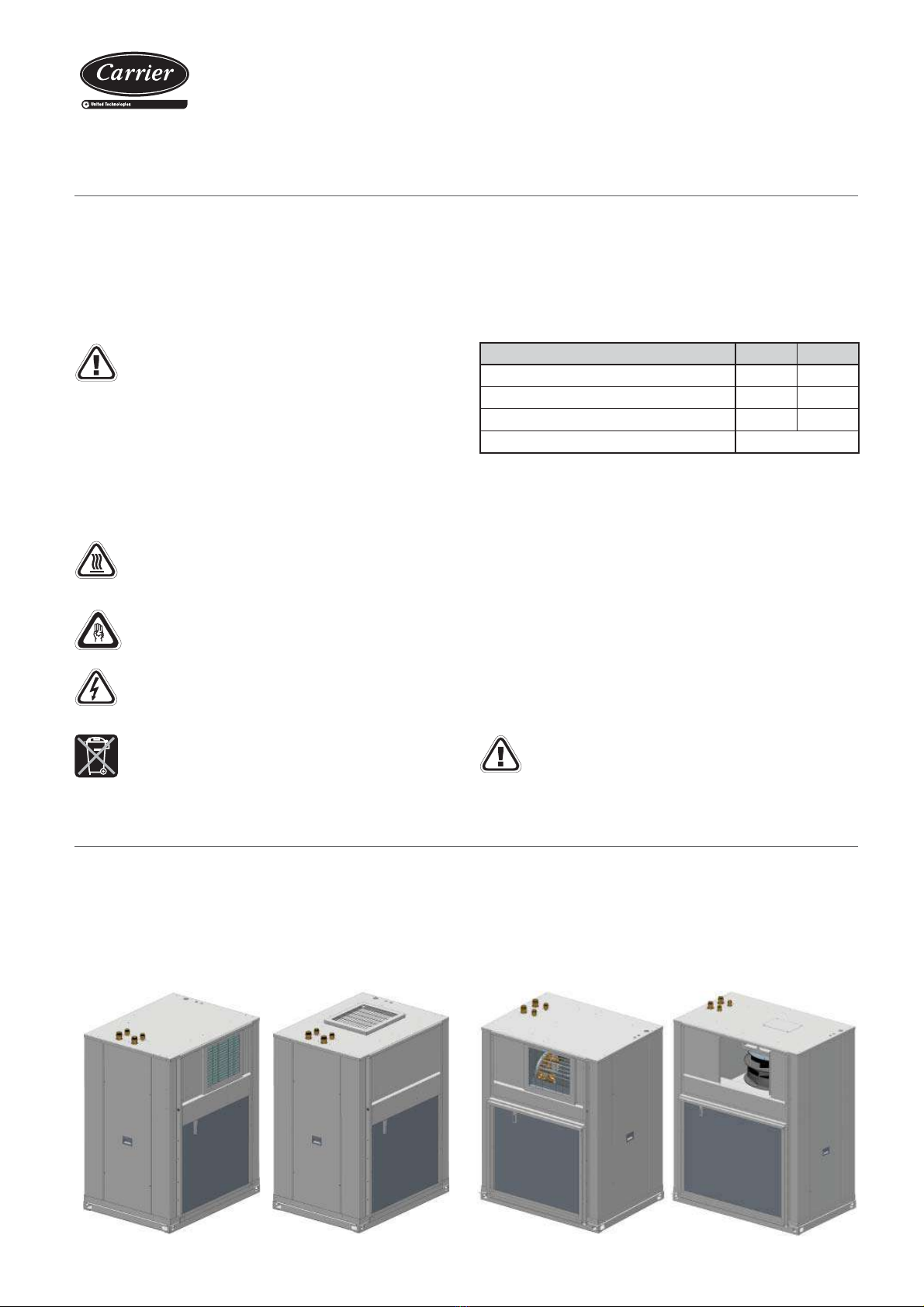

4. AVAILABLE CONFIGURATIONS
According to the air supply:
• Assembly M00
HORIZONTAL air supply.
• Assembly M01
VERTICAL air supply.
According to the type of supply fan:
• STD version (Standard):
Centrifugal fan coupling by pulleys and belts.
• HEE version (High Energy Effi ciency):
Variable speed electronic plug-fan.
M00 M01 STD HEE
These units work with refrigerant gas R-410A.
3. SAFETY ADVICE
To avoid any risk of accident during installation, commissioning or
maintenance, it is obligatory to take into consideration the following
specifications for the units: refrigerated circuits under pressure, refrigerant
presence, electrical voltage presence and implantation place.
Because of all of this, only qualified and experienced personnel can
perform maintenance tasks or unit repairs.
It is required to follow the recommendations and instructions
in the maintenance brochures, the labels, and the specific
instructions.
It is necessary to comply with the norms and regulations
in effect. It is recommended to consult the competent
authorities regarding the applicable regulations for users
of units or components under pressure. The characteristics
of these units or components are included on the plates of
characteristics or in the regulatory documentation provided
with the product.
In case of a leak:
- Toxicity: According to ASHRAE 34, R-410A belongs to the A1/A1 group,
i.e. with high safety both in the mix and also in the case of a leak.
- Although it is not toxic, in case of a leak to atmospheric pressure the
liquid phase evaporates. The resulting vapours are heavier than air
and can displace the technician local air. In case of an accidental
discharge in a closed enclosure, fans must be used to eliminate said
vapours.
- Although the R-410A is not flammable, when in contact with a flame
o hot spot it can decompose in fluorhydric acid HF and fluophosgene
COF2highly toxic and corrosive.
- To detect leaks, an electronic leak detector, an ultraviolet lamp or
soapy water must be used. Flame detectors do not help.
Important: Immediately repair any refrigerant leak, using
a recovery unit specific for R-410A that avoids a possible
mixture of refrigerants and/or oils.
The compressor and line surfaces can reach temperatures
above 100ºC causing burns to the body. In the same fashion,
under certain conditions these surfaces can reach very cold
temperatures that can cause freezing risks.
Use safety goggles and gloves on the job. Be careful with
sharp parts or elements in the unit.
V-220005
V-220004
Caution: Before intervening in the unit, verify that the main
power to the unit is cut off. An electric shock can cause
personal damage.
Refrigerant leaks:
A periodical check must be performed for refrigerant gas leaks as
per Regulation (CE) Nº517/2014 over certain greenhouse effect
fluoride gases. Please, consult the frequency of checks in chapter
of “Maintenance”.
Components of the R-410A R-32 R-125
Chemical formula CH2F2 CHF2CF3
Weight ratio 50% 50%
Unitary global warming potential (GWP) 675 3.500
Global warming potential (GWP) 2.088
Note: In order to recycle these units follow the stipulations
of Directive 2012/19/EU on Waste electrical and electronic
equipment (WEEE).

Ductable air-cooled scroll
chillers and heat pumps
7
5. TECHNICAL CHARACTERISTICS
STD version
Cooling capacity calculated in accordance with the EN-14511-2013 standard given for outlet water temperature conditions of 7ºC and 35ºC outdoor temperature.
Heating capacity calculated in accordance with the EN-14511-2013 standard given for outlet water temperature conditions of 45ºC and 6ºC WB outdoor temperature.
Total power input by compressor, motorised fan and electronic control under nominal conditions, calculated in accordance with the EN-14511-2013 standard. Options are not
included.
European Seasonal Energy Efficiency Ratio (ESEER) obtained in accordance with the calculation conditions established by the certification body EUROVENT.
Values calculated in accordance with the EN-14825-2013 standard given for bivalente temperature of -5ºC in average climate and 2ºC in warmer climate.
Energy-efficient motors IE2.
Climatic warming potential of a kilogram of fluorinated greenhouse gas in relation to a kilogram of carbon dioxide over a period of 100 years.
30PA/PH 90STD 100STD 120STD 160STD 180STD
Cooling
capacities
Net cooling capacity  (kW) 17, 21,10 25,20 32,70 36,00
Net power input  (kW) 7,75 9,15 10,00 12,60 14,40
Net efficiency EER 2,29 2,31 2,51 2,60 2,49
Seasonal efficiency ESEER 2,61 2,59 2,81 2,94 2,85
Heating
capacities
Net heating capacity  (kW) 21,80 26,10 29,70 38,30 42,60
Net power input  (kW) 7,31 8,90 9,90 12,90 14,20
Net efficiency COP 2,97 2,94 3,00 2,97 3,01
Seasonal efficiency 
Average climate
SCOP 3,11 3,12 3,07 2,95 2,95
ŋs Heat 121% 122% 120% 115% 115%
Prated (kW) 16,77 19,19 21,82 26,33 31,31
Seasonal efficiency 
Warmer climate
SCOP 3,59 3,63 3,57 3,42 3,35
ŋs Heat 140% 142% 140% 134% 131%
Prated (kW) 12,73 14,70 16,72 24,30 27,32
Outdoor
circuit
centrifugal
fan
Nominal air fl ow (m3/h) 6500 7000 10000 12200 12200
Available static pressure (mm.w.c.) 20
Number / turbines 1
Motor output (kW) 2,2 2,2 3,0 4,0 4,0
Power input (kW) 1,46 1,77 2,33 2,83 2,83
Speed (r.p.m.) 973 1027 837 734 734
Indoor
circuit
Nominal water fl ow (m3/h) 3,1 3,7 4,3 5,7 6,2
Pressure drop (m.w.c.) 2,3 3,2 2,9 4,7 2,9
Minimum water fl ow (m3/h) 2,2 2,7 3,1 4,1 4,3
Maximum water fl ow (m3/h) 6,2 7,4 8,8 11,3 12,7
Type of hydraulic connections Gas threaded
Diameter of connections 1 1/4" M 1 1/2" M
Compressor
Type Scroll
Number of compressors / stages / circuits 1 / 1 / 1
Oil type Copeland 3MAF 32 cST, Danfoss POE 160 SZ, ICI Emkarate RL 32 CF, Mobil EAL Artic 22 CC
Volume of oil (l) 3,0 3,3 3,3 3,3 6,2
Refrigerant
Type R-410A
Global warming potential (GWP) 2.088
Charge (kg) 5,9 6,1 6,6 6,9 7,6
Environment impact (tCO2 e) 12,3 12,7 13,8 14,4 15,9
Electrical
characteristics
Electrical power supply 400 V / III ph / 50 Hz (±10%)
Power supply 3 Wires + Ground + Neutral
Maximum
absorbed
current
Compressor (A) 15,2 17,3 20,5 25,4 30,5
Fan (A) 5,0 5,0 6,9 8,9 8,9
Control (A) 0,9 0,9 0,9 0,9 0,9
Total (A) 21,1 23,2 28,3 35,2 40,3
Dimensions
Length (mm) 1117 1398
Width (mm) 860 860
Height (mm) 1447 1727
Weight Empty (kg) 302 310 372 390 388
In operation (kg) 306 315 379 397 396

Ductable air-cooled scroll
chillers and heat pumps
8
5. TECHNICAL CHARACTERISTICS
HEE version
30PA/PH 90HEE 100HEE 120HEE 160HEE 180HEE
Cooling
capacities
Net cooling capacity  (kW) 18,40 21,00 25,50 31,40 35,70
Net power input  (kW) 7,20 7,95 9,10 11,50 13,60
Net efficiency EER 2,55 2,64 2,81 2,74 2,62
Seasonal efficiency ESEER 2,89 2,99 3,20 3,14 3,03
Heating
capacities
Net heating capacity  (kW) 21,40 23,90 29,30 36,40 42,50
Net power input  (kW) 7,10 7,90 9,50 11,90 13,90
Net efficiency COP 3,03 3,03 3,08 3,05 3,05
Seasonal efficiency 
Average climate
SCOP 2,98 2,95 3,29 3,18 3,09
ŋs Heat 116% 115% 129% 124% 121%
Prated (kW) 15,92 17,74 21,94 26,77 30,87
Seasonal efficiency 
Warmer climate
SCOP 3,41 3,58 3,82 3,67 3,65
ŋs Heat 134% 140% 150% 144% 143%
Prated (kW) 13,09 14,68 18,01 22,41 25,89
Outdoor
circuit
plug-fan
Nominal air fl ow (m3/h) 6500 7000 10000 12200 14000
Nominal available static pressure (mm.w.c.) 20
Maximum available static pressure (mm.w.c.) 63,7 70,3 45,6 65,1 62,7
Number / diameter 1 / 500 1 / 560 2 / 560
Motor output (kW) 2,7 2,8 3,0 2 x 3,0
Power input (kW) 1,33 1,21 1,87 2,20 2,52
Speed (r.p.m.) 1700 1780 1500 1500
Indoor
circuit
Nominal water fl ow (m3/h) 3,2 3,7 4,5 5,4 6,2
Pressure drop (m.w.c.) 1,6 2,1 1,6 2,4 3,1
Minimum water fl ow (m3/h) 2,5 2,9 3,4 4,1 4,6
Maximum water fl ow (m3/h) 6,6 7,4 9,1 11,3 12,8
Type of hydraulic connections Rosca gas
Diameter of connections 1 1/4” M 1 1/2” M
Compressor
Type Scroll
Number of compressors / stages / circuits 1
Oil type Copeland 3MAF 32 cST, Danfoss POE 160 SZ, ICI Emkarate RL 32 CF, Mobil EAL Artic 22 CC
Volume of oil (l) 3,0 3,3 3,3 3,3 6,2
Refrigerant
Type R-410A
Global warming potential (GWP) 2.088
Charge (kg) 6,0 6,3 6,8 8,9 9,2
Environment impact (tCO2 e) 12,5 13,2 14,2 18,6 19,2
Electrical
characteristics
Electrical power supply 400 V / III ph / 50 Hz (±10%)
Power supply 3 Hilos + Tierra + Neutro
Maximum
absorbed
current
Compressor (A) 15,2 17,3 20,5 25,4 30,5
Fan (A) 4,2 4,3 4,6 9,2 9,2
Control (A) 0,9 0,9 0,9 0,9 0,9
Total (A) 20,3 22,5 26,0 35,5 40,6
Dimensions
Length (mm) 1117 1398 2113
Width (mm) 860 860 860
Height (mm) 1447 1727 1447
Weight Empty (kg) 294 351 368 450 455
In operation (kg) 298 358 376 465 468
Cooling capacity calculated in accordance with the EN-14511-2013 standard given for outlet water temperature conditions of 7ºC and 35ºC outdoor temperature.
Heating capacity calculated in accordance with the EN-14511-2013 standard given for outlet water temperature conditions of 45ºC and 6ºC WB outdoor temperature.
Total power input by compressor, motorised fan and electronic control under nominal conditions, calculated in accordance with the EN-14511-2013 standard. Options are not
included.
European Seasonal Energy Efficiency Ratio (ESEER) obtained in accordance with the calculation conditions established by the certification body EUROVENT.
Values calculated in accordance with the EN-14825-2013 standard given for bivalente temperature of -5ºC in average climate and 2ºC in warmer climate.
Motors that are more energy efficient than what is established by the ErP 2015 standard.
Climatic warming potential of a kilogram of fluorinated greenhouse gas in relation to a kilogram of carbon dioxide over a period of 100 years.

Ductable air-cooled scroll
chillers and heat pumps
9
5. TECHNICAL CHARACTERISTICS
Pump included
30PAC/PHC 90STD 100STD 120STD 160STD 180STD
Cooling Seasonal efficiency ESEER 2,67 2,61 2,89 2,97 2,84
Heating
Seasonal efficiency 
Average climate
SCOP 3,24 3,13 3,10 2,95 3,06
ŋs Heat 126% 122% 121% 115% 119%
Prated (kW) 16,83 19,20 21,83 26,21 30,53
Seasonal efficiency 
Warmer climate
SCOP 3,82 3,60 3,60 3,44 3,57
ŋs Heat 150% 141% 141% 135% 140%
Prated (kW) 12,77 14,71 16,72 24,22 27,28
Indoor circuit Nominal water fl ow (m3/h) 3,1 3,7 4,3 5,7 6,2
Pressure drop (m.w.c.) 3,1 4,2 3,8 6,2 4,5
Expansion
vessel
Volume (l) 12
Filled pressure (kg/cm2) 1,5
30PAC/PHC 90HEE 100HEE 120HEE 160HEE 180HEE
Cooling Seasonal efficiency ESEER 2,95 3,00 3,22 3,17 3,02
Heating
Seasonal efficiency 
Average climate
SCOP 3,12 2,95 3,33 3,20 3,08
ŋs Heat 122% 115% 130% 125% 120%
Prated (kW) 15,75 17,51 21,70 26,39 30,36
Seasonal efficiency 
Warmer climate
SCOP 3,64 3,56 3,77 3,67 3,60
ŋs Heat 143% 139% 148% 144% 141%
Prated (kW) 13,12 14,69 18,05 22,40 25,83
Indoor circuit Nominal water fl ow (m3/h) 3,2 3,7 4,5 5,4 6,2
Pressure drop (m.w.c.) 2,3 3,1 2,5 3,5 4,6
Expansion
vessel
Volume (l) 12
Filled pressure (kg/cm2) 1,5
All units bear, legibly and indelibly, a data plate located in a prime space,
as appears in the attached image: Check that this plate matches the
correct model.
6. UNIT IDENTIFICATION
Check the condition of the equipment upon delivery.
Check that the details on the label, the packing and the data plate match
the order. If equipment has been damaged, or there is a shortfall in
delivery, notify accordingly.
European Seasonal Energy Efficiency Ratio (ESEER) obtained in accordance with the calculation conditions established by the certification body EUROVENT.
Values calculated in accordance with the EN-14825-2013 standard given for bivalente temperature of -5ºC in average climate and 2ºC in warmer climate.
Note: The serial number must be used in all correspondence
regarding the unit.
Ref\Reference No Serie\serial Nbr.Año\An.Year
Producto\Product\Produit
Ref. Produit\Item Nbr
Max.Intensidad\Intensité\CurrentKit Elec.Tension\Voltage
Refrig.KG (Fábrica\Factory\Usine)/Co2 Teq.Refrigerant
NoBoPeso\Poids\WeightPSmax(AP\HP) Temp. Max./ IPPSmax(BP\LP)
Fabricante\Fabricant\Manufacturer:
Compañía Industrial de Aplicaciones Térmicas, S.A.
P. Ind. Llanos de Jarata s/n. 14550 Montilla-SPAIN
Contient des gaz à effet de serre fluorés \ Contains fluorinated greenhouse gases regulated by the Kyoto protocol
Contiene gases fluorados de efecto invernadero regulados por el protocolo de Kyoto
1
16
2 3
4
5 6 7
8 9 10
11 12
13 14 15 17
CARRIER SCS
Route de Thil
01122 Montluel-FRANCE
Legend
1Year of manufacture
2Commercial product name
3Serial number
4Description of the product
5Purchase order number
6Sales order number
7Work order number
8Power supply
9Power output of the auxiliary electrical heaters kit (optional) (kW)
10 Maximum absorbed current under full load (A) ( including the electrical kit)
11 Type of refrigerant
12 Refrigerant content (kg) and Environment impact (CO2Teq.)
13 Maximum service pressure in the high pressure side (R-410A = 42 bar)
14 Maximum service pressure in the low pressure side (R-410A = 24 bar)
15 Maximum operating temperature (refer to “Opration limits”)
Maximum shipment and storage temperature: +50ºC
Electrical protection rating: IP54
16 Operation weight (kg) (empty weight + fluid + refrigerant)
17 Notified Body number for surveillance of the Pressure Equipment Directive

Ductable air-cooled scroll
chillers and heat pumps
10
30PA/PH
Centre of
gravity (mm) Weight
(empty)
(kg)
XYZ
90STD 453 384 528 302
100STD 488 398 576 310
120STD 625 399 676 372
160STD 619 400 666 390
180STD 625 397 674 388
30PA/PH
Centre of
gravity (mm) Weight
(empty)
(kg)
XYZ
90HEE 502 422 614 294
100HEE 569 417 673 351
120HEE 628 426 742 368
160HEE 940 435 573 450
180HEE 936 434 579 455
30PAC/
PHC
Centre of
gravity (mm) Weight
(empty)
(kg)
XYZ
90STD 517 396 577 306
100STD 515 402 574 315
120STD 645 402 673 379
160STD 639 402 663 397
180STD 646 400 669 396
30PAC/
PHC
Centre of
gravity (mm) Weight
(empty)
(kg)
XYZ
90HEE 538 427 599 310
100HEE 638 418 623 370
120HEE 696 427 674 386
160HEE 975 436 570 469
180HEE 972 436 575 476
7. TRANSPORT AND HANDLING
Centre of gravity coordinates
- Discharge via forklift truck:
The unit is designed to be transported safely by using a forklift truck.
The forks of the forklift truck must come in on the side of the unit,
ensuring that the centre of gravity of the unit remains within the forks,
because a misbalance in the transport may cause the unit to turn
over and fall from the forklift truck.
The recommended length for the forks will be bigger than the unit
width, so that the entire weight-bearing structure can be supported
on the forklift truck. This also prevents the possible introduction
of the truck’s fork into functional parts of the unit that may cause
damage to the unit.
The standards and recommendations of the forklift truck must also
be respected with regards to the maximum load, inclination of the
panel, elevation of the load for transport, and, in particular, the
maximum speed.
Transport
The unit must be handled with care to avoid transport damage. Thus
we recommend:
- Do not dispose of the transport supports or the packaging materials
until the unit is in its final location.
- For transport in a container, one must be selected that has an easy
load and unload to the installation location.
Discharging of the unit
The unit can be discharged using:
- Forklift truck.
- Crane with a rocker arm and cloth slings.
Any handling of the unit by other means or by gripping points different
from those described here may be dangerous for both the unit and
the personnel who are carrying out the discharging or transport work.
Always check the weight of the set and verify that the discharging
method used is approved for handling that weight.
Note: please see the weight and the gravity centre coordinates
of each model stated in the following section.
Placement on site
Once the unit is discharged, it must be freed from the transport supports
so that the inserts available for the silent-blocks can be accessed. Each
support is fixed to the crossbar using 2 M4 screws.
M4 screws for fixing the support Mounting hole
- Discharge via crane:
A rocker arm, as well as approved cloth slings, both suitable for the
dimensions and weight of the unit, must be used in order to carry out
the work safely and without causing damage to the units or to workers.
These slings will be hooked
to the two mounting holes
located on each crossbar. Make
sure that the unit is protected
from contact with the hooks to
prevent damage to the housing.
The unit must be lifted and fixed with care, with maximum
inclination of 15º, since it could harm its operation. Do not
raise by points outside of those specified here.

Ductable air-cooled scroll
chillers and heat pumps
11
Location designation
Before moving the unit, it must be checked that all panels are fastened
in place. Lift and lower with care.
When choosing the location, whatever may be the selected fashion, the
following precautions have to be taken into consideration:
- It is mandatory to comply with norm EN 378-3 on Safety and
Environmental Requirements. Part 3: "In situ" installation and
protection to people.
- The area where the unit will be located must be perfectly accessible for
cleaning and maintenance operations (check minimum free space for
maintenance). Leave enough space for air circulation around the unit.
- Check that the unit is perfectly levelled.
- It is necessary to check that the surface of the floor or the structure
supports the weight of the unit (please, consult the weight of the unit
in the section “Anchorage for silent-blocks”).
- Foresee appropriate damping devices in all the installation so that
noise and vibration transmission is avoided (refer to the “Anchorage
for silent-blocks”).
In the event of assembling directly on silent-blocks to the ground,
it is recommended that a template of the unit’s footprint with the
anchoring points of the silent-blocks be made.
8. LOCATION AND ASSEMBLING
With the help of the crane or the forklift truck, the unit will be raised
to a sufficient height that the silent-blocks can be screwed into its
base. The 4 silent-blocks must remain oblique and the interiors
perpendicular to the unit.
M10 metric threads have been provided for their placement in the
supports indicated in the following section “Anchorage for silent-
blocks”. A hex key 17 or Allen
wrench 8 will be used for this
operation based on the type
of screw used.
This image shows how the
silent-block option that can
be supplied for this unit is
fixed to the unit.
Since it is an unit designed to work indoors, some specific installation
norms must be followed:
- Ensure that the location of the supply and return grilles does not
generate air recirculation.
- Check that there are no obstructions in the air supply and return grille
slats due to being tightly closed.
Minimum free space for commissioning and maintenance operations
1m 1m
0,5m A
30PA/PH/PAC/PHC A (m)
90STD a 100STD 1,2
120STD a 180STD 1,5
30PA/PH/PAC/PHC A (m)
90HEE 1,2
100HEE a 120HEE 1,5
160HEE a 180HEE 1,2

Ductable air-cooled scroll
chillers and heat pumps
12

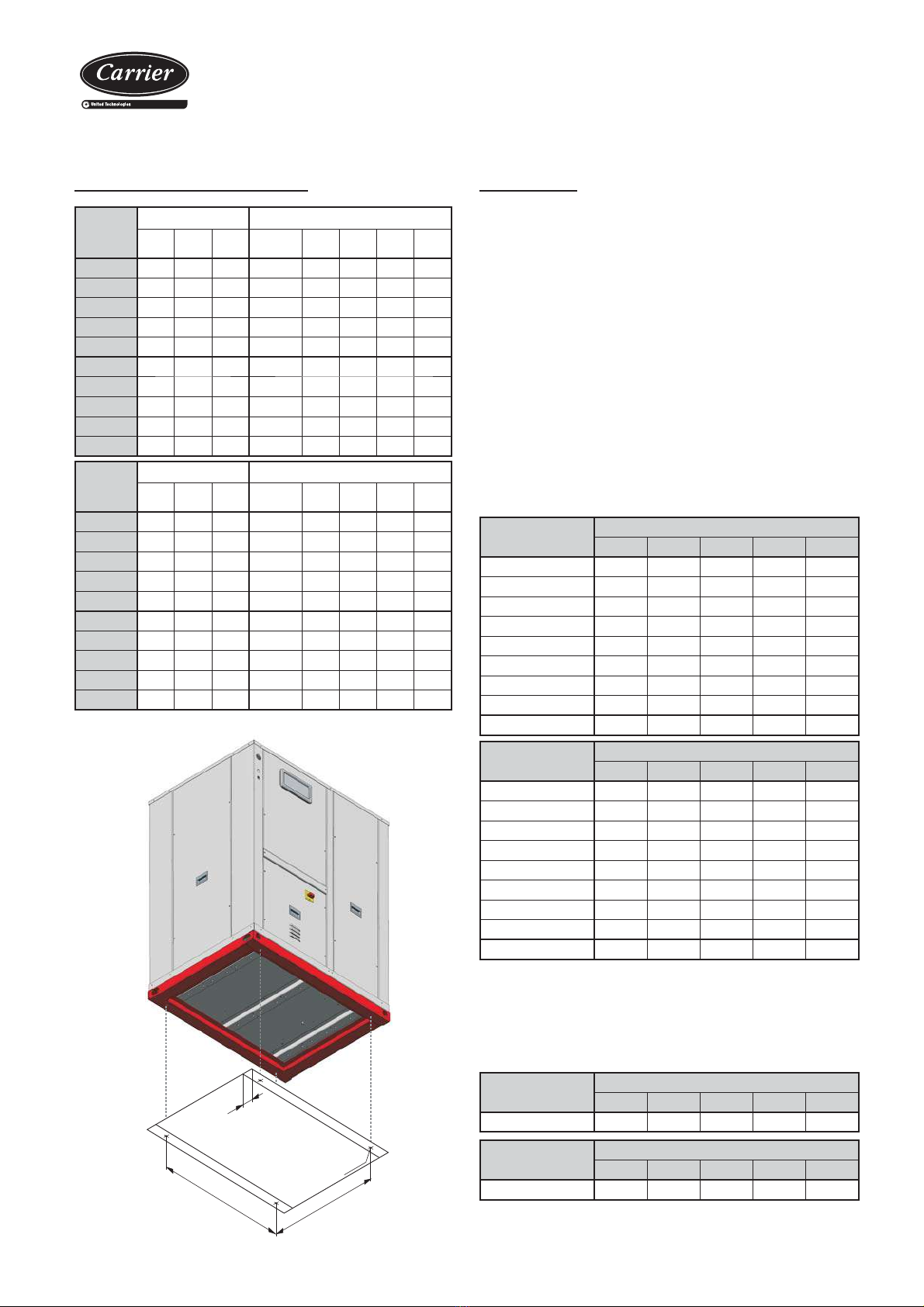

Anchorage for silent-blocks
Note: all the anchorings are bolt and nut type.
30PAC/
PHC
Distances (mm) Reactions in the supports (kg)
ABC
Weight in
service R1 R2 R3 R4
90STD 896 760 65 335 81 97 86 71
100STD 896 760 65 345 82 99 90 73
120STD 1166 760 65 410 99 117 107 87
160STD 1166 760 65 428 102 124 113 90
180STD 1166 760 65 429 104 123 111 91
90HEE 896 760 65 327 77 84 87 79
100HEE 1166 760 65 390 88 109 107 86
120HEE 1166 760 65 408 100 101 104 103
160HEE 1892 760 65 497 109 130 140 118
180HEE 1892 760 65 503 110 132 142 119
30PA/
PH
Distances (mm) Reactions in the supports (kg)
ABC
Weight in
service R1 R2 R3 R4
90STD 896 760 65 306 66 101 87 52
100STD 896 760 65 315 69 93 84 60
120STD 1166 760 65 379 89 112 101 77
160STD 1166 760 65 397 92 119 107 79
180STD 1166 760 65 396 93 119 105 79
90HEE 896 760 65 298 64 100 85 50
100HEE 1166 760 65 358 63 127 116 52
120HEE 1166 760 65 376 88 112 100 77
160HEE 1892 760 65 465 69 177 163 56
180HEE 1892 760 65 468 71 178 163 56
B
A
C
M10
R1 R2
R3 R4
Sound level
These units have been designed to operate with a low sound level.
In any case, in the design of the installation, it must be taken into
consideration: the outdoor environment for the acoustic radiation, the
type of building for the noise transmitted in the air and the solid elements
for the vibration transmission.
To reduce the transmissions through solid matter to the maximum, we
recommend installing damping devices between the floor or structure
and the frame of the unit and flexible connections in the hydraulic tubes.
If necessary, an acoustic technician must commission a study.
Sound pressure level
Measurement conditions: in a clear field, measured at a distance of 10
metres, directivity 2 and at 1,5 metres from the ground.
Note: The sound pressure level depends on the installation conditions and, as
such, is only indicated as a guide. Values obtained according to standard ISO 3744.
Unit sound power level
Measurement conditions: ducted discharge and return. For nominal
operating conditions EN 14511 – COOLING and HEATING modes.
Acoustic power reference: 10E-12 W, tolerance of ±2 dB (partial charge
of ±4 dB).
Note: The unit has acoustic insulating cover for compressor (Low Noise version).
30PA/PH/
PAC/PHC
STD version
90STD 100STD 120STD 160STD 180STD
63 Hz dB(lin) 73,8 74,2 74,4 74,4 74,4
125 Hz dB(lin) 73,2 73,6 73,8 73,8 73,8
250 Hz dB(lin) 70,2 70,6 70,8 70,8 70,8
500 Hz dB(lin) 65,3 65,7 65,9 65,9 65,9
1000 Hz dB(lin) 63,0 63,4 63,6 63,6 63,6
2000 Hz dB(lin) 62,2 62,6 62,8 62,8 62,8
4000 Hz dB(lin) 58,2 58,6 58,8 58,8 58,8
8000 Hz dB(lin) 49,3 49,7 49,9 49,9 49,9
Total dB(A) 69,4 69,8 70,0 70,0 70,0
30PA/PH/
PAC/PHC
HEE version
90HEE 100HEE 120HEE 160HEE 180HEE
63 Hz dB(lin) 71,1 73 73,1 73,1 73,1
125 Hz dB(lin) 70,9 72,8 72,9 72,9 72,9
250 Hz dB(lin) 67,5 69,4 69,5 69,5 69,5
500 Hz dB(lin) 65,4 67,3 67,4 67,4 67,4
1000 Hz dB(lin) 62,4 64,3 64,4 64,4 64,4
2000 Hz dB(lin) 59,5 61,3 61,5 61,5 61,4
4000 Hz dB(lin) 56,5 58,4 58,5 58,5 58,5
8000 Hz dB(lin) 49,4 51,3 51,4 51,4 51,4
Total dB(A) 68,0 69,9 70,0 70,0 70,0
30PA/PH/
PAC/PHC
STD version
90STD 100STD 120STD 160STD 180STD
Total dB(A) 38,0 38,4 38,4 38,4 38,4
30PA/PH/
PAC/PHC
HEE version
90HEE 100HEE 120HEE 160HEE 180HEE
Total dB(A) 36,6 38,3 38,4 38,4 38,4

Ductable air-cooled scroll
chillers and heat pumps
13
9. CHECKING BEFORE COMMISSIONING
Electrical connections
Installation norms
NOTE: Under no circumstance should the unit be started without having read the brochure completely.
30PA/PH electronic control
The 30PA/PH control l is basically comprised of a PC SMALL control
board, a pGD1 graphic terminal, a TCO user terminal (optional for
remote control) and sensors.
In order to establish the unit's electric power supply (cable inlet,
calculation of the lead section, protections etc.), refer to:
- The information supplied in this document (table of technical
characteristics).
- Data plate.
- The wiring diagram and the legend supplied with the unit.
- The electronic control brochure which is supplied with the unit.
- The regulations and norms in force which regulate the installation of
air-conditioning units and electric receivers.
The electric power supply of the unit must be sized in accordance with
the maximum power input by the unit taking into account all the options
it features (if necessary, refer to the technical brochure).
Verify that electrical power corresponds to the one on the data plate
and that the voltage remains constant.
Check that the electrical connections are correct and tight
(an electrical diagram is included with each unit, along with
its legend).
Note: All connections in the site are the responsibility of the
installer. These connections are always made as per the
current regulation.
To prevent electrical shocks, make all electrical connections
before energizing the unit. Check that the automatic switch
is closed. Omitting this can cause personal damage. Make
the ground connection before any other electrical connection.
V-220004
V-220005
The installer must fix line protection elements according to
the effective legislation.
Collapsible
polycarbonate
window for
access to the
pGD1 terminal
Door
switch
Electric
panel
Options
for outlet from
the electrical
power supply
Main functions:
- Control in COOLING / HEATING modes.
- Selecction of inlet water temperature setpoints for COOLING /
HEATING modes.
- Permanent control and optimization of the operating parameters
- Safety management.
- Timing of the compressor.
- Defrosting management (heat pumps).
- Control of condensation and evaporation pressures.
- Control of outdoor electronic plug-fan (HEE version).
- Control of the circulation pump.
- Regulation of the water outlet temperature.
- Compensation of the setpoint based on the outdoor temperature.
- Timer and weekly programming.
- Failure diagnosis and main alarm.
pGD1 terminal
This graphic terminal, installed on
the electric panel of the machine,
allows:
- The initial programming of the
unit
- Modification of operating parameters.
- Unit ON / OFF.
- Selection of the operating mode.
- Setting of setpoints.
- On-screen display of controlled variables and sensor values measured.
- On-screen display of active alarms and historical record of alarms.
TCO user terminal (optional for remote control):
The TCO user terminal, for remote control,
allows:
- Modification of some operating parameters.
- Unit ON / OFF.
- Selection of the operating mode and setting
of setpoints.
- On-screen display some controlled
variables and probe values.
- On-screen display of alarms codes.

Ductable air-cooled scroll
chillers and heat pumps
14
Checks in the centrifugal fan:
STD version
- Before commissioning, check the blade rotation direction and that
the axis turns without strokes nor vibrations
- Once running, check the operation conditions: pressures, flows and
consumptions.
- The coupling of characteristic curves of the fan and the room is
very important, so that the flows and pressures provided to the duct
network are as required.
- In case they are not aligned, remove the pulley screws, remove the
pulley and, after removing the taper pin, it can be slid over the axle
(this action can be performed both in the motor as well as in the fan).
- After fixing the pulleys on the same plane, the belt tension is made
by tightening the tensor screw.
- The belt tension must be checked after 24 hours of motor operation.
Attention: Before performing these operations, it is necessary to verify
that the unit is disconnected from mains.
Taper pin
Pulleys must stay on the same plane
Tensor
screw
Pulley
screws
Checks on the plug-fan:
HEE version
- Before commissioning, check the blade rotation direction and that
the axis turns without strokes nor vibrations
- Once running, check the operation conditions: pressures, flows and
consumptions.
- The coupling of characteristic curves of the fan and the room is
very important, so that the flows and pressures provided to the duct
network are as required.
Pulley and belt calibration
Centrifugal motorfans are coupled with pulleys and belts. In this type
of fans, the following must be taken into consideration:
- The pulleys must be on the same plane, so it is important to check
them with the help of a ruler or a laser aligner.

Ductable air-cooled scroll
chillers and heat pumps
15
Air ducts connections
For units designed for installation indoors with ducted supply and
return in the outdoor circuit, it is advisable to have the following
recommendations:
- Curves in the fan discharge supply must be avoided. It is
recommendable to have a straight section of duct measuring
approximately 1 metre. If it is not possible, they must be as smooth
as possible, using indoor deflectors when the duct is of large
dimensions.
- When making the ducts, direction sharp changes must be avoided
since they can generate occasional pressure drops, which affect
the available pressure and the flow. The location of discharge
and aspiration grilles must be studied carefully to avoid the air
recirculation and the transmission and generation of noises to the
interior.
- No matter the type of ducts type to use, these must be insulated and
must not be composed of materials that propagate fire nor expel toxic
gases in the event of a fire. The internal surfaces must be smooth
and should not pollute the air that circulates within them. In any case,
the effective legislation about this issue must be respected.
- Flexible connections must be made between the ducts and the unit
that avoid the noise and vibration transmission.
Flexible connections
Optionally, these units can be sent with flexible connections for supply
and return air.
In case of asking together for flexible connections and damper for
condensation pressure control (optional for version STD), discharge
flexible ducts are attached to the above mentioned damper.
If it is removed the damper for installation on duct, it is necessary to
maintain the frame for reconnecting the flexible connections.

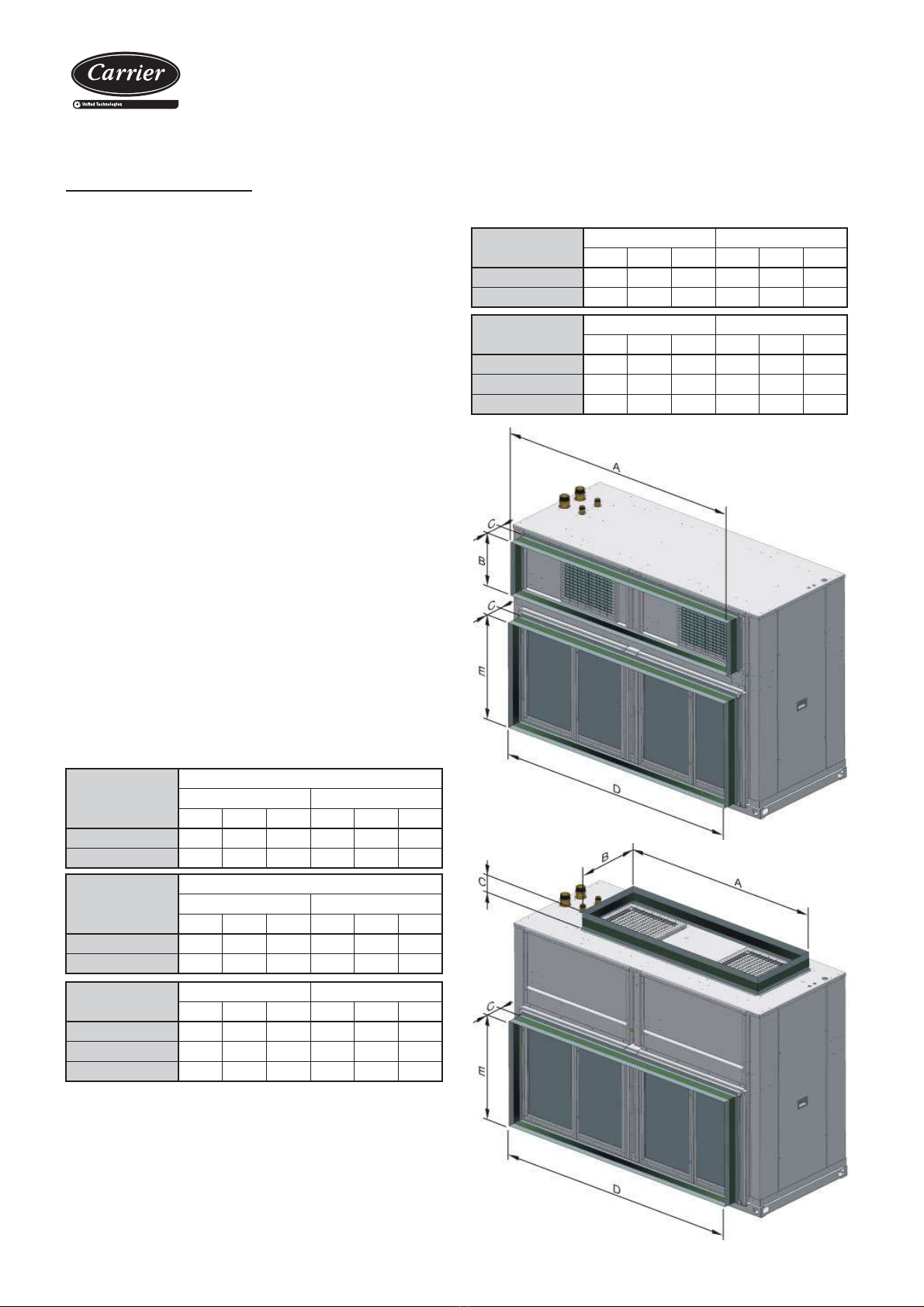

Supply ducts
STD version
Without damper 
M00 dimensions (mm) M01 dimensions (mm)
ABCABC
90STD / 100STD 859 407 132 552 430 152
120STD to 180STD 1139 481 132 652 552 152
HEE version M00 dimensions (mm) M01 dimensions (mm)
ABCABC
90HEE 859 407 132 633 589 132
100HEE / 120HEE 1139 481 132 817 639 132
160HEE / 180HEE 1854 407 132 1619 590 132
STD version
With damper 
M00 dimensions (mm) M01 dimensions (mm)
ABCABC
90STD / 100STD 859 407 132 513 391 132
120STD to 180STD 1139 481 132 613 513 132
Return ducts
Damper for condensation pressure control (optional): add the height
of the damper to the flexible duct.
M00 asssembly:
Horizontal supply
M01 asssembly:
Vertical supply
HEE version Without filters (mm) With filters (mm)
CDECDE
90HEE 132 903 800 109 903 800
100HEE / 120HEE 132 1183 950 109 1183 950
160HEE / 180HEE 132 1897 800 109 1897 800
STD version Without filters (mm) With filters (mm)
CDECDE
90STD / 100STD 132 903 800 109 903 800
120STD to 180STD 132 1183 950 109 1183 950

Ductable air-cooled scroll
chillers and heat pumps
16

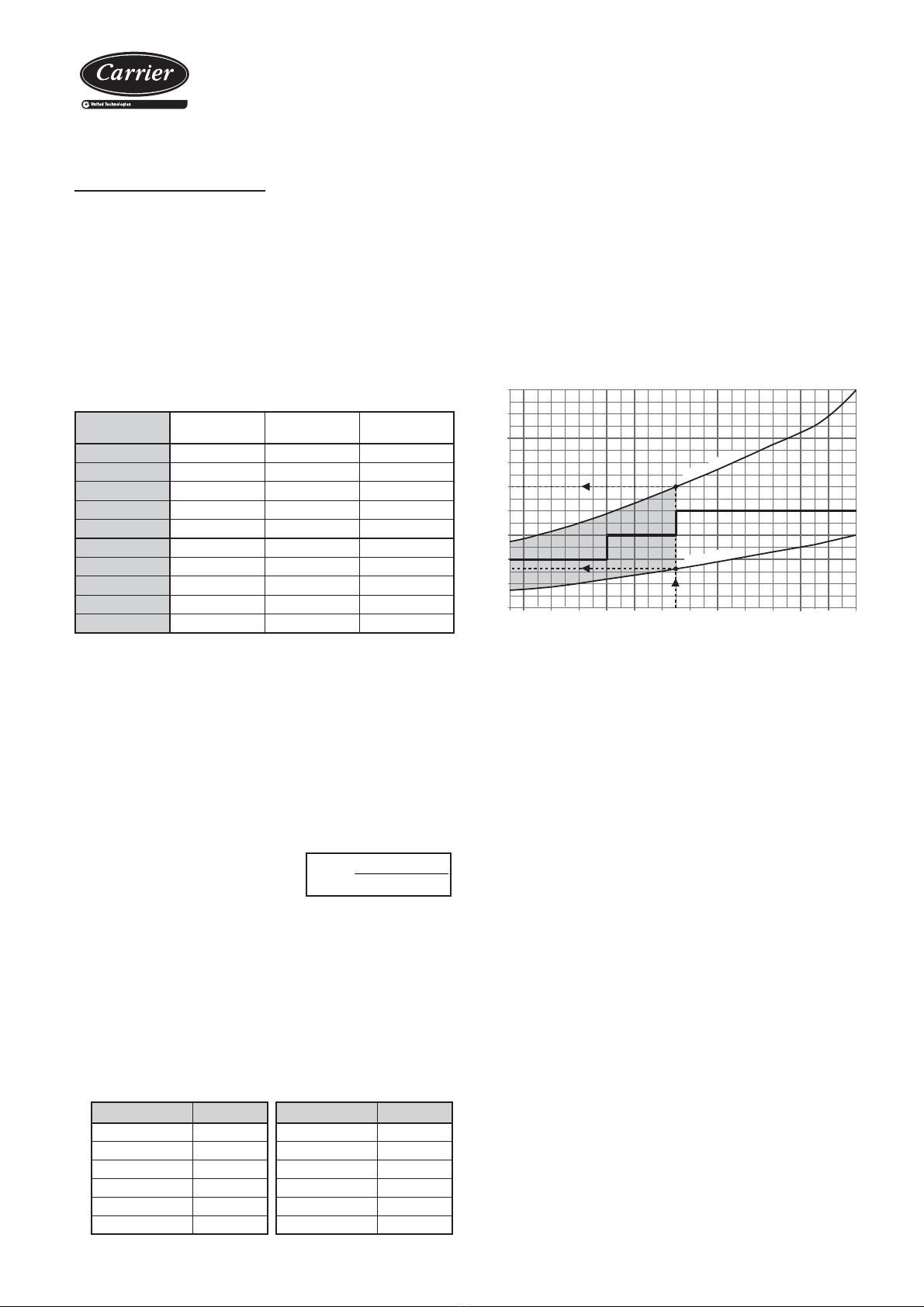

Minimum installation volume
The electronic control for these units incorporates an auto-adaptive
control for the compressor operating time based on the time set for
anti-short-cycle.
This control reduces the number of times the compressor is started
up and permanently adjusts the system's thermal inertia, favouring
the reduction of the minimum volume of water in the installation. The
size of the buffer tank can also be decreased since the unit will be
stopped for less time.
Where:
Vinst Installation volume (l)
Vinst Expansion vessel volume (l)
V1Initial volume of 1kg of water (at water temperature with the machine stopped)
V2Final volume of 1kg of water (at water temp. with the machine at normal speed)
PfFinal network pressure (safety valve pressure in bars + 1)
PiInitial network pressure (absolute filling pressure of the installation in bars)
Note: If the hydraulic circuit has a buffer tank, its volume must be taken
into account for this calculation.
• Volume occupied by 1kg of water at different temperatures:
Maximum installation volume
The water capacity for the installation obtained from this equation
corresponds to the maximum that
the installation allows based on the
expansion vessel assembled.
Installation water volume
Temperature (ºC) Volume (l) Temperature (ºC) Volume (l)
0 1,00013 50 1,0121
4 1,00000 60 1,0171
10 1,00027 70 1,0227
20 1,00177 80 1,0290
30 1,00435 90 1,0359
40 1,00782 100 1,0434
f
ifvessel
INST PVV
PPV
V⋅−
−
⋅
)(
)(
12
=
The calculation of the minimum water volume has been done for nominal
EUROVENT conditions, only in cooling mode. This value is applicable
for the majority of refrigeration applications (group with fan-coil units).
Note: The buffer tank is indispensable in installations that operate with a
reduced volume of water (group with an air handling unit) or for industrial
processes. For applications with a heat pump, it is recommended that
the buffer tank be used in order to maintain a stable temperature during
the defrosting cycles.
Hydraulic connections
30PA/PH/
PAC/PHC
Minimum
volume (I)
Minimum
fl ow (m3/h)
Maximum
fl ow (m3/h)
90STD 101 2,2 6,2
100STD 120 2,7 7,4
120STD 143 3,1 8,8
160STD 187 4,1 11,3
180STD 204 4,3 12,7
90HEE 107 2,1 6,7
100HEE 132 2,9 8,1
120HEE 152 3,3 9,5
160HEE 189 3,7 11,7
180HEE 210 4,0 12,8
Evaporator operating limits
The curves represent the minimum and maximum admissible
temperature increases based on the outlet (discharge) temperature,
for both pure water and glycol water.
For temperature changes that are not listed between the curves, please
consult.
The minimum outlet temperature for the unit will be +5ºC with pure
water and -7ºC with glycol water.
•Example
For an outlet water temperature of +5ºC:
Minimum temp.: 2,6ºC T. condition 7,6ºC / 5ºC
Maximum temp.: 6,0ºC T. condition 11ºC / 5ºC
Anti-freeze protection with glycol water
If a pure product is used for dilution in order to protect the hydraulic
circuit, the following instructions must be followed:
- Do not introduce any of the pure anti-freezing product separately
and then the water in the installation.
- Always prepare the water mixture + anti-freeze + corrosion inhibitor
at the correct dosage prior to introducing it into the installation.
9
8
7
6
5
4
3
2
1
10
-7 -6 -4 -2 0 2 4 6 8 10 12 14 16 18
Water outlet temperature °C
ΔT Admissible difference between water I/O °C
maximum ΔT
minimum ΔT
Procedure:
- At minimum, a complete rinsing of the hydraulic installation must be
performed.
- After the final rinsing, the installation must be completely drained.
- Introduce the water/anti-freeze/inhibitor mixture and increase the
pressure with a hydraulic pump.
We recommend using a filling device with a non-return valve for
compliance with the domestic anti-contamination standards. The
device must never in any case be connected to the city network if
the additives used in the hydraulic circuit are not approved by the
Ministry of Sanitation in the country of installation.
- Completely purge the installation.
- Circulate the mixture throughout the entire installation for a minimum
of 2 hours prior to starting up the unit.
- Check the final dosage obtained with a densimeter or refractometer.

Ductable air-cooled scroll
chillers and heat pumps
17
Concentration % 0 10 20 30 40 50
Mono-ethylene glycol (MEG) ºC 0 -3 -7 -13 -20 -29
Mono-propylene glycol (MPEG) ºC 0 -2 -5 -10 -15 -21
-25
-30
-15
-20
-5
-10
0
20 40 5010 30
-45
-35
-40
0
3
4
1
2
Temperature °C
Volume concentration %
Warning: the glycol concentration must keep the fluid at least 6°C
below the outlet water temperature foreseen in the evaporator in order
to allow a correct adjustment of the evaporator's minimum pressure
regulation. If the concentration is below the necessary amount, there
is a risk of freezing. On the other hand, any excess of concentration
entails a decrease in performance.
Required glycol concentration
Note: The values are offered as a guide according to the standard
characteristics of the MEG. These may vary based on the MEG
manufacturer, which is why it is necessary to consult the manufacturer
data in order to guarantee protection up to the desired temperature.
Minimum freezing and usage temperature graphs
Minimum usage temperature:
- Mono-propylene glycol
- Mono-ethylene glycol
Freezing temperature:
- Mono-propylene glycol
- Mono-ethylene glycol
Corrosion behaviour
* Max. 60ºC
+ Good resistance under normal conditions.
0 There may be corrosion problems, especially if other factors intervene.
- Not advisable.
Note: For open-circuit installations, if it is not possible to
maintain the water conditions within the values indicated
in the previous table, it will be necessary to install an
exchanger that separates the unit's circuit from the water
circuit to be treated by using materials compatible with these
characteristics, whether stainless steel or titanium.
The units' hydraulic circuits are made of copper pipes. The exchanger
plates are made of AISI-316 stainless steel, and the material used for
soldering the plates is copper.
The following table indicates corrosion behaviour for copper and the
AISI-316 stainless steel with regard to water with different compositions.
Values outside these ranges can cause corrosion problems in the
hydraulic circuit and in particular in the plate exchangers.
It is recommended that the water filling the hydraulic circuits be filtered
and treated, if necessary.
Water content Concentration (mg/l) AISI 316 Copper
Organic substances + 0
Electrical
conductivity
< 500 S/cm + +
> 500 S/cm + -
NH3
< 2 + +
2 - 20 + 0
> 20 + -
Chlorides *
< 300 + +
> 300 0 +
Sulphites, chloride-free
< 5 0 +
> 5 0/- 0
Iron in solution
< 10 + +
> 10 + 0
Free carbonic
acid
< 20 + 0
20 - 50 + -
50 + -
Manganese in
solution
< 1 + +
> 1 + 0
pH value
< 6 0 +
6 - 9 0/+ +
> 9 + 0
Oxygen
< 2 + +
> 2 + +
Sulphates
< 70 + +
70 - 300 + 0
> 300 - -
- Check the pH obtained with pH paper strips or a pH metre.
- Place a label in a visible place that indicates:
* the presence of anti-freeze in the installation,
* the name of the product and the supplier,
* the dosage and the pH as of the time the unit is started up.
If more amount is needed, it must be exactly the same mixture as
the product initially used.
The following table and curves feature the minimum glycol percentages
required for the installation in accordance with the freezing point.
The pumps that incorporate the 30PAC/PHC units can work with any
concentration of mono-ethylene glycol, albeit with a reduction in the
available pressure due to the variation of water flow. The pump must
be changed for mono-propylene glycol (upon request).

Ductable air-cooled scroll
chillers and heat pumps
18

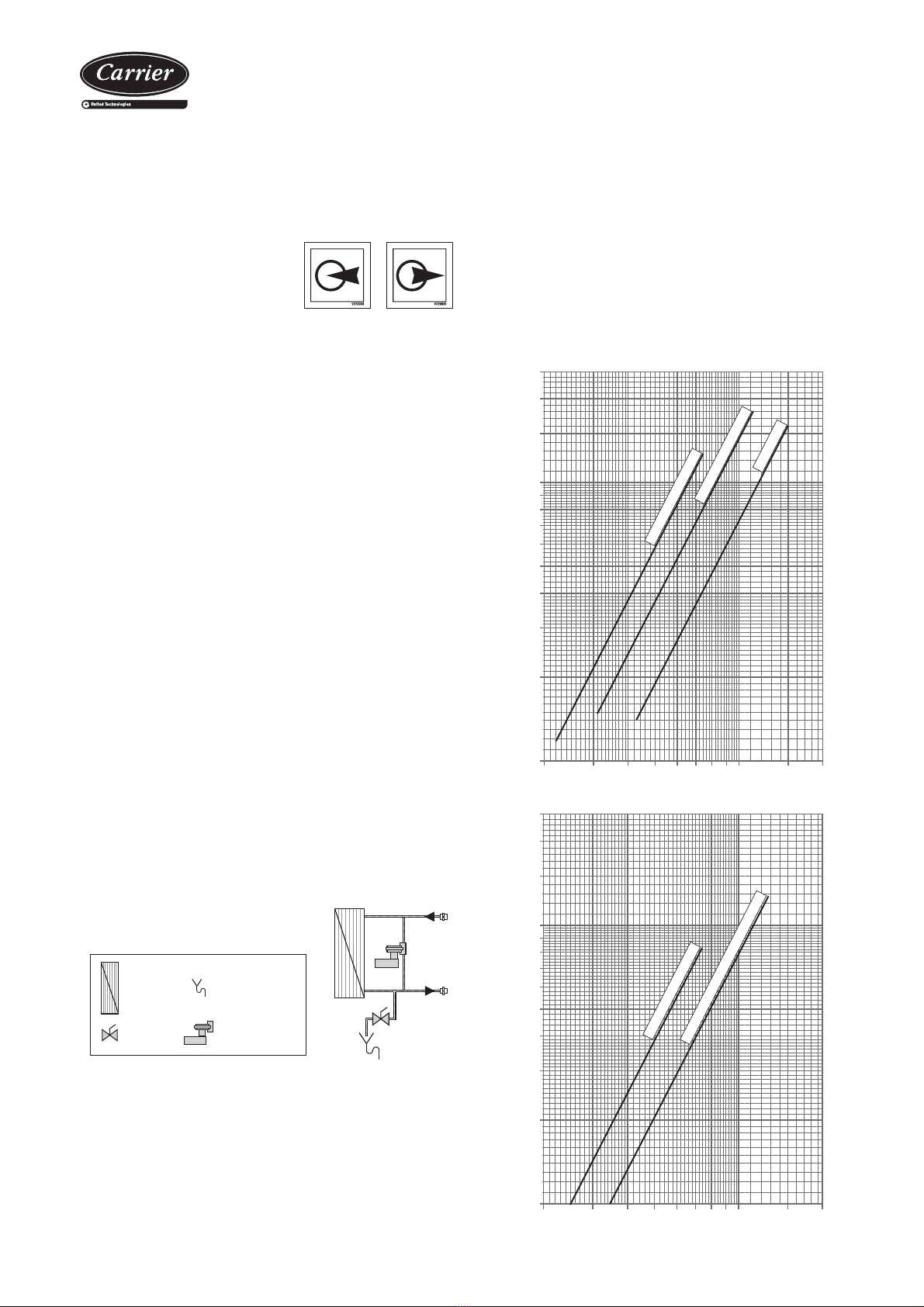

Installation hydraulic diagram
The design of the hydraulic circuit must observe the operating conditions
(flows - pressure drops).
- The direction of water circulation
must be observed as indicated on
the stickers on the unit.
In this case the installer must set up the complete hydraulic circuit
with all the components: thermal buffer tank, motorised pump group,
expansion vessel, safety, regulation, cut-off and draining valves, air
bleeder valve, etc.
It is also necessary to install a filter in the hydraulic power
supply to the unit in order to prevent clogging of the plate
exchanger. Non-compliance with this recommendation can
cause reduced fl ow which can lead to freezing and breaking
of the exchanger.
- The diameters of the unit hydraulic connections can be referred in
the tables of “Technical characteristic” .
- It is advisable to use flexible hoses for connecting the piping to the
unit in order to reduce the transmission of vibrations to the building
to the greatest degree. It is mandatory to assemble hoses if the unit
is installed over shock absorbers. Optionally, a flexible hydraulic
connections kit can be supplied.
- The pipe layouts must be set out with the lowest possible number
of bends to minimise pressure drops. The pipes must be correctly
supported to prevent exerting excessive force on the unit connections.
- Before insulating the tubes and charging the system perform a
preliminary check to verify that there are no drops in the installation.
- The pipes must be carefully insulated to prevent leaks and
condensation. Ensure that the material used is steam barrier type.
Otherwise, cover the insulation using appropriate protection.
- The water must be analysed and the circuit must be set out according
to the results. If necessary, an expert in water treatment must be
consulted (see section on corrosion behaviour).
- In installations to open circuits, if it is not possible to maintain
the water conditions within the values indicated in the corrosion
behaviour table featured, it will be necessary to install an
exchanger that separates the unit circuit from the circuit of the
water circuit to be dealt with by using materials compatible with
these characteristics, whether stainless steel or titanium.
- Plan the anti-freeze protection for the installation when the outdoor
temperature is low: water with anti-freeze, thermal insulation of the
hydraulic circuit, electrical heaters in the hydraulic circuit, draining
from the installation when the unit does not work, etc.
Both at the inlet and the outlet of the unit, install thermal pressure
gauges which enable supervising the operation of the installation,
or at least plan the installation of these.
Note: optionally, a kit can be supplied with :
- A stainless steel mesh filter (500 microns).
- Cut-off and water regulation valves.
- Flexible hydraulic connections of 500 mm.
1
2
20
25
3
4
5
6
7
8
10
9
15
2 3 10 15 20674 5 89
120STD / 160STD
90STD / 100STD
180STD
Flow (m3/h)
30PA/PH pressure drop (m.w.c.)
1
2
3
4
5
6
7
8
10
9
15
20
25
2 3 10 15 20674 5 89
90HEE - 100HEE
120HEE - 160HEE - 180HEE
30PA/PH pressure drop (m.w.c.)
Flow (m3/h)
• 30PA/PH version
DIFFERENTIAL
PRESSURE SWITCH
PLATES
EXCHARGER
SHUT-OFF
VALVE
DRAINAGE
CIRCUIT
Schematic diagram of the hydraulic
circuit

Ductable air-cooled scroll
chillers and heat pumps
19
• 30PAC/PHC version (circulation pump included)
These units include a motorised pump group made up of: centrifugal
circulation pump, closed expansion vessel, safety valve with a tare
value of 4 bar, draining valve, and automatic air bleeder valve (model
160HEE and 180HEE).
A kit with a stainless steel mesh filter (500 microns) is also supplied
for installation by the installer. It is also necessary to install this
filter in the hydraulic power supply to the unit in order to prevent
clogging of the plate exchanger.
The following graph represents the pressure drop for that filter:
1
2
20
25
3
4
5
6
7
8
9
10
15
2 3 10 15 20674 5 89
90HEE - 100HEE
120HEE - 160HEE - 180HEE
Flow (m3/h)
30PAC/PHC pressure drop (m.w.c.)
2 3 10 15 20
1
2
20
3
4
5
6
7
8
9
10
15
25
674 5 89
120STD / 160STD
90STD / 100STD
180STD
30PAC/PHC pressure drop (m.w.c.)
Flow (m3/h)
0,2
2
3
0,3
0,4
4
0,5
5
0,6
0,7
7
0,8
1
Pressure drop in the filter (m.w.c.)
6
0,9
120 /160 / 180
90 / 100
2 3 10 15 20674 5 89
Flow (m3/h)
Schematic diagram of the hydraulic circuit
DIFFERENTIAL
PRESSURE SWITCH
PLATES
EXCHARGER
SHUT-OFF
VALVE
DRAINAGE
CIRCUIT EXPANSION
VESSEL
CIRCULATOR
PUMP
SAFETY
VALVE
MESH
FILTER

Ductable air-cooled scroll
chillers and heat pumps
20
The installer must prepare the other accessories for completion of the
hydraulic circuit: thermal buffer tank, air bleeder valve (except models
160HEE and 180HEE), regulation, cut-off and draining valves, etc.
Both at the inlet and the outlet of the unit, install thermal pressure
gauges which enable supervising the operation of the installation,
or at least plan the installation of these.
Note: optionally, a kit can be supplied with :
- Cut-off and water regulation valves.
- Flexible hydraulic connections of 500 mm.

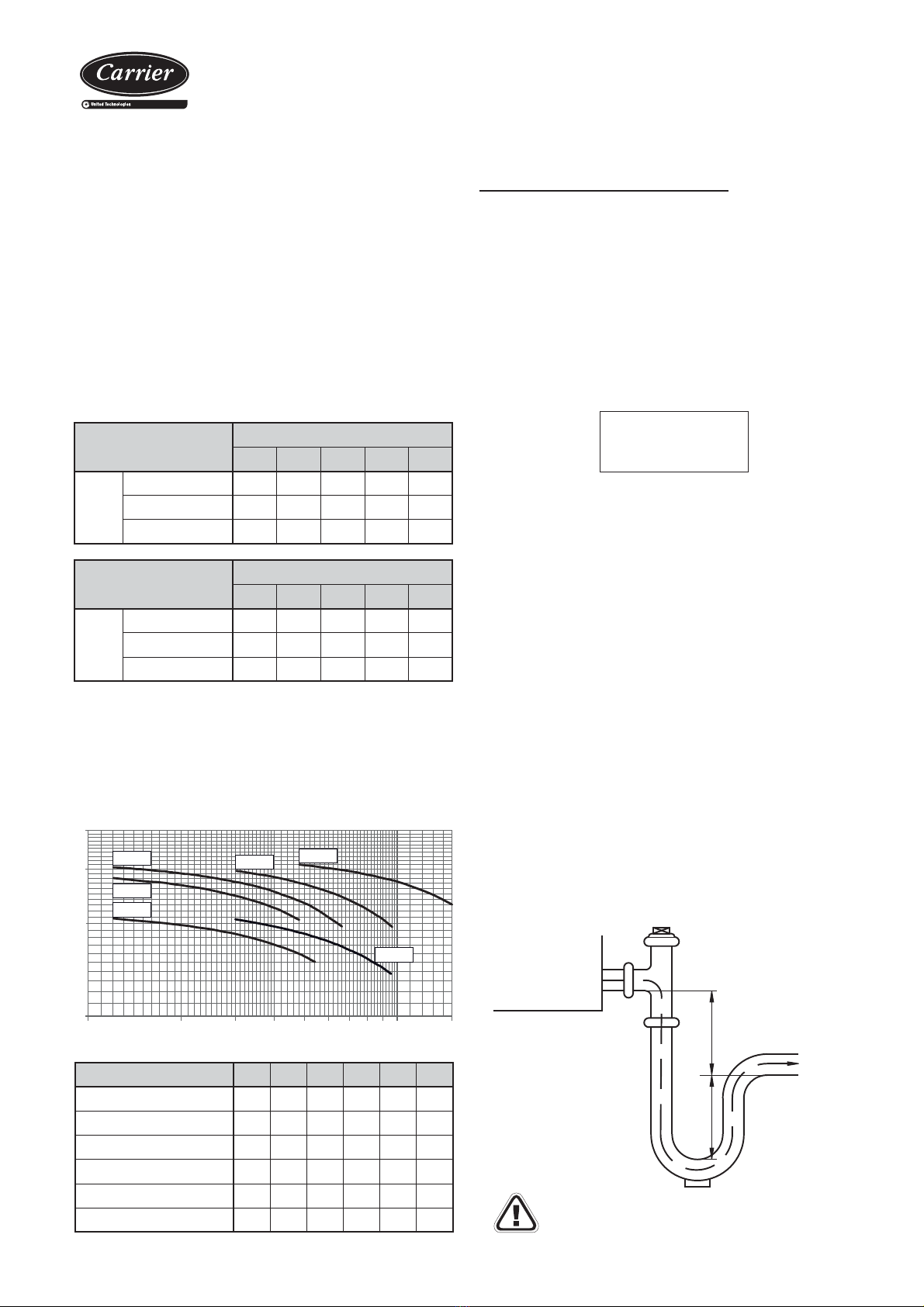

Circulation pumps available for 30PAC/PHC
1 3 4 5 7 8 9 10 15
10
20
30
40
A
vailable pressure (m.w.c.)
Flow (m
3
/h)
3.171
3.172
3.173
26
3.229
3.174 3.175
Note: These pumps can operate with glycol water (mono-ethylene
glycol), although with a reduction of the available pressure (due to the
flow variation with glycol water). The correction coefficients for operation
with glycol water can be referred to in the technical brochure for these
units (No. 10056).
30PAC/PHC
Versión STD
90STD 100STD 120STD 160STD 180STD
Number
of pump
Standard 3.171 3.172 3.172 3.173 3.174
High-pressure (opt.) 3.173 3.173 3.174 3.174 3.175
Low-pressure (opt.) -- 3.171 3.171 3.171 3.229
30PAC/PHC
Versión HEE
90HEE 100HEE 120HEE 160HEE 180HEE
Number
of pump
Standard 3.171 3.172 3.172 3.173 3.174
High-pressure (opt.) 3.173 3.173 3.174 3.174 3.175
Low-pressure (opt.) -- 3.171 3.171 -- 3.229
Number of pump 3.171 3.172 3.173 3.174 3.175 3.229
Motor output (kW) 0,37 0,55 0,75 0,9 1,5 0,55
Maximum abs. current (A) 1,4 2,0 2,3 2,7 4,0 2,0
Minimum water fl ow (m3/h) 1,2 1,2 1,2 3,0 4,8 3,0
Maximum pressure (m.w.c.) 20,7 28,0 30,3 29,5 31,6 20,6
Maximum water fl ow (m3/h) 5,4 4,8 6,6 9,6 15,0 9,6
Minimum pressure (m.w.c.) 15,0 20,5 19,5 19,5 23,0 13,7
CONNECT SIPHON
METTRE SIPHON
PONER SIFON
V220014
Siphon installation norms
All water drain tubes must be provided with a siphon to avoid bad smell
and water spills.
• Pan in underpressure:
Water must be suctioned from the pan because of the depression
with respect to the motorfan assembly.
Perform the siphon assembly as per the scheme of the attached
starting diagram:
- For the correct siphon design, the "A" height must be at least twice
that of the underpressure (mm.w.c) where the condensate pan is
placed.
- Check that the condensate outlet is not clogged.
- The drain piping must be slightly sloped to ease circulation towards
the drain.
- The original diameter of the piping must be respected. No reduction
can be made.
- With outdoor temperatures which are lower than 0°C, the necessary
precautions must be taken to prevent the water in the drain ducts
from freezing.
A
Condensates pan
in depression
A
Siphon drain
Slight slope
5/1000
To drainage
Check the watertightness of the connection.
Attention: With low outdoor temperatures, the electrical heater-based
anti-freeze protection option for the pan is recommended. Mandatory
when outdoor temperatures are below 3°C.
Condensate drain connection
In 30PA/PH/PAC/PHC units, the condensate drain pan includes a 3/4”
M bronze, bleeding trunk for draining condensates.
• Pan in overpressure:
It is installed to avoid the access through the drain piping of bad
smells.
