80AWX- 80AWH
English
Hydronic module
Contents Page
Introduction
Introduction................................................................................. 13
General information............................................................... 13
Model identication............................................................... 13
Codes and combinations...................................................... 14
Accessories................................................................................ 14
Application scheme................................................................... 15
Unit description .......................................................................... 15
Box content .............................................................................. 15
Controller Operation ...........................................................16-24
Heating / cooling mode........................................................ 23
Domestic Hot Water mode................................................... 23
OFF mode.................................................................................. 23
Domestic hot water function .............................................. 23
Frost protection ...................................................................... 24
Home antifreeze protection................................................ 24
Water pump management .................................................. 25
Pump unblocking procedure.............................................. 25
Output conguration............................................................ 25
Pump Down.............................................................................. 25
Silent mode .............................................................................. 25
The hydronic module is the indoor unit of the 38AW heat
pump range.
It is used in combination with oor circuit, fan coil units,
radiators, domestic hot water tank (with or without solar
integration).
The hydronic module controls the CDU and the other heat/
cool sources, in order to achieve the desired temperature in
the heating / cooling zones and in the domestic hot water.
General information
Model identication
Zone control settings ............................................................ 25
Input related functions ......................................................... 26
Miscellaneous.......................................................................... 26
Installation..............................................................................26-31
Unit Dimensions and Weights............................................. 26
Installation recommendations............................................ 27
Features...................................................................................... 27
Water connections.................................................................. 28
Refrigerant connection ......................................................... 28
Pump speed selection............................................................ 28

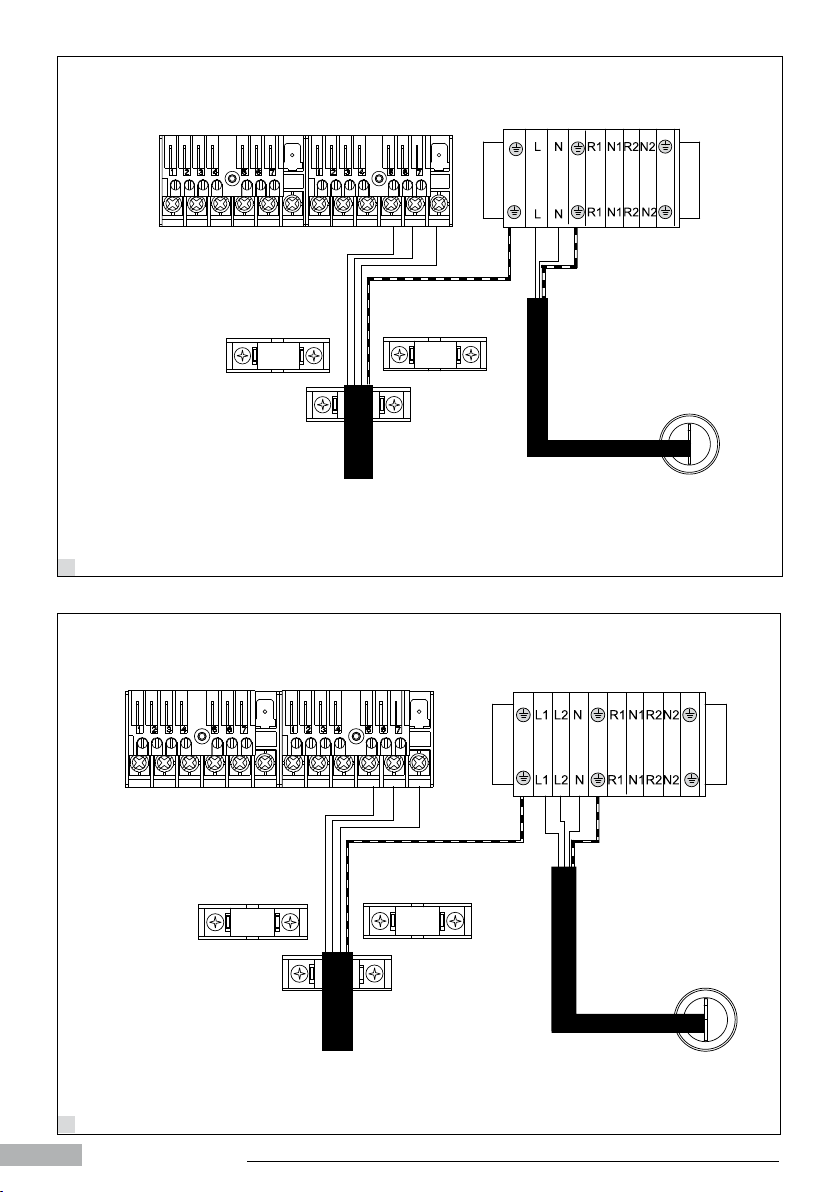

Power wiring diagram............................................................ 29

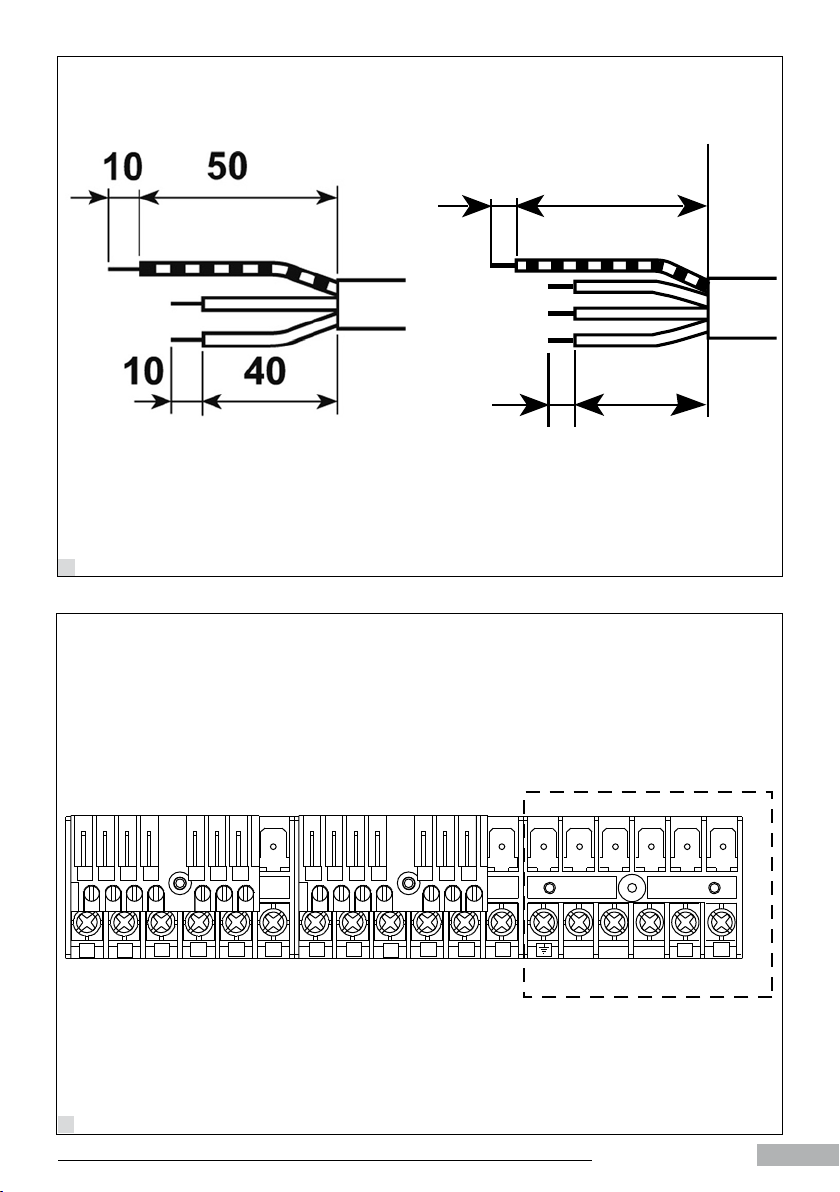

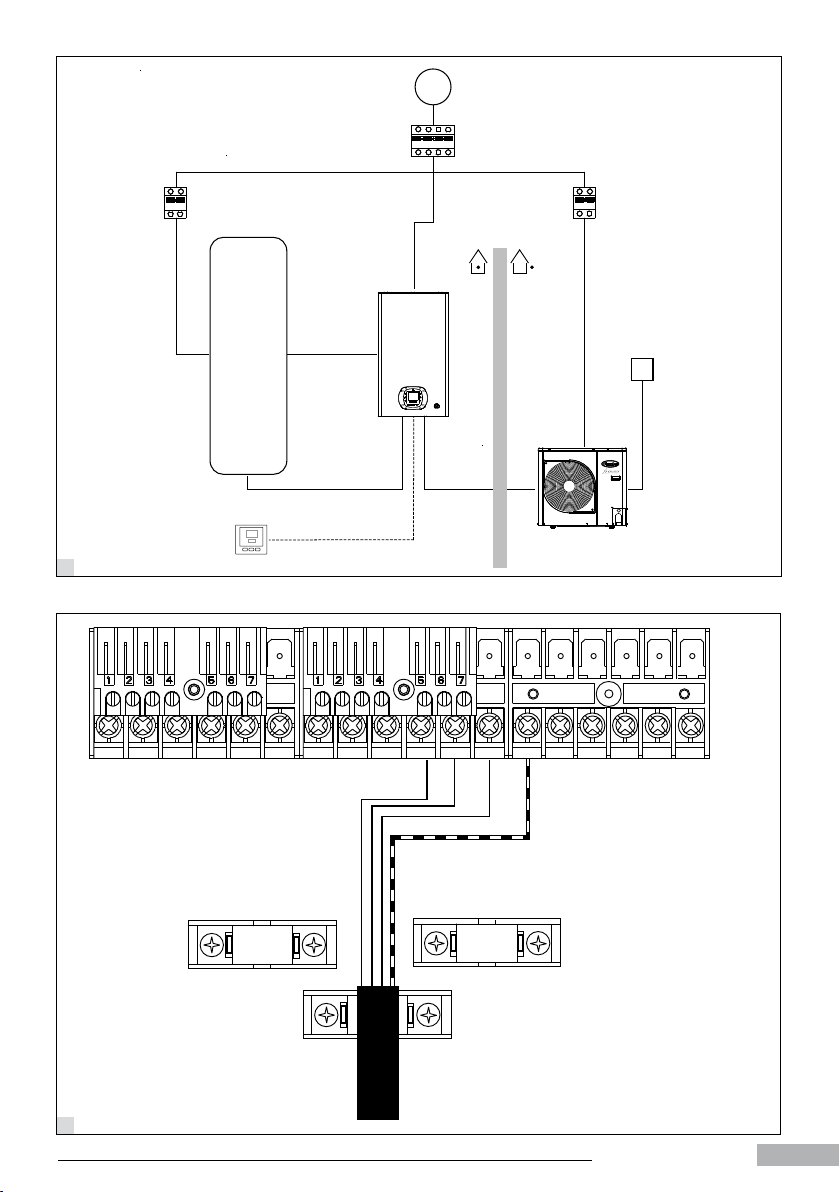

Wiring Connection Diagram................................................ 30
Commissioning........................................................................ 31
Maintenance..........................................................................31-35
Filter cleaning........................................................................... 31
Adding water to the circuit................................................... 32
Diagnostics ............................................................................... 32
Safety recommendations......................................................... 35
80AW X 065 M 6
Product range
heating capacity (kW)
X: heating and cooling
H: heating only
Electric heater power (kW)
(0 is used for boiler backup)
Power supply
M: monophase
T: triphase

14
English
80AWX- 80AWH
Introduction
Codes and combinations
Accessories
Outdoor unit Indoor unit
38AW050H7
38AW065H7
80AWX065M0
80AWX065M3
80AWX065M6
80AWX065T6
80AWH065M0
80AWH065M3
80AWH065M6
80AWH065T6
38AW090H7
38AW115H7
80AWX115M0
80AWX115M3
80AWX115M6
80AWX115T6
80AWX115T9
80AWH115M0
80AWH115M3
80AWH115M6
80AWH115T6
80AWH115T9
Accessory Code
Domestic hot water tank, 1 spiral - 200 lt 60STS020E03
Domestic hot water tank, 2 spirals - 200 lt 60STD020E03
Domestic hot water tank, 1 spiral - 300 lt 60STS030E03
Domestic hot water tank, 2 spirals - 300 lt 60STD030E03
Remote Outdoor sensor 33AW-RAS02
Domostic hot water 3 way valve and actuator 80AW9023
Floor heating thermal cut o (EN1264-4, paragraph 4.2.4.1) 80AW9024
Additional user interface* 33AW-CS2
Communication kit 33AW-CB01
2 zone kit 80AW9025
* Communication kit (33AW-CB01) is required to complete the installation

15
80AWX- 80AWH
English
Application scheme
Unit description
See g. 1
Outdoor Unit1.
Hydronic module2.
Domestic hot water tank (optional)3.
Ball valves (eld supplied)4.
Water lter (eld supplied)5.
Collectors (eld supplied)6.
3 way valve (optional)7.
T1, T2, T3: terminals
C1, C2, C3: thermostats connected to terminals
C: user interface (additional or shifted from the unit) or
thermostat connected to hydronic module
Terminals
Terminals can be of the following types:
oor circuit•
fan coils•
radiators•
low temperature radiators•
Dierent terminals have dierent water temperature
requirements.
To ensure comfort, it is suggested not to use, at the
same time, terminals with dierent water temperature
requirements.
Example: it is possible to use oor circuit for heating and fan
coil for cooling, but using both at the same time (in heating
or cooling) will cause discomfort.
Floor circuit is the recommended terminal, as it ensures the
best energy eciency.
See g. 2
Outlet water pipe1.
Boiler pipes (only models 80AW----M0)2.
Inlet water pipe3.
Filling valve4.
Refrigerant pipes5.
See g. 3
User interface (mounted on unit)1.
Manometer2.
Water pump3.
Control box4.
Main board5.
See g. 4
Hydronic module1.
Wall bracket2.
Replacement cap for shifted user interface3.
Hydronic module manual4.
User interface manual5.
Terminal blok6.
Water temperature sensor - LWT7.
Expansion vessel8.
Flow switch9.
Pressure relief valve10.
Electric heater (not for models 80AW----M0)11.
Buer tank (10 lt)12.
Brazed plate heat exchanger13.
Water temperature sensor - TWB14.
Air purge valve15.
Refrigerant sensor - TC16.
Room temperature control
Dierent terminals (T1, T2…Tn) can be placed in a single
room or in multiple rooms.
Each of them can have a thermostat, to stop the terminal
when a certain temperature is reached.
It is possible to control 1 room with a user interface or a
thermostat connected to the unit.
This room should be the one with the highest heating/
cooling requirements.
In this room it is not required to place a thermostat on the
terminal/s.
It is suggested to place a thermostat on terminals placed in
rooms with signicantly dierent thermal requirements.
It is recommended to control the room with the user
interface; this way the control adjusts water temperature
to meet the setpoint and comfort and energy eciency are
optimized.
If no user interface is used:
if thermostats are used, set climatic curves slightly higher•
in heat mode and slightly lower in cool mode
if no thermostats are used (temperature requirements•
should be similar for all rooms), climatic curves must be
set exactly right for both heating and cooling operation
Box content

16
English
80AW1 - 80AW2
Controller operation
System operation is set and monitored through the control settings.
The user interface allows navigating through the settings and modifying them.
Code
Nr. Level Variable Name DESCRIPTION VALUE RANGE DEFAULT
Min Max
USER PARAMETERS
1 User USER CONTROL
Use Days button for selection of below
0 1
0. Home Antifreeze option 1
0 : Disable
1 : Enable
1. Silent Mode 0
0: Not Active
1: Active
2. Power O all the Electric Heater 0
0: Operating as normal
1: Electric heater disable
3. Species if domestic hot water is produced despite sensor
diagnostics or disinfection cycle failure
0
The code is self reset to 0 when the above problems are
solved
0: No
1: Yes
4. Species if the system is allowed to run only with backup
/ booster heaters when the Outdoor unit is in diagnostics
0
0. No
1. Yes
5. Domestic hot water BOOSTER: allows to heat up domestic
hot water electric heater regardless the heater schedule
0
The code is self reset to 0 once domestic hot water
setpoint is reached
0. Domestic hot water heater is turned on, if needed,
according to schedule
1. Domestic hot water heater is turned on, if needed,
regardless the schedule
6. Water Pump Management zone 1 0
0. Water pump of zone 1 does not stop when room 1
setpoint is reached
1. Water pump of zone 1 stops when room 1 setpoint is
reached
7. Water Pump Management zone 2 0
0. Water pump of zone 2 does not stop when room 2
setpoint is reached
1. Water pump of zone 2 stops when room 2 setpoint is
reached
2 User HOME ANTIFREEZET° Home Antifreeze threshold T° value. 6°C 12°C 6°C
3 User FREQ REDUCT Value of the Outdoor unit frequency reduction in % 50% 100% 100%
4 User Room Hystersis Hysteresis on Room Temperature (see thermostat function) 0,1 2 0,5
5 User ADJUST T°ZONES
Modies maximum temperature of heating climatic curve
and minimum temperature of cooling climatic curve.
-5°C +5°C 0°C
Use Days button for selection of below
0. Water set point adjustment in Heat mode for zone1
1. Water set point adjustment in Heat mode for Zone2
2. Water set point adjustment in Cool mode for zone1
3. Water set point adjustment in Cool mode for zone2
6 User DAY PERIOD
User can select how many period per day will be avaialble
for the scheduling.
1 3
Use days button for selecting the below.
Day 0 - Zone 1&2 Schedule 3
0. no schedule; no Schedule Icon will be displayed
1. 2 periods
2. 4 periods
3. 6 periods
Day 1 - Domestic hot water Schedule 1
1. 2 periods
2. 4 periods
7 User TROOM SENSOR
ADJ ZONES
Days button shall be used for the below selection
-5°C +5°C 0°C0. Room temperature sensor adjustment for zone1
1. Room temperature sensor adjustment for zone2

17
English
80AW1 - 80AW2
8 User TEMP LIST
Depending on the selection, the following temperatures will
be displayed on the user interface
1 8 1
1. Temperature of the zone:
Zone 1: room temperature
Zone 2: room temperature
Zone 3: Domestic hot water temperature
2. LWT
3. Domestic hot water tempe
4. TWB
5. TW1 (Water temperature in Zone 1)
6. TW2 (Water temperature in Zone 2)
7. Not used
8. Not used
9 User FAULT CODES Hydronic module, zone kit , user interface and outdoor unit
fault codes and alarms scrolled @ 1 second. - - -
10 User FAULT HISTORY Stores the recent 4 fault codes and alarms. - - -
INSTALLER PARAMETERS
System setup
100 Inst. SYSTEM TYPE
This parameter is used by the Installer in order to determine
the System type: 1 2 1
Select 1 if there is no kone kit connected, otherwise select 2.
101 Inst. NOT USED
102 Inst. NOT USED
103 Inst. GMC ADDRESS
This parameter is dening if the board is acting as hydronic
module board (master) or zone kit board (slave).
1 2 1
To modify this parameter connect the user interface to the
specic board through J5 connector; user interface wiring
as per connection to W-C-G-Y terminal blocks (see user
interface manual)
1. Master
2. Slave
104 Inst. NUI ADDRESS
Species the user interface connection. If this parameter is
not set properly, user interface does not work.
242 244 242
242. User interface connected on W-C-G-Y, see user interface
manual
243. User interface connected on Rc-Rh-G2-Y2 (see user
interface manual) and placed in zone 1
244. User interface connected on Rc-Rh-G2-Y2 (see user
interface manual) and placed in zone 2
105 Inst. ZONES CTRL
This parameter is dening the Ctrl in zones. Use Day Button
and select the following.
0 4 0
0. Zone 1 CTRL
0. No control
1. User interface (additional user interface, connected on
Rc-Rh-G2-Y2)
2. Sensor
3. Thermostat
4. Unit user interface removed from unit and mounted in
zone; connection on W-C-G-Y
1. Zone 2 CTRL
0. No control
1. User interface (additional user interface, connected
on Rc-Rh-G2-Y2)
2. Sensor
3. Thermostat
4. Unit user interface removed from unit and mounted
in zone; connection on W-C-G-Y
Controller operation
Code
Nr. Level Variable Name DESCRIPTION VALUE RANGE DEFAULT
Min Max

18
English
80AWX- 80AWH
Controller operation
Code
Nr. Level Variable Name DESCRIPTION VALUE RANGE DEFAULT
Min Max
106 Inst. INTERFACE CONFIG
Use Days button and do the selection of below
0 1
0. Domestic hot water input - conguration 0
0: contact close: input is active / contact open: input is
not active
1: contact close: input is not active / contact open: input
is active
1. Space heat/cool ON/OFF input - conguration (no impact
on Domestic Hot Water production) 1
0: contact close: unit produces space htg/clg / contact
open: unit does not produce space htg/clg
1: contact close: unit does not produce space htg/clg /
contact open: unit produces space htg/clg
2. Heat / Cool selection input- conguration 1
0: contact close: unit performs space heating / contact
open: unit performs space cooling
1: contact close: unit performs space cooling / contact
open: unit performs space heating
3. Hi energy rate input - conguration 0
0: contact close: high energy rate / contact open:
normal energy rate
1: contact close: normal energy rate / contact open:
high energy rate
4. External HTG/CLG 1
0: Mode (Heat/Cool) is determined by dry contact
1: Mode (Heat/Cool/OFF/Domestic Hot Water) is
determined by user interface (106.2 is ignored)
5. Cool Z1 0
0: Cool in Zone 1 forbidden
1: Cool in Zone 1 permitted
6. Cool Z2 0
0: Cool in Zone 2 forbidden
1: Cool in Zone 2 permitted
7. System ON / OFF input - conguration 0
0: contact close: system OFF / contact open: system
running
1: contact close: system running / contact open:
system OFF
107 Inst. FLOW SWITCH
CONFIGURATION
Use Days button and do the selection of below
0 1
1
0
0.
0: Open - owing / Short: not owing
1: Short - owing / Open: not owing
1.
0: Do not allow water owing when unit pump is OFF (no
external pump used)
1: Allow water owing when unit pump is OFF (external
pump used)
108 Inst. MASTER OUTPUT
CONFIGURATION
Use UP/Down buttons for choosing 1 to 10.
1 16 4
1. Fan Coil - Fan coils do not work when Domestic hot water
valve is activated
2. Fan Coil - Fan coils always working
3. Fan coils do not work when Domestic hot water valve is
activated, unless the mode is Cool
4. Dehumidier
5. All alarms
6. Alarms stopping the outdoor unit
7. Alarms stopping the entire system
9. Defrost
10. All alarms + Defrost
11. Alarms stopping the outdoor unit + Defrost
12. Alarms stopping the entire system + Defrost
13. Not used
14. Not used
15. Not used
16. Not used

19
80AWX- 80AWH
English
Controller operation
Code
Nr. Level Variable Name DESCRIPTION VALUE RANGE DEFAULT
Min Max
109 Inst. SLAVE OUTPUT
CONFIGURATION
Use Days button for the selection of below
0 3
01
0. 3 way valve
1. Others
13
0. zone 1: Fan coils do not work when Domestic hot water
valve is activated
1. zone 1: Fan coils always working
2. zone 1: Fan coils do not work when Domestic hot water
valve is activated, unless the mode is Cool
3. zone 1: Dehumidier
23
0. zone 2: Fan coils do not work when Domestic hot
water valve is activated
1. zone 2: Fan coils always working
2. zone 2: Fan coils do not work when Domestic hot
water valve is activated, unless the mode is Cool
3. zone 2: Dehumidier
110 Inst. HUMIDITY LIMIT This code denes the Humidity threshold limit to enable the
output for the external de-humidier 20 100 100
111 Inst. ANTIFROST T° This code is dening the Temperature below which the
water frost protection will be activated 4°C 10 4°C

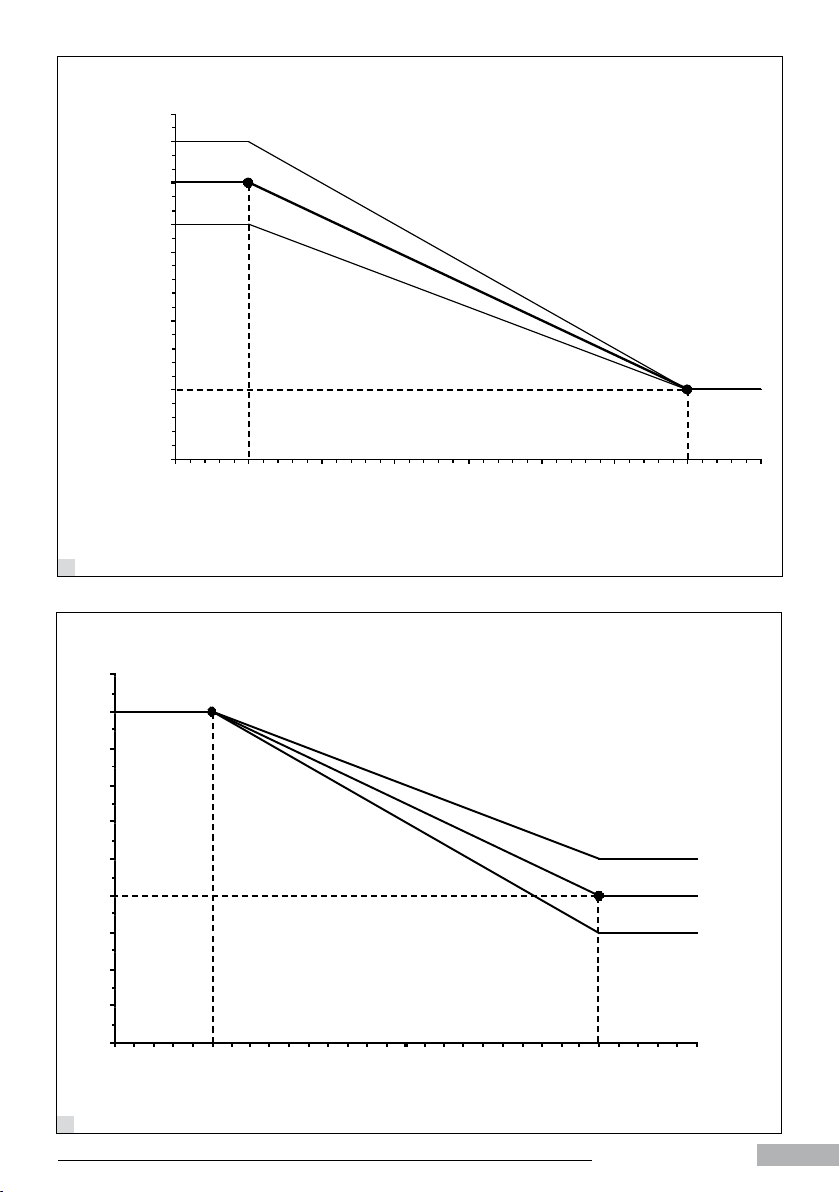

Climatic Curve
112 Inst. HEAT CLIMATIC
NUMBER
Use Days button for the selection of Heat climatic curve:
0 6 0
0. - zone 1
0. No predened climatic curve(Installer has to set climatic
curve)
1 - 6. See manual for climatic curve details
1. - zone 2
0. No predened Climatic Curve (Installer has to set
climatic curve)
1 - 6. See manual for climatic curve details
113 Inst. REGION T° O Minimum outdoor T° depending on the country where the
system is installed (Heat Climatic Curve Zone 1 and 2) -20°C 10 °C -7°C
114 Inst. STOP H T° O
If outdoor T° is equal or greater then the value of this code,
minimum water tempreature is considered (Heat Climatic
Curve Zone 1 and 2)
15°C 50°C 20°C
115 Inst. NO HEAT T W1 In Heat mode, minimum water T° going to terminal zone 1
(Heat Climatic Curve Zone 1) 20°C 60°C 20°C
116 Inst. MAX W T° W1 In Heat mode, maximum water T° in terminal zone 1 (Heat
Climatic Curve Zone 1) 20°C 80°C 35°C
117 Inst. NO HEAT T W2 In Heat mode, minimum water T° going to terminal zone 2
(Heat Climatic Curve Zone 2) 20°C 60°C 40°C
118 Inst. MAX W T° W2 In Heat mode, maximum water T° in terminal zone 2 (Heat
Climatic Curve Zone 2) 20°C 80°C 55°C
119 Inst. COOL CLIMATIC
NUMBER
Days button shall be used for the Selection of Cool climatic
curve:
0 2 0
0. - zone 1
0. No predened climatic curve(Installer has to draw
climatic curve)
1 - 2. See manual for climatic curve details
1. - zone 2
0. No predened climatic curve (Installer has to draw
climatic curve)
1 - 2. See manual for climatic curve details
120 Inst. MAX REGION T° Maximum outdoor T° depending on the Country where the
system is installed (Cool climatic Curve Zone 1 and 2) 30°C 50°C 40°C
121 Inst. COOL STOP T°
If outdoor T° is equal or less then the value of this code,
maximum water tempreature is considered (Cool Climatic
Curve Zone 1 and 2)
0°C 25°C 22°C
122 Inst. MIN COOL W T° In Cool mode, minimum water T° going to terminal zone 1
(Cool climatic Curve zone 1) 4°C 20°C 12°C
123 Inst. MAX COOL W T° In Cool mode, maximum water T° going to terminal zone 1
(Cool climatic Curve zone 1) 4°C 20°C 18°C
124 Inst. MIN COOL W T° In Cool mode, minimum water T° going to terminal zone 2
(Cool climatic Curve zone 2) 4°C 20°C 6°C
125 Inst. MAX COOL W T° In Cool mode, maximum water T° going to terminal zone 2
(Cool climatic Curve zone 2) 4°C 20°C 12°C

20
English
80AWX- 80AWH
Controller operation
Backup heaters
126 Inst. AUX NUMBER
Number of backup heaters
0 2 0
0. No backup heaters
1. 1 backup heater (to be selected in case of boiler backup)
2. 2 backup heaters (2nd backup heater activated after 1st
backup heater)
127 Inst. BACKUP ELECBOIL
Denes the backup energy source:
1 2 80AW---M0: 2
Others: 1
1: Electrical heater
2: Gas boiler
128 Inst. EH PRIORITY
This code is dening the electric heater priority between
back-up heaters (space heating) and booster heater (sanitary
hot water). It is only active if code 127=1
0 4 0
0. All electric heaters can be activated at the same time, in
case of demand
1. Maximum 2 electric heaters can be activated; booster
heater has the lowest priority
2. Maximum 1 electric heater can be activated; back-up
heater 1 has the highest priority (backup heater 2 never
on)
3. Maximum 2 electric heaters can be activated; booster
heater has the lowest priority (backup heater 2 never
on)
4. Maximum 1 electric heater can be activated; booster
heater has the highest priority (backup heater 2 never
on)
129 Inst. AUX T° O
The outdoor T° must be below this value to allow the backup
heaters to be ON (unless there is a failure stopping the
outdoor unit and code 1.4 = 1)
-30°C +40°C +4°C
130 Inst. AUX HYST
If the dierence between water setpoint and water
temperature is higher than this value, backup heaters are
allowed to turn on
0°C 10°C 3°C
131 Inst. AUX DELAY Time delay (minutes) before switching the backup heaters
ON 0 60 10
132 Inst. OAT BOILER
If, in Heat mode, the Outdoor temperature is less than the
value of this code, the outdoor unit is turned OFF and the
Boiler is used as heat source. Set to minimum value if you
don't want to activate this function.
-30°C +40°C -5°C
Domestic Hot Water
133 Inst. SHW CARREXT
Denes if Domestic hot water is managed by the system
control or by an external control.
1 3 3
1. managed by system control
2. managed by system control with Solar
3. managed by external control
If domestic hot water tank is not installed set code to 3 and
set code 106.1 = 0
134 Inst. SHW MAX HP T° If domestic hot water temperature is equal or higher than
this value, domestic hot water priority is 0 40°C 80°C 55°C
135 Inst. SHW DELTA MED T° If domestic hot water temperature is equal to code 134 - this
code, domestic hot water priority is 0.5 1°C 15°C 5°C
136 Inst. SHW DELTA ALARM
T°
If domestic hot water temperature is equal or lower to code
134 - code 135 - this code, domestic hot water priority is 1 1°C 15°C 5°C
137 Inst. ROOM DELTA
MED T°
In heat mode: if room temperature is Room Setpoint - this
code, room priority is 0.5 0,5°C 5°C 1°C
In cool mode: if room temperature is Room Setpoint + this
code, room priority is 0.5
138 Inst. ROOM DELTA
MIN T°
In heat mode: if room temperature is Room Setpoint - code
137 - this code, room priority is 1 0,5°C 5°C 1°C
In cool mode: if room temperature is Room Setpoint + code
137 + this code, room priority is 1
139 Inst. BOILER WAIT TIME
Time delay after which activating the boiler if domestic
hot water priority does not decrease due to heat pump
operation. 0 180 15
If 0 is selected, boiler does not turn on to support domestic
hot water production
140 Inst. LEGIONELLA FREQ Dene how often (days) the disinfection cycle starts 0 7 0
If 0 is selected Disinfection is not performed.
141 Inst. LEGIONELLA START
TIME Start time of the Disinfection cycle (hours) 0 24 3
142 Inst. LEGIONELLA TEMP T° to be reached in the Disifection cycle 60 90 75°C
Code
Nr. Level Variable Name DESCRIPTION VALUE RANGE DEFAULT
Min Max
