Carrier KSALA0201R22 User manual

1
Low--Ambient
Pressure Switch
Installation Instructions
KSALA0201R22
KSALA0301410
NOTE: Read the entire instruction manual before starting the
installation.
SAFETY CONSIDERATIONS
Improper installation, adjustment, alteration, service,
maintenance, or use can cause explosion, fire, electrical shock or
other conditions which may cause personal injury or property
damage. Consult a qualified installer, service agency, or your
distributor or branch for information or assistance. The qualified
installer or agency must use factory authorized kits or accessories
when modifying products.
Follow all safety codes. Installation must be in compliance with
local and national building codes. Wear safety glasses, protective
clothing, and work gloves. Have fire extinguisher available. Read
these instructions thoroughly and follow all warnings or cautions
included in literature and attached to the unit.
Recognize safety information.
This is the safety--alert symbol . When you see this symbol on
the unit and in instructions or manuals, be alert to the potential
for personal injury.
These words are used with the safety--alert symbol. DANGER
identifies the most serious hazards, which will result in severe
personal injury or death. WARNING signifies a hazard, which
could result in personal injury or death. CAUTION is used to
identify unsafe practices, which may result in minor personal
injury or product and property damage. NOTE is used to
highlight suggestions which will result in enhanced installation,
reliability, or operation.
ELECTRICAL SHOCK HAZARD
Failure to follow this warning could result in personal
injury or death.
Before beginning any installation or modification, be sure
the main electrical disconnect is in the OFF position. Tag
the disconnect switch with a suitable warning label.
!
WARNING
INTRODUCTION
These instructions cover the installation of low--ambient pressure
switch Part No. KSALA0201R22 and KSALA0301410 in all
single--speed air conditioners or heat pumps using R--22 or
R--410A. Refer to Table 1 for kit usage. This device is a long life
pressure switch that maintains head pressure by turning the fan
off and on. Other accessories may be required. Refer to the
Required Changes for Cooling Units and Heat Pump Units
section.
DESCRIPTION AND USAGE
The low--ambient pressure switch kit is a long life pressure switch
which turns the fan on and off as shown in Table 1. It is wired in
series with black fan lead. Sleeve--bearing motors can be used
with this control.
INSTALLATION
The pressure switch is mounted inside the outdoor unit cabinet by
using adapter tube supplied. The adapter tee is mounted to liquid
service valve and tube is routed through one of the knockout
holes in unit cabinet. From inside cabinet, the flare nut is attached
to extender tube. (See Fig. 1.) The pressure switch is wired in
series with black or common fan lead.
PROCEDURE 1—WIRING FOR ALL VOLTAGES OF
COOLING UNITS
For all voltages of cooling units, refer to Fig. 2 and wire
low--ambient pressure switch as follows:
1. Disconnect black fan lead from contactor and connect this
lead to yellow or violet wire from low--ambient pressure
switch using connector supplied.
2. Connect blue wire from low--ambient pressure switch to
contactor terminal from which black fan lead was
removed.
PROCEDURE 2—WIRING FOR HEAT PUMPS
Heat pumps require a normally closed isolation relay with the
24--v coil connected to the C and O terminals of defrost board.
A. 208/230v Applications
For 208/230--v heat pump applications, refer to Fig. 3 and wire
low--ambient pressure switch as follows:
1. Remove black fan lead from defrost board terminal OF2
and reconnect it to NC terminal of isolation relay. Connect
yellow or violet lead from low--ambient pressure switch to
same NC terminal of isolation relay.
2. Connect a wire from the other NC terminal of isolation
relay to OF2 terminal of defrost board. Connect blue lead
from low--ambient pressure switch to same NC terminal of
isolation relay.
B. 460v Applications
For 460--v heat pump applications, refer to Fig. 4 and wire
low--ambient pressure switch as follows:
1. Remove black fan lead from outdoor fan relay terminal
number 3 and reconnect it to NC terminal of isolation
relay. Connect yellow or violet lead from low--ambient
pressure switch to same NC terminal of isolation relay.
2. Connect a wire from outdoor fan relay terminal number 3
to other NC terminal of isolation relay. Connect blue lead
from low--ambient pressure switch to same NC terminal of
isolation relay.

2
Table 1—Kit Usage and Cut In/Cut Out Pressures
KITPARTNO. REFRIGERANT PRESSURE SWITCH CLOSES
(PSIG)
PRESSURE SWITCH OPENS
(PSIG)
WIRE COLORS
KSALA0201R22 R --- 2 2 225 100 Blue and Yellow
KSALA0301410 R --- 410A 365 200 Blue and Violet
SERVICE FITTING CAP
VALVE CORE END
ADAPTER TEE
FLARE NUT
ON PRESSURE
SWITCH
LIQUID REFRIGERANT SERVICE
VALVE SERVICE FITTING
EXTENDER TUBE
FLARE NUT
A00025

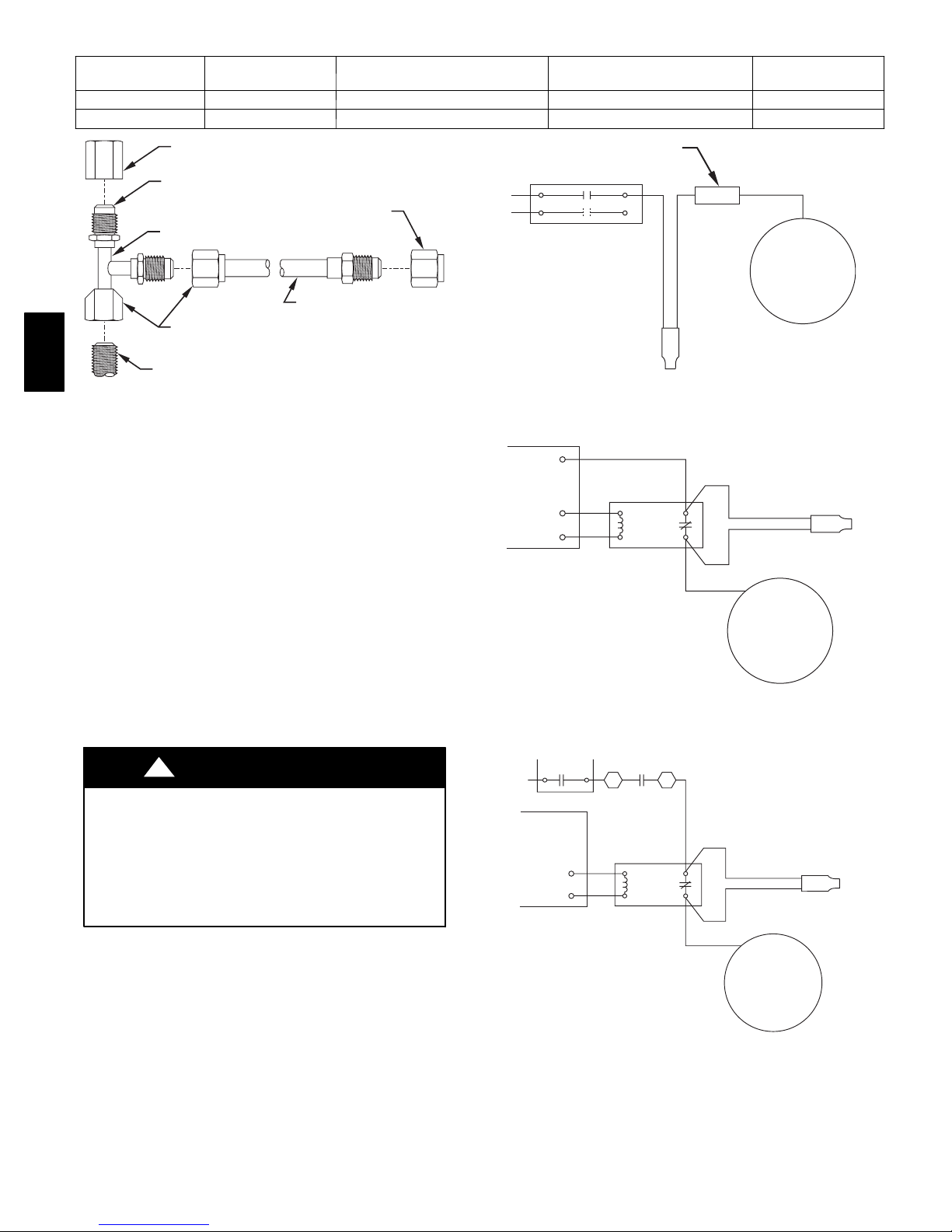

Fig. 1 —Low--Ambient Pressure Switch
REQUIRED CHANGES FOR COOLING UNITS AND
HEAT PUMP UNITS
1. Crankcase heaters are required on all applications where
low--ambient controls are used.
2. Start capacitor and relay (hard start) kits are required on all
single--phase applications where low--ambient controls are
used.
3. Evaporator freeze thermostat KAAFT0101AAA is
required on all applications where low--ambient controls
are used.
4. Wind baffles are required for temperatures below 0_For
where there is substantial wind.
NOTE: When wind baffles are used, raising unit off of pad a
minimum of 4 in. is required to provide better airflow for
moderate-- and high--ambient temperatures. Check pre--sale
literature for available support feet or unit risers.
CUT HAZARD
Failure to follow this caution could result in personal
injury.
To reduce risk of personal injury, wear personal protective
equipment when working with wind baffles. Only
experienced technicians should fabricate and install wind
baffles.
!
CAUTION
5. For cooling applications only, winter start control
KAAWS0101AAA must be used where low--pressure
switch tripping may be encountered. Winter start control
must be wired in parallel with low--pressure switch. This
allows a delay of 3 minutes before low--pressure switch
becomes part of control circuit. (See Fig. 5.)
CONNECTOR
CONTACTOR
BLUE
BLACK
FAN
MOTOR
PRESSURE
SWITCH
YELLOW
OR
VIOLET
A97326
Fig. 2 —Power Wiring for All Voltages of
Cooling Applications
DEFROST
BOARD
OF2
O
C
ISOLATION
RELAY
YELLOW
OR VIOLET
BLUE
BLACK
FAN
MOTOR
PRESSURE
SWITCH
A97327
Fig. 3 —Power Wiring for 208/230v Heat Pump
Applications
DEFROST
BOARD
O
C
ISOLATION
RELAY
YELLOW
OR VIOLET
BLUE
OUTDOOR
FAN RELAY
BLACK
FAN
MOTOR
PRESSURE
SWITCH
13
A97328
Fig. 4 —Power Wiring for 460v Heat Pump Applications
KSALA

3
C
TDR
LPS
LPS
C
TDR
T
LOW-PRESSURE SWITCH
CONTACTOR COIL
TIME DELAY RELAY
RELAY COIL
FACTORY WIRING
FIELD WIRING
T
A93165
Fig. 5 —Low Voltage Wiring for Winter Start Control
START--UP
To start units equipped with the low--ambient pressure switch,
perform the following steps:
1. Turn power on to unit.
2. Set thermostat below room temperature.
3. Wait for the unit to start. There may be a 5--minute delay
in the thermostat or in the outdoor unit.
4. Observe unit operation as described below.
a. The fan will be off when compressor starts.
b. At outdoor temperatures around 0_F, fan may not run
at all.
c. At summer temperatures, fan will start after 10 to 30
sec of compressor operation and may not turn off until
thermostat is satisfied.
d. At outdoor ambients between 80_F and 20_F, fan will
turn on and off to maintain pressure as shown in Table
1.
KSALA

4
7
/
32
″x
3
/
8
″ (5.56 x 9.53) SLOT
4 REQ'D
1/2
″
(12.7)
TYP
J
7
/
16
″
(11.6)
TYP
C
A
7
/
16
″
(11.6)
TYP
B
M
6 1
/
16
″
(154.0)
1
/
2
″
(12.7)
TYP
H
3
/
8
″
(9.6)
TYP
G
J
K
E
D
L
9
/
64
″ (3.45) DIA HOLE
1 REQ'D
7
/
32
″ (5.56) DIA HOLE
3 REQ'D
7
/
32
″ x 2 ″
(5.56 x 50.8) SLOT
1
/
4
″
(6.3)
TYP
BAFFLE
MAT'L: 20 GA STEEL
SUPPORT
MAT'L: 18 GA STEEL
9
/
64
″ (3.45) DIA HOLE
2 REQ'D
OUTDOOR
UNIT
F
AA
SCREW
10 REQ'D
SUPPORT
4 REQ'D
BAFFLE
2 REQ'D
BAFFLE ASSEMBLY
1
/
4
″
(6.3)
TYP
A95444

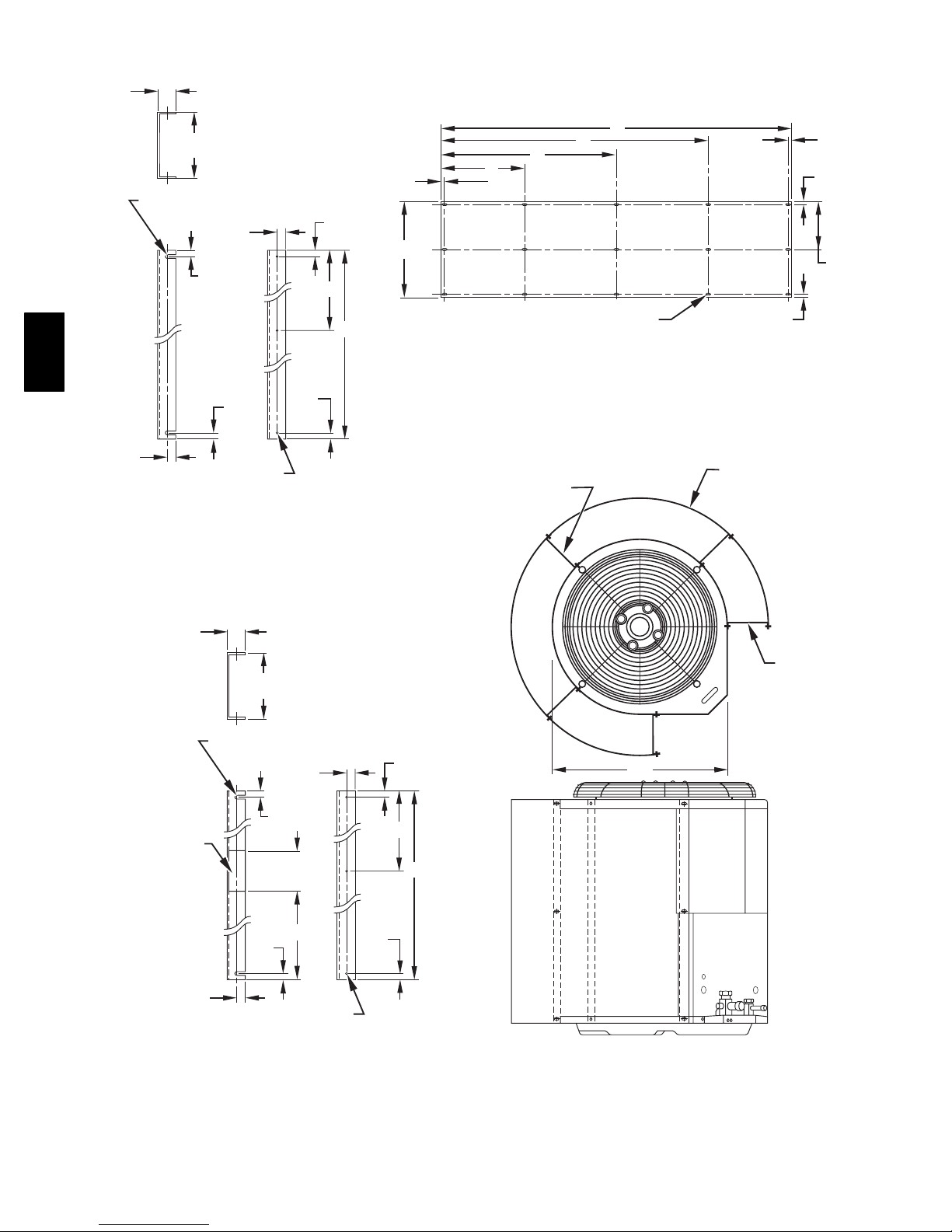

Fig. 6 —Carrier WeatherMaker
®
Units
KSALA

5
Wind Baffle Dimensions for Carrier WeatherMaker Units—38TKB, 38TKW, 38YKC
(In.)
Unit
Size
AA Unit
Height
A B C D E F G H J K L M
Small 27 --- 1/2
21 --- 7/8 17 25 --- 1/4 10--- 3/8 19 --- 3/4 20 --- 1/2 34 19 --- 11/16 20 --- 7/16 19 --- 5/8 0 0 6 --- 1 / 8 25 --- 7/8 17 25 --- 1/4 10--- 3/8 23 --- 3/4 24 --- 1/2 34 23 --- 11/16 24 --- 7/16 23 --- 5/8 011 --- 7/8 6 --- 1 / 8 31 --- 7/8 17 25 --- 1/4 10--- 3/8 29 --- 3/4 30 --- 1/2 34 29 --- 11/16 30 --- 7/16 29 --- 5/8 014 --- 7/8 6 --- 1 / 8
Medium 34--- 15/16
25 --- 7/8 21 32 11--- 3/16 23 --- 3/4 24 --- 1/2 42 23 --- 11/16 24 --- 7/16 23 --- 5/8 19 --- 11/16 11 --- 7/8 6 --- 11/16 31 --- 7/8 21 32 11--- 3/16 29 --- 3/4 30 --- 1/2 42 29 --- 11/16 30 --- 7/16 29 --- 5/8 19 --- 11/16 14 --- 7/8 6 --- 11/16 37 --- 7/8 21 32 11--- 3/16 35 --- 3/4 36 --- 1/2 42 35 --- 11/16 36 --- 7/16 35 --- 5/8 19 --- 11/16 17 --- 7/8 6 --- 11/16
Large 45
31 --- 7/8 25 --- 3/16 42 12--- 15/16 29--- 3/4 30 --- 1/2 50--- 7/16 29 --- 11/16 30 --- 7/16 29 --- 5/8 22 --- 11/16 14 --- 7/8 7 --- 1/16 37 --- 7/8 25 --- 3/16 42 15--- 15/16 35--- 3/4 36 --- 1/2 50--- 7/16 35 --- 11/16 36 --- 7/16 35 --- 5/8 22 --- 11/16 17 --- 7/8 7 --- 1/16
Wind Baffle Dimensions for Carrier WeatherMaker Units with Silencer System Top
(In.)
Unit
Size
AA Unit
Height
A B C D E F G H J K L M
Small 27 --- 1/2
23 --- 13/16 17 25 --- 1/4 10--- 3/8 19 --- 3/4 20 --- 1/2 34 19 --- 11/16 20 --- 7/16 19 --- 5/8 0 0 6 --- 1 / 8 27 --- 13/16 17 25 --- 1/4 10--- 3/8 23 --- 3/4 24 --- 1/2 34 23 --- 11/16 24 --- 7/16 23 --- 5/8 011 --- 7/8 6 --- 1 / 8 33 --- 13/16 17 25 --- 1/4 10--- 3/8 29 --- 3/4 30 --- 1/2 34 29 --- 11/16 30 --- 7/16 29 --- 5/8 014 --- 7/8 6 --- 1 / 8
Medium 34--- 15/16
27 --- 13/16 21 32 11--- 3/16 23 --- 3/4 24 --- 1/2 42 23 --- 11/16 24 --- 7/16 23 --- 5/8 19 --- 11/16 11 --- 7/8 6 --- 11/16 33 --- 13/16 21 32 11--- 3/16 29 --- 3/4 30 --- 1/2 42 29 --- 11/16 30 --- 7/16 29 --- 5/8 19 --- 11/16 14 --- 7/8 6 --- 11/16 39 --- 13/16 21 32 11--- 3/16 35 --- 3/4 36 --- 1/2 42 35 --- 11/16 36 --- 7/16 35 --- 5/8 19 --- 11/16 17 --- 7/8 6 --- 11/16
Large 45
33 --- 13/16 25 --- 3/16 42 12--- 15/16 29--- 3/4 30 --- 1/2 50--- 7/16 29 --- 11/16 30 --- 7/16 29 --- 5/8 22 --- 11/16 14 --- 7/8 7 --- 1/16 39 --- 13/16 25 --- 3/16 42 15--- 15/16 35--- 3/4 36 --- 1/2 50--- 7/16 35 --- 11/16 36 --- 7/16 35 --- 5/8 22 --- 11/16 17 --- 7/8 7 --- 1/16
KSALA

6
1
/
4
″x
3
/
8
″ (5.56 x 9.53) SLOT
4 REQ'D
1
/
2
″
(12.7)
J
7
/
16
″
(11.6)
C
A
7
/
16
″
(11.6)
B
5 5
/
16
″
(151.5)
1
/
2
″
(12.7)
TYP
H
3
/
8
″
(9.6)
G
J
K
E
F
D
L
1
/
8
″(3.45) DIA HOLE
1 REQ'D
1
/
4
″(5.56) DIA HOLE
3 REQ'D
1
/
4
″x 2″
(5.56 x 50.8) SLOT
1
/
4
″
(6.3)
BAFFLE
MAT'L: 20 GA STEEL
SUPPORT
MAT'L: 18 GA STEEL
1
/
8
″(3.45) DIA HOLE
2 REQ'D
3
/
8
″ (9.6)
6″
(152.4)
1
/
4
″(5.56) DIA HOLE 2 REQ'D
OUTDOOR
UNIT
BAFFLE ASSEMBLY
SCREW
10 REQ'D
SUPPORT
4 REQ'D
BAFFLE
2 REQ'D
AA
A95445

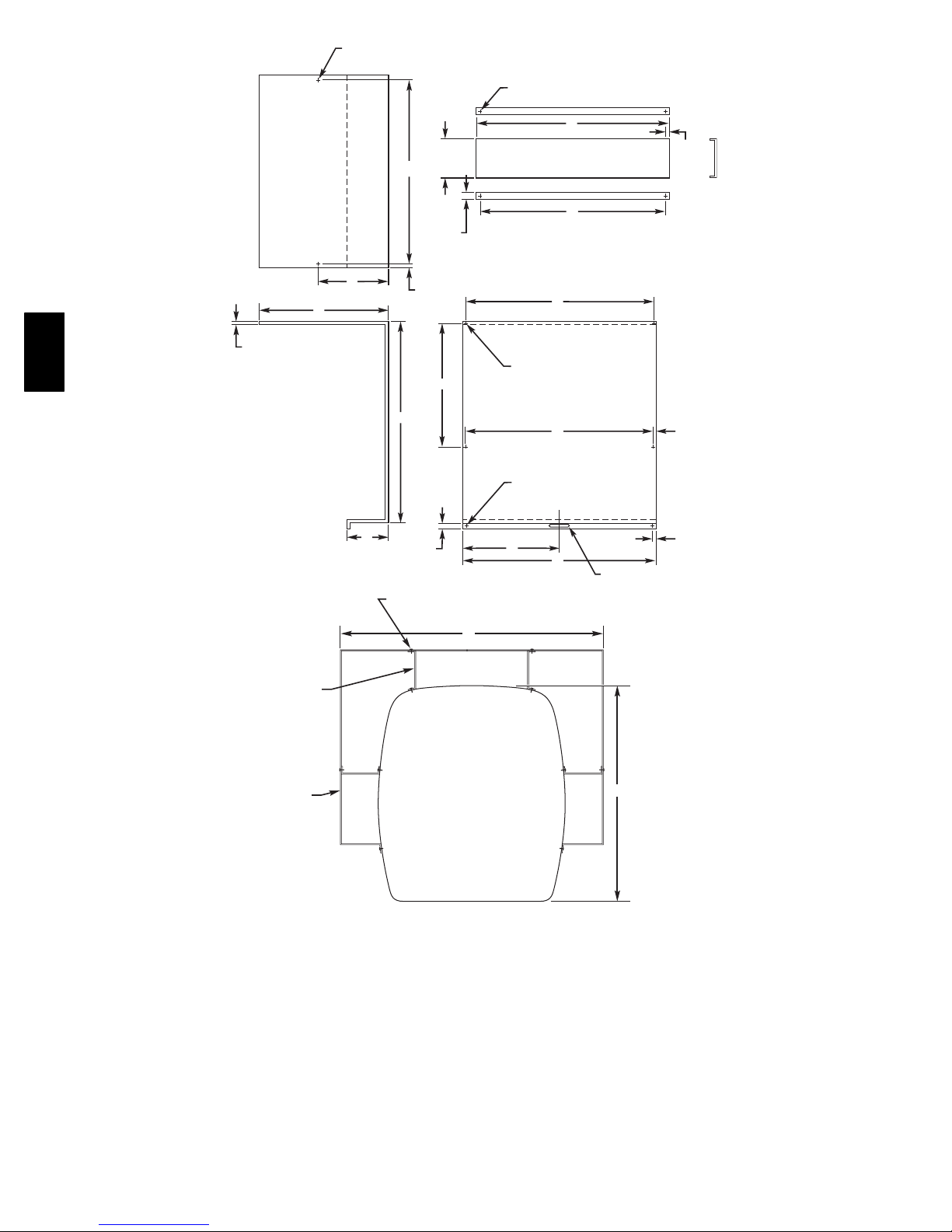

Fig. 7 --- Bryant Reliant
®
Units
KSALA

7
Wind Baffle Dimensions for 10 Seer Bryant Reliant Units with Star--Burst Top
(In.)
Unit
Size
AA Unit
Height
A B C D E F G H J K L
Small 26 --- 3/16
21 --- 7/8 17 --- 1/4 24 --- 5/16 10 --- 1/4 19 --- 3/4 20 --- 1/2 34 --- 1/2 19 --- 5/8 20--- 3/8 19 --- 5/8 0 0 25 --- 7/8 17 --- 1/4 24 --- 5/16 10 --- 1/4 23 --- 3/4 24 --- 1/2 34 --- 1/2 23 --- 5/8 24--- 3/8 23 --- 5/8 011 --- 7/8 31 --- 7/8 17 --- 1/4 24 --- 5/16 10 --- 1/4 29 --- 3/4 30 --- 1/2 34 --- 1/2 29 --- 5/8 30--- 3/8 29 --- 5/8 014 --- 7/8
Medium 33
25 --- 7/8 21 30 --- 5/8 10 --- 1/4 23 --- 3/4 24--- 1/2 42 23 --- 5/8 24 --- 3/8 23--- 5/8 17 --- 1/8 11--- 7/8 31 --- 7/8 21 30 --- 5/8 10 --- 1/4 29 --- 3/4 30--- 1/2 42 29 --- 5/8 30 --- 3/8 29--- 5/8 17 --- 1/8 14--- 7/8 37 --- 7/8 21 30 --- 5/8 10 --- 1/4 35 --- 3/4 36--- 1/2 42 35 --- 5/8 36 --- 3/8 35--- 5/8 17 --- 1/8 17--- 7/8
Large 42--- 1/16
31 --- 7/8 25 --- 5/16 39--- 3/4 10 --- 1/4 29 --- 3/4 30--- 1/2 50 --- 9/16 29 --- 5/8 30 --- 3/8 29--- 5/8 21 --- 11/16 14 --- 7/8 37 --- 7/8 25 --- 5/16 39--- 3/4 10 --- 1/4 35 --- 3/4 36--- 1/2 50 --- 9/16 35 --- 5/8 36 --- 3/8 35--- 5/8 21 --- 11/16 17 --- 7/8
Wind Baffle Dimensions for Bryant Reliant Units with AeroQuiet Top
(In.)
Unit
Size
AA Unit
Height
A B C D E F G H J K L
Small 26 --- 3/16
23 --- 13/16 17 --- 1/4 24 --- 5/16 10 --- 1/4 19 --- 3/4 20--- 1/2 34 --- 1/2 19 --- 5/8 20 --- 3/8 19--- 5/8 0 0 27 --- 13/16 17 --- 1/4 24 --- 5/16 10 --- 1/4 23 --- 3/4 24--- 1/2 34 --- 1/2 23 --- 5/8 24 --- 3/8 23--- 5/8 011 --- 7/8 33 --- 13/16 17 --- 1/4 24 --- 5/16 10 --- 1/4 29 --- 3/4 30--- 1/2 34 --- 1/2 29 --- 5/8 30 --- 3/8 29--- 5/8 014 --- 7/8
Medium 33
27 --- 13/16 21 30 --- 5/8 10 --- 1/4 23 --- 3/4 24--- 1/2 42 23 --- 5/8 24 --- 3/8 23--- 5/8 17 --- 1/8 11--- 7/8 33 --- 13/16 21 30 --- 5/8 10 --- 1/4 29 --- 3/4 30--- 1/2 42 29 --- 5/8 30 --- 3/8 29--- 5/8 17 --- 1/8 14--- 7/8 39 --- 13/16 21 30 --- 5/8 10 --- 1/4 35 --- 3/4 36--- 1/2 42 35 --- 5/8 36 --- 3/8 35--- 5/8 17 --- 1/8 17--- 7/8
Large 42--- 1/16
33 --- 13/16 25 --- 5/16 39--- 3/4 10 --- 1/4 29 --- 3/4 30--- 1/2 50 --- 9/16 29 --- 5/8 30 --- 3/8 29--- 5/8 21 --- 11/16 14 --- 7/8 39 --- 13/16 25 --- 5/16 39--- 3/4 10 --- 1/4 35 --- 3/4 36--- 1/2 50 --- 9/16 35 --- 5/8 36 --- 3/8 35--- 5/8 21 --- 11/16 17 --- 7/8
KSALA

8
LEFT
SIDE
RIGHT
SIDE
SCREW
14 REQ'D
SUPPORT
3 REQ'D
OUTDOOR
UNIT
BAFFLE ASSEMBLY
1
/
4
″x
3
/
8
″ (5.56 x 9.53) SLOT
6 REQ'D
13
/
64
″
(5.4)
TYP
SUPPORT
MAT'L: 18 GA STEEL
1
/
2
″
(12.7)
1
/
4
″
(6.4)
B
C
5
3
/
64
″
(128.0)
7
7
/
8
″
(199.9)
D
A
2
1
/
2
″
(63.5)
1
21
/
32
″ (42.1)
1
/
4
″x
3
/
8
″ (5.56 x 9.53) SLOT
6 REQ'D
1
/
4
″ (5.56) DIA
2 REQ'D
25
/
64
″ (10.0)
E
7
7
/
8
″
(200.0)
3
/
16
″
(4.6)
1
/
8
″ (3.45) DIA
2 REQ'D
BAFFLE - LEFT
MAT'L: 20 GA STEEL
F
C
5
3
/
64
″
(128.0)
1
/
2
″
(12.7)
TYP
E
7
29
/
32
″ (200.8)
BAFFLE - RIGHT
MAT'L: 20 GA STEEL
A
D
1
21
/
32
″ (42.1)
25
Ú
64
″ (10.0)
2
1
/
2
″
(63.5)
G
1
/
4
″ (5.56) DIA
4 REQ'D
JC
AA
H
J
1
/
4
″
(6.4)
23
/
64
″ (9.2)
1
/
2
″ (12.7)
TYP
8
5
/
64
″ (205.3)
TYP
4
57
Ú
64
″
(124.2) TYP
2
5
/
64
″
(52.6)
4
9
/
64
″ (105.2)
45¡
TYP
1
/
8
″ (3.45) DIA.
4 REQ'D
1
/
4
″ (5.56) DIA
2 REQ'D
23
/
64
″
(9.2)
A95446
Fig. 8 --- Carrier / Bryant / Payne Cube Units with 3/8” Coil Tubing
KSALA

9
Wind Baffle Dimensions for Carrier / Bryant / Payne Cube Units with 3/8” Coil Tubing
(In.)
Unit
Size
AA Unit
Height
A B C D E F G H J
Small 18
21 --- 15/16 19 --- 7/8 13 --- 3/4 28 --- 1/8 10 --- 11/16 20 --- 1/4 11 --- 11/16 3--- 13/16 19 --- 13/16 17 --- 13/16 23 --- 15/16 21 --- 7/8 13 --- 3/4 28 --- 1/8 10 --- 11/16 20 --- 1/4 11 --- 11/16 3--- 13/16 21 --- 13/16 19 --- 13/16 25 --- 15/16 23 --- 7/8 13 --- 3/4 28 --- 1/8 10 --- 11/16 20 --- 1/4 11 --- 11/16 3--- 13/16 23 --- 13/16 21 --- 13/16 27 --- 15/16 25 --- 7/8 13 --- 3/4 28 --- 1/8 10 --- 11/16 20 --- 1/4 11 --- 11/16 3--- 13/16 25 --- 13/16 23 --- 13/16 29 --- 15/16 27 --- 7/8 13 --- 3/4 28 --- 1/8 10 --- 11/16 20 --- 1/4 11 --- 11/16 3--- 13/16 27 --- 13/16 25 --- 13/16 31 --- 15/16 29 --- 7/8 13 --- 3/4 28 --- 1/8 10 --- 11/16 20 --- 1/4 11 --- 11/16 3--- 13/16 29 --- 13/16 27 --- 13/16 33 --- 15/16 31 --- 7/8 13 --- 3/4 28 --- 1/8 10 --- 11/16 20 --- 1/4 11 --- 11/16 3--- 13/16 31 --- 13/16 29 --- 13/16
Medium 22--- 1/2
21 --- 15/16 19 --- 7/8 18 --- 5/16 32 --- 5/8 10 --- 11/16 24 --- 3/4 16 --- 3/16 8 --- 1 / 4 19 --- 13/16 17--- 13/16 23 --- 15/16 21 --- 7/8 18 --- 5/16 32 --- 5/8 10 --- 11/16 24 --- 3/4 16 --- 3/16 8 --- 1 / 4 21 --- 13/16 19--- 13/16 25 --- 15/16 23 --- 7/8 18 --- 5/16 32 --- 5/8 10 --- 11/16 24 --- 3/4 16 --- 3/16 8 --- 1 / 4 23 --- 13/16 21--- 13/16 27 --- 15/16 25 --- 7/8 18 --- 5/16 32 --- 5/8 10 --- 11/16 24 --- 3/4 16 --- 3/16 8 --- 1 / 4 25 --- 13/16 23--- 13/16 29 --- 15/16 27 --- 7/8 18 --- 5/16 32 --- 5/8 10 --- 11/16 24 --- 3/4 16 --- 3/16 8 --- 1 / 4 27 --- 13/16 25--- 13/16 31 --- 15/16 29 --- 7/8 18 --- 5/16 32 --- 5/8 10 --- 11/16 24 --- 3/4 16 --- 3/16 8 --- 1 / 4 29 --- 13/16 27--- 13/16 33 --- 15/16 31 --- 7/8 18 --- 5/16 32 --- 5/8 10 --- 11/16 24 --- 3/4 16 --- 3/16 8 --- 1 / 4 31 --- 13/16 29--- 13/16 37 --- 15/16 33 --- 7/8 18 --- 5/16 32 --- 5/8 10 --- 11/16 24 --- 3/4 16 --- 3/16 8 --- 1 / 4 33 --- 13/16 31--- 13/16 39 --- 15/16 35 --- 7/8 18 --- 5/16 32 --- 5/8 10 --- 11/16 24 --- 3/4 16 --- 3/16 8 --- 1 / 4 35 --- 13/16 33--- 13/16
Large 30
25 --- 15/16 23 --- 7/8 25 --- 3/4 40 --- 1/8 10 --- 11/16 32 --- 1/4 23 --- 11/16 15 --- 13/16 23 --- 13/16 21 --- 13/16 27 --- 15/16 25 --- 7/8 25 --- 3/4 40 --- 1/8 10 --- 11/16 32 --- 1/4 23 --- 11/16 15 --- 13/16 25 --- 13/16 23 --- 13/16 29 --- 15/16 27 --- 7/8 25 --- 3/4 40 --- 1/8 10 --- 11/16 32 --- 1/4 23 --- 11/16 15 --- 13/16 27 --- 13/16 25 --- 13/16 31 --- 15/16 29 --- 7/8 25 --- 3/4 40 --- 1/8 10 --- 11/16 32 --- 1/4 23 --- 11/16 15 --- 13/16 29 --- 13/16 27 --- 13/16 33 --- 15/16 31 --- 7/8 25 --- 3/4 40 --- 1/8 10 --- 11/16 32 --- 1/4 23 --- 11/16 15 --- 13/16 31 --- 13/16 29 --- 13/16 35 --- 15/16 33 --- 7/8 25 --- 3/4 40 --- 1/8 10 --- 11/16 32 --- 1/4 23 --- 11/16 15 --- 13/16 33 --- 13/16 31 --- 13/16 37 --- 15/16 35 --- 7/8 25 --- 3/4 40 --- 1/8 10 --- 11/16 32 --- 1/4 23 --- 11/16 15 --- 13/16 35 --- 13/16 33 --- 13/16 39 --- 15/16 37 --- 7/8 25 --- 3/4 40 --- 1/8 10 --- 11/16 32 --- 1/4 23 --- 11/16 15 --- 13/16 37 --- 13/16 35 --- 13/16 43 --- 15/16 41 --- 7/8 25 --- 3/4 40 --- 1/8 10 --- 11/16 32 --- 1/4 23 --- 11/16 15 --- 13/16 41 --- 13/16 39 --- 13/16
KSALA

10
C
1/2″
(12.7)
AA
D
E
F
A
1/2″
(12.7)
3/8″
(10.3)
B
7/16″
(11.8)
1
/ 4 ″ (6.35) x
3
/ 4 ″ (19.05) SLOT
(15) REQ'D
1/2″
(12.7)
1″
(25.4)
5 5/16″
(134.2)
7/16″
(11.8)
3/8″
(10.3)
G
H
7/16″
(11.8)
3/8″
(10.3)
1/2″
(12.7)
1
/ 4 ″ (6.35) x
1
/ 2 ″ (12.7) SLOT
(2) REQ'D
1
/ 8 ″ (3.45) DIA HOLE
(3) REQ'D
WIND BAFFLE
1/2″
(12.7)
1″
(25.4)
5 5/16″
(134.2)
7/16″
(11.8)
3/8″
(10.3)
G
H
7/16″
(11.8)
3/8″
(10.3)
1/2″
(12.7)
1
/ 4 ″ (6.35) x
1
/ 2 ″ (12.7) SLOT
(2) REQ'D
1
/ 8 ″ (3.45) DIA HOLE
(3) REQ'D
SUPPORT B
(RIGHT AND LEFT HAND REQ'D)
J
3″
(76.2)
1″ (25.4) x 3″(76.2)
NOTCH (THIS SIDE)
BAFFLE
SUPPORT B
BAFFLE
SUPPORT A
WIND BAFFLE
BAFFLE ASSEMBLY
SUPPORT A
A95447
Fig. 9 --- Payne Units—Models PA10 / PA12 and PH10 / PH12
KSALA

11
Wind Baffle Dimensions for Payne Model PA10 / PA12 Air Conditioning Units
(In.)
Unit Size AA Unit Height A B C D E F G H J
Medium 22--- 1/2
21 --- 15/16 18--- 11/16 9 --- 5/16 81 --- 1/2 67 --- 7/8 41 --- 13/16 15 --- 13/16 18 --- 11/16 9 --- 5/16 10 --- 13/16 23 --- 15/16 20--- 11/16 10 --- 5/16 81 --- 1/2 67 --- 7/8 41 --- 13/16 15--- 13/16 18 --- 11/16 10 --- 5/16 10 --- 13/16 25 --- 15/16 22--- 11/16 11 --- 5/16 81 --- 1/2 67 --- 7/8 41 --- 13/16 15--- 13/16 18 --- 11/16 11 --- 5/16 10 --- 13/16 27 --- 15/16 24--- 11/16 12 --- 5/16 81 --- 1/2 67 --- 7/8 41 --- 13/16 15--- 13/16 18 --- 11/16 12 --- 5/16 10 --- 13/16 29 --- 15/16 26--- 11/16 13 --- 5/16 81 --- 1/2 67 --- 7/8 41 --- 13/16 15--- 13/16 18 --- 11/16 13 --- 5/16 10 --- 13/16 31 --- 15/16 28--- 11/16 14 --- 5/16 81 --- 1/2 67 --- 7/8 41 --- 13/16 15--- 13/16 18 --- 11/16 14 --- 5/16 10 --- 13/16 33 --- 15/16 30--- 11/16 15 --- 5/16 81 --- 1/2 67 --- 7/8 41 --- 13/16 15--- 13/16 18 --- 11/16 16 --- 5/16 10 --- 13/16
Large 30
23 --- 15/16 20--- 11/16 10 --- 5/16 107 --- 1/16 86 --- 9/16 54--- 11/16 22 --- 3/4 24 --- 11/16 10 --- 5/16 10 --- 13/16 25 --- 15/16 22--- 11/16 11 --- 5/16 107 --- 1/16 86 --- 9/16 54--- 11/16 22 --- 3/4 24 --- 11/16 11 --- 5/16 10 --- 13/16 27 --- 15/16 24--- 11/16 12 --- 5/16 107 --- 1/16 86 --- 9/16 54--- 11/16 22 --- 3/4 24 --- 11/16 12 --- 5/16 10 --- 13/16 29 --- 15/16 26--- 11/16 13 --- 5/16 107 --- 1/16 86 --- 9/16 54--- 11/16 22 --- 3/4 24 --- 11/16 13 --- 5/16 10 --- 13/16 31 --- 15/16 28--- 11/16 14 --- 5/16 107 --- 1/16 86 --- 9/16 54--- 11/16 22 --- 3/4 24 --- 11/16 14 --- 5/16 10 --- 13/16 33 --- 15/16 30--- 11/16 15 --- 5/16 107 --- 1/16 86 --- 9/16 54--- 11/16 22 --- 3/4 24 --- 11/16 15 --- 5/16 10 --- 13/16 35 --- 15/16 32--- 11/16 16 --- 5/16 107 --- 1/16 86 --- 9/16 54--- 11/16 22 --- 3/4 24 --- 11/16 16 --- 5/16 10 --- 13/16 37 --- 15/16 34--- 11/16 17 --- 5/16 107 --- 1/16 86 --- 9/16 54--- 11/16 22 --- 3/4 24 --- 11/16 17 --- 5/16 10 --- 13/16 37 --- 15/16 36--- 11/16 18 --- 5/16 107 --- 1/16 86 --- 9/16 54--- 11/16 22 --- 3/4 24 --- 11/16 18 --- 5/16 10 --- 13/16
Wind Baffle Dimensions for Payne PH10 / PH12 Heat Pump Units
(In.)
Unit Size AA Unit Height A B C D E F G H J
Medium 22--- 1/2
21 --- 15/16 18--- 11/16 9 --- 5/16 81 --- 1/2 67 --- 7/8 41 --- 13/16 15 --- 13/16 18 --- 11/16 9 --- 5/16 14 --- 13/16 23 --- 15/16 20--- 11/16 10 --- 5/16 81 --- 1/2 67 --- 7/8 41 --- 13/16 15--- 13/16 18 --- 11/16 10 --- 5/16 14 --- 13/16 25 --- 15/16 22--- 11/16 11 --- 5/16 81 --- 1/2 67 --- 7/8 41 --- 13/16 15--- 13/16 18 --- 11/16 11 --- 5/16 14 --- 13/16 27 --- 15/16 24--- 11/16 12 --- 5/16 81 --- 1/2 67 --- 7/8 41 --- 13/16 15--- 13/16 18 --- 11/16 12 --- 5/16 14 --- 13/16 29 --- 15/16 26--- 11/16 13 --- 5/16 81 --- 1/2 67 --- 7/8 41 --- 13/16 15--- 13/16 18 --- 11/16 13 --- 5/16 14 --- 13/16 31 --- 15/16 28--- 11/16 14 --- 5/16 81 --- 1/2 67 --- 7/8 41 --- 13/16 15--- 13/16 18 --- 11/16 14 --- 5/16 14 --- 13/16 33 --- 15/16 30--- 11/16 15 --- 5/16 81 --- 1/2 67 --- 7/8 41 --- 13/16 15--- 13/16 18 --- 11/16 16 --- 5/16 14 --- 13/16
Large 30
23 --- 15/16 20--- 11/16 10 --- 5/16 107 --- 1/16 86 --- 9/16 54--- 11/16 22 --- 3/4 24 --- 11/16 10 --- 5/16 14 --- 13/16 25 --- 15/16 22--- 11/16 11 --- 5/16 107 --- 1/16 86 --- 9/16 54--- 11/16 22 --- 3/4 24 --- 11/16 11 --- 5/16 14 --- 13/16 27 --- 15/16 24--- 11/16 12 --- 5/16 107 --- 1/16 86 --- 9/16 54--- 11/16 22 --- 3/4 24 --- 11/16 12 --- 5/16 14 --- 13/16 29 --- 15/16 26--- 11/16 13 --- 5/16 107 --- 1/16 86 --- 9/16 54--- 11/16 22 --- 3/4 24 --- 11/16 13 --- 5/16 14 --- 13/16 31 --- 15/16 28--- 11/16 14 --- 5/16 107 --- 1/16 86 --- 9/16 54--- 11/16 22 --- 3/4 24 --- 11/16 14 --- 5/16 14 --- 13/16 33 --- 15/16 30--- 11/16 15 --- 5/16 107 --- 1/16 86 --- 9/16 54--- 11/16 22 --- 3/4 24 --- 11/16 15 --- 5/16 14 --- 13/16 35 --- 15/16 32--- 11/16 16 --- 5/16 107 --- 1/16 86 --- 9/16 54--- 11/16 22 --- 3/4 24 --- 11/16 16 --- 5/16 14 --- 13/16 37 --- 15/16 34--- 11/16 17 --- 5/16 107 --- 1/16 86 --- 9/16 54--- 11/16 22 --- 3/4 24 --- 11/16 17 --- 5/16 14 --- 13/16 37 --- 15/16 36--- 11/16 18 --- 5/16 107 --- 1/16 86 --- 9/16 54--- 11/16 22 --- 3/4 24 --- 11/16 18 --- 5/16 14 --- 13/16
KSALA

12
A06235
Fig. 10 --- Base / Comfortt/ LegacytUnits Baffle Assembly
KSALA

13
Wind Baffle Dimensions for Base / Comfortt/ LegacytUnits
(In.)
Unit Size AA Unit
Height
A B C --- 1 C --- 2 C --- 3 D
Small 25 --- 3/4
25 20 --- 3/8 10 --- 1/16 3 --- 15/16 10 --- 7/8 6 --- 1 / 8 41--- 7/8
28 --- 7/16 23--- 13/16 11 --- 3/4 3 --- 15/16 10 --- 7/8 6 --- 1 / 8 41--- 7/8
31 --- 13/16 27--- 3/16 13 --- 1/2 3 --- 15/16 10 --- 7/8 6 --- 1 / 8 41--- 7/8
35 --- 1/4 30 --- 5/8 15 --- 3/16 3 --- 15/16 10 --- 7/8 6 --- 1 / 8 41--- 7/8 38 --- 5/8 34 16 --- 7/8 3 --- 15/16 10 --- 7/8 6 --- 1 / 8 41--- 7/8
42 37 --- 3/8 18 --- 9/16 3 --- 15/16 10 --- 7/8 6 --- 1 / 8 41--- 7/8
45 --- 7/16 40--- 13/16 20 --- 1/4 3 --- 15/16 10 --- 7/8 6 --- 1 / 8 41--- 7/8
Medium 31--- 1/4
25 --- 1/2 20 --- 3/8 10 --- 1/16 9 --- 3 / 8 16 --- 5/16 11--- 9/16 47 --- 3/8
28 --- 15/16 23 --- 13/16 11 --- 3/4 9 --- 3 / 8 16 --- 5/16 11 --- 9/16 47 --- 3/8
32 --- 5/16 27 --- 3/16 13 --- 1/2 9 --- 3 / 8 16 --- 5/16 11 --- 9/16 47 --- 3/8
35 --- 3/4 30 --- 5/8 15 --- 3/16 9 --- 3 / 8 16 --- 5/16 11--- 9/16 47 --- 3/8 39 --- 1/8 34 16 --- 7/8 9 --- 3 / 8 16 --- 5/16 11--- 9/16 47 --- 3/8 42 --- 1/2 37 --- 3/8 18 --- 9/16 9 --- 3 / 8 16 --- 5/16 11--- 9/16 47 --- 3/8
45 --- 15/16 40 --- 13/16 20 --- 1/4 9 --- 3 / 8 16 --- 5/16 11 --- 9/16 47 --- 3/8
Large 35
25 --- 1/2 20 --- 3/8 10 --- 1/16 13 --- 3/16 20 --- 1/8 15 --- 3/8 51 --- 1/8
28 --- 15/16 23 --- 13/16 11 --- 3/4 13 --- 3/16 20 --- 1/8 15 --- 3/8 51 --- 1/8
32 --- 5/16 27 --- 3/16 13 --- 1/2 13 --- 3/16 20 --- 1/8 15 --- 3/8 51 --- 1/8
35 --- 3/4 30 --- 5/8 15 --- 3/16 13 --- 3/16 20 --- 1/8 15 --- 3/8 51 --- 1/8 39 --- 1/8 34 16 --- 7/8 13 --- 3/16 20 --- 1/8 15 --- 3/8 51--- 1/8 42 --- 1/2 37 --- 3/8 18 --- 9/16 13 --- 3/16 20 --- 1/8 15 --- 3/8 51 --- 1/8
45 --- 15/16 40 --- 13/16 20 --- 1/4 13 --- 3/16 20 --- 1/8 15 --- 3/8 51 --- 1/8
KSALA

14
BAFFLE-1
MATL: 20 GA STEEL
A06231
BAFFLE ASSEMBLY
A06230

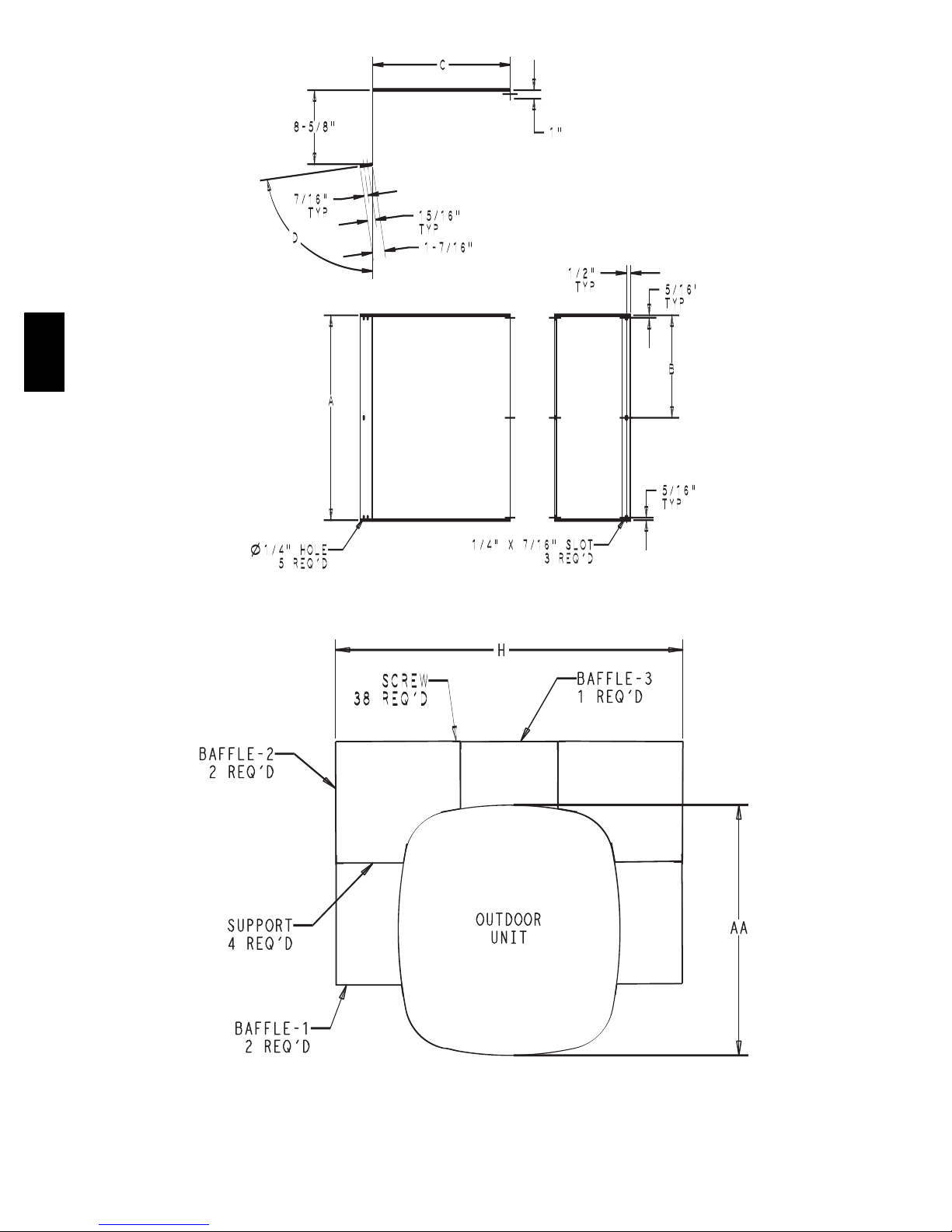

Fig. 11 --- Performancetand PreferredtSeries Baffle Assemblies
KSALA

15
BAFFLE-2
MATL: 20 GA STEEL
A06232
BAFFLE-3
MAT'L: 20 GA STEEL
A06234
Fig. 12 --- Performancetand PreferredtSeries Baffle Assemblies (continued)
KSALA

16
SUPPORT
MAT'L: 20 GA STEEL
A06233
Fig. 13 --- Performancetand PreferredtSeries Baffle Assemblies (continued)
KSALA

17
Wind Baffle Dimensions for PerformancetSeries Units
Unit Size AA Unit
Height
A
(In.)
B
(In.)
C
(In.)
D
(degrees)
E
(In.)
F
(degrees)
G
(In.)
H
(In.)
Medium 33
29 --- 1/2 23 --- 13/16 11 --- 7/8 16 81.9 16 --- 3/8 80.3 12 --- 3/4 45 --- 7/8
32 --- 15/16 27 --- 3/16 13 --- 5/8 16 81.9 16 --- 3/8 80.3 12--- 3/4 45 --- 7/8
36 --- 5/16 30 --- 5/8 15 --- 5/16 16 81.9 16 --- 3/8 80.3 12 --- 3/4 45 --- 7/8
39--- 3/4 34 17 16 81.9 16 --- 3/8 80.3 12 --- 3/4 45 --- 7/8 43 --- 1/8 37 --- 3/8 18 --- 11/16 16 81.9 16 --- 3/8 80.3 12 --- 3/4 45 --- 7/8 46 --- 1/2 40 --- 13/16 20 --- 3/8 16 81.9 16 --- 3/8 80.3 12 --- 3/4 45 --- 7/8
Large 40
32 --- 15/16 23 --- 13/16 11 --- 7/8 22 --- 5/16 80.2 16--- 11/16 78.8 17 --- 3/8 51 --- 1/16
36 --- 3/8 27 --- 3/16 13 --- 5/8 22 --- 5/16 80.2 16 --- 11/16 78.8 17 --- 3/8 51 --- 1/16 39 --- 3/4 30 --- 5/8 15 --- 5/16 22 --- 5/16 80.2 16 --- 11/16 78.8 17 --- 3/8 51 --- 1/16
43 --- 3/16 34 17 22 --- 5/16 80.2 16 --- 11/16 78.8 17 --- 3/8 51 --- 1/16 46 --- 9/16 37 --- 3/8 18 --- 11/16 22 --- 5/16 80.2 16 --- 11/16 78.8 17 --- 3/8 51 --- 1/16
49 --- 15/16 40 --- 13/16 20 --- 3/8 22 --- 5/16 80.2 16 --- 11/16 78.8 17 --- 3/8 51 --- 1/16
Wind Baffle Dimensions for PreferredtSeries Units
Unit Size AA Unit
Height
A
(In.)
B
(In.)
C
(In.)
D
(degrees)
E
(In.)
F
(degrees)
G
(In.)
H
(In.)
Medium 33
30 23 --- 13/16 11 --- 7/8 16 81.9 16 --- 3/8 80.3 12 --- 3/4 45 --- 7/8
33 --- 7/16 27 --- 3/16 13 --- 5/8 16 81.9 16 --- 3/8 80.3 12 --- 3/4 45 --- 7/8
36 --- 13/16 30 --- 5/8 15 --- 5/16 16 81.9 16 --- 3/8 80.3 12 --- 3/4 45 --- 7/8
40--- 1/4 34 17 16 81.9 16 --- 3/8 80.3 12 --- 3/4 45 --- 7/8 43 --- 5/8 37 --- 3/8 18 --- 11/16 16 81.9 16 --- 3/8 80.3 12 --- 3/4 45 --- 7/8
48 40 --- 13/16 20 --- 3/8 16 81.9 16 --- 3/8 80.3 12 --- 3/4 45 --- 7/8
Large 40
34 --- 3/16 23 --- 13/16 11 --- 7/8 22 --- 5/16 80.2 16 --- 11/16 78.8 17 --- 3/8 51 --- 1/16
37 --- 5/8 27 --- 3/16 13 --- 5/8 22 --- 5/16 80.2 16 --- 11/16 78.8 17 --- 3/8 51 --- 1/16
41 30 --- 5/8 15 --- 5/16 22 --- 5/16 80.2 16 --- 11/16 78.8 17 --- 3/8 51 --- 1/16
44 --- 7/16 34 17 22 --- 5/16 80.2 16 --- 11/16 78.8 17 --- 3/8 51 --- 1/16
47 --- 13/16 37 --- 3/8 18 --- 11/16 22 --- 5/16 80.2 16 --- 11/16 78.8 17 --- 3/8 51 --- 1/16
51 --- 3/16 40 --- 13/16 20 --- 3/8 22 --- 5/16 80.2 16 --- 11/16 78.8 17 --- 3/8 51 --- 1/16
KSALA

18
Copyright 2006 CAC / BDP S7310 W. Morris St. SIndianapolis, IN 46231
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
Catalog No: AG--SALA--07
Replaces:AG--SALA--05
Printed in U.S.A. Edition Date: 5/06
KSALA
