Carry CP12 Series User manual

CP12 SERIES - 3 PHASE
OWNERS MANUAL
Carry Pumps, Inc. · 1360 Prospect Ave. · Caro, MI 48723
www.carrypumps.com · 800-492-2779 · [e-mail]
CARRY STAINLESS STEEL AXIAL-FLOW
SUBMERSIBLE PUMP

Carry Pumps, Inc. · 1360 Prospect Ave. · Caro, MI 48723
www.carrypumps.com · 800-492-2779 · [e-mail]
CP12 SERIES - 3 PHASE
HIGH VOLUME STAINLESS STEEL
VERTICAL AXIAL-FLOW
SUBMERSIBLE PUMP
MODEL NUMBER EXPLANATION
2020 MODEL NUMBER
EXAMPLE: CP12-0400-463-13 =CP12 Series Pump
40HP/460V/3PH
w/ 13 Degree Impeller
GENERAL DESCRIPTION:
CP12 =Carry CP12 Series High-Volume Pump
HORSEPOWER:
0400 = 40 Horsepower
0500 =50 Horsepower
0600 = 60 Horsepower
VOLTAGE/PHASE:
463 =460 Volt/3 Phase
IMPELLER PITCH:
X= [13] = 13° Impeller
[17] = 17° Impeller
[20] = 20° Impeller
[22] = 22.5° Impeller
(chosen from pump curve chart)
PLEASE NOTE: All Carry CP12 Pumps come standard
with a 30’ power lead. Additional length may be added
and is priced per foot.

Carry Pumps, Inc. · 1360 Prospect Ave. · Caro, MI 48723
www.carrypumps.com · 800-492-2779 · [e-mail]
• Do not use a Carry Pumps™ Stainless Steel Submersible
High-Volume Axial-Flow Pump in a swimming area.
• Electrical controls must be installed observing all applicable
state and local codes.
• A local disconnect is recommended near the controls for ease
of servicing.
• A good earth ground must be provided at the electrical
service entrance using a metal grounding stake.
• The pump must be properly grounded to protect personnel
from a serious or fatal electrical shock hazard, and the
pump motor from lightning.
• Use of a Lightning Arrestor is highly recommended.
• The level control wiring must be encapsulated or low voltage
for safety.
PRODUCT USE &
SAFETY INFORMATION

Carry Pumps, Inc. · 1360 Prospect Ave. · Caro, MI 48723
www.carrypumps.com · 800-492-2779 · [e-mail]
• Running a Carry Pumps™ Stainless Steel Submersible Axial-
Flow Pump dry (without water freely flowing by the motor as a
coolant) will ruin the motor. This motor failure is not covered
under warranty.
• Use caution when operating a pump on manual control.
It is very important to not let the pump run dry.
• Do not let water freeze in and around the pump. Severe dam-
age will result to the pump and motor if water freezes around
them.
• Remove any construction debris, muck and sludge from the
sump bottom before the installation and initial start up. These
obstructions can starve the pump of water and ruin the motor.
• Carry Pumps™ Strainer Screens will provide an effective barrier
from debris in storm water and water transfer applications.
However, it is very important to make sure the screen stays
clean and does not become plugged by debris. A screen that is
clogged will starve the pump of water and the motor will fail.
This motor failure is not covered under warranty.
PRODUCT USE &
SAFETY INFORMATION

60HP MOTOR
17°, 20° or 22.5° Impeller

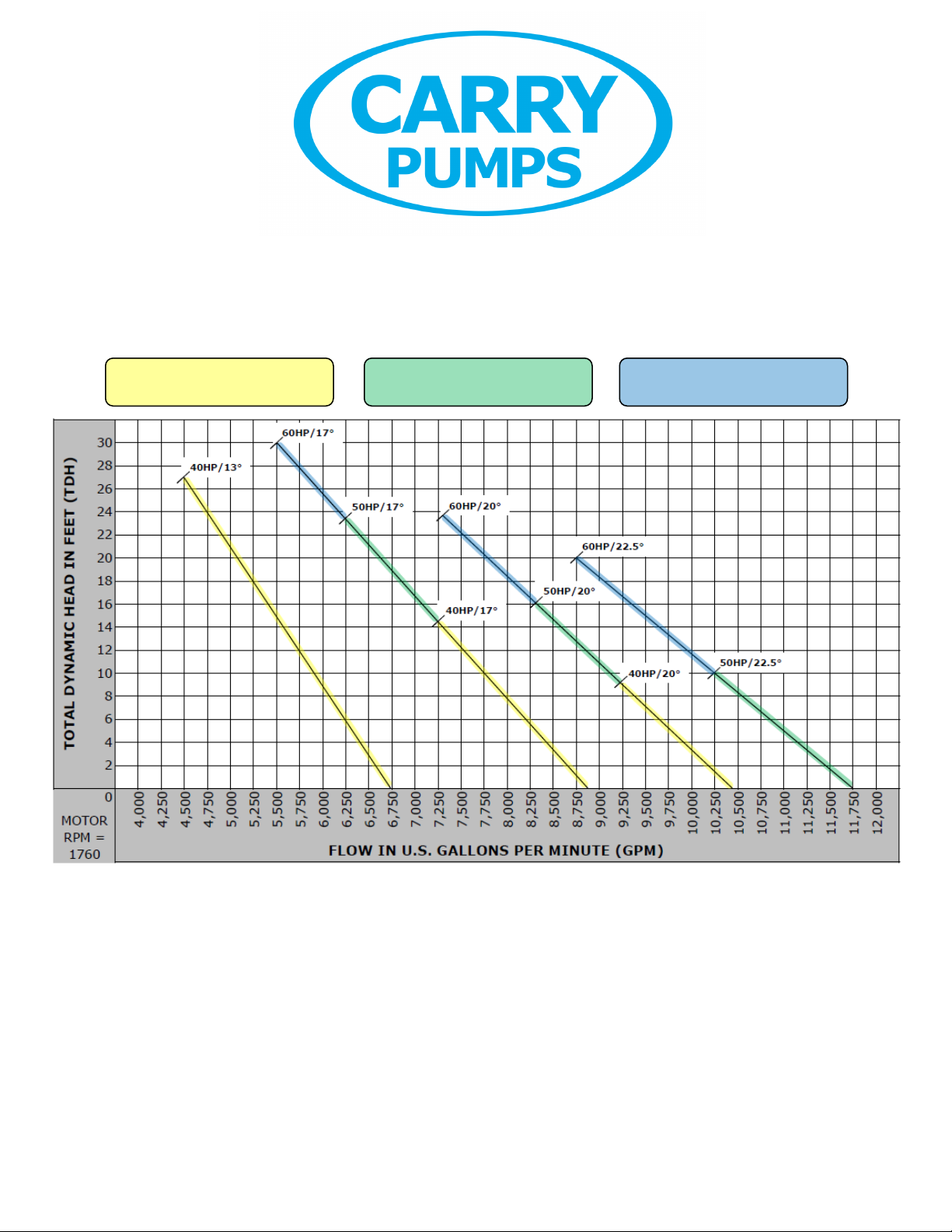

PLOT YOUR POINT: Follow the flow in U.S. gallons per minute required
horizontally on the chart to your GPM OR CFM required; then follow up to
your TDH OR PSI required.
The location of the point plotted on the chart determines the horsepower of
pump and degree of impeller required.
CP12 SERIES - 3 PHASE
SUBMERSIBLE PUMP CURVES
50HP MOTOR
17°, 20° or 22.5° Impeller
40HP MOTOR
13° or 17° Impeller
18” Discharge/Pipe recommended for best performance.
Carry Pumps, Inc. · 1360 Prospect Ave. · Caro, MI 48723
www.carrypumps.com · 800-492-2779 · [e-mail]

Carry Pumps, Inc. •1360 Prospect Ave. • Caro, MI 48723
www.carrypumps.com • [phone] •[email protected]
CP12 SERIES
PUMP SPECIFICATIONS
A
WATER LEVEL IN SUMP
D
B
C
E
TOP VIEW
BOTTOM VIEW
18” DISCHARGE RECOMMENDED
FOR BEST PERFORMANCE
HP
(A)
MINIMUM
WATER
PUMP ON
(B)
OVERALL
HEIGHT
(C)
MINIMUM
WATER
PUMP OFF
(D)
18” ANSI
FLANGE
DIAMETER
(E)
OVERALL
DIAMETER WEIGHT
40 79” 69” 46” 25” 30” 1,000 LBS
50 83” 73” 50” 25” 30” 1,050 LBS
60 87” 77” 54” 25” 30” 1,100 LBS

8” SAER MOTORS
3 PHASE SUBMERSIBLE
MOTOR SPECIFICATIONS
& TESTING PARAMETERS
HORSEPOWER
MOTOR DIA.
MAKE & RPM VOLTS PHASE Hz
SERVICE
FACTOR
FULL
LOAD
AMPS
MAX
LOAD
AMPS
LINE to LINE
RESISTANCE
IN OHMS
LOCKED
ROTOR
AMPS
40 HP
8” SAER
1800 RPM
460V 3 PH 60 Hz 1.15 53.0 60.0 0.50 - 0.70 N/A
50 HP
8” SAER
1800 RPM
460V 3 PH 60 Hz 1.15 67.0 74.0 0.13 - 0.33 N/A
60 HP
8” SAER
1800 RPM
460V 3 PH 60 Hz 1.15 79.0 88.0 0.23 - 0.43 N/A
Carry Pumps, Inc. · 1360 Prospect Ave. · Caro, MI 48723
www.carrypumps.com · 800-492-2779 · [email protected]
ALL ELECTRICAL WORK
MUST BE PERFORMED
BY A LICENSED
ELECTRICIAN
DO NOT test Winding resistance with the
motor connected to the Control Box or Var-
iable Frequency Drive (VFD).
A bound pump will cause locked rotor amps
and over-current fault/shut down. Check
for obstructions in the pump and/or the
amps on the Black wire at start-up.
Test the windings by using a Multimeter or
Ohmmeter to measure Ohms (Resistance)
between Yellow or White to Red, Yellow or
White to Black, and Red to Black.
IMPORTANT


Resistance measured between any combi-
nation of wires should be a similar value.


General Recommendations for
SAER SUBMERSIBLE
INVERTER DUTY MOTORS
SAER MS SERIES
WATER-FILLED SUBMERSIBLE MOTORS
START
• Starting ramp should last approximately 4-6 seconds
(from start to reaching the minimum operating fre-
quency of 30Hz
• A starting ramp that is too short can cause a water
hammer on the plant.
• A starting ramp that is too long can cause damage to
the motor.
FREQUENCY VARIATION LIMITS PER MINUTE
• Max number of frequency variations in a minute = 6
STOP
Stopping can be achieved in two ways:
• Taking away the power source so that the motor stops
by inertia. The intertia method safeguards the motor
but can cause the appearance of water hammers.
• Setting a stopping ramp to slowly stop the motor
OPERATING FREQUENCY LIMITS
• Maximum working frequency should never exceed the
nominal frequency of the motor.
• Minimum frequency should be calculated to ensure mo-
tor cooling and should never be lower than 30Hz.
• Operating at less than 30Hz can cause serious damage
to thrust bearings, bushings, and motor windings.
SERVICE FACTOR
• Variations in power supply voltage must be +/- 5% of
the nominal value
• Service factor = 1.15 for 60Hz motors.
INSTALLATION
• Vertical installation only is highly recommended.
• Motor must be completely submersed in water that is
completely free-flowing to ensure adequate cooling of
internal components.
Carry Pumps, Inc. · 1360 Prospect Ave. · Caro, MI 48723
www.carrypumps.com · 800-492-2779 · [email protected]

Carry Pumps, Inc. ·1360 Prospect Ave. ·Caro, MI 48723
www.carrypumps.com ·800-492-2779 ·[e-mail]
TERMS, PAYMENT & INVOICING
Standard payment terms are NET 30 days from the date of invoice for approved
accounts.Customers who do not have an approved account must prepay prior to order
being shipped. Retaining a percentage of the contract sale amount is prohibited without
prior, written agreement. Payment must be made in U.S. Funds. An invoice will be rendered
as of the date product is ready for shipment. A service fee of 1-1/2% per month on all
invoices over 30 days past due will be imposed. In the event of any default by the
Purchaser, Carry Pumps, Inc. shall have the right to repossess the product as well as all
other rights afforded to a conditional seller under the provisions of the Uniform Conditional
Sales Act and any other applicable laws.
STANDARD WARRANTY AND CONDITIONS OF SALE
LIMITED WARRANTY: CARRY PUMPS, INC. warrants the product sold by it to be free
from defects in materials and workmanship for a period of one (1) year from the date of
purchase.
WARRANTY DISCLAIMER: This warranty does not apply to pumps sold without
compatible Carry electrical controls, horizontal pumps, and/or if the product is used in
saltwater, aquaculture (fish farming), water feature applications, continuous-duty use (24/7
operation), or to pumps that have been subject to misuse (including use in a manner
inconsistent with the design of the pump), abuse, neglect, accident or improper installation
or maintenance, or to pumps that have been altered or repaired by anyone other than
CARRY PUMPS, INC. The warranties in this agreement are in lieu of all other warranties,
express or implied, including without limitation, any warranties of merchantability or fitness
for a particular purpose, said warranties being expressly disclaimed.
WARRANTY AMENDMENTS: Prior or subsequent courses of dealing, trade usage and
verbal agreements not reduced to a writing signed by CARRY PUMPS, INC., to the extent
they differ from, modify, add to or detract from this warranty shall not be binding upon
CARRY PUMPS, INC.. There are no agreements, promises or understandings, either verbal
or written, that are not fully expressed in this warranty. No statements, recommendations
or assistance by either party have been relied upon by either party nor shall they be relied
upon and shall not constitute a waiver by either party of any of the provisions hereof. This
warranty may be amended or altered only if agreed to in writing signed by CARRY PUMPS,
INC.
LIMITED REMEDY: CARRY PUMPS, INC. and Purchaser agree the repair or replacement
of the pump at issue is a commercially reasonable allocation of risk and, therefore,
Purchaser agrees that its sole and exclusive remedy against CARRY PUMPS, INC. shall be
limited to the repair or replacement of the pump at issue. This exclusive remedy shall not
be deemed to have failed of its essential purpose so long as CARRY PUMPS, INC. is willing
and able to repair or replace the pump at issue. In the event CARRY PUMPS, INC. is unable
to repair or replace the pump at issue in a manner acceptable to purchaser, or in the event
it shall be determined by a court having jurisdiction thereof that any provisions of this
warranty are unconscionable or fail in its essential purpose, then the maximum liability of
CARRY PUMPS, INC. shall be that as set forth in the paragraph next following entitled
“Limitation on Liability”.
Page 1 of 2

Carry Pumps, Inc. ·1360 Prospect Ave. ·Caro, MI 48723
www.carrypumps.com ·800-492-2779 ·[e-mail]
STANDARD WARRANTY AND CONDITIONS OF SALE
LIMITATION ON LIABILITY: CARRY PUMPS, INC. shall not be liable for any loss,
damage or injury resulting from delay in delivery or installation of the pump or for any
failure to perform which is due to circumstances beyond its control. CARRY PUMPS, INC. and
Purchaser agree it is a commercially reasonable allocation of risk that the maximum liability,
if any, of CARRY PUMPS, INC. for all damages, including without limitation contract
damages and damages for injuries to persons or property, whether arising from CARRY
PUMPS, INC.’ breach of this agreement, breach of warranty, negligence, strict liability or
other tort, is limited to an amount not to exceed the purchase price of the pump at issue in
the dispute and said liability is so limited. In no event shall CARRY PUMPS, INC. be liable to
Purchaser for any incidental, consequential or special damages, including without limitation,
lost revenues and profits, even if it has been advised of the possibility of such damages.
WARRANTY CLAIM PROCEDURE: This warranty is valid only if the following conditions
are complied with by the Purchaser: Purchaser shall notify CARRY PUMPS, INC. in writing of
the defect in the pump at issue within 30 days of discovery of the defect. The notice shall
include with it copies of the proof of purchase and the return receipt signed by a
representative of CARRY PUMPS, INC. as provided above. In the event repair or
replacement of the pump at issue is approved by CARRY PUMPS, INC., Purchaser shall, upon
written notice by CARRY PUMPS, INC. of the approval, return the pump to CARRY PUMPS,
INC., freight pre-paid. CARRY PUMPS, INC. will return the repaired or replaced pump to
Purchaser, freight prepaid. The repair or replacement of the pump shall not extend the
duration of the one-year warranty term.
GOVERNING LAW: This warranty shall be governed and controlled by and enforced in
accordance with the laws of the State of Michigan, U.S.A., in all respects.
FORUM: The parties agree they are of equal bargaining power and irrevocably submit
to the jurisdiction and venue of the Circuit Court for the County of Tuscola, State of
Michigan, or if original jurisdiction can be established, the United States District Court for
the Eastern District of Michigan, Northern Division, with respect to any performance or
breach of this agreement. The parties hereby stipulate that the venues referenced in this
agreement are convenient to each of them.
RETURNS: Authorization and shipping instructions for the return of any product must
first be obtained by the Purchaser from CARRY PUMPS, INC. or shipment will be refused.
Only unused standard product or materials of current design by CARRY PUMPS, INC.
purchased within a will be considered for return. Products are not eligible for return more
than 6 months after the initial ship date of the product. Custom products cannot be
returned for credit. If the returned product is in sellable condition, a credit memorandum
will be issued for the original purchase price, less a minimum restocking charge of 20%. If
there are any shipping charges that were paid by Carry Pumps, Inc., the amount of those
shipping charges will also be deducted from the credit amount.
GENERAL: These terms and conditions shall constitute a part of any contract which
may be entered into and shall not be altered, modified, or added to unless specifically and
expressly agreed to in writing by CARRY PUMPS, INC. All oral agreements and
representations of CARRY PUMPS, INC. or its representative to the Purchaser shall be
embodied in any written contract of which CARRY PUMPS, INC. is a part.
Page 2 of 2
