CarShow 2Din User manual

In-Dash Multi-Media /
Navigation System
In-Dash Multi-Media /
Navigation System
Honda Accord Quick Start Guide
Toyota Venza Quick Start Guide
Multimedia Navigation System
• Navigation
• Bluetooth Hands-Free
• iPod® and MP3 compatible
• Back-up camera and/or sensor ready
• Play DVDs, Audio CDs, MP3 Discs
• Supports steering wheel controls
• Built-in MP3 Recorder
• Satellite Radio ready
System Features:
2Din Quick Start Guide

NOTICE OF INTENDED USE
Some features of CarShow Entertainment Systems are not intended for viewing by the driver when the vehicle is in motion,
such as movie playback. When using navigation, minimize the amount of time spent viewing the screen and use voice
prompts as much as possible. Avoid prolonged use of the touch screen controls. Such use might distract the driver or
interfere with the driver’s safe operation of the vehicle, and thus result in serious injury or death. Such use might also
violate state or local laws.
CarShow Entertainment Systems disclaims any liability for
any bodily injury or property damage that might result
from any improper or unintended use.
About the Registered Marks
This product incorporates copyright protection technology that is protected by method claims
of certain U.S. patents and other intellectual property rights owned by Macrovision Corpora-
tion and other rights owners. Use of this copyright protection technology must be authorized
by Macrovision Corporation, and is intended for limited viewing uses only unless otherwise
authorized by Macrovision Corporation. Reverse
engineering or disassembly is prohibited.
iPod®is a registered trademark of Apple Computer, Inc.
NOTE: Features and specications listed in this manual are subject to change without notice.
1
Copyright © 2012 by CarShow Entertainment Systems. All rights reserved. Except as permitted
under the Copyright Act of 1976, no part of this publication may be reproduced or distributed in
any form or by any means, or stored in a database or retrieval system, without the prior written
permission of CarShow Entertainment Systems.
Notices

2
Vehicle Specifc Features
Some vehicles have special settings within the unit. If your vehicle is listed, please refer
the page given below.
Mazda CX-9: For clock intructions, please visit page 9
Subaru Forester: For steering wheel control functions, please visit page 10
Subaru Legacy: For steering wheel control functions, please visit page 10
Honda Accord: First source tab is labeled MAIN, please refer to Accord note on page 3
F150: Unit functions with SYNC technology. Some features in this guide may not apply
Your system will automatically default to the last screen you were on prior to turning off the unit.
The Information Bar is located at the
top of the screen. Depending on the
source, it will provide information or content
sensitive controls
This will take you to the Settings
Menu for advanced control settings.
The Source Tabs located at the bottom of
the screen will give you direct access to
common sources.
Basic Functions
Screen Organization
Note:“PHONE” is highlighted BLUE when a phone is paired to CarShowBluetooth.

3

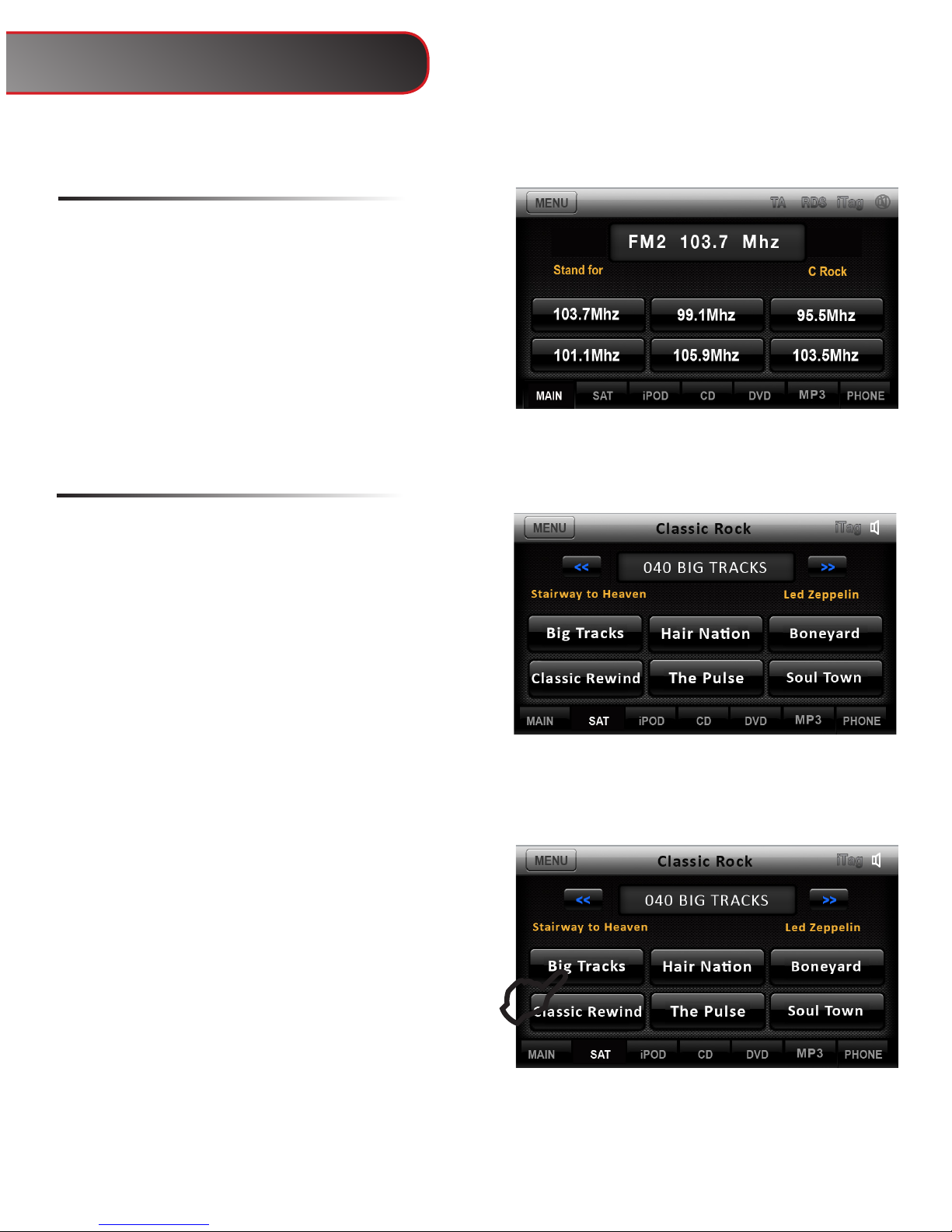

Radio
For Radio and Satellite functions, the upper
display provides a convenient location to view
Radio and Satellite information such as preset
stations, station ID and song and artist
information.
The Preset options for your radio may vary
depending on the source.
To set a station as a Preset, press
and hold the desired button.
Short touch the Preset button to
select that channel.
Accord Note: Depending on the model of your
CarShow system, the rst Source Tab may be
labeled either AM/FM or MAIN. Selecting the
Tab labeled MAIN will conveniently switch the
system control to the Main Radio console.
Preset Channels
E
Radio and Satellite Display
F150: Most functions on the unit are controlled by either SYNC or the Factory buttons.
Please refer to your Factory Owner’s Manual for all other instructions.

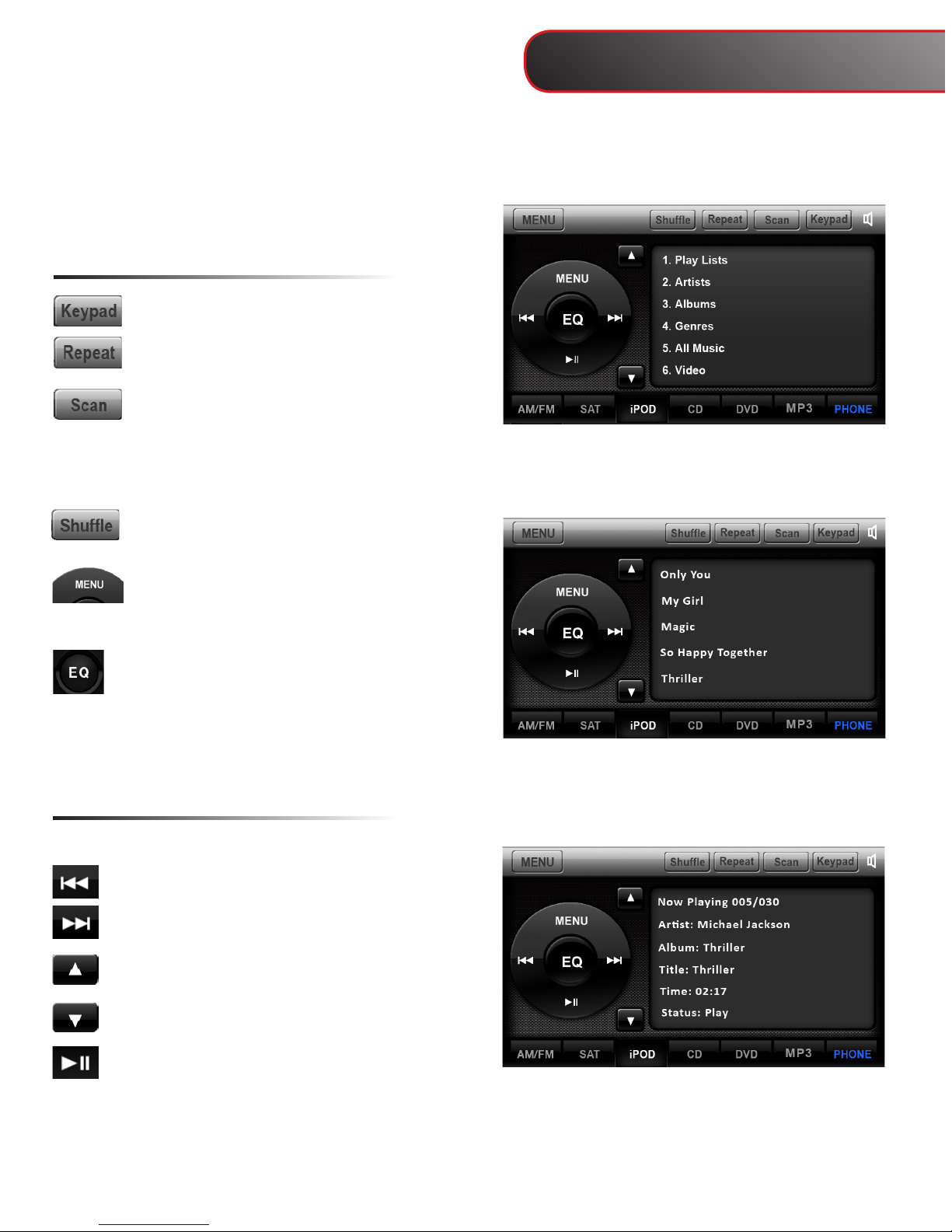

When the optional iPod interface is connected to a compatible iPod player, the audio les stored
on the iPod can be played through the system.
Touch to enter category list. The
system categorizes into 6 options
Press once to display song
information.
Press twice to display spectrum
graphics.
Touch Button Descriptions
Show/hide the key pad
Repeat the current played song
Scan and play songs in the
current folder. The next song will
be played after the current song
has played for several seconds.
Play songs in the current folder
in random order.
Play A Song
Touch the song shown on playlist to play.
Select previous song
Select next song
Page up
Page down
Play/Pause
4
Note: Sleep mode should be enabled on the iPod to reduce battery drain if the iPod is left
connected with the vehicle off.
iPod Audio

5
Play/Pause track
Stop track
Play previous song/chapter
Play next song/chapter
Repeat current song played
CD/DVD
DVD Only
Set up DVD
Change language
Show current title info
Main DVD menu
Shows information such as Chapter,
Time Elapsed, etc
Long Touch in DVD mode to show the DVD
control screen. To return to full screen,
either touch the image or let the screen idle
for 10 seconds
E
Change audio EQ setting
Change spectrum display
Play songs on disc in random order
Scan songs for several seconds
Copy song to Favorites folder
CD Only
CD/DVD

Note: This system requires a Bluetooth enabled phone. Bluetooth phones and software vary by
brand and date of manufacture. Some phones or phone functions may not be compatible or may
operate differently with this system during use. Phone compatibility problems are not warrantable
issues.
Pairing Your Phone
Place your phone into discovery mode.
Press the PHONE tab to open the
Bluetooth set-up page.
Press “Pair” to pair your cell phone for
the rst time. You will only need
to do this once, unless you connect to a
different cell phone or the connection is
deleted.
“Pairing” will be displayed on the screen. After
the connection succeeds on your phone, select
“Rosen” and enter the password (1234). The sys-
tem will indicate “Linking” and then “Connected.”
When your phone is connected its name will be
displayed on the unit.
Select Auto Connect If you desire the
system’s Bluetooth feature to automati
cally detect your cell phone when the
system is turned on.
Select Auto Answer to set the system to
automatically pick up after three rings.
There are several different Bluetooth screens in
the PHONE function. The rst screen you will see
is the Call Screen. To switch between screens,
press the PHONE tab repeatedly.
E
6
Note: If using factory Bluetooth, please refer to your vehicle’s owner’s manual.
Bluetooth Hands-Free
BT Music Voicedial

You can dial the number from your
phone or use the touch-screen shown at
the right by entering the number, then press
the Call button.
Clear last number
Press to redial the last number dialed with
the touch screen.
Press to transfer call between cell phone
and car speakers.
Press to end the call.
For incoming calls, the system will
automatically switch to the answer screen.
Press to answer.
Press the icon to refuse or end the call
Press to transfer call between cell phone
and car speakers.
The call list can be used to view missed,
received and made calls.
The system will not display your cell phone’s
internal phonebook but will show the last
numbers missed, received or made. Press the
appropriate button on the screen to view the
numbers. To make a call from the list, touch the
number on the screen and it will automatically dial
the number.
Making/Ending A Call
Answer An Incoming Call
Call List
Note: While in Navigation mode the incoming call box will disappear. Touch the screen to
7
E
show the incoming call box.

Note: While in Navigation mode the incoming call box will disappear. Touch the screen to
Press to enter the Settings Menu. To
change system settings, select desired
option.
The time displayed on all screens
Turn the backup camera On/Off
Button beep On/Off.
Spectrum On/Off
Display the microphone level. Press to
switch between “STD and HIGH”
Guidepoint
Phone Reminder On/Off
(If using CarShow Bluetooth)
Allows voice prompt to interrupt main
audio when directions are being given.
The AUDIO screen will allow you to adjust
audio settings such as Treble, Mid Range,
Bass and 5.1 Channel.
Press to reset back to original audio
settings
Change the brightness, color and contrast of the
display.
Press to increase the value
Press to decrease the value
Press to reset back to original display
settings
Settings Screen
Audio Screen
Display Screen
System Settings
Audio Settings
Display Settings
Settings Menu Screen
8
Settings

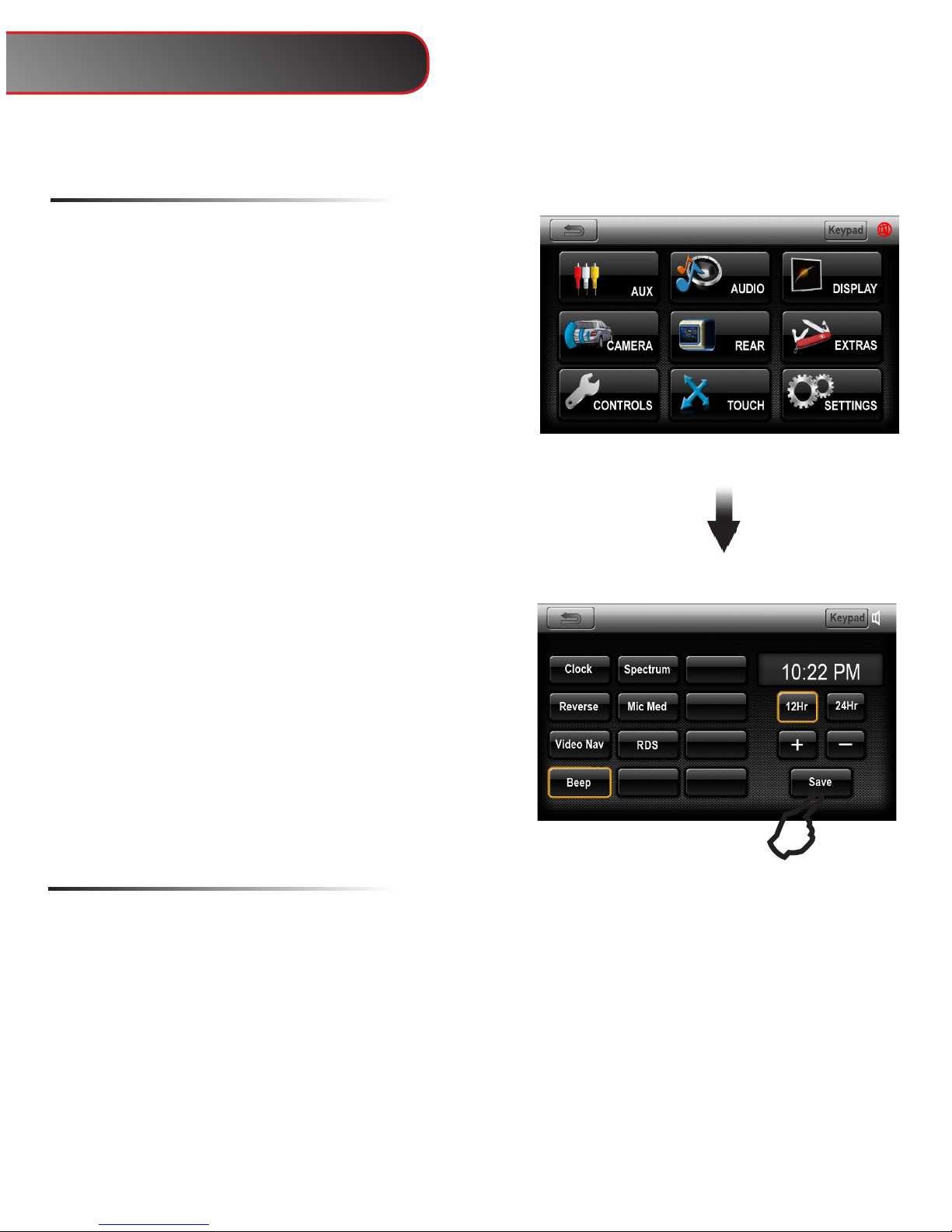

The following instructions will guide you through manually setting the clock.
1.Press Menu to get to the Settings Menu. Press
SETTINGS. The clock setup will be displayed on
the right.
2.Long Press the “SAVE” button. The 12Hr/24Hr
will ash.
3.Press “+” to switch between 12Hr and 24Hr.
4.Press “SAVE” again and the hour will ash.
Press “+” several times until desired hour
appears.
5.Short press “SAVE” to lock in the hour. The
minutes will now ash. Repeat Step 4 to set the
minutes.
6.Press “SAVE” to lock in the minutes. The clock
is now set.
E
Setting the dash system clock
Setting the OEM clock
1.Press “+” several times until desired hour appears.
2.Press “-” several times until desired minutes appear.
3.The time you selected will now appear on the OEM clock display
Note: You cannot set the OEM clock while the hour or minutes on the dash system
are ashing.
To set the OEM clock, you will access the same SETTINGS menu.
Mazda CX-9 Clock Setup
9

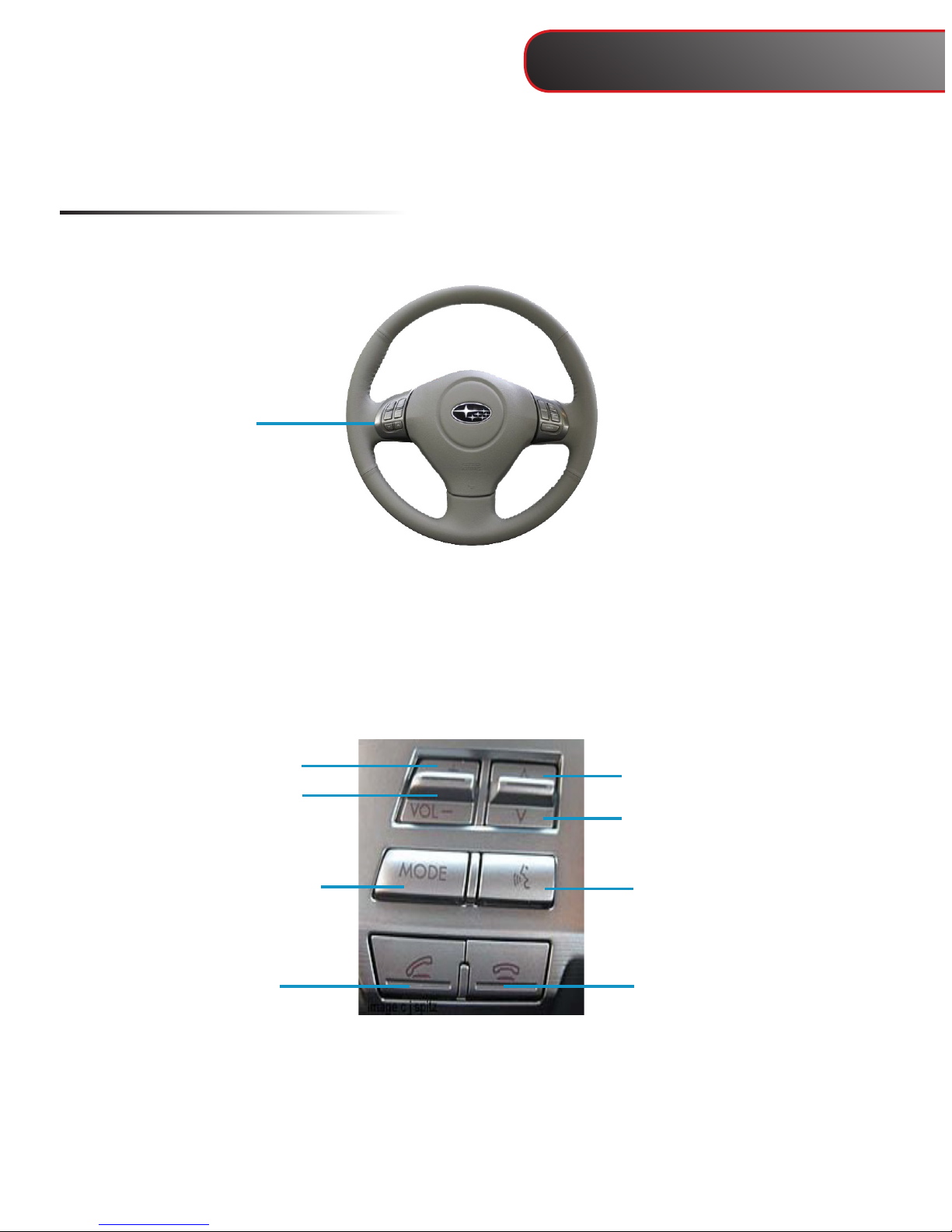

Subaru Steering Controls
The right side steering wheel controls are for the instrument cluster trip computer/info
display only.
Volume Up (+)
Volume Down (-)
Mode
Left Side
Controls Only
Next Station
Next Song
Previous Station
Prev Song
Note: Some steering controls may differ from the picture above.
Steering Wheel Control Functions
Answer call
(Select systems only)
Reject Call
(Select systems only)
Voice Dial (If supported)
10

11

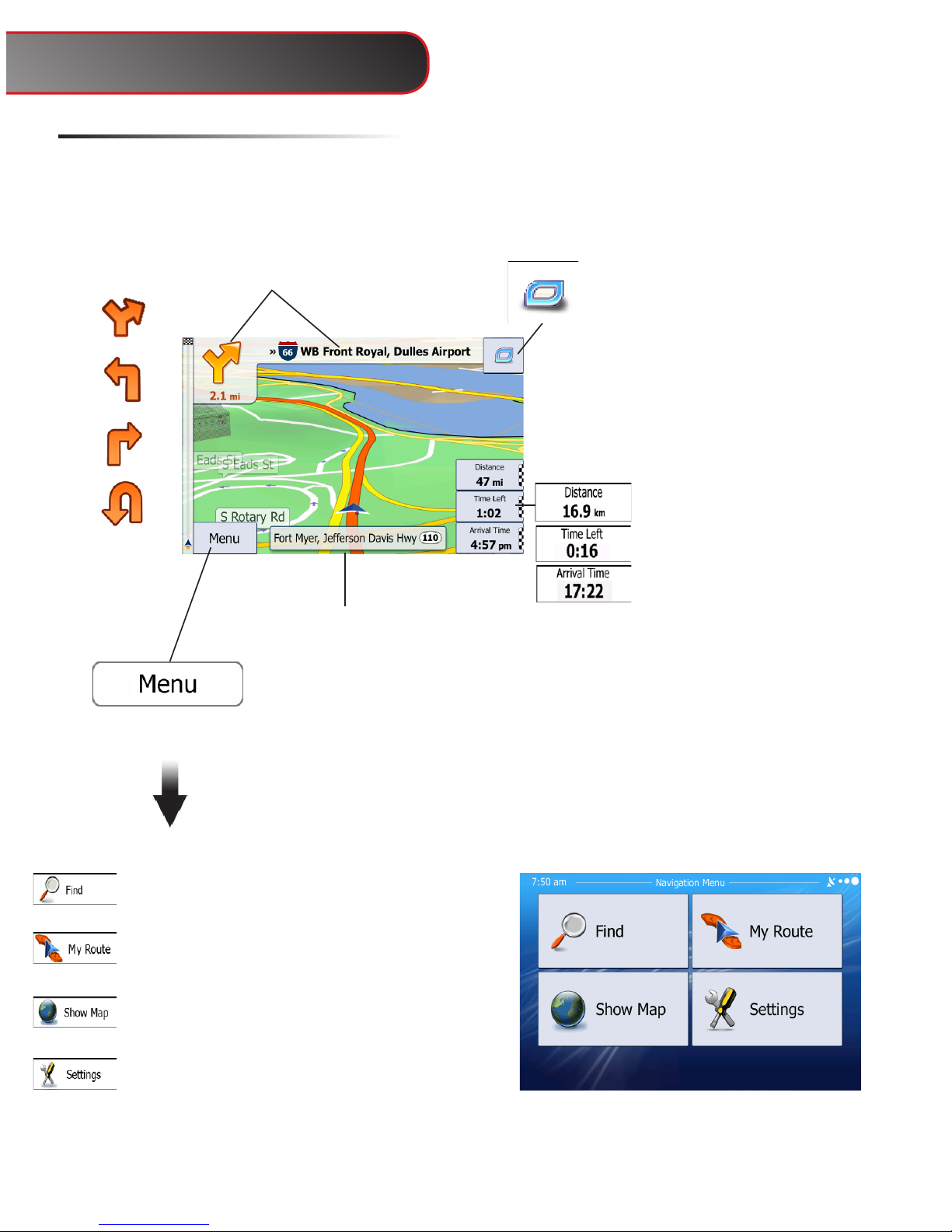

Understanding the Map
Select the Quick
Menu to access the
most used functions
These displays show
you the distance, time
left and the estimated
arrival time of your trip
The top part of the screen shows
you what the next street is and which
direction to turn on your route
Shows you the street
you are currently on
Access the Navigation Menu
Find an address or Point of Interest and
access the Favorites and History menu
Displays the route details and allows
you to edit, change or cancel existing
route
Displays current position, surrounding
map area and route.
Customize the navigation software
Navigation
12
Navigation

12

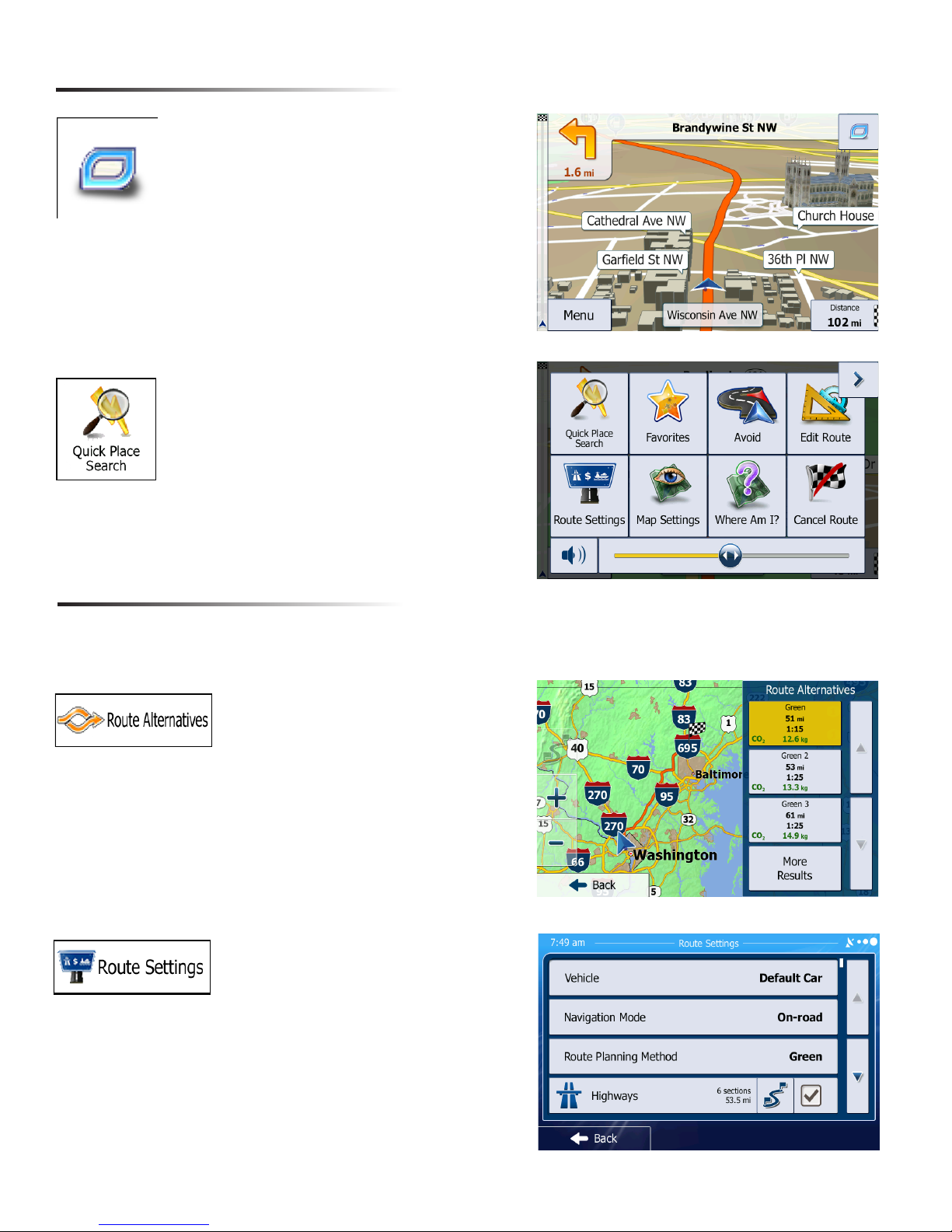

Modifying Existing Routes
You can modify an existing route by accessing either the Quick Menu or Main Navigation
menu
Quick Menu
Located in the top right corner of the
map screen is the Quick Menu. In
this screen, there is a selection of
functions that are frequently needed
during navigation.
You can use this option to search for
places of interest along the way of
your route, such as: Gas Stations,
Restaurants, Parking, etc.
You can use this option to se-
lect an alternative route to your
destination.
This option is a good way to
change road types and modes.
You can avoid highways, allow
toll roads, etc.

Enter or Find Address
If you are on the Map screen, press MENU. In the Navigation Menu, select Find Address.
Note: By default, the software proposes the country and state where you are currently
located.
1. Touch “City Name” and the key-
board screen will appear.
2. Your current city will automatically
default. To search for a different city,
start typing each letter of the City
name
Tap to conrm city
3. A “Select City” screen will appear.
This will show a list of cities that
match your selection. Touch the city
you desire.
4. Select “Street” and the keyboard
screen will appear.
13

14
7. Repeat these steps for House number,
or if you do not know it, you can select the
SELECT STREET option.
8. A map will appear.
Click Next and a short
summary of the route will ash on the
screen for a few seconds.
9. After the summary, the map ap-
pears showing the entire route.
Tap to start your journey.
5. Start typing each letter of the street
name.
6. A Street Name list will appear. Se-
lect the one you are looking for.

Safety Information and Precautions
WARNING! Please read and follow the following safety precautions.
Failure to follow the instructions below may increase
your risk of collision and personal injury.
The Rosen Navigation software is not a substitute for your personal judgment. The route suggestions should never supersede
any local trafc regulation or your personal judgment and /or knowledge of safe driving practices. Prior to completing any ma-
neuvers suggested by your Rosen Navigation software (for example, a U-turn or a left turn), verify that you can legally and safely
complete the maneuver. Do not follow route suggestions if they direct you to perform an unsafe or illegal maneuver, would place
you in an unsafe situation, or would route you into an area that you consider unsafe.
Do not use the Rosen Navigation software to locate emergency services (such as police, re stations, hospitals, and clinics).
The database may not include all emergency service providers. Use your own best judgment and ask for directions in these
situations.
If the vehicle is in motion, only a passenger should program the Rosen Navigation software. The driver should not program the
system unless the vehicle is parked in a safe location.
The Rosen Navigation software’s map database provides information on suggested routes without regard to factors that may
affect your driving experience or the time required to arrive at your destination. For example, the system does not reect road de-
tours, closures or construction, some road characteristics (e.g., road surface, slope or grade, weight or height restrictions, etc.),
temporary trafc congestion, weather conditions, and similar factors.
Vehicle Position
The Rosen Navigation software’s computer considers vehicle speed and heading changes, together with longitude and latitude
information, to accurately determine vehicle heading and position on a digital map.
Map and Information Database
The map database used by your Rosen Navigation software was created using high-resolution aerial and land based data col-
lection.
Car navigation maps are frequently updated. While the database was judged to be as accurate as possible at the time of its
release, a map database can never be 100% accurate. Road information that is maintained in the map databases, such as turn
restrictions or road names may change over time.
Errors or missing information in the map data are not covered by the Product Warranty. New and/or updates for the map data
are the responsibility of the End-user.
End-User License Agreement
Please refer to the Rosen Navigation User’s Manual to review and accept the terms and conditions in the End-User License
before operating this product.
All rights reserved. Copyright 2012. CS103 Rev A
Rosen Navigation Information
