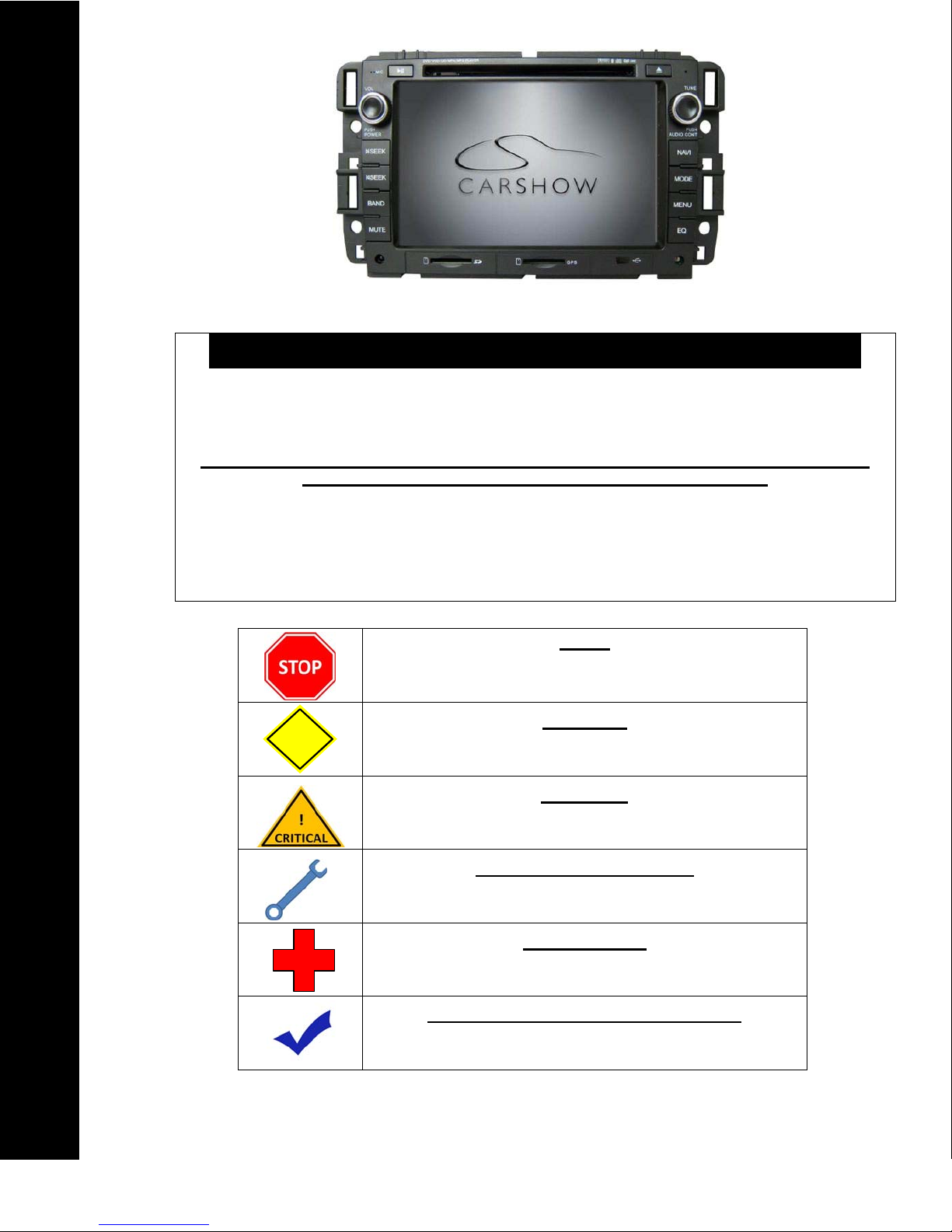

CarShow CS-GM1010 User manual

CarShow Copyright 2012 All Rights Reserved
Multi-Media Navigation System Installation Guide Rev A
Installation Guide
NOTICE OF INTENDED INSTALLATION AND USE
THE CAR SHOW MULTI-MEDIA NAVIGATION SYSTEMS CONTAIN AN INTERNAL VIDEO PLAYER, WHICH
IS NOT INTENDED FOR VIEWING BY THE DRIVER. THE VIDEO PLAYER IS DISABLED WHEN THE
VEHICLE IS IN MOTION THROUGH A CONNECTION TO THE PARKING BRAKE.
THE INSTALLER OF THIS PRODUCT MUST INSURE THE VIDEO DISABLE CONNECTION IS
WORKING PROPERLY PRIOR TO DELIVERY OF THE VEHICLE.
IMPROPER INSTALLATION COULD DISTRACT THE DRIVER OR INTERFERE WITH SAFE OPERATION OF
THE VEHICLE, WHICH COULD RESULT IN SERIOUS INJURY OR DEATH, AND COULD ALSO VIOLATE
STATE AND/OR FEDERAL LAW.
CAR SHOW DISCLAIMS ANY LIABILITY FOR ANY BODILY INJURY OR PROPERTY DAMAGE THAT MAY
RESULT FROM ANY IMPROPER OR UNINTENDED INSTALLATION AND/OR USE.
STOP
Damage to the vehicle may occur
Do not proceed until process has been completed
CAUTION
CAUTION
Process must be carefully observed in order to reduce
the risk of damage to the accessory or vehicle
CRITICAL
Process must be carefully observed in order to ensure a
quality installation
TOOLS and EQUIPMENT
Specific tools and equipment recommended for this
process
SAFETY RISK
Observe safe practices, this process can be dangerous
and there is a risk of personal injury
TESTING and TROUBLESHOOTING
Content specific testing and troubleshooting points
CS-GM1010 GM Series Installation Guide

CarShow Installation Guide
CarShow Copyright 2012 All Rights Reserved
Multi-Media Navigation System Installation Guide CS-GM1014
Page 2

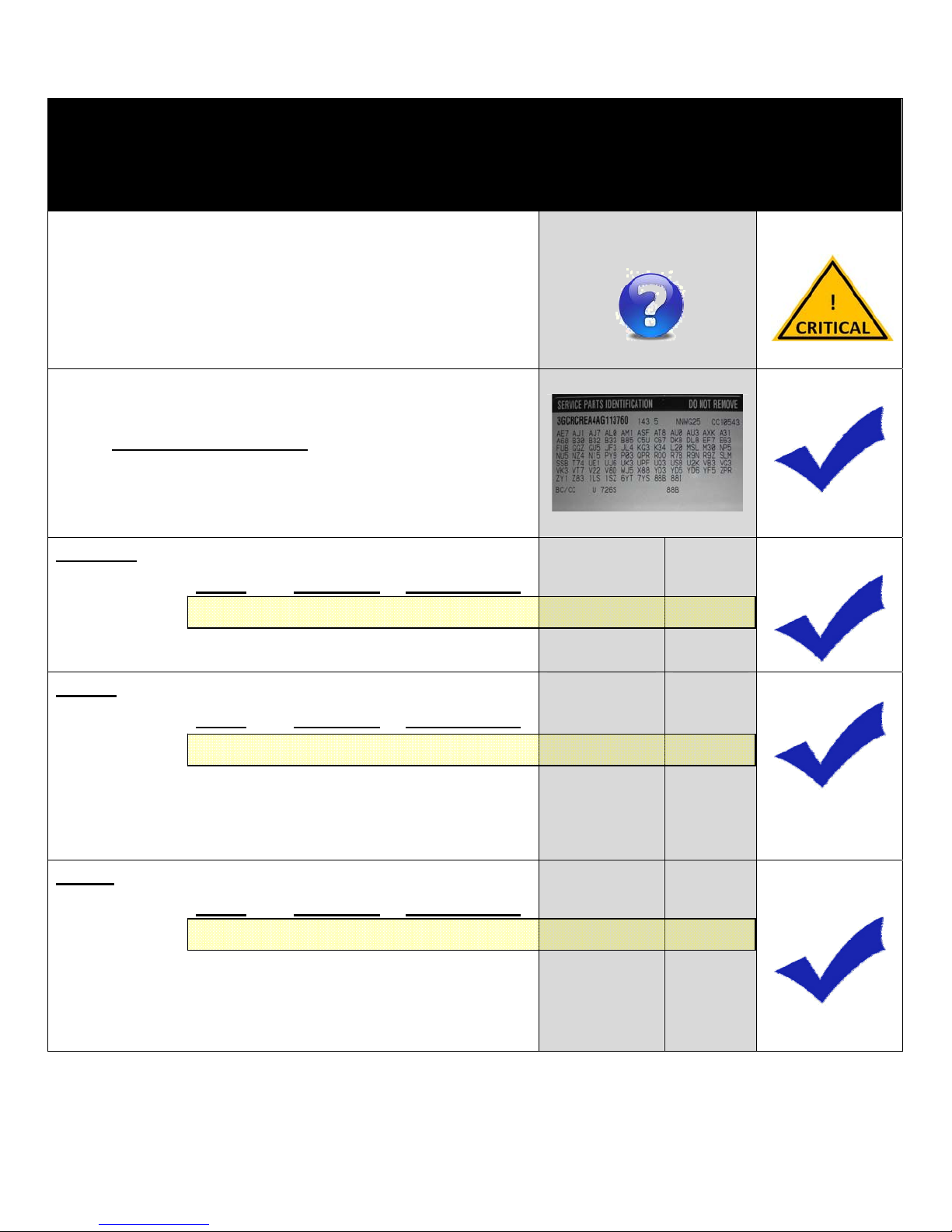

Identify the Vehicle Audio System
The first step you need to complete
Is to CONFIRM the Vehicle Audio System before you proceed. The Car Show Nav Systems
are specifically designed to be CONFIGURED to work in appropriate vehicles.
STEP
1a
This System can be Configured to work in
ALL Audio Platforms
Using the wrong Configuration will cause
various audio performance problems
See the Trouble Shooting at the end of this Install Guide for symptoms
SOME VEHICLES ARE NON-AMP
These are typically the very low-end vehicles and work trucks.
They will not have any BOSE logos on the vehicle
CONFIGURE THIS WAY
USE HARNESS: DP-GM1016
INSTALLER SETTING MENU: CENTER PT = OFF
MOST VEHICLES ARE STD-AMP
These are typically the mid-range vehicles
. They may have any BOSE logos on the vehicle
CONFIGURE THIS WAY
USE HARNESS: DP-GM1012
INSTALLER SETTING MENU: CENTER PT = OFF
FEW VEHICLES ARE CENTERPOINT
These are the high-end vehicles including all GMC
Yukon/Sierra Denalis.
They may have BOSE logos on the vehicle
NOTE: CS-GM1010 IS NOT COMPATIBLE
WITH BOSE CENTERPOINT EQUIPPED
VEHICLES.
STILL NOT SURE…???
Go To STEP 1b
Check the Vehicle RPO Codes
as shown on the next page

CarShow Installation Guide
CarShow Copyright 2012 All Rights Reserved
Multi-Media Navigation System Installation Guide CS-GM1014
Page 3
Identify the Vehicle Audio System
The first step you need to complete
Is to CONFIRM the Vehicle Audio System before you proceed. The Car Show Nav Systems
are specifically designed to be CONFIGURED to work in appropriate vehicles.
STEP
1b
USING THE RPO CODES
You can use the Regular Production Order (RPO) Codes to
determine the Audio Platform Type. These codes, along with
the Vehicle Trim can be used as noted below.
THE RPO CODES
You will find the RPO Codes located in the Glove Box
These Codes and the Trim Level of the Vehicle are needed to
identify the Audio Platform Type.
(Note: RPO codes are in Alphabetical order from Right to Left)
BUICK: Enclave
Trims With RPO Without RPO
Non-Amp > CX, CXL PCU or UUJ
Std-Amp > CX, CXL PCU or UUJ
Use
Harness
DP-GM1016
DP-GM1012
Installer
Setting
OFF
OFF
CHEV: Suburban /Tahoe/Silverado/Traverse/Avalanche
Trims With RPO Without RPO
Non-Amp > LS, LT UQA
Std-Amp > LS, LT UQA
Std-Amp > LTZ UQA
Use
Harness
DP-GM1016
DP-GM1012
Installer
Setting
OFF
OFF
GMC: Acadia / Denali* / Yukon / Sierra
Trims With RPO Without RPO
Non-Amp > SL, SLE UQA
Std-Amp > SL, SLE UQA
Std-Amp > SLT UQA
Use
Harness
DP-GM1016
DP-GM1012
Installer
Setting
OFF
OFF

CarShow Installation Guide
CarShow Copyright 2012 All Rights Reserved
Multi-Media Navigation System Installation Guide CS-GM1014
Page 4

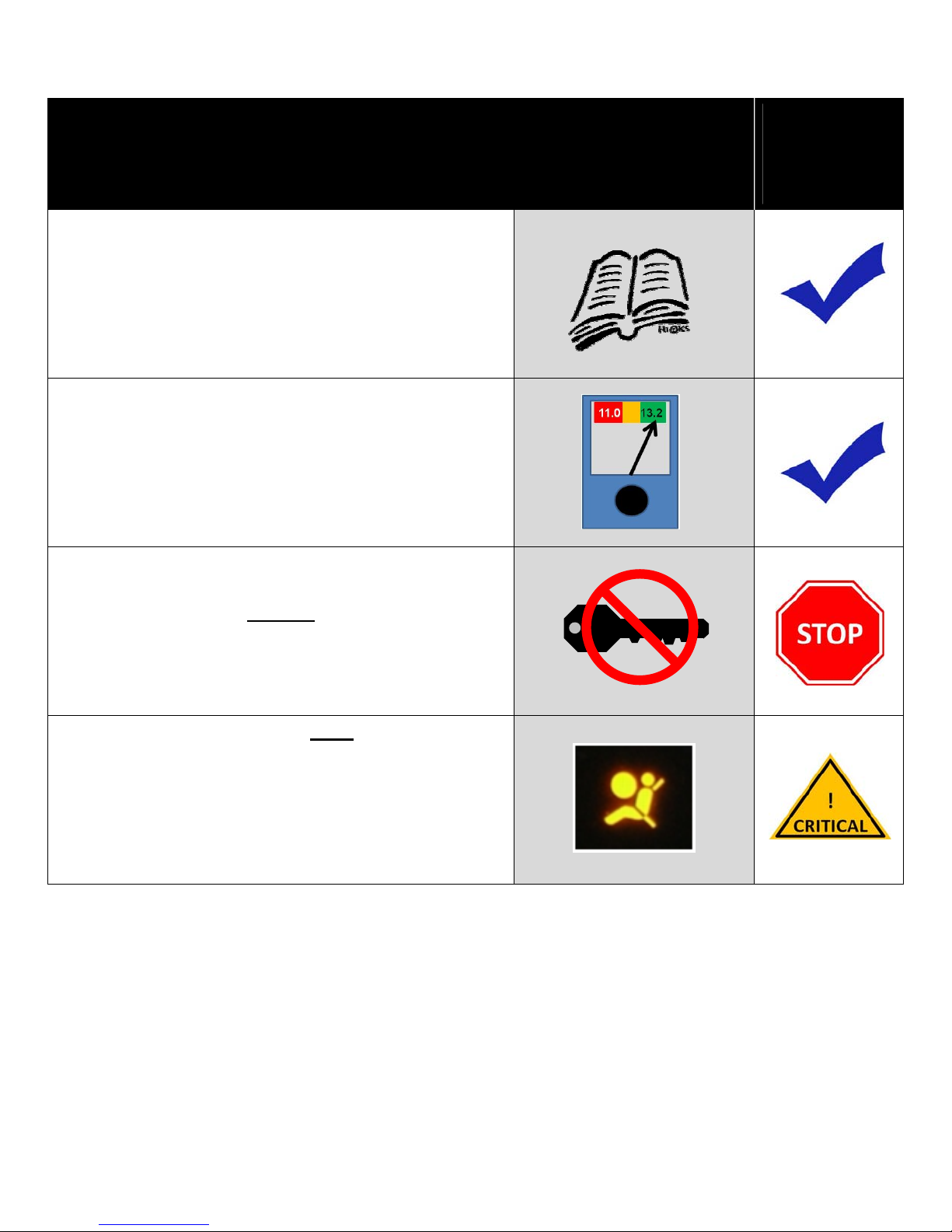

PREPARING FOR THE INSTALLATION
Before you start, please read these critical steps below STEP
2
BEFORE YOU START THE INSTALLATION,
READ THIS GUIDE!
CHECK THE BATTERY
Test the battery voltage to make sure it’s fully charged
This only takes seconds and can save hours of
troubleshooting later.
TURN THE VEHICLE
OFF
Keep the Vehicle Off during the installation to avoid setting
various Vehicle Faults
Keep the Vehicle OFF during the
installation
Failure to follow this may cause the AIRBAG FAULT
SENSOR to become enabled. Dealer Service
Departments charge a significant fee to reset the Fault
Sensor.

CarShow Installation Guide
CarShow Copyright 2012 All Rights Reserved
Multi-Media Navigation System Installation Guide CS-GM1014
Page 5
REMOVE THE FACTORY RADIO
GMC Acadia Shown
You will need to remove multiple interior trim components prior to removing the factory radio.
The following steps will help guide you through this process.
STEP
3
Remove Center Dash Panel
Carefully pull top of dash panel towards you
CAUTION
Remove Lower Part of Dash
Carefully remove lower portion of dash
CAUTION
Removing Dash Panel
Carefully remove dash panel and set aside
(Note: No need to disconnect climate controls on Acadia!)
Remove Mounting Screws
Remove 4 radio mounting screws
Remove Radio
Remove OE radio and unplug all connections
(Non-Bose system shown)
CAUTION
CAUTION

CarShow Installation Guide
CarShow Copyright 2012 All Rights Reserved
Multi-Media Navigation System Installation Guide CS-GM1014
Page 6

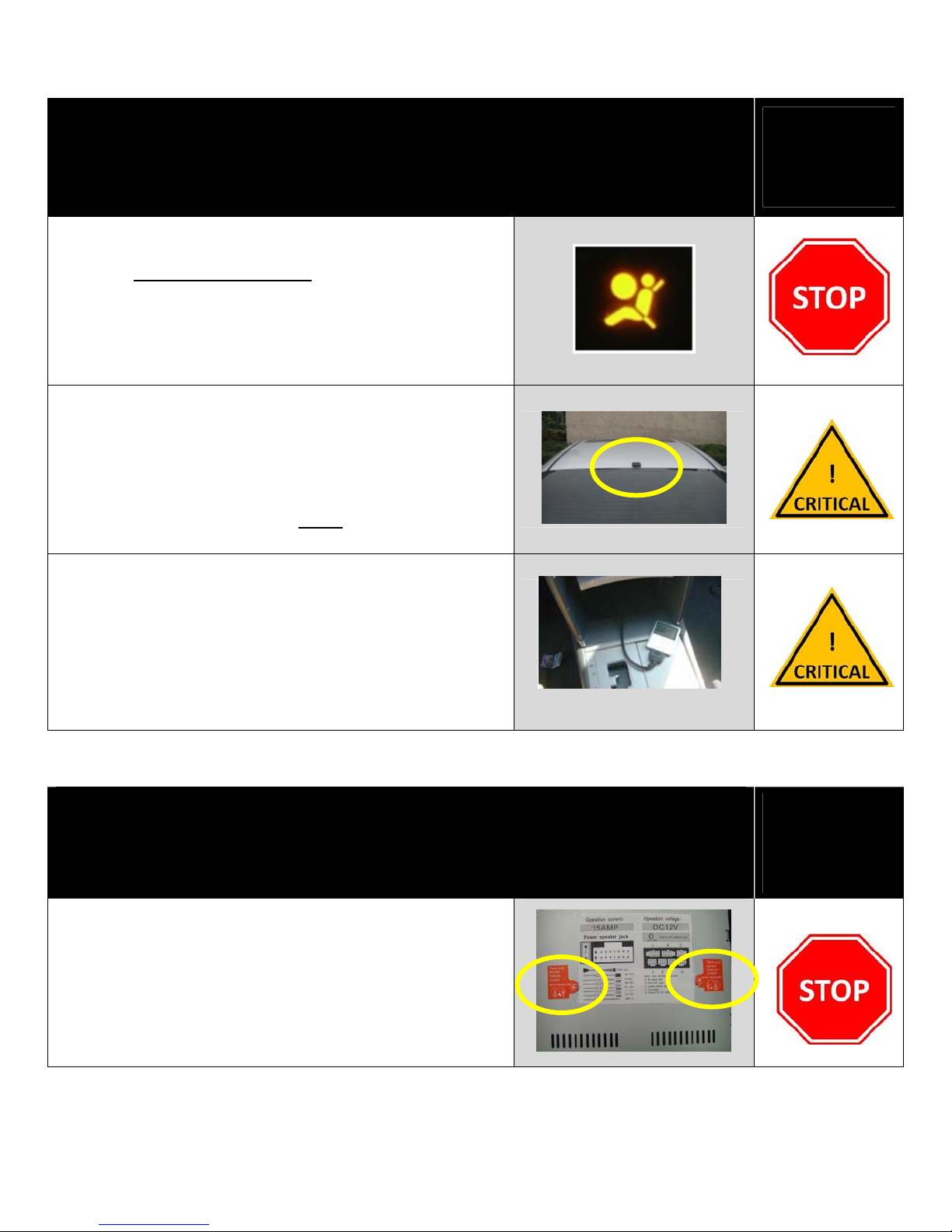

LOCATING REMOTE COMPONENTS
You will need to mount the GPS and Optional Satellite Radio Antennas on the exterior of the
vehicle. And mount the iPod Interface Connector in the vehicle. The following steps will help guide
you through this process.
STEP
4
Use Caution around SRS Components
It is the installer’s responsibility to ensure that the safety
equipment in the vehicle is NOT adversely affected by installation
of this system. Ensure that the routing of the harnesses do NOT
obstruct airbags, SRS or other safety devices.
Mount the GPS and Sat Radio antenna in a
location on the exterior of the Vehicle
Route the GPS harness away from other power harnesses in the
vehicle and locate the Antenna 12” away from the radio.
If the Antenna is Dash Mounted, it MUST be attached to a metal
plate 3”x3” to ensure acceptable GPS performance
Install the iPod interface connector in a
location accessible to the end-user
Locate the iPod interface module in an area which can be
serviced in the future.
The iPod cable is intended to be a serviceable item, which plugs
into the iPod/Sat radio Interface Module.
INSTALL THE CAR SHOWNAVIGATION SYSTEM
You will need to prepare the Car Show Navigation System for installation in the vehicle. STEP
5
Remove the DVD Transport Screws
There are 2 x Phillips Transport Screws which protect the DVD
Mechanism during transportation.
Transport Screws must be removed prior to installation.

CarShow Installation Guide
CarShow Copyright 2012 All Rights Reserved
Multi-Media Navigation System Installation Guide CS-GM1014
Page 7
Connect the Power and GPS Harnesses
The GPS Antenna Harness must be tightened with a WRENCH
to ensure it is properly seated.
Be sure to use white cable clamp to secure GPS antenna cable
Failure to follow this step may result in poor GPS signal
Connect Optional Harnesses such as iPod,
Satellite Radio, Camera, Reverse Sensors
These harnesses must be fully engaged prior to the system
installation.

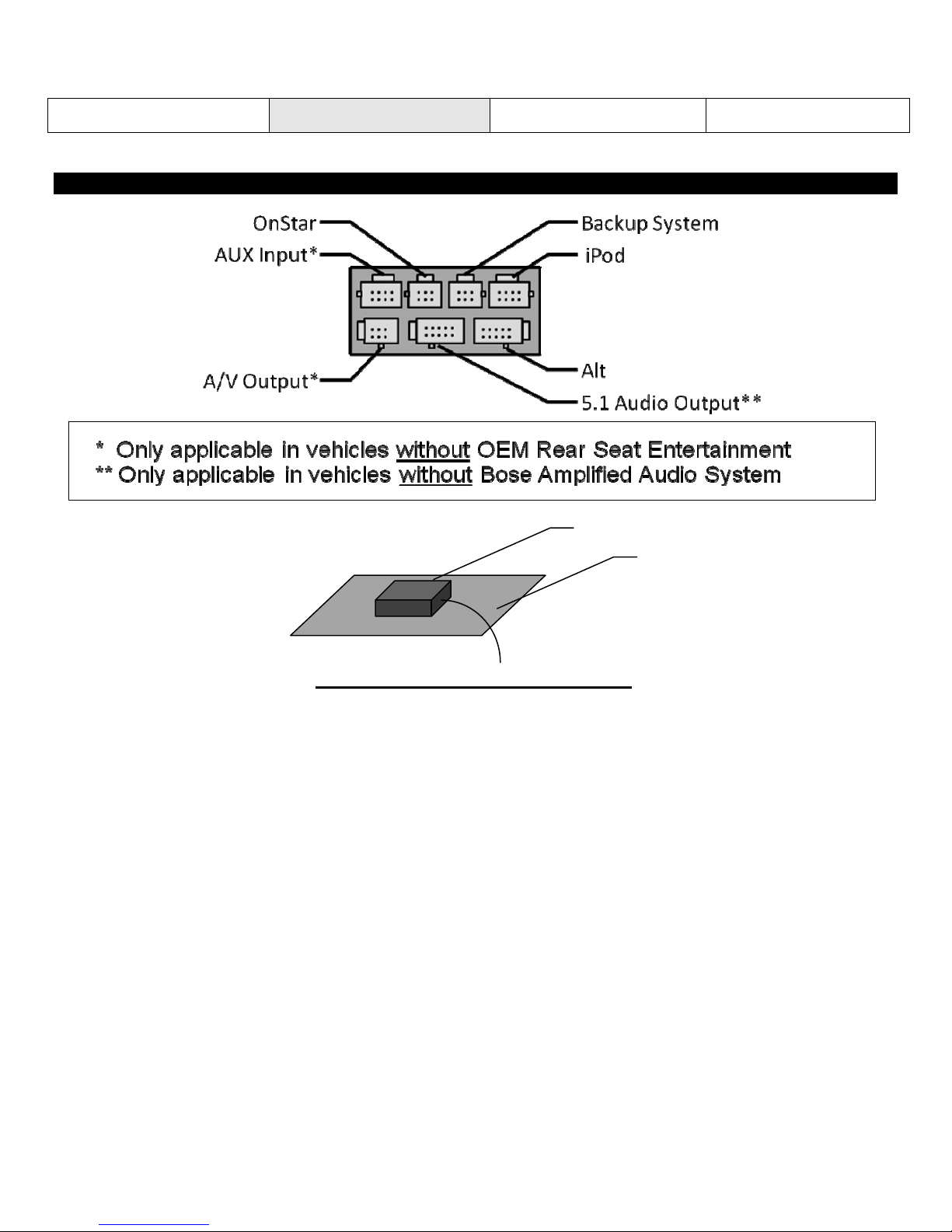

See the Harness Diagrams for more information
Prepare the Vehicle side harnesses for
connection to the Car Show Harness
Use care not to pinch or damage cables as this will cause
performance issues/failures
Engage all Connectors to the Factory
Harnesses
Use the previously removed Mounting Bolts to
secure the Car Show System
If the unit does not fit FLUSH, check the cables for
clearance, DO NOT FORCE the unit in.
Re-install Dash Trim
Re-Install dash trim using caution.
Be sure that all vehicle connectors (Climate control, Hazard
lights etc…) have all been reconnected PRIOR to starting
vehicle!
Turn the vehicle ON and confirm the unit is
fully operational
With the connectors Fully Engaged, turn the vehicle on
and press the RESET for 5 seconds on the unit.
CAUTION
CAUTION

CarShow Installation Guide
CarShow Copyright 2012 All Rights Reserved
Multi-Media Navigation System Installation Guide CS-GM1014
Page 8
Insert a DVD to confirm the Video Disable
Circuit is properly Operating.
The Video Disable is provided by a Brake wire attached to
the Park Brake circuit.
When attached, the wire completes a ground if the brake is
engaged, to allow video playback.
ENABLE INSTALLER SETTINGS
You will need to select certain Installer Setting based on any Optional Equipment that you may have
installed
STEP
6
Launch the Installer Setting Screen
From any screen with the Menu Button, follow these steps
to display the Installer Setting Screen, select:
1) From any Screen, select “Menu”
2) From the Menu Screen, select “Settings”
3) Press “Keypad,” Press “7253” and “Enter”
Select the individual Settings as needed
for the installed components
Selectable options vary by product and installation. Select
the options as applicable for the installed optional
components.
You can also Enable/Disable Car ShowBluetooth in
this menu
If your vehicle has Bose Premium Centerpoint, the
CS-GM1010 is NOT compatible.
BLUETOOTH PHONE NOTICE
If this Vehicle is equipped with FACTORY BLUETOOTH, the Car ShowIntegrated
Bluetooth must be set to OFF in the Installer Setting Menu.
ONLY ONE BT System can be Paired at a time (either Factory or Car Show)

CarShow Installation Guide
CarShow Copyright 2012 All Rights Reserved
Multi-Media Navigation System Installation Guide CS-GM1014
Page 9

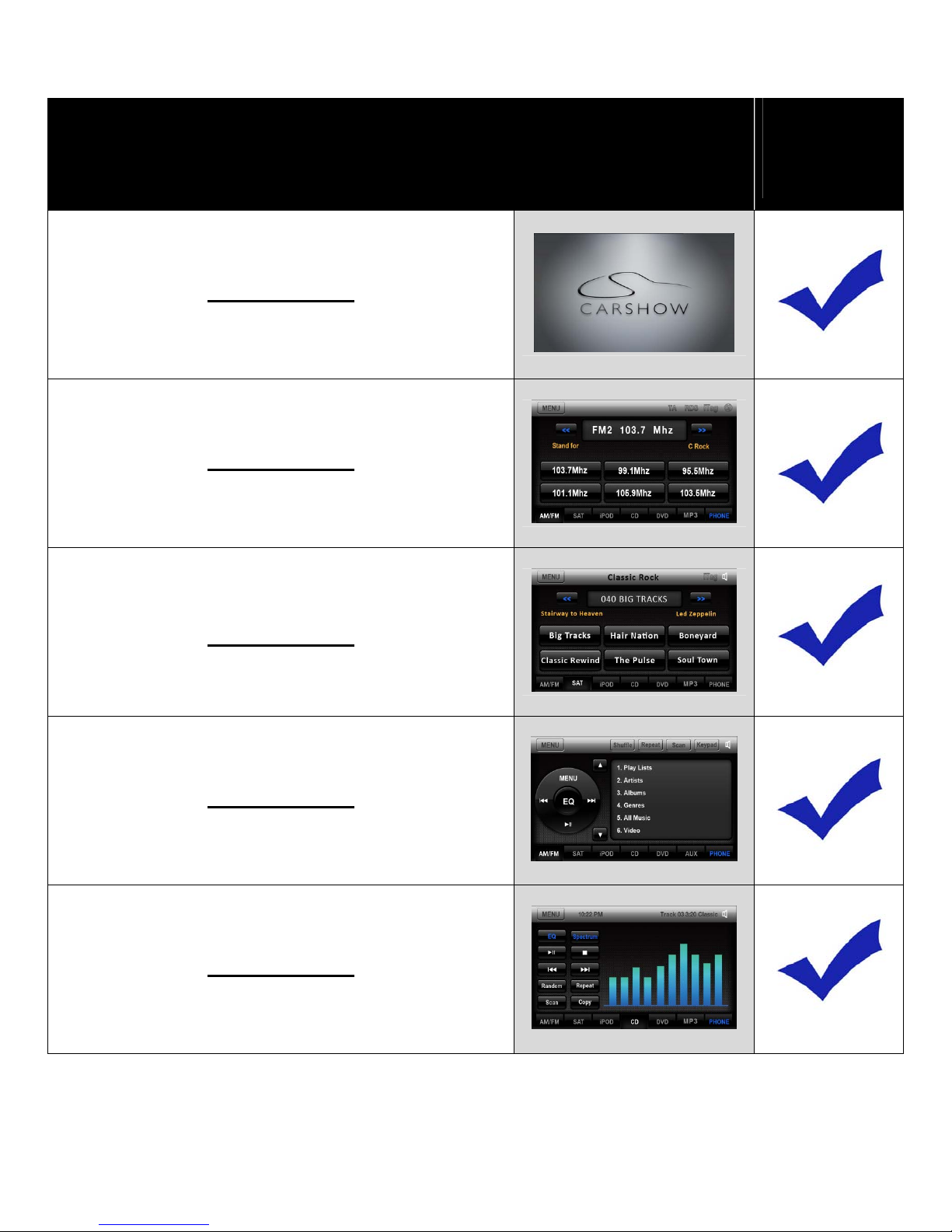

Perform Pre-Delivery Tests
You will need to perform several Pre-Delivery Tests to ensure customer satisfaction STEP
7
Turn the vehicle ON and System ON
Confirm the unit starts up properly
Troubleshooting
1) Reset the System while the Vehicle is ON
2) Confirm all connectors are properly installed
3) Check the Vehicle and System Fuses
Select RADIO as the Source
Confirm that the AM and FM reception are as expected
Troubleshooting
1) Confirm Antenna is properly connected.
2) Reset the System
Select SATELLITE RADIO as the Source
Confirm Channel 001 is present after ~5 minutes
Troubleshooting
1) Confirm RCA connectors in the Harness are connected
2) Confirm the Antenna is an unobstructed view of the sky
3) Reset the System
Select iPOD as the Source (if Equipped)
Confirm iPod is communicating a playback is OK
Troubleshooting
1) Confirm iPod Version Compatibility – not all are compatible
2) Confirm the harnesses are properly engaged
3) Reset the System
Select CD as the Source
Confirm CD audio playback is OK
Troubleshooting
1) Confirm the Disc is Store Bought and in good condition
2) Reset the system

CarShow Installation Guide
CarShow Copyright 2012 All Rights Reserved
Multi-Media Navigation System Installation Guide CS-GM1014
Page 10
Select DVD as the Source
Confirm DVD video playback is OK
Troubleshooting
1) Ensure the Park Brake is set to view video
2) Confirm the Disc is Store Bought and in good condition
3) Reset the system
Select Phone as the Source
(Car Show Bluetooth only!)
Confirm Phone Pairing is successful
Troubleshooting
1) Confirm the Phone has BT and is in discoverable mode
2) Confirm the Phone is compatible with the system
3) Reset the system
Select NAV as the Source
Confirm the Navigation loads and signal strength is OK
Troubleshooting
1) Confirm the antenna has an unobstructed view of the sky
2) Confirm the antenna is located on the outside of the vehicle
3) Confirm the antenna connection is properly tightened
Select Reverse Camera (If Equipped)
Confirm the backup camera screen shows in reverse
Troubleshooting
1) Confirm the Camera is set to ON in the Installer Settings
2) Confirm the Reverse Trigger wire is attached properly
3) Confirm the Camera is receiving 12VDC as required
Select OnStar (If Equipped)
Confirm OnStar Operator is heard
Troubleshooting
1) Confirm the OnStar Connector is engaged in the unit
2) Reset the System

CarShow Installation Guide
CarShow Copyright 2012 All Rights Reserved
Multi-Media Navigation System Installation Guide CS-GM1014
Page 11
System Troubleshooting
No Operation:
There are a number of GM Radios which look identical but operate on different data protocol. You may experience
problems if the OE System was not properly identified or if the harness has become damaged. The Following Table will
help to Resolve Typical Problems.
Installed Car ShowSystem Symptom Cause Solution
Any
Will not Turn On
System is
Turned
OFF Press the Left Knob to turn the system ON
Will not Turn On
Vehicle is
11Bit Bus
Check Compatibility Matrix at the beginning of this
Guide
(These systems are 29Bit Bus only)
Will not Turn On
System is
Locked
UP Press & Hold the Reset for 5-10 Seconds
Will not Turn On
Harness
Damaged Check/Replace the Main Harness
Audio Problems:
Because there are a number of Audio Options in the GM Product Line, you may experience problems if the OE Audio
System was not properly identified. The Following Table will help to resolve typical Problems.
Installed Car Show System Symptom Cause Solution
CS-GM1010
No Audio
Vehicle is a Centerpoint CS-GM1010 system is not
compatible.
Over-Driven Audio
Vehicle is a Analog Amp Use DP-GM1016 harness
“Center Pt” setting needs to
be “off”
Low Audio
Vehicle is a Non-Amp Use DP-GM1016 harness
“Center Pt” setting needs to
be “off”
Low Uncontrolled Audio
Vehicle is a Non-Amp Use DP-GM1016 harness
“Center Pt” setting needs to
be “off”
Loud Uncontrolled Audio
Vehicle is a Analog Amp Use DP-GM1012 harness
“Center Pt” setting needs to
be “off”
Muted Rear Speaker Audio OEM Rear Seat Audio
system turned ON Turn Rear Seat Audio Button
on Center Console to turn it
OFF

CarShow Installation Guide
CarShow Copyright 2012 All Rights Reserved
Multi-Media Navigation System Installation Guide CS-GM1014
Page 12
Bluetooth problems:
Because some vehicles in the GM Product Line contain a Factory Blue Tooth System, you may experience problems if the
OE Blue Tooth System was not properly identified. The Following Table will help to resolve typical Problems.
Vehicle Configuration Symptom Cause Solution
NO Steering Wheel Buttons
No Blue Tooth Function on the
Car Show Nav Installer Setting Menu
BT is Set to OFF Set Car Show BT Setting to ON
Audio Steering Wheel Buttons
Only,
NO Factory BT Button
No Blue Tooth Function on the
Car Show Nav
Installer Setting Menu
BT is Set to OFF
Set Car Show BT Setting to
ON
Don’t know how to Pickup or
End a Call
Buttons are not supported for
BT use
See Owner’s Manual / Quick
Start Guide
Audio Steering Wheel Buttons
AND
Factory BT Button on Steering
Wheel
(OEM Bluetooth Only)
Factory BT Reports No Phone
Paired
BT is Not Paired or is Paired
with Car Show System – Not
Factory
Un-Pair with Car Show BT
Set Car Show BT OFF
Pair with Factory System
Customer wants to use Car
Show BT System
Installer Setting Menu
BT is Set to OFF
Set Car Show BT Setting to
ON
Do NOT Pair with Factory
System
XM Radio Problems:
Because some vehicles have an XM Option and others do not in the GM Product Line, you may experience problems if the
OE XM System was not properly identified. The Following Table will help to resolve typical Problems.
Vehicle Configuration Symptom Cause Solution
Factory XM
XM Says No Device
Vehicle is NOT Factory XM Purchase and install the GM
XM Tuner Kit
P/N GM17801150
No XM Stations
XM Antenna cannot receive a
signal Move the Vehicle location to outside in a clear area
No Audio
XM Audio Harness is not
installed XM Harnesses not connected properly. See pg. 14
Limited XM Stations
XM has not been registered Follow GM Instructions to
enable the XM Service
No Factory XM
XM Says No Device
No XM Tuner is Installed Purchase and install the GM XM Tuner Kit
P/N GM17801150
No XM Stations
No Audio
Limited XM Stations

CarShow Installation Guide
CarShow Copyright 2012 All Rights Reserved
Multi-Media Navigation System Installation Guide CS-GM1014
Page 13
Connector Block and GPS Ground Plate
GPS Antenna
GPS Ground Plate
(Included)
Note: If the GPS Antenna cannot be placed on the outside of the Vehicle,
Included Ground Plate MUST BE USED.
Failure to use Ground Plate can reduce the efficienc
y
of the antenna b
y
more than 30%

CarShow Installation Guide
CarShow Copyright 2012 All Rights Reserved
Multi-Media Navigation System Installation Guide CS-GM1014
Page 14
Main Harness Diagrams
www.CarShowEntertainment.com
