Multi-Media Navigation System Installation Guide Rev A
Toyota Prius
Installation Guide
* JBL Audio equipped vehicles will require additional part # PP-TYJBL1 audio interface.
NOTICE OF INTENDED INSTALLATION AND USE
THE CAR SHOW MULTI-MEDIA NAVIGATION SYSTEMS CONTAIN AN INTERNAL VIDEO PLAYER, WHICH
IS NOT INTENDED FOR VIEWING BY THE DRIVER. THE VIDEO PLAYER IS DISABLED WHEN THE
VEHICLE IS IN MOTION THROUGH A CONNECTION TO THE PARKING BRAKE.
THE INSTALLER OF THIS PRODUCT MUST INSURE THE VIDEO DISABLE CONNECTION IS
WORKING PROPERLY PRIOR TO DELIVERY OF THE VEHICLE.
IMPROPER INSTALLATION COULD DISTRACT THE DRIVER OR INTERFERE WITH SAFE OPERATION
OF THE VEHICLE, WHICH COULD RESULT IN SERIOUS INJURY OR DEATH, AND COULD ALSO
VIOLATE STATE AND/OR FEDERAL LAW.
CAR SHOW DISCLAIMS ANY LIABILITY FOR ANY BODILY INJURY OR PROPERTY DAMAGE THAT MAY
RESULT FROM ANY IMPROPER OR UNINTENDED INSTALLATION AND/OR USE.
STOP
Damage to the vehicle may occur
Do not proceed until process has been completed
CAUTION
CAUTION
Process must be carefully observed in order to reduce
the risk of damage to the accessory or vehicle
CRITICAL
Process must be carefully observed in order to ensure a
quality installation
TOOLS and EQUIPMENT
Specific tools and equipment recommended for this
process
SAFETY RISK
Observe safe practices, this process can be dangerous
and there is a risk of personal injury
TESTING and TROUBLESHOOTING
Content specific testing and troubleshooting points
CS-PRIS12 Toyota Prius

CarShow Installation Guide - Toyota Prius
CarShow Copyright 2013 All Rights Reserved
Installation Guide CS-PRIS12-3
Page 2

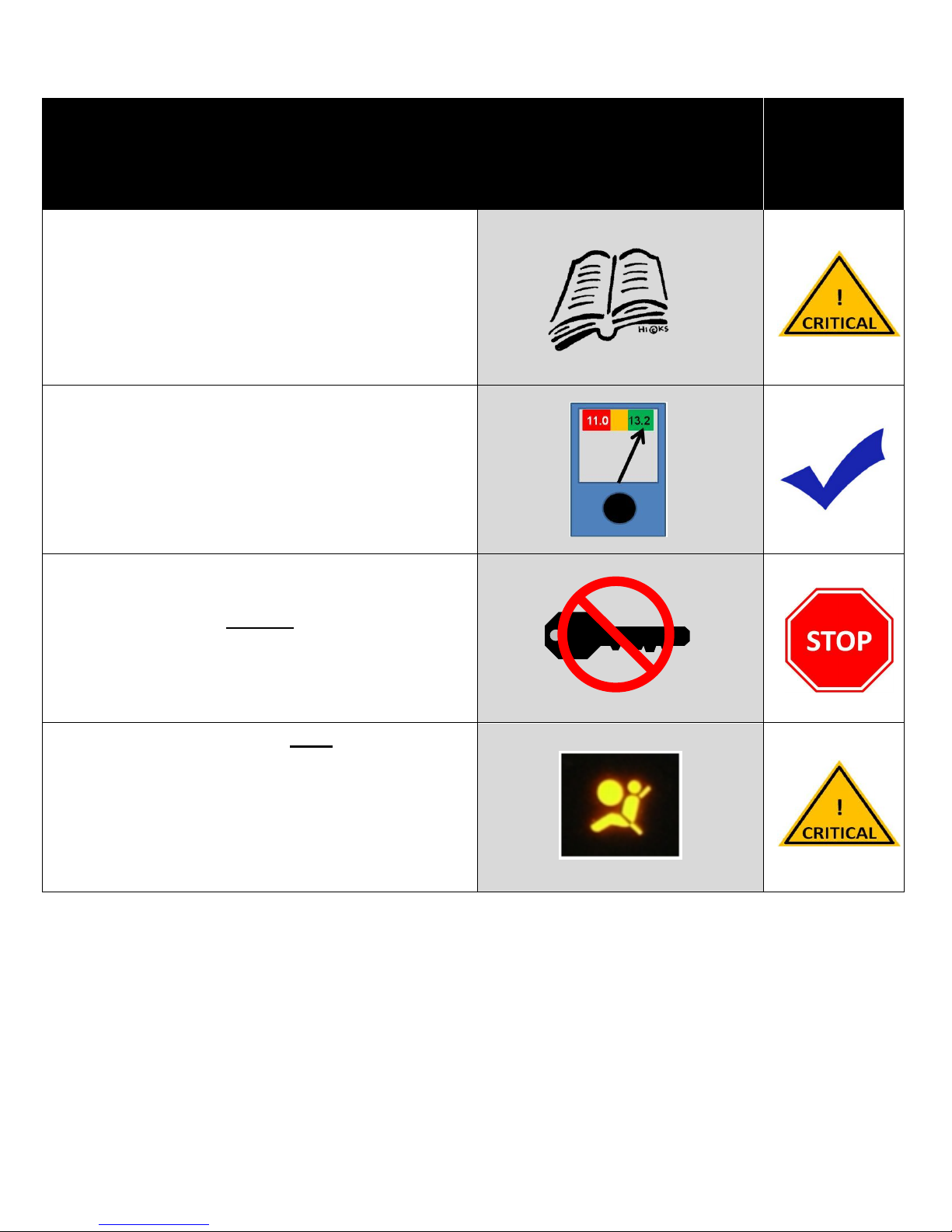

PREPARING FOR THE INSTALLATION
Before you start, please read these critical steps below
STEP
1
BEFORE YOU START THE
INSTALLATION,
READ THIS GUIDE!
CHECK THE BATTERY
Test the battery voltage to make sure it’s fully charged
This only takes seconds and can save hours of
troubleshooting later.
TURN THE VEHICLE
OFF
Keep the Vehicle Off during the installation to avoid
setting various Vehicle Faults
Keep the Vehicle OFF during the
installation
Failure to follow this may cause the AIRBAG FAULT
SENSOR to become enabled. Dealer Service
Departments charge a significant fee to reset the Fault
Sensor.

CarShow Installation Guide - Toyota Prius
CarShow Copyright 2013 All Rights Reserved
Installation Guide CS-PRIS12-3
Page 3

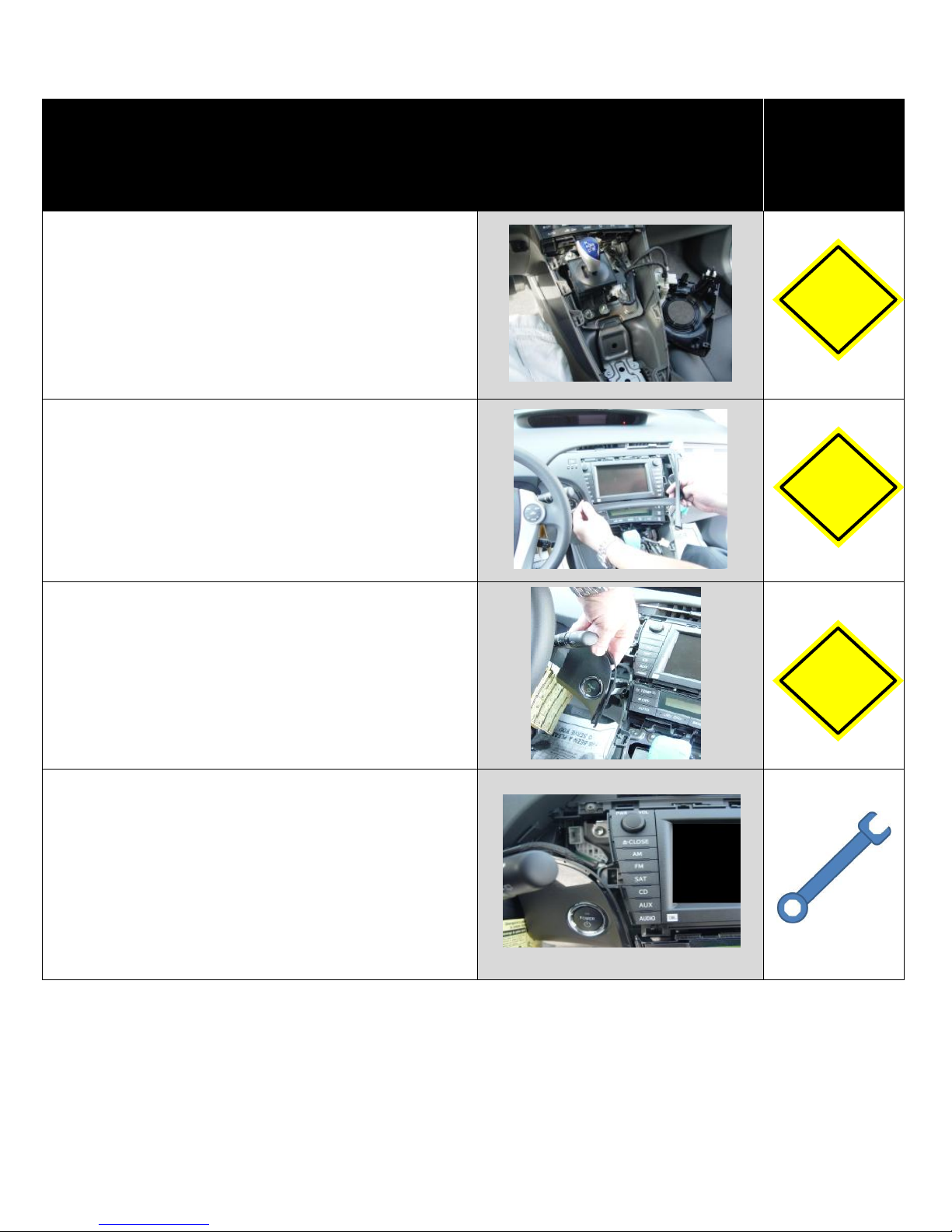

REMOVE THE FACTORY RADIO
You will need to remove multiple interior trim components prior to removing the factory radio.
The following steps will help guide you through this process.
STEP
2
Carefully Remove Shift Knob Trim
Remove the lower dash around shift knob
Remove Radio Trim
Carefully remove radio trim bezel
Remove the Left Side Dash Trim
Carefully remove “Push-To-Start” dash trim on left side
of radio
Remove Left Side Radio Bolts
Remove 2 x 10mm mounting bracket bolts on left side
of radio
CAUTION
CAUTION
CAUTION

CarShow Installation Guide - Toyota Prius
CarShow Copyright 2013 All Rights Reserved
Installation Guide CS-PRIS12-3
Page 4

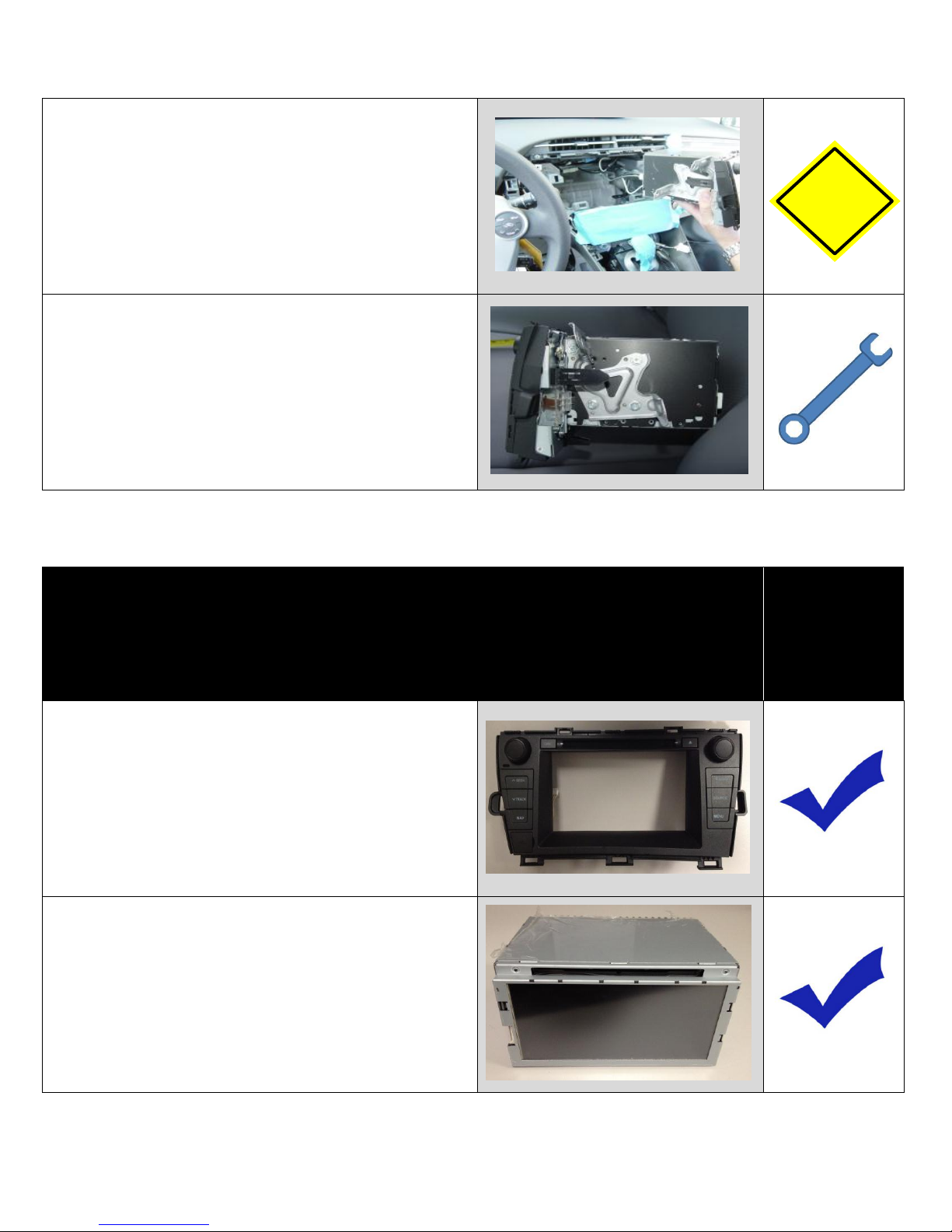

Remove Factory Radio
Carefully remove factory radio and remove all
harnesses from back of radio
Remove Mounting Brackets From OEM
Radio
Remove Phillips screws x4 on left and right hand side
mounting brackets and re-install brackets onto Rosen
ECU unit. (Step 3)
Piranha System Assembly Instructions
This step will walk you through how to attach/connect vehicle-specific faceplate to Electronic Control
Unit (ECU)
STEP
3
Vehicle Specific Faceplate
Vehicle-specific face plate (shown at right) will need to
be attached to ECU. This step will walk you through
this simple process.
Electronic Control Unit
ECU shown at right
CAUTION

CarShow Installation Guide - Toyota Prius
CarShow Copyright 2013 All Rights Reserved
Installation Guide CS-PRIS12-3
Page 5

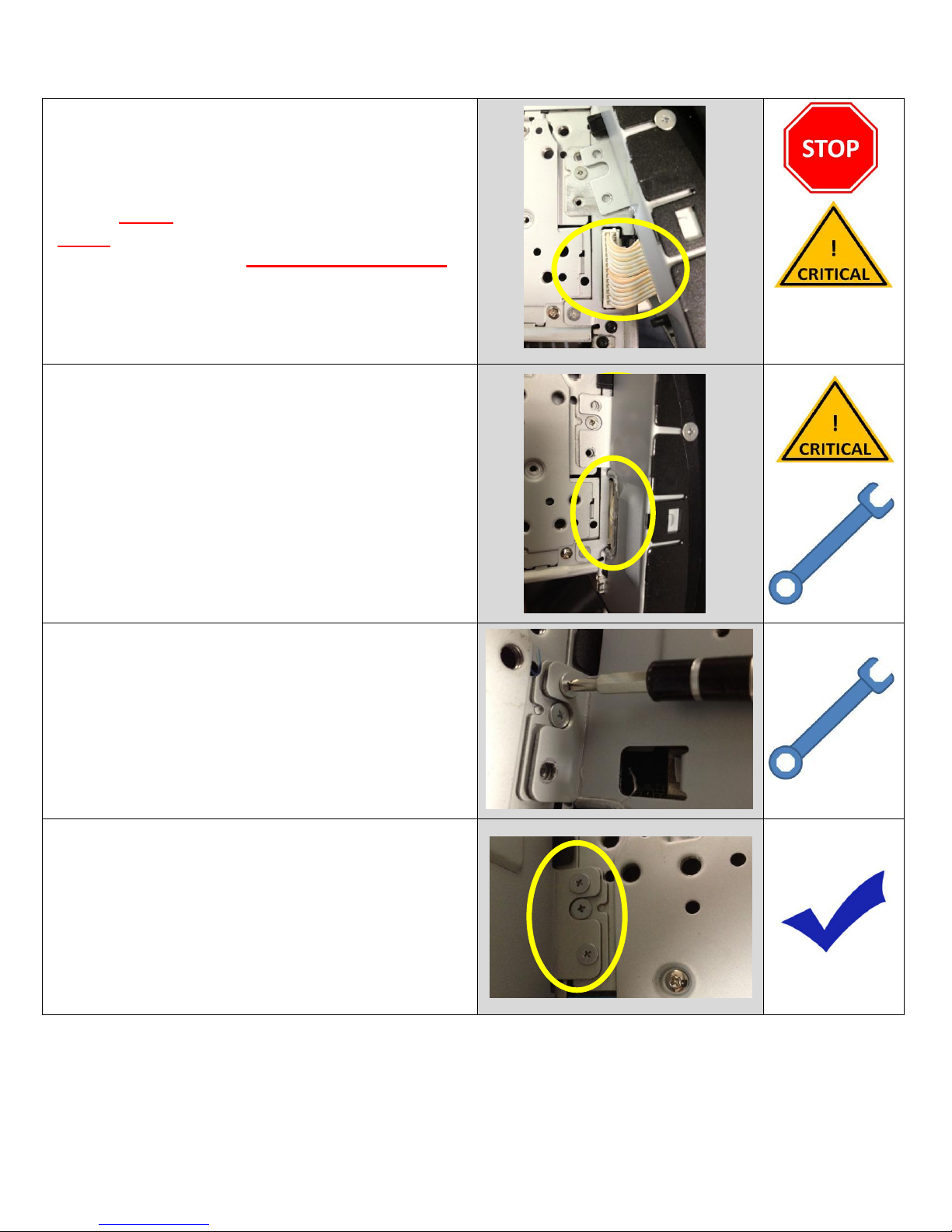

28-Pin Connector
Be sure that 28-pin connector is securely connected
PRIOR to securing faceplate to ECU.
NOTE: If faceplate connector is not fully connected to
ECU, system will display “No Faceplate Detected” in
the top Nav bar of the menu screen when unit is
powered on.
Faceplate/ECU Alignment
Verify faceplate bracket screw holes are aligned to
ECU mounting screw holes.
Make sure 28-pin connector is tucked completely
inside faceplate cavity as shown at right
Mounting Screws
Verify faceplate bracket screw holes are aligned to
ECU mounting screw holes.
Be sure that all 4 (2 left/ 2 right) Phillips screws are
screwed in tightly to avoid damage to faceplate/ECU.
Mounting Screw Verification
Be sure that all 4 (2 left/ 2 right) Phillips screws are
screwed in tightly to avoid damage to faceplate/ECU.

CarShow Installation Guide - Toyota Prius
CarShow Copyright 2013 All Rights Reserved
Installation Guide CS-PRIS12-3
Page 6
LOCATING REMOTE COMPONENTS
You will need to mount the GPS and Optional Satellite Radio Antennas on the exterior of the vehicle.
And mount the iPod Interface Connector in the vehicle. The following steps will help guide you through
this process.
STEP
4
Use Caution around SRS Components
It is the installer’s responsibility to ensure that the safety
equipment in the vehicle is NOT adversely affected by
installation of this system. Ensure that the routing of the
harnesses do NOT obstruct airbags, SRS or other safety
devices.
Mount the GPS and Sat Radio antenna
on the EXTERIOR of the Vehicle
Route the GPS harness away from other power harnesses
in the vehicle.
This will help to ensure optimum performance of the GPS
system.
Install the Optional iPod Video interface
connector in a location accessible to
the end-user
iPod Video cable is connected via rear mounted USB
connection.
Cable P/N: PP1013
INSTALL THE CARSHOW NAVIGATION SYSTEM
You will need to prepare the CarShow Navigation System for installation in the vehicle.
STEP
5
Connect the Power and GPS Harnesses
The GPS Harness must be properly seated into connector.
Also be sure steering wheel control connector is securely
connected.
Failure to follow this step may result in poor GPS signal
and steering wheel controls being inop.

CarShow Installation Guide - Toyota Prius
CarShow Copyright 2013 All Rights Reserved
Installation Guide CS-PRIS12-3
Page 7

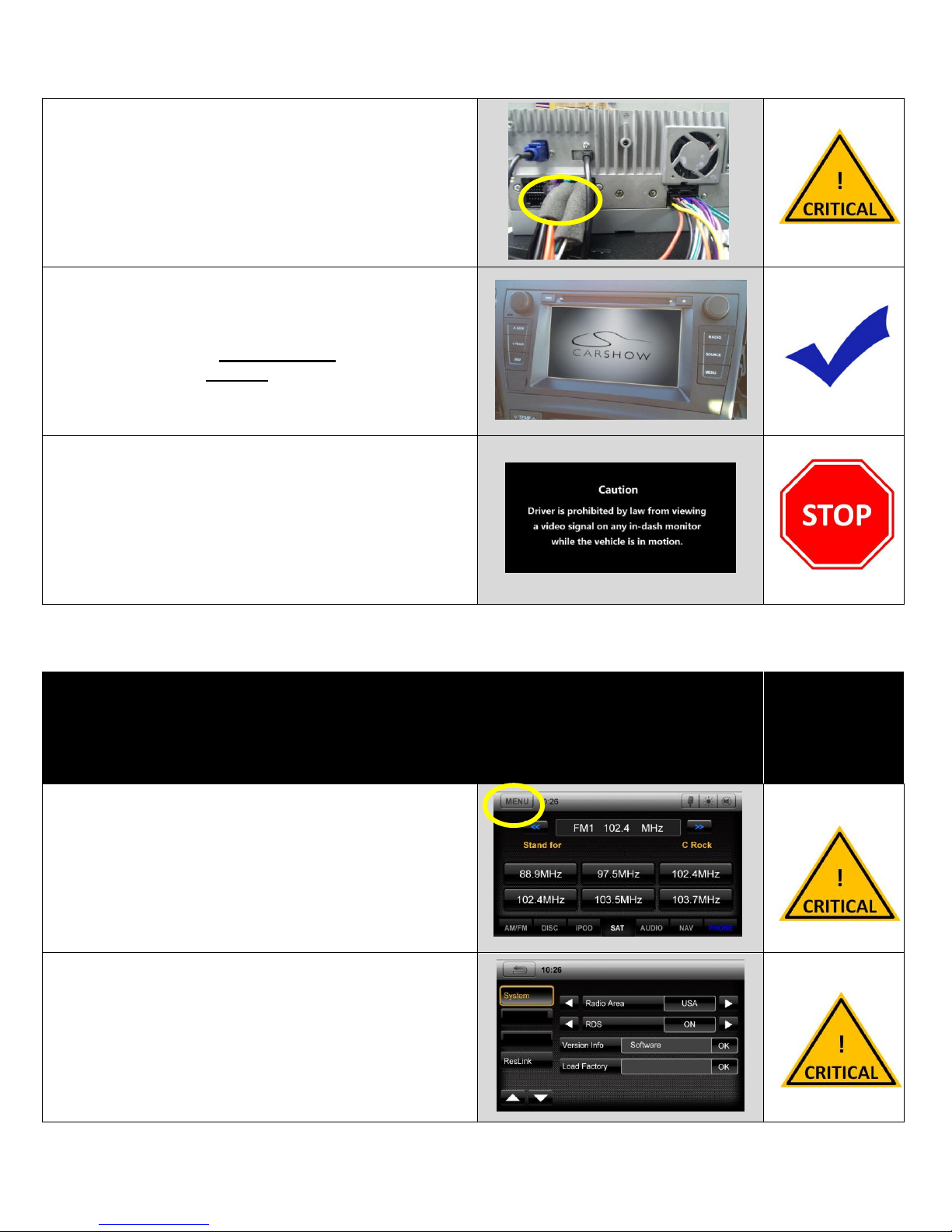

Connect Optional Harnesses such as
iPod, Satellite Radio, Camera
These harnesses must be fully engaged prior to the system
installation.
See the Main Harness Diagram below for more information
Turn the vehicle ON and confirm the
unit is fully operational
With the connectors Fully Engaged, turn the vehicle
on and press the RESET located behind SD card
access door.
Insert a DVD to confirm the Video
Disable Circuit is properly Operating.
The Brake Wire must be connected to the Park Brake
Indicator Wire to complete a ground when the brake is
engaged.
ENABLE INSTALLER SETTINGS
You will need to select certain Installer setting based on any Optional Equipment that you may have
installed
STEP
6
Launch the Installer Setting Screen
From any screen with the Menu Button, follow these
steps to display the Installer Setting Screen:
1) From any Screen, select “Menu”
2) From the Menu Screen, select “Settings”
3) Press “Keypad,” Press “1120” and “Enter”
Select the individual Settings as needed
for the installed components
Selectable options vary by product and installation.
Select the options as applicable for the installed
optional components.

CarShow Installation Guide - Toyota Prius
CarShow Copyright 2013 All Rights Reserved
Installation Guide CS-PRIS12-3
Page 8

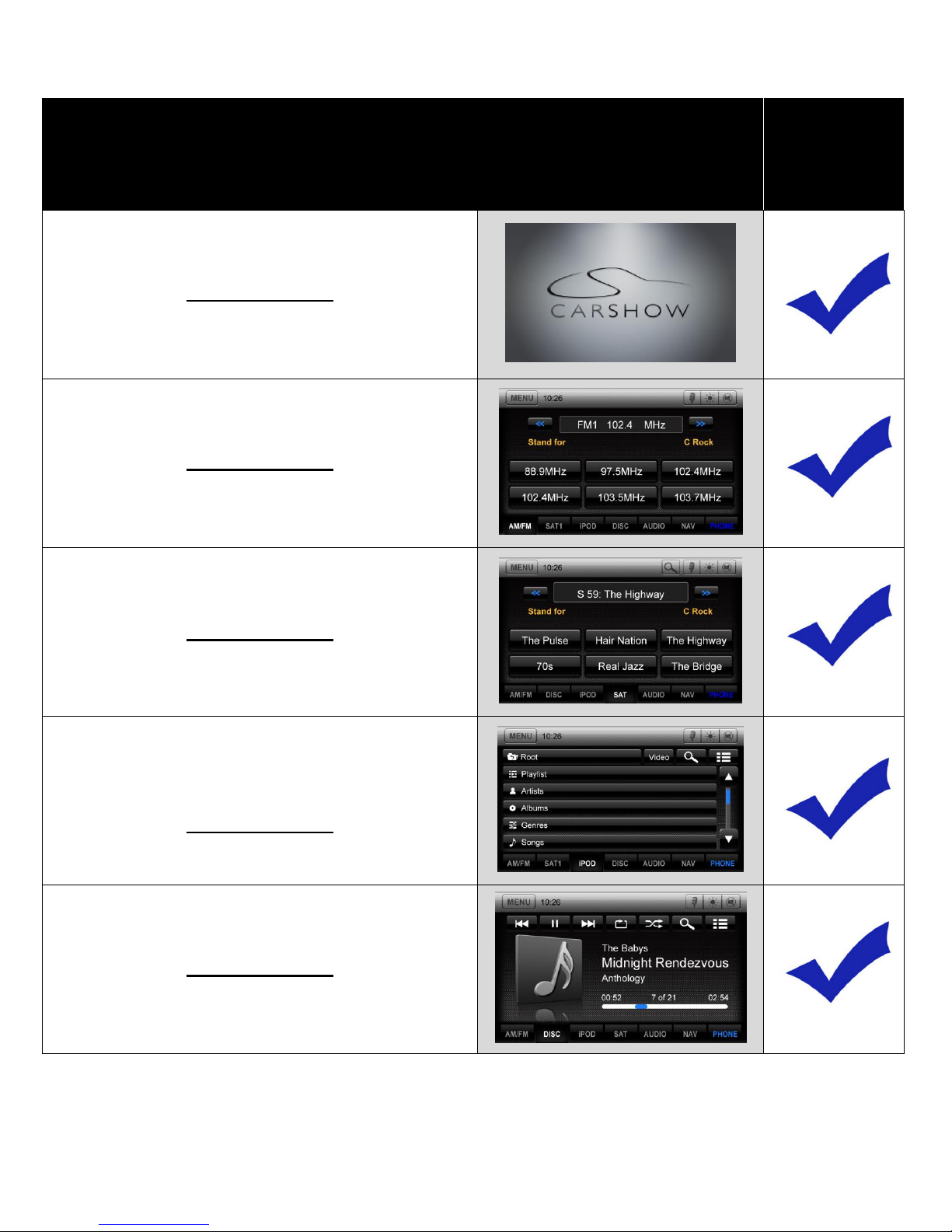

Perform Pre-Delivery Tests
You will need to perform several Pre-Delivery Tests to ensure customer satisfaction
Some equipment may be optional
STEP
7
Turn the vehicle ON and System ON
Confirm the unit starts up properly
Troubleshooting
1) Reset the System while the Vehicle is ON
2) Confirm all connectors are properly installed
3) Check the Vehicle and System Fuses
Select RADIO as the Source
Confirm that the AM and FM reception are as expected
Troubleshooting
1) Confirm Antenna is properly connected.
2) Reset the System
Select SATELLITE RADIO as the Source
Troubleshooting
1) Confirm the antenna has unobstructed view of the sky
2) Confirm the antenna is located on the outside of the
vehicle
Select iPod as the Source
Confirm iPod is communicating and playback is OK
Troubleshooting
1) Confirm the harnesses are properly engaged
2) Reset the System
Select CD as the Source
Confirm CD audio playback is OK
Troubleshooting
1) Confirm the disc is store bought and in good condition
2) Reset the system

CarShow Installation Guide - Toyota Prius
CarShow Copyright 2013 All Rights Reserved
Installation Guide CS-PRIS12-3
Page 9
Select DVD as the Source
Confirm DVD video playback is OK
Troubleshooting
1) Ensure the Park Brake is set to view video
2) Confirm the disc is store bought and in good condition
3) Reset the system
Select Phone as the Source
Confirm Phone Pairing is successful
Consult Quick Start Guide for Bluetooth pairing instructions
Select NAV as the Source
Confirm the Navigation loads and signal strength is OK
Troubleshooting
1) Confirm the antenna has an unobstructed view of the
sky
2) Confirm the antenna is located on the outside of the
vehicle
3) Confirm the antenna is properly connected
Select Reverse Camera
Confirm the backup camera screen shows in reverse
Troubleshooting
1) Confirm “Reverse Trigger” is set to ON in the Installer
Settings
2) Confirm the Reverse Trigger wire is attached properly
3) Confirm the Camera is receiving 12VDC as required
Steering Wheel Controls
Test Steering Wheel Controls

CarShow Installation Guide - Toyota Prius
CarShow Copyright 2013 All Rights Reserved
Installation Guide CS-PRIS12-3
Page 10
Service and Optional Parts List
Part Number Description
PP-TOY-MAIN Harness, Toyota Main
PP-TOY-SWC2 Harness, 28-Pin Toyota Steering
CS-PRIS12-3 Installation Guide, Prius
PP1005 Antenna, GPS, 5 meters
PP1006 Ground Plate, GPS Antenna
PP1007 Harness, Dolby 5.1/Amp
PP1008 Harness, AUX IN/Cam In
PP1009 Harness, AUX Out
PP1011 Harness, External BT Mic
PP1012 Harness, AUX in 3.5/RCA
PP1013 Harness, USB iPod Video/Audio
PP1014 Display Cleaning Cloth
PP1010 Harness, Sirius Tuner*
DP-1047 GPS Antenna Windshield Mount*
DP-1066 Camera, License Plate Black*
DP-1067 Camera, License Plate Chrome*
DP-1068 Camera, Universal Black*
* Optional Accessories
Harness Diagram
Back Of CarShow Unit
