CASAINC CS-VC109 User manual
contents
Product Introduction
Product Operation
Product Maintenance
Trouble Shooting
Safety Introduction
Product Parameters
Product Introduction
Tips：When cleaning dust, accessories 3,4 can be installed on 1
Tips：When blowing dust, accessories 5 can be installed on 1
Product Operation
一：Charging
The battery is not charged at the factory, be sure to fully charge the battery before use.
1 Main Body
2 TYPE-C charge cable
3 2 in 1 flat sucker
4 Hose suction nozzle
5 Blowing nozzle
1、Place the main body on a horizontal countertop（Please place the end of the lanyard on
the table top）
2、Connect the USB cable with the charging port on the main body to start
charging ,and power indicator flashes,after full charge,the indicator light is
always on.
3、Charging time: 3.5 hours. Using time: high speed 12 min, low speed 25mins.
Attention：
1. Do not charge at temperatures below 5℃or above 40℃
2. When the product is low in power during operation, the power indicator light will flash
二： Cleaning
To prevent blockage of the air passage, large objects like large paper and packing
materials should be removed from the area before start cleaning
1、Press the start button to start cleaning,power indicator light will always on.
2、Press again the start button to stop cleaning,power indicator light will off.
3、Press the speed control button to choose high or low speed when the machine is
working.
4、When the machine is working, the battery indicator is always on. When the battery
indicator is flashing, please pay attention to timely charging.
三：Replacing Accessories
A: replacing 2 in 1 Flat Brush
①Insert the flat tube into the suction port in
the direction shown in the figure (the larger step
of the flat tube faces upward).
②When you need to use the brush, turn the
brush in the direction as shown in the figure, and
it can be used when it is turned horizontally.

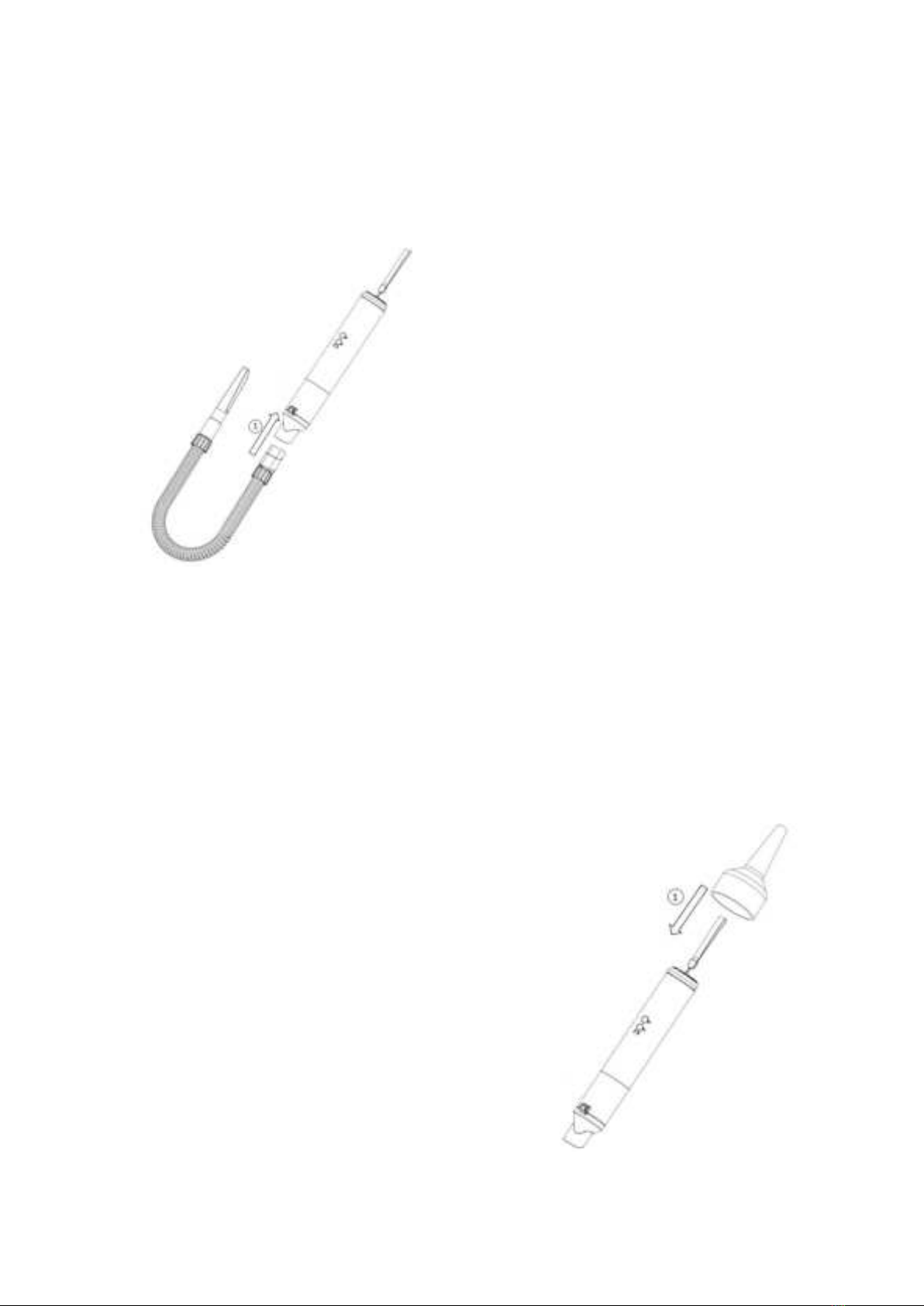

B: Replace hose nozzle
①Insert the flat tube into the suction
port in the direction shown in the figure
(the larger step of the flat tube faces
upward).
C: Replace the blowing nozzle
①According to the direction shown in the
figure, put the lanyard into the blowing nozzle
or remove the lanyard, and put the blowing
nozzle on the air outlet.
Replacing battery
Tips: If you need to replace the battery please consult your dealer.
Battery is consumable. If the battery life becomes shorter and charging time becomes
longer, please replace the battery pack.
Indicator light description：
A、Press start button, the machine starts working,power indicator light on,it is low
speed now,press speed control button to change speed.
B、The power indicator lights are flashing when charging,and the power indicator
lights will all be on after fully charged;the power indicator light will always on when
full charged,when power indicator flash,means low power, please pay attention to
charging timely .
C、When the abnormal warning indicator light is on, please clean the machine
immediately;It is recommended to clean the machine after each use.
Warning:
1.The machine must be turned off during charging;
2.Do not use and store batteries at temperatures below 5℃or above 40℃;
3.When disposing of this product, remove the battery from the device;
4.Do not modify the device ,accessories or replace the power cord or battery;
5.Battery Model：DYDC-L04 11.1V
Battery recycling:
Waste batteries are important resources. When disposing of the product, do not
dispose of the battery at will. Please treat properly in accordance with government
regulations to facilitate the recovery to the corresponding waste battery recycling
facilities.
Maintenance
1. Press the dust cup button, the suction mouth will open automatically, and the garbage
will be poured out
2. Put the suction mouth back on
Dust
cup
button
3. Unscrew the dust cup clockwise (the "O" on the main body is aligned with the "▲" on the
dust cup), then, take out the dust cup downward

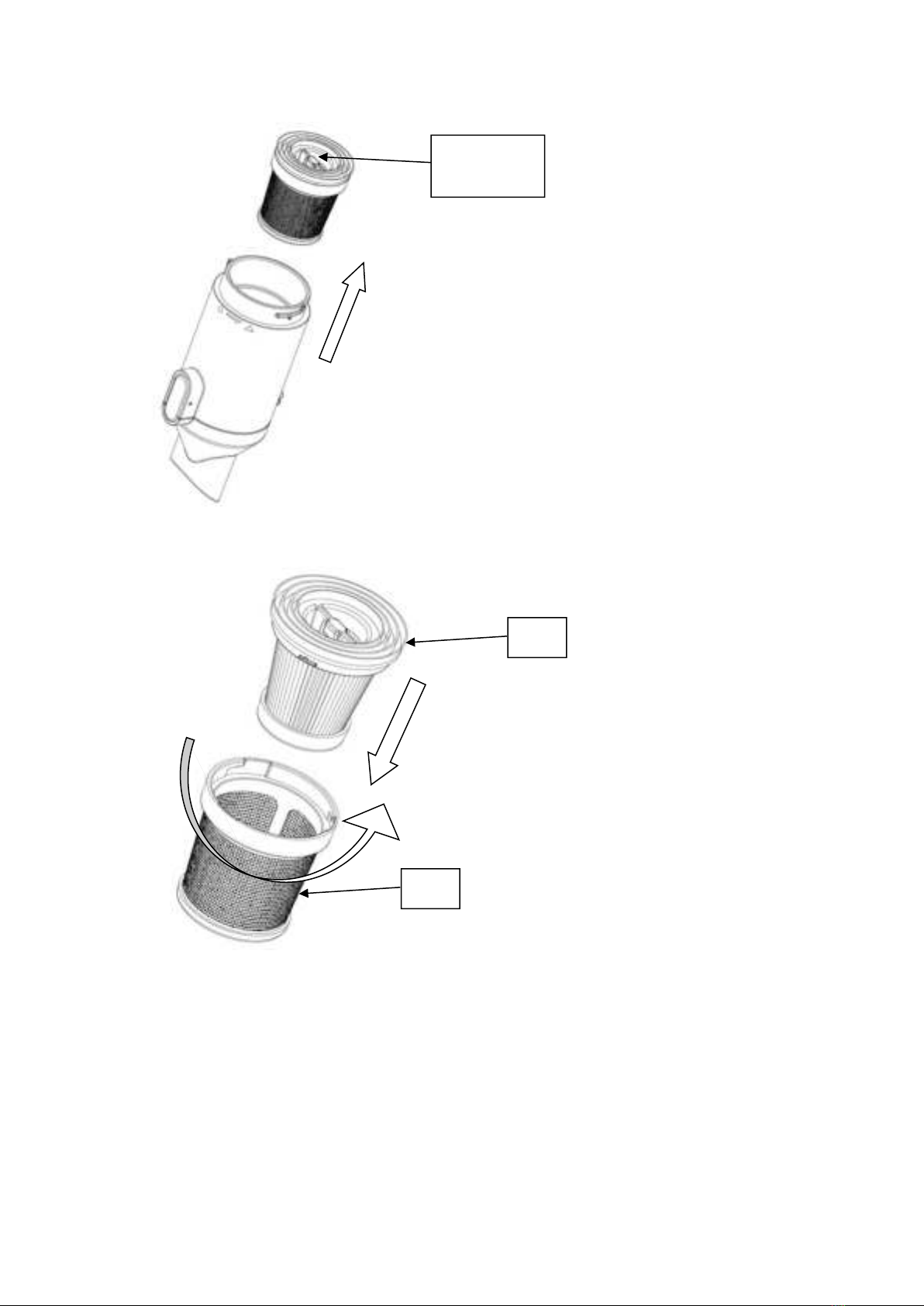

4. Remove the HEPA filter assembly from the dust cup
5. Turn counterclockwise and take out the filter, separating the HEPA from the filter
6. Clean the dust cup, HEPA and filter screen with a brush or paper towel. If necessary,
clean with water directly

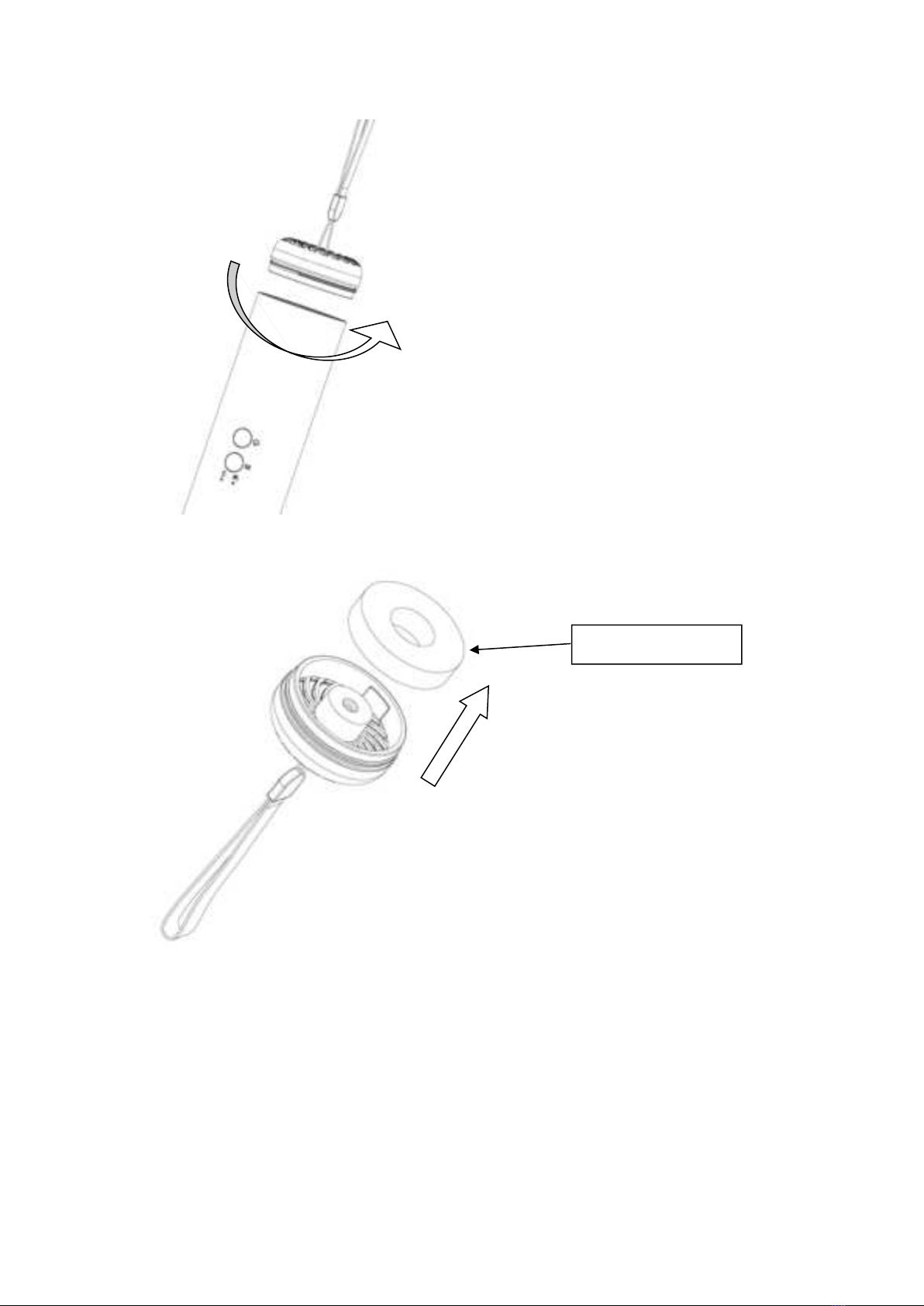

7. Remove the back cover by turning it counterclockwise
Hold it here
and lift it
HEPA
Filter
8. Remove the outlet air filter cotton and clean it up
9. After the parts are fully dried, they can be put back according to the disassembly
procedure
tips ：It is recommended to carry out the above cleaning work after the dust is dumped
each time.
outlet air filter cotton
Attention
1.Please pay attention to sharp objects such as glass to prevent injury.
2.The parts must be completely dry before installing.
3.Do not scrub the filter cotton or apply brute force to it
4.Please make sure that the filter cotton has been installed before assembly.
5.Do not continue to use when the filter cotton in the dust cup is damaged or if the
cleaning and maintenance are not sufficient.
TROUBLESHOOTING
In case of malfunction ,please refer to the following table
Problem
Possible reason
Solution
Running time
becomes shorter
Ambient temperature is too high
or too low
The battery isn’t fully charged
Use in appropriate environment
Please charge the battery
Suction power
becomes weak
Too much dust in the cup
Cotton filter is blocked
Brush or accessory suction port
is blocked
Hasn’t been fully dried after
washing
Clean in time
Wash the cotton filter
Clear the blockage
Dry the part in cool place after
washing
Can’t charge
Ambient temperature is too high
or too low
Charge in appropriate
environment（5℃-40℃）
Battery leakage
The battery has not been used for
a long time
replace battery
*For other malfunctions that cannot be handled, please contact the local after-sales service outlets
or call the national service hotline.
Safety Introduction
●Only the certified technician may disassemble this product, Users are strictly not
allowed to disassemble this product.
●This product shall only bi charged using the included power adapter ,Other power
adapters may cause damages to this product.
●Do not touch power cord ,plug or adapter with wet hands.
●Avoid curtains ,any kind of strings or user/s body part wrapping up on the wheel.
●Keep this product away from cigarette stubs ,lighters or flame.
●To clean the product ,this product must be fully charged before any cleaning process.
●Do not over-bend the power cord ,or place heavy or sharp objects on this product.
●This product is intended for indoor use only ,do not use this product outdoors.
●Do not place object(e.g. human) with more than 10KG weight on this product.
●Do not use this product in wet or moist environment(e.g. bathroom).
●Before using this product ,please remove any fragile objects(e.g. glasses, lamps
etc)from the floor. Also removes any objects that may be wrapped up to the side
brushes or may block the suction inlet.
●Do not put this product on position where is east to fall off.
●While delivering or if for not use the product for long time ,please turn it off from
the bottom.
●Before charging, please check whether the power adapter and socket is connected
well.
●When this product is cleaning the room ,please inform other members to avoid
causing then to fall.
●When the dust bin is full of dust, empty the dust bin before using this product.
●This product is functioning at temperature range within 5℃to 40℃.
●Do not use this product in high-temperature environment.
●Please remove batteries from this product before disposal.
Product Parameters
Product Technical Parameters
Model
Rated Charging Voltage
Rated voltage
Rated Power
CS-VC109
5VDC/2A
11.1V
100W
