Cascade Sciences CVAC-9.3 User manual

Installation - Operation Manual
CVAC-9.3
Vacuum Oven
––

2 | Page
cascadesciences.com |Tel. [phone]
This oven requires permanent connect wiring to a power source (also known as a hardwiring).
It does not connect using a power cord.

3 | Page
cascadesciences.com |Tel. [phone]
CVAC-9.3 Vacuum Oven
230 Voltage
Part Number (Manual): 4861806
Revision: July 13, 2018

4 | Page
cascadesciences.com |Tel. [phone]
TABLE OF CONTENTS
CERTIFICATIONS .......................................................................................................................................................7
UNIT SPECIFICATIONS ............................................................................................................................................ 9
Temperature Performance ..................................................................................................................................................9
Power....................................................................................................................................................................................... 10
Vacuum ................................................................................................................................................................................... 10
Weight....................................................................................................................................................................................... 11
Dimensions.............................................................................................................................................................................. 11
Capacity ................................................................................................................................................................................... 11
Shelf Capacity by Weight.................................................................................................................................................... 11
INTRODUCTION .......................................................................................................................................................13
Read this Manual.................................................................................................................................................................. 13
Contacting Assistance ........................................................................................................................................................ 13
Engineering Improvements................................................................................................................................................ 13
Vacuum Pump ....................................................................................................................................................................... 14
Gaskets ................................................................................................................................................................................... 14
RECEIVING YOUR UNIT ..........................................................................................................................................15
Inspect the Shipment........................................................................................................................................................... 15
Orientation Images .............................................................................................................................................................. 16
Record The Data Plate Information ................................................................................................................................ 18
INSTALLATION .........................................................................................................................................................19
Hardwire Requirement........................................................................................................................................................ 19
Installation Procedure Checklist ...................................................................................................................................... 19
Required Ambient Conditions.......................................................................................................................................... 20

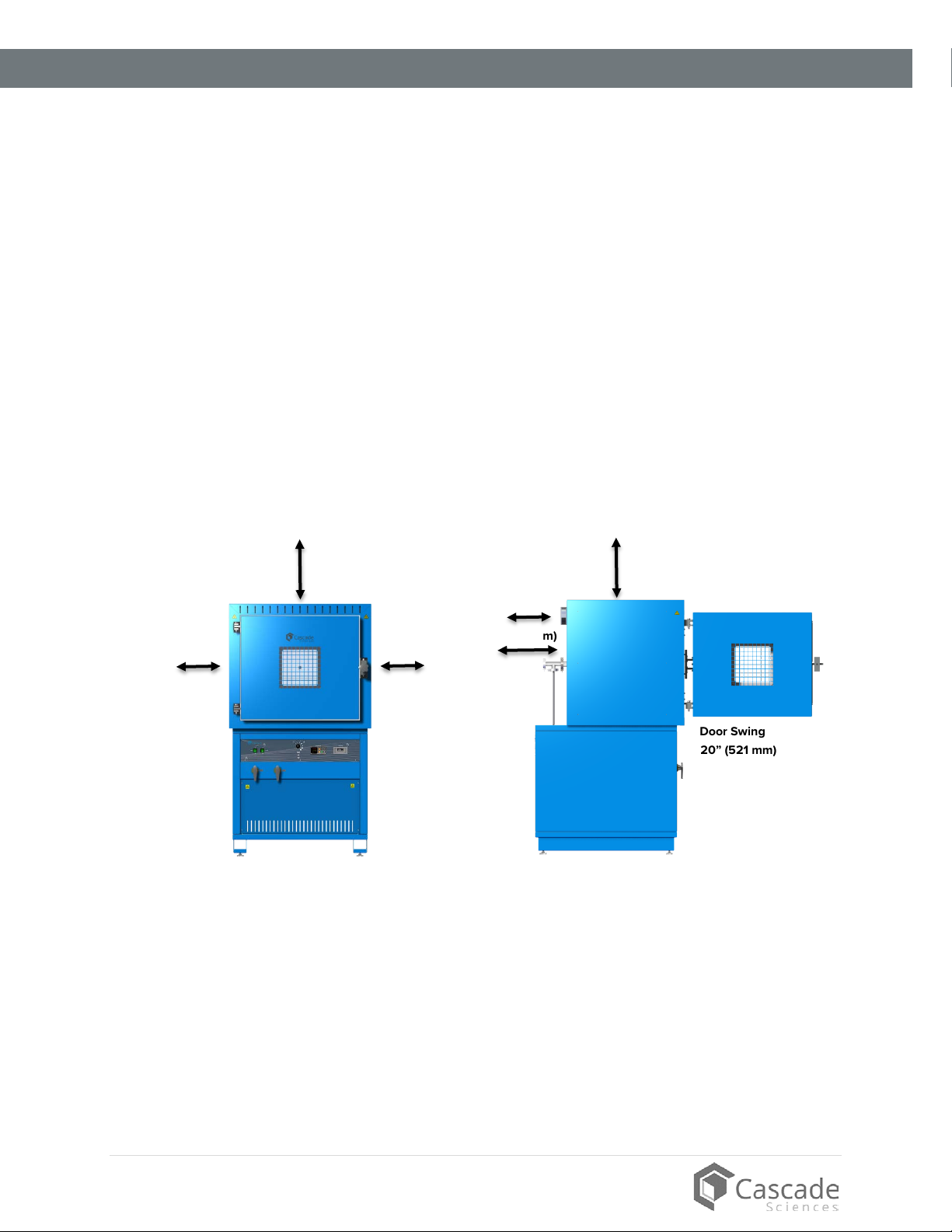

Required Clearances.......................................................................................................................................................... 20
Power Source Requirements ............................................................................................................................................ 21
Power Feed Wiring............................................................................................................................................................... 21
General Power Safety ........................................................................................................................................................ 22
Lifting and Handling ........................................................................................................................................................... 22
Leveling.................................................................................................................................................................................. 23
Installation Cleaning........................................................................................................................................................... 23
Install the Oven .................................................................................................................................................................... 23
Install the Shelving.............................................................................................................................................................. 24
Connect to the Vacuum Supply ...................................................................................................................................... 25
Venting Pump Exhaust........................................................................................................................................................27
GRAPHIC SYMBOLS ............................................................................................................................................... 29
CONTROL OVERVIEW.............................................................................................................................................31
OPERATION.............................................................................................................................................................. 35
Safety Guidelines ................................................................................................................................................................ 35
Operating Precautions....................................................................................................................................................... 36
Theory of Operation ............................................................................................................................................................37
Put the Oven into Operation ............................................................................................................................................ 39
Put the Chamber Under Vacuum .................................................................................................................................... 41
Set the Constant Temperature Set Point ..................................................................................................................... 43
Heating Profiles ................................................................................................................................................................... 43
Set the Over Temperature Limit...................................................................................................................................... 44
USER MAINTENANCE............................................................................................................................................. 47
Cleaning and Disinfecting..................................................................................................................................................47
Maintaining Atmospheric Integrity ................................................................................................................................. 48
Electrical Components....................................................................................................................................................... 48
Vacuum Pump Maintenance............................................................................................................................................ 48
Calibrate the Temperature display................................................................................................................................ 49

5 | Page
cascadesciences.com |Tel. [phone]
REPLACEMENT PARTS .......................................................................................................................................... 53

6 | Page
cascadesciences.com |Tel. [phone]
TABLE OF CONTENTS

7 | Page
cascadesciences.com |Tel. [phone]
CERTIFICATIONS
This certificate satisfies NRTL safety requirements
TÜV SÜD CUE
Certificate Number: U8 14 02 64872 034
These units are CUE listed by TÜV SÜD as vacuum ovens for appropriate professional, industrial, or
educational use. TÜV SÜD America Inc. is an OSHA recognized NRTL and a Standards Council of
Canada accredited certification body.
These units have been tested to the following requirements:
CAN/CSA-C22.2 No. 61010-1:2012 + U1:2015-07
CAN/CSA-C22.2 No. 61010-2-010:2015
UL 61010-1:2012/R:2015-07
UL 61010-2-010:2015
EN 61010-1:2010
EN 61010-2-010:2014
This unit CUE certified under the model name SVAC9-2

8 | Page
cascadesciences.com |Tel. [phone]
CERTIFICATIONS

9 | Page
cascadesciences.com |Tel. [phone]
UNIT SPECIFICATIONS
This oven is a 230 voltage single phase unit. Please refer to the oven data plate for individual electrical
specifications.
Technical data specified applies to units with standard equipment at an ambient temperature of 25°C and
a nominal voltage. The temperatures specified are determined in accordance with factory standard
following DIN 12880 respecting the recommended wall clearances of 10% of the height, width, and depth
of the inner chamber. All indications are average values, typical for units produced in the series. We
reserve the right to alter technical specifications at all times.
TEMPERATURE PERFORMANCE
Range and Uniformity
Operating Range Uniformity
Ambient +15°to 220°C ±6% of Set Point
Stability
@80°C @150°C @220°C
± 0.2°C ± 0.2°C ± 0.3°C
Heat up Times from Ambient (25°C)
To 80°C To 150°C To 220°C
80 minutes 130 minutes 180 minutes

10 | Page
cascadesciences.com |Tel. [phone]
UNIT SPECIFICATIONS
POWER
AC Voltage Amperage Frequency Phase
230 20 50/60 Hz 1
VACUUM
Operational Vacuum Range
inHg mmHg kPa bar
-3.0 to -29.9 -76 to -760 -10 to -101 -0.1016 to -1.0125
Vacuum Display Range
inHg mmHg kPa bar
0.0 to -29.9 37.5 to -757 5 to -101 0.05 to -1.013
Lowest Rated Chamber Pressure
24 mTorr at 150°C
Leak Rate
Less than 1 mTorr per 30 minutes @ ambient temperature

11 | Page
cascadesciences.com |Tel. [phone]
UNIT SPECIFICATIONS
WEIGHT
Shipping Net Weight
985 lb / 447 kg 492.0 lb / 223.0 kg
DIMENSIONS
Inches
Exterior W × D × H Interior W × D × H
38.1 x 46.8 x 63.9 in 28.0 x 24.0 x 24.0 in
Millimeters
Exterior W × D × H Interior W × D × H
965 x 1189 x 1624 mm 711 x 610 x 610 mm
CAPACITY
Cubic Feet Liters
9.3 264
SHELF CAPACITY BY WEIGHT
Per Shelf Total
75.0 lb / 34.0 kg 225.0 lb / 102.0 kg

12 | Page
cascadesciences.com |Tel. [phone]
INTRODUCTION

13 | Page
cascadesciences.com |Tel. [phone]
INTRODUCTION
READ THIS MANUAL
Failure to follow the guidelines and instructions in this user manual may create a protection
impairment by disabling or interfering with the unit safety features. This can result in injury or death.
Before using the unit, read the manual in its entirety to understand how to install, operate, and
maintain the unit in a safe manner. Keep this manual available for use by all operators. Ensure all
operators are given appropriate training before the unit begins service.
Intended Applications and Locations
CVAC-9.3 vacuum ovens are engineered for drying, curing, and baking applications under vacuum in
professional, industrial, and educational environments. The ovens are not intended for use at
hazardous or household locations.
CONTACTING ASSISTANCE
Phone hours for Technical Support are 6 am – 4:30 pm Pacific Coast Time (west coast of the United States,
UTC -8), Monday – Friday. Please have the following information ready when calling or emailing Technical
Support: the model number and the serial number (see page 18).
PHONE: [phone] or 503-847-9047
Cascade Sciences
6725 NE Evergreen Pkwy
Ste 106
Hillsboro, OR 97124
ENGINEERING IMPROVEMENTS
Cascade Sciences continually improves all of its products. As a result, engineering changes and
improvements are made from time to time. Therefore, some changes, modifications, and
improvements may not be covered in this manual. If your unit’s operating characteristics or
appearance differs from those described in this manual, please contact your oven dealer or
customer service representative for assistance.

14 | Page
cascadesciences.com |Tel. [phone]
INTRODUCTION
VACUUM PUMP
The CVAC-9.3 oven requires a vacuum source. The oven does not come with a vacuum pump.
Use of an oil trap plumbed on the vacuum line between the oven and the pump is strongly
recommended. The trap protects the pump from any oils outgassed during your baking
application or procedure. This extends the life of the pump. All maintenance and instructional
information should be obtained from the pump manufacturer if it was not shipped with the pump.
Mounting studs and an electrical outlet for powering a vacuum pump are installed in the cabinet
inside the base of the oven. See the Connect to the Vacuum Supply entry in the Installation
section (page 25) for more information on plumbing.
GASKETS
The CVAC-9.3 comes with Viton door and window gaskets installed. These are rated to 220°C
and resistant to acids, but not solvents. The manufacturer also offers Buna gaskets resistant to
solvents and rated to 100°C.
Vacuum Pump
Building Vacuum Supply

15 | Page
cascadesciences.com |Tel. [phone]
RECEIVING YOUR UNIT
INSPECT THE SHIPMENT
•When a unit leaves the factory, safe delivery becomes the responsibility of the carrier.
•Damage sustained during transit is not covered by the manufacturing defect warranty.
•Save the shipping carton until you are certain that the unit and its accessories function
properly.
When you receive your unit, inspect it for concealed loss or damage to its interior and exterior. If you
find any damage to the oven, follow the carrier’s procedure for claiming damage or loss.
1. Carefully inspect the shipping carton for damage.
2. Report any damage to the carrier service that delivered the oven.
3. If the carton is not damaged, open the carton and remove the contents.
4. Inspect the unit for signs of damage. See the orientation depiction on the next page as a
reference.
5. The unit should come with an Installation and Operation Manual, a Profile Programming
Guide, and a Watlow EZ-Zone User Manual.
6. Verify that the correct number of accessory items has been included.
7. Carefully check all packaging for accessory items before discarding.

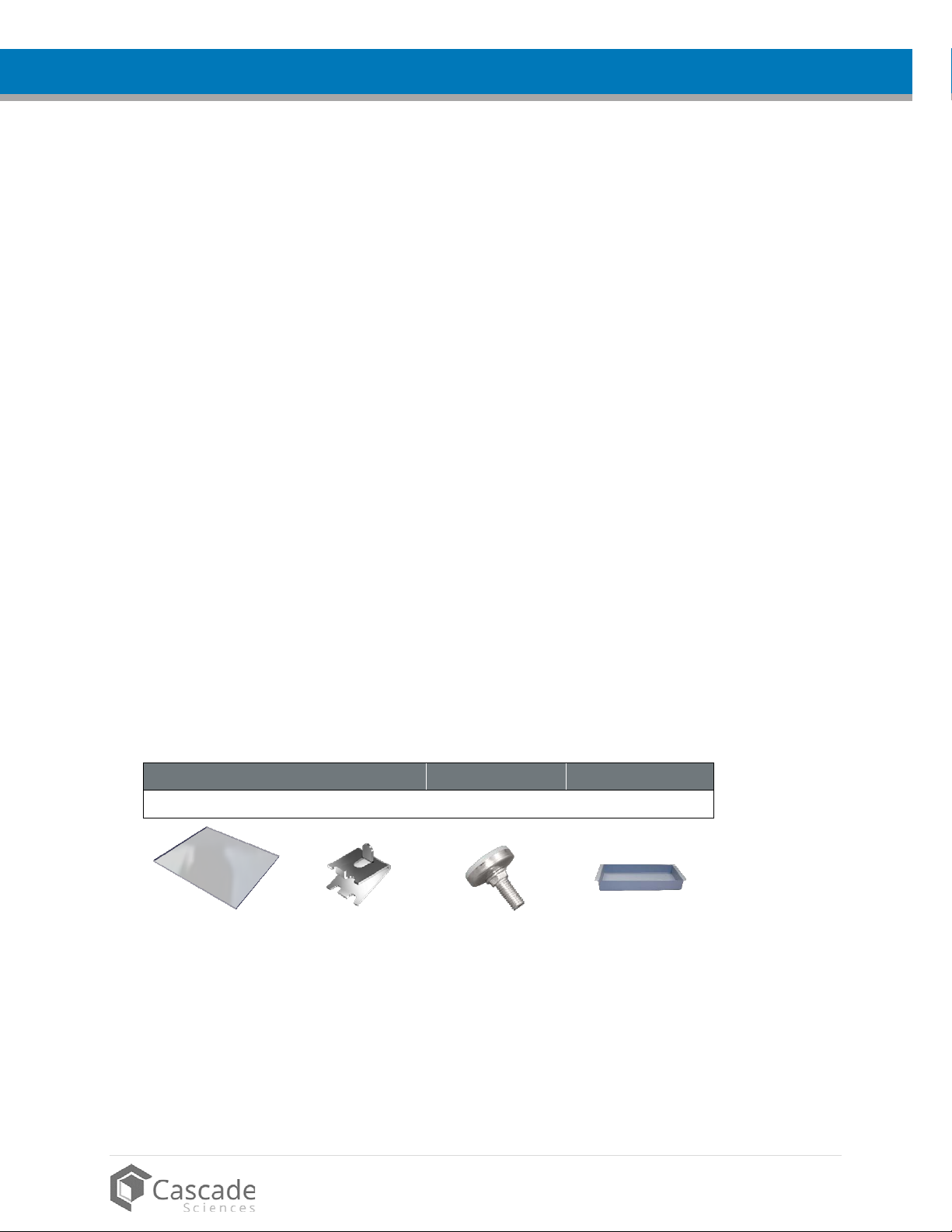

Included Accessory Items
Shelves Shelf Clips Leveling Feet Oil Drain Tray*
3 12 4 1
*The oil drain tray is included for use with vacuum pumps that produce oil leakage.

16 | Page
cascadesciences.com |Tel. [phone]
CVAC-9.3
RECEIVING YOUR UNIT
ORIENTATION IMAGES
Oven Chamber Door
Vacuum Plumbing Cabinet: A vacuum pump can be installed
inside the cabinet. The cabinet contains a NEMA 6-20R power
supply outlet as well as a KF-25 vacuum port and ½ inch backfill
inlet port. See page 25.
Always disconnect the unit from its power feed before opening
the cabinet. A screwdriver is required to access the plumbing
cabinet.
Chamber Vent Valve Control
(Backfill Inlet)
Chamber Vacuum Control Valve
Chamber Door Latch
Control Panel

17 | Page
cascadesciences.com |Tel. [phone]
RECEIVING YOUR UNIT

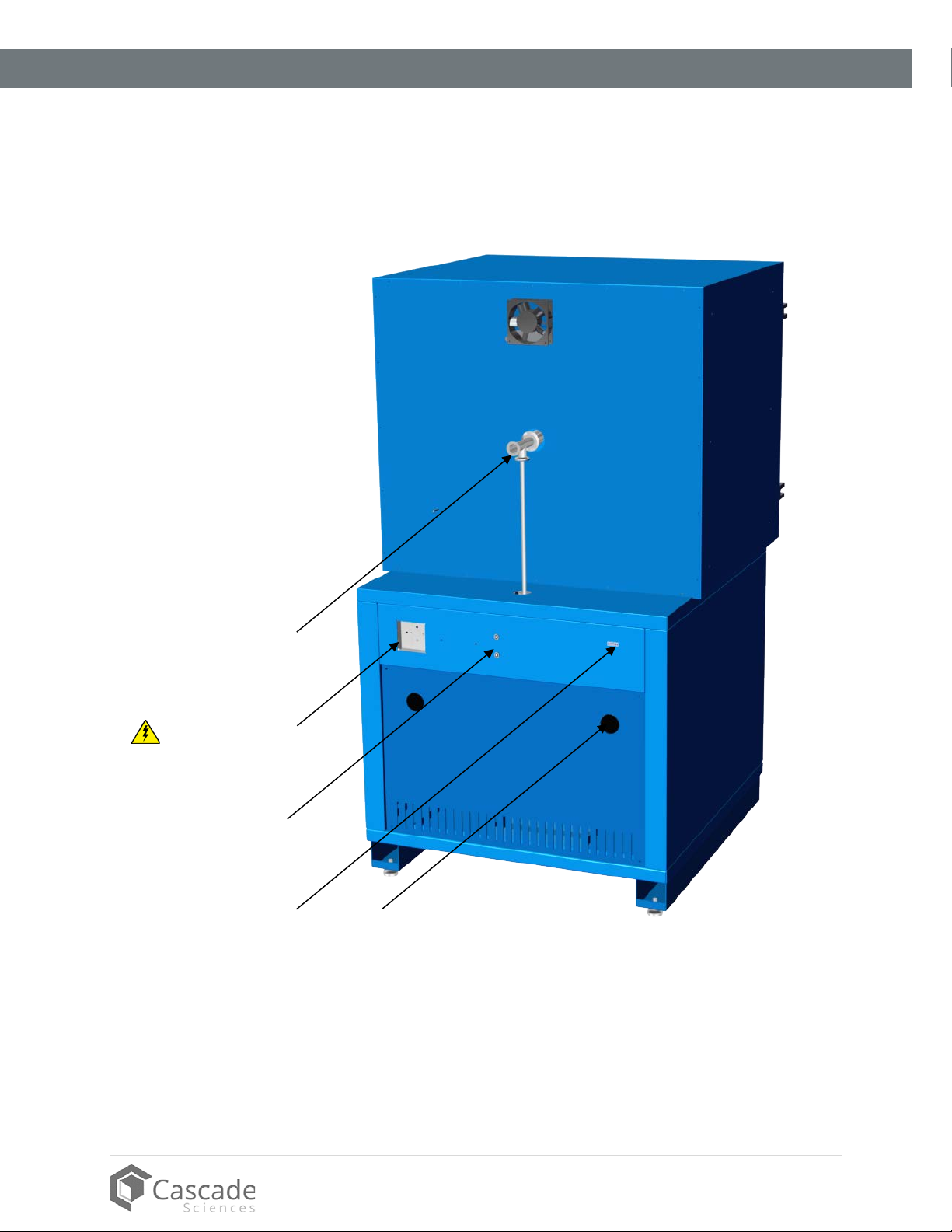

Back of Oven
Power Feed Braid
Circuit Breakers
KF-25 Vacuum Fitting
Data Port - Controller
Cabinet Access Port, 1 of 2

18 | Page
cascadesciences.com |Tel. [phone]
RECEIVING YOUR UNIT
RECORD THE DATA PLATE INFORMATION
The data plate contains the unit model number and serial number. Tech Support will need this
information during any support call. Record it below for future reference.
•The data plate is located on the back of the oven under the power inlet.
Model Number
Serial Number

19 | Page
cascadesciences.com |Tel. [phone]
INSTALLATION
HARDWIRE REQUIREMENT
The oven requires permanent connect wiring (commonly known as hardwiring). Wiring to the power
source must be performed by a qualified electrical technician. All other Installation steps may be
performed by the end user.
INSTALLATION PROCEDURE CHECKLIST
For installing the unit in a new workspace location.
Pre-Installation
Check that the required ambient conditions for the unit are met, page 20.
Check that the spacing clearance requirements are met, page 20.
•Unit dimensions can be found on page 9.
Check that a suitable permanent connect electrical power supply is present, page 21.
Install the Oven in a suitable workspace location
Review the lifting and handling instructions, page 22.
Make sure the oven is level, page 23.
Install the oven in its workspace location, page 23.
•The oven may be connected to its power supply after this procedure.
Set up the Oven for use
Clean the oven chamber and shelving if needed, page 23.
Install the shelving in the oven chamber, page 24.
Connect the vacuum supply to the oven, page 25.

20 | Page
cascadesciences.com |Tel. [phone]
INSTALLATION
REQUIRED AMBIENT CONDITIONS
When selecting a location to install the oven, consider all environmental conditions that can affect
effective temperature range, uniformity, and stability of the oven. For example:
•Other ovens, autoclaves, and any device that produces significant radiant heat
•Heating and cooling ducts, or other sources of fast moving air currents
•High-traffic areas
•Direct sunlight
This oven is intended for use indoors, at room temperatures between 15°C and 40°C (59°F and 104°F),
at no greater than 80% Relative Humidity (at 25°C / 77°F). Operating the unit outside of these conditions
may adversely affect its temperature range and stability.
REQUIRED CLEARANCES
These clearances are required to provide sufficient air flows for ventilation and cooling.
•Allow at least 12 inches (300 mm) of empty space between the top and back of the oven and
any walls or partitions for unobstructed airflow and cooling.
•Allow at least 6 inches (150 mm) of ventilation on the sides.
•Do not place objects on top of the oven.
•Allow at least 6 inches (152 mm) from the fan vent on the back of the oven to the nearest
wall or partition. Keep the fan unobstructed at all times.
•A KF-25 vacuum port is located on the back of the oven for introducing probes into the
chamber or connecting to an external vacuum supply source. Leave sufficient clearance for
end-users to safely access this port if you will be using it.
6” (150 mm) Fan
KF-25 Port
6” (150 mm)
Door Swing
12” (300 mm)
12” (300 mm)
6” (150 mm)
12” (300 mm)
20” (521 mm)
