Casio EA-100 User manual

1
Chapter 1: Getting Ready
Chapter 1:
Getting Ready
This chapter acquaints you with CASIO Data Analyzer key operations, dis-
play indicators, and other basic information you need to know. It also tells you
how to replace batteries, connect to a graphic scientific unit, and perform
other set up procedures before beginning actual operation.
Unpacking ............................................................................ 2
CASIO Data Analyzer Overview .......................................... 3
Keyboard .............................................................................. 5
Reading the Display ............................................................. 8
Power Supply ..................................................................... 10
Connecting the Data Analyzer to a Calculator ................... 13
Connecting a Probe ........................................................... 13

2
Chapter 1: Getting Ready

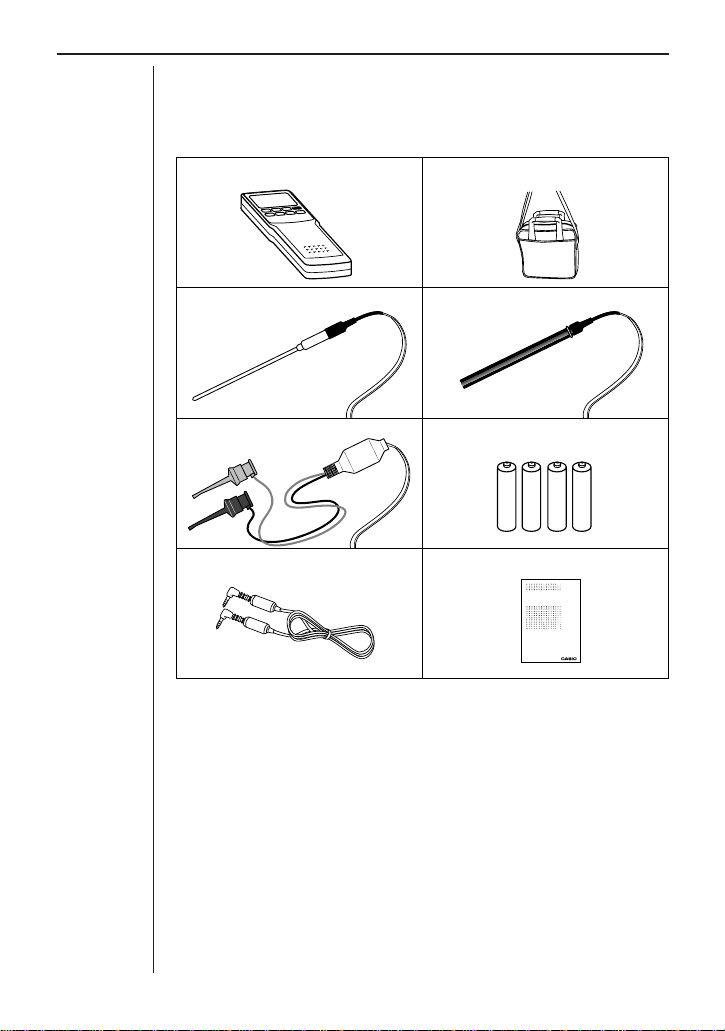

Unpacking
Check to make sure that all of the following items are present during unpack-
ing.
Data analyzer unit Carrying case
Temperature probe Optical probe
Voltage probe Four AA-size batteries
Data communication cable User’s Guide (this manual)
Probes
The CASIO Data Analyzer comes with the following three probes.
• Voltage probe: for sampling of voltages within a range of ±10V
• Optical probe: for sampling of irradiance (radiant flux density) from 100 to
999*
• Temperature probe: for sampling of temperatures in the range of –20 to
130°C
* The value produced by optical measurements does not correspond to any
standard unit of measurement, but simply indicates a relative measure of
brightness in the range of 100 to 999.
EA-100

3
Chapter 1: Getting Ready
CASIO Data Analyzer Overview
The CASIO DataAnalyzer is a digital instrument you can use to sample and
collect data on various everyday natural phenomena. The following sections
provide information on using its probes and channels, and tell you how to
connect to a graphic scientific calculator. A number of other important func-
tions of the data analyzer unit are also introduced here.
Sample Data
The probes that come with the CASIO Data Analyzer make it possible to
sample temperature, light, and voltage. Data sampling can be performed at
up to 512 points per channel, and data can be sampled on up to five chan-
nels simultaneously. Data can be transferred to a CASIO CFX-9850G or CFX-
9800G graphic scientific calculator as it is sampled.
Probes
Probes are actually sensors for picking up data on temperature, light, and
other natural phenomena.
When using the supplied probes, the data analyzer unit’s Auto-ID feature
automatically detects which of the probes is connected.
Channels
Probes are connected to input/output terminals, called “channels,” that are
equipped on the data analyzer unit. There are a total of six channels for
connection of probes: three analog channels (CH1, CH2, CH3), one ultra-
sonic channel (SONIC), one digital input channel (DIG IN), and one digital
output channel (DIG OUT).
Data Analyzer and the CFX-9850G/CFX-9800G
Though the data analyzer unit can be used alone to sample, store, and recall
data, you can also connect to a graphic scientific calculator for more detailed
manipulation and analysis of sampled data. The data analyzer unit can be
controlled from the calculator, and sampled data can be displayed in graphic
form on the calculator’s screen.
Control of the data analyzer unit is performed by sending calculator list data
(CFX-9850G) or matrix data (CFX-9800G), which the data analyzer unit in-
terprets as commands.

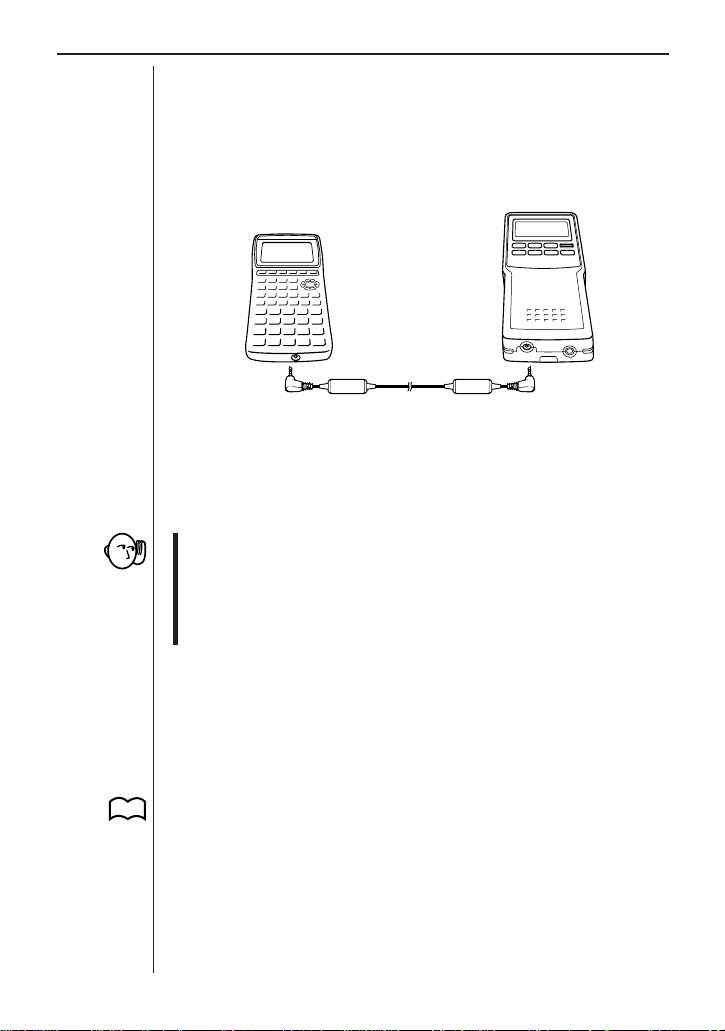

The data analyzer unit can be linked to a CFX-9850G or CFX-9800G graphic
scientific calculator by connecting the input/output terminals equipped on each
unit with a data communication cable (SB-62).

4
Chapter 1: Getting Ready
Command and Programs
There are a total of 10 commands defined for this data analyzer unit: Com-
mand 0 through Command 9. These commands can be used to specify such
parameters as the type of data being sampled, the channel being used for
sampling, the sample time, and the number of samples. Commands are sent
from a connected graphic scientific calculator (CFX-9850G/CFX-9800G) to
the data analyzer unit, which then executes them.
Aprogram is a set of multiple commands that cause the data analyzer unit to
perform a series of actions. For example, you could send a set of commands
that tell the data analyzer unit to set up, to sample some data, and then send
the data back to the calculator. Data analyzer unit programs can be written
using the CFX-9850G graphic scientific calculator’s program function only.
Be sure to read the documentation that comes with the CFX-9850G to thor-
oughly familiarize yourself with the programming function before trying to use
it to control this data analyzer unit.
Conversion Equations and Post-processing
Conversion Equations
The physical units measured by the probes are converted into a more easily
understood unit of measurement by built-in conversion equations. In the case
of the temperature probe, for example, changes in temperature are meas-
ured by fluctuations in electrical resistance by an electrical device called a
“thermistor.” The conversion equation converts the measured resistance value
to a temperature unit (such as degrees Celsius) and produces the converted
value on its screen. Each of the analog channels and the SONIC channel
has its own built-in conversion equation.
Post-processing
The data analyzer unit provides the means to perform certain calculations
using sampled data when required. This is called “post-processing” (process-
ing of data after it is sampled).
This data analyzer unit supports three types of post-processing: first deriva-
tive, first and second derivatives, and statistics. Selecting first and second
derivatives for post processing, for example, calculates the first and second
derivatives* for the sample data and stores the result into memory. Selecting
statistics calculates the mean, standard deviation, minimum and maximum
for the sampled data and stores them in memory. Calculated data can also
be downloaded to a graphic scientific calculator.
* The term “derivative” here means “time increment.”

5
Chapter 1: Getting Ready
Data Filtering
Static “noise” can sometimes cause sampled data to become corrupted,
making it impossible to obtain accurate results from calculations and analy-
sis. This data analyzer unit includes a data filtering system that eliminates
noise and help to make sure that data is always accurate.
Keyboard
The front panel of this data analyzer unit has a liquid crystal display screen
and eight keys.
Data Analyzer Unit
Display screen
Channel 3
terminal
Channel 2
terminal
Channel 1
terminal
AC adaptor
terminal
Data communication
terminal
SONIC
terminal
DIG IN
terminal
DIG OUT
terminal
Keyboard

6
Chapter 1: Getting Ready
Key Functions
The following describes the functions of each of the eight keys on the key-
board. This section is intended more as a reference and contains information
that may be difficult to understand at first glance. Don’t worry though, many
of the expressions used in the following key function descriptions will be-
come clearer after you read the section of this manual titled “Modes.”
Key Description
[SHIFT] Pressing this key shifts the keyboard and accesses the func-
tions printed above the [MODE], [INTERNAL], and [HALT] keys.
A SHIFT indicator appears on the display screen to indicate
when the keyboard is shifted.
[MODE] Pressing this key switches the data analyzer unit between the
Multimeter Mode and Communications Mode.
[SETUP] Pressing [SHIFT] [MODE] enters the Setup Mode for
configuring the data analyzer unit for manual stand-alone sam-
pling.
[TRIGGER] Each press of this key while the data analyzer unit is in the
READY state (indicated when the READY indicator is on the
display screen) starts a data sampling operation.
[ENTER] The [TRIGGER] key functions as an [ENTER] key in the Setup
Mode. It is used to select values when manually setting up the
data analyzer unit in the Setup Mode.
[CH-View] This key’s operation varies according to the mode the data
analyzer unit is in.
• Communications Mode: Each press of [CH-View] while the
data analyzer unit is in the READY state or while sampling
isin progress sequentiallyselects each currentlyactive chan-
nel and displays the data sampled over that channel on the
screen. Selecting a channel causes its channel indicator to
flash on the screen. After sampling is done (indicated by
the DONE indicator), each press of [CH-View] shifts the
sequence that data is sent to a graphic scientific calculator
in the following sequence:
RecTIME →CH1 →CH2 →CH3 →SONIC →DIG IN →
RecTIME →...
• Multimeter Mode: Each press of [CH-View] in this mode
switches the sampling channel in the following sequence:
CH1 →CH2 →CH3 →SONIC →DIG IN →CH1 →...
• Internal Mode: The [CH-View] key is disabled in this mode.
P.47

7
Chapter 1: Getting Ready
Key Description
• Data-Log Mode: Each press of [CH-View] in this mode
sequentially switches the channel whose data is on the dis-
play. The channel indicator of the currently selected chan-
nel flashes on the screen.
[INTERNAL] Pressing this key while in the Communications Mode enters
the Internal Mode. Pressing it again returns to the Communi-
cations Mode
[XMIT-9800] Pressing [SHIFT][INTERNAL] sends data to the CFX-9800G.
[ON/OFF] Pressing this key turns data analyzer unit power on and off.
[HALT] • Pressing this key while a sampling operation is in progress
halts the operation.
• Pressing this key in the Data-Log Mode exits the Data-Log
Mode and returns to the DONE state in the Communica-
tions Mode.
• Pressing this key during manual setup in the Setup Mode
exits the setup procedure.
[RESTART] Pressing [SHIFT] [HALT] clears any data sampled up to that
point, returns to the READY state, and stands by for the next
sampling operation to be started.
[DataLOG] Pressing this key enters the Data-Log Mode. Note, however,
that pressing this key in the Multimeter Mode sequentially
changes the unit of measurement for the currently displayed
channel.
[NEXT] The [DataLOG] key functions as a [NEXT] key in the Setup
and Data-Log Modes.
• Pressing [NEXT] while performing manual setup recalls the
next setting value for the item you are setting. [SHIFT]
[NEXT] returns to the previous value.
• Pressing [NEXT] in the Data-Log Mode recalls the next data
item. [SHIFT] [NEXT] recalls the previous data item.
P.35

8
Chapter 1: Getting Ready

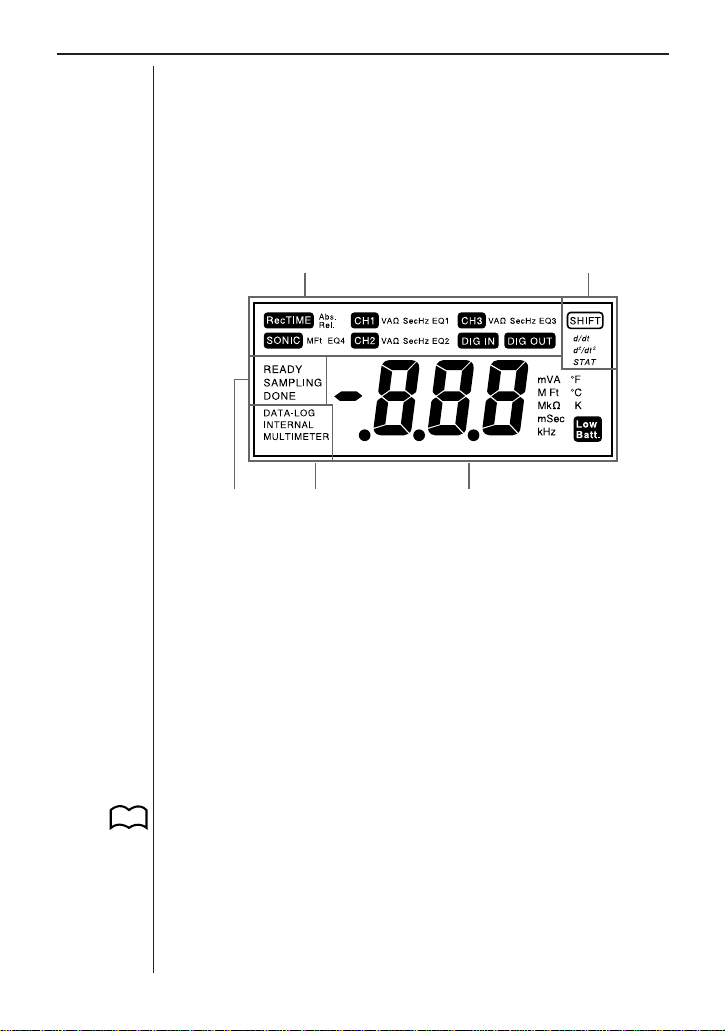

Reading the Display
The data analyzer’s liquid crystal display (LCD) is divided among five areas,
each of which indicates the status of a particular operation.
Display Panel
The display screen shows the current operating mode, the input/output chan-
nel being used, and information about the current sampling operation.
Area 1
Area 3 Area 4 Area 5
Area 2
Display Screen Areas
Area 1 (Channel Area)
This area shows the active channel and the sampling unit for each channel,
and whether recorded time data is absolute or relative. Channel indicators
(CH1, CH2, CH3, SONIC, DIG IN, and DIG OUT) appear to indicate the
currently active channel. The sampling units to the right of each channel indi-
cator show the sampling unit for the probe connected to the channel. An EQ
indicator (EQ1 through EQ4) also appears when a conversion equation is
being used. The RecTIME indicator appears when time data is being re-
corded along with sampled data. “Abs.” indicates absolute time, while “Rel.”
indicates relative time.
Area 2 (Post-processing Area)
The indicators in this area (d/dt, d2/dt2, STAT ) show what type of post-process-
ing of data is being performed. SHIFT appears to indicate that the keyboard
is shifted and that the functions marked above the [MODE], [INTERNAL] and
[HALT] keys are enabled.
P.4
P.6,7

9
Chapter 1: Getting Ready
Area 3 (Sampling Status Area)
The indicators in this area shows the current data sampling status. READY
means the data analyzer is ready and standing by for data sampling, SAM-
PLING indicates that a sampling operation is in progress, and DONE means
that the sampling operation is finished. All three of these indicators flash in
the Setup Mode.
Area 4 (Mode Area)
These indicators show the current operating mode of the data analyzer. The
DATA-LOG, INTERNAL, or MULTIMETER indicator appears when the corre-
sponding mode is entered. No indicator is shown when the data analyzer is
in the Communications Mode.
Area 5 (Data/Output Unit Area)
This area shows the sampled data values and error codes. The indicators on
the right include unit (meters, Ω, seconds, etc.) indicators and a low battery
indicator.
• Keep in mind that Area 1 shows the unit used by the probe for sampling,
while Area 5 shows the unit used for displayed or output values, so the
two areas may indicate two different units. When the temperature probe
is used, for example, Area 1 will indicate Ohms (Ω) as the unit because
the probe uses a thermistor to measure temperature as a change in
resistance. Area 5, on the other hand, will indicate°F or °C, because this
is the unit used to represent the displayed value.

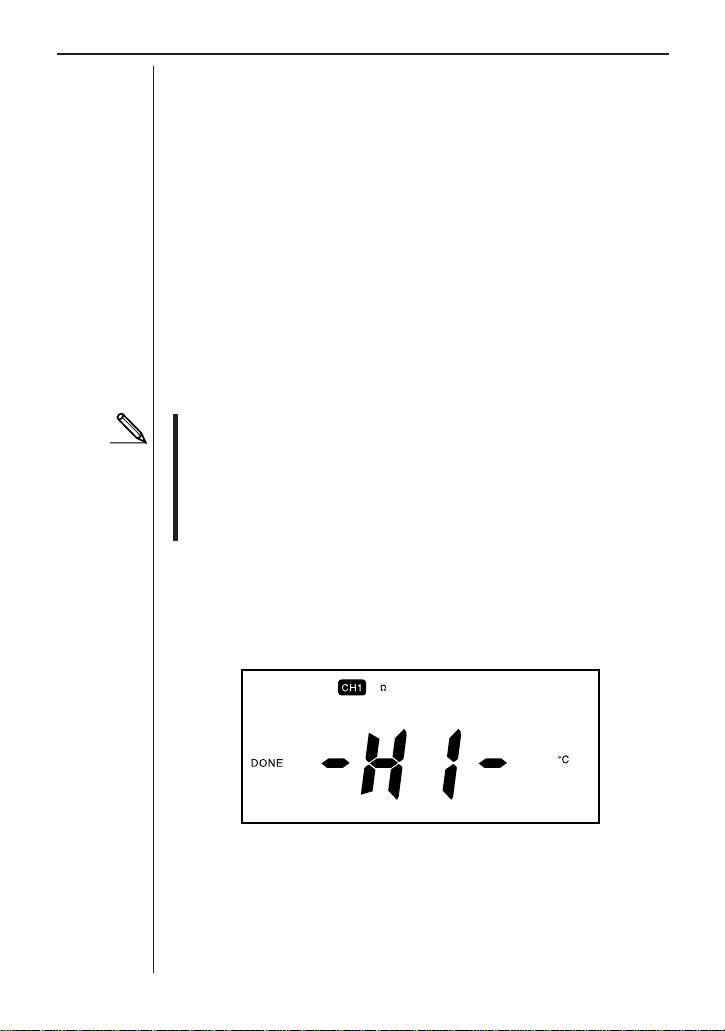

Out-of-Range Samples
Samples that exceed the allowable range for a particular probe are indicated
on the display as shown below. This sample display shows the out-of-range
message for temperature measurements.
• Voltage: Greater than 10V
• Temperature: Greater than 130°C
• Light: Greater than 999

10
Chapter 1: Getting Ready

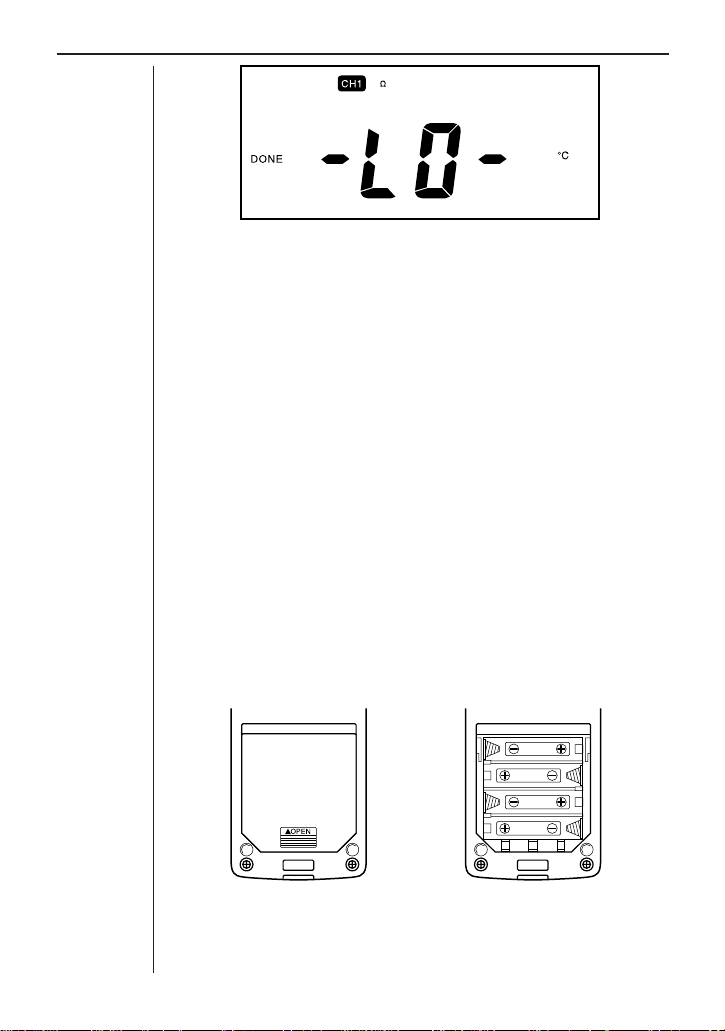

• Voltage: Less than –10V
• Temperature: Less than –20°C
• Light: Less than 100
Power Supply
The data analyzer can be powered by four AA-size batteries or an optional
AC adaptor (AD-A60024). This section tells you when you should replace
batteries and how to connect the optional AC adaptor.
Batteries
The data analyzer can be powered by four AA-size batteries. Battery life
depends on how long you leave the data analyzer turned on, and the amount
of current required by the probes you use. Alow battery message appears
on the display whenever battery power drops below a certain level.
Note that you can extend battery life by using the optional AC adaptor (AD-
A60024) whenever possible.
To load batteries
1. Holding the data analyzer unit upright, press down on the {▲OPEN} part
of the battery compartment cover and slide the cover off.
If you are replacing batteries, remove all four old batteries from the com-
partment.
