Sharp EL-9650 User manual

Graphing Calculator
EL-9650/9600c
OPERATION GUIDE

Built-in slide shows
Original slide shows
Educational tools
(OHP/PC-link/Data collection)
Shift/Change function
Equation editor
Split display
Large display
Pen-touch screen
Rapid graph
Rapid window
Rapid zoom
Easy to Teach
Easy to Learn Easy to Use
Introduction
Contents Sales points P 1
Basic operation P 2
Pen-touch operation P 4
Equation editor P 5
Features
Shift P 6
Change P 7
Slide show P 8
Slide show selections P 9

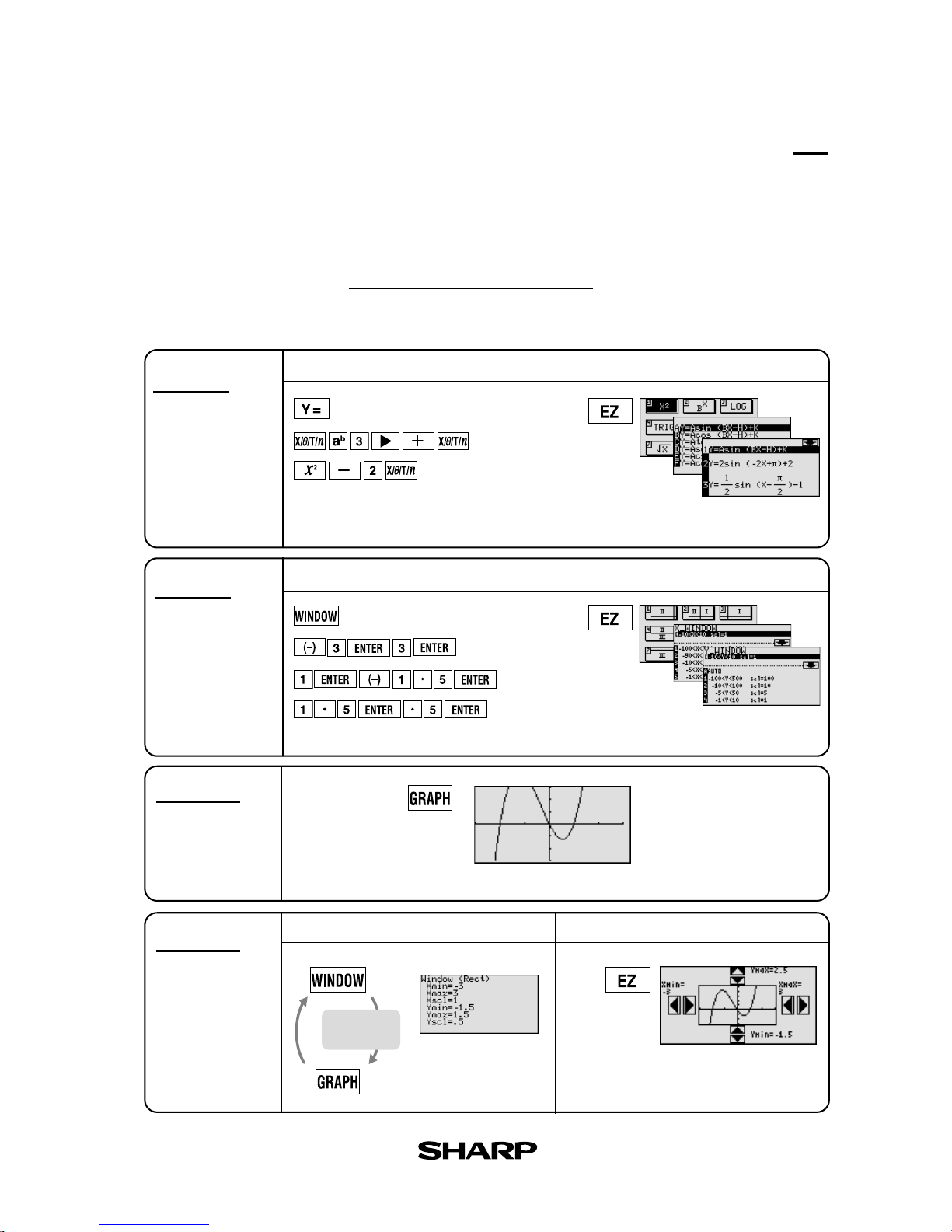

Graphing procedure P 11
Rapid graph P 12

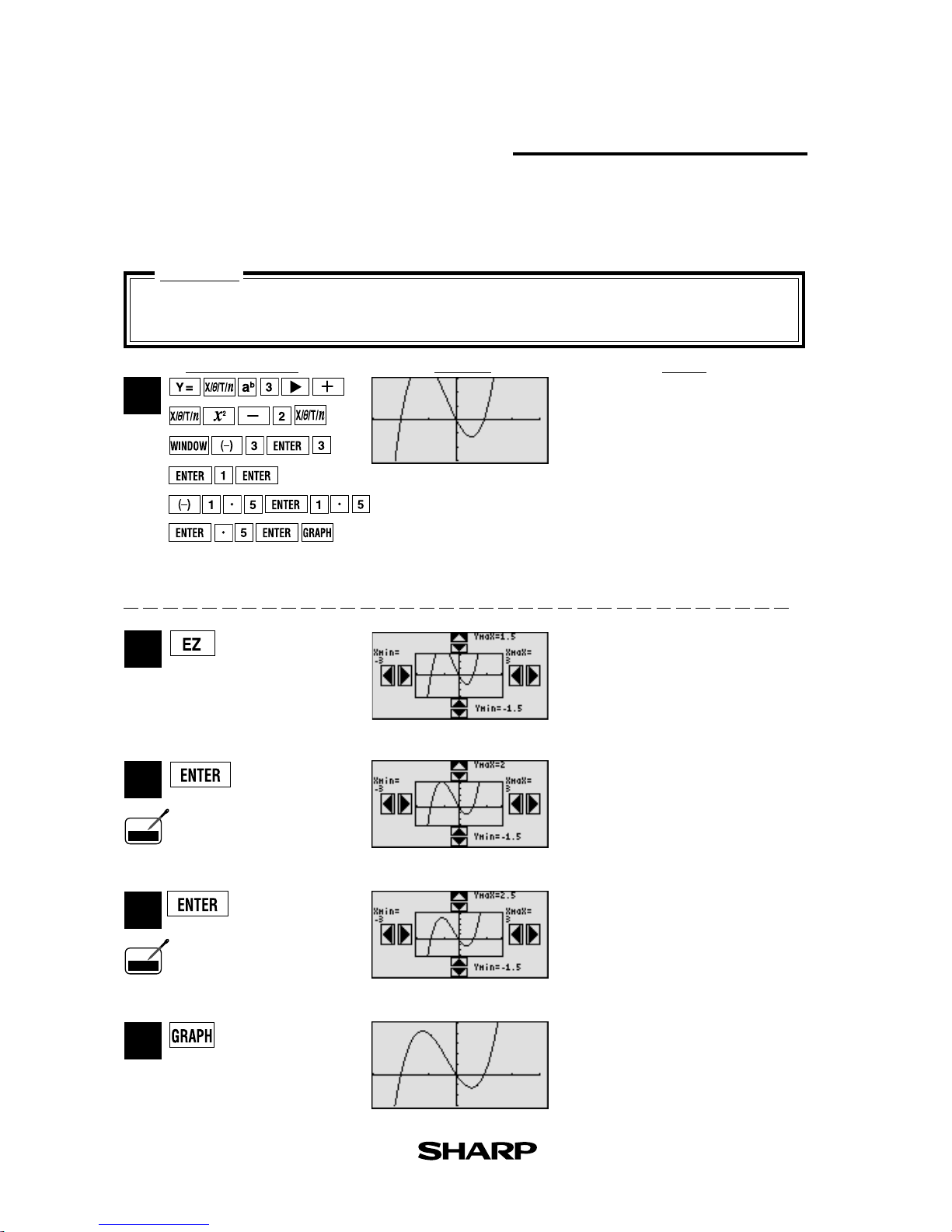

Rapid window P 13
Rapid zoom P 14
System options
PC-link system P 15

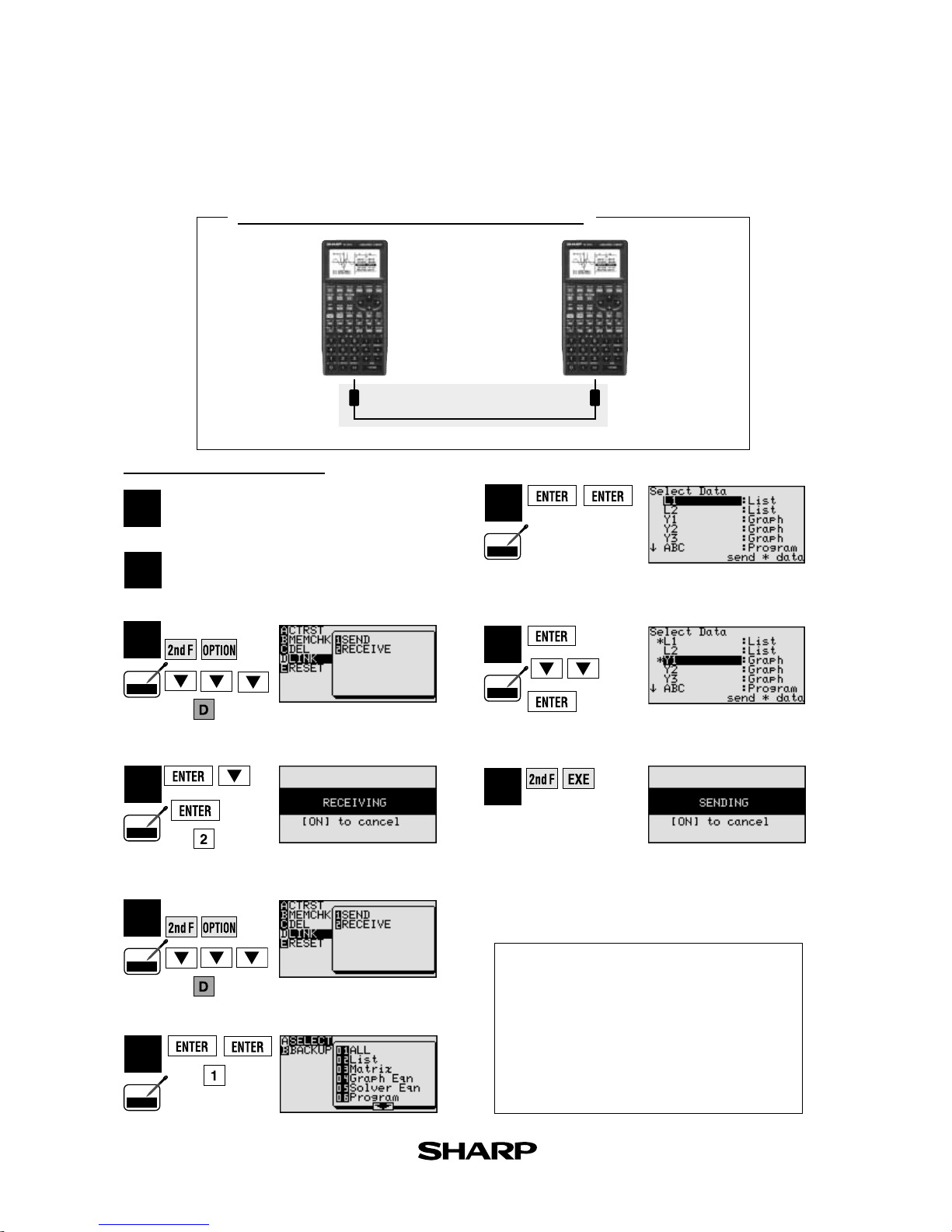

Set to set communication P 16
OHP system P 17
Menu tree 1~6 P 18
Specification P 24
The EL-9650/9600c was developed to meet the needs of an
expanding education market and is based on three concepts:
easy to teach, easy to learn and easy to use. The EL-9650/9600c
has been designed with simplified operations and time-saving
features, allowing teachers to concentrate on actual teaching.
This manual was designed to introduce teachers to the unique
features of the EL-9650/9600c using detailed operation examples.

Sales points
1
Graph Shift/Change shows
how "changing" the graph
affects the equation
Large 132 x 64-dot
display
Slide Shows reduce class
preparation time
Easy Pen-touch
screen
Rapid zoom allows easy
adjustment of window size
Rapid graph/Rapid window
simplify graphing procedures
1
2
4
Equation Editor shows
equations just as in textbooks
3
5
6
7

2
Basic operation
Function keys

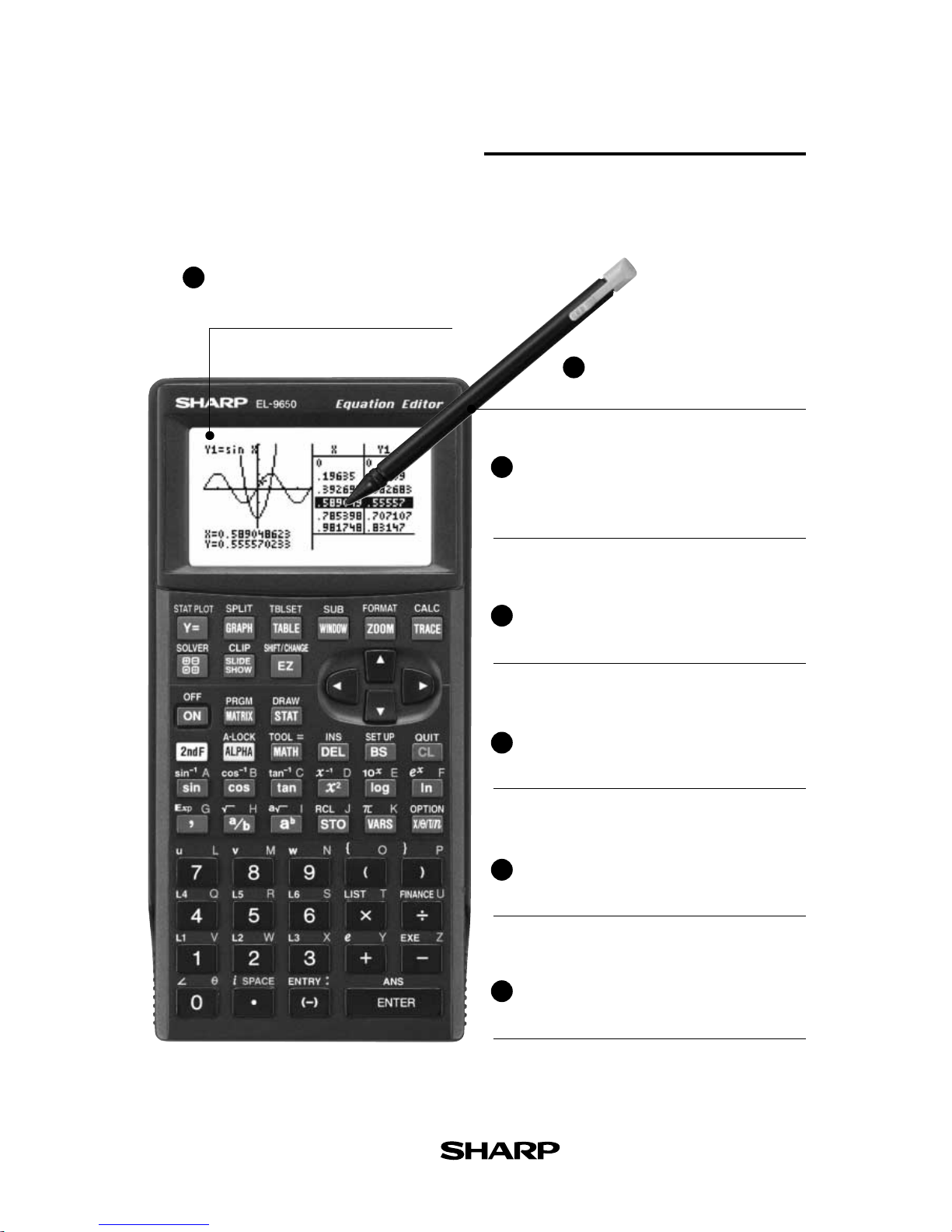

Names of parts
Communication port for peripheral devices
Power off
Power on
Erase equations and
remove error displays
Power ON/OFF
○○○○○○○
○○○
○○○○○○
QUIT
CL
Cancel of previous
function (Escape)
○○○
Graphing keys
Power supply ON/OFF key
Alphabet specification key
Secondary function
specification key
1
2
3
4
5
6
7
8
9
Display screen
Cursor movement keys
Clear/Quit key
Variable enter key
Calculation execute key
10
Use to enter equations
Use to draw graphs
Use to view table of function value
Use to set size of viewing window
Use to adjust the viewing range
Use to trace graphs
Use to enter calculation mode
Use to enter slide show mode
Use to operate Rapid Graph/Rapid Win-
dow and Rapid Zoom functions

3
Reset function
1) When trouble occurs
Press
OPTION
to enter the reset mode.
• Use this function ( or ) to return all
settings to the default value or to delete all
data.
2) All RESET operation
• If trouble still occurs, proceed as follows:
1. Press the RESET switch on the back.
2. Press .
• Returns to the initial display.
CAUTION
Do not press in step 2. It will delete all data
stored in the calculator.
SET UP menu
Press .
• Contents displayed on the right side of
the screen are the current settings.
Adjusting screen contrast
• The contrast adjust screen will appear
when pressing
OPTION
.
Press to darken contrast.
Press to lighten contrast.
Basic operation
Guide to key use
Press to use secondary functions (in yellow).
Press to use the alphabet keys (in blue).
Example:
To select “sin”:
To select “sin-1”:
To select A:
Pen
Touch
(Change the contrast by touching
or using the pen)
There may be differences in the results
of calculations and graph plotting
depending on the SET UP settings. ]
]
• With pen-touch mark Pen
Touch , all operations can
be performed using the pen touch.
• Operation examples for the pen-touch key are
given assuming that the operation is started from
the default value setting.
sin
A

4
Pen-touch operation
Pen-touch screen offers convenient operations. Use it to select from the menu displays or
shift a graph, fast and easy. All operations can also be performed without the pen.
Easy to move between displays
Convenient to make changes to graphs
Pen-touch
[CONV]
Pen
Touch
Key operation
Pen-touch operation
1)
2)
3)
Select menu options with a touch of the pen
1
2
3
○○○○○○○○
4)
Display
Example: Convert “3.55” to d,m,s (degree, minute, second)
(or )
(or )
See how a simple choice can be made directly from the screen.
Pen-touch
[dms] twice

NotesKey Operation Display
Example
5
Equation editor
1
2
5
4
3
6
Input the equation and see how it can be easily
viewed with the equation editor.
7
Clear the display.
Enter the range of the integral.
Complete equation input.
Calculate the expression.
The mark in the upper right corner
will blink for approximately 10 seconds,
indicating that the expression is
being calculated.
Review the input equation.
Enter
Pen
Touch
(or )
(or )
]
]
Pen
Touch
(Integral function)
Select CALC and
The equation editor allows equations to be viewed just as they are written in textbooks. This
aids student comprehension and allows mistakes to be found quickly.

NotesKey Operation Display
Example
6
Shift
Graph shift function helps students grasp the relationship between an equation and its graph.
Shift the graph’s location without changing its shape, and the change is immediately reflected
in the equation on the right side of the display.
When the graph of y = x2is shifted downward,
how does this affect the equation?
Select the location of the shift:
move cursor down twice.
Enter
SHIFT/CHANGE mode.
1
2
3
4
5
Select shift. Cursor moves to the
equation menu.
Select the equation: y = x
2
and
draw the graph.
View the result of the shift.
Pen
Touch
(Change the location of graphs)
y = x2
y = x2-2
Pen
Touch
Pen
Touch
Pen
Touch
Features
If
SHIFT
is not already
highlighted press .
]
]
]
]

NotesKey Operation Display
Example
7
When the graph of y = x2is changed,
how does it affect the equation?
Change
Graph change function helps students grasp the relationship between an equation and its
graph. Change the shape of the graph, and the change is immediately reflected in the equation
on the right side of the display.
Enter SHIFT/CHANGE mode
and specified (
CHANGE
).
1
3
4
5
2
Select change. Cursor will move
to the equation menu.
Select the equation: y = x
2
and
draw the graph.
View the result of the change.
Select the location of the
change: increase the value of y-
coordinates.
(Change the shape of the graphs)
Pen
Touch
Pen
Touch
Pen
Touch
Pen
Touch
Features
y = x2
y = 2x2
]
]

NotesKey Operation Display
Example
8
Slide show
Slide show assists with teacher preparation. By selecting from the built-in options or cre-
ating your own series of slides, you can demonstrate lessons with minimum preparation
time.
Use the built-in slide show of y = x2to show how the
coordinates change as you move along the graph.
Select y = x
2
and the first slide
appears.
Moving between the values you
can follow the changes in the
graph’s coordinates, making the
nature of the graph easier to
understand.
Specified
SLIDE SHOW mode.
1
2
4
3
Begin the slide show by press-
ing the cursor key.
Select the built-in menu.
Pen
Touch
Pen
Touch
Features
* View the selection of built-in slide shows
on the following pages.
