Catalina Saber User manual

2
Congratulations
On your purchase of a Catalina Spa. Your new spa
will give you years of enjoyment. With its state-of-the-
art construction and cutting-edge technology, your
spa should be trouble-free for many years to come.
In the event something does happen to your spa, we
offer one of the most comprehensive spa warranties
in the industry.
Remember that routine maintenance and care are
key to a long lasting spa. Follow the guidelines set in
this manual and you will enjoy optimum performance
and longevity from your spa.
Once again, thank you for your purchase and enjoy
your new spa from Catalina Spas.
Go ahead, relax. . . You earned it!

Table of Contents
WELCOME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
ELECTRICAL REQUIREMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
INSTALLATION AND SURFACE PLACEMENT . . . . . . . . . . . . . . . . . . . . 9
STARTUP PROCEDURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Filling Up Your Spa . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Important Note to Purge The Air Out Of The System . . . . . . . . .10
Water Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
pH Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
EQUIPMENT RESET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
OPERATION INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Catalina CAT8000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Catalina CAT 200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Catalina CAT2000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Catalina CAT100/102/105 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Catalina CAT500 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Catalina CAT100/75 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
GENERAL MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Cleaning Your Spa . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Draining The Water . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Filter Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Refilling Your Spa . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Filter Sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Cleaning The Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Removal Of Large Side-by-Side Filter . . . . . . . . . . . . . . . . . . . . . 30
Mahogany Cabinet Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . 31
Spa Light Lens Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Jet Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Spa Cover & Pillows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Vacation Care / Winterizing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Sanitation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Balancing the pH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
SPECIAL PRODUCTS & FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Air Control Valves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Water Control Valves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
LED Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Topside Stereo Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Entertainment Systems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Cool Mist System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Diamond LED Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Jet Varieties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
OZONE BENEFITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
WIRING DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
RCD WIRING DIAGRAM (Europe) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
WIRING INSTALLATION INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . 42
WARNINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
3

Experience comfort, design, engineered
performance and service. During the
past 3 decades, satisfied customers
have been responsible for Catalina
Spa’s phenomenal growth and
success in the spa industry. We
have learned through 50 years
of manufacturing experience,
beginning with Catalina
Boats, that customer
satisfaction can only be
created by combining
State-of-the-Art
Manufacturing
technology with
the ultimate
design for
4
Welcome
to the
Experience . . .
Catalina Spa

comfort and performance that is engineered years ahead of it’s time.
Catalina Spas possesses all these features, explaining why more
customers are demanding the best —
Catalina
Catalina Spas are listed by the nationally recognized
safety experts UL Laboratories. After months of
rigorous testing of our spas, we met or exceeded all
requirements. We are proud of the Catalina trademark.
Outstanding quality with the ultimate performance built
into every Catalina Spa.
Our 100% filtration system will keep your spa clean when
combined with regular water maintenance. The easy to clean
front loading filter and skimmer have been designed to trap dirt
and oil while larger floating objects are caught by the leaf basket,
providing total water filtration. We have developed an insulation
system like a thermos bottle to keep your water hot and energy bills
low.
Our sophisticated control system allows the user to monitor and control
all spa functions, including water temperature and silent air venturis, while
comfortably seated in the spa. Our optional Mobile App system for the iPhone
allows you to control all functions from virtually anywhere. For a genuine therapy
whirlpool massage, simply turn the dial and our unique whirlpool system will
create the ideal relaxation. The same flow can be returned to high volume
hydro jets, providing individual massage that is out of this world. Other features
include Low Voltage LED Lighting Systems, State-of-the-Art Sound Systems,
Water Features, Cup Holders, genuine Mahogany Wood Spa Cabinets, Soft
Headrests and a Modular Equipment Pack available in 220V, designed for
simplified service.
Relax . . . You Earned It!
Welcome to the Catalina family! 5

6
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS.
DANGER –Do not lay across the foot well. Always sit in an upright
position.
WARNING –To reduce the risk of injury, do not permit children to use
this product unless they are closely supervised at all times.
CAUTION –Water temperature may rise when jets are operating on
“high” speed for extended durations.
A bonding lug has been provided on the outside of the Equipment
Package electrical control box. The lug permits the connection of
No.8 AWG (8.42mm) solid copper bonding conductor between the
Equipment Module and all other electrical equipment and exposed
metal in the vicinity, as may be needed to comply with local regulations.
WARNING – This unit must be hardwired only to a supply circuit that is
protected by a Ground Fault Circuit Interrupter. (GFCI). See diagram 1.
Such a GFCI is required by most building codes and should be provided
by the installer and must be tested before each use. Consult the GFCI
manufacturer’s instructions for correct testing, and operation.
The electrical supply for this product must include a suitable rated
switch or circuit breaker to open all ungrounded supply conductors to
comply with the National Electrical Code. The disconnection means
must be readily accessible to the tub occupant, but installed at least 5
feet (1.5M) from spa water.
Spas must be installed with drainage for electrical equipment
compartment.
Be sure the water always flows freely from the hydrotherapy jets within
the spa. Any blockage or restriction of this water flow by persons or
objects may damage system components, create an electrical shock
hazard and/or cause water damage to the surrounding area.
To avoid damage to the pump(s) and heater, the Equipment must
never be operated unless the spa is filled with water.
DANGER –Extreme caution must be exercised to prevent unauthorized
access by children. To avoid accidents, ensure that children cannot
use the spa unless they are supervised at all times. Also keep the spa
cover on when the spa is not in use.
WARNING –WATER TEMPERATURE. Never heat your spa water above
104°F (40°C). If you do, it could cause serious health hazards.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.

7
IMPORTANT SAFETY INSTRUCTIONS CONTINUED
DANGER –RISK OF ELECTRICAL SHOCK. Install at least 5 feet (1.5M)
from all metal surfaces. (A spa may be installed within 5 feet of metal
surfaces if each metal surface is permanently connected by a minimum
No. 8 AWG (8.4mm^2) solid copper conductor attached to the wire
connector on the terminal box that is provided for this purpose.)
DANGER –RISK OF ELECTRICAL SHOCK.Do not permit any electrical
appliance such as a light, telephone, radio or television within 5 feet
(1.5M) of a spa.
The ideal temperature of your spa or hot tub should be between 95°F
and 104°F (35°C-40°C). This range is not only healthier, but will also
result in easier care of your spa.
Since excessive water temperatures have a high potential for causing
fetal damage during the early months of pregnancy, pregnant or
possibly pregnant women should limit spa temperatures to 100°F or
less.
Before entering a spa, the user should measure the water temperature
with an accurate thermometer since the tolerance of water temperature
regulating devices may vary as much as +- 5 degrees.
The use of alcohol, drugs or medication before or during spa use may
lead to unconsciousness with the possibility of drowning.
Persons suffering from obesity or with a medical history of heart
disease, low or high blood pressure, circulatory system problems or
diabetes, should consult a physician before using a spa.
Persons using medication should consult a physician before using
a spa since some medication may induce drowsiness while other
medications may effect heart rate, blood pressure or circulation.
Because occasional users of the spa may not be aware of all the
potential risks associated with spa usage, they should be made aware
of these Important Safety Instructions.
CHEMICAL SAFETY –Play it safe with all chemicals.
Maintain sanitizer level of 3-5 ppm of bromine or chlorine.
Do not mix chemicals with each other before adding them to the water.
Add only one chemical at a time.
Never add concentrated liquid chemicals directly to the water. Always
dilute chemicals in a large plastic bucket or pail before adding them.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.

8
IMPORTANT SAFETY INSTRUCTIONS CONTINUED
ELECTRICAL REQUIREMENTS FOR 220V INSTALLATION
When diluting chemicals, always add the chemical to the water, not
water to the chemical.
Always dilute the chemical slowly and evenly before adding into spa
water. Never add any chemical, diluted or otherwise, into any skimmer
device.
Always store chemicals according to the manufacturer’s label directions
and keep them out of the reach of children.
During freeze conditions spas and swim spas must be set on Standard
Mode.
Before installing spas or swim spas in special installations such as a vault,
below ground level or next to retaining walls, make sure to add additional
freeze sensor. Install sensor above ground level.
The Equipment Package is designed to operate at 220 volts, 60 Hz.
Hardwired directly to the equipment pack; a 50 amp dedicated circuit is
required.
This unit must be hardwired only to a supply circuit that is protected by
a Ground Fault Circuit Interrupter (GFCI) See Diagram 1. Such a GFCI
is required by most building codes, should be provided by the installer
of the circuit and should be tested before each use. Consult the GFCI
manufacturer’s instructions for correct testing and operation.
When the Equipment Package is connected to 220 volts, the Heater will
provide approximately 4000 watts of heat when the Pump is operating in
LOW or HIGH speed and the thermostat is calling for heat.
IMPORTANT NOTE: All electrical connections to the Equipment Package
must be accomplished by a qualified electrician in accordance with the
National Electrical Code and in accordance with any local electrical codes
in effect at the time and place of installation. NOTE: Do not attempt to use
a dryer, stove or other 220 volt appliance on the same circuit as the spa.
A separate breaker and a dedicated circuit from your panel to the spa is
required.
All electrical connections must be made in accordance with the wiring
information contained in the manual (see Diagram 1), in the electrical
control box or on the back of the field wiring access panel of the Equipment
Package. Failure to provide proper electrical power to your spa will void
your warranty. Installation by a licensed electrician is recommended.
The electrical supply for his product must include a suitably rated switch
or circuit breaker to open ALL ungrounded supply conductors to comply
with Local and National Electrical Codes. The disconnecting means must
be within sight, and readily accessible to the user of the spa, but installed
at least 5 feet (1.5M) from the spa.
26.
27.
28.
29.
30.

2013 Catalina Saber Spa 9
INSTALLATION AND SURFACE PLACEMENT
OF YOUR SPA
In order for your spa to function properly, it must be placed on a smooth,
LEVEL, self-draining surface.The Equipment Module is installed to provide
adequate drainage, and to prevent water from entering the electrical area.
If installing the spa indoors, the floors and structures beneath the spa must
be protected against run-off.
Concrete is preferred, so that rain water and water spillover may run-off
and not puddle underneath the spa causing the wood to rot away over a
period of time (The only requirement for concrete is that you have 1” slope
per 10’ for run-off).
It is important to note that soft surfaces, even when stepping stones are
used to evenly distribute the weight of the spa, will still have a tendency
to settle thus resulting in an unleveled spa. Remember, placing the spa
on grass or dirt may increase the amount of debris which is inadvertently
brought into the spa water from the user’s feet.
When considering an installation site, always allow for access to the
equipment compartment of the spa and enough clearance to pull the door
out for future service, if necessary.
Please note that some cities and counties may require a permit for
installation of electrical circuits or the construction of exterior structures
(decks and gazebos). In addition, some counties may require permits for
the installation of a portable spa. Check your local codes for compliance.
IMPORTANT: To ensure you will have an opportunity to use your spa soon
after delivery, it is very important that you select the site prior to setting
your spa in place and have a licensed electrician install the equipment if
necessary.
If you have any questions or concerns, please contact your local Catalina
Spas dealer first. Or you can contact us via the Internet at:
Inf[email protected].
CatalinaSpas.com.

10
START UP PROCEDURES
FILLING UP YOUR SPA
Once you have installed your spa on its foundation and all electrical
requirements have been met, you may begin the necessary steps in filling
your spa.
All gate valves must be OPEN. There are two
“twist and turn” locking gate valves located
under the skirt (See Fig. 1) on each side of
the Equipment Pack.
To open the gate valves, pull handle upward
approximately 3” until it stops and snaps into
place (See Fig. 2). These must be opened
prior to operating the spa to allow water to
flow through the Equipment Pack (dual-pump
models have 4 valves).
Make sure the filter cartridge (Basket and
Weir, if so equipped) is in place. Fill the spa
using a garden hose until the water is halfway
up the “throat” of the skimmer, otherwise it
will suck air, and cause the pump to “run dry”
and burn up. This repair would not be covered
under warranty. You should check the water
level of your spa each day as there is normal
evaporation each day, and more often when
the spa is used frequently.
IMPORTANT: Purge the Air Out OfThe System
When purging air out of the system, be sure
the pump(s) are turned OFF. Open air relief
valves (See Fig. 3) counterclockwise to
release air until water runs out. Then close
the valves. There will be one (1) relief valve
per pump. So a two pump system will have
two valves.
Check and tighten the PUMP UNIONS. The
pump unions might have become loose
during shipment. There are two unions per
pump. So a two pump system will have four
unions. (See Fig 4)
Figure 1
Figure 2
Figure 3
Figure 4

ON
MANUFACTURER DIP SWITCH “B” SETTINGS
123456789101112
OFF
ON
MANUFACTURER DIP SWITCH “A” SETTINGS
123456789101112
OFF
11
Press the function button switch on. It is important that the pump run on
HIGH speed for several minutes to assure that all air has been removed
from the system.
Check to see if all functions of the spa are operational. Low speed is
used for filtering and heating. High speed is used for jet action. Additional
functions may include operation of a blower and/or pump and blower
together. Please refer to the Special Products & Features section starting
on page 36, for specific product functions.
To avoid damage to the pump and heater, the Equipment Package MUST
NEVER be operated unless the spa is filled with water.
Be sure that water always flows freely from the hydrotherapy jets within
the spa. Any blockage or restriction of this water flow by persons or objects
may damage system components, create an electrical shock hazard and/
or cause water damage to the surrounding area.
WATER TESTING
It is recommended that you test your spa water regularly with an accurate
test kit or test strips.These are available from your local Authorized Catalina
Spa Dealer. Also, be sure to follow chemical manufacturer’s instructions for
use.
pH CONTROL
All water solutions have pH, which is a measure of the acid to base
relationship. A pH reading of 7.0 is neutral. A lower reading is acidic and
a higher reading is basic. The proper pH for a spa is between 7.4 and
7.6. High pH (above 7.6) can reduce sanitizer efficiency, cloud the water,
promote scale formation on surfaces and equipment, and interfere with
filter operations. When pH is too high, add a pH decreaser. Low pH (below
7.2) is equally damaging and can cause equipment corrosion, water that
is irritating, and rapid sanitizer dissipation. Add pH increaser to bring up
the pH level.
EQUIPMENT RESET
Resetting the Balboa Digital Control Pack is not covered under warranty.
The EL8000 Equipment Control Pack can malfunction when an electrical
spike occurs. To reset it, you will need to disconnect electricity to the spa
(turn off breaker). Remove the stainless steel cover plate of the equipment
pack. On the backside of that cover plate is a diagram of the circuit board
and descriptions of “DIP” switch settings. Locate switch bank 1 (S1) and
switch pin #12 to the “ON” position. Leave it there for 1 minute before
switching it back to “OFF”. Replace the cover plate and restore the
electricity to the spa.

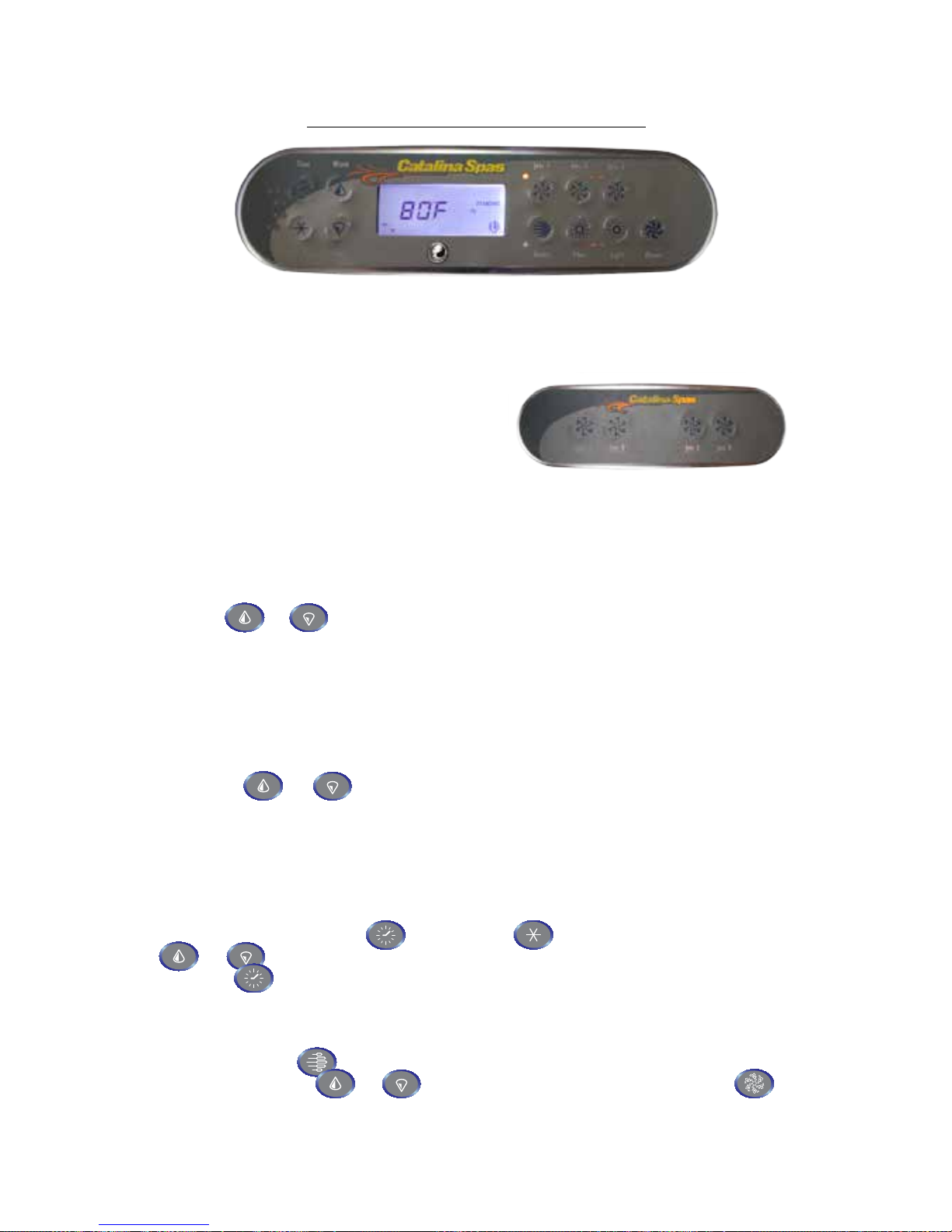

Catalina CAT8000 Topside Controller
12

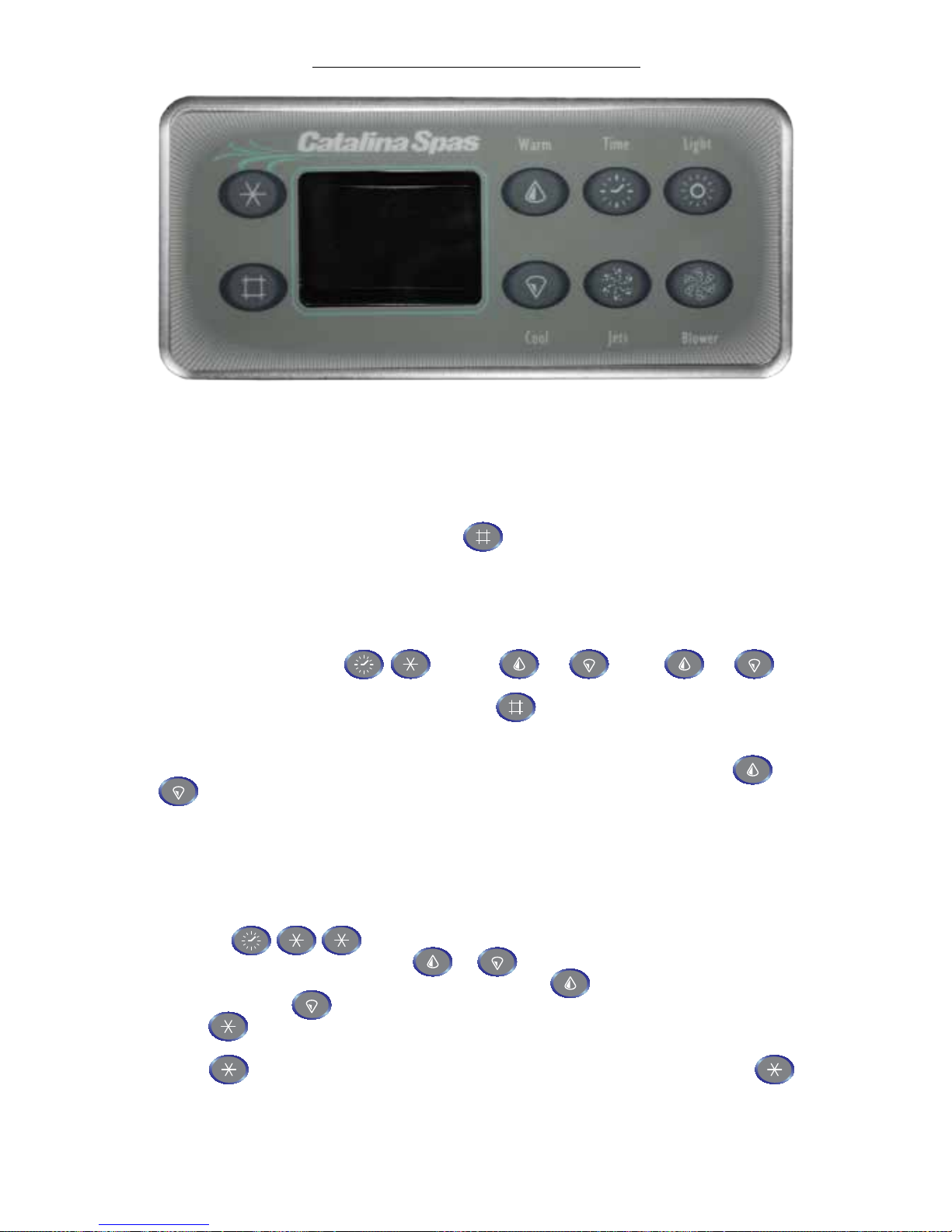

OPERATIONAL INSTRUCTIONS FOR DELUXE
DIGITAL CONTROL SYSTEMS
Depending on your spa features, the control buttons may not respond or be arranged
as shown and described in this manual.The pump responsible for heating and filtration
(pump 1 on low speed) will be referred to simply as the pump. Timeouts refer to a
preset length of time that a function is programmed to operate before automatically
shutting off. Certain conditions (filters or freeze
control) can cause a function to operate longer,
while faults can cause a function to operate
for a shorter length of time. The system keeps
track of timeouts regardless of other conditions
occurring.
Initial Start-up
When your spa is first activated, it will go into Priming mode (after displaying some
configuration information). The Priming mode will last for up to 4 minutes and then
the heater will begin to heat the spa and maintain the water temperature in the
Standard mode. You can exit Priming mode early by pressing the”Warm” or “Cool”
buttons. or
TEMP SET (80.0°F - 104°F / 26.0°C - 40.0°C)
The start-up temperature is set at 100°F / 37.5°C. The last measured temperature
is constantly displayed on the LCD. Note that the last measured spa temperature
displayed is current only when the pump has been running for at least 2 minutes.
WARM / COOL
Press the or button once to display the set temperature. Each time
either button is pressed again, the temperature setting will increase or decrease
depending on which button is pressed. After three seconds, the LCD will
automatically display the last measured spa temperature.
TIME
When the time hasn’t been programmed, the “Time” icon flashes in the display. To
set the time press “Time” then “Mode” and follow prompts, using the
or buttons to adjust time. If your spa has an optional pH/Orp sensor,
Pressing twice will display the current pH level, pressing it three times will
display the current Orp.
INVERT
Press the “Invert” button to reverse the display if it appears upside down.You
may also press the or button, followed by the “Blower” button to
reverse the display.
Auxiliary Topside Panel (Models Vary)

13
Jets 1
Press the “Jets 1” button once to turn pump 1 on or off, and to shift
between low and high speeds (if equipped). If left running, the low speed
turns off after 2 hours and the high speed turns off after 15 minutes. The
low speed of pump 1 runs when the blower or any other pump is on. It
may also activate for at least 2 minutes every 30 minutes to detect the spa
temperature (polling) and then to heat to the programmed temperature
setting if needed, depending upon mode. When the low speed turns on
automatically, it cannot be deactivated from the pane; however, the high
speed mode may be started.
Jets 2
Press the “Jets 2” button once to turn pump 2 on or off. If left running,
the pump will turn off after 15 minutes.
Jets 3 (optional)
Press the “Jets 3” button once to turn pump 3 on or off. If left running,
the pump will turn off after 15 minutes.
Light
Press the “Light” button to turn the spa light on or off. If left on, it will
automatically turn off after 4 hours.
Fiber Optics (optional)
If a fiber-optic light with wheel is installed, press the “Fiber” button
once to start the light and wheel. Press it again to stop the wheel. Press
again to turn fiber-optics off. The fiber icon stands still when the fiber
optic light is on by itself and rotates when the color wheel is on. Both spa
light and the fiber-optics can be used at the same time. If left on, they will
automatically turn off after 4 hours.
Mister (optional)
Press the “Mister” button once to turn the mister pump on or off.
Mode/Prog
This button is used to switch between standard, economy and sleep
modes. Press the “Mode/Prog” button once to enter programming
mode, press to cycle through to desired mode (LCD display flashes
until confirmed), then press “Mode/Prog” to confirm selection.
Standard Mode is programmed to maintain the desired temperature. Note
that the last measured spa temperature displayed is current only when
the pump has been running for at least 2 minutes. The “Standard” icon will
display until the mode is changed.
Economy Mode heats the spa to set temperature only during filter cycles.
The “Economy” icon will display until the mode is changed. Pressing “Jets
1” while in Economy mode puts the spa in Standard-in-Economy
Mode, which operates the same as Standard Mode, except reverts to
Economy mode after 1 hour. During this time, a press of the “Mode/Prog”
button will revert to Economy Mode immediately.
Sleep Mode heats the spa to within 20°F of the set temperature only
during filter cycles. The “Sleep” icon will display until the mode is changed.

14
Blower (optional)
Press the “Blower” button once to turn blower on. The blower will
turn off automatically after 15 minutes. (Thermal overload protection will
shut blower down automatically if it gets too hot. Blower will resume
normal operation after cooling off. This is a normal function of the
blower.)
Standby Mode
Pressing or then “Jets 2” will turn off all spa functions
temporarily. This is helpful when changing a filter. Pressing any button
resets the spa.
Preset Filter Cycles
There are two filter cycles per day. The start/end times of each cycle are
programmable. To program start/end times, follow prompts after setting
the time as indicated on page 12, pressing “Mode/Prog” to advance
to the next setting (or to exit after the last setting). The default cycles are
as follows:
The first filter cycle activates at 8:00 am and operates the pump until 10:00
am. The F1 indicator light will illuminate when cycle 1 is running.
The second filter cycle activates at 8:00 pm and operates the pump until
10:00 pm. The F2 indicator light will illuminate when cycle 2 is running.
The pump and ozone generator (if equipped) will run during filtration. At
the start of each filter cycle, the blower will run for 30 seconds to clean out
the air channels.
Cleanup Cycle (optional)
When the pump or blower is turned on, a clean-up cycle begins 30 minutes
after the pump or blower is turned off or times out. The pump and ozone
generator will run for one hour.
Ozone Generator (optional)
The ozone generator (if equipped) runs during filter cycles, except during
clean-up cycles and when operating pump at high speed.
Freeze Protection
If the temperature sensors detect a drop to 44°F within the heater, the
pump and blower will automatically activate to provide freeze protection.
The equipment stays on 4 minutes after the sensors detect that the water
temperature has risen to 45°F or higher. In colder climates, an additional
optional sensor may be added to protect against these conditions, standard
sensors might not. Ask your dealer for details. During freeze conditions
spas and swim spas must be set on Standard Mode.
Locking the Panel
Locking the panel will prevent unwanted program changes. To lock the
panel, press “Time” , “Jets 1” then “Warm” within 3 seconds.
When locked, the PL indicator is illuminated. All buttons are frozen except
the “Time” button. To unlock the panel, press “Time” , “Jets 1”
then “Cool” .

15
Locking the Set Temperature
To lock the temperature setting, press or then “Time” “Jets
1” and within 3 seconds to activate the lock. The TL indicator
light will illuminate when locked. To unlock the set temperature, press
or then “Time” “Jets 1” and .
Setting the Time
When the spa has been activated for the first time, you will see the word
“Time” flashing on the LCD screen. Press then . Select the hour
by pressing or (each press advances the time by an hour). Press
to set the hour. Select the minutes by pressing or (each
press advances the time by a minute). Press to set the time and enter
the optional filter cycle programming, or simply press to set the time
and exit.
Optional Filter Cycle Programming
You are not required to set filter cycles, however it is an option if you want
to lengthen or shorten the filter cycles. To change the filter cycle times:
Press within 3 seconds.You will see “Set Filter 1” (morning
cycle) and a flashing “Start Time” icon appears on the display. Press
or to choose the hour. Press to set the hour. Press or
to choose the minutes, in 5 minute increments. Press to set the
minutes. Press to see “Set Filter 1” (morning cycle) and a flashing
“End Time” icon appears on the display. Set end time in the same manner
as above.
Press to see “Set Filter 2” (evening cycle) and a flashing “Start Time”
icon appears on the display. Set start time in the same manner as above.
Press to see “Set Filter 2” (evening cycle) and a flashing “End Time”
icon appears on the display. Set end time in the same manner as above.
Setting the start and end times to the same time will provide continuous
filtration. Press to enter times and exit program. Pressing at any
time saves any changes and exits program.
Message
No message on
Display
HTR TEMP LMT
SPA TEMP LMT
No power to the spa.
The spa has shut down due to
“overheating”. A sensor has
detected 118°F at the heater.
The spa has shut down due
to “overheating”. A sensor
has detected 110°F water
temperature.
Restore power to the spa. Check circuit
breaker or disconnect switch. Spa settings are
preserved for 30 days without AC power using
a battery backup.
DO NOT ENTER WATER! Remove the spa
cover and allow water to cool. Once the heater
has cooled, reset by pushing any button. If spa
does not reset, shut off AC power to spa and
call your dealer or service technician.
DO NOT ENTER WATER! Remove the spa
cover and allow water to cool. Once the heater
has cooled, reset by pushing any button. If spa
does not reset, shut off AC power to spa and
call your dealer or service technician.
Diagnostic Messages
Meaning Action Required

16
Message
FREEZE COND
SENSOR A
SERVICE RQD
SENSOR B
SERVICE RQD
SENSOR SYNC
HTR FLOW LOW
LOW FLOW
HTR MAY BE
DRY -
WILL RETEST
SHORTLY
HTR DRY
SERVICE RQD
PRIMING MODE
––F or ––C
––––
BACKUP FAIL
STANDBY MODE
PH IS LOW
RAISE PH
PH IS HIGH
LOWER PH
SANITIZER LOW
SANITIZER HIGH
Ice. Potential freeze condition
detected.
Spa is shut down. The sensor
that is plugged into the Sensor
“A” Jack is not functioning.
Spa is shut down. The sensor
that is plugged into the Sensor
“B” Jack is not functioning.
Sensors are out of balance. If
this is the only message, it may
just be a temporary condition.
If the display also reads
“SERVICE REQ’D” the spa will
shut down.
A substantial difference between
the temperature sensors was
detected. This could indicate a
flow problem.
This will display after the fifth
occurrence of a “HTR FLOW
LOW” message, within a 24
hour period. Heater shuts down,
however other spa functions
continue to run normally.
Inadequate water level detected
in the heater.
This will display after the third
occurrence of a “HTR MAY BE
DRY” message, within a 24 hour
period. The spa will shut down.
When your spa is first activated,
this will be displayed.Your spa is
in Priming mode.
Temperature has not been
detected by the spa.
Temperature is not current in
Economy or Sleep mode.
Internal problem detected.
Standby mode has been
activated by pressing a button
combination on the user control
panel.
The pH level of the water is too
low.
The pH level of the water is too
high.
The sanitizer level of the water
is too low.
The sanitizer level of the water
is too high.
If freeze sensor is installed, no action required.
The pump will automatically start regardless of
spa status or programming.
This message may appear in an “overheat”
situation and disappear when the heater cools.
If the problem persists, contact your dealer or
service technician.
This message may appear in an “overheat”
situation and disappear when the heater cools.
If the problem persists, contact your dealer or
service technician.
If the problem persists, contact your dealer or
service technician.
Check water level in spa and add if necessary.
If the water level is okay, make sure the pumps
have been primed. If the problem persists,
contact your dealer or service technician.
Follow action for “HTR FLOW LOW” message,
as described above. Press any button to reset.
If the problem persists, contact your dealer or
service technician.
Check water level in spa and add if necessary.
If the water level is okay, make sure the pumps
have been primed. Press any button to reset.
If the problem persists, contact your dealer or
service technician.
Follow action for “HTR MAY BE DRY” message,
as described above. Spa will automatically
reset or press any button to reset.
No action is required. Priming mode will run for
up to 4 minutes, then go into Standard mode.
No action is required. This is a normal function
of the spa. After 2 minutes of running the
pump, the temperature will be displayed.
This is normal when the spa is in Economy
or Sleep mode. Run the pump for at least 2
minutes to display the temperature.
Repair is required. Contact your dealer or
service technician.
Press any button to leave Standby mode and
return to normal operation of the spa.
Add pH increaser according to the
manufacturer’s instructions.
Add pH decreaser according to the
manufacturer’s instructions.
Add sanitizer according to the manufacturer’s
instructions.
Remove spa cover and allow the sanitizer to
dissipate.
Meaning Action Required

17
Message
CHECK PH
CK SANITIZER
CLEAN FILTER
TEST GFCI
DRAIN WATER
CHANGE
MINERAL
CARTRIDGE
CLEAN COVER
TREAT WOOD
NEW FILTER
Every 7 days
Every 7 days
Every 7 days
Every 30 days
Every 90 days
Every 90 days
Every 180 days
Every 180 days
Every 365 days
Test and adjust the pH level per
manufacturer’s instructions.
Test and adjust the sanitizer level per
manufacturer’s instructions.
Remove, clean and re-install filter cartridge.
Follow filter manufacturer’s cleaning directions.
Test and Reset GFCI device per
manufacturer’s directions.
Drain and refill spa. Follow the directions in this
manual.
If your spa is equipped with a mineral
cartridge, replace the cartridge.
Clean and condition the spa cover per
manufacturer’s instructions.
Clean and condition the cabinet wood. Follow
manufacturer’s instructions for applying finish.
Install a new filter.
Frequency Action Required
Periodic Reminder Messages (Press the “Mode” button to clear a displayed reminder.)
WARNING! Shock Hazard. No User Serviceable Parts.
Do not attempt to service this control system. Contact your dealer or
service technician for assistance. Follow all owner’s manual power
connection instructions. Installation must be performed by a licensed
electrician and all grounding connections must be properly installed.

18
Catalina CAT200 Topside Controller
Don’t Panic! No Programming is Necessary!
Initial Start-up
When your spa is first activated, it begins running in “Economy” mode. This setting
is designed for periods of little or no spa use, but the spa continues to filter twice a
day to maintain water quality. Press the button to switch the spa to “Standard”
mode and your spa will automatically heat and maintain the water temperature at
the desired program setting. The factory default temperature setting is 100°F.
Setting the Time of Day
When your spa is first powered up, the words “SET TIME” will flash on the display.
To set the time, press , then or . After or is
pressed once,the time will begin changing in one-minute increments. Press either
pad to stop the time from advancing. Press to enter the time into the system.
Water Temperature Adjustment
The water temperature can be adjusted from 80°F - 104°F. Press either or
to increase or decrease the water temperature. After three seconds, the LCD
will display the current spa temperature.
Optional Filter Cycle Programming
Your spa will automatically filter itself twice a day. The low speed of the pump and
ozone generator (if equipped) will run the duration of each filter cycle.
While you are not required to set filter cycles, you can make changes anytime by
pressing within 3 seconds. “SET START FILTER 1” (a.m. cycle)
will appear on the display. Press or to reset the filter start time.
When “SET HEAT” appears on the display, press to warm the water during
the filter cycle or to disable the heater.
Press to see “SET STOP FILTER 1” and adjust the time in the same manner
as above.
Press to see “SET START FILTER 2” and proceed as above. Pressing
will enter the new cycle times and display the current water temperature.

19
Locking the Panel
Press within 3 seconds to lock the panel. The display will show the
temperature chosen, along with the lock symbol. All pads are frozen except .
Unlocking the Panel
Press within 3 seconds to unlock the panel. The lock symbol will
disappear and all pads will function normally.
Jets
The operating sequence for the pump is low speed, high speed, then off. If left
running, the low speed will automatically stop after 4 hours. High speed will turn
off after 30 minutes. The pump will automatically run at low speed when the heater
is on, during filter cycles or when a freeze condition is detected. When the pump
automatically starts, it cannot be deactivated from the panel, however high speed
may be engaged.
Blower
This button turns the air blower on and off. If left on, it will automatically shut off
after 30 minutes. (Thermal overload protection will automatically shut down the
blower if it gets too hot. Blower will resume normal operation after cooling. This is
a normal function of the blower.)
Light
This button turns the spa light on and off. If fiber-optic lighting is installed, press
once to turn on lights and activate the color wheel. Press again to stop the color
wheel at the desired color. Press again to turn off.
Economy & Standard Modes
Press this button to change modes. Standard mode maintains the set temperature
at all times. Economy mode heats the water only during the filter cycles.
Freeze Protection
When the high-limit sensor detects 40°F at the heater, all equipment is automatically
turned on by the spa’s control system to provide protection from freezing. This is a
normal function of your spa and no corrective action is necessary. The equipment
will remain on until a temperature of 45°F is reached regardless of the spa’s
system status. In colder climates, an additional optional sensor may be added
to protect against conditions standard sensors might not. Ask your dealer
for details. During freeze conditions spas and swim spas must be set on
Standard Mode.

WARNING! Shock Hazard. No User Serviceable Parts.
Do not attempt to service this control system. Contact your dealer or
service technician for assistance. Follow all owner’s manual power
connection instructions. Installation must be performed by a licensed
electrician and all grounding connections must be properly installed.
20
Message
No message on
Display
No power to the spa.
“Overheat” The spa has shut
down due to “overheating”.
Either the spa water has
reached 112°F or the high-limit
sensor has detected 118°F at
the heater.
“Flow” (Flashing) The flow of
water is inhibited.
“Flow” (Not Flashing) A pressure
switch has malfunctioned.
“Cool” The water temperature
is 20°F or more below the
programmed temperature.
“Ice” A potential freeze condition
has been detected.
“Sensor 1” Spa is shut down.
High-limit sensor is not working.
“Sensor 3” Spa is shut down.
Water temperature sensor is not
working.
Restore power to the spa. Check circuit
breaker or disconnect switch. Spa settings are
preserved for 30 days without AC power using
a battery backup.
DO NOT ENTER WATER! Remove the spa
cover and allow water to cool. At 110°F the
spa should automatically reset. If spa does not
reset, shut off AC power to spa and call your
dealer or service technician.
Check to be sure all flow valves are open. Be
sure the water level is correct. Clean filter. If
problem persists, call your dealer or service
technician.
No action is required. Spa is functioning
normally.
If a freeze sensor is installed then no action
is required. Spa is functioning normally. Pump
will start automatically regardless of status.
Contact your dealer or service technician.
Contact your dealer or service technician.
Diagnostic Messages
Meaning Action Required
Catalina’s Cool Mist System
