INETVU® MOBILE SYSTEM QUICK START – VIASAT AUTO-ACQUIRE
C-COM Satellite Systems Inc. Page 2
This page is intentionally left blank.
INETVU® MOBILE SYSTEM QUICK START – VIASAT AUTO-ACQUIRE
C-COM Satellite Systems Inc. Page 3
1.1 Pre-Configuration Check List
The following items should be completed/known prior to configuring the iNetVu® Mobile System.
Contact the Network Operation Center (NOC) if any of the following items are unknown or if you are
unfamiliar with them.
•Modem must be Provisioned (Please contact service provider)
•iNetVu 7000 Controller Software/Firmware version 7.5.7 Beta 1 or greater
•Verify SurfBeam® 2 Auto Acquire Modem Software Version is correct. Minimal build for use with
iNetVu 7000 Software/Firmware version 7.5.7 Beta 1 is Modem Build UT_1.5.2.x.x or greater.
This can be acquired by login to modem webpage at 192.168.100.1. Go to Modem icon, the
information can be found under INDENTIFICATION section.
Note: Please contact C-COM if you require more information about modem compatibility as these
may change without further notice.
Note: A Modem reset is recommended before pressing the “FIND SAT” button to begin satellite search
when mobile system location changes.
INETVU® MOBILE SYSTEM QUICK START – VIASAT AUTO-ACQUIRE
C-COM Satellite Systems Inc. Page 4
1.2 System Wiring with Viasat Auto Acquire Service
1.2.1 USB Interface Connection – System Wiring
1. USB Interface System Wiring Diagram for SurfBeam® 2 (Mobile)
*Recommended for proper grounding of iNetVu®
systems.
Note: TX cable is connected directly to the modem and RX cable NOT used with SurfBeam® 2
(Auto Acquire).
90 - 264VAC
STRAIGHT/
X-OVER
NETWORK
CABLE
24 VDC Input
(option)
USB CABLE
GPS /Glonass
Antenna
SENSOR
MOTOR
CONTROL
TX
!
RG6 Coaxial Cable
Network Cable
Power Cable
Sensor Cable
Motor Control Cable
USB Cable
Auto Acquire (Mobile)
VAC Power
*
Ground
protection
External
grounding
connection
TX should be the only cable
connected to the TRIA
INETVU® MOBILE SYSTEM QUICK START – VIASAT AUTO-ACQUIRE
C-COM Satellite Systems Inc. Page 5
1.2.2 Network Interface Connection – System Wiring
2. Network Interface System Wiring Diagram for Viasat SurfBeam® 2 (Mobile)
*Recommended for proper grounding of iNetVu®
systems.
Note: TX cable is connected directly to the modem and RX cable is NOT used with SurfBeam® 2
(Auto Acquire).
STRAIGHT/
X-OVER
NETWORK
GPS
Antenna
SENSOR
MOTOR
CONTROL
TX
Auto Acquire (Mobile)
90 - 264VAC
!
Router /
Switch
24 VDC Input
(option)
RG6 Coaxial Cable
Network Cable
Power Cable
Sensor Cable
Motor Control Cable
USB Cable
*Ground
protection
External
grounding
connection
TX should be the only cable
connected to the TRIA
INETVU® MOBILE SYSTEM QUICK START – VIASAT AUTO-ACQUIRE
C-COM Satellite Systems Inc. Page 6
1.3 Initial Controller Configuration and Verification Test with ViaSat
SurfBeam® 2 (Auto Acquire)
Once the system wiring with the Viasat modem is setup and the network configuration on your PC is
configured, you are required to configure the system parameters for the following before satellite
acquisition:
Communication Method between IMS and iNetVu® Controller.
Satellite Name, Longitude, and Transmit Polarization
Modem/VSAT Communication Parameters
The 7000 Controller may be configured via the Software Application / Web Interface / LCD interface.
Only one is necessary for complete configuration.
iNetVu® Software/Firmware Application (preferred method)
First time user should use the iNetVu Wizard which is imbedded into the iNetVu software for
guidance in configuring your system.
USB Connection
Ethernet Connection
iNetVu® Web Interface
Ethernet Connection
iNetVu® 7000 Front Panel
USB drivers must be installed for USB connection method. The configuration process is only required to
be done once as long there are no change in satellite, service, modem, or platform parameters.
INETVU® MOBILE SYSTEM QUICK START – VIASAT AUTO-ACQUIRE
C-COM Satellite Systems Inc. Page 7
1.4 Tips and Recommendations
The user has the option to search for satellite using the following methods depending on what is
available to you:
DVB search and or Reference Satellite Using a Known DVB Carrier
RF search
Beacon receiver
The recommended method of satellite search is DVB using DVB-S/S2, followed by DVB
reference satellite search with RF search being the last option of choice. If using RF search, a
valid RF frequency must be entered and is highly recommended; this can be the service
frequency or any other valid RF frequency from a known carrier (preferably taken from Modem
parameters)
Search Method
DVB or RF search are selectable from the drop down window. DVB will search directly on DVB-
S1 or DVB-S2 carrier and lock on it. This is the option of choice to use when searching for
satellite. RF option will allow the user to base satellite searching and peaking strictly on RF
instead of DVB.
This method of searching could be used when the user is having a hard time finding the
transponder data for a specific satellite, or if no transponder data exists. The controller will then
peak on the modem signal when the satellite is found. RF search should be used as a last resort
after DVB and or DVB with reference satellite because search time is much longer.
The Reference Satellite option is useful when the user cannot find a DVB transponder on the
desired target satellite. The user may select a reference satellite with a known DVB
Transponder. The iNetVu®
System will lock onto the reference satellite, and then pivot from that
point to the desired target satellite, and peak on the modem signal. Does not work if search
method selected is RF Search.
Beacon Receiver is used to lock onto a satellite without the use of a modem.
Compass Issues?
If you are in an area where there is magnetic interference or the compass readings are incorrect, it is
recommended to select Full Search which will also override the compass.
Full Search
Override Compass
Selecting Full Search will auto select Override Compass and set the AZ Search Window to 180 or
any other value depending on the Platform type. This value can be overridden to a more desirable
range. Override Compass can be selected without selecting Full Search but this does not hold
true for the vice-versa.
Refer to Controller User Manual for more information on using the iNetVu Controller and options
associated with your system.
INETVU® MOBILE SYSTEM QUICK START – VIASAT AUTO-ACQUIRE
C-COM Satellite Systems Inc. Page 8
1.5 Software Setup and Configuration Procedure with Viasat (Auto Acquire)
Service
1. If you are using the network interface to communicate with the 7000 Controller, set the
PC/Notebook to the same network as the 7000 Controller. (If you are using the USB interface,
you may skip to the Software Installation)
2. Open Network and Sharing Center\Network
Connections, right-click your network card, and select
Properties.
3. Select Internet Protocol Version 4 (TCP/IPv4) and click
Properties.
4. Select Use the following IP address.
Set your PC to the same subnet as the 7000 Controller.
IP Address: 192.168.100.4
Subnet Mask: 255.255.255.0
Gateway: 192.168.100.1
The Gateway is usually the Router IP address. If no router is used, it
is usually the VSAT Modem IP Address.
Set the DNS IP Addresses if required.
INETVU® MOBILE SYSTEM QUICK START – VIASAT AUTO-ACQUIRE
C-COM Satellite Systems Inc. Page 9
5. Set the 7000 Controller to the same network as the PC and VSAT Modem.
*Note: The controller IP should be set in the controller through the LCD interface prior to entering
it into the software tool for proper PC to Controller Communication through network interface.
(USB Interface users may skip this step)
To Configure the IP address on the controller, you must navigate to the CONF2 menu using the
LCD Interface. (Default password “password”)
a. Navigate to the “IP” menu and press the “ENTER” button.
b. Press the ‘↑’ button to allow for modification on the C_IP field and set the IP address
of the controller. For example, if the Modem/Router IP is 192.168.100.1 then the
controller IP could be set to 192.168.100.3. Press the “ENTER” button once the
change is complete.
c. Press the “Exit” button twice to exit out of the configuration menu. When prompted if
you would like to save configuration, press the ‘↑’ button to select “Y” (yes) and press
“Enter”.
d. Click the “reset” button on the controller.
You may view the 7000 Controller IP from the LCD interface via – MONITOR IP(C_IP)
S2 MB EL AZ PL GP
C1 C2 C3 DS SG IP SR
C_IP: 192.168.100.003
M_IP: 192.168.100.001
INETVU® MOBILE SYSTEM QUICK START – VIASAT AUTO-ACQUIRE
C-COM Satellite Systems Inc. Page 10
1.6 Software Installation and Configuration
Please Note: Do not connect the Controller via USB until the drivers and software have
been installed

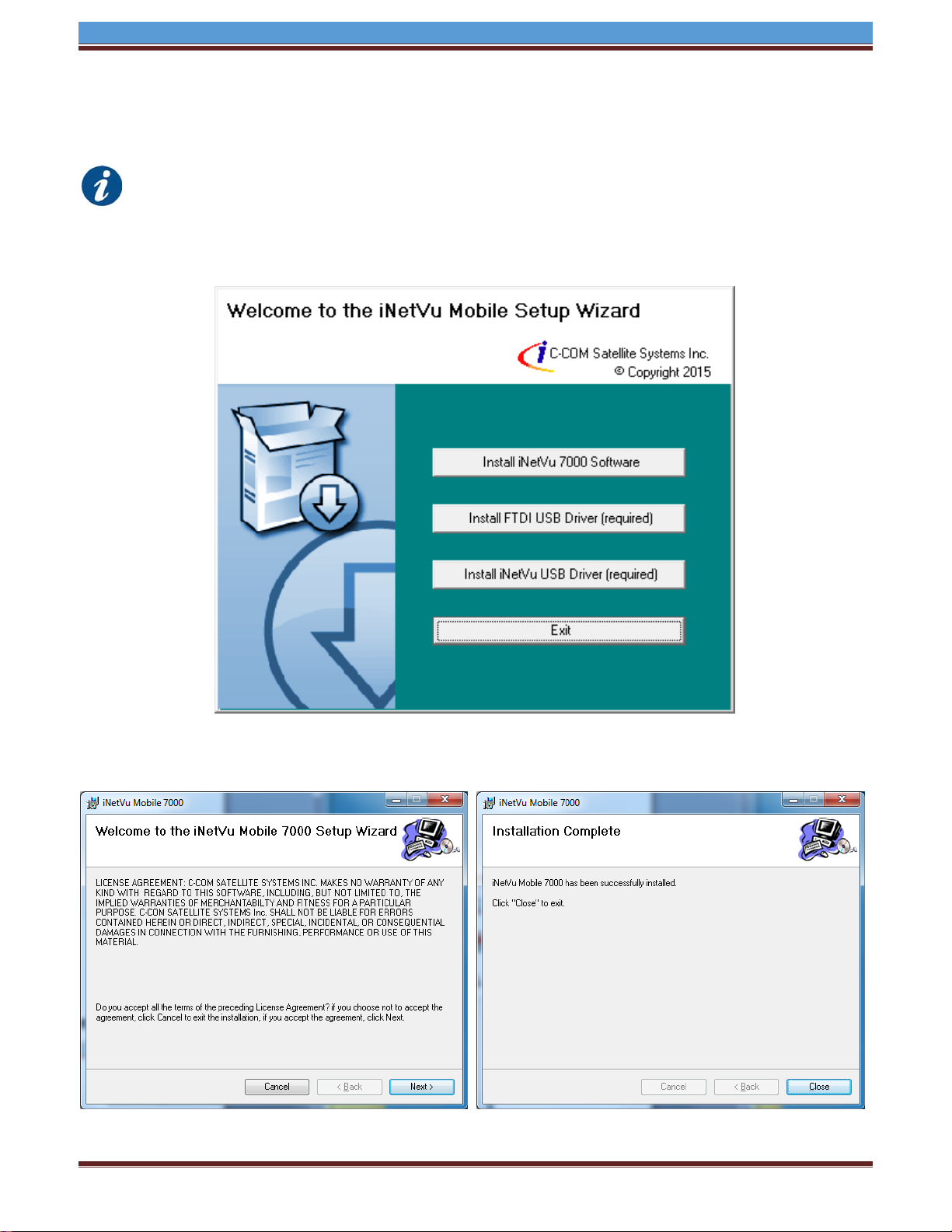

1. If you are installing from the USB flash drive or have downloaded from the C-COM FTP/KB, run
the iNetVu7000Setup.exe file.
2. Install the iNetVu 7000 Software and close when complete.
INETVU® MOBILE SYSTEM QUICK START – VIASAT AUTO-ACQUIRE
C-COM Satellite Systems Inc. Page 11

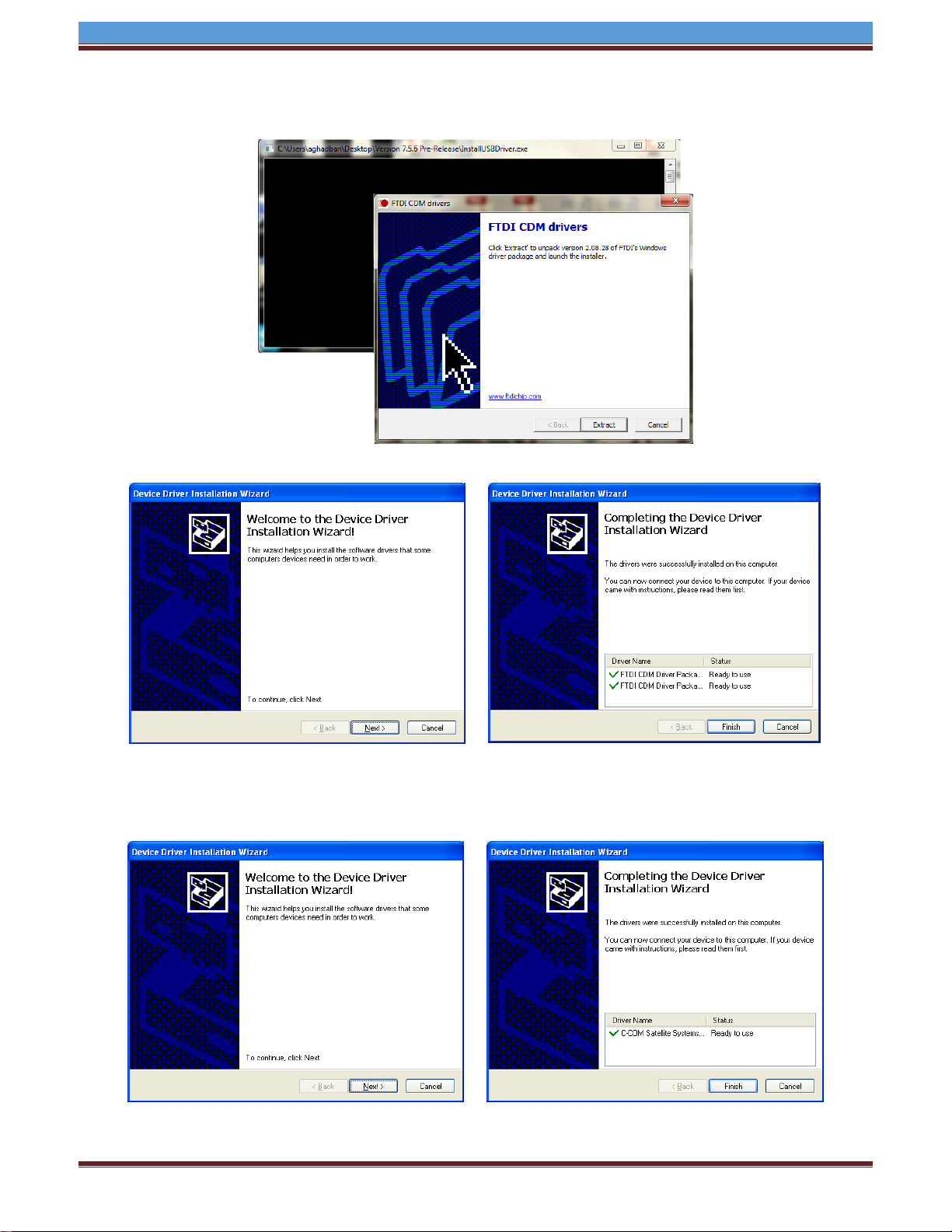

3. Install the FTDI USB Drivers and iNetVu USB Drivers. Both are required.
Click “Extract”
Click “Next” Click “Finish”
4. Continue through the USB Driver Installation Wizard.
Click “Next” Click “Finish”
INETVU® MOBILE SYSTEM QUICK START – VIASAT AUTO-ACQUIRE
C-COM Satellite Systems Inc. Page 12
5. Now that the drivers and software package has been installed, connect the iNetVu 7000
Controller via USB to your PC.

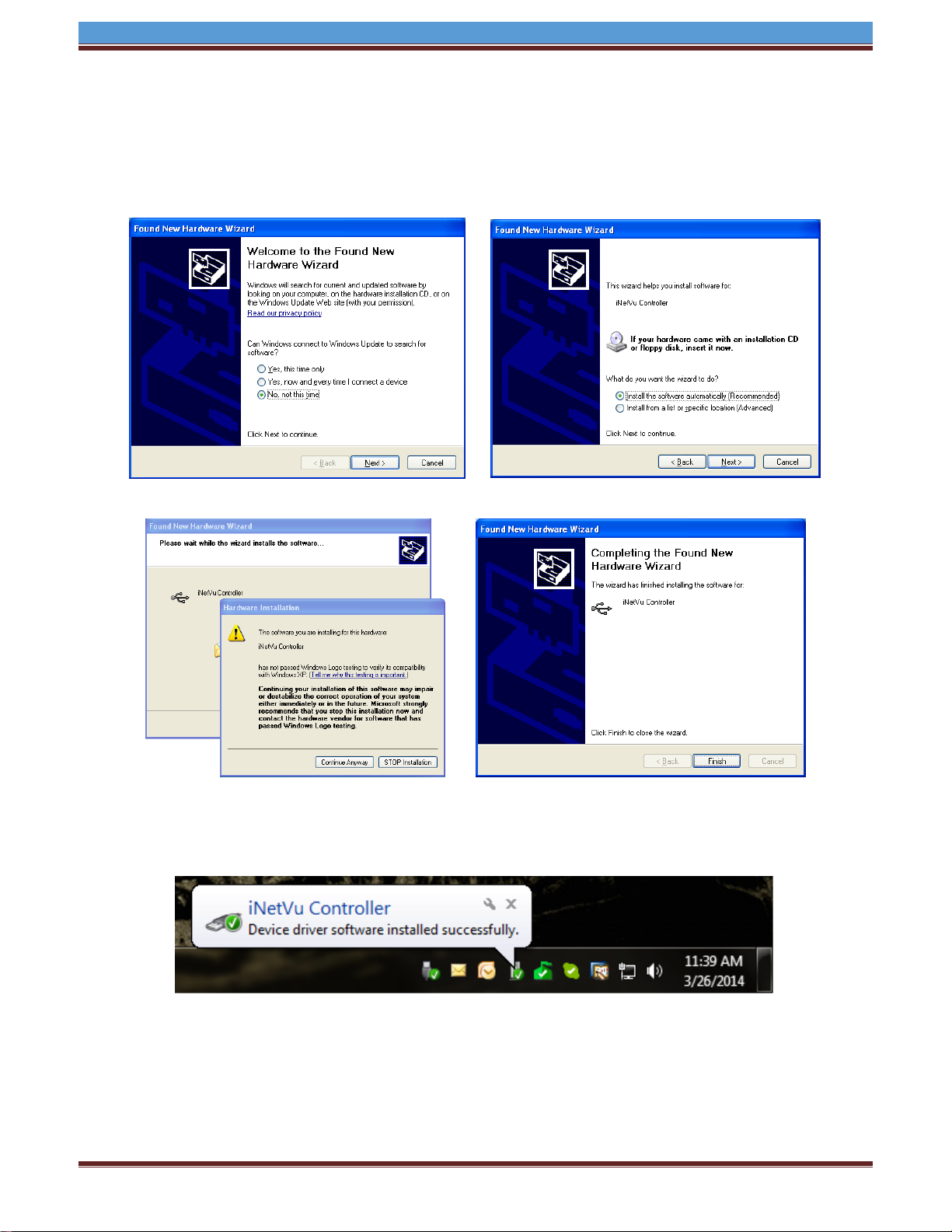

6. Windows XP users will have to follow the new hardware wizard and let windows automatically
install the drivers.
Select “No, not this time” Select “Install the software automatically”
Click “Continue Anyway” Click “Finish”
7. Windows Vista and 7 users, the drivers should install automatically without any further user
action.
8. You have successfully installed the 7000 iNetVu Drivers and Software.
INETVU® MOBILE SYSTEM QUICK START – VIASAT AUTO-ACQUIRE
C-COM Satellite Systems Inc. Page 13
1.7 iNetVu Setup Wizard
1. The first screen you will see is the new iNetVu Setup Wizard. You can choose to continue using
the wizard or click NO to proceed to the iNetVu Mobile 7000 software.
NOTE: It is recommended that you continue to the iNetVu Setup Wizard and confirm all required
information is correct. Please select “Do not show this message again” so this pop-up will not
appear after you have completed the initial Controller setup.
2. If the controller firmware does not match you will be prompted to update.
INETVU® MOBILE SYSTEM QUICK START – VIASAT AUTO-ACQUIRE
C-COM Satellite Systems Inc. Page 14
3. Follow the on screen instructions to update the controller firmware. Once complete the wizard
will resume.
4. You may wish to continue through the wizard to complete the controller configuration or verify the
settings. You can switch to the iNetVu software at any time by right clicking and selecting
Controls.
INETVU® MOBILE SYSTEM QUICK START – VIASAT AUTO-ACQUIRE
C-COM Satellite Systems Inc. Page 15
5. Configure the Platform Type, Version and Serial No. If no changes are needed press “Next” to
continue.
Platform
Type: Antenna Model
Version: Antenna Version
Serial No: Antenna Serial Number
It is important that this information be correct or will result in undesired antenna behavior.
INETVU® MOBILE SYSTEM QUICK START – VIASAT AUTO-ACQUIRE
C-COM Satellite Systems Inc. Page 16
6. Complete the Service Information section, set to SurfBeam2 as the Service Type. Select the
Interface method you wish to use and configure accordingly. Mouse over each selection for a
detailed description. After changes have been made please click “Next” to continue.
Service Information
Type: SurfBeam2
Interface: HTTP (how the Controller will communicate with the Modem)
Modem Configuration
IP Address: Enter the Modem IP Address
Controller TCP/IP Settings
IP Address: Controller IP Address
Subnet Mask: Controller Subnet Mask
Default Gateway: Controller Gateway (Modem or Router)
INETVU® MOBILE SYSTEM QUICK START – VIASAT AUTO-ACQUIRE
C-COM Satellite Systems Inc. Page 17

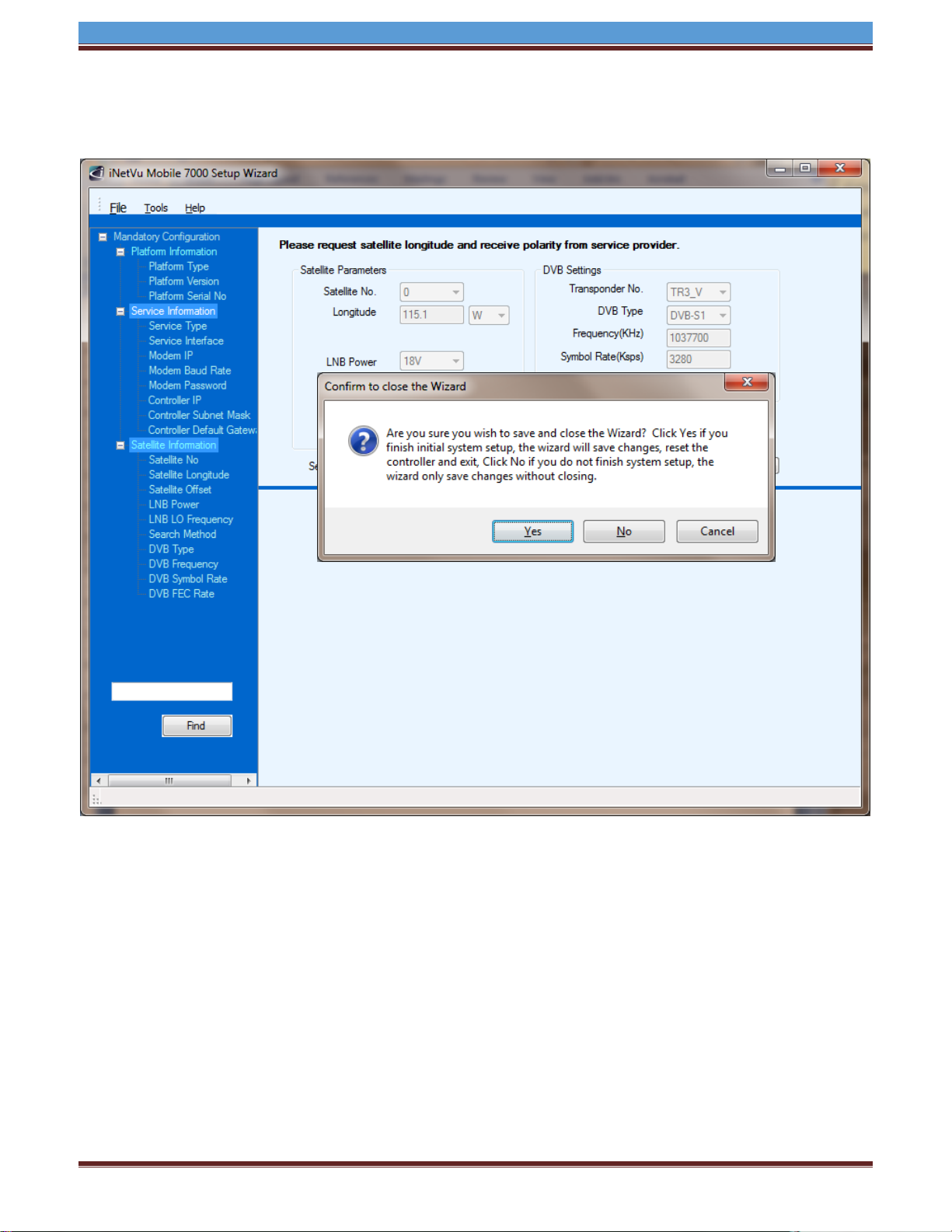

7. Complete the Satellite Parameters, DVB Settings and Search Method. Mouse over each
selection for a detailed description. Click Finish when complete.
Using Software/Firmware Ver. 7.5.7+the controller will receive the target angles from the
SurfBeam® 2 Auto Acquire modem for both the 111.1 and 115.1 Satellite Longitude. No
changes are needed. Please click Finish to complete the setup.
INETVU® MOBILE SYSTEM QUICK START – VIASAT AUTO-ACQUIRE
C-COM Satellite Systems Inc. Page 18
8. Once completed you will be able to save changes by selecting Yes, or select No to return to the
previous screen to make additional changes.
9. Congratulations you have configured your iNetVu Controller. You can now find satellite by
pressing the FIND SAT button from the front panel or by launching the iNetvu Software.
*For more detailed information on the iNetVu® 7000 Controller Software, refer to the iNetVu® 7000
Controller Manual
This manual suits for next models
1
Table of contents
