Installation and Operation Manual
for
Mini Dome Camera
MODEL N0.:SP-606HB
Please read the operation manual carefully before installing and
Using this unit

Insufficient electrical
power Replace
Ball holder out of
control
Abnormal self-inspection Switch on again
Bad connection of control
wire Remove
Problems on main machine Switch on the main
machine
Too heavy load or longer
distance of communication
1.Connect 120 Ω
resistor of the
farthest ball holder
from the controller
and let others to be
broken;
2.Increase code
distributor.
Normal problems and their causes and remedies mentioned above
are only for reference. Should you meet other special problems, you
can ask for technical support from your dealer directly.
Index
Ⅰ.Points for Attention…………………………………1
Ⅱ.Description of Functions……………………………2
Ⅲ.Setup of the speed dome camera……………………3
Ⅳ.Installation of Products………………………………7
Ⅴ.Connection Drawing of the System for Reference…16
Ⅵ.Main Technical Specifications………….…….…….16
Ⅶ.Troubleshooting…………………………………… ……………18
19

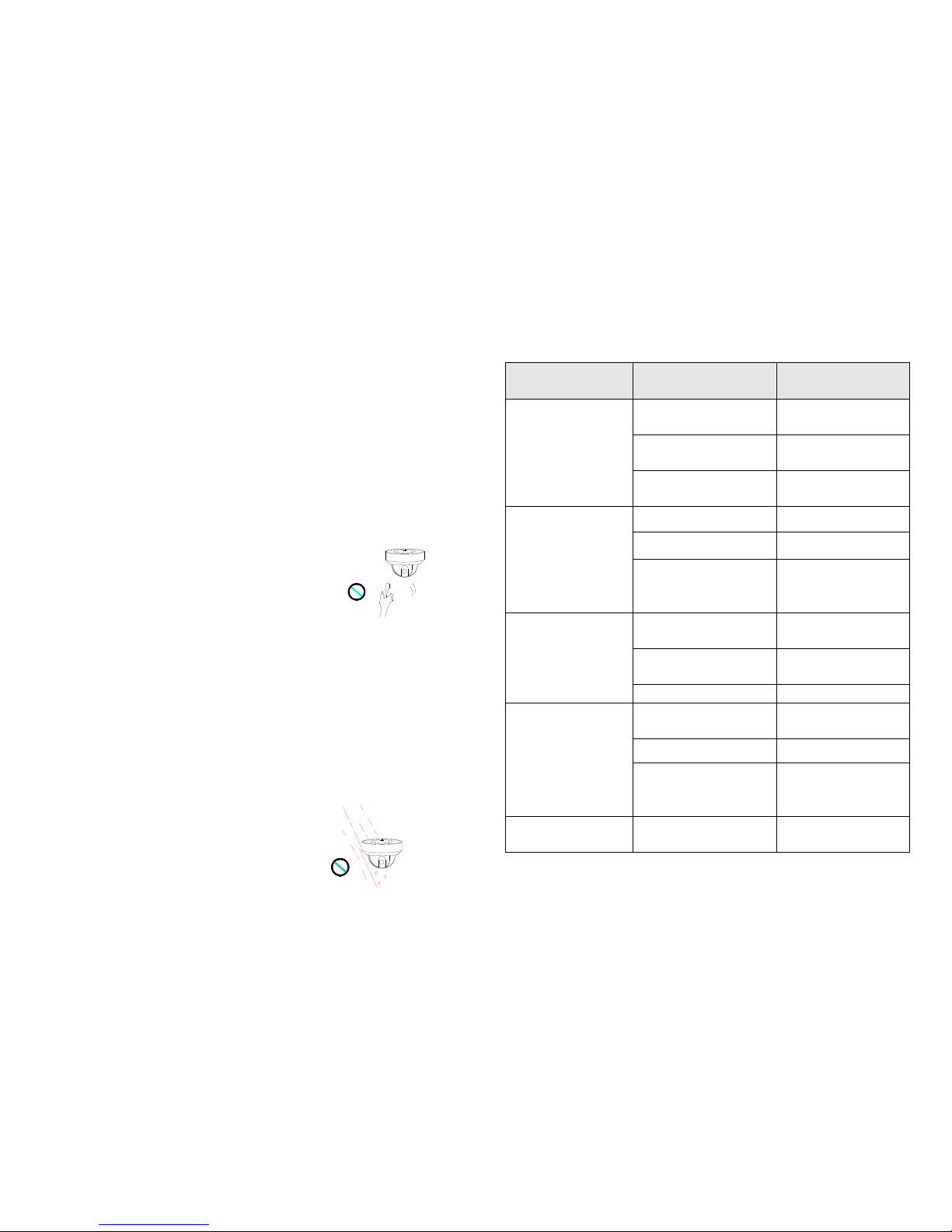

I. Points forAttention
1. Before the product is installed, please read the operation manual
carefully.
2. The power supply of the product is DC12V/1A.
3. During the transportation, storage and installation, the product should be
avoided from incorrect operations such as heavy pressing, strong vibration
etc., which can cause damage of product as there are sophisticated optical and
electronic devices inside the ball.
4. Do not attempt to disassemble the camera. In order to prevent
electric shock, do not remove screws or covers. There are no
user-serviceable parts inside.
5. Always follow all electrical standards for safety when it is in
operation. Adopt the particular power supply, which is provided
with the unit. RS-485 and video signal should keep enough distance
with high voltage equipments and cables when they are in
transmission. Precautions for anti-lightning and anti-surging should
be taken if necessary.
6. The products with plastic shell should be indoor installed and
operated to avoid rain and moisture. Do not use it in wet places.
7. The waterproof grade of metal low speed dome is IP66, and defend-burst.
VII. Troubleshooting
Problem Possible Causes Remedies
No action and images
when power is switched
on
Power supply damaged or
insufficient power Replace
Wrong connection of
power supply Correct
Faults in engineering
circuits Remove
Abnormal
self-inspection. Images
with roaring sound of
the motor
Mechanical fault Repair
Tilting camera Place uprightly
Insufficient electrical
power
Replace with qualified
power supply and let it
close to the ball holder
Normal self-inspection
but no images
Wrong connection of VF
circuit Correct
Bad connection of VF
circuit Remove
Camera damaged Replace
Successful
self-inspection but out
of control
Wrong connection of
control signal wire Correct
Mismatched address Reselect
Mismatched protocol
Adjust protocol to match
with the controller and
switch on again
Images unstable Bad connection of VF
circuit Remove
1 18

Installation Ceiling Installation/Wall
mounting/In-Ceiling Installation
Relative Temperature 10-75%(in case no condensation)
Operation Temperature 0℃~40℃
Waterproof grade
(metal)IP66
Function
Size 4.5″
CCD 1/3″Color Sony CCD
Horizontal Scanning
Range: 360°
Horizontal Scanning
Speed: 0-12°/s
Vertical Scanning Range: 0°~90°
Vertical Scanning Speed: 0-12°/s
Scanning Limitation: Horizontal adjustable
TV format: PAL format,1/4″color CCD
Resolution: 480TVL
Lowest Luminous: 0.1LUX
Built-In Lens: Fix lens 2.8-16mm
Presetting Position: 32
Decoder: Have
Cover Material: Aluminum alloy,Vandal proof and
whether proof
Input voltage 12V DC
Wattage: 12VA
ⅡDescription of Functions
The intelligent dome camera is a hi-tech CCTV product, which
incorporates the high-clarity color camera, panoramic speed-variable
PAN/TILT, multifunctional decoder into a whole. It can largely reduce
connection and installation processes of components in the system, rise
up reliability of the system and facilitate installation and maintenance.
Therefore it has advantages of beautiful appearance, compact structure
and easy operation.
1. Built-in color video camera with vari focus lens
a. 4mm、6mm、8mm、12mm lens are available;
b. Automatic iris and shutter;
2. Integrated Multi-Protocol Decoder.
a. With built-in Decoder and integrated multi-protocol, the
customer can set up communication protocol and baud rates at
his discretion directly according to the need of the system. It is
completely compatible with over ten kinds of control system
form main manufacturers;
b. RS485 serial control and addresses of the dome 1-1023.
3. Integrated Speed-Variable PAN/TILT
a. Turning 0--360° horizontally and continuously with unlimited
positions and turning 90ºvertically;
b. With 32 prepositions and data power off memory.
c. The dome camera can scan cubically between two positions
with dwelling time of 4s at each position and the scan speed of
7.5°/s;
d. With the tour locus setup function with data power-failure
memory which can be called;
e. The range of both horizontal and vertical speed is 0 - 12°/S;
Six patrol can be set up in maximum and each patrol can set up
sixteen preset positions with dwelling time fixed at 4s and the
tour speed is 7.5°/s;
17 2

III. Setup of the speed dome camera
Before the installation of the product, first confirm the communication
protocol and the baud rate the controller of the system adopts, then set
the ID-CODE switch SW2 of the dome camera to be identical with that
in the system, in which SW1 is used to set the address of the dome and
SW2 is used to set the protocol type and the baud rate (see attached
tables 1, 2 and 3).

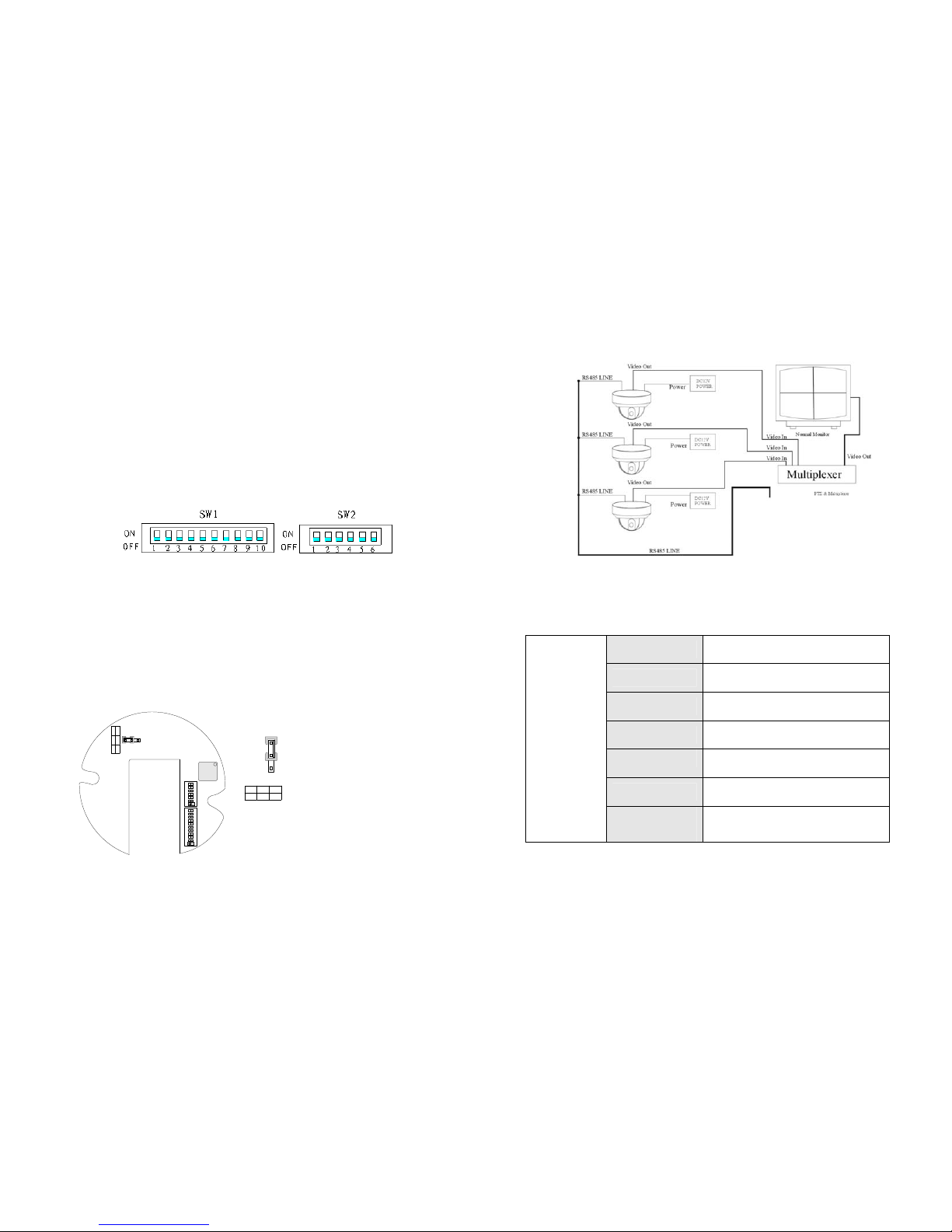

DomeAddressSelect ProtocolSelect
JP1 is the 120 Ωterminal resistor for RS485 Bus. When
short-circuit terminal is set between “1-2”, the 120 Ωterminal resistor
is connected. while it is set between “2-3”, the resistor is opened. Take
care that on RS 485 Bus only one farthest spherical camera has the
terminal resistor connected while other devices should have their
terminal resistors opened.
JP1 1- 2 2- 3
120R ON OF F
ON DIP
1 2 3 4 5 6 7 8 9 10
ON DIP
1 2 3 4 5 6
JP1 1- 2 2- 3
120R ON OFF
JP1
V. Connection Drawing of the System for Reference
VI. Main Technical Specifications
Specifications
TV SYSTEM NTSC
Image Sensor 1/4’ CCD Image Sensor
CCD total pixels 542(H)×496(V)
VF Output Compound Signal 1.0Vp-p/75Ω
Scanning System 525 lines, 60 fields/sec
Power Supply DC12V±10% 1.0A
Power
Consumption 12VA(Fan/Heater excluded)
3
16

4)Put the connect cable across the bracket and surface, and fix the
wall mount;according the different environment to choice the bolts
by yourself;
5)Reference the connect way,connecting according the fig of
connection。

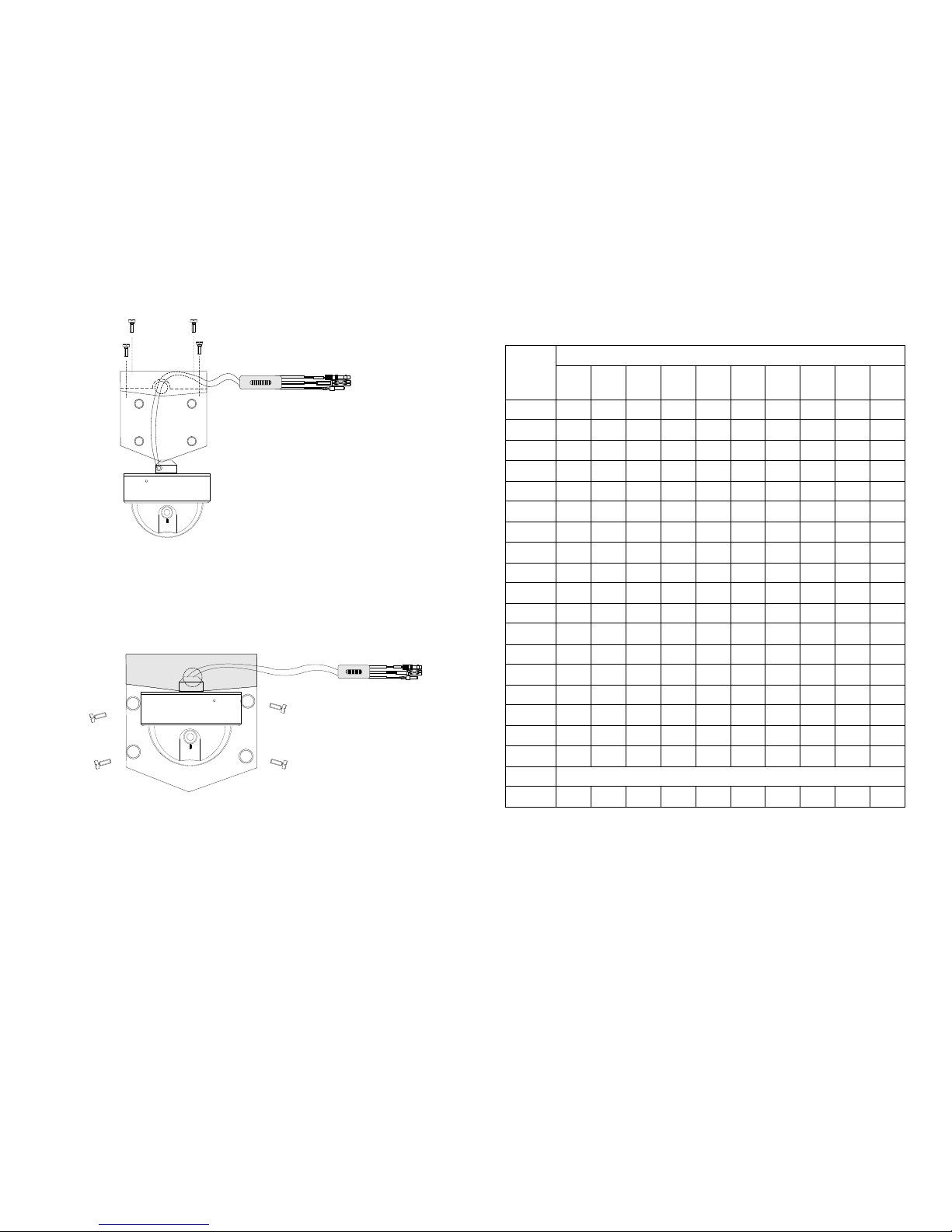

Attached Table 1: The setup of the address of the dome:
Dome
Address Bit of Switch
DIP
-1 DIP
-2 DIP
-3 DIP
-4 DIP
-5 DIP
-6 DIP
-7 DIP
-8 DIP
-9 DIP
-10
1 ON OFF OFF OFF OFF OFF OFF OFF OFF OFF
2 OFF ON OFF OFF OFF OFF OFF OFF OFF OFF
3 ON ON OFF OFF OFF OFF OFF OFF OFF OFF
4 OFF OFF ON OFF OFF OFF OFF OFF OFF OFF
5 ON OFF ON OFF OFF OFF OFF OFF OFF OFF
6 OFF ON ON OFF OFF OFF OFF OFF OFF OFF
7 ON ON ON OFF OFF OFF OFF OFF OFF OFF
8 OFF OFF OFF ON OFF OFF OFF OFF OFF OFF
9 ON OFF OFF ON OFF OFF OFF OFF OFF OFF
10 OFF ON OFF ON OFF OFF OFF OFF OFF OFF
11 ON ON OFF ON OFF OFF OFF OFF OFF OFF
12 OFF OFF ON ON OFF OFF OFF OFF OFF OFF
13 ON OFF ON ON OFF OFF OFF OFF OFF OFF
14 OFF ON ON ON OFF OFF OFF OFF OFF OFF
15 ON ON ON ON OFF OFF OFF OFF OFF OFF
16 OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF
17 ON OFF OFF OFF OFF OFF OFF OFF OFF OFF
18 OFF ON OFF OFF OFF OFF OFF OFF OFF OFF
… …
1023 ON ON ON ON ON ON ON ON ON ON
Attached Table1
15 4

Speed Dome Addr ess=1
ON
1234 5 6
78 910
Speed Dome Address=2
ON
1234 5 6
78 910
Speed Dome Addr es s =3
ON
1234 5 6
78 910
Speed Dome Addr ess=4
ON
1234 5 6
78 910
Speed Dome Addr ess=18
ON
1234 5 6
78 910
Speed Dome Addr es s =1023
ON
1234 5 6
78 910
Example:
1. Addresses of the dome are denoted by binary code system in which
ON means
“1”; while OFF means “0”.
2. Above coded addresses are only from no.1 to no.18. The codes of
addresses from no.19 to no.1023 can be deduced by analogue.
3. All nine bits of the SW1 are used for addresses of the dome with its
range from 1 to 1023.
4. Before the installation of this product, arrange the address of the
dome well. All products have their default addresses before
leaving the factory and are increased from 1. The address of the
product is marked at the corresponding place, for example, “ID:
01” means the address of the product is 1.
5. When there are much dome camera are connected in the same
RS485 bus in parallel, the addresses could not be overlapped,
otherwise they’ll be activated simultaneously when they are
operated by the controller thus to affect the application of eh
product.
Attached Table 2:
The setup of the communication protocols (DIP1-DIP4 of SW2) and the
default baud rates (last 2 bits of SW2) are as follows. In case the default
baud rate is not identical with that of the main controller, please set it to
be identical with that of the main controller as per Attached Table 3.
4) Reference the connect way, connect the wire according the board
cable.
D. Metal shell(wall mount)
1) Amending the way of code reference ceiling mount;
2) Tale off ceiling installation board,put the wall installation board
on,also pay attention the connect cable;
Put the connect cable across the fixed bracket,fix the dome with
installation bracket by Φ3x5 bolt;
5 14

5) Reinstall the metal shell,and fixed the screws;
6) Educe the system cable from the aperture,Fix the dome to ceiling
with Φ5x14 screw;
7) Reference the connect way of cable.
C. Metal Shell(Suspending mount)
1) Modify dial code way, please reference the ceiling mount;
2) Take off the ceiling mount board, use the suspending mount to
connect cable;change it, also please pay attention of the
3) Put the cable cross the fixed bracket, then fixed the bracket and
dome;
Attached table2
Type of
communication
Selection of Protocols Normal Baud Rate
DIP-1 DIP-2 DIP-3 DIP-4 DIP-5 DIP-6
SAMSUNG ON OFF OFF OFF OFF ON
GOLDENSIGHTB01 ON OFF OFF OFF OFF ON
PELCO-D ON ON OFF OFF OFF OFF
PELCO-P/4800 OFF OFF ON OFF ON OFF
PELCO-P/9600 OFF ON
AELC OFF ON ON ON OFF ON
Notes to Attached Table 2:
The baud rates corresponding to the protocol are only for reference and
the customer can make modification based on the actual baud rate of
the system as per Attched Table3. Take care that ever for reference, the
coding swich should be set well can the system become effective
otherwise the default rate of the system is 2400bps.
Attached Table3
CodingSwitch 1 2 3 4 5 6
2400bps OFF OFF
4800bps ON OFF
9600bps OFF ON
19200bps ON ON
Schematic drawing of codes:
13
Baud Rate
6

t ake of f
Scr ew on
poi nt
105
130
18
5
92
32
AELC/ 9600Bps
ON
1234 56
SAMSUNG/ 9600Bps
ON
1234 56
PELCO- D/ 2400Bps
ON
1234 56
PELCO- P/ 4800Bps
ON
1234 56
PELCO- P/ 9600Bps
ON
1234 56
B01/ 9600Bps
ON
1234 56
Example
Ⅳ. Installation of Products
4.1 Dimension
a) Plastic Shell
Dimension of shel Dimension of bottom board l
b) Metal Shell
B. Metal Shell(Ceiling mount)
1) Drill the round hole(6cm) in ceiling, it is used for install the slot ring
and educe the connect cable;
2) Take out the fixed screws use special tools, then put is well;
3) Due to demand of waterproof, inside with airproof circle; when take
out the fixed screws, must use screwdriver to take the metal shell;
4) Setting the dial switcher(reference the way of dial code switcher);
7 12

t ake of f Scr ew on
130
60
100
R
67.5
5
3) Setting the dial switcher(reference the way of dial code switcher);
4) Spinning the underpan, make the hole of PCB and hole of underpan
corresponding. Then using the screw of Φ5×14 to fix the dome with
ceiling.
5) Screw on the dome cover with dome;
4.2 Installation
A. PlasticShell(Ceiling mount)
B. Metal Shell
a) Ceiling mount
11 8

300
Φ7
130
86
40
3
3
6. 5
Bot t om r ot at i onal poi nt s
b) Suspend installation
Fixed bracket Orientation aperture
Suspend installation board
a) Wall mount
Wall mount board
Fixed bracket(with installation board)Fixed bracket(with wall interface)
4.3 Step of installation
A. Plastic Shell (Ceiling mount)
1) Drill the round hole(6cm) in ceiling, it is used for install the slot ring
and educe the connect cable;
2) Rotate the cover, pay attention for exert oneself point in bottom.
Please do not rotate the protection part of slip ring in bottom.
(salience part):
9 10

SAFETY PRECAUTIONS
The lighting flash with a arrowhead symbol, in an equilateral triangle, is
intended to alert the user. There is uninsulated“dangerous voltage”presence
near by the product’s enclosure which may be risk of to persons.
The exclamation point within an equilateral triangle is intended to alert the user
to reference of the important operating and maintenance(servicing) instructions.
THE PRODUCT CODE MARKED ON THE BOTTTOM COVER.
PLEASE FILL THE CODE IN THE FOLLOWING BLANK. PLEASE
SAVING THIS SPECIFICATION CAREFULLY, SO THAT CHECKING
MODEL:__________________________________
PRODUCT CODE:________________________
Table of contents
Other CCTvstar Security Camera manuals
Popular Security Camera manuals by other brands

Dahua
Dahua IPC-HFW1100S user manual

Northern
Northern HDPTZ33X user manual

VideoComm Technologies
VideoComm Technologies MX-5842c owner's manual

Super Circuits
Super Circuits PC269 user manual

CIS
CIS VISION:elite VCC-F60FV19GE Product specification & operational manual

COP-USA
COP-USA CM259VAIR-EX Specifications
