CDA MC50 Reference manual
Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY

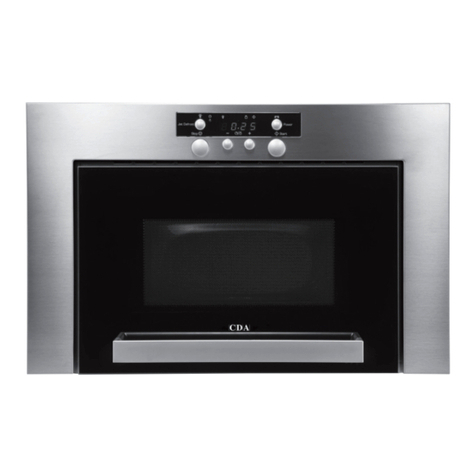

MC50 &MC60 Microwave
Manual for Installation, Use and Maintenance
INSTALLATION
PRIOR TO CONNECTING
ENSURE THAT THE APPLIANCE IS NOT DAMAGED. Check
that the oven door closes firmly against the
door support and that the internal door seal is
not damaged. Empty the oven and clean the
interior with a soft, damp cloth.
AFTER CONNECTING
THE EARTHING OF THIS APPLIANCE is compulso-
ry. The manufacturer will accept no re-
sponsibility for injury to persons, ani-
mals or damage to objects arising from
the non-observance of this requirement.
The manufacturers are not liable for any
problems caused by the user’s failure to ob-
serve these instructions.
DONOT OPERATE THIS APPLIANCE if it has a
damaged mains cord or plug, if it is not
working properly, or if it has been dam-
aged or dropped. Do not immerse the
mains cord or plug in water. Keep the
cord away from hot surfaces. Electrical
shock, fire or other hazards may result.
DONOT REMOVE THE MICROWAVE INLET PROTECTION
PLATES located on the side of
the oven cavity wall. They
prevent grease & food parti-
cles from entering the mi-
crowave inlet channels.
ENSURE the oven cavity is
empty before mounting.
CHECK THAT THE VOLTAGE on the rating
plate corresponds to the voltage in your
home.
THE OVEN CAN BE OPERATED ONLY if the oven door is
firmly closed.
MOUNTING THE APPLIANCE
FOLLOW THE SUPPLIED separate mounting in-
structions when installing the appliance.
IMPORTANT SAFETY INSTRUCTIONS
DONOT HEAT, OR USE FLAMMABLE MATERIALS in
or near the oven. Fumes can create a fire
hazard or explosion.
DONOT USE YOUR MICROWAVE oven for drying
textiles, paper, spices, herbs, wood, flow-
ers, fruit or other combustible materials.
Fire could result.
DONOT OVER-COOK FOOD. Fire could result.
DONOT LEAVE THE OVEN UNATTENDED, espe-
cially when using paper, plastic or oth-
er combustible materials in the cook-
ing process. Paper can char or burn and
some plastics can melt if used when
heating foods.
IFMATERIAL INSIDE / OUTSIDE THE OVEN SHOULD
IGNITE OR SMOKE IS OBSERVED, keep oven
door closed and turn the oven off. Dis-
connect the power cord or shut off pow-
er at the fuse or circuit breaker panel.
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
ONLY ALLOW CHILDREN to use the oven without
adult supervision after adequate instruc-
tions have been given so that the child is
able to use the oven in a safe way and un-
derstands the hazards of improper use.
The appliance is not intended for use by
young children or infirm persons with-
out supervision. Young children
should be supervised to en-
sure that they do not play
with the appliance.
If your oven has a com-
bination mode, children should
only use the oven under adult supervision
due to the high temperatures generated.
DONOT USE YOUR MICROWAVE
oven for heating anything in
airtight sealed contain-
ers. The pressure increas-
es and may cause damage
when opening or may explode.
EGGS
DONOT USE YOUR MICROWAVE oven for cook-
ing or reheating whole eggs with or
without shell since they may
explode even after microwave
heating has ended.
THE DOOR SEALS AND THE DOOR SEAL AREAS must
be regularly inspected for damage. If these
areas are damaged the appliance should
not be operated until it has been repaired
by a trained service technician.
DONOT USE corrosive chemicals or va-
pors in this appliance. This type of oven
is specifically designed to heat or cook
food. It is not designed for industrial or
laboratory use.
GENERAL
THIS APPLIANCE IS DESIGNED FOR DOMESTIC USE ONLY!
THE APPLIANCE SHOULD NOT BE OPERATED without food
in the oven when using microwaves. Operation in
this manner is likely to damage the appliance.
IFYOU PRACTICE OPERATING the oven, put a glass
of water inside. The water will absorb the mi-
crowave energy and the oven will not be dam-
aged.
REMOVE WIRE TWIST-TIES from paper or
plastic bags before placing bag in
the oven.
DEEPFRYING
DONOT USE YOUR MICROWAVE oven for deep-frying,
because the oil temperature cannot be
controlled.
LIQUIDS
E.G. BEVERAGES OR WATER. Overheating the liquid
beyond boiling point can occur
without evidence of bubbling.
This could result in a sudden
boil over of the hot liquid.
To prevent this possibility the
following steps should be taken:
1. Avoid using straight-sided containers with
narrow necks.
2. Stir the liquid before placing the container
in the oven and let the teaspoon remain
in the container.
3. After heating, allow standing for a short
time, stirring again before carefully re-
moving the container from the oven.
CAREFUL
ALWAYS REFER to a microwave cookbook for de-
tails. Especially, if cooking or reheating food
that contains alcohol.
AFTER HEATING BABY FOOD or liquids in a
baby bottle or in a baby food
jar, always stir and check the
temperature before serving.
This will ensure that the heat is evenly distributed
and the risk of scalding or burns can be avoided.
Ensure the Lid and the Teat is removed be-
fore heating!
PRECAUTIONS
USE HOT PADS OR OVEN MITTS to prevent
burns, when touching containers, oven
parts, and pan after cooking.
DONOT USE THE CAVITY for any storage purposes.
ACCESSORIES
GENERAL
IFACCESSORIES CONTAINING METAL comes in contact
with the oven interior, while the oven is in op-
eration, sparking can occur and the oven could
be damaged.
TURNTABLE SUPPORT
USE THE TURNTABLE SUPPORT under the
Glass turntable. Never put any oth-
er utensils on the turntable sup-
port.
Fit the turntable support in the oven.
GLASS TURNTABLE
USE THE GLASS TURNTABLE with all cooking meth-
ods. It collects the dripping juic-
es and food particles that other-
wise would stain and soil the in-
terior of the oven.
Place the Glass turntable on the turntable
support.
ENSURE THAT THE UTENSILS YOU USE are oven proof
and allow microwaves to
pass through them before
cooking.
WHEN YOU PUT FOOD AND ACCESSORIES in the micro-
wave oven, ensure that they do not come in
contact with the interior of the oven.
This is especially important with accesso-
ries made of metal or metal parts.
ALWAYS ENSURE that the turntable is able to turn
freely before starting the oven.
THERE ARE a number of accessories available on
the market. Before you buy, ensure they are
suitable for microwave use.
START PROTECTION / CHILD LOCK
THIS AUTOMATIC SAFETY FUNCTION IS ACTIVATED ONE
MINUTE AFTER the oven has returned to
“stand by mode“. (The oven is in
“stand by” when the 24-hour clock is
displayed or if the clock has not been
set, when the display is blank).
THE DOOR MUST BE OPENED AND CLOSED e.g. putting
food into it, before the safety lock is released.
Else the display will show “DOOR“.
DOOR
WHEN AFUNCTION IS FINISHED, the oven carries out
a cooling procedure. This is normal.
After this procedure the oven switches off au-
tomatically.
THE COOLING PROCEDURE can be interrupted with-
out any harm to the oven by opening the door.
COOLING DOWN
Jet Defrost
Stop
Power
JetStart
Jet Defrost
Stop
Power
JetStart
KITCHEN TIMER
USE THIS FUNCTION when you need a kitchen tim-
er to measure time for various purposes such
as cooking eggs or letting the dough rise be-
fore baking etc.
1. PRESS THE +/- BUTTONS to set the desired
length of the timer.
2. PRESS THE POWER BUTTON repeatedly to set the
power to 0 W.
3. PRESS THE START BUTTON.
ANACOUSTIC SIGNAL will be heard when the timer
has finished to count down.
4. TOTURN THE KITCHEN TIMER OFF before the count-
down have finished, press the Stop button.
CLOCK
KEEP THE DOOR OPEN while setting the Clock. This
gives you 5 minutes to complete the setting
of the Clock. Otherwise, each step must be ac-
complished within 30 seconds.
1. PRESS THE CLOCK BUTTON (3 seconds) until the
left-hand digit (hour’s) flicker.
2. PRESS THE +/- BUTTONS to set the hours.
3. PRESS THE CLOCK BUTTON AGAIN. (The two right
hand digits (minutes) flicker).
4. PRESS THE +/- BUTTONS to set the minutes.
5. PRESS THE CLOCK BUTTON AGAIN.
THE CLOCK IS SET and in operation.
NOTE: When the appliance is first plugged in or
after a power failure, the display is blank. If the
clock is not set, the display will remain blank
until the cooking time is set.
.
$
1
3
/
.$
3
Jet Defrost
Stop
Power
JetStart
COOK & REHEAT WITH MICROWAVES
USE THIS FUNCTION for normal cooking and re-
heating, such as vegetables, fish, potatoes and
meat.
1. PRESS THE +/- BUTTONS to set the time.
2. PRESS THE POWER BUTTON repeatedly to set the
power.
3. PRESS THE START BUTTON.
ONCE THE COOKING PROCESS HAS BEEN STARTED:
The time can easily be increased in 30-second
steps by pressing the Start button. Each press
increases the time with 30 seconds.
YOU MAY ALSO ALTER THE TIME by pressing the +/-
buttons to increase or decrease the time.
PRESSING THE POWER BUTTON may also change the
power level. The first press will show you the
current power level. Press the power button
repeatedly to change power level.
POWER LEVEL
$
3
.
MICROWAVES ONLY
POWER SUGGESTED USE:
750 W
REHEATING OF BEVERAGES, water, clear soups, coffee, tea or other food with a high water
content. If the food contains egg or cream choose a lower power. Cooking of fish vege-
tables, meat, etc
500 W MORE CAREFUL COOKING e.g. high protein sauces, cheese and egg dishes and to finish cook-
ing casseroles.
350 W SIMMERING STEWS, melting butter.
160 W DEFROSTING. Softening butter, cheeses and ice cream.
0 W WHEN USING THE TIMER only.
Jet Defrost
Stop
Power
JetStart
THIS FUNCTION IS USED for quick reheating of food
with a high water content such as; clear soups,
coffee or tea.
1. PRESS THE START BUTTON.
THIS FUNCTION AUTOMATICALLY STARTS with maxi-
mum microwave power level and the cooking
time set to 30 seconds. Each additional press in-
creases the time with 30 seconds.
YOU MAY ALSO ALTER THE TIME by pressing the +/-
buttons to increase or decrease the time.
JET START
MANUAL DEFROST
FOLLOW THE PROCEDURE for “How to cook & reheat
with microwaves” and choose power level 160 W
when defrosting manually.
CHECK AND INSPECT THE FOOD REGULARLY. Experi-
ence will give you the times needed for vari-
ous amounts.
TURN LARGE JOINTS halfway through the defrost-
ing process.
FROZEN FOOD IN PLASTIC BAGS, plastic films or card-
board packages can be placed directly in the
oven as long as the package has no met-
al parts (e.g. metal twist ties).
THE SHAPE OF THE PACKAGE alters the de-
frosting time. Shallow packets defrost
more quickly than a deep block.
SEPARATE PIECES as they begin to defrost.
Individual slices defrost more easily.
SHIELD AREAS OF FOOD with small
pieces of aluminum foil if
they start to become warm
(e.g. chicken legs and wing
tips).
BOILED FOOD, STEWS AND MEAT SAUCES defrost
better if stirred during defrosting time.
WHEN DEFROSTING it is better to under-
thaw the food slightly and allow the
process to finish during standing time.
STANDING TIME AFTER DEFROSTING ALWAYS IMPROVES
the result since the temperature
will then be evenly distribut-
ed throughout the food.
.
Jet Defrost
Stop
Power
JetStart
JET DEFROST
USE THIS FUNCTION for defrosting Meat, Poultry,
Fish, Vegetables and Bread.
JET Defrost should only be used if the net
weight is between 100 g- 2.0 kg.
ALWAYS PLACE THE FOOD on the glass turntable.
1. PRESS THE JET DEFROST BUTTON.
2. PRESS THE + / - BUTTONS to set the weight of
the food.
5. PRESS THE START BUTTON.
MIDWAY THROUGH THE DEFROSTING PROCESS the oven
stops and prompts you to TURN FOOD.
Open the door.
Turn the food.
Close the door and restart by pressing the
Start button.
NOTE: The oven continues automatically after
2 min. if the food hasn’t been turned. The de-
frosting time will be longer in this case.
FROZEN FOODS:
IFTHE FOOD IS WARMER than deep-freeze
temperature (-18°C), choose lower
weight of the food.
IFTHE FOOD IS COLDER than deep-freeze
temperature (-18°C), choose higher
weight of the food.
THIS FUNCTION NEEDS TO KNOW the net weight of
the food. The oven will then auto-
matically calculate the needed time
to finish the procedure.
IFTHE WEIGHT IS LESSER OR GREATER THAN RECOMMEND-
ED WEIGHT: Follow the procedure for “Cook & Re-
heat with microwaves”and choose 160 W when
defrosting.
$
3
.
MAINTENANCE & CLEANING
CLEANING IS THE ONLY MAINTENANCE normally re-
quired.
DISHWASHER SAFE:
TURNTABLE SUPPORT.
GLASS TURNTABLE.
FAILURE TO MAINTAIN THE OVEN in a clean condition
could lead to deterioration of the surface that
could adversely affect the life of the appliance
and possibly result in a hazardous situation.
DONOT USE METAL SCOURING PADS,
ABRASIVE CLEANSERS, steel-
wool pads, gritty wash-
cloths, etc. which can
damage the control pan-
el, and the interior and exterior oven sur-
faces. Use a sponge with a mild detergent
or a paper towel with spray glass cleaner.
Apply spray glass cleaner to a paper towel.
DONOT SPRAY directly on the oven.
ATREGULAR INTERVALS, especially if spill
overs have occurred, remove the
turntable, the turntable support
and wipe the base of the oven
clean.
THIS OVEN IS DESIGNED to operate with the turnta-
ble in place.
DONOT operate the microwave oven
when the turntable has been removed
for cleaning.
USE AMILD DETERGENT, water and a soft cloth to
clean the interior surfaces, front and rear of the
door and the door opening.
DONOT ALLOW GREASE or food particles to
build up around the door.
DONOT USE STEAM CLEANING APPLIANCES when
cleaning your microwave oven.
ADDING SOME LEMON JUICE to a cup of water, plac-
ing this on the turntable and boiling for a few
minutes can eliminate odors inside the oven.
FOR STUBBORN STAINS, boil a cup of water in the
oven for 2 or 3 minutes. Steam will soften the
marks.
TROUBLE SHOOTING GUIDE
IFTHE OVEN DOES NOT WORK, do not make a service
call until you have made the following checks:
The Turntable and turntable support is in
place.
The Plug is properly inserted in the wall
socket.
The Door is properly closed.
Check your Fuses and ensure that there is
power available.
Check that the oven has ample ventilation.
Wait for 10 minutes, then try to operate the
oven once more.
Open and then close the door before you
try again.
THIS IS TO AVOID unnecessary calls for which you
will be charged.
When calling for Service, please give the serial
number and type number of the oven (see Ser-
vice label). Consult your warranty booklet for
further advice.
IFTHE MAINS CORD NEEDS REPLACING it should
be replaced by the original
mains cord, which is avail-
able via our service organi-
zation. The mains cord may
only be replaced by a trained
service technician.
SERVICE ONLY TO BE CARRIED OUT
BY ATRAINED SERVICE TECHNICIAN.
It is hazardous for anyone oth-
er than a trained person to carry
out any service or repair oper-
ation, which involves the re-
moval of any cover, which gives pro-
tection against exposure to microwave
energy.
DONOT REMOVE ANY COVER.
ENVIRONMENTAL HINTS
THE PACKING BOX may be fully re-
cycled as confirmed by the re-
cycling symbol. Follow lo-
cal disposal regulations. Keep
potentially hazardous pack-
aging (plastic bags, polysty-
rene etc.) out of the reach of chil-
dren.
THIS APPLIANCE is marked according to the Euro-
pean directive 2002/96/EC on Waste Electrical
and Electronic Equipment (WEEE). By ensuring
this product is disposed of correctly, you will
help prevent potential negative consequences
for the environment and human health, which
could otherwise be caused by inappropriate
waste handling of this product.
THE SYMBOL on the product, or on the docu-
ments accompanying the
product, indicates that this
appliance may not be treat-
ed as household waste. In-
stead it shall be handed over
to the applicable collection
point for the recycling of elec-
trical and electronic equip-
ment.
DISPOSAL must be carried
out in accordance with lo-
cal environmental regula-
tions for waste disposal.
FOR MORE DETAILED INFORMATION about treatment,
recovery and recycling of this product, please
contact your local city office, your household
waste disposal service or the shop where you
purchased the product.
BEFORE SCRAPPING, cut off the mains cord so that
the appliance cannot be connected to the
mains.
12
GB
4619
-
694
-
69741
INACCORDANCE WITH IEC 60705.
THE INTERNATIONAL ELECTROTECHNICAL COMMISSION, has developed a standard for comparative testing of
heating performance of different microwave ovens. We recommend the following for this oven:
TECHNICAL DATA
Test Amount Approx. time Power level Container
12.3.1 1000 g 11 min 750 W Pyrex 3.227
12.3.2 475 g 5 min 750 W Pyrex 3.827
12.3.3 900 g 15 min 750 W Pyrex 3.838
12.3.4 1100 g 28-30 min Forced air 200 ºC + 350 W Pyrex 3.827
12.3.5 700 g 25 min Forced air 200 ºC + 90 W Pyrex 3.827
12.3.6 1000 g 30-32 min Forced air 225 ºC + 350 W Pyrex 3.827
13.3 500 g 2 min 12 sec Jet defrost
MC 60 MC 50
SUPPLY VOLTAGE 230 V/50 HZ
RATED POWER INPUT 1300 W
FUSE 10 A (UK 13 A)
MW OUTPUT POWER 750 W
OUTER DIMENSIONS (HXWXD) 382 X595 X320 382 X495 X320
INNER DIMENSIONS (HXWXD) 187 X370 X290
Notes :
Notes :
Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY
To contact our Customer Care Department, or for Service,
please contact us on the details below.
Other manuals for MC50
1
This manual suits for next models
1
Table of contents
Other CDA Microwave Oven manuals
