CEBEK ES-5 User manual

The ES-5 module is a head phone stereo power stage, with a maximum power by channel of 75W. It could connected
to the mixer output or to the auxiliary input of a sound device.
It is supplied by a voltage from 3 up to 6 VDC and the recommended power supply is the FE-1 module or 2 x 1,5 V
batteries. It has a protection against polarity inversion.
Because all the information indicated in this manual instruction, you had to read it.
OPERATING.

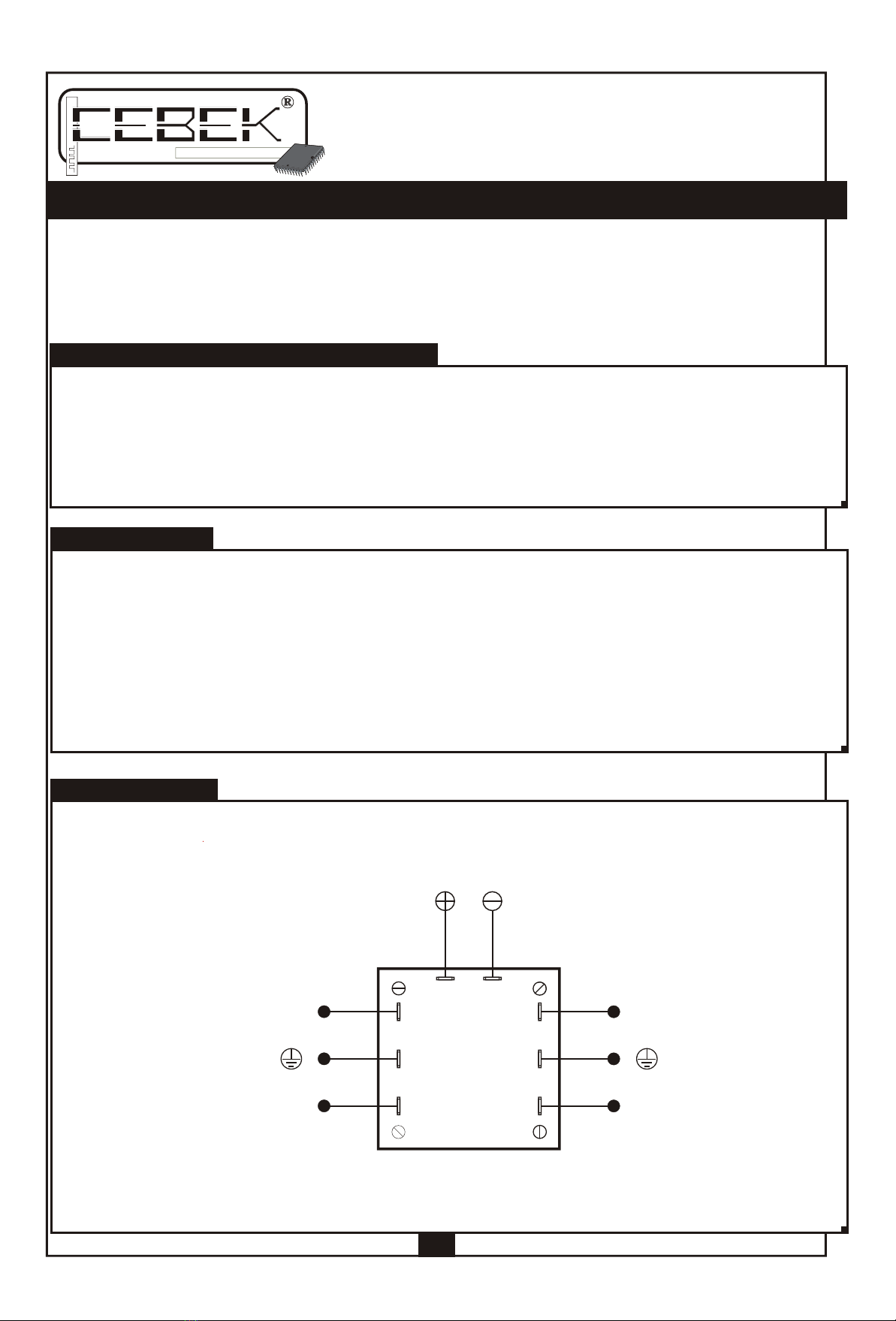

WIRING MAP.
POWER SUPPLY. The ES-5 module had to be supplied with a voltage from 3 up to 6 VDC. Then, we recommend you 2
x 1,5 VDC batteries or our FE-1 module which has been specially design for this circuit needs. Connect the positive
terminal of the Power Supply to the positive pin indicated in the drawing. Then, do the same operation with the
negative terminal. Verify that the assembly has been well done.
OPERATING. To connect input signals, you have to use shielded cable and parallel cable for loudspeakers. For the input
and output audio connections, the power supply had to be disconnect.
Be careful to not confuse the input and the output audio to not damage the module.
Connect the right and left audio inputs according to the drawing. Connect both ground to the central terminal. Do the
same operation with right and left audio outputs and their ground.
TECHNICAL CHARACTERISTICS.
Voltage ......................................................................................................... From 3 up to 6 VDC
Minimum Consumption ............................................................................... 10 mA.
Maximum Consumption .............................................................................. 20 mA.
Minimum Input Signal .................................................................................. 75 mW.
Output Impedance ....................................................................................... 8 - 32 Ohms
Protection Against Polarity Inversion ............................................................. Yes
Sizes .............................................................................................................. 35 x 35 x 15 mm.
11
GENERAL WIRING MAP.
HEAD PHONE STEREO POWER AMPLIFIERE. ES-5ES-5 POWER STAGES. ES-5ES-5
Rev. Full0302
SUGGESTIONS.
Power Supply
Input Left Output Left
Output Right
Input Right
ES-5
ES-5
Input Left
Left Volume
Control Right Volume
Control
Input Right
Output Right
Output Left
FE-1
TRAFO
0
9
0
220
All audio circuits could be perturbed by parasites, and one of the main parasites supplier is the power supply. To avoid
it, you have to use 2 x 1,5 VDC batteries or FE-1 Power supply well filtered and stabilised. Then, use a low frequency
shielded cable. Connect wire as indicated in the drawing. Use a metallic enclosure for the installation and connect the
ground of the circuit to the box.
ELECTRONIC CIRCUITS
TECHNICAL QUESTIONS.
If you have any doubt, you could contact your wholesaler or our Technical Department.
- E-Mail, [email protected] | Fax. [phone] | by mail. P.O. Box. 23455 - 08080 Barcelona - Spain.
- Keep the invoice of this module. For any repair, the corresponding invoice had to be added. If the invoice is not
presented together wish this module, the module’s warranty will be automatically cancelled.
Much more CEBEK module’s are aviable in our products range, please,
require our general catalogue or visit our Web side. www.cebek.com
GARANTIA
GARANTIE
WARRANTY
GARANTIA
3
ANNÉ
AÑOS
YEARS
TO
TAL
ANYS
All the module’s CEBEK have 3 years of total warranty
in thecnical repairing, and spares from the date of buy.
