CENTRAL RESTAURANT PRODUCTS 69K-054 User manual

69K-054 69K-055 69K-056
69K-057 69K-058 69K-059
GLASS DOOR MERCHANDISERS
INSTRUCTION MANUAL
English July 2014
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USE

Service and Installation Manual
2
CONTENTS
RECEIVING & INSPECTING EQUIPMENT………………………………………..……………………….2
SPECIFICATIONS…………………………………………………….……………………….………..…..3
INSTALLATION………………………………………………………………………….…………………..4
OPERATION………..……………………………………………………………………..…………….....5-6
MAINTENANCE……………………………………………………………………….…………………..7-9

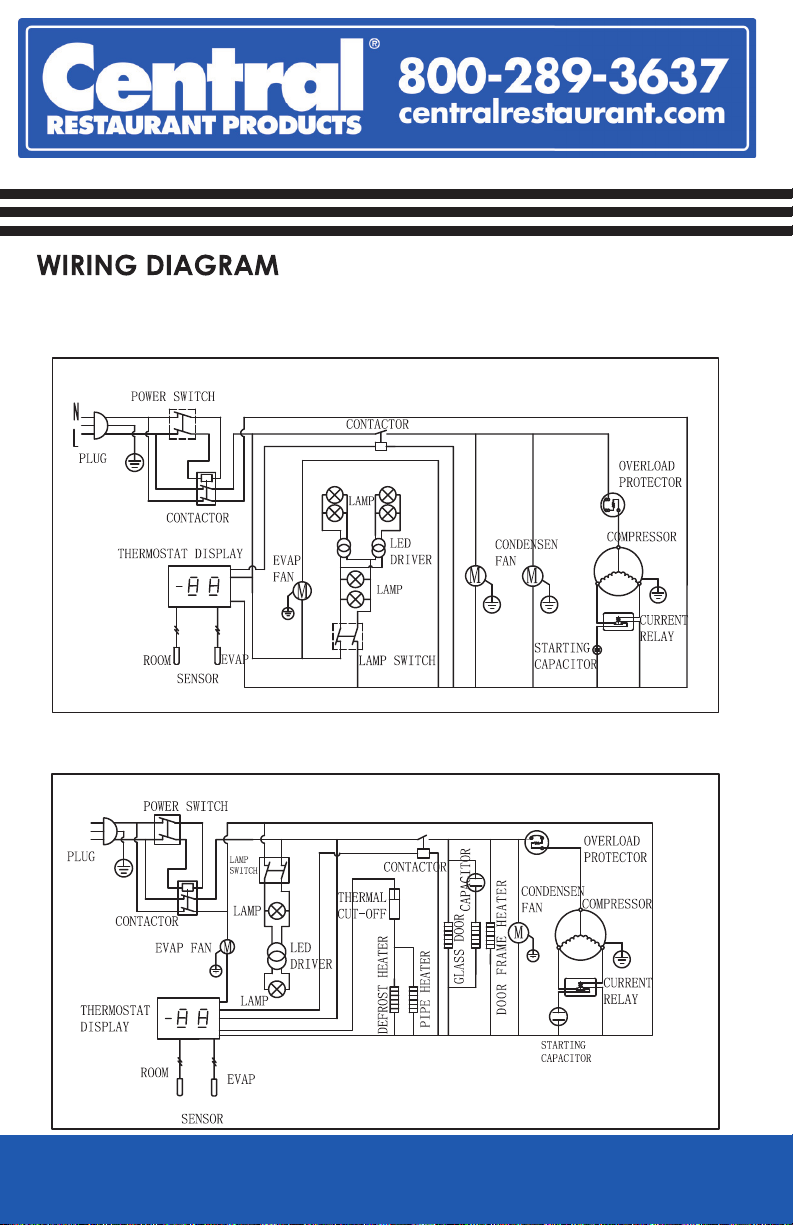

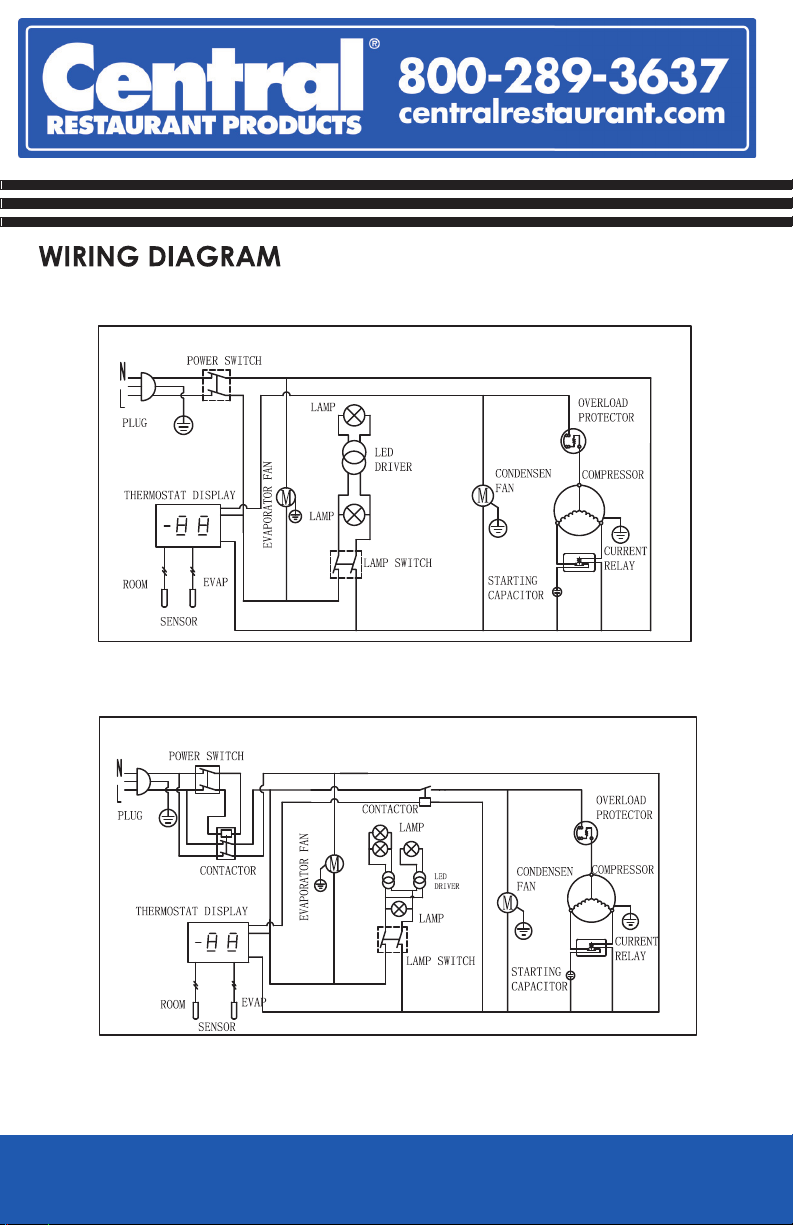

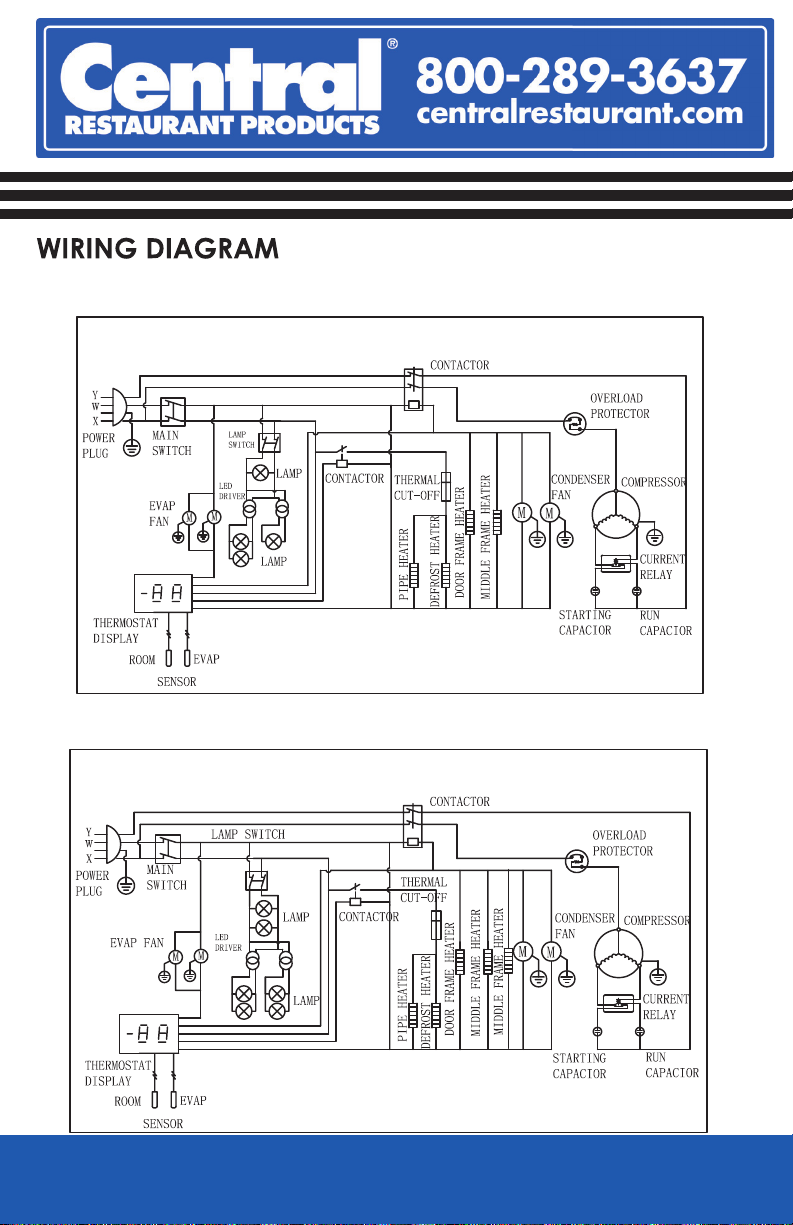

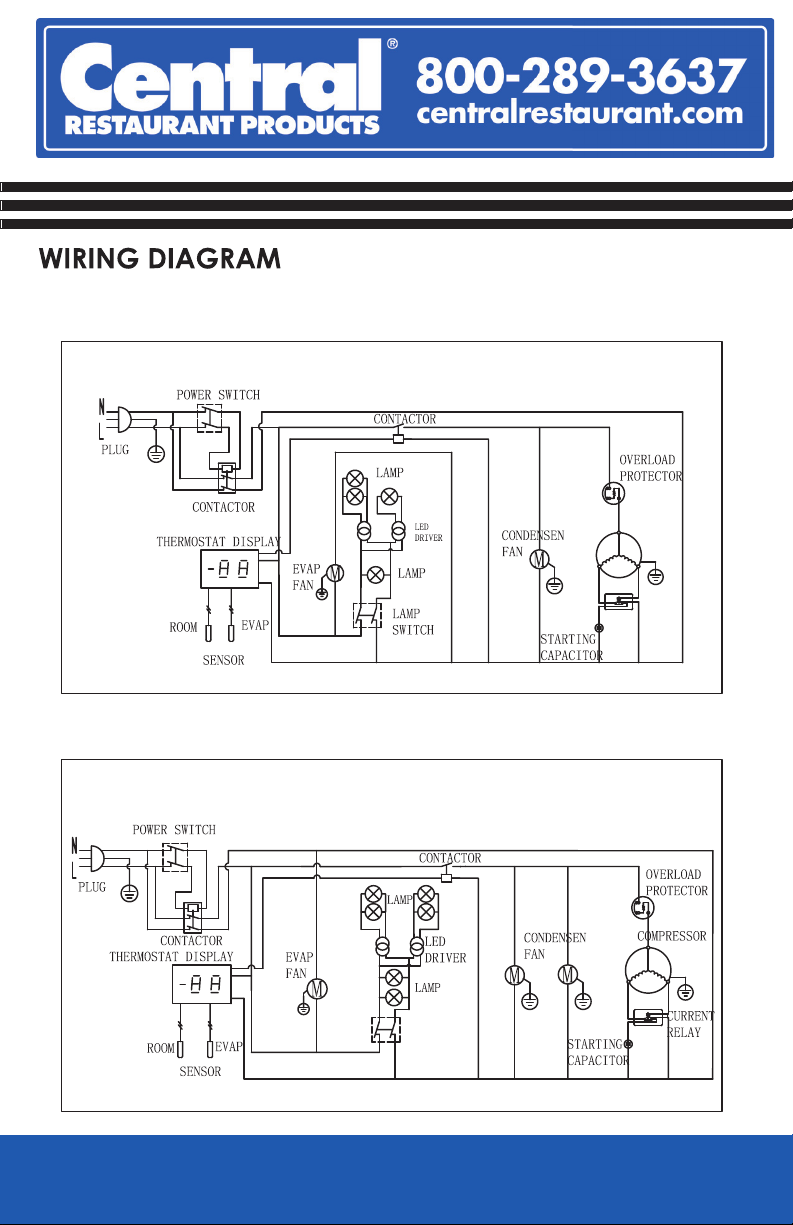

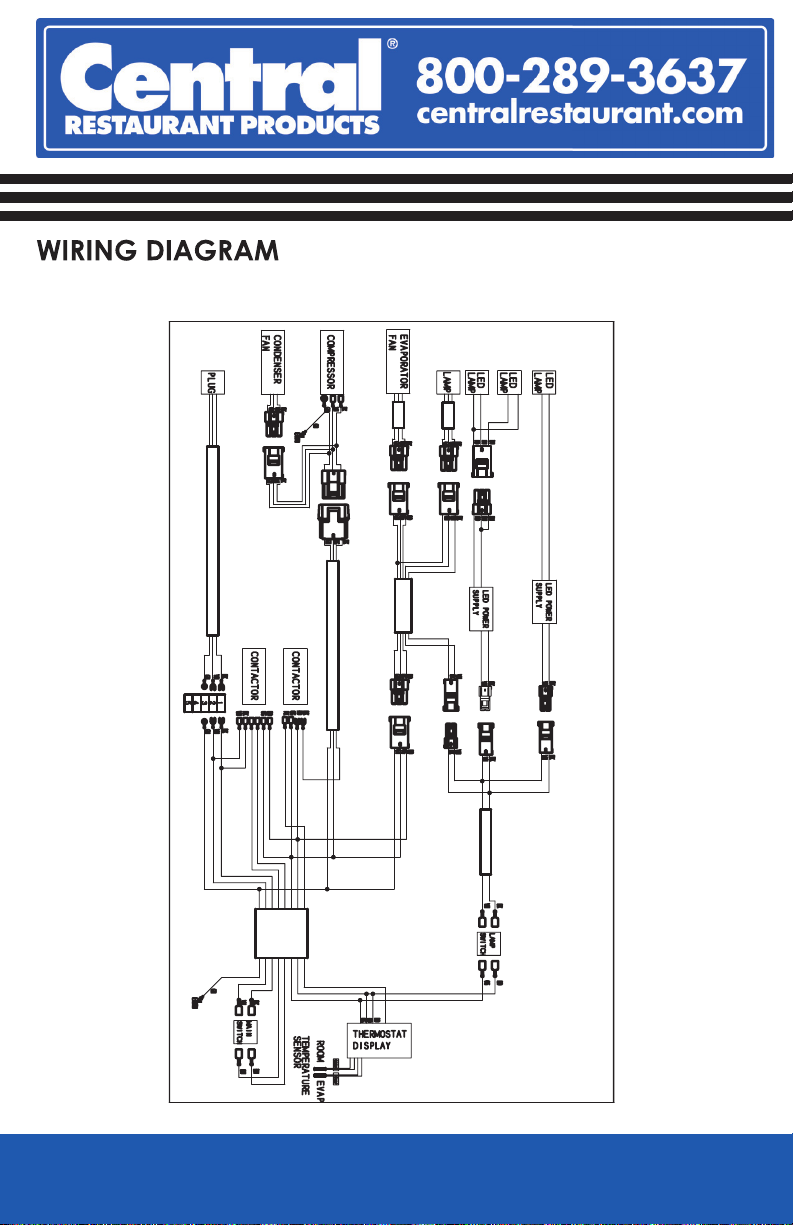

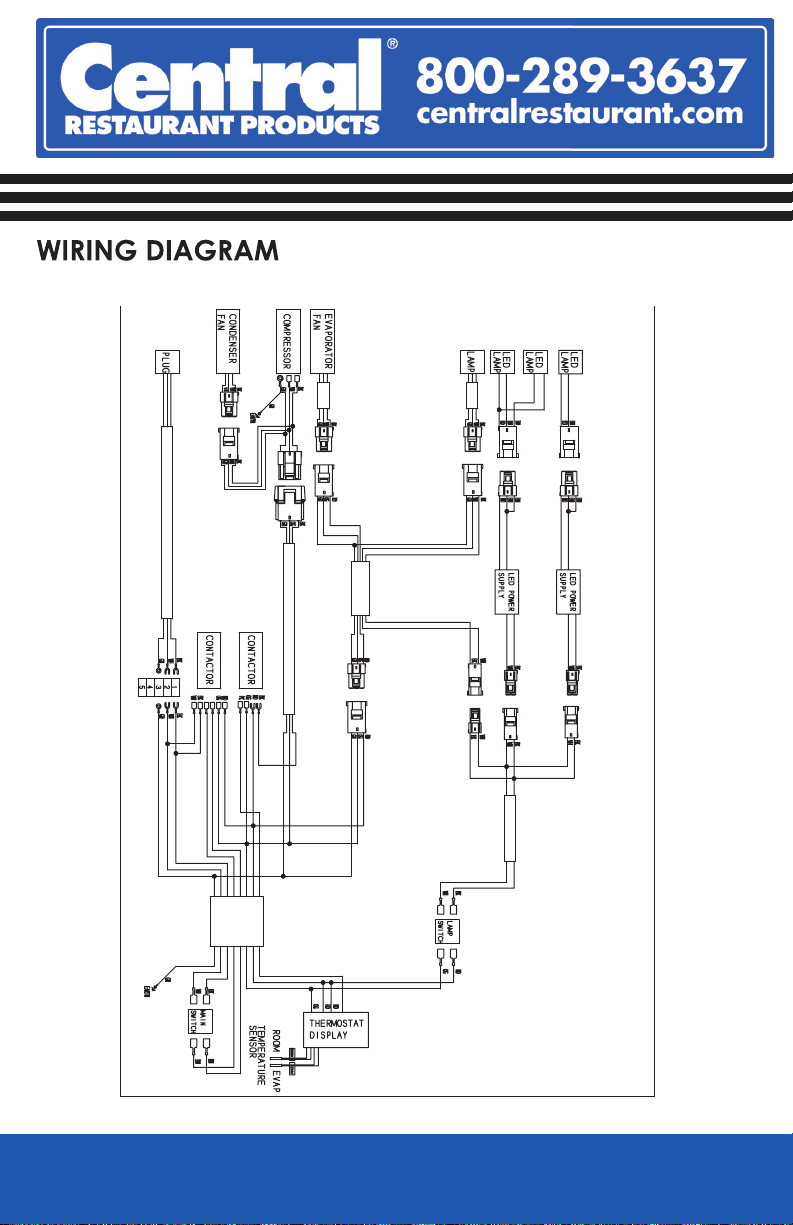

WIRING DIAGRAM ………………… ……………………………………................…………….....10-17
All rights reserved. Reproduction without written permission is prohibited.
SERIAL NUMBER INFORMATION
The serial number of all self-contained refrigerators and freezers is located inside the unit on the left hand side
near the top on the wall.
Always have the serial number of your unit available when calling for parts or service.
This manual covers standard units only. If you have a custom unit, consult the customer service department at
the number listed in the back cover.
RECEIVING AND INSPECTING THE EQUIPMENT
Even though most equipment is shipped in protected packaging, care should betaken during unloading so the
equipment is not damaged while being moved into the building.
1. Visually inspect the exterior of the package and skid or container. Any damage should be noted and reported
to the delivering carrier immediately.
2. If damaged, open and inspect the contents with the carrier.
3. In the event that the exterior is not damaged, yet upon opening, there is concealed damage to the equipment,
notify the carrier. Notification should be made verbally as well as in written form.
4. Request an inspection by the shipping company of thedamaged equipment. This should be done within
10days from receipt of the equipment.
5. Be certain to check the compressor compartmenthousing and visually inspect the refrigeration package.Be
sure lines are secure and base is still intact.
6. Freight carriers can supply the necessary damage formsuponrequest.
7. Retain all crating material until an inspection has beenmade or waived.
2

Service and Installation Manual
3

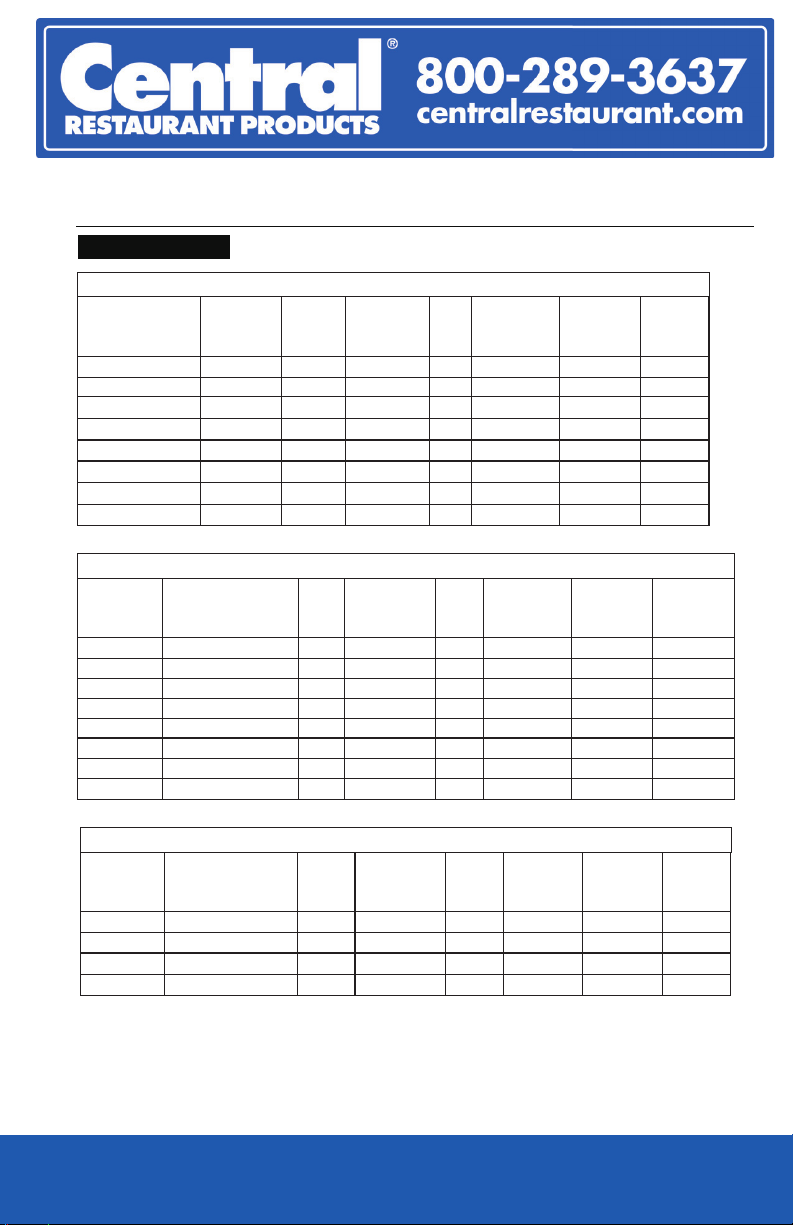

SPECIFICATION
3
SWING GLASS DOOR REFRIGERATED MERCHANDISER
MODEL# V/Hz/Ph AMPS
STORAGE
CAPACITY
Cu-ft
HP
CHARGE
OZ
SHIP
WEIGHT
LBS
NEMA
PLUG
69K-077
115/60/1
6
12
3/8
12.0
254
5-15P
69K-038
115/60/1
6
16
3/8
12.0
282
5-15P
69K-054
115/60/1
6
23
3/8
12.0
331
5-15P
69K-055
115/60/1
7
48
1/2
18.7
540
5-15P
69K-056
115/60/1
10
72
3/4
21.2
741
5-15P
SWING GLASS DOOR FREEZER MERCHANDISER
MODEL# V/Hz/Ph
AMP
S
STORAGE
CAPACITY
Cu-ft
HP
CHARGE
OZ
SHIP
WEIGHT
LBS
NEMA
PLUG
69K-078
115/60/1
11
12
3/8
10.6
258
5-15P
69K-044
115/60/1
11
16
5/8
11.3
289
5-15P
69K-057
115/60/1
11
23
5/8
14.1
353
5-15P
69K-058
115/208-230/60/1
9.5
48
1
25.0
567
L14-20P
69K-059
115/208-230/60/1
13.2
72
1-1/4
28.9
829
L14-20P
SLIDING GLASS DOOR REFRIGERATED MERCHANDISER
MODEL# V/Hz/Ph AMPS
STORAGE
CAPACITY
Cu-ft
HP
CHARGE
OZ
SHIP
WEIGHT
LBS
NEMA
PLUG
69K-112
115/60/1
7
48
1/2
18.7
540
5-15P
69K-114
115/60/1
6
23
3/8
12.0
331
5-15P
69K-115
115/60/1
7
48
1/2
18.7
540
5-15P
69K-116
115/60/1
10
72
3/4
21.2
741
5-15P
69K-117
115/60/1
11
23
5/8
14.1
353
5-15P
69K-118
115/208-230/60/1
9.5
48
1
25.0
567
L14-20P
69K-119
115/208-230/60/1
13.2
72
1-1/4
28.9
829
L14-20P
69K-113 115/60/1 10 72 3/4 21.2 741 5-15P
69K-122 115/60/1 7 48 1/2 18.7 540 5-15P
69K-123 115/60/1 10 72 3/4 21.2 741 5-15P

Service and Installation Manual
4
INSTALLATION
Location
Units represented in this manual are intended for indoor use only. Be sure the location chosen has a floor
strong enough to support the total weight of the cabinet and contents. A fully loaded unit can weigh as much as
1500 pounds. Reinforce the floor as necessary to provide for maximum loading. For the most efficient
refrigeration, be sure to provide good air circulation inside and out.
Inside cabinet:
Do not pack refrigerator so full that air cannot circulate. The refrigerated air is discharged at the top rear of the
unit. It is important to allow for proper air flow from the top rear to the bottom of the unit. Obstructions to this air
flow can cause evaporator coil freeze ups and loss of temperature or overflow of water from the evaporator drain
pan. The shelves have a rear turn up on them to prevent this. However, bags and other items can still be located
to the far rear of the cabinet. Air is brought into the evaporator coil with fans mounted to the front of the coil.
Prevent obstruction by locating large boxes and tall stacks of product to the bottom of the cabinet.
Outside cabinet:
Be sure that theunit has access to ample air. Avoidhot corners and locations near stoves and ovens.
It is recommended that the unit beinstalled no closer than 6" from any wall with at least 12" ofclear space above
the unit. Should it become necessary to lay the unit on its side or back for any reason, allow at least 24 hours
before start-up so as to allow compressor oil to flow back to the sump. Failure to meet this requirement can
cause compressor failure and unit damage.
Leveling
A level cabinet looks better and will perform better because the doors will line up with the frames properly, the
cabinet will not be subject to undue strain and the contents of the cabinet will not move around on the shelves.
Use a level to make sure the unit is level from front to back and side to side. Because the unit is supplied with
casters, no adjustments are available. Ensure the floor where the unit is to be located is level.
Stabilizing
Models are supplied on casters for your convenience, ease of cleaning underneath and for mobility. It is very
important, however, that the cabinet be installed in a stable condition with the front wheels locked while in use.
Standard warranties will be voided due toimproper installation procedures.
Electrical connection
Refer to the amperage data on page 3, the serial tag, your local code or the National Electrical Code to be sure
the unit is connected to the proper power source. A protected circuit of the correct voltage and amperage must
be run for connection of the line cord or permanent connection to the unit.
The ON/OFF switch must be turnedto OFF and the unit disconnected from
the power source whenever performing service, maintenancefunctions or
cleaning the refrigerated area.
4

Service and Installation Manual
5
OPERATION
Do not throw items into the storage area. Failure to heed these recommendations could result in
damage to the interior of the cabinet.
Refrigeration cycle
Refrigerators:Every 6 hours, the unit will shut off to allow the evaporator coil to defrost and the controller will
display the defrost symbol. When the coil temperature reaches 41°F or after 20 minutes, the unit returns to the
refrigeration cycle.The factory setting for temperature range is 34° to 38°F.
Freezers: During the refrigeration cycle the controller supplies power to the condensing unit and evaporator fan
motors. The evaporator fans will run at any time when the evaporator coil temperature is below 54°F andthey will
cycle off during defrost period. Every 6 hours, the unit will shut off and the defrost heater will defrost the
evaporator coil and the controller will display the defrost symbol. When the coil temperature reaches 45°F or
after 20 minutes, the unit returns to the refrigeration cycle.
1. Anti-Condensation heaters on the door frames work in conjunction with the compressor.
2. The factory setting for temperature range is -7°F to -3°F.
On/Off Switch:
An on/off switch is located on the front of the bottom shroud. When the unit is on, the switch will glow green.
Light Switch:
A light switch is located next to on/off switch on the front of the bottom shroud.
SOLID-STATE THERMOSTAT DESCRIPTIONS
1. FRONT PANEL COMMANDS
1.1 KEY FUNCTION
To display target set point; in programming mode it selects a parameter or confirms an operation.
To start a manual defrost
To see the last temperature alarm; in programming mode it browses the parameter codes or
increases the display value
To see the last temperature alarm; in programming mode it browses the parameter codes or
decreases the display value
KEY COMBINATION
To lock & unlock the keyboard
To enter programming mode
To return to the room temperature display
5
