Centralion DC UPS User manual

DC UPS
User Manual

2
Table of Contents
1. Introduction…………………………………………………………3-4
1.1 General Introduction …………………………………………3
1.2 Panel Introduction ……………………………………………3
1.3 The 7 Pin Terminal Connecters Introduction Table ………4
2. Safety Information…………………………………………………5
3. Package Contents…………………………………………………6
4. Installation …………………………………………………………7-9
4.1 Wire Connection ………………………………………………7-8
4.2 Wall-Mounting Instructions (Optional) ………………………9
5. Operation……………………………………………………………10
6. Available & Visual Alarms…………………………………………11
7. Battery Replacement Procedure…………………………………12
8. Specifications ………………………………………………………13

3
1. Introduction
1.1 General Introduction
DC UPS is the innovative power protection solution for delicate network devices and
telecom equipments. It equips with 12V/30Watts power capacity and internal long 7
amp-hour backup battery. With universal input voltage design, this UPS can be widely
applied to the majority power system without AC input voltage transfer. The advantages of
DC output are saving the cost and space of the additional power adapter connection. This
feature further prevents the power loss while transferring between DC to AC. The thoughtful
wall-mount design allows you to install DC UPS to diverse environments for maximizing
your precious space. DC UPS can be applied to any other device equipped with a
compatible DC input connector.
Features
Universal input range (80-260VAC) for global applications
12VDC (30W max.) output meets the major standard of network devices
Integrated hot-swappable to easy replacement battery allows battery replacement
without power interruption.
Microprocessor controlled for optimized operation and maximum reliability
Audible warning alarm with mute switch
Outputs for remote monitoring; On Battery, Replace Battery, Battery missing and
Low battery alert
Wall mountable design for maximized flexibility
Multiple LED for AC power and battery status indications
Cold Start function capable
1.2 Panel Introduction
The front view
Power on/off
Use poweron/off switch to turn the
DC UPS on/off. The unit will not
supplypowerto the networkdevices
when power switch is in OFF (Not
push down)position.
Status Indicators
There are three LED status lights: red,
yellowand green which are from left to
right. The status lightsindicatespecific
conditionsof the DC UPS. (See page X.)
Mute on/off
Use thisswitch to turn the mutefunction
on/off.Theaudiblealarmswillbesilenced
when muteswitch isinON (Push down)
position.

4
The rear view
1.3 The 7 Pin Terminal Connecters Introduction Table
Terminal Connectors
Function
Suggested Wire Gauge
VO+
Positive(+) Voltage output
At least #18AWG
VO-
Negative(-) Voltage output
At least #18AWG
SIG RTN
Signal return
At least #26AWG
ON BATT
Low when operation from utility
line.
Open when operating from battery.
At least #26AWG
REPLACE BATT
Low when battery is charged.
Open when battery fails the
self-test.
At least #26AWG
BATT MISSING
Low when battery is present.
Open when battery is missing.
At least #26AWG
LOW BATT
Low when battery is near full
charge capacity.
Open when operating from a
battery with < 20% capacity.
At least #26AWG
AC input socket
TheAC input socket is
IEC320 C14.
DC output socket
TheDC outputincludes12VDCpower,
four dry contactsignalsand common
return pointfor these signals.Please
findthedefinensandwire connections
for DC output socket asbelow table.

5
2. Safety Information
Internal battery voltage is 12V DC.
Incorrect battery connection or replacement creates risk of explosion. Use only vender
approved replacement batteries.
The DC UPS is intended for installation and operation in a controlled environment
(temperature controlled, indoor area free of conductive contaminants). Refer to
specifications in this manual.
No user-serviceable parts exist inside the unit. Refer repair issues only to qualified
personnel. Fuses or other parts must be replaced ONLY with parts of identical types
and ratings. Substitution of non-identical parts can cause fire and other safety hazards.
All batteries used are sealed lead batteries. Batteries should be recycled.
The battery charges when it is connected to the AC power. The battery will fully charge
during the first eight hours of normal operation. Do not expect full battery run capability
during this initial charge period.
Connect the DC UPS to utility power for completely charging the internal battery before
starting the UPS.

6
3. Package Contents
The DC UPS package includes the following items. Please inspect if there are any missing
parts.
1 x DC UPS Unit with 12V internal battery preinstalled
1 x User Manual
1 x 7-position connector

7
4. Installation
4.1 Wire Connection
1. Remove the wire connection cover in the rear of the DC UPS. Keep the cover will and
reinstall the cover after all the wires are well-connected.
2. Plug IEC-LOCAL power cord into theAC input socket on the back of DC UPS. Do not
connect the AC power cord to utility outlet prior to this process.
3. Connect DC UPS to network device.
3.1 If the telemetry cable is enclosed:
(1) Plug the telemetry cable into the 7-position connector
(2) Then place the cable between the two sticks for fixing the cable as the following

8

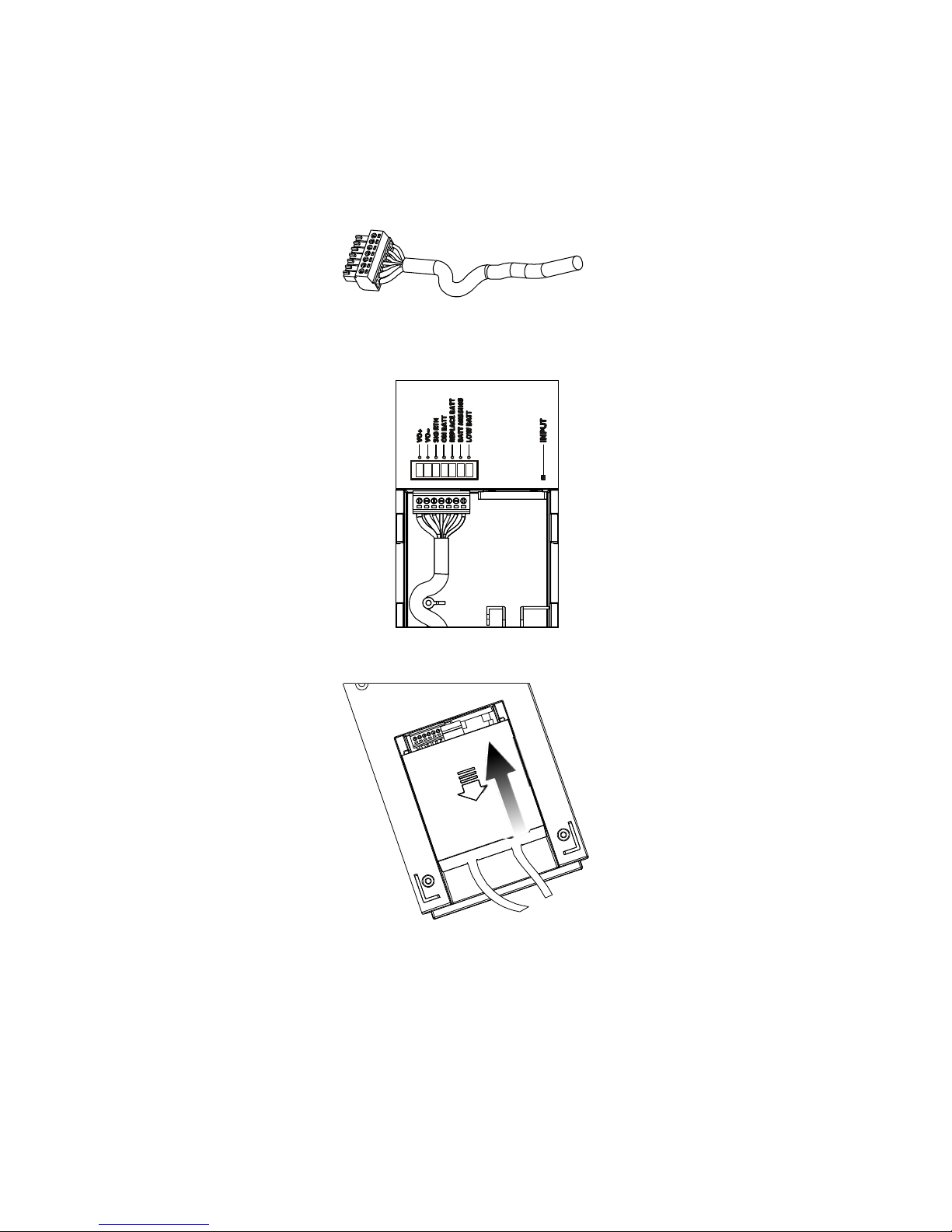

3.2 If the telemetry cable is not enclosed:
(1) Cut and strip the self-prepared cable leads, and then attach the leads to the
7-position connector. Make sure that the correct wire gauges are used for the
safety (Please refer to “1.3 The 7 Pin Terminal Connecter Intro Table”)
(2) Plug the 7-conductor cable into the outlet of the DC UPS
(3)Then place the cable between the two sticks for fixing the cable as the following
4. Close the wire connection cover
5. Connect the other end of the cable to the equipment

9
4.2 Wall-Mounting Instructions (Optional)
NOTE: Required hardware not included. Refer to the wall-mount instructions for required
tools and materials.
STEP 1: Make a mark on the wall in the 2 screw locations. The distance between the
centers of the 2 screws are 80cm.
STEP 2: Use a drill to drill holes where you made the mark on the wall. If you drill into a wall
stud, proceed to Step 5. If not, go to Step 4.
STEP 3: Insert anchor(s) into the hole(s).
STEP 4: Screw in the screw, leaving it protruding 1⁄4 inch from the wall.
STEP 5: Mount the DC UPS on the screw heads. Mounting holes
120mm
358mm
80mm
Mounting holes

10
5. Operation
After the installation, you can start to operate the DC UPS and let your device running
under uninterruptible power supply environment as the following procedure.
STEP 1: Plug the AC input power cord of the DC UPS into the wall outlet (The utility power
outlet)
STEP 2: Push the power on/off switch and you may hear a long beep buzzer alarm for
knowing the unit is properly turned on. You may turn the audible alarm off by pushing the
mute switch button to ON (Push down) position.
Self-test
Use the self-test to verify both the operation of the DC UPS and the condition of the battery.
Turn the mute switch ON then OFF, then ON and OFF again within five seconds. During the
Self-test, the DC UPS operates in backup mode.
The DC UPS automatically conducts a Self-test in two conditions. 1) Operate it and then the
MCU detects battery voltage is higher than 13V. 2) Every 21 days while operating all the
time.
Note: During the self-test, the DC UPS briefly operates on battery-backup power. The
green LED will flash for five minutes during the test period. If the DC UPS passes the
Self-test, it returns to online operation. If the DC UPS fails the Self-test, it immediately
returns to online operation and lights the red LED. The loads are not affected. Recharge the
battery overnight and perform the self-test again. If the red LED is still on, the battery needs
to be replaced.

11
6. Available & Visual Alarms
Front-Panel Label
Visual Indicator
Audible Alarm
Description
ON A/C
Green LED lights
None
The DC UPS is operating on A/C
Testing Battery
Green LED flashes
None
The DC UPS is conducting a
self-test. This automatic procedure
is normal and will occur when the
unit is switched on, and periodically
thereafter. This procedure will last
approximately 5 minutes.
ON Battery
Yellow LED lights
Tone every 5
seconds
The DC UPS is operating on
battery power. The alarm will stop
when main power is returned.
Low Battery
Yellow LED flashes
one every 1
seconds
The battery energy is running low.
This alarm will continue until the
unit performs a forced shutdown
when the battery is depleted.
Replace Battery
Red LED flashes
one every 2
seconds
This alarm warns that the battery
has reached the end of its useful
life. The user must replace the
battery as soon as possible to
ensure proper operation of the DC
UPS.
Fault
Red LED lights
Continuous
tone
A fault has occurred. Disconnect
equipment from the DC UPS prior
to checking equipment.
NOTE: Audible alarm will not sound when mute switch I in ON position.

12
7. Battery Replacement Procedure
The DC UPS is designed with an easy-access battery cover.
STEP 1 Turn off power switch. Disconnect the DC UPS from power and any connected
devices. Remove the battery door on the front of the DC UPS by pulling up the battery door.
STEP 2 Remove the battery from enclosure; remove the wire connections from the battery.
STEP 3 Connect the new battery (black-to-black, red-to-red); place the battery into the
enclosure, and then put the wires next by the battery inside of the closure as shown bellow.
WARNING: Connect the correct color wires carefully to the corresponding terminals. The
battery has two color-coded terminals (red = +, black = -) as well as the two colors of the
wires. Misconnect the two wires to wrong terminals might cause battery explosion.

13
8. Specifications
Model Name
DC UPS
INPUT
Nominal input voltage
230Vac
Acceptable Input Voltage
Range
80~260Vac
Acceptable Input frequency
Range
45Hz~65Hz
OUTPUT
Output power (max)
30W
Normal Voltage
12Vdc
Output Voltage Range
10.5V~13.8V
Line Mode Efficiency
> 80%
BATTERY
Type/Rating
12V/7Ah x 1pc
Discharge Prevention
10.5V ± 0.5V
Backup Time
(With 1A Discharging)
Typical 340mins
Rated Charging Voltage
13.7V ± 0.25V
Recharge Time (internal
battery)
4 hours to 90% without load after
complete discharge
Charge Current
2.5A Maximum
Hot Swappable Battery
Yes
INDICATOR
AC mode
Green LED Lighting
Backup mode
Yellow LED Lighting
Battery low
Yellow LED Flashing
Battery replace
Red LED Flashing
Battery missing
Red LED Lighting
Fault
Red LED Lighting
Battery self-test
Green LED flashing
AUDIBLE ALARM
Backup mode
Sounding every 5 seconds
Battery low
Sounding every 1 second
Battery replace
Sounding every 2 seconds
Battery missing
Continuous sounding
Fault
Continuous sounding
MUTE FUNCTION
Switch on
Buzzer disable
Switch off
Buzzer enable
OPERATING
ENVIRONMENT
Operating temperature
0℃to 40℃
Operating humidity
0% to 90%
Operating Elevation
0 to 3000m
PHYSICAL
Weight
3.5 kgs
Dimension (W x H x D)
120mm(W) x 358mm(H) x 86.5mm(D)
INPUT TYPE
IEC inlet
OUTPUT TYPE
7pin terminal
(2 pins for DC output, 5 pins for dry contact signal output)
