Cerwin-Vega IOEM44 User manual
IOEM44 4 Channel Active
Line-Output Converter
Quick Start Guide
The Cerwin Vega Mobile IOEM44 can be used to add amplifiers to an audio system that does not have RCA outputs or
when replacing OEM Radio and retaining the factory amplified system. Variable Gain Controls with Clipping Indicators,
Selectable Ground Isolation and Load Select features ensure a pure, noise-free signal for any type of audio system.
This Quick Start Guide will get you going, but if you need additional help or information, please visit our website
or contact Technical Support.
Model Number IOEM44
Channels 4 IN / 4 OUT
Operating Voltage 9V—16V
Max Input Level (20kHΩLoad Setting) 40V / 400W @ 4 ohms
Auto Turn On DC Offset / Remote
Output Voltage MAX @ 13.8V 9.5V RMS
Turn On Trigger (DC-Offset) 3V—7V
Load Input Impedance 20Ω, 60Ω, 20KΩ
Output Impedance <120Ω
Variable Gain Adjustment -28dB—+1dB
Signal To Noise >110dBA @ 6.4V Output
THD+N < 0.01%
Input Sensitivity 0.5V—40V
Frequency Response 10Hz—20kHz
Current Draw (Max) 110mA
Low Pass Filter <250Hz (Rear Channels)
Bass Boost 0dB to +12dB (Rear Channels)
Clip Indicator YES
Remote Level Control 0dB—30dB
Chassis Type Stamped Steel
Terminal Gauge 18AWG / Quick Connect
Phone: 213-261-4161
Email: [email protected]
Technical Support
Installation
Speaker level input from a radio to RCA level output for an aftermarket amplifier is the
most commonly used configuration for the IOEM44. This will create RCA level outputs
from a radio that only has speaker level outputs.

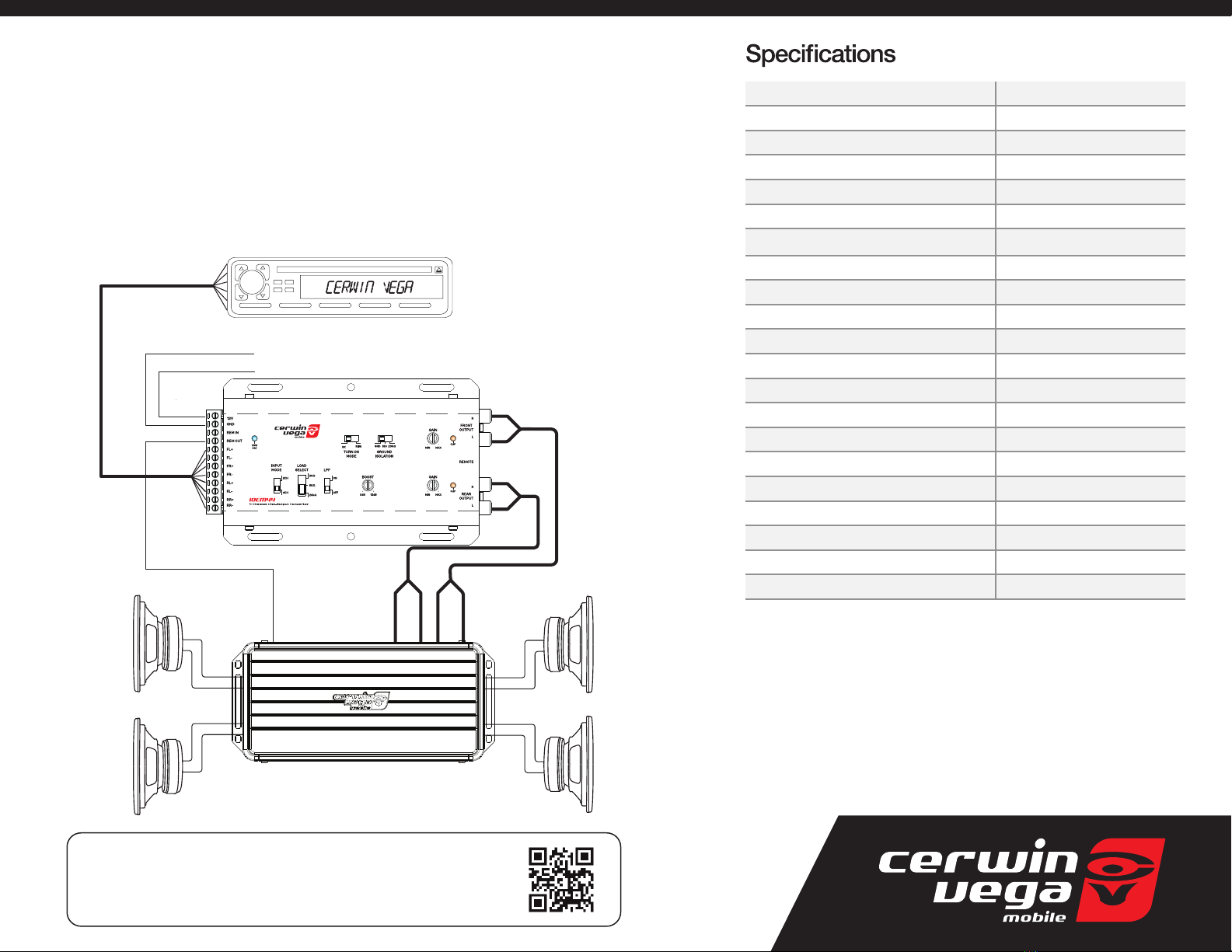

Below, the 4 speaker outputs from the factory radio are disconnected from the speakers
and connected to the Speaker Signal Inputs of the LPA. The REM OUT is connected
to the amplifiers turn-on. When the radio is turned on the LPA will automatically turn on
the amplifier. The RCA Signal Outputs from the LPA are connected to the amplifiers
inputs. The speaker outputs from the aftermarket amplifier are then connected to the
speakers.
CHASSIS GROUND (-)
REMOTE AMP TURN-ON
For more installation examples, tech tips and updates,
visit the CERWIN VEGA MOBILE product pages on
CerwinVegaMobile.com
