CF MOTO V NIGHT CF150-2C User manual

V NIGHT Motorcycle
CF150-2C OWNER’S MANUAL

Foreword
This instruction gives detailed introduction to the basic operation and maintenance methods of CFMOTO
CF150-2C Model motorcycle.Please carefully read this instruction before driving.
Proper use,maintenance and service will effectively safeguard driving safety,reduce failure of motorcycle,
maintain optimum performance of the motorcycle and prolong service life of the vehicle.
The “CFMOTO Service Station”of the company will provide high-quality after-sale service for you.
The data, specification and introduction in this instruction are determined according to the latest design of
the company at present and Zhejiang CFMOTO Power Co., Ltd. reserves the right to update them at
any time. For any technical change to this vehicle in the future, the company will give no further notice.
Thank you for choosing “CFMOTO”motorcycle!
Wish to bring you comfortable, rapid and delightful experience in the future journey.
The implementation standard of this product (CF150-2C)is: Q/CFD013 -2011

Notes
Please carry out operations according to the traffic laws and regulations and the provisions of this
maintenance instruction.
This maintenance instruction is one of the necessary accessories of this vehicle. When the vehicle is
transferred to other person, please transfer the vehicle with this instruction.
The copyright of this maintenance instruction belongs to Zhejiang CFMOTO Power Co., Ltd.. Without
written consent of the company, this instruction should not be reproduced or re-printed. All rights reserved.
Compilation of this maintenance instruction should meet the provisions of GB9969.1-1998 and
GB/T19678-2005 standards.
The interpretation right of this maintenance instruction belongs to Zhejiang CFMOTO Power Co., Ltd..

CONTENTS
……………………………………………………………
( 4 )
…………………………………………………… (6 )
……………………………………………………………… (7 )
………………………………………………… (8 )
……………………………………………………………………… (8 )
………………………………………………………… (9 )
……………………………………………………(
12 )
…………………………………………………… ( 16
)
…………………………………………………… (
17
)
………………………………………………… ( 19
)
……………… … ……………………… (
20
)
…………………………………………………………… (
21 )
………………………………………………………………… (22)
………………………………………………………… (24)
……………………………
…………………………………………………………………
( )
3
( )
1
(5 )
…
……………………………………………………… (25)
…………………………………………………… (27)
…
……………
…
…
…
…………
…
………
…
……
……
…
……
……
……
……
…
1.CF150-2C Model Motorcycle Overview …………
2.User Guide
3.Transportation, Storage and Unpacking Installation of Motorcycle
………
4.Safe Driving of the Motorcycle
(1)Rules for Safe Driving
(2)Safety Protection Equipment
(3)Vehicle Retroffting
(4)Loading of the Goods
(5)Accessories
…
5.Operation Instruction
(1)Location of Parts
(2)Instrument and Ignition Switch
(3)Right Handle Switch Set
(4)Left Handle Switch Set
(5)Fuel and Fuel Tank Cover
(6)Selection of Lubricating Oil
(7)Tire
6. Operation Guidance
(1).Run-in Period
(2)Inspection before Driving
(3)Start-up of Motorcycle
(4)Motorcycle Driving … …
…
…
…
…
…

……………………………………………………… (31)
…(33)
…………………………………(35)
… ………………………………… (36)
………………………… (37)
………………………………………………………… (39)
………………(4 1)
……………………………… (43)
………………………………(45)
……………………………………………… (47)
(51)
(53)
………………………………………
(55)
…………
(56)
………………
(57)
…
…………………
(60)
…
…
……
…
…
……………
…
…
……
…
……
…
…………
…
………………
…
………………………………
…
7.Maintenance and Service
(1)Maintenance Periodic Table
(2)Inspection and Replacement of the Lubricating Oil of the Engine
(3)Selection and Replacement of the Spark Plug
(4)Cleaning and Assembly of the Air Filter
(5)Inspection and Adjustment of the Throttle Handle
(6)Clutch Adjustment
(7)Inspection,Adjustment and Lubrication of the Drive Chains
(8)Inspection and Adjustment of the Front Brake
(9)Inspection and Adjustment of the Rear Brake
(10)Maintenance of Storage Battery
(11)Application Maintenance Instructions to Electronic Fuel Injection(EFI)and
Fuel Evaporation Recovery System
(12)
Vehicle Cleaningand Storage
Vehicle Service Life and Vehicle Handling
Relevant Adjustment Data of Motorcycle
CF150-2C Main Technical Parameteres Table
………………………………………
…
………
…
CF150-2C Electrical System Diagram
Common Failure and Cause of the Motorcycle (61)
………………………………
…
…
…
(13)
(14)
(15)
(16)
(17)
…………
…………
…
…
…
…
…
…
…
…
…
……
…
…
…
…

-1-
1.CF150-2C Model Motorcycle Overview
With compact structure, CF150-2C model motorcycle has featured,unique and novel appearance.The
riding is comfortable and driving stability is good.It adopts the latest water-cooled engine researched
and developed by the company and it adopts the electronic fuel injection system, which makes it more
environmental-friendly with lower fuel consumption and emission, reaching Chinese National Phase III
Emission Standards Euro III Emission level.
(1)Applicable Scope of CF150-2C Model Motorcycle
CF150-2C is one motorcycle promoted by CFMOTO with independent development.
This vehicle can not only be the traffic tools for commuters and tourism and leisure activities and also can
be heavy transportation tool.
Therefore, CF150-2C motorcycle is not only suitable for urban roads but also for countryside roads.

-2-
(2)Characteristics of CF150-2C Model Motorcycle
1.Strong power and heavy load.
The engine model of this vehicle: 157MJ-3A(A1)
Maximum net power: 10.5kW (9000rpm).When the engine is at 9000 RPM the output power is 10.5kw.
2. Big torque force and strong gradeability.
The maximum torque: 12 . 2N·m (6500 rpm). When the engine is at 6500 RPM the output torque is
12.2 N·m.
3.Fuel evaporation recovery system and optimized muffler catalyzer.
It makes it more environment-friendly with lower fuel consumption and more thorough combustion. The
combustion structure is more reasonable and the system completely reaches National Phase III Emission
Standard.
4.State-of-the-art water-cooling technology.
As the professional enterprise that produces water-cooled engines, the “Water-cooling”technologies
of CFMOTO are at the top level. Compared to the air-cooled engines with the same displacement:
it has better heat dissipation and the temperature adjustment of the engine oil is more flexible with higher
power, lower fuel consumption and has prolonged service life of engine.
5. DC power supply system.
The charging efficiency is higher. More lighter and make it easier to drive in the night.

-3-
2.User's Guide
1.Regulations on load carrying:
Load carrying of CF150-2C model motorcycle:2 persons(including 1 driver and 1 passenger).
The maximum allowable load carrying capacity is: 150kg.
2.Fuel
Since gasoline is highly flammable, if the fuel tank, fuel filter, fuel pipeline, and other accessories of the
vehicle cause oil leakage due to damage and aging, the users should use the vehicle after timely repair and
troubleshooting.
3.Electric system
The user cannot retrofit or change the circuit of the vehicle on its own nor enlarge or add electric equipment.
It will make the electrical equipment of the vehicle overloaded, resulting in overheated circuit, melted fuse
or short circuit or even spark and car burning and so on.
The company will not be responsible for any consequences due to retroftting or change of the vehicle circuit
or enlarging or adding electric equipment.
4.Inspection
The user should strictly maintain the parts and accessories listed as per requirements of “Periodic
Maintenance Table”.
The fuel used in this vehicle is: 93# octane gasoline.

-4-
3.Transportation, Storage and Unpacking Installation of
Motorcycle
1. The motorcycle (with packaging box)should be reliably secured on the transportation vehicle. During
transit, there should be no damage or destruction.
2. The motorcycle (with packaging box)should be stored in clean,well-ventilated,dry,rain-proof and
sun-proof warehouse and should not be stored together with the inflammables,chemcial corrosives and
other hazardous substance.
3. This motorcycle is completely installed at the dealer's and is delivered to the users after commissioning.
The installation sequence is as follows:
①Unpack the box and take out all accessories.
②Install handle tube.
③Disassemble the left, right and front shock absorber retaining bolts,take out the rear wheel and support
the vehicle with the side stand or main process stand(matching),install front brake and front wheel,install
storage battery,install other accessories(rearview mirror and so on),fasten bolts and nuts of the whole car
and inspect the circuit before starting the motorcycle.
④Adjust light signal, front and rear brakes, clutch, throttle, and so on and deliver it to users after testing.
The installation is completed.
Transportation, Storage and Unpacking Installation of Motorcycle are only for references
of the dealers.

-5-
4. Safe Driving
This motorcycle is two-wheel motor-driven vehicle, which can bring convenience and rapidness to the
driver. To ensure the best performance of the motorcycle, you must maintain and service the vehicle
correctly. When using the motorcycle, the vehicle must be safe and normal; when driving or riding the
motorcycle, you must be healthy in order to control the vehicle in the best state.
Note：When driving the motorcycle, the traffic rules and regulations must be
observed; the vehicle must be carefully inspected before driving.
(1)Rules for Safe Driving
1. Before starting the motorcycle,it is necessary to inspect the vehicle carefully in order to ensure that the
vehicle is safe and normal; in this way,accidents can be prevented and damage of parts and accessories
can be avoided.
2. The motorcycle drivers must pass the exam held by the traffic administration department and obtain
“motorcycle driving license”before driving the motorcycle; the vehicle cannot be lent to people without
“motorcycle driving license”.
3. To avoid injury, you should:
●Eye-catching clothing.
Don't be too close to the other vehicles when driving and use the turn lights,horn,brake lights and so on
correctly.
Do not drive in the dead zone of other drivers.
4. Strictly pay attention to and observe traffic rules and regulations(including local traffic rules and
regulations)
Overspeed driving is the main cause of accidents. Therefore, do not exceed the allowable speed of the
specific road conditions (requirements).
When turning or lane changing, it is necessary to use appropriate signal lights to warn the other drivers.
●
●
●
●

-6-
5. When driving on the road surface of the turning junction,crossroads,entrance and exit of the parking
lot,high speed road or with barriers and so on, the driver must be especially careful.
6. When driving, it is necessary to grasp direction handles with both hands and step on the left and right
main pedals;the passenger should hold the handrail or hug the waist of the drivers and step on the left and
right auxiliary pedals with both feet.
7. Besides looking front,left and right sides,the driver must observe the road surface conditions through
left and right rear mirrors.
(2)Safety Protection Equipment
1. The injury and death accidents of the motorcycle drivers and passengers are mostly caused by head
injuries. To protect your safety, it is necessary to wear high-quality crash helmet, dust-proof goggles, gloves
and other protective products when driving; the passengers should also be equipped as said.
2. During driving,the temperature of the silencer is very high and the driver and the passenger must wear
high-quality leather clothing and boots against scalding.
3. Do not wear loose clothing and clothing with lacework in case the clothing is hooked by the controlling
handles, pedals or wheels. Or such clothing may be hooked to the other vehicles by wind and cause accidents.
It must bear in mind that the high-quality protective equipment is only for prevention and never ignore
traffic safety rules and regulations for wearing such protective equipment.
The excellent motorcycle driver is always: the one drives the motorcycle prudently.

-7-
Notes：
1、Vehicle retrofitting or replacement of the original vehicle at will cannot ensure
driving safety of the motorcycle and is illegal. The users must observe the use
rules of the traffic administration department.
2、To ensure that emission of the vehicle meets National Phase III Standards, the
users should not retrofit or disassemble the following parts without authorization.
Otherwise, the company will not be responsible for resultant consequences.
①. The silencer of the vehicle is installed with the optimized catalyst. If the silencer
is damaged, please send it to the “CFMOTO Repair Station” for repair or
replacement. Do not repair it yourself or purchase products of other manufacturers
for repalcement;
②. Carbon canister is the core part of the fuel evaporation recovery system and
should not be disassembled without authorization.
2、If you have good suggestions for retrofitting, please inform the company. The
company will be responsible for implementation after confirmation. Any change
to the vehicle at will may result in adverse consequence. If suggestion is not taken,
the user shall be responsible for all consequences.
(3)Vehicle Retroffting
Warning
1. The user cannot retrofit or change the vehicle circuit and other electric equipment on their own.
Otherwise, the electric system of the vehicle will be overloaded, which results in melting of the fuse or
short circuit or even spark and car burning and other dangers.
2. The company will not be responsible for any consequence due to retrofitting or change of the vehicle
circuit and other electrical equipment (including increase of the electric power) by the users.

-8-
(4)Loading of the Goods
Note：
The motorcycle has certain requirements for distribution of the load capacity. If the
loading of goods is improper, the performance of the vehicle will be damaged and
driving stability of the vehicle will be affected.
When loading the goods:
1、The center of the weight of the goods (center of gravity) should be at the lower part and close to the
center of the vehicle.
2. Adjust the tire pressure according to the load and driving road conditions(Refer to page 21).
3. All goods must be fixed on the vehicle tightly to ensure stable operation.
4. Do not attach large-scale and heavy articles to the steering handles, front shock absorber or front fender,
otherwise driving is unstable or the steering doesn't work.
5. The maximum load requirements(150kg)of the vehicle should not be exceeded.
(5)Accessories
All accessories in the packaging box of the motorcycle are manufactured by the factory with special design
and production and have been tested on the motorcycle. Because our company cannot carry out tests of
products manufactured by other factories, the company will not be responsible for the accessories of other
manufacturers installed and used by you.
After installation of the accessories, the users should carefully inspect whether the accessories have visual
barrier, whether the road clearance or the side tilt angle are reduced,whether the control mechanism has
good steering capacity and whether the operation is restricted. If such problems exist, use the vehicle after
removing the accessories.

-9-
5.Operation Instruction
(1)Location of Parts
1. Left Side View (Figure1):
Figure 1 Left side view
①Headlight, LH
②Left rear view mirror
③Front turn signal, LH
④Engine number
(on the right side)
⑤Shift arm
⑥LH pedal, Driver
⑦Air filter
(Inside left side cover)
⑧Side stand
⑨LH pedal, Passenger
⑩Front turn signal, RH
Rear handrail
Rear license lamp

-10-

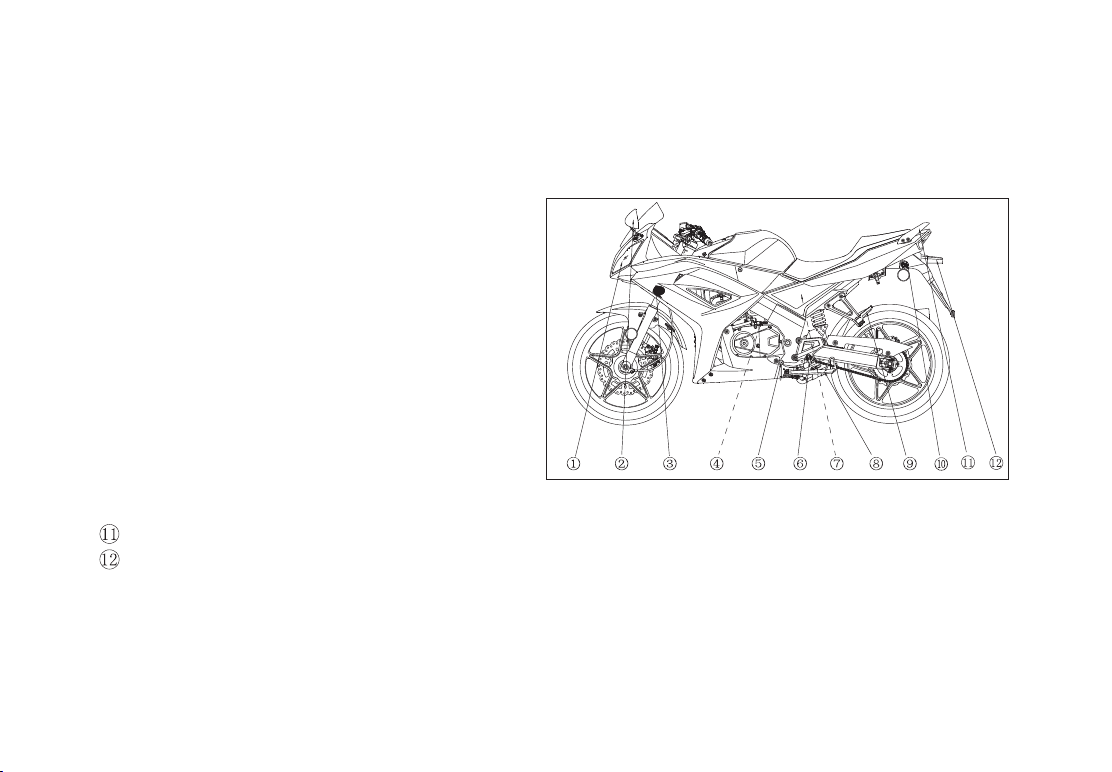

2. Right Side View (Figure 2):
Figure 2 Right side view
⑾
⑿
⒀
⒁
⒂
⒃
⒄
⒅
Front turn signal,RH
Front brake caliper
Battery(underneath
the seat cushion)
Seat
Name plate(underneath
the decoration plate)
VIN number
Rear view mirror, RH
Headlight, RH
①Taillight/brake light
②Rear turn signal, RH
③Muffler
④Rear brake caliper
⑤RH pedal, Passenger
⑥Rear shock absorber
⑦RH pedal, Driver
⑧Rear brake pedal
⑨Carburetor
(Underneath the fuel tank)
⑩Fuel tank cap

-11-

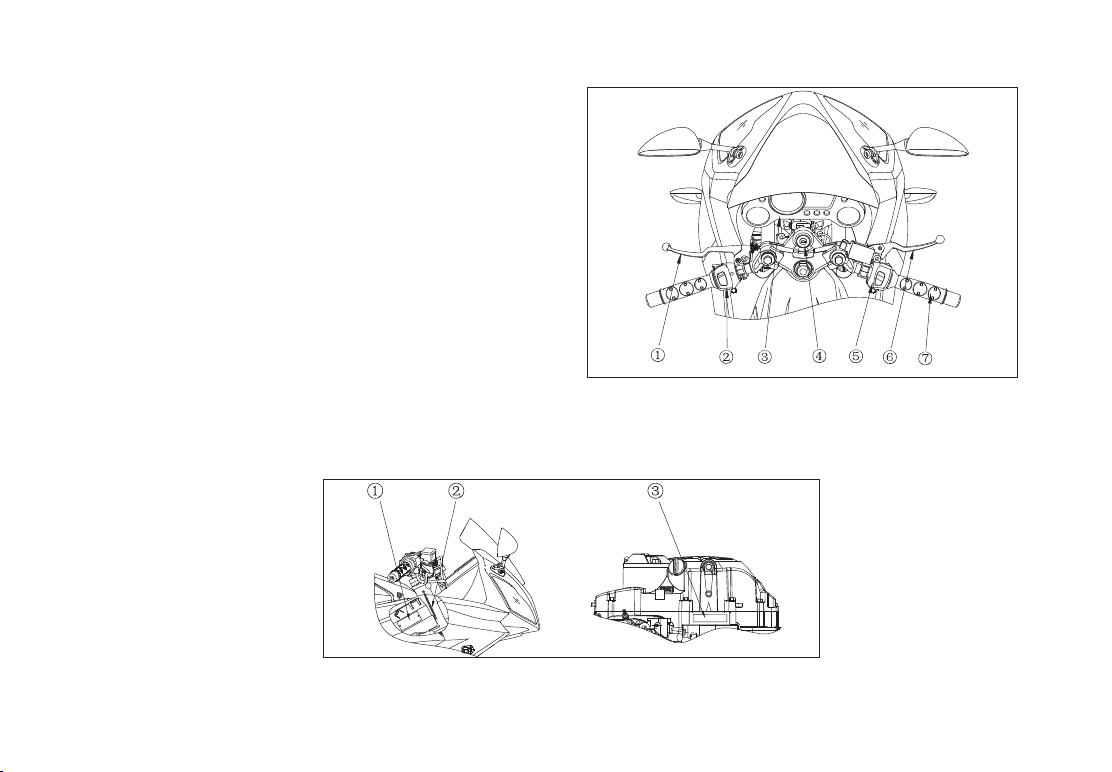

3. Front Vehicle Part (Figure 3):
4. Locations of the vehicle identification number(VIN),name plate and engine serial number,(Figure 4)
Figure 4 Vehicle identification number(VIN),name plate and engine serial number
Figure 3 Front Vehicle part
①Clutch lever
②Left handlebar switch set
③Instrument
④Ignition switch lock set
⑤Right handlebar switch set
⑥Front brake lever
⑦Throttle handle

-12-
①Name plate:it is on the right side of the vehicle frame.
②Vehicle identification number (VIN): it is on the right side of steering column;
③Engine serial number: it is on the right crankcase below the cylinder block;
(2)Instrument and Ignition Switch
[Instrument]
The following components are attached to the“Instrument”and the functions are as in Table 1
(Refer to Figure 5):
Table 1
S.N Name Functions
①
②
③
④
⑤
Left turn indicator light
Engine tachometer
Gear indicator
Speedometer
Indicate the front and rear left turn light flash
(the light is green)
Show the speed of the engine(RPM).
Show the specific gear of the engine(such as 1.2.3.4.5.6)
Indicate the instaneous speed of the vehicle driving.
Battery power
indicator
Turn on the ignition light and the light is on when the engine
is without revolving speed; when the battery voltage is
lower than 12 V, the light flashes.

-13-
S.N Name Functions
⑥
⑦
⑧
⑨
⑩
⑾
⑿
Right turn indicator
light
Fuel level gauge
Upper beam indicator
Neutral gear indicator
Failure indicator
Water thermometer
indicator
Odometer
Indicate the front and rear right turn light flash
(the light is green)
Show the quantity
Indicate the upper beam is on (the light is blue)
It is neutral gear when the light is on (the light is green)
When the water thermometer indicates “C”area, the water
temperature is normal; when it indicates “H”red area,
the water temperature is too high. It should immediately
stop the engine and check the cooling system.
Show the total mileage of the vehicle driving.
When the vehicle circuit has failures, the light flashes and is
on (the light is red,) if it is EFI model

-14-

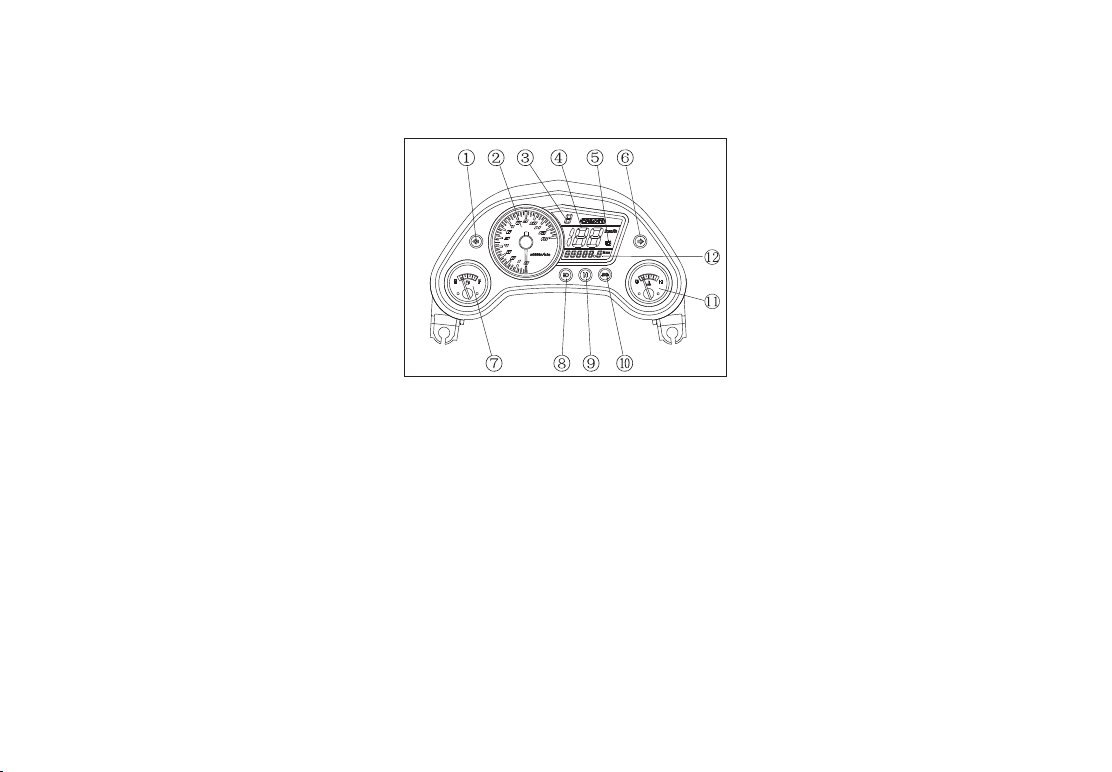

Figure 5 Instrument
[Ignition Switch]
“Ignition switch”setting is underneath the instrument (Refer to Figure 3).Turn on the ignition switch
before starting the motorcycle. Refer to Table 2 for key location and functions:

-15-
“ ”
”
“
“
”
“
”
P
On
On
Table 2
Key location Functions Key state
The entire circuit is disconnected, the engine cannot
be started and the indicator lamp is off.
The entire circuit is closed and the engine can be started
during neutral position.
The entire circuit is disconnected and the steering
mechanism is locked.
The vehicle location light is on and the steering
mechanism is locked.
Direction
lock
Location
lamp
The key can be taken
out
The key cannot be
taken out
The key can be taken
out
The key can be taken
out
Notes:
1. When the vehicle is not used, the ignition switch must be at the position of “ ” (when the user
stops the vehicle,the ignition switch is at the position of
“
”
P.The position lamp still consumes
power and it will result in insufficient or no power in the storage battery for long-term use. )
2. When stopping the vehicle and locking the direction,turn the steering handle to the left to the
maximum extent,insert the key in the direction lock and turn 90°in counterclockwise to lock the
steering mechanism (after turning it to “ ”,press the key downward to continue to turn it )and
take out the key. If it needs to open the direction lock, insert the key in the direction keyhole and
turn 90°in clockwise to open it and take out the key.
3. When the vehicle is stopped and not used,it is necessary to lock the steering mechanism.
