CG Antenna SB-2000 User manual

SB-2000 USB RADIO INTERFACE
CG Antenna Co., Ltd.
http://www.cgantenna.com
CG Antenna
SB-2000 USB Radio Interface
Operating Manual
CG Antenna Co. Ltd.
Shanghai, China

SB-2000 USB RADIO INTERFACE
CG Antenna Co., Ltd.
http://www.cgantenna.com
FEATURES
•Connect your computer with USB port. No need serial or parallel port.
Most of Radio programs are built based on COM serial port of PC computer. But the most latest PC
computers don’t have a serial port.
•USB to UART bridge by FT232 single chip. USB 2.0 compliant. Full speed.
To be compatible with the legacy radio program, we still have to keep using serial port. That’s why we
choose to use USB to UART bridge which converts the USB to serial port. FT232R is very reliable
industry single-chip USB to UART bridge.
•CAT, CI/V controller and audio transformer are combined together.
No sophisticate software setting. Very clearly operate from reachable setting on the control panel. It
supports CAT with RS232 protocol. So it’s compatible with the most latest transceivers.

SB-2000 USB RADIO INTERFACE
CG Antenna Co., Ltd.
http://www.cgantenna.com
•Complete isolation between computer and radio station.
1. Optical isolation used for digital signal.
2. Audio signal isolated 1:1 transformer. It has internal static isolation. Excellent
EMC(Electromagnetic compatibility)
•Operated by computer USB power. No need extra power.
When you are in your expedition or mobile, you will not have extra power headache with SB-2000. It uses
the power from your computer’s USB port.
•Very compact size, easy to carry.
Weight less than 400 grams. Pocket size only.
•Supply with full accessories.
It comes with USB, CAT or CI/V, Data and audio cables.

SB-2000 USB RADIO INTERFACE
CG Antenna Co., Ltd.
http://www.cgantenna.com
FUNCTIONS
SB-2000 links your radio transceiver with the computer.
•Control radio operation via CAT, CI/V.
You can control your radio if it supports CAT or CI/V protocol from your computer.
•Operate RTTY, PSK31, SSTV, FAX, and etc. digital mode.
From your computer you can easily operate digital mode with proper software. Turn your computer into a
professional expensive DTE.
•Transmit and receive CW.
If you want to be relaxed to operate CW, you can choose to use software to send or receive Morse code.
Use your computer keyboard instead of paddle or straight key. Read all received Morse code from your
computer screen.

SB-2000 USB RADIO INTERFACE
CG Antenna Co., Ltd.
http://www.cgantenna.com
•Support ECHOLINK to control remote station.
ECHOLINK allows radio stations to communicate with one another by using Voice over IP (VoIP)
technology on the Internet.
•Record your SSB voice session.
•Support FSK operation.

SB-2000 USB RADIO INTERFACE
CG Antenna Co., Ltd.
http://www.cgantenna.com
FRONT PANEL
Front panel has all the indicators.
Diagram 1.

SB-2000 USB RADIO INTERFACE
CG Antenna Co., Ltd.
http://www.cgantenna.com
1. PTT indicator
This indicator lights on when it’s under operating RTS control signal. Usually it’s the PTT output.
2. CW/FSK indicator
This indicator lights on when it’s under operating DTR control signal. Usually it’s the CW or FSK output.
3. TX indicator
This indicator lights on when the computer sending CAT or CI/V signal to the transceiver.
4. RX indicator
This indicator lights on when the transceiver sending CAT or CI/V signal to the computer.

SB-2000 USB RADIO INTERFACE
CG Antenna Co., Ltd.
http://www.cgantenna.com

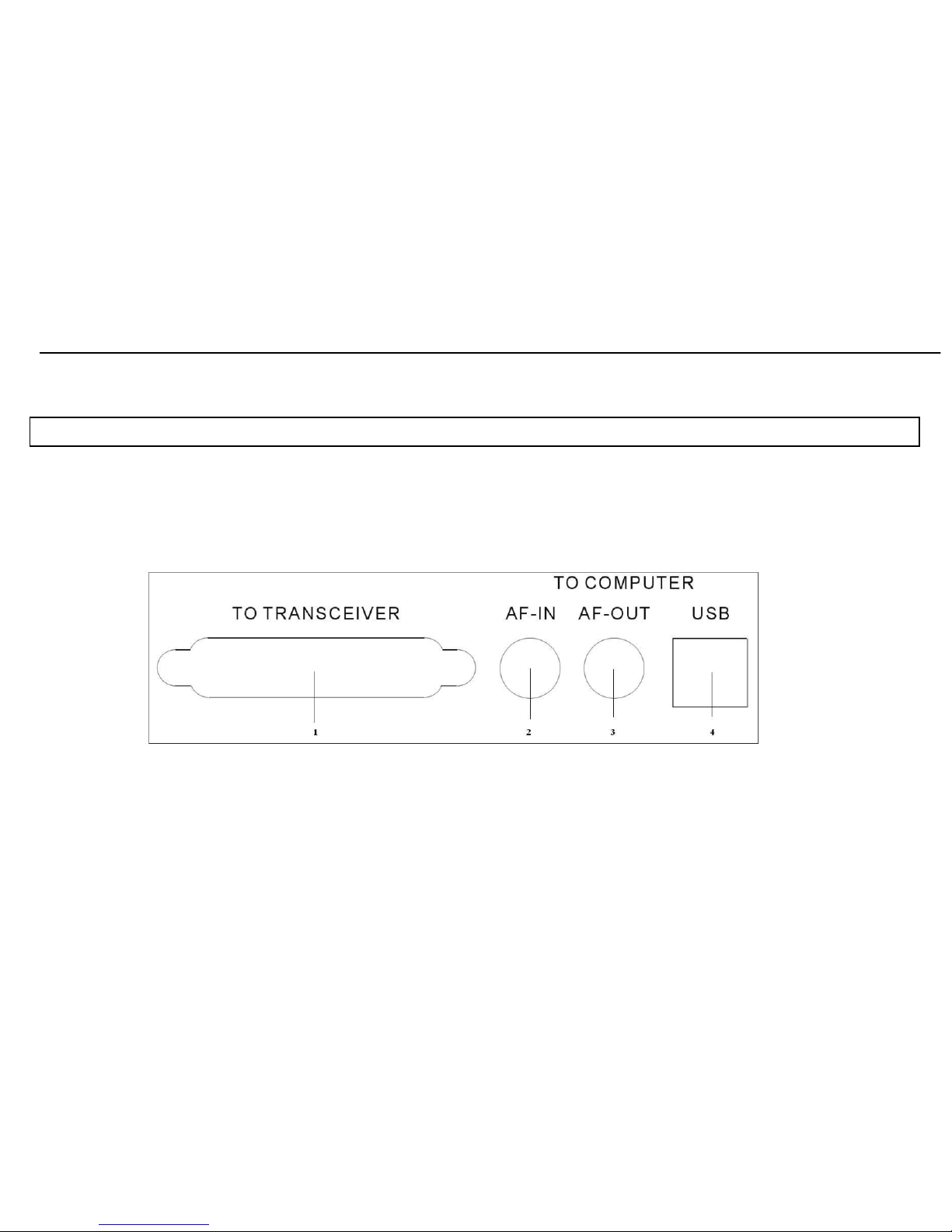

REAR PANEL
Rear panel has all the jacks to the computer and the transceiver.
Diagram 2.

SB-2000 USB RADIO INTERFACE
CG Antenna Co., Ltd.
http://www.cgantenna.com
1. TO TRANSCEIVER port
This 25-pin female DE-25 port connects to the data, CAT or CI/V and CW port of transceiver.
2. AF-IN jack
This RCA jack connects to the audio-out or speaker socket of the sound card in the computer.
3. AF-OUT jack
This RCA jack connects to the audio-in or microphone socket of the sound card in the computer.
4. USB port
This USB port connects to the USB port of computer.

SB-2000 USB RADIO INTERFACE
CG Antenna Co., Ltd.
http://www.cgantenna.com
HARDWARE INSTALLATION
Cable connection
Please use the suitable cables that are provided by CG Antenna. Most cables of modern transceiver are existed.
Rear panel to transceiver
The 25-pin data socket connects to the data, CAT or CI/V and CW port of the transceiver..
The RCA-3.5 mm connects the AF-IN and the audio output of the computer’s sound card. Also connects the
AF-OUT and the audio input of the computer’s sound card.
USB A-B cable connects the USB ports of the radio interface and the computer.

SB-2000 USB RADIO INTERFACE
CG Antenna Co., Ltd.
http://www.cgantenna.com
SOFTWARE INSTALLATION
SB-2000 comes with software driver for Windows 98, 2000/XP, Vista, Mac OS X and Linux.
Computer system requirement
CPU: Intel P3 500 MHz
RAM: 256MB
CD-ROM
At least one USB 1.1 port and a sound card.
Installing software driver on Windows XP
* Please do not connect SB-2000’s USB cable to the computer at this moment
•Insert installation CD into CD-ROM.
•Click ‘My Computer’ , Click the icon your CD driver. E.g.: E:\
•Double click e:\driver\Win2000_XP_Vista\SB2000.exe
•The program will install the suitable driver into system.

SB-2000 USB RADIO INTERFACE
CG Antenna Co., Ltd.
http://www.cgantenna.com
Now connect the SB-2000 to your computer’s USB port via
USB cable. The system will detect it.

SB-2000 USB RADIO INTERFACE
CG Antenna Co., Ltd.
http://www.cgantenna.com
Check COM port configuration
In the Control Panel -> System -> Hardware -> Device Manager
You will see a new port be added. Write down the port number.

SB-2000 USB RADIO INTERFACE
CG Antenna Co., Ltd.
http://www.cgantenna.com
Now you can setup your radio program to use this port to operate.
•If you use MMTTY and you want to transmit in FSK mode, you have to install COMFSK plug-in.
Please refer the detail installation to MMTTY’s manual.

SB-2000 USB RADIO INTERFACE
CG Antenna Co., Ltd.
http://www.cgantenna.com

SB-2000 USB RADIO INTERFACE
CG Antenna Co., Ltd.
http://www.cgantenna.com

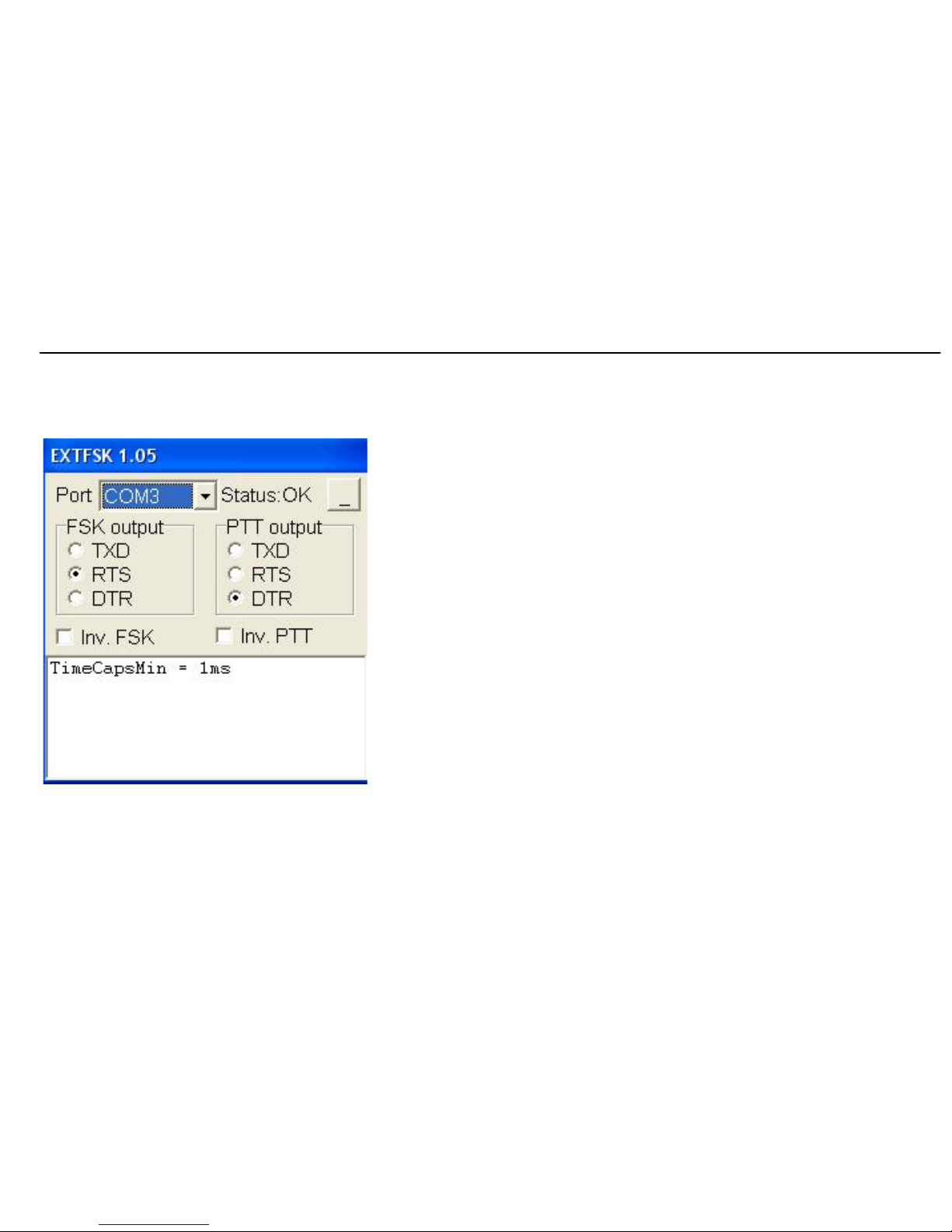

Configure the EXTFSK to use correct port, DTR for FSK output and RTS for PTT(by default)

SB-2000 USB RADIO INTERFACE
CG Antenna Co., Ltd.
http://www.cgantenna.com
CABLE SPECIFICATION
1. SP & MIC cable
It is a RCA to 3.5 mm audio jack cable. The impedance of the jack is 600 ohms.
2. USB cable
The 4-pin B to 8 pin USB cable.
3. DE-25 to data, CAT or CI/V and CW port of transceiver cable

SB-2000 USB RADIO INTERFACE
CG Antenna Co., Ltd.
http://www.cgantenna.com
WARRANTY
CG antenna warrants SB-2000 against defects in material for a period of ONE (1) year unless otherwise
indicated.
The warranty does not cover damage, improper use, abuse, or conditions beyond our control (i.e. lightning).
CG Antenna assumes no liability or responsibility for damage to other devices or injuries to persons as a
consequence of using our products.
If you don’t accept the terms of the above warranty, please return the products in the original package to your
reseller for refund (doesn’t include the shipping or possible restocking charge).

SB-2000 USB RADIO INTERFACE
CG Antenna Co., Ltd.
http://www.cgantenna.com
SERVICE
If you have any problem of your CG product. Please contact your local sales directly. Then we can arrange the
repair service.
If return for repair is needed, please wrap and pack your unit well to protect damage during transportation or
handling. Include a note with your name, address, phone number, email and brief description of the problem.
*CG antenna and our distributors can not be responsible for unit lost or damage in shipping.
