CG Antenna SB-2000 User manual

SB-2000 MK2 USB RADIO INTERFACE CG Antenna Co., Ltd.
UPDATE: 8 DEC 2016 http://www.cgantenna.com
CG Antenna

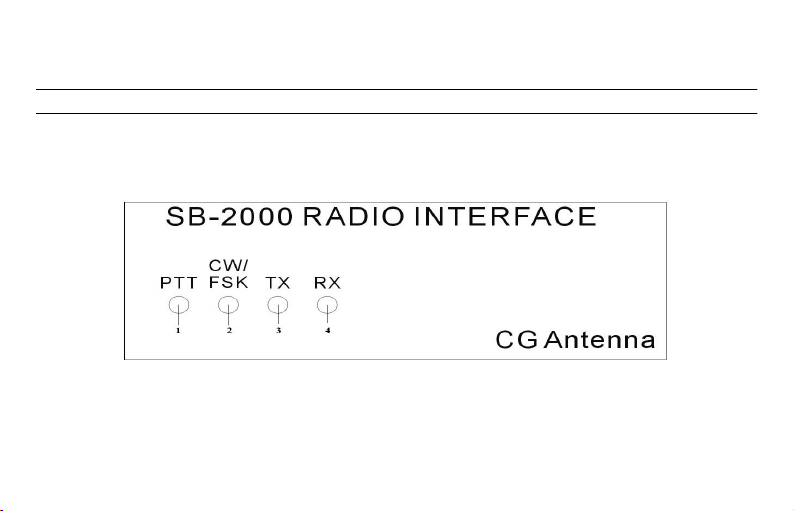

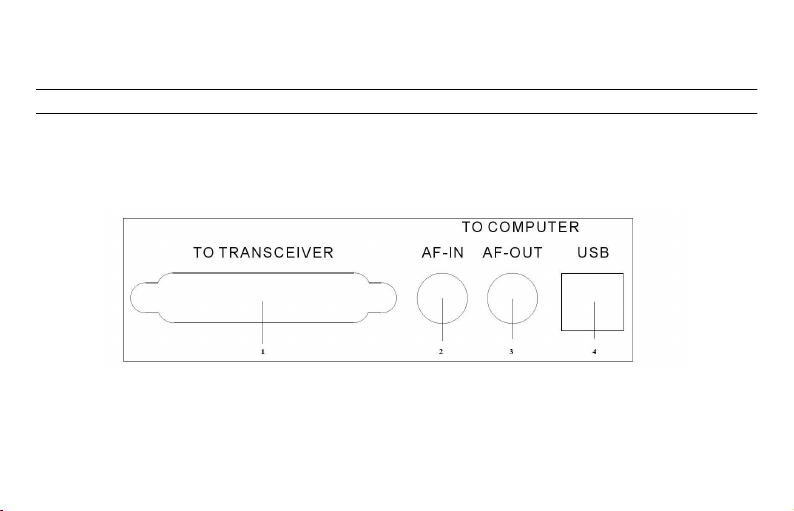

SB-2000 MK2 USB Radio Interface
Operating Manual
CG Antenna Co. Ltd.
Shanghai, China

SB-2000 MK2 USB RADIO INTERFACE CG Antenna Co., Ltd.
UPDATE: 8 DEC 2016 http://www.cgantenna.com
FEATURES
•Connect your computer with USB port. No need serial or parallel port.
Most of Radio programs are built based on COM serial port of PC computer. But the most latest PC
computers don’t have a serial port.

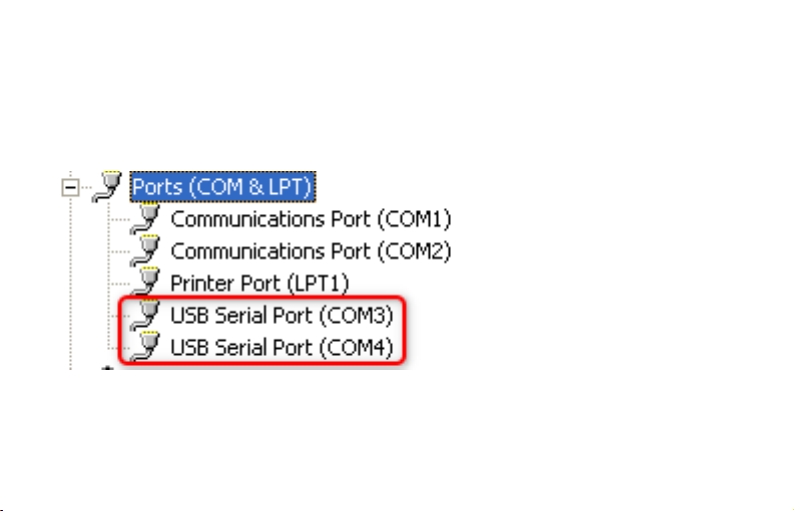

•USB to UART bridge by FT2232 single chip. Support 2 serial ports.
To be compatible with the legacy radio program, we still have to keep using serial port. That’s why we
choose to use USB to UART bridge which converts the USB to serial port. The new FT2232 chip supports
2 serial ports. So you can use digital operation and rig control at same time without extra simulation
software.
•CAT, CI/V controller and audio transformer are combined together.
No sophisticate software setting. Very clearly operate from reachable setting on the control panel. It
supports CAT with RS232 protocol. So it’s compatible with the most latest YAESU and KENWOOD
transceivers.

SB-2000 MK2 USB RADIO INTERFACE CG Antenna Co., Ltd.
UPDATE: 8 DEC 2016 http://www.cgantenna.com
•Complete isolation between computer and radio station.
1. Optical isolation used for digital signal.
2. Audio signal isolated by 1:1 transformer. It has internal static isolation. Excellent EMC
(Electromagnetic compatibility)
•Operated by computer USB power. No need extra power.
When you are in your expedition or mobile, you will not have extra power headache with SB-2000 MK2.
It uses the power from your computer’s USB port.
•Very compact size, easy to carry.
Weight less than 400 grams. Pocket size only.
•Supply with full accessories.
It comes with USB, CAT or CI/V, data and audio cables.

SB-2000 MK2 USB RADIO INTERFACE CG Antenna Co., Ltd.
UPDATE: 8 DEC 2016 http://www.cgantenna.com
FUNCTIONS
SB-2000 MK2 links your radio transceiver with the computer.
•Control radio operation via CAT, CI/V.
You can control your radio if it supports CAT or CI/V protocol from your computer.
•Operate RTTY, PSK31, SSTV, FAX, Packet and other digital modes.
From your computer you can easily operate digital mode with proper software. Turn your computer into a
professional expensive DTE.
•Transmit and receive CW.
If you want to be relaxed to operate CW, you can choose to use software to send or receive Morse code.
Use your computer keyboard instead of paddle or straight key. Read all received Morse code from your
computer screen.

SB-2000 MK2 USB RADIO INTERFACE CG Antenna Co., Ltd.
UPDATE: 8 DEC 2016 http://www.cgantenna.com
•Support ECHOLINK to control remote station.
ECHOLINK allows radio stations to communicate with one another by using Voice over IP (VoIP)
technology on the Internet.
•Record your SSB voice session.
For further record or training purpose, you could use your computer to record your conversation.

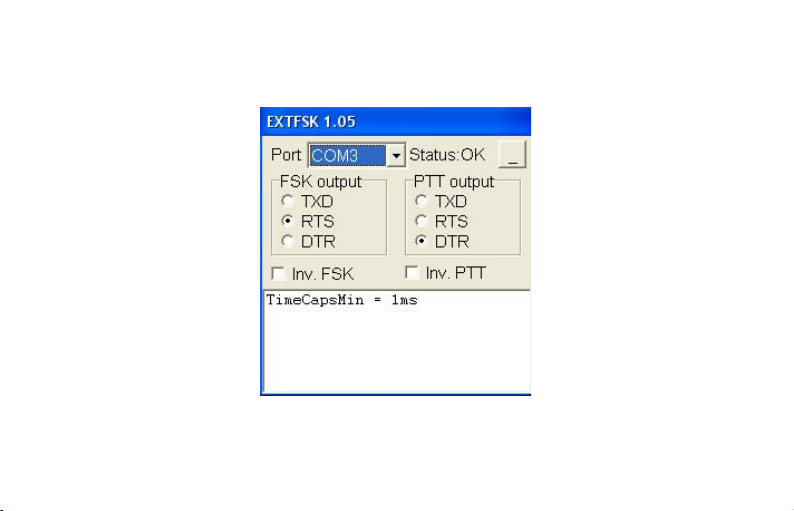

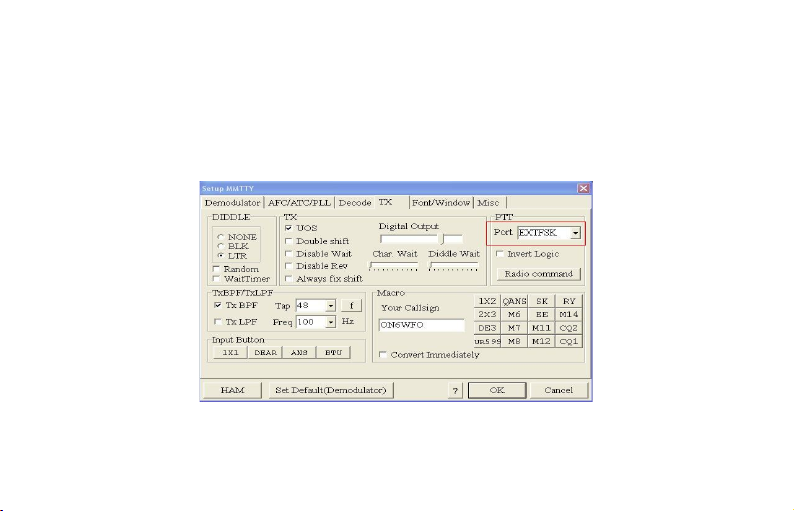

•Support FSK operation.
Some radio interfaces only support AFSK for RTTY operation. The SB-2000 MK2 supports not only the
AFSK but also the FSK.
