Challenger Lifts SX14-ER Instruction manual

Rev. 10/30/20
Installation, Operation & Maintenance Manual
Scissor Alignment Lift
Model SX14 & SX14R
14,000 lbs. Capacity
7,000 LBS.PER RUNWAY
2311 South Park Rd Louisville, Kentucky 40219
Email:[email protected] Web site:www.challengerlifts.com
Office: 800-648-5438 / 502-625-0700 Fax: [phone]
IMPORTANT: READ THIS MANUAL COMPLETELY BEFORE
INSTALLING or OPERATING LIFT

2

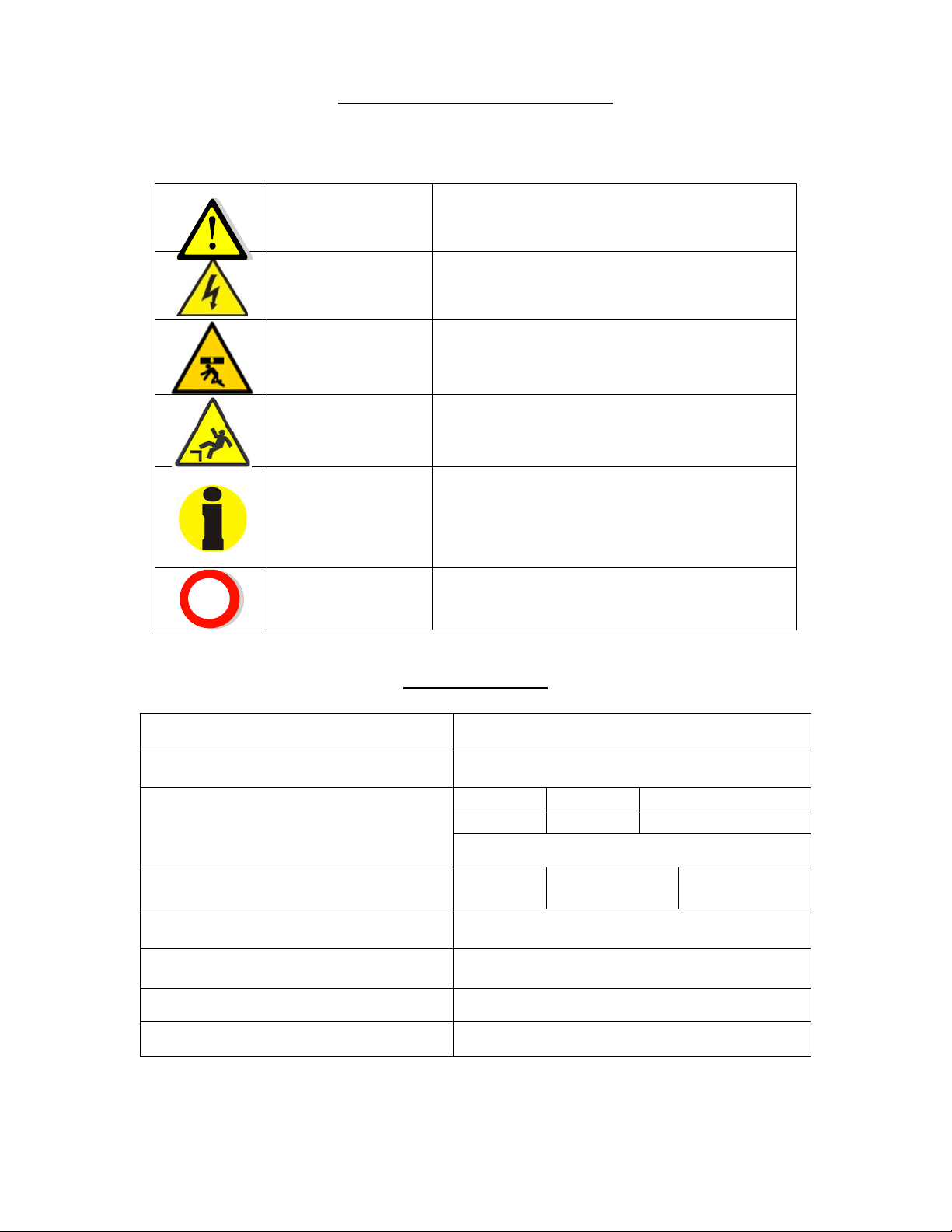

Symbols used in the Manual
The signage (ISO) indicated below is used within this manual to focus attention on those operations
that must be performed carefully in order to guarantee safety during installation.
GENERAL
DANGER
Indicates that, when performing the operation,
great care must be taken to prevent the onset of
events that could cause serious injury or damage.
ELECTRICAL
DANGER
Indicates that, when performing the operation, an
event (of an electrical nature) could arise leading
to injury or damage.
DANGER OF
PINCHING
Indicates that, during installation or transport of
system components, suitable lift equipment must
be used and utmost attention applied.
DANGER OF
FALLING
Indicates that, during installation, the operator
crosses zones where there is high risk of falling;
always be particularly careful.
IMPORTANT
Indicates that the indications or instructions
described in the text must be followed to the
letter. Non-compliance with the indications can be
dangerous for the operator and can damage the
system.
PROHIBITION Indicates that the specific activity or operating
sequence must be avoided
Technical Data
LIFT CAPACITY 14,000 lbs.
MOTOR POWER 3 HP
ELECTRIC POWER SUPPLY
1 Ph 208-240V 23 A
3 Ph 230V 13 A
60 Hz
PNEUMATIC SUPPLY 90-120 PSI 20 CFM Filtered and
lubricated
MAXIMUM HYDRAULIC PRESSURE 4150 PSI
QUANTITY OF OIL 5.3 Gallons (20 Liters)
UPSTROKE/DOWNSTROKE TIME 75 sec / 20 sec
MIN/MAX OPERATING TEMPERATURE -10 / +40 °C

3
GENERAL DIMENSIONS
See Figure 1 SX14 (Surface Mount) SX14R (Flush Mount)
AOverall Width 91 ¼”
BOverall Length
265”
w/ Std. Ramps
(62 ¾”)
283”
w/ Ext. Ramps
(80 ¾”)
219”
CDistance between Platforms* 40”
DPlatform Width 25 ½”
E Raise Height 77” 66 ½”
FLowered Height 10 ½” -
GMax Wheelbase** 183”
HMax Wheel Alignment 176”
I Min 4-Wheel Alignment 70 ¾”
JDistance to Controls Width 24” min. - 64” max.
K Distance to Controls Length 40” min. - 74” max.
Minimum Recommended Bay Size 14’ x 28’
Lift Shipping Dimensions & Weight 212”L x 32”W x 50”H, 6,800 lbs
Console Shipping Dimensions & Weight 17”L x 24”W x 52”H, 330 lbs
* Dimension between Runway Sidewalls, not Jack Rails.
** Wheelbase is based on a tire diameter of 30”
DRIVE ON
GRADE
LEVEL
SX14R SX14 STD. RAMPS SX14
EXT. RAMPS
Fig. 1 – General Layout

4
LIFT BASE LAYOUT
Fig. 2 – Base Layout
PIT LAYOUT
Fig. 3 – Pit Details

5

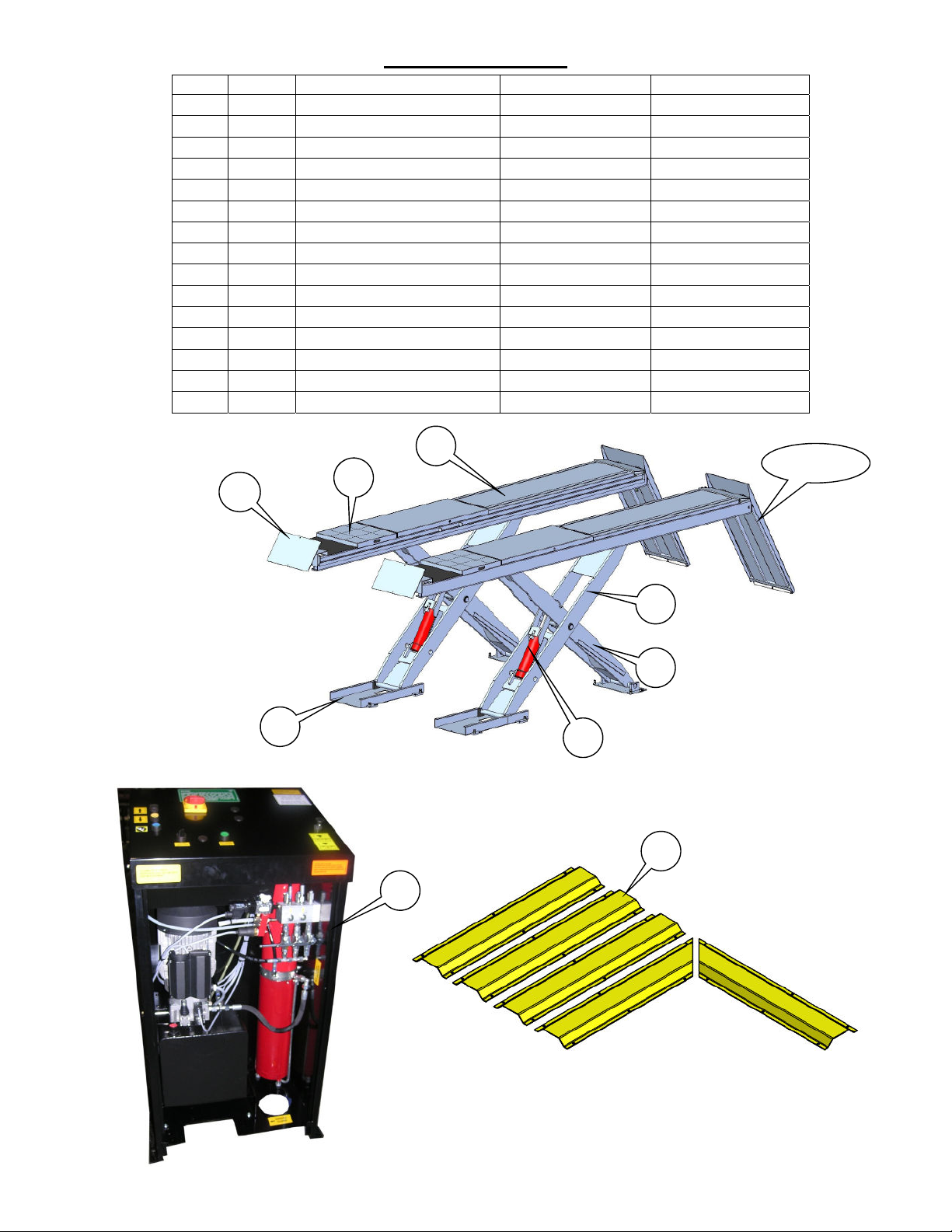

COMPONENT LIST
ITEM QTY. DESCRIPTION ABOVE GROUND FLUSH MOUNT
1 1 External Scissors X X
2 1 Internal Scissors X X
3 2 Base X X
4 2 Hydraulic Cylinder X X
5 2 Recess X X
6 2 Oscillating Plates X X
7 2 Front Stop X X
8 2 Access Ramps X
9 1 Control Console X X
10 3/1/1 Protective Pipe Ducts X
11 2 Union Platform X
12 1 Hardware Box X X
13 2 7K Rolling Jacks X X
14 2 Radius Gauges X X
15 1 3 Phase Control Console Optional Optional
3 4
1
2
9
5
6 8 / 11
7
10
