Chamberlain WAXMASTER 900W User manual

{CHAMBERLAIN
WAXMASTER®
RANDOM ORBITAL
WAXER and POLISHER
OWNERS MANUAL
////""
MODEL 900W
Type 2
HEAVY DUTY MODEL 110OW
Type 2
CAUTION: U
Read Rules for
::;*.s:;:z::2::s ®L
Carefully. Units
are Double Insulated.
Use Non-Abrasive
Compounds Only.
CARTON CONTENTS: WaxerIPollsher, 2WaxlngIPoI|sh|ng Bonnets, 2-1 oz. packs Professional Wax,
2-fl. oz. Professional Polishing Solution, 2-fl. oz. Professional car Wash Solution.
SAVE THIS MANUAL FOR FUTURE REFERENCE

SAVE THESE INSTRUCTIONS
WARNING: WHEN USING ELECTRIC TOOLS BASIC SAFETY PRECAUTIONS, INCLUDING THE FOLLOWING,
SHOULD ALWAYS BE FOLLOWED. TO REDUCE RISKS OF FIRE, ELECTRIC SHOCK AND PERSONAL
INJURY, START BY READING THESE IMPORTANT SAFETY RULES.
DOUBLE INSULATION - SAFETY PLUS...
Double insulated construction and shock proof housing assure protection from electrical shock with an extra layer of electrical insulation plus
the primary insulation system. Even if the primary system fails, the secondary barrier protects you. Double insulated tools do not require three-
wire grounding. This tool is equipped with a two prong plug and does not require a grounding adapter.
GUARD AGAINST ELECTRIC SHOCK. OPERATE THE BUFFERIPOLISHER ONLY IN ACLEAN, DRY AREA. RUBBER FOOTWEAR IS RECOM-
MENDED WHEN WORKING OUTDOORS.
AN EXTENSION CORD CAN BE PURCHASED FROM YOUR LOCAL HARDWARE STORE (OR CALL OUR TOLL FREE NUMBER LISTED
BELOW). REPAIR OR REPLACE DAMAGED CORDS.
DO NOT OPERATE TOOL IN PRESENCE OF FLAMMABLE LIQUIDS OR GASES.
DO NOT PUT FINGERS, OBJECTS OR TOOLS BETWEEN GUARD AND PAD HOLDER WHILE MACHINE IS RUNNING. ALWAYS START
AND STOP POLISHER AGAINST CAR SURFACE. OTHERWISE THE BONNET COULD BE THROWN FROM THE PAD.
KEEP CHILDREN AT ASAFE DISTANCE FROM THE WORK AREA.
AVOID XCCIDENTAL STARTING. KEEP FINGERS AWAY FROM SWITCH WHEN CARRYING PLUGGED-IN POLISHER. DISCONNECT TOOL
WHEN NOT IN USE OR WHEN SERVICING WITH REPLACEMENT PARTS.
ALWAYS WEAR EYE PROTECTION AND PROPER CLOTHING (NOT LOOSE OR BULKY). DON'T WEAR ANY LOOSE JEWELRY. DON'T
OVERREACH. KEEP PROPER FOOTING AND BALANCE AT ALL TIMES.
MAINTAIN TOOL WITH CARE. KEEP HANDLE DRY, CLEAN AND FREE FROM OIL AND GREASE. IF YOUR POLISHER NEEDS REPAIR,
USE ONLY IDENTICAL REPLACEMENT PARTS ILLUSTRATED AND LISTED ON PAGES 5AND 6.
DON'T ABUSE THE CORD. NEVER CARRY THE TOOL BY ITS CORD OR YANK IT TO DISCONNECT IT FROM THE RECEPTACLE. KEEP
CORD FROM HEAT, OIL AND SHARP EDGES. INSPECT CORD PERIODICALLY AND IF DAMAGED CALL THE TOLL FREE NUMBER LISTED
BELOW FOR REPAIR INFORMATION.
WHEN NOT IN USE KEEP TOOL LOCKED UP (OR HIGH AND DRY), AND OUT OF THE REACH OF CHILDREN
DON'T FORCE THE TOOL. GRIP THE POLISHER FIRMLY BUT WITHOUT DOWNWARD PRESSURE. PRESSING TOO HARD WILL SLOW
DOWN THE MACHINE'S MOVEMENT AND AFFECT THE QUALITY OF THE WORK.
DO NOT OPERATE TOOL IF GUARD IS DAMAGED OR IF THE SWITCH DOES NOT TURN TOOL ON AND OFF. REPLACEMENT PARTS
ARE AVAILABLE AS SHOWN ON PAGES 5AND 6. CALL OUR TOLL FREE NUMBER LISTED BELOW FOR REPAIR INFORMATION.
SAVE THESE INSTRUCTIONS
CARE AND MAINTENANCE OF YOUR POLISHER
1. Bonnets can be machine-washed in cold water with a small amount of detergent on afew minute cycle; then machinedried at medium
heat. HOWEVER, hand washing and air drying is recommended for longer bonnet life.
2. To prolong pad lite and shape, always store polisher with pad face up.
Remove bonnet from pad when polisher is not in use so that pad can dry out and retain its original shape.
. The cleaning and waxing products included with your polisher will easily do a large car. Badly oxidized paint may require several applica-
tions. Replacement supplies in larger size containers are available. (See Page 7). DO NOT USE ABRASIVE COMPOUNDS.
5. The most common error Is applying too much wax and professional polishing solution. If pad becomes saturated, It will not last
as long. AND POLISHING WILL BE MORE DIFFICULT AND TAKE LONGER.
It bonnet continually comes off pad, you may be using too much wax and professional polishing solution.
. If wax seems difficult to buff, you may have used too much wax.
. Use only mild soap and a damp sponge to clean polisher. Do not immerse any part in liquid. If polisher needs repair, use only identical
replacement parts illustrated and listed on Pages 5and 6.
es»
a:a~Ip)
CAR CARE TIPS
. Was and polish the car 3to 4times per year to ensure paint protection.
. Wash the car at least every 2weeks, preferably with Waxmaster Professional Car Wash Solution which will not harm the finish or strip
the wax. Avoid washing with household detergents.
Wash with a clean sponge and drywith a soft, clean terry cloth towel to prevent dirt from scratching the paint. Start on the top and work down.
. Remove bugs, bird droppings, tree sap and tar daily from the car's surface.
. Make sure the surface of the car is cool before washing.
Avoid parking near sprinklers. Water spots are difficult to remove.
. To keep glass cleaner chemicals away from painted surfaces, spray onto a towel, not directly on the window.
4
M
xlpxcnhw
FOR IMMEDIATE SERVICE CALL OUR S.O.S. HOTLINE "'
1-800-528-9131
HOURS: 7:00 am. TO 3:30 p.m. (Mountain Standard Time)
MONDAY Through SATURDAY

WAXERIPOLISHER INSTRUCTIONS
Before you begin, make sure your car is clean and dry. Use A
the car wash liquidprovided. Thework areashouldbedryalso.
1. Place clean bonnet on pad as shown (A). Make sure the
elastic is tucked down securely and evenly around under-
side of pad.
2. Spread about a heaping teaspoonful of wax evenly over B
the entire surface of the bonnet (B).
3 Apply aboutthreeswirls of professional polishing solution overthe wax on bonnet(C). DO NOTAPPLY DIRECTLYTO CAR.This
first application should do 1/3 of the car. For the second and third applications of wax and professional polishing solution,
use half the quantity of each stated above. Bonnet will not absorb as much when reloading.
C
4. ALWAYSSTARTANDSTOPTHEPOUSHERONORAGAINST
THE CAR SURFACE (D).
D
Place extension cord over shoulder and do flat surfaces first-
hood. trunkand roof. Cover areas quicklywith broad, sweeping
strokes in a criss-cross pattern. DO NOT PRESS DOWN ON
POLISHER. THE MACHINE’S ACTION, NOT PRESSURE,
DOES THE BEST JOB.

WAXER/POLISHEH INSTRUCTIONS (continued)
5. After flat surfaces are covered with wax and professional
polishingsolution, do sides of car (E). If necessary, remove
road tar with a general cleaner before polishing. Also, re-
move excess grease spots, bug stains, etc. Hold polisher
as shown. Let oord hang free. It is not necessary to use
criss-cross motion on doors and fenders.
G
7. Put a clean bonnet on the polisher (H). Buff the car surfaces in the same order as the wax and polishing solutions were
applied. Use long, sweeping strokes in a criss-cross pattern. Do not press hard. Let the polisher do the work (I).

MODEL 900W
WAXMASTER ONE YEAR WARRANTY
This product carries a one year warranty from the date of purchase against defective pans and workmanship. Warranty
does not cover damage due to mishandling or abuse.
Ifthisproduct isusedfor commercial or rental purposes, thiswarrantyappliesforonly90 daysfrom date ofpurchase.
NOTE: FOAM SPONGE RUBBER PAD AND BONNETSARENOT INCLUDED IN THEWARRANTY. THEY ARE REPLACEMENT ITEMS.
Waxing Corporation of America (Waxcoa)
The Model Number is located in top of the handle. Always mention the model number when calling our S.O.S. Hotline
Number 1-800-528-9131 for repair parts or assistance. RATING: Model 900W
Motor: RPM ............. ..3100 @120V (Bench Speed)
Oscillations per minute ............... ..2400 (No Load)
AMPS ................................. .. .65 (Working Load)
Weight .................... ................ ..‘ ..... ..5 lb. 5 oz.
PARTS LIST
KEY PART KEY PART
NO. NO. DESCRIPTION QTY. NO. NO. DESCRIPTION QTY.
7D 21-500 Armature
126-200 Housing Top 1 1
225-500 Cord strain Relief Assembly 17E 23-200 Magnet. Yoke Assembly 1
2A 25.001 Wirg Lead 17G 23-000 Motor Plate Assy. with Bearing 1
316-200 Cord Retainer 17H 18-501 Motor Bearing 1
590-100 Switch Set 1810300 Guard 1
626-000 Housing Bottom 1917000 Coumerweight 1
721.000 Motor Assgmbw 111 27-000 PadIPadholder Assembly
7A 2a-ooa Motor Through Bolts (2) ("'“5‘°'“°'°") ‘
washer Lock washers 211A 27-200 Pad Holder 1
7B 22-ooo End Bell Msy. with Brush Set 111B 27400 Pad 1
7C 90-mo Motor Brush Sat 13 18-200 Left-Handed Threaded BOR 5/16'1
(Brushes. Clips. Springs) 114 90-500 Fastener Pack 1
58-001 Owners Manual 1

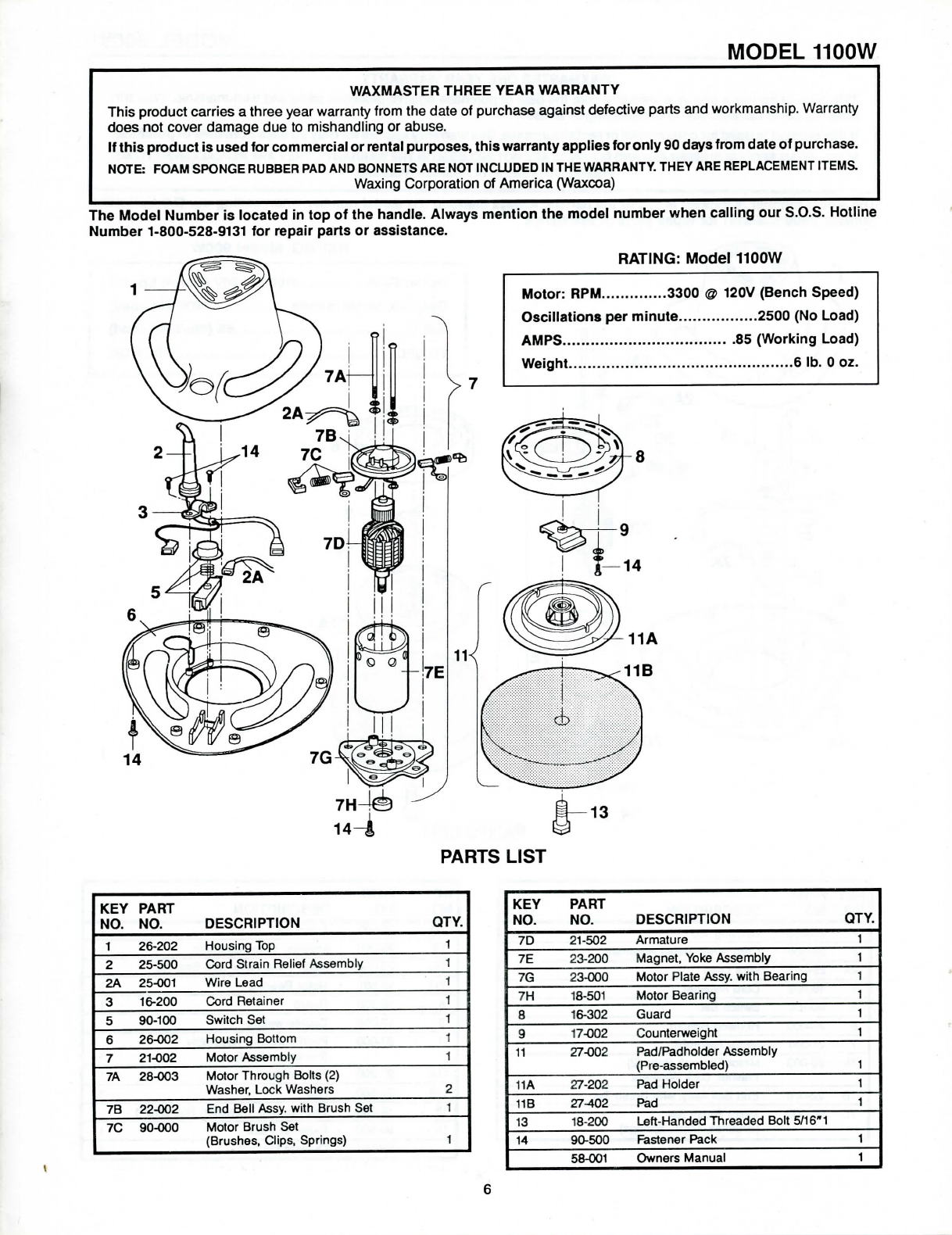

MODEL 1100W
WAXMASTER THREE YEAR WARRANTY
This product carries a three year warranty from the date of purchase against defective parts and workmanship. Warranty
does not cover damage due to mishandling or abuse.
Ifthis product is used for commercial or rental purposes, thiswarranty applies foronly 90 days from date of purchase.
NOTE: FOAM SPONGE RUBBER PAD AND BONNETS ARE NOT INCIJJDED IN THE WARRANTY. THEY ARE REPLACEMENT ITEMS.
Waxing Corporation of America (Waxooa)
The Model Number is located in top of the handle. Always mention the model number when calling our S.0.S. Hotline
Number 1-800-528-9131 for repair parts or assistance.
RATING: Model 1100W
Motor: RPM ............ ..3300 @120V (Bench Speed)
Oscillations per minute ............... ..2500 (No Load)
AMPS ................................. .. .85 (Working Load)
Weight .............................................. ..6 lb. 0 oz.
PARTS LIST
KEY pAm' KEY PART
No_ No_ oEscn|pT|oN QTY. NO. NO. DESCRIPTION QTY.
125-202 Housing Top 17D 21-502 Armature 1
225-500 Cord Strain Relief Assembly 17E 23-200 Ma9ne1.Y°ke Assembly 1
2A 25.001 wire Lead 17G 23-000 Motor Plate Assy. with Bearing 1
315.200 Cord Retainer 17H 18-501 Motor Bearing 1
590-100 Switch Set 1810302 Guard 1
626-002 Housing Bottom 1917-002 Counterweight 1
721.002 M010r A5501-nb1y 111 27-002 Pad/Padholder Assembly
7A 28-O03 Motor Through Bolts (2) ‘P"°'a5‘°'“b'°°) 1
Washer, Lock Washers 2 “A 37402 Pad H°'d°' 1
73 22-002 End Bell Assy. with Brush Set 1118 27-402 Pad 1
70 90.000 M010, 3,051, 391 13 18-200 Left-Handed Threaded Bolt 5/16”1
(Brushes, Clips. Springs) 114 90.500 Fastener Pack 1
58001 Owners Manual 1
