OPERATOR'S MANUAL
MODEL #100535
27 IN. 2-STAGE SNOWBLOWER
REV 20200821 Champion Power Equipment, Inc., Santa Fe Springs, CA USA
or visit championpowerequipment.com
READ AND SAVE THIS MANUAL. This manual contains important safety precautions which should be read and understood before operating the product. Failure to
do so could result in serious injury. This manual should remain with the product.
Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication, but are subject to change without notice.
REGISTER YOUR PRODUCT ONLINE
at championpowerequipment.com

100535 - 27 IN. 2-STAGE SNOWBLOWER TABLE OF CONTENTS
2
TABLE OF CONTENTS
Introduction...................................................3
Safety Definitions ..........................................3
Important Safety Instructions .......................4
Fuel Safety ........................................................ 4
Training ............................................................ 5
Preparation For Use ............................................... 5
Operation .......................................................... 6
Clearing a Clogged Discharge Chute ............................. 6
Maintenance and Storage ........................................ 6
Safety Labels...................................................... 7

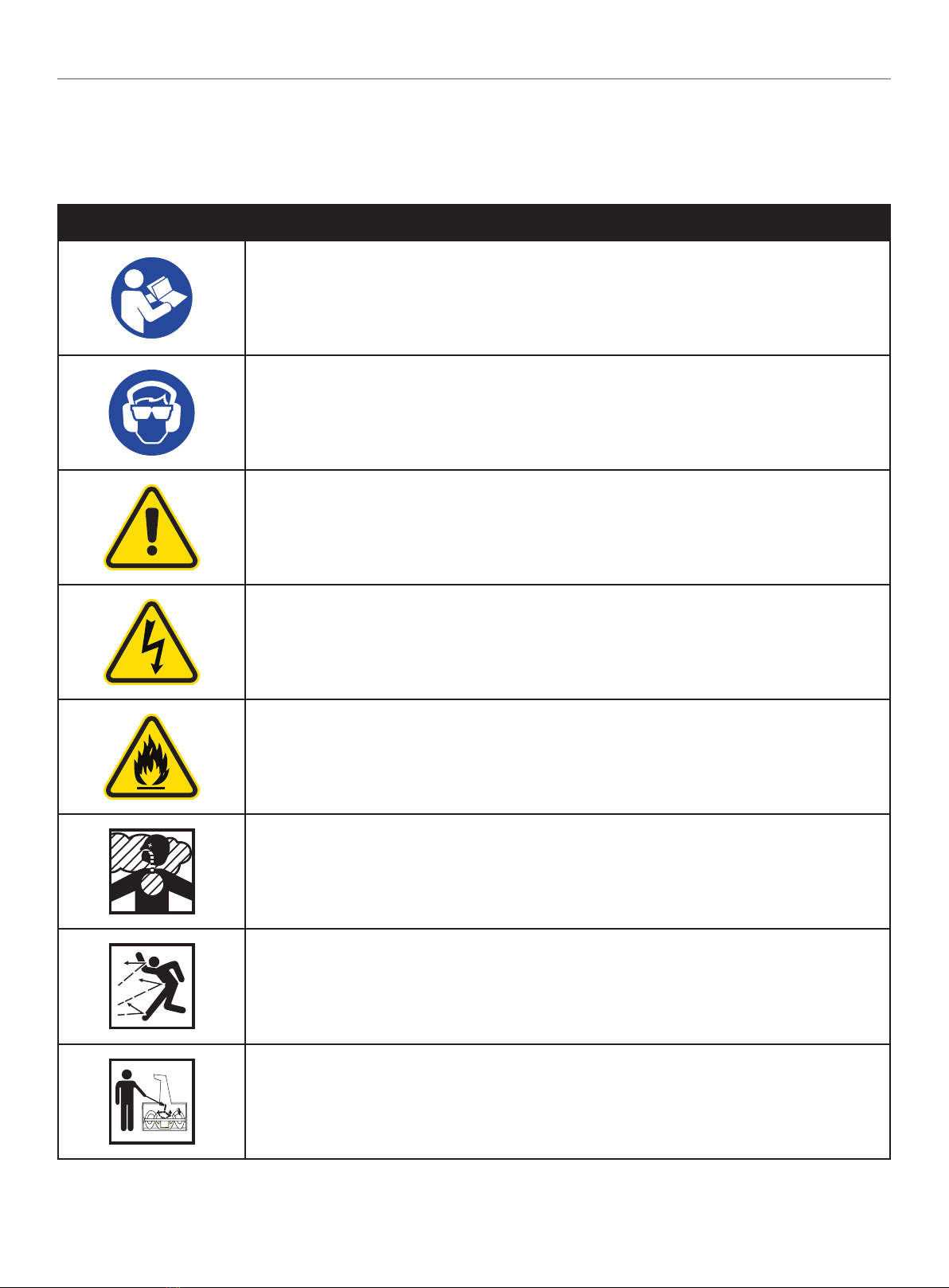

Safety Symbols.................................................... 8

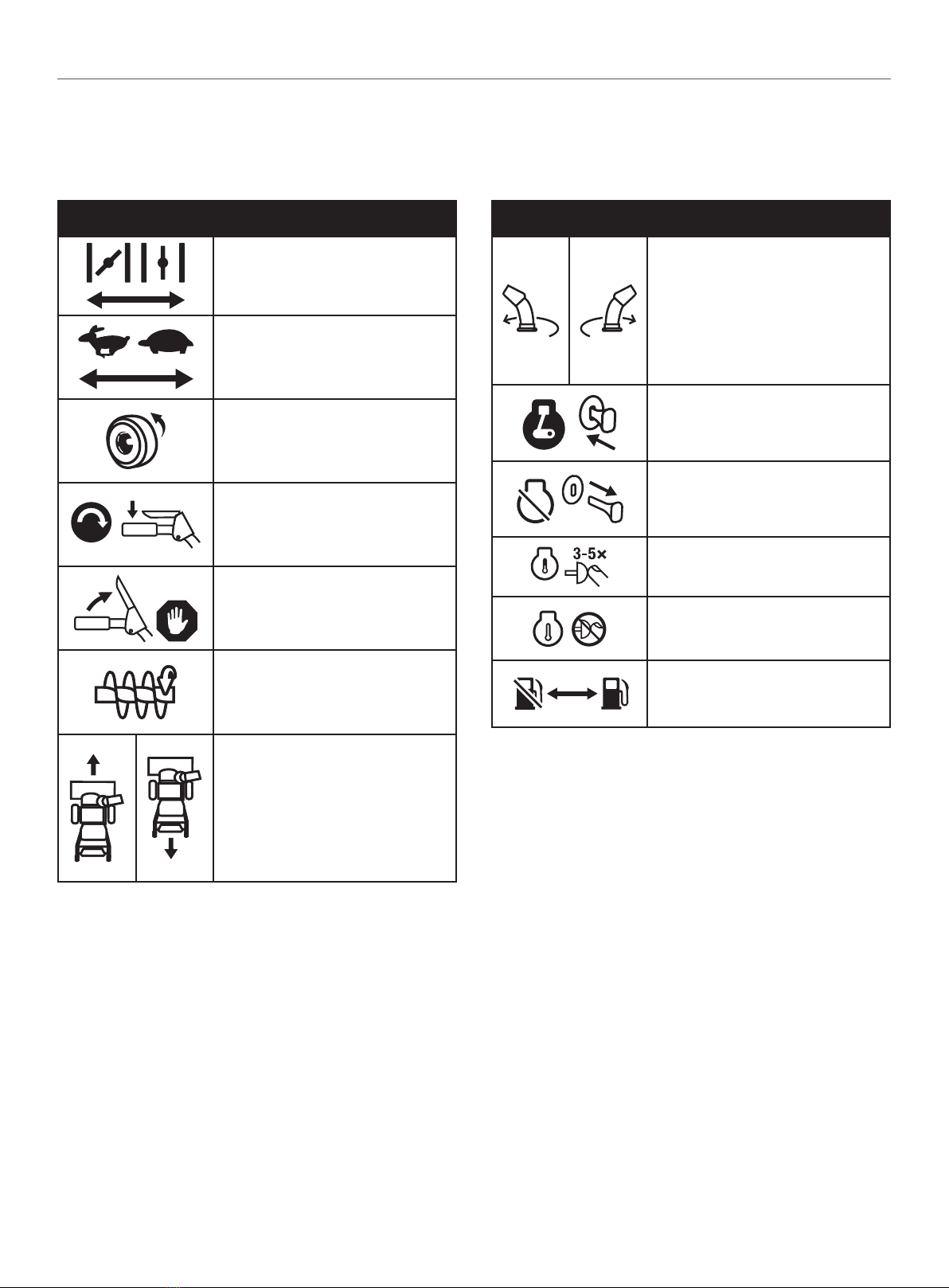

Operation Symbols ............................................... 10

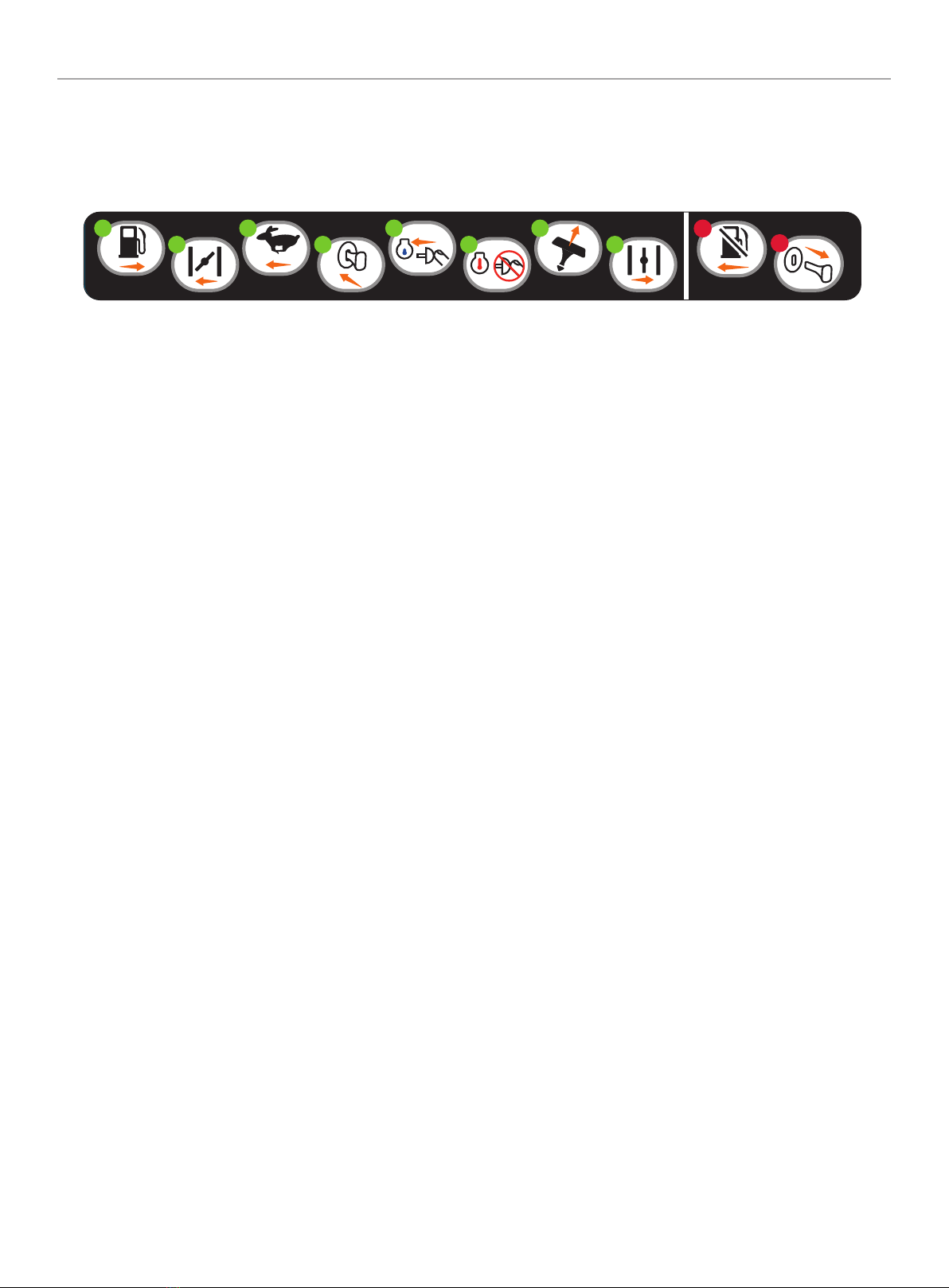

Quickstart Label Symbols........................................ 11

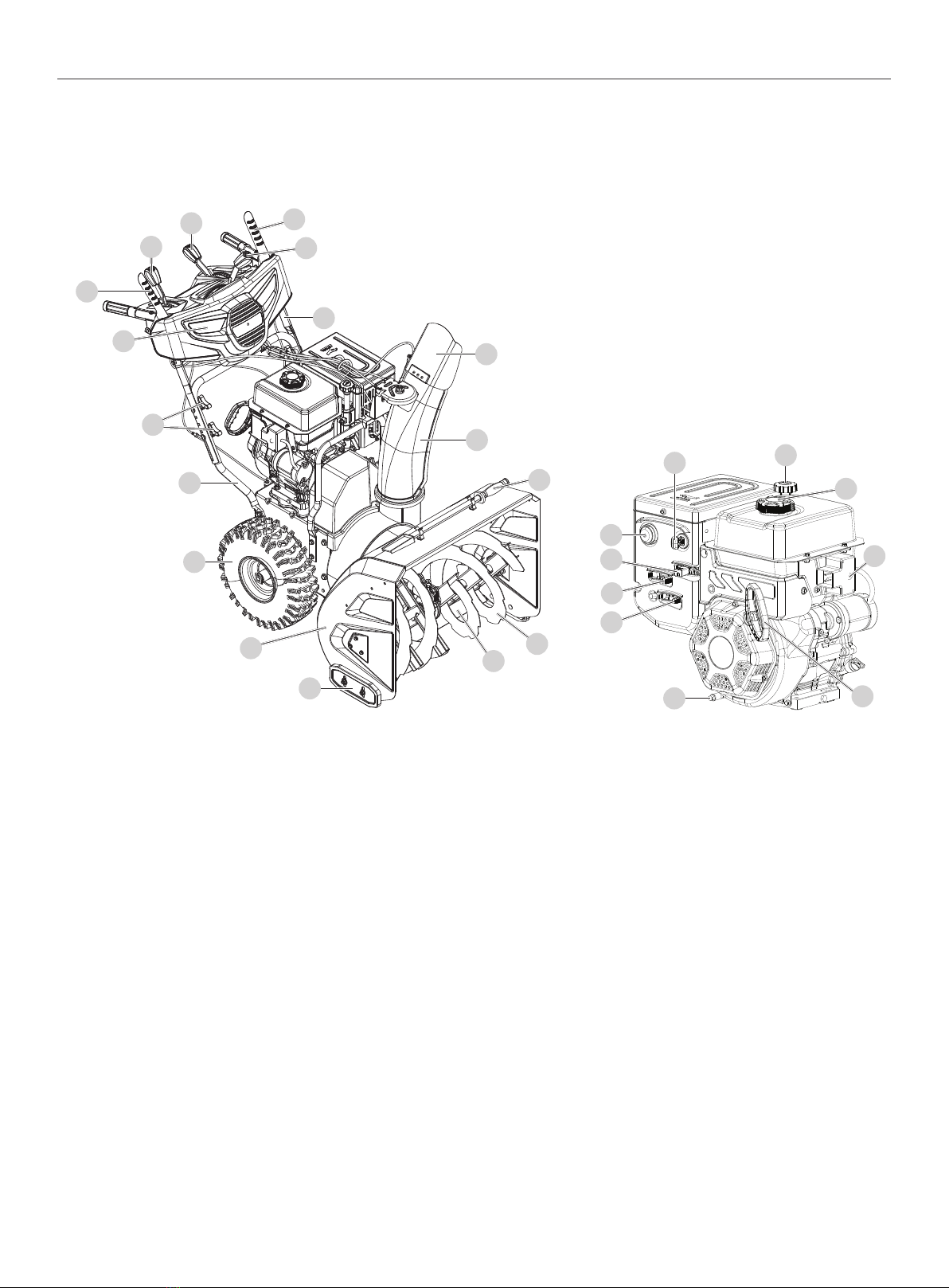

Controls and Features ................................. 12
Snowblower ...................................................... 12
Engine ............................................................ 12

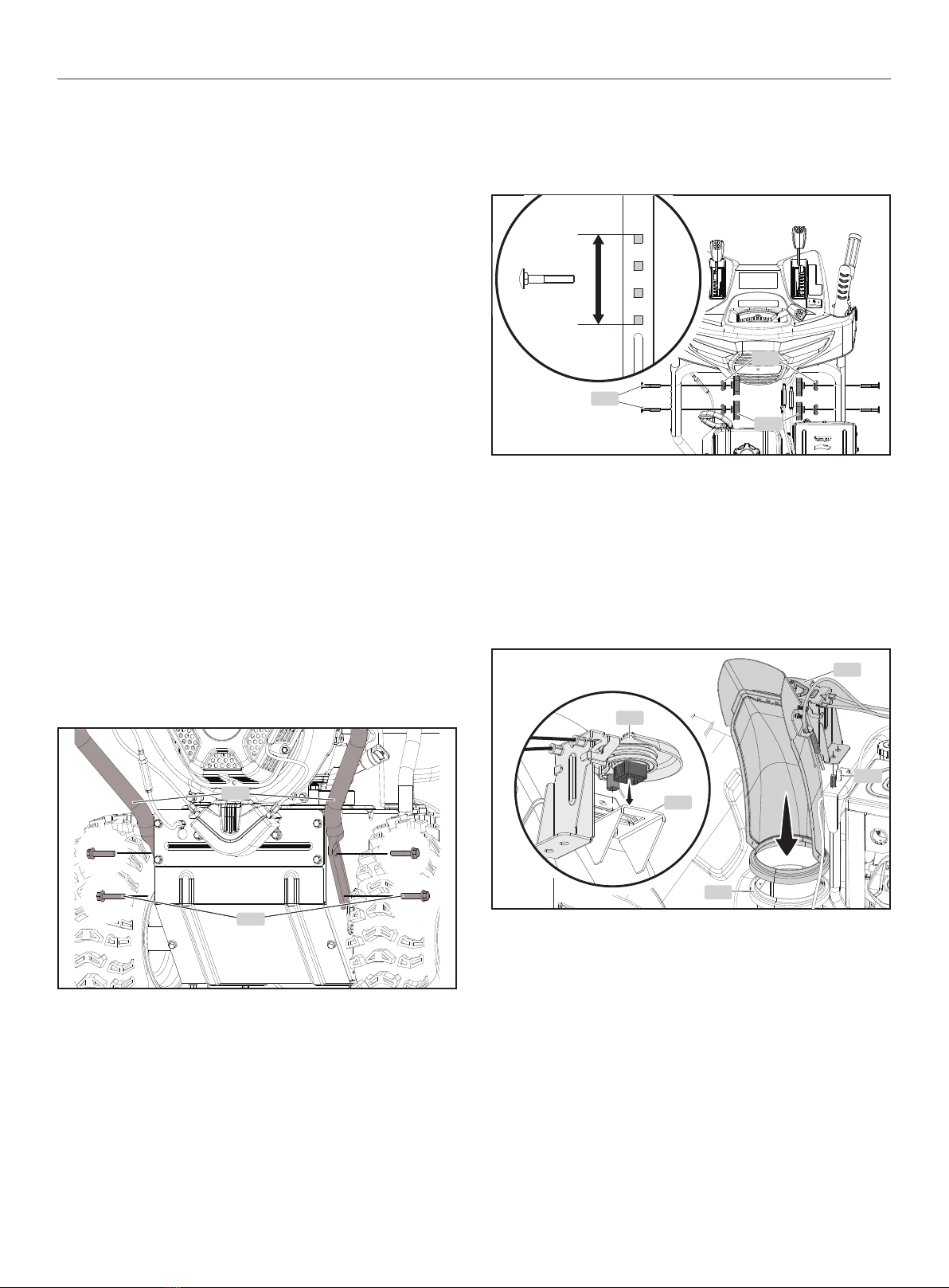

Assembly ..................................................... 14
Unpacking ........................................................ 14
Handle ............................................................ 14
Add Engine Oil.................................................... 15
Add Fuel .......................................................... 16
Operation..................................................... 17
Before Operation ................................................. 17
Check the Engine................................................. 17

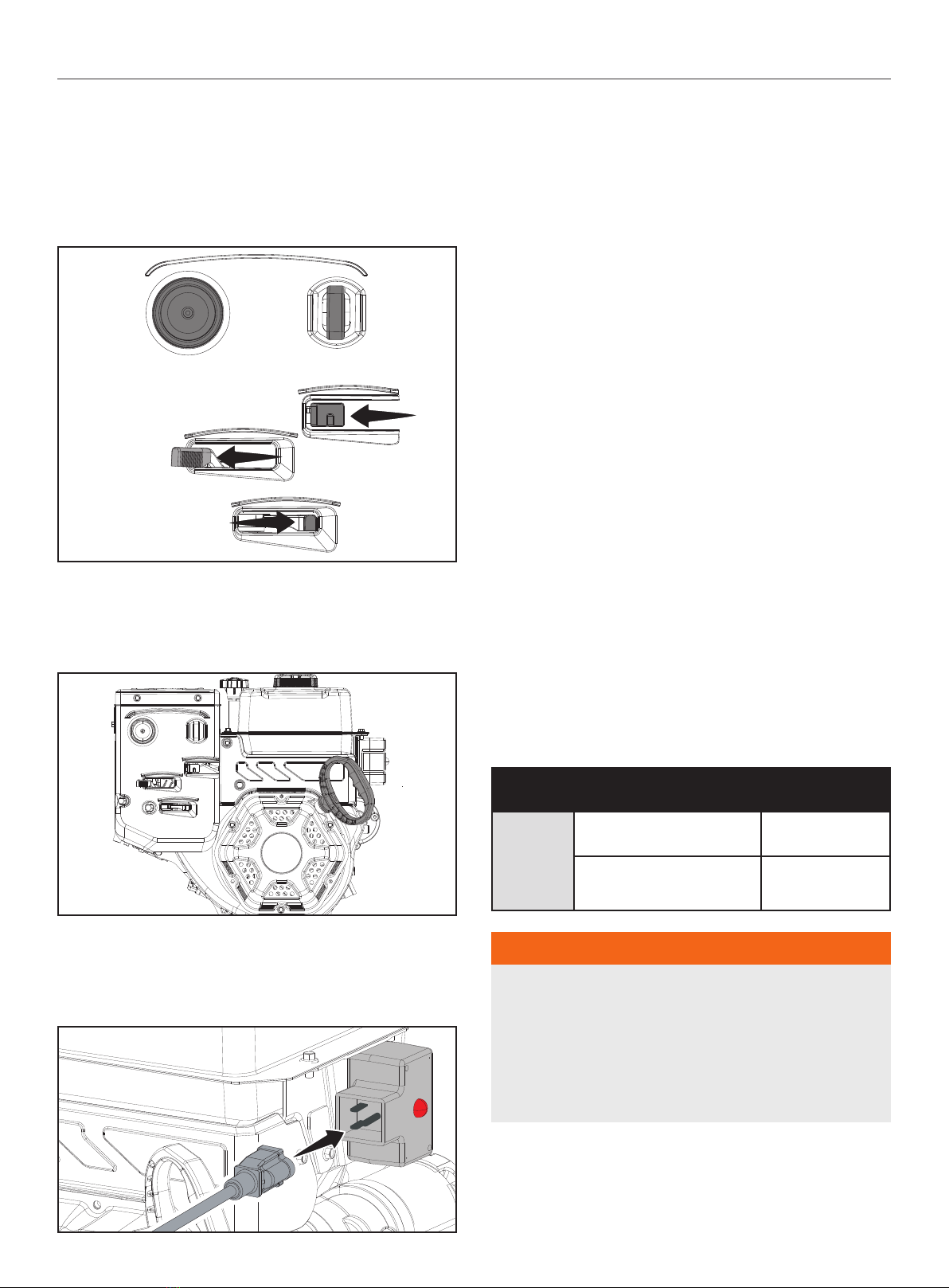

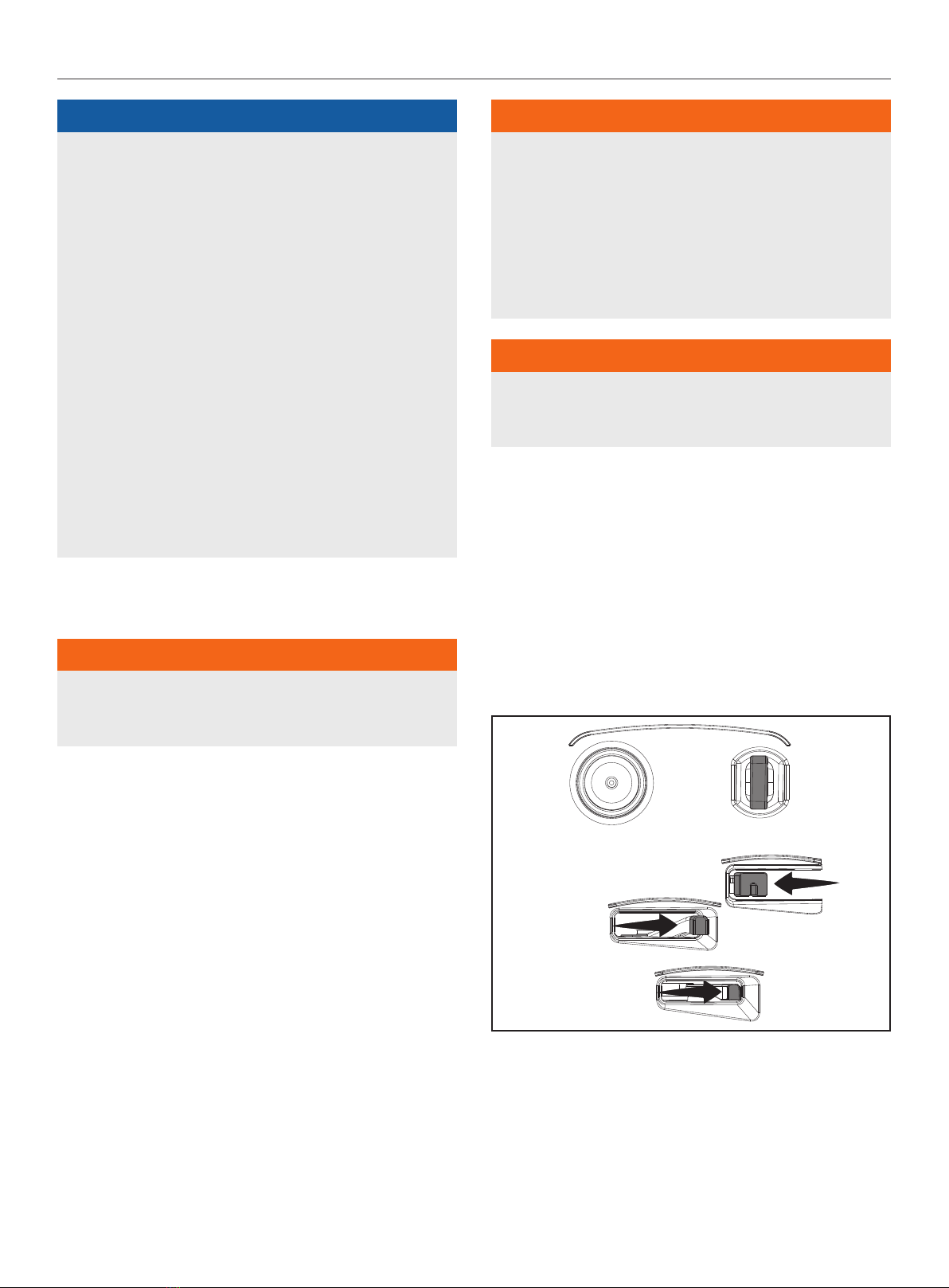

Starting the Engine............................................... 17
Stopping the Engine.............................................. 18
Operation at High Altitude ....................................... 18
Control Levers.................................................... 19
Adjusting the Snow Discharge Direction and Height............ 20
Clearing a Clogged Discharge Chute ............................ 20
Adjusting the Snow Shoes ....................................... 20
Power Turn Steering Technology ................................ 20
After Use.......................................................... 21
Maintenance ................................................21
Engine Maintenance ............................................. 21
Lubrication ....................................................... 21
Long-Term Storage ......................................22
Transporting...................................................... 22
Specifications..............................................23
Snowblower Specifications ...................................... 23
Engine Specifications ............................................ 23
Oil Specifications................................................. 23
Fuel Specifications ............................................... 23
Troubleshooting...........................................24

100535 - 27 IN. 2-STAGE SNOWBLOWER INTRODUCTION
3
INTRODUCTION
Congratulations on your purchase of a Champion Power Equipment
(CPE) product. CPE designs, builds, and supports all of our
products to strict specifications and guidelines. With proper
product knowledge, safe use, and regular maintenance, this
product should bring years of satisfying service.
Every effort has been made to ensure the accuracy and
completeness of the information in this manual at the time of
publication, and we reserve the right to change, alter and/or
improve the product and this document at any time without prior
notice.
Since CPE highly values how our products are designed,
manufactured, operated and are serviced, and also highly value
your safety and the safety of others, we would like you to take the
time to review this product manual and other product materials
thoroughly and be fully aware and knowledgeable of the assembly,
operation, dangers and maintenance of the product before use.
Fully familiarize yourself, and make sure others who plan on
operating the product fully familiarize themselves too, with the
proper safety and operation procedures before each use. Please
always exercise common sense and always err on the side
of caution when operating the product to ensure no accident,
property damage, or injury occurs. We want you to continue to use
and be satisfied with your CPE product for years to come.
When contacting CPE about parts and/or service, you will need to
supply the complete model and serial numbers of your product.
Transcribe the information found on your product’s nameplate
label to the table below
CPE TECHNICAL SUPPORT TEAM
1-877-338-0999
MODEL NUMBER
100535
SERIAL NUMBER
DATE OF PURCHASE
PURCHASE LOCATION
SAFETY DEFINITIONS
The purpose of safety symbols is to attract your attention to
possible dangers. The safety symbols, and their explanations,
deserve your careful attention and understanding. The safety
warnings do not by themselves eliminate any danger. The
instructions or warnings they give are not substitutes for proper
accident prevention measures.
DANGER
DANGER indicates a hazardous situation which,if not avoided,
will result in death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
NOTICE
NOTICE indicates information considered important, but not
hazard-related (e.g., messages relating to property damage).

100535 - 27 IN. 2-STAGE SNOWBLOWER IMPORTANT SAFETY INSTRUCTIONS
4
IMPORTANT SAFETY INSTRUCTIONS
WARNING
Cancer and Reproductive Harm – www.P65Warnings.ca.gov
DANGER
Engine exhaust contains carbon monoxide, a colorless,
odorless, poison gas. Breathing carbon monoxide will cause
nausea, dizziness, fainting or death. If you start to feel dizzy or
weak, get to fresh air immediately.
Operate product outdoors only in a well ventilated area.
DO NOT operate the product inside any building, including
garages or sheds.
DO NOT allow exhaust fumes to enter a confined area through
windows, doors, vents or other openings.
DANGER
Using an engine indoors CAN KILL YOU IN MINUTES. Engine
exhaust contains carbon monoxide. This is a poison you cannot
see or smell.
NEVER use inside a home or garage, EVEN IF doors and
windows are open.
ONLY use OUTSIDE and far away from windows, doors,
and vents.
Install battery-operated carbon monoxide alarms or plug-in
carbon monoxide alarms with battery back-up according to the
manufacturer’s instructions.
DANGER
Rotating parts can entangle hands, feet, hair, clothing and/or
accessories. Traumatic amputation or severe laceration can
result.
Keep hands and feet away from rotating parts.
Tie up long hair and remove jewelry.
Operate equipment with guards in place.
DO NOT wear loose-fitting clothing, dangling drawstrings or
items that could become caught.
WARNING
Sparks can result in fire or electrical shock.
When servicing the engine:
Disconnect the spark plug wire and place it where it cannot
contact the plug.
DO NOT check for spark with the plug removed.
Use only approved spark plug testers.
WARNING
Running engines produce heat. Severe burns can occur on
contact. Combustible material can catch fire on contact.
DO NOT touch hot surfaces.
Avoid contact with hot exhaust gases.
Allow equipment to cool before touching.
Fuel Safety
DANGER
GASOLINE AND GASOLINE VAPORS ARE HIGHLY
FLAMMABLE AND EXPLOSIVE.
Fire or explosion can cause severe burns or death.
Gasoline and gasoline vapors:
–Gasoline is highly flammable and explosive.
–Gasoline can cause a fire or explosion if ignited.
–Gasoline is a liquid fuel but it’s vapors can ignite.
–Gasoline is a skin irritant and needs to be cleaned up
immediately if spilled on skin or clothes.
–Gasoline has a distinctive odor, this will help detect potential
leaks quickly.
–Gasoline expands or contracts with ambient temperatures.
Never fill the gasoline tank to full capacity, as gasoline needs
room to expand when temperatures rise.
–In the case of any petroleum gasoline fire, flames should never
be extinguished unless the fuel supply valve can be turned
OFF. By not doing so, if a fire is extinguished and the supply
of fuel is not turned OFF, an explosion hazard could be created.
When adding or removing gasoline:
–DO NOT light or smoke cigarettes.
–Turn the snowblower off and let cool for a minimum of two
minutes before removing the gasoline cap. Loosen gasoline
cap to relieve pressure from the gasoline tank.

100535 - 27 IN. 2-STAGE SNOWBLOWER IMPORTANT SAFETY INSTRUCTIONS
5
–Only fill or drain gasoline outdoors in a well-ventilated area.
–DO NOT pump gasoline directly into the snowblower at the gas
station. Always use an approved fuel container to transfer the
gasoline to the snowblower.
–DO NOT overfill the gasoline tank. Keep fuel level at least
½ inch below bottom of filler neck to provide space for fuel
expansion.
–Never remove gas cap or add fuel while the engine is hot or
running.
–When gasoline spills, wipe the fuel off the engine and
equipment. Move the snowblower from fuel spill area to
another area.
–Wait 5 minutes before starting the engine.
–Always keep gasoline away from sparks, open flames, pilot
lights, heat and other sources of ignition.
When starting the engine:
–DO NOT attempt to start a damaged snowblower.
–Always make certain that the gasoline cap, air filter, spark
plug, fuel lines and exhaust system are properly secured,
connected and in place.
–Always allow spilled gasoline to evaporate fully before
attempting to start the engine.
–Make certain that the snowblower is resting firmly on level
ground.
When operating the snowblower:
–DO NOT tip the snowblower during operation.
–DO NOT tip the snowblower or allow fuel or oil to spill.
When transporting or servicing the snowblower:
–Make certain that the fuel valve is in the OFF position and the
gasoline tank is empty.
–Disconnect the spark plug wire.
When storing the snowblower:
–Store away from sparks, open flames, pilot lights, heat and
other sources of ignition.
–Do not store the snowblower or gasoline near furnaces, water
heaters, or any other appliances that produce heat or have
automatic ignitions.
WARNING
Never use a gasoline container, gasoline tank, or any other fuel
item that is broken, cut, torn or damaged.
Training
1. Read the Operator’s Manual completely before attempting to
use the snowblower. Be thoroughly familiar with the controls
and the proper use of the equipment. Know how to stop the
engine and disengage the controls quickly.
2. Never allow children under 16 years old to operate the
equipment. Never allow adults to operate the equipment
without proper instruction.
3. Thrown objects can cause serious injury. Keep the area of
operation clear of all persons, particularly small children,
and pets. Plan your snow discharge pattern to prevent
throwing material toward cars, structures, roads and people.
4. Exercise caution to avoid slipping or falling, especially when
operating in reverse.
5. Be aware that the operator or user is responsible for
accidents or hazards occurring to other people or their
property.
6. Never use the snowblower under the influence of alcohol or
medication, or if you are tired or ill.
Preparation For Use
1. Be thoroughly familiar with the controls and the proper use of
the equipment. Understand and know how to stop the engine
and disengage the controls quickly.
2. Thoroughly inspect the area where the equipment is to be
used and remove all doormats, sleds, boards, wires, and
other foreign objects.
3. Disengage all clutch handles before starting the motor.
4. Do not operate the equipment without wearing adequate
winter garments. Wear footwear which will improve footing
on slippery surfaces.
5. Adjust the auger housing height to clear gravel or crushed
rock surface.
6. Never attempt to make any adjustments while the engine
is running (except where specifically recommended in the
manual).
7. Let engine and machine adjust to outdoor temperatures
before starting to clear snow.
8. The operation of any powered machine can result in foreign
objects being thrown into the eyes. Always wear eye
protection with side shields marked to comply with ANSI
Z87.1 during operation, or while performing an adjustment or
repair.
9. Inspect the auger and impeller before starting to ensure that
there is no ice build up.

100535 - 27 IN. 2-STAGE SNOWBLOWER IMPORTANT SAFETY INSTRUCTIONS
6
Operation
1. Do not put hands or feet near or under rotating parts. Keep
clear of the discharge opening at all times.
2. Exercise extreme caution when operating on or crossing
gravel drives, walks, or roads. Stay alert for hidden hazards
or traffic.
3. In the event of striking a foreign object, stop the engine,
remove the spark plug, thoroughly inspect the snowblower
for any damage, and repair the damage before restarting and
operating the snowblower.
4. If the snowblower should start to vibrate abnormally, stop
the engine and check immediately for the cause. Vibration is
generally a warning of trouble. Vibration typically indicates a
mechanical problem has occurred.
5. Always stop the engine whenever you leave the operating
position, before unclogging the auger housing or discharge
guide, and when making any repairs, adjustments, or
inspections.
6. Before cleaning, inspecting or repairing any parts of the
snowblower, always ensure the auger has stopped moving.
Disconnect the spark plug wire and keep it away from the
plug to prevent accidental starting.
7. Before leaving the machine unattended, disengage all control
levers, stop the engine and remove the safety key.
8. Do not run the engine indoors. Exhaust fumes are dangerous
and can kill you.
9. Do not clear snow across the face of slopes. Exercise extreme
caution when changing direction on slopes. Never attempt to
clear steep slopes.
10. Never operate the snowblower without proper guards, plates
or other safety protective devices in place.
11. Never operate the snowblower near glass enclosures,
automobiles, window wells, etc., without proper adjustment
of the snow discharge angle. Keep children and pets away.
12. Do not overload the machine capacity by attempting to clear
snow at too fast a rate.
13. Never operate the machine at high transport speeds on
slippery surfaces. Use care when reversing.
14. Never direct discharge at bystanders or allow anyone in front
of the unit.
15. Disengage power to the impeller when snowblower is
transported or not in use.
16. Use only attachments and accessories approved by the
manufacturer of snowblower (such as wheel weights,
counterweights, cabs, etc.).
17. Never operate the snowblower without good visibility or light.
Always be sure of your footing, and keep a firm hold on the
handles. Walk; never run.
18. Keep all nuts, bolts and screws tight to be sure the equipment
is in safe working condition prior to operation.
19. Replace worn or damaged parts for safety; Use only genuine
replacement parts and accessories.
20. This snowblower is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge of
mechanical equipment.
21. Be careful while working on the machine or clearing a
blockage in the auger or impeller to ensure that fingers and
hands do not become crushed or cut.
22. Do not touch hot engine components like the muffler, muffler
guard or engine block during operation of the snowblower as
they will cause burns.
23. Should the unit stop discharging snow for any reason,
release the controls to stop the auger and the engine before
inspecting for any lodged items or damaged parts in the
auger housing.
Clearing a Clogged Discharge Chute
DANGER
DO NOT use your hands to clean out the discharge chute.
To clear the chute:
1. SHUT THE ENGINE OFF!
2. Wait 10 seconds to be sure the auger blades have stopped
rotating.
3. Always use the provided clean-out tool to clear out the
discharge chute.
Maintenance and Storage
1. Check shear bolts, engine mounted bolts, etc., at frequent
intervals for proper tightness to ensure the equipment is in
safe, working condition.
2. Never store the machine with gasoline in the fuel tank inside
a building where automatic ignition sources are present such
as hot water heaters, space heaters, clothes dryers or any
open flame sources.
3. Run the snowblower for one minute to clear out packed snow
and ice to prevent freeze-up prior to storage.
4. Always allow the engine to cool before storing in any
enclosure.
5. Always refer to Operator’s Manual for important details when
the snowblower is to be stored for extended periods of time.
6. Maintain or replace safety and instructions labels, as
necessary.

100535 - 27 IN. 2-STAGE SNOWBLOWER IMPORTANT SAFETY INSTRUCTIONS
7
Top Back
Safety Labels
These labels warn you of potential hazards that can cause serious injury. Read them carefully.
If a label comes off or becomes hard to read, contact Technical Support Team for possible replacement.
LABEL DESCRIPTION
A
1412-L-SF-B
DO NOT TOUCH! Exhaust gases, muffler and engine
components are extremely HOT and cause burns.
WARNING
¡NO TOCAR! Los gases de escape, el
silenciador y los compnonentes del
motor están extremadamente CALIENTES y causan quemaduras.
ADVERTENCIA
NE TOUCHEZ PAS! Les gaz
d’échappement, le silencieux et les pièces
du moteur sont extrêmement CHAUDS et peuvent causer des brûlures.
AVERTISSEMENT ESSENCE SANS PLOMB SEULEMENT.
Indice d’octane minimal de 87.
Maximum 10 % d'éthanol.
GASOLINA REGULAR SOLAMENTE.
87 octanos como mínimo.
Máximo de etanol de 10%.
UNLEADED FUEL ONLY.
Minimum octane rating of 87.
Maximum 10% ethanol.
Hot Surface/Fuel
B
1091-L-SF-A
DANGER PELIGRO DANGER
Safety Icons
C
MANUFACTURE DATE
DATE DE FABRICATION
SERIAL NO.
N° DE SÉRIE
MODEL
MODÉLE
1435-L-PR-A
CHAMPION POWER EQUIPMENT, INC.
12039 SMITH AVENUE
SANTA FE SPRINGS, CA 90670
USA / É.-U.
1-877-338-0999
WWW.CHAMPIONPOWEREQUIPMENT.COM
MADE IN CHINA / FABRIQUÉ EN CHINE
100535
XXXXXXXXXXXX
XXXX
Dataplate
A
B
C

100535 - 27 IN. 2-STAGE SNOWBLOWER IMPORTANT SAFETY INSTRUCTIONS
8
Safety Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these
symbols will allow you to more safely operate the product.
SYMBOL MEANING
Read Operator’s Manual. To reduce the risk of injury, user must read and understand operator’s manual
before using this product.
Eye and Ear Protection. Always wear safety goggles or safety glasses with side shields, and as
necessary a full face-shield as well as full ear protection when operating this product. Always wear eye
protection with side shields marked to comply with ANSI Z87.1.
Safety Alert. This machine was built to be operated according to the safe operation practices in this
manual. As with any type of power equipment, carelessness or error on the part of the operator can
result in serious injury. This machine is capable of amputating fingers, hands, toes and feet and throwing
foreign objects. Failure to observe the safety instructions could result in serious injury or death.
Electric Shock. Failure to use in dry conditions and to observe safe practices can result in electric
shock. Improper connections to a building can allow current to backfeed into utility lines, creating an
electrocution hazard. A transfer switch must be used when connecting to a building.
Fire/Explosion. Fuel and its vapors are extremely flammable and explosive. Fire or explosion can cause
severe burns or death. Operation of this equipment may create sparks that can start fires around dry
vegetation. A spark arrestor may be required. The operator should contact local fire agencies for laws or
regulations relating to fire prevention requirements.
Toxic Fumes. The engine exhaust from this product contains chemicals known to cause cancer, birth
defects and other reproductive harm.
Risk of Asphyxiation. This engine emits carbon monoxide, an odorless, colorless poison gas. Breathing
carbon monoxide can cause nausea, fainting or death. Use only in a well-ventilated area.
Thrown Objects. This machine may pick up and throw objects which can cause serious personal injury.
Always Use Chute Tool. Never use your hands to clear a clogged chute assembly. Shut OFF engine and
remain behind handles until all moving parts have stopped before unclogging.

100535 - 27 IN. 2-STAGE SNOWBLOWER IMPORTANT SAFETY INSTRUCTIONS
9
SYMBOL MEANING
Hot Surface. To reduce the risk of injury or damage, avoid contact with any hot surface.
Open Flame Alert. Fuel and its vapors are extremely flammable and explosive. Keep fuel away from
smoking, open flames, sparks, pilot lights, heat, and other ignition sources.
Rotating Auger. DANGER: Avoid injury from rotating auger - keep feet away.
Rotating Blades. Never put your hand in the chute. Contact with rotating parts can amputate fingers and
hands.

100535 - 27 IN. 2-STAGE SNOWBLOWER IMPORTANT SAFETY INSTRUCTIONS
10
Operation Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these
symbols will allow you to more safely operate the product.
SYMBOL MEANING
Choke / Run
Throttle: Full Speed / Low Speed
Self-Drive Control Handle
Activate Self-Drive/Auger
Stop Self-Drive/Auger
Auger Operation
Forward/Reserve Drive
SYMBOL MEANING
Discharge Direction
Insert Engine Key
Remove Engine Key
Cold Prime
Warm Prime
Fuel Valve: OFF / ON

100535 - 27 IN. 2-STAGE SNOWBLOWER IMPORTANT SAFETY INSTRUCTIONS
11
Quickstart Label Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these
symbols will allow you to more safely operate the product.
Starting the Engine
1. Turn fuel valve “ON” position.
2. Move choke lever to “CHOKE” position.
3. Move the throttle lever to “FULL” speed to start the engine.
4. Make sure the engine safety key is inserted into the key hole.
5. Priming the Engine
5a. To start the COLD engine: Prime 3-5 times.
5b. To start a WARM engine: DO NOT prime.
6. Pull the recoil started to start the engine.
7. Move the choke lever to “RUN” position.
Stopping the Engine
1. Turn fuel valve “OFF” position.
2. Remove the engine key.
2266-L-OP-A
1
2
3
4
5a 3-5X 7 6
5b
1
2

100535 - 27 IN. 2-STAGE SNOWBLOWER CONTROLS AND FEATURES
12
CONTROLS AND FEATURES
Read this operator’s manual before operating your snowblower. Familiarize yourself with the location and function of the controls and
features. Save this manual for future reference.
Snowblower
1. Auger Control Handle
2. Lights
3. Handle Locking Knobs
4. Lower Handle
5. Wheels
6. Auger Housing
7. Skid Shoes
8. Shave Plate
9. Auger
Engine
1. Key (safety lock out)
2. Primer Bulb
3. Throttle Lever
4. Choke Lever
5. Fuel Valve (On/Off)
1
9
10
1
2
4
5
7
8
9
11
12
2
8
7
3
4
6
5
15
14
6
3
16
17
10. Clean Out Tool
11. Discharge Chute
12. Discharge Chute Deflector
13. Upper Handle
14. Discharge Chute Rotation Lever
15. Self-Drive Control Lever
16. Discharge Chute Deflector Lever
17. Speed Control Lever
6. Oil Drain Plug
7. Recoil Starter Grip
8. Electric Start Button
9. Fuel Cap
10. Oil Fill and Level Check Cap
10
13

100535 - 27 IN. 2-STAGE SNOWBLOWER CONTROLS AND FEATURES
13
Parts Included
Accessories
6 ft. (1.8 m) Electric Start Power Cord ........................... 1
Engine Oil..................................... 37.2 fl. oz. (1100 ml)
Chute Clearing Tool ............................................... 1
B Clip and Sheer Pins (spare parts) .............................. 4
Tools
13mm ×16mm Double Open End Wrench....................... 2
Part Part
Qty. Hardware Needed Hardware Qty. Hardware Reference Tool Needed
Discharge Chute 1
M10 Hexagon Lock Nut 116mm Wrench
Large Washer 1N/A
Support Rod 1N/A
Lower Handle 1
M8×16 Self-tapping Bolt 413mm Wrench
Cord Clamp (preassembled) 1N/A
Upper Handle 1
M8×50 Half Round Bolt 4
N/A
Curved washer 4
Rotating knob 4
Cable Tie 3
Assembly Parts

100535 - 27 IN. 2-STAGE SNOWBLOWER ASSEMBLY
14
ASSEMBLY
Your snowblower requires some assembly. This unit ships from
our factory with oil. It must be properly serviced with fuel and oil
before operation.
If you have any questions regarding the assembly of your
snowblower, call our Technical Support Team at 1-877-338-0999.
Please have your serial number and model number available.
Unpacking
1. Set the shipping carton on a solid, flat surface.
2. Remove everything from the carton except the snowblower
base — including upper and lower handles, connecting
levers, chute, hardware, etc. Make sure all the assembly
parts are included before you start.
3. Lift the top half of the box off and the base should be clear to
start assembly.
4. Cut down the bottom carton to allow a flat surface area to
install the assembly parts without scratching parts or cutting
tires. Alternatively, with team lift help, lift the base of the
snowblower out of the carton and place it on a flattened
carton to start assembly.
Handle
1. Attach the lower handle (1-1) onto the unit body with
4 self-tapping bolts (1-2) using included tool or your own
13mm wrench (Fig. 1).
1–1
1–2
Figure 1
2. Connect the upper and lower handle with bolts (2-1), washers
(2-2) and locking knobs (2-3) (Fig. 2). The top handle can
adjust to 4 positions. You can come back later and adjust to a
more comfortable height.
2–1
2–3
2–2
Figure 2
3. Remove the chute pivot assembly (3-1) from the bubble wrap
and attach to the bracket on the chute (3-2). Align the round
and square connector on the underside of the chute pivot
assembly to the bracket. The square connector snaps in
place. Then, place the entire chute (3-3) over the two posts
(3-4) aligning the chute with the base (3-5). The chute will
just rest on the base and rotate at this point (Fig. 3).
3–1
3–2
3–4
3–3
3–5
Figure 3

100535 - 27 IN. 2-STAGE SNOWBLOWER ASSEMBLY
15
4. Put the snow discharge chute cable wire form on the snow
discharge support using the washer (4-1) and nut (4-2).
Securely tighten the assembly (Fig. 4) using included tool or
your own 16mm wrench. This will be the guide that channels
all the cables over the engine from the chute area.
4–1
4–2
Figure 4
5. Route the cables through the support rod wire form (5-1) and
cord clamp (5-2) on the lower handle. Additional cable ties
are included to neaten up the cables. Keep loose before first
use and adjust. When comfortable all the cabling is in proper
position, tighten up the cable ties (Fig. 5).
5–1
5–2
Figure 5
Add Engine Oil
WARNING
DO NOT attempt to crank or start the engine before it has been
properly filled with the recommended type and amount of oil.
Damage to the snowblower as a result of failing to follow these
instructions will void your warranty.
NOTICE
The snowblower rotor has a sealed, pre-lubricated ball bearing
that requires no additional lubrication for the life of the bearing.
NOTICE
The recommended oil type for typical use is 0W-30
automotive oil.
If running snowblower in extreme temperatures, refer to the
following chart for recommended engine oil type.
-20 020 40 60
Ambient temperature
Recommended Engine Oil Type
80 100 120
-28.9
°F
°C -17.8 -6.7 4.4 15.6 26.7 37.8 48.9
10W-30
5W-30 Synthetic
10W-405W-30
1. Place the snowblower on a flat, level surface.
2. Remove the oil cap/dipstick (6-1) and wipe it clean (Fig. 6A).
6–1
Figure 6A
3. Insert the oil cap/dipstick into the oil filler neck but do not
screw it in, then remove it to check the oil level (Fig. 6B).
Oil Needed
Oil Fill
Figure 6B

100535 - 27 IN. 2-STAGE SNOWBLOWER ASSEMBLY
16
4. If the oil level is near or below the lower limit mark on
the dipstick, remove the oil cap/dipstick, and fill with the
recommended oil to the upper limit mark. Do not overfill
(Fig. 6B).
5. Reinstall the oil cap/dipstick.
NOTICE
When using the dipstick to check oil level, DO NOT screw in
the dipstick while checking.
NOTICE
Check oil level often during the initial 20 hour engine run
period. Refer to the Maintenance section for recommended
service intervals.
NOTICE
Synthetic oil may be used after the first oil change. Using
synthetic oil does not decrease the recommended oil change
interval. Full synthetic 5W-30 oil will aid in starting in cold
ambient < 41º F (5º C) temperatures.
CAUTION
This engine is equipped with a low oil shut-off and will stop
when the oil level in the crankcase falls below the threshold
level.
Add Fuel
Use clean, fresh, regular unleaded gasoline with a minimum
octane rating of 87 and an ethanol content of 10% or less by
volume. ybc
DO NOT mix oil with gasoline (Fig. 7).
1. Remove the fuel tank cap.
Figure 7
2. Add fuel to the bottom of the fuel level limit in the neck of the
fuel tank. Do not overfill. Wipe up spilled fuel before starting
the snowblower. Fuel tank capacity: 1.5 gal. (5.8 L) (Fig. 8).
Figure 8
CAUTION
Use unleaded gasoline with a minimum octane rating of 87
and an ethanol content of 10% or less by volume.
DO NOT light cigarettes or smoke when filling the tank.
DO NOT mix oil and gasoline.
DO NOT overfill the tank. Fill tank to approximately ¼ in.
(6.4 mm) below the top of the tank to allow for gasoline
expansion.
DO NOT pump gasoline directly into the snowblower at the
pump. Use an approved fuel container to transfer the gasoline
to the snowblower.
DO NOT fill tank indoors.
DO NOT fill tank when the engine is running or hot.
WARNING
Pouring gasoline too fast through the fuel screen may result
in gasoline splashing over the snowblower and operator while
filling.

100535 - 27 IN. 2-STAGE SNOWBLOWER OPERATION
17
NOTICE
The snowblower engine works well with 10% or less ethanol
blend gasoline. When using ethanol-gasoline blends there are
some issues worth noting:
–Ethanol-gasoline blends can absorb more water than
gasoline alone.
–These blends can eventually separate, leaving water or
a watery goo in the tank, fuel valve and carburetor. The
compromised gasoline can be drawn into the carburetor
and cause damage to the engine and/or potential hazards.
–If a fuel stabilizer is used, confirm that it is formulated to
work with ethanol-gasoline blends.
–Any damages or hazards caused by using improper
gasoline, improperly stored gasoline, and/or improperly
formulated stabilizers, are not covered by manufacturer’s
warranty.
It is advisable to always shut off the gasoline supply and
run the engine to starvation after each use. See Storage
instructions for extended non-use.
OPERATION
WARNING
Never use the snowblower without first reading and
understanding the operating instructions, warnings and
instruction labels located on the machine.
Before Operation
–Check the General Condition.
–Look around and underneath the engine for signs of oil or
gasoline leaks.
–Remove any excessive dirt or debris, especially around the
muffler and recoil starter.
–Look for signs of damage.
–Check that all shields and covers are in place, and all nuts,
bolts, and screws are tightened.
Check the Engine
1. There is no fuel or oil in the engine. Fill with fuel and add
0W-30 prior to first use.
2. Check the fuel level (see Add Fuel under Assembly section).
3. Check the oil level (see Add Engine Oil under Assembly
section).
WARNING
Always check the engine oil level before operation. Using the
snowblower without oil can seriously damage the engine and
void your warranty. The machine must stand on level ground
when checking.
Engine key and throttle lever plastic piece need to be attached
before first use. These parts may be attached to the recoil
starter grip. Please remove the key and throttle lever from the
recoil starter grip and attach/install properly.
WARNING
Always wear eye protection with side shields marked to
comply with ANSI Z87.1. Failure to do so could result in objects
being thrown into your eyes and other possible serious injuries.
Starting the Engine
1. Make sure the engine key (safety lock out) is inserted into the
key hole.
2. To start a warm engine: (Fig. 9).
2a. Move the fuel valve lever to the ON position.
2b. Move the choke lever to the RUN position.
2c. Move the throttle lever to full speed.
2d. Do not prime.
CHOKE
FULL SPEED
FUEL OFF FUEL ON
RUN
Figure 9

100535 - 27 IN. 2-STAGE SNOWBLOWER OPERATION
18
3. To start a cold engine: (Fig. 10).
3a. Move the fuel valve lever to the ON position.
3b. Move the choke lever to the CHOKE position.
3c. Move the throttle lever to full speed.
3d. Prime 3-5 times.
CHOKE
FULL SPEED
FUEL OFF FUEL ON
RUN
Figure 10
4. Stand back and to the right of the unit, pull the starter grip
lightly until you feel resistance then pull briskly. Return the
starter grip gently (Fig. 11).
Figure 11
5. Alternatively. for electric start, plug in the supplied electrical
cord into the starter. Press the electric start button and make
sure that the mains supply voltage is 120 V~ 60 Hz (Fig. 12).
Figure 12
6. To start a cold engine: When the engine starts, move the
choke to RUN position.
Stopping the Engine
To stop the engine in an emergency situation or during normal
operation, simply remove the engine key.
Operation at High Altitude
The density of air at high altitudes is lower than at sea level.
Engine power is reduced as the air mass and air-fuel ratio
decrease. Engine power and snowblower output will be reduced
approximately 3½% for every 1000 ft. of elevation above sea level.
At high altitudes increased exhaust emissions can also result due
to the increased enrichment of the air fuel ratio. Other high altitude
issues can include hard starting, increased fuel consumption and
spark plug fouling.
To alleviate high altitude issues other than the natural power
loss, CPE can provide a high altitude carburetor main jet. The
alternative main jet and installation instructions can be obtained
by contacting our Technical Support Team. Installation instructions
are also available in the Technical Bulletin area of the CPE website.
The part number and recommended altitude range for the
application of the high altitude carburetor main jet is listed in the
following table.
In order to select the correct high altitude main jet it is necessary
to identify the carburetor model. For this purpose, a code is
stamped on the side of the carburetor. Select the correct high
altitude jet part number corresponding to the carburetor code
found on your particular carburetor.
Carb.
Code High Alt. Jet Part Number Altitude Range
16100-
Z0S0210-
00A3
16161-Z151510-0000 3000’-6000’
(914-1828 m)
16161-Z151910-0000 6000’-8000’
(1828-2438 m)
WARNING
Operation using the alternative main jet at elevations lower
than the recommended minimum altitude can damage the
engine. For operation at lower elevations, the originally
supplied standard main jet must be used. Operating the
engine with the wrong engine configuration at a given altitude
may increase its emissions and decrease fuel efficiency and
performance.

100535 - 27 IN. 2-STAGE SNOWBLOWER OPERATION
19
Control Levers
Self-drive control handle. Located on
the left side handle (figure 13).
When the snowblower has been put
into gear, pushing this lever towards the
handle engages the wheels.
Releasing the self-drive control handle
causes the machine to stop moving.
Self-Drive Control Lever:
1. Located on the left-side (from behind the snowblower). When
the snowblower has been put into gear, pushing this lever
towards the handle engages the wheels. Releasing the
self-drive control lever causes the machine to stop moving
(Fig. 13).
Figure 13
Speed Control Lever:
1. Forward speeds range from slowest position 1 to fastest
position 6. Reverse speeds range from slowest position R1 to
fastest position R2 (Fig. 14).
Figure 14
Auger control handle. Located on the
right side handle.
Pushing this lever towards the handle
causes the auger and impeller to
activate.
Releasing the auger control handle
causes the auger to stop moving.
Auger Control Lever:
1. Located on the right side (from behind the snowblower).
Pushing this lever towards the handle causes the auger and
impeller to activate. Releasing the auger control lever causes
the auger to stop moving (Fig. 15).
Figure 15
WARNING
Watch out for rotating auger. Keep hands, feet, hair and loose
clothing away from any moving parts on the machine.

100535 - 27 IN. 2-STAGE SNOWBLOWER OPERATION
20
Adjusting the Snow Discharge Direction and
Height
Change discharge direction:
Discharge chute rotation lever controls the chute either left or right
(Fig. 16).
Figure 16
Change discharge height:
Discharge chute deflector lever controls the deflector up or down
(Fig. 17).
Figure 17
Clearing a Clogged Discharge Chute
DANGER
DO NOT use your hands to clean out the discharge chute.
To clear the chute:
1. SHUT THE ENGINE OFF!
2. Wait 10 seconds to be sure the auger blades have stopped
rotating.
3. Always use the provided clean-out tool to clear out the
discharge chute.
Adjusting the Snow Shoes
Set the height of the auger housing above the ground using the
shoes.
Adjust the shoes to suit the ground conditions:
–On flat ground, e.g. asphalt, the shoes should be adjusted
to about 1⁄5in. (5 mm) (the distance from the auger to the
ground).
–On uneven ground, e.g. gravel paths, the shoes should be
adjusted to about 11⁄5in. (30 mm) (the distance from the auger
to the ground).
To adjust the shoes
1. Loosen the nuts.
2. Move the shoes upward or downward to adjust height.
3. Tighten the nuts.
WARNING
Always adjust the shoes so that gravel and stones are not fed
into the snowblower. There is a risk for personal injury if these
are thrown out at high speed.
Ensure the shoes are adjusted the same on both sides.
WARNING
Do not at any time make any adjustment to machine without
first stopping the engine and disconnecting the spark plug
wire.
WARNING
Before changing height, stop engine and disconnect spark plug
cable.
Power Turn Steering Technology
Power Turn Steering Technology enables effortless power steering
on your snowblower. Power Turn Steering Technology is able
to sense the direction your trying to turn the snowblower and
engages the drive system to assist turning in the desired direction.
Clutch Lock Feature
This snowblower offers a clutch lock feature that will enable the
operator to keep the snowblower moving forward while you adjust
the chute. To use the clutch lock system, follow the following
steps.
1. While both the drive and auger control levers are fully
depressed, release the auger control lever while keeping
the self-drive control lever fully depressed. The clutch
lock feature will automatically keep the auger control lever
engaged as long as the self-drive control lever is depressed.
