Chaovet Rogue R1 Beam User manual

User Manual

Edition Notes
Rogue™ R1 Beam User Manual Rev. 3
Edition
Notes
The Rogue™ R1 Beam User Manual Rev. 3 covers the description, safety precautions,
installation, programming, operation, and maintenance of the Rogue™ R1 Beam. Chauvet
released this edition of the Rogue™ R1 Beam User Manual in April 2015.
Trademarks
CHAUVET® is a registered trademark of CHAUVET & Sons Inc. (d/b/a CHAUVET® or
Chauvet). The CHAUVET® logo in its entirety including the CHAUVET® name and the dotted
triangle, and all other trademarks in this manual pertaining to services, products, or marketing
statements (example: It’s Green Thinking™) are owned or licensed by CHAUVET®. Any other
product names, logos, brands, company names, and other trademarks featured or referred to
within this document are the property of their respective trademark holders.
Copyright Notice
Chauvet owns the content of this User Manual in its entirety, including but not limited to
pictures, logos, trademarks, and resources.
© Copyright 2015 Chauvet. All rights reserved.
Electronically published by Chauvet in the United States of America.
Manual Use
Chauvet authorizes its customers to download and print this manual for professional information
purposes only. Chauvet expressly prohibits the usage, copy, storage, distribution, modification,
or printing of this manual or its content for any other purpose
without written consent from
Chauvet.
Document
Printing
For better results, print this document in color, on letter size paper (8.5 x 11 in), double-sided. If
using A4 paper (210 x 297 mm), configure your printer to scale the content accordingly.
Intended
Audience
Any person in charge of installing, operating, and/or maintaining this product should completely
read through the guide that shipped with the product, as well as this manual, before installing,
operating, or maintaining this product.
Disclaimer
Chauvet believes that the information contained in this manual is accurate in all respects.
However, Chauvet assumes no responsibility for any errors or omissions in this document.
Chauvet reserves the right to revise and make changes to the content of this document without
obligation that Chauvet notify any person or company of such revision or changes. This does
not in any way constitute a commitment by Chauvet to make such changes. Chauvet may issue
a revision of this manual or a new edition to incorporate such changes.
Document
Revision
The Rogue™ R1 Beam User Manual Rev. 3 supersedes all previous versions of this manual.
Discard any older versions of this manual and replace with this version. Go to
www.chauvetprofessional.com for the latest version.
Author Date Editor Date
D. Couppe
3/31/15
M. Trouard
4/9/15

Table of Contents
Rogue™ R1 Beam User Manual Rev. 3 -i-
Table of Contents
1. Before You Begin......................................................................................................................................1
What Is Included...........................................................................................................................................................1
Claims..........................................................................................................................................................................................1
Manual Conventions ....................................................................................................................................................................1
Symbols.......................................................................................................................................................................................1
Product At A Glance .....................................................................................................................................................2
Safety Notes .................................................................................................................................................................2
Personal Safety............................................................................................................................................................................2
Mounting And Rigging..................................................................................................................................................................2
Power And Wiring ........................................................................................................................................................................2
Operation.....................................................................................................................................................................................2
2. Introduction...............................................................................................................................................3
Description....................................................................................................................................................................3
Features........................................................................................................................................................................3
Overview.......................................................................................................................................................................4
Dimensions...................................................................................................................................................................5
3. Setup..........................................................................................................................................................6
AC Power......................................................................................................................................................................6
AC Plug........................................................................................................................................................................................6
Fuse Replacement.......................................................................................................................................................................6
DMX Linking..................................................................................................................................................................6
DMX Personalities........................................................................................................................................................................6
Gobo Wheel..................................................................................................................................................................7
Color Wheel..................................................................................................................................................................7
Lamp Replacement.......................................................................................................................................................8
Procedure ....................................................................................................................................................................................8
Procedure (Cont.).........................................................................................................................................................................9
Increasing the Lamp’s Life.........................................................................................................................................................10
Lamp Adjustment........................................................................................................................................................10
Mounting.....................................................................................................................................................................11
Orientation .................................................................................................................................................................................11
Rigging.......................................................................................................................................................................................11
Procedure ..................................................................................................................................................................................11
4. Operation.................................................................................................................................................12
Control Panel Description...........................................................................................................................................12
Control Options..........................................................................................................................................................................12
Programming..............................................................................................................................................................................12
Menu Map...................................................................................................................................................................13
Menu Map (Cont.).......................................................................................................................................................14
Menu Map (Cont.).......................................................................................................................................................15
Address.......................................................................................................................................................................16
Set the DMX Address................................................................................................................................................................16
Run Mode ...................................................................................................................................................................16
DMX Personality ........................................................................................................................................................................16
Auto Test....................................................................................................................................................................................16
Manual Test...............................................................................................................................................................................16
Setup...........................................................................................................................................................................17
Pan Reverse..............................................................................................................................................................................17
Tilt Reverse................................................................................................................................................................................17
Screen Reverse .........................................................................................................................................................................17
Pan Angle ..................................................................................................................................................................................17
Tilt Angle....................................................................................................................................................................................17

Table of Contents
-ii- Rogue™ R1 Beam User Manual Rev. 3
Pan and Tilt Movement BlackOut...............................................................................................................................................17
Color Movement BlackOut.........................................................................................................................................................17
Gobo Movement BlackOut.........................................................................................................................................................17
Lamp Settings............................................................................................................................................................................18
Maintenance Timer ....................................................................................................................................................................19
Reset Function...........................................................................................................................................................................19
Factory Reset Function..............................................................................................................................................................19
System Information.....................................................................................................................................................20
Offset Mode ................................................................................................................................................................20
Pan.............................................................................................................................................................................................20
Tilt..............................................................................................................................................................................................20
Dimmer 1 ...................................................................................................................................................................................20
Dimmer 2 ...................................................................................................................................................................................20
Gobo..........................................................................................................................................................................................20
Color ..........................................................................................................................................................................................20
Prism 1.......................................................................................................................................................................................20
Rotating Prism 1.........................................................................................................................................................................20
Prism 2.......................................................................................................................................................................................20
Rotating Prism 2.........................................................................................................................................................................20
Focus.........................................................................................................................................................................................20
DMX Values................................................................................................................................................................21
DMX Values (Cont.)....................................................................................................................................................22
DMX Values (Cont.)....................................................................................................................................................23
DMX Values (Cont.)....................................................................................................................................................24
DMX Values (Cont.)....................................................................................................................................................25
DMX Values (Cont.)....................................................................................................................................................26
5. Technical Information.............................................................................................................................27
Product Maintenance..................................................................................................................................................27
6. Technical Specifications.........................................................................................................................28
Returns .......................................................................................................................................................................29
Contact Us...................................................................................................................................................29

Before You Begin
Rogue™ R1 Beam User Manual Rev. 3 -1-
1. BEFORE YOU BEGIN
What Is
Included
•Rogue™ R1 Beam
•Neutrik® powerCON® power cord
•2 Omega brackets with mounting hardware
•Warranty Card
•Quick Reference Guide
Claims
Carefully unpack the product immediately and check the box to make sure all the parts are in
the package and are in good condition.
If the box or the contents (the product and included accessories) appear damaged from
shipping or show signs of mishandling, notify the carrier immediately, not Chauvet. Failure
to
report damage to the carrier immediately may invalidate your claim. In addition, keep the box
and contents for inspection.
For other issues, such as missing components or parts, damage not related to shipping, or
concealed damage, file a claim with Chauvet within 7 days of delivery.
Manual
Conventions
Convention Meaning
1–512
A range of values in the text
50/60
A set of mutually exclusive values in the text
<SET>
A button on the product’s control panel
Settings
A product function or a menu option
MENU>Settings
A sequence of menu options
1–10
A range of menu values from which to choose in a menu
Yes/No
A set of two mutually exclusive menu options in a menu
ON
A unique value to be entered or selected in a menu
Symbols
Symbols
Meaning
Critical installation, configuration, or operation information. Failure to
comply with this information may cause the product not to work,
damage third-party equipment, or cause harm to the operator.
Important installation or configuration information. Failure to comply
with this information may keep the product from working.
Useful information.
The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data
transmission protocol.

Before You Begin
-2- Rogue™ R1 Beam User Manual Rev. 3
Product At A
Glance
Use on Dimmer
x
Auto Programs
x
Outdoor Use
x
Auto-Ranging Power
Supply
P
Sound-Activated
x
Replaceable Fuse
P
DMX
P
User-Serviceable
x
Master/Slave
x
Safety Notes
Read all the following Safety Notes before working with this product. These notes include
important information about the installation, usage, and maintenance of this product.
This product contains no user-serviceable parts. Any reference to servicing in this
User Manual will only apply to properly trained Chauvet
certified technicians. Do not
open the housing or attempt any repairs.
All applicable local codes and regulations apply to proper installation of this product.
Personal Safety
•Avoid direct eye exposure to the light source while the product is on.
•Always disconnect this product from its power source before servicing.
•Always connect this product to a grounded circuit to avoid the risk of electrocution.
•Do not touch this product’s housing during operation because it may be very hot.
Mounting And
Rigging
•This product is for indoor use only! To prevent risk of fire or shock, do not expose this
product to rain or moisture. (IP20)
•CAUTION: When transferring product from extreme temperature environments, (e.g. cold
truck to warm humid ballroom) condensation may form on the internal electronics of the
product. To avoid causing a failure, allow product to fully acclimate to the surrounding
environment before connecting it to power.
•Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from
adjacent surfaces.
•This product weighs 38.8 lb (17.6 kg). Always ask for help when mounting this product to
avoid personal injuries or damage to the product.
•Make sure there are no flammable materials close to this product while it is operating.
•Always carry this product by the handles. Do not carry from the head.
•When hanging this product, always secure to a fastening device using a safety cable.
Power And
Wiring
•Always make sure you are connecting this product to the proper voltage in accordance
with the specifications in this manual or on the product’s specification label.
•Never connect this product to a dimmer pack or rheostat.
•Never disconnect this product by pulling or tugging on the power cable.
Operation
•Do not operate this product if you see damage to the housing, lenses, ultraviolet filter, or
cables. Have the damaged parts replaced by an authorized technician at once.
•To eliminate unnecessary wear and improve its lifespan, during periods of non-use
completely disconnect the product from power via breaker or by unplugging it.
•Do not cover the ventilation slots when operating to avoid internal overheating.
•Do not aim this product toward the Sun. The lenses could concentrate the solar energy
and cause internal overheating.
•The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at a
higher temperature.
•In case of a serious operating problem, stop using this product immediately!
In the unlikely event that your Chauvet product may require service, contact Chauvet
Technical Support.

Introduction
Rogue™ R1 Beam User Manual Rev. 3 -3-
2. INTRODUCTION
Description
The Rogue™ R1 Beam is a compact, electronic, moving yoke beam product equipped with a
132-watt HRI lamp. It includes a color wheel with 14 colors plus white. It also includes 2
separate
5- and 8-facet rotating prisms, remote focus, and one gobo wheel with 17 static gobos plus open.
Features
•Compact, moving yoke beam fixture with a 2 prisms and motorized focus
•Uses an Osram Sirius 132-W lamp source with a rated 6,000-hour lamp life
•Precision-designed optics for hard-edged beam effects
•Extremely quiet for operation in any situation
•Fast and precise pan/tilt
•Color wheel:
•14 colors + Open (white)
•CTO - Split/linear colors
•Rainbow color spin at variable speed
•Gobo wheel:
•17 gobos + Open
•Gobo wheel spin at variable speed
•Variable frost
•Two prisms, 5-facet and 8-facet, independently controllable for gobo effects
•DMX channels: 15 or 19
•Pan: 540°
•Tilt: 270°
•Reset over DMX
•Electronic power supply
•Mechanical dimmer
•3- and 5-pin DMX input and output connectors

Introduction
-4- Rogue™ R1 Beam User Manual Rev. 3
Overview
Data In
Power In
Front View
Rear View
Power
Switch
Fuse
Data
Out
Control Panel
Handle
Top View
Side View
DMX In
DMX
Out

Introduction
Rogue™ R1 Beam User Manual Rev. 3 -5-
Dimensions
7.52 in
191 mm
8.27 in
210 mm
13.39 in
340 mm
14.17 in
360 mm
10.87 in
276 mm
11.10 in
282 mm
11.26 in
286 mm
4.53 in
115 mm
17.52 in
445 mm

Setup
-6- Rogue™ R1 Beam User Manual Rev. 3
3. SETUP
AC Power
Each Rogue™ R1 Beam has an auto-ranging power supply that works with an input voltage
range of 100 to 240 VAC, 50/60 Hz. To determine the power requirements for each Rogue™ R1
Beam, refer to the label affixed to the product. You can also refer to the Technical Specifications
chart in this manual.
The listed current rating indicates the maximum current draw during normal operation. For more
information, you may download Sizing Circuit Breakers from the Chauvet website
:
www.chauvetprofessional.com.
•Always connect this product to a protected circuit with an appropriate electrical
ground to avoid the risk of electrocution or fire.
•To eliminate unnecessary wear and improve its lifespan, during periods of non-use
completely disconnect the product from power via breaker or by unplugging it.
Never connect this product to a rheostat (variable resistor) or dimmer circuit, even if the
rheostat or dimmer channel serves only as a 0 to 100% switch.
AC Plug
The Rogue™ R1 Beam comes with a power input cord terminated with a Neutrik® powerCON®
A connector on one end and an Edison plug on the other end (U.S. market). If the power input
cord that came with your product has no plug, or if you need to change the Edison plug, use the
table below to wire the new plug.
Connection Wire (U.S.) Wire (Europe) Screw Color
AC Live
Black
Brown
Yellow or Brass
AC Neutral
White
Blue
Silver
AC Ground
Green/Yellow
Green/Yellow
Green
Fuse
Replacement
1. Disconnect this product from the power outlet.
2. Using a flat-head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove the blown fuse and replace with another fuse of the same type and rating
(F 5 A, 250 V).
4. Screw the fuse holder cap back in place and reconnect power.
Make sure to disconnect the product’s power cord before replacing a blown fuse. Always
replace the blown fuse with another of the same type and rating.
DMX Linking
You can link the Rogue™ R1 Beam to a DMX controller using a 3- or 5-pin DMX connection. If
using other DMX-compatible products with the Rogue™ R1 Beam
, you can control each
individually with a single DMX controller.
DMX
Personalities
The Rogue™ R1 Beam uses a 3- or 5-pin DMX data connection for the 15- and 19-channel
DMX personalities.
•Refer to the Introduction chapter for a brief description of each DMX personality.
•Refer to the Operation chapter to learn how to configure the Rogue™ R1 Beam to work in
these personalities.
•The DMX Values section provides you with detailed information regarding the DMX
personalities.
If you are not familiar with or need more information about DMX standards, Master/Slave
connectivity, or the DMX cables needed to link this product to a DMX controller,
download the DMX Primer from the Chauvet website: www.chauvetprofessional.com.

Setup
Rogue™ R1 Beam User Manual Rev. 3 -7-
Gobo Wheel
The Rogue™ R1 Beam includes one gobo wheel with 17 fixed gobos plus open. The diagram
shows the gobo number on the wheel, as numbered in the DMX Values tables.
Color Wheel
The Rogue™ R1 Beam includes one color wheel with 14 fixed colors plus open (white), as
indicated below. The diagram shows the color number on the wheel, as numbered in the DMX
Values tables.
Open
(White)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Open

Setup
-8- Rogue™ R1 Beam User Manual Rev. 3
Lamp Replacement
The Rogue™ R1 Beam is equipped with an Osram Sirius 132-W lamp. Follow the
procedure below to safely change the lamp.
Disconnect the product from power before opening.
Procedure
1. Turn the product off and disconnect it from power. Wait at least 15 minutes for the
lamp to cool down.
2. Remove both head covers by removing 8 Phillips-head ¼-turn screws.
3. Orient the bottom of the moving head so that the fan is facing upward.

Setup
Rogue™ R1 Beam User Manual Rev. 3 -9-
Procedure
(Cont.)
4. Remove the 2 Phillips-head screws on the sides of the fan assembly.
5. Roll the fan assembly to the right to expose the lamp.
6. Using the lamp base, push the lamp down against the spring clips located on the
bottom, then roll the lamp out the top.
7. Unscrew the 2 wires connected to the lamp by the spade fork terminals.
8. Reverse the steps above to install the new lamp. Do not touch the glass with bare
hands.
Do not turn product on without a lamp!

Setup
-10- Rogue™ R1 Beam User Manual Rev. 3
Increasing the Lamp’s
Life
•ALWAYS turn the lamp off by using the DMX controller or the product’s control
panel, then wait at least 5 minutes before switching off the product. This will
keep the fans running to extract any remaining heat from the product’s head.
•DO NOT power cycle the product unless it is necessary.
•DO NOT re-strike the lamp immediately after turning it off. Chauvet
recommends waiting 5 minutes before trying to re-strike the lamp.
•DO NOT touch the lamp without wearing gloves to avoid leaving grease on the
bulb or on the contacts that could reduce the lamp’s life.
•ALWAYS change the lamp when it has reached its recommended lifespan to
avoid the risk of lamp explosion.
Lamp Adjustment
The Rogue™ R1 Beam allows for lamp adjustment or “bench focusing”. Follow the
procedure below to safely adjust the lamp.
1. Follow steps 1 and 2 of the Lamp Replacement procedure.
2. After connecting the product to power, turn product on.
3. Using DMX or as explained in Manual Test section, orient the bottom of the moving
head so that the fan is facing upward.

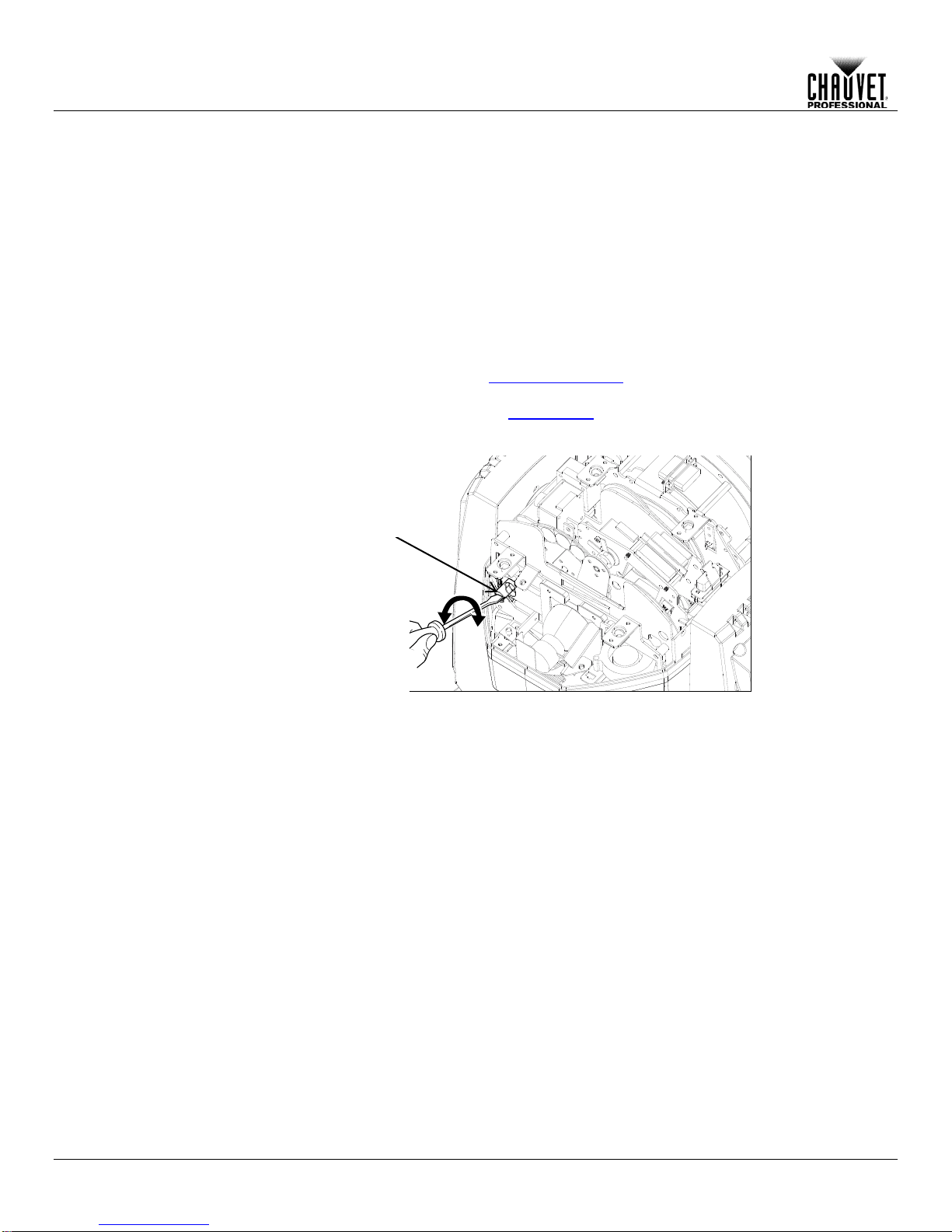

4. Locate the Adjustment Screw as indicated in the figure below:
5. Turn the Adjusting Screw while viewing the light on a flat white surface to find desired
focus.
6. Turn the product off and disconnect it from power. Wait at least 15 minutes for the
lamp to cool down.
7. Re-attach both head covers by replacing all 8 Phillips-head ¼-turn screws.
Adjustment
Screw

Setup
Rogue™ R1 Beam User Manual Rev. 3 -11-
Mounting
Before mounting this product, read and follow the Safety Notes. For our Chauvet line of
mounting clamps, go to http://trusst.com/products/.
Orientation
Always mount this product in a safe position and make sure there is adequate room for
ventilation, configuration, and maintenance.
Rigging
Chauvet recommends using the following general guidelines when mounting this product.
•When selecting an installation location, consider easy access to this product for operation,
programming adjustments, and routine maintenance.
•Make sure to mount this product away from any flammable material as indicated in the
Safety Notes.
•Never mount in places where rain, high humidity, extreme temperature changes, or
restricted ventilation may affect the product.
•If hanging this product, make sure that the mounting location can support the product’s
weight. See the Technical Specifications for the weight-bearing requirements of this
product.
•When hanging this product, always secure to a fastening device using a safety cable.
Procedure
The Rogue™ R1 Beam comes with a preinstalled mounting surface to which you will be able to
attach the 2 included omega brackets.
Make sure the clamps are capable of supporting the
weight of this product. Use two mounting points per product. In addition, use a safety cable to
link the product to the structure.
Mounting Diagram
Floor Mounting
Overhead Mounting
Omega Brackets
Safety Cable
Mounting Clamp
Mounting
Surface

Operation
-12- Rogue™ R1 Beam User Manual Rev. 3
4. OPERATION
Control Panel
Description
Button
Function
<MENU>
Exits from the current menu or function
<ENTER>
Enables the currently displayed menu or sets the currently
selected value in to the current function
<UP>
Navigates upward through the menu list or increases the numeric
value when in a function
<DOWN>
Navigates downward through the menu list or decreases the
numeric value when in a function
Control Options
You can set the Rogue™ R1 Beam starting address in the 001–512 DMX range. This
enables control of up to 26 products in the 19-channel 19CH personality.
Programming
Refer to the Menu Map to understand the menu options. The menu map shows the main
level and a variable number of programming levels for each option.
•To enter programming mode, press any key on the control panel to wake the opening
screen. Press <MENU> until you see one of the main level options.
•To highlight a menu option or to change a setting, press <UP> or <DOWN>.
•To change menu levels as shown in the Menu Map, press <ENTER> or <MENU>.
This is equivalent to moving right and left of the Menu Map, respectively.
•To accept the current or new value, press <ENTER>.
•To return to the previous menu without making changes, press <MENU>.
•To exit programming mode, press <MENU> until you see one of the main level
options, the opening screen, or do not press any button for 30 seconds and the
screen will automatically revert to the opening screen.

Operation
Rogue™ R1 Beam User Manual Rev. 3 -13-
Menu Map
Main Level Programming Levels Description
Address
001–512
Sets the DMX starting address
Run Mode
DMX
15CH
Selects the DMX mode
19CH
Auto Test
Runs the product’s test sequence
Manual Test
Pan
000–255 Allows manual control of all settings from the
control panel
Pan Fine
Tilt
Tilt Fine
P/T Speed
Dimmer
Dimmer Fine
Shutter
Color
Gobo
Prism1
R–Prism1
Prism2
R–Prism2
Focus
P/T Macro
P/T
Ma.Speed
Special
Function

Operation
-14- Rogue™ R1 Beam User Manual Rev. 3
Menu Map (Cont.)
Main Level Programming Levels Description
Setup
Pan Reverse
YES
Reverse pan operation
NO
Normal pan operation
Tilt Reverse
YES
Reverse tilt operation
NO
Normal tilt operation
Screen Reverse
YES
Rotates control screen view 180°
NO
Normal control screen view
Pan Angle
540
Selects the 540° pan angle range
360
Selects the 360° pan angle range
180
Selects the 180° pan angle range
Tilt Angle
270
Selects the 270° tilt angle range
180
Selects the 180° tilt angle range
90
Selects the 90° tilt angle range
BL.O.P/T Move
YES
Defines the pan/tilt move-in-black delay
NO
BL.O.ColorMove
YES
Defines the color change move-in-black delay
NO
BL.O.GoboMove
YES
Defines the gobo change move-in-black delay
NO
Lamp Settings
On/Off
ON
Turns lamp on/off
OFF
State/Power
on
ON
Defines the status of lamp when powering up
product
OFF
Off Via Dmx
YES
Turns off the unit via DMX controller
NO
On If Dmx
On
YES
Turns lamp on when DMX signal is detected
NO
Off If Dmx
Off
YES
Turns lamp off when DMX signal is lost
NO
Ignition
Delay
000–255
Selects duration of delay between product
power on and lamp power on
Low Power
Delay
000–255
Selects the duration of delay when shutter is
closed and lamp enters lower power state
Reset Lamp
Time
YES
Resets lamp timer to 0
NO
Leaves lamp time unchanged

Operation
Rogue™ R1 Beam User Manual Rev. 3 -15-
Menu Map (Cont.)
Main Level Programming Levels Description
Setup
(Cont.)
Maintenance
Timer
Interval 10–250
Defines amount of hours between
maintenance
Remaining
Time NO
Shows amount of time remaining in
maintenance cycle
RESET
Resets the time back to the beginning
Reset Function
Pan/Tilt
YES
Resets pan/tilt functions to the home position
NO
Prism
YES
Resets all prism functions to the home position
NO
Color
YES
Resets all color functions to the home position
NO
Gobo
YES
Resets all gobo functions to the home position
NO
Shutter/
Focus
YES
Resets the shutter and focus functions to the
home position
NO
All
YES
Resets all functions to the home position
NO
Factory Settings
YES
Reverts the product back to the original factory
settings
NO
Sys Info
Ver:
Displays the software version
Running Mode:
Displays the current running mode
Dmx Address:
Displays the current DMX address
Temperature:
Displays the product’s temperature in Celsius
Lamp On Time:
Displays the amount of time the lamp has been
on (provided the counter has been reset upon
installation of new lamp)
Remain Time:
Shows amount of time remaining in
maintenance cycle

Operation
-16- Rogue™ R1 Beam User Manual Rev. 3
Address
This programming level sets the DMX starting address.
•
Starting from the Main Level screen, select Address, press <ENTER>.
Set the
DMX Address
In this mode, each product will respond to a unique starting address from the DMX
controller. All products with the same starting address will respond in unison.
This option
sets the products DMX address.
•Change the starting address (001–512), press <ENTER>.
Run Mode
This programming level sets the DMX personality and controls the different test modes.
•Starting from the Main Level screen, select Run Mode, press <ENTER>.
DMX Personality
This option selects which DMX Personality the product uses.
1. Highlight DMX, press <ENTER>.
2. Select the DMX personality 15CH or 19CH, press <ENTER>.
•See the DMX Values section for the highest starting address you can select for
each personality.
•Make sure that the starting addresses on the various products do not overlap
due to the new personality setting.
Auto Test
This option runs every attribute individually through 1 cycle.
•Highlight Auto Test, press <ENTER>.
The Auto Test will end after 1 full cycle. You can stop the test by pressing <MENU>
at any time.
Manual Test
This option allows you to run each attribute individually or as a group.
1. Highlight Manual Test, press <ENTER>.
2. Highlight the desired attribute listed on the control panel screen, press <ENTER>.
•Set the attribute value (000–255), press <ENTER>.
3. Repeat step 2 for the other attributes.
When exiting the Manual Test level, the values of all tested channels will go back
to zero.
