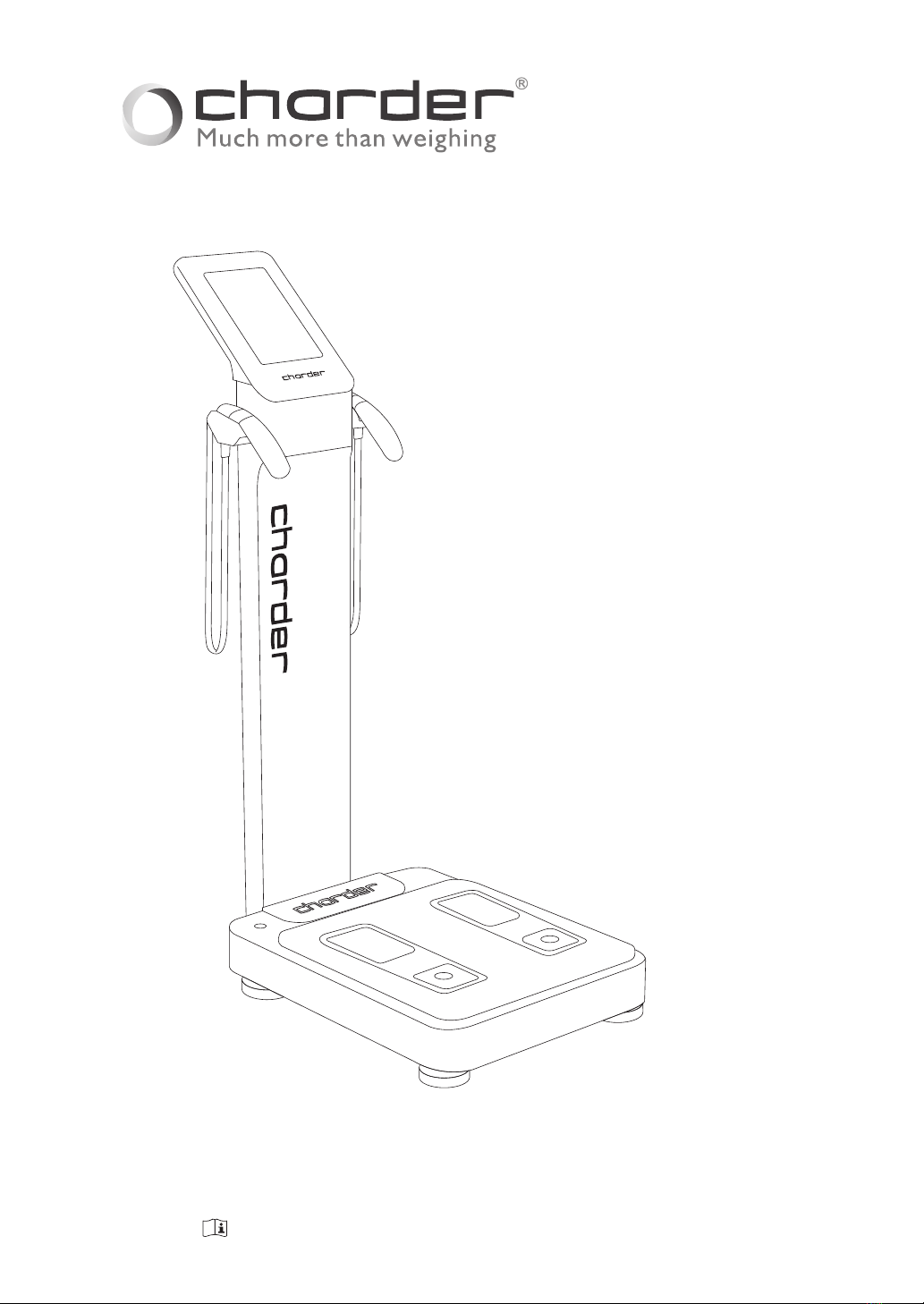

Charder MA801 User manual

Please keep the instruction manual at hand all the time for future reference.
Body Composition Analyzer
USER MANUAL
MA801

1

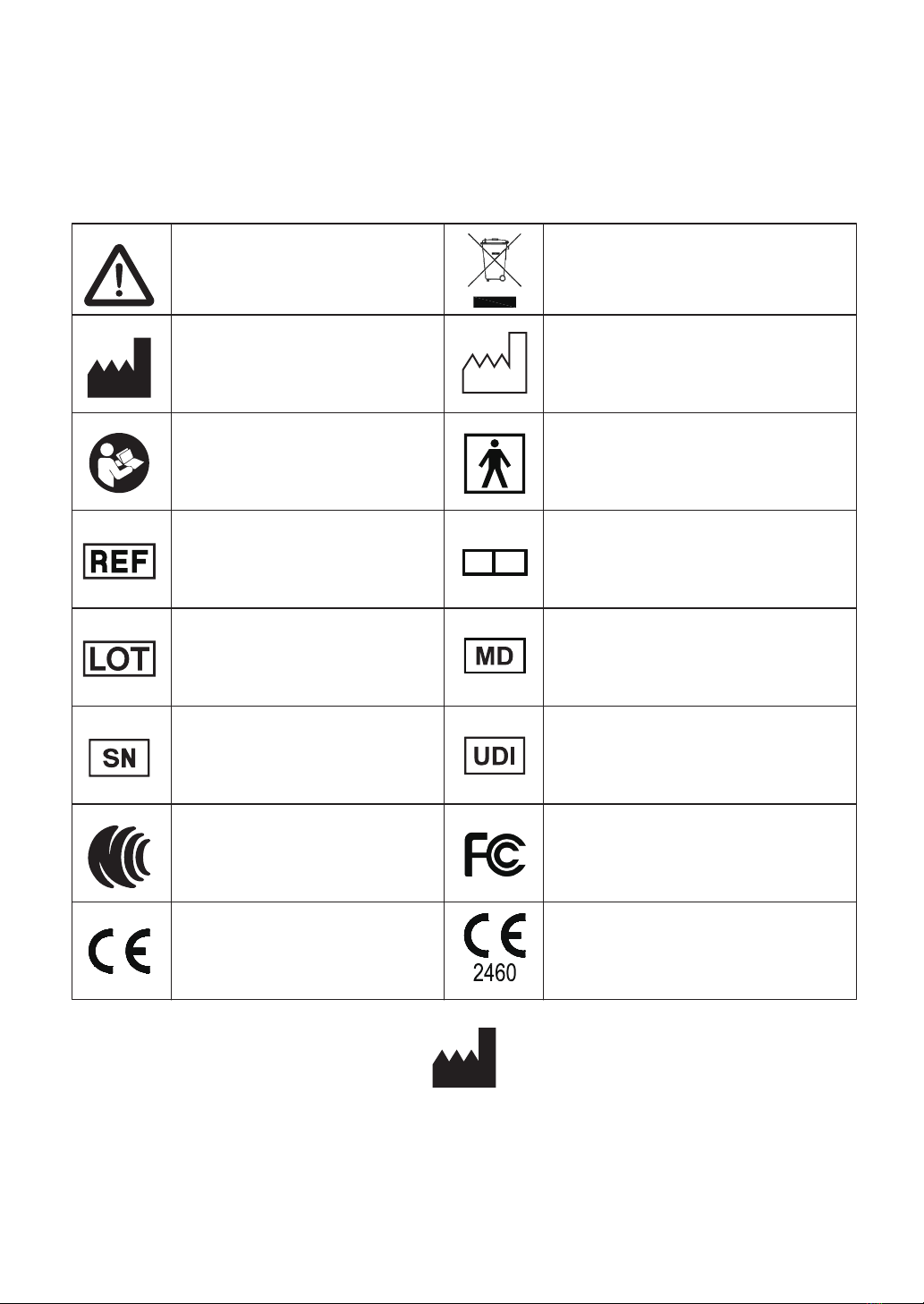

Explanation of Graphic Symbols
on Label/Packaging
Charder Electronic Co., Ltd.
No. 103, Guozhong Rd., Dali Dist.,
Taichung City, 41262 Taiwan
Caution, consult accompanying
documents before use
Manufacturer of medical device
Separate collection for waste of
electrical and electronic equipment,
in accordance with Directive
2002/96/EC
Manufacturer's batch or lot number
Serial number
Device has been approved by
Taiwan FCC
Unique Device Identifier
Device catalogue number
Medical electrical equipment with
Type BF applied part
Carefully read user manual before
installation and usage, and follow
instructions for use.
Device is a medical device
Device conforms to Declaration
of Conformity requirements
Device conforms to 93/42/EEC as
amended by 2007/47/EC Medical
Device Directive. Four digit number
refers to Notified Body.
Device conforms to U.S. Federal
Communications Commission
regulations
Authorized representative in the
European Community
Manufacturing year of medical
device
EC REP

Charder Electronic Co., Ltd.
No.103, Guozhong Rd., Dali Dist.,
Taichung City 41262 Taiwan (R.O.C.)
Tel: [phone]
Fax: [phone]
Website: www.chardermedical.com
E-mail: [email protected]
2
Copyright Notice
Copyright© Charder Electronic Co., Ltd. All rights reserved.
This user manual is protected by international copyright law. All content is licensed, and usage
is subject to written authorization from Charder Electronic Co., Ltd. (hereinafter Charder)
Charder is not liable for any damage caused by a failure to adhere to requirements stated in this
manual. Charder reserves the right to correct misprints in the manual without prior notice, and
modify the exterior of the device for quality purposes without customer consent.

3
CONTENTS
4
4
6
7
11
12
12
13
14
18
20
20
21
23
26
26
28
29
30
36
36
37
50
60
60
60
61
64
65
68
I. SAFETY NOTES
A. General Information
B. Precaution Symbols
EMC guidance and manufacturer's declaration
II.
INTRODUCTION TO THE MA801 BODY COMPOSITION ANALYZER
III. INSTALLATION
A. Product Parts and Assembly
B. Environment
C. Installation Instructions
IV. EXTERIOR AND PANEL DEFINITION
V. GETTING STARTED
A. Power Supply
B. Start screens
VI. INSTRUCTIONS FOR OPERATION
VII. MEASURING INSTRUCTIONS
A. Measuring Posture
B. Proper Measurement Posture (feet)
C. Proper Measurement Posture (hands)
D. Measuring Procedure
VIII. ABOUT RESULTS
A. Result Sheet
B. Result Sheet Explanation
IX. SYSTEM SETTINGS
X. PRINTING
A. Printer Compatibility
B. Connecting Printer
C. Configure Printer Settings in the device
XI. TROUBLESHOOTING
XII. FREQUENTLY ASKED QUESTIONS (FAQ)
XIII. PRODUCT SPECIFICATIONS

4
A.General Information
Thank you for choosing this Charder Medical device. It is designed to be easy and
straightforward to operate, but if you encounter any problems not addressed in this manual,
please contact your local Charder service partner.Before beginning operation of the device,
please read this user manual carefully, and keep it in a safe place for reference. It contains
important instructions regarding installation, proper usage, and maintenance.
Intended Use
This device is intended to estimate body composition by measuring and monitoring the weight
and bioelectrical impedance of subjects who can stand unassisted. This device is only for
professional use at clinics and hospitals
Caution : General Handling
■ This device is intended for indoor use only.
■ Do not place the device on slippery surfaces.
■ Ensure all parts are properly locked and tightened before operating the device.
■ Device is intended to measure one subject at a time.
Electric Shock
■ Do not touch the power supply with wet hands.
■ Do not crimp the power cable, and avoid sharp edges.
■ Do not overload extension cables connected to the device.
■ Route the network and power cable carefully, to avoid tripping.
■ Keep the device away from liquids.
Caution : Injuries and Infections
■ Ensure that subjects do not have wounds or contagious diseases on the palms of their
hands or the soles of their feet.
■ For hygiene purposes, Charder recommends cleaning the measuring platform after
each measurement with a soft cloth and alcohol.
■ Ensure that the measuring platform is dry before usage.
I. SAFETY NOTES
During measurement, this machine will send a low level imperceptible electrical current
throughout the body. Individuals with implanted medical devices, such as:
1. Pacemakers
2. Electronic lungs and other electronic medical life support equipment
3. ECG devices must not use this machine, as the electric current may affect the implanted
device, endangering lives.
Warning: To avoid electric shock, this device should be plugged into a grounded electrical
outlet.
Contraindications

5
Preventing Device Damage
■Please contact your local Charder distributor for regular maintenance and calibration.
■This device does not contain any user-maintained parts. All maintenance, technical
inspections, and repairs should be conducted by an authorized Charder service
partner, using original Charder accessories and spare parts. Charder is not liable for
any damages arising from improper maintenance or usage. Dismantlement of the
device will void the warranty.
■Take care to make sure fluids do not enter the device, as they may damage the
internal electronics.
■Switch off the device before disconnecting the power supply.
■Do not place the device in direct sunlight, or in close proximity to an intense heat
source. Excessively high temperatures may damage the internal electronics.
■Strong cleaning agents can damage the measuring platform's surface.
Caution
Caution
Alcohol wipes can be used to clean the electrodes and weighing platform.
Alcohol-based cleaning solutions should not be used on the touch screen.
Usage of Results
■The MA801 is not a diagnostic device. Results should be interpreted with assistance
from a professional.
■BIA results are calculated based on impedance values validated with representative
population studies and statistical analysis. As such, the technique is best suited for
tracking progress for an individual over a period of time, or for categorizing large
groups of people, rather than used as a one-time analysis. Accuracy of results is
highly dependent on proper measurement procedure. For more information on
getting the best results, please see Chapter VI. (INSTRUCTIONS FOR
OPERATION)
I. SAFETY NOTES

6
I. SAFETY NOTES
Additional information regarding the operating environment,
conditions for installation, or special conditions in usage.
Indicates helpful hints and supplementary information.
Indicates actions that should not be performed.
Bold text identifies buttons on the display panel or computer screen.
Hazard icon warning against possible electric shock.
NOTE
Bold
Identifies the possibility of serious injury or death for the
user if the device is mishandled, or safety instructions are
not followed.
Identifies the possibility of physical injury or device damage
if the device is mishandled, or safety instructions are not
followed.
The caution symbol indicates general precautions that should
be taken when using the device.
Warning
Caution
B. Precaution Symbols

7
I. SAFETY NOTES
EMC guidance and manufacturer's declaration
The Body Composition Analyzer
MA801 is suitable for use in all
stablishments, including domestic
establishments and those directly
connected to the public low-voltage
power supply network that supplies
buildings used for domestic
purposes.
Guidance and manufacturer’s declaration-electromagnetic emissions
The Body Composition Analyzer MA801 is intended for use in the electromagnetic environ-
ment specified below. The customer or the user of the Body Composition Analyzer MA801
should assure that it is used in such an environment.
Emission test Compliance Electromagnetic
environment-guidance
RF emissions
CISPR 11
Group 1
The Body Composition Analyzer
MA801 uses RF
energy only for its internal unction.
Therefore, its RF emissions are
very low and are not likely to cause
any interference in nearby electron-
ic equipment.
RF emissions
CISPR 11
Harmonic
emissions
IEC 61000-3-2
Voltage
fluctuations
/flicker emissions IEC
61000-3-3
Class B
Class A
Compliance

8
I. SAFETY NOTES
Guidance and manufacturer’s declaration-electromagnetic immunity
The Body Composition Analyzer MA801 is intended for use in the electromagnetic environ-
ment specified below. The customer or the user of the Body Composition Analyzer MA801
should assure that it is used in such an environment.
Immunity test IEC 60601 test level Compliance level Electromagnetic
environment-guidance
Electrostatic
discharge(ESD)
IEC 61000-4-2
± 8 kV contact
± 2 kV, ± 4 kV,
± 8 kV, ± 15 kV air
± 8 kV contact
± 2 kV, ± 4 kV,
± 8 kV, ± 15 kV air
Floors should be wood,
concrete or ceramic tile.
If floors are covered with
synthetic material, the
relative humidity should be
at least 30%
Electrical fast
transient/burst IEC
61000-4-4
±2kV for power
supply lines
±1kV for
input/output lines
+ 2kV for power
supply lines
+ 1kV for
input/output lines
Mains power quality should
be that of a typical
commercial or hospital
environment.
+ 1kV line(s) to
line(s)
+ 2kV line(s) to
earth
+ 1kV line(s) to
line(s)
+ 2kV line(s) to
earth
Mains power quality
should be that of a
typical commercial or
hospital environment.
Voltage Dips,
short interruptions
and voltage
variations on
power supply input
lines IEC
61000-4-11
0% UT for 0,5 cycle
0% UT for 1 cycle
70% UT(30% dip in
UT) for 25 cycles
0% UT for 5 s
0% UT for 0,5 cycle
0% UT for 1 cycle
70% UT(30% dip in
UT) for 25 cycles
0% UT for 5 s
Mains power quality
should be that of a typical
commercial or hospital
environment. If the user of
the Body Composition
Analyzer MA801 requires
continued operation
during power mains
interruptions, it is recom-
mended that the Body
Composition Analyzer
MA801 be powered from
an uninterruptible power
supply or a battery.
Power frequency
(50, 60 Hz)
magnetic field IEC
61000-4-8
30 A/m 30 A/m
The Body Composition
Analyzer MA801 power
frequency magnetic fields
should be at levels
characteristic of a typical
location in a typical
commercial or hospital
environment.
NOTE UT is the a.c. mains voltage prior to application of the test level.
Surge IEC
61000-4-5

9
I. SAFETY NOTES
NOTE1 At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE2 These guidelines may not apply in all situations. Electromagnetic propagation is
affected by absorption and reflection from structures, objects and people.
Guidance and manufacturer’s declaration-electromagnetic immunity
The MA801 is intended for use in the electromagnetic environment specified below.
The customer or the user of the MA801 should assure that is used in such and environment.
Immunity test IEC 60601 test level Compliance level Electromagnetic
environment-guidance
Conducted RF
IEC 61000-4-6
3 Vrms
150 KHz to 80 MHz
6 V in ISM bands
between 0,15 MHz
and 80 MHz 80 %
AM at 1 kHz
Portable and mobile RF
communications equipment
should be used no closer to
any part of the Body
Composition Analyzer MA801
including cables, then the
recommended separation
distance calculated from the
equation applicable to the
frequency of the transmitter.
Radiated RF
IEC 61000-4-3
3 V/m
80MHz to 2,7 GHz
Recommended separation
distance:
d = 1,2 √P
d = 1,2 √P 80MHz to 800
MHz d = 2,3 √P 800MHz to 2,7
GHz
Where P is the maximum
output power rating of the
transmitter in watts (W)
according to the transmitter
manufacturer and d is the
recommended separation
distance in meters (m).
Field strengths from fixed RF
transmitters, as determined
by an electromagnetic site
survey,ashould be less than
the compliance level in each
frequency range.b
Interference may
occur in the vicinity
of equipment
marked with the
following symbol:
3 Vrms
150 KHz to 80 MHz
6 V in ISM bands
between 0,15 MHz
and 80 MHz 80 %
AM at 1 kHz
3 V/m
80MHz to 2,7 GHz

10
I. SAFETY NOTES
a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless)
telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV
broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic
environment due to fixed RF transmitters, an electromagnetic site survey should be consid-
ered. If the measured field strength in the location in which the Body Composition Analyzer
MA801 is used exceeds the applicable RF compliance level above, the Body Composition
Analyzer MA801 should be observed to verify normal operation. If abnormal performance is
observed, additional measures may be necessary, such as re-orienting or relocating the
Body Composition Analyzer MA801
b Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.
The Body Composition Analyzer MA801 is intended for use in an electromagnetic environment
in which radiated RF disturbances are controlled. The customer or the user of the Body Compo-
sition Analyzer MA801 can help prevent electromagnetic interference by maintaining a minimum
distance between portable and mobile RF communications equipment (transmitters) and the
Body Composition Analyzer MA801 as recommended below, according to the maximum output
power of the communications equipment.
Separation distance according to frequency of transmitter m
150 kHz to 80 MHz 80 MHz to 800 MHz 800 MHz to 2,7 GHz
d =1,2√P d =1,2√P d =2,3√P
W
0,01
0,1
1
10
100
0,12
0,38
1,2
3,8
12
0,12
0,38
1,2
3,8
12
0,23
0,73
2,3
7,3
23
For transmitters rated at a maximum output power not listed above, the recommended
separation distance d in metres (m) can be estimated using the equation applicable to the
frequency of the transmitter, where p is the maximum output power rating of the transmitter in
watts (W) according to the transmitter manufacturer.
NOTE1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range
applies.
NOTE2 These guidelines may not apply in all situations. Electromagnetic propagation is
affected by absorption and reflection from structures, objects and people.
Rated maximum output
power of transmitter
Recommended separation distance between
portable and mobile RF communications equipment and the MA801

II. INTRODUCTION TO THE MA801
BODY COMPOSITION ANALYZER
Body composition analysis describes what the body is made of, differentiating between body
water, protein minerals, and fat to provide more precise information beyond weight and BMI.
Body composition components are strongly related to different outcomes and regular
measurement is becoming increasingly valuable in practice.
There are many possible ways to estimate body composition. Some methods quick and
inexpensive, but can only provide basic information. Others are lengthy and expensive,
requiring usage of trained personnel and highly technical equipment. Bioelectrical Impedance
Analysis (BIA) has become a widely accepted assessment method, as it is fast, simple,
non-invasive, and easily repeatable.
The MA801 Professional Body Composition Analyzer provides many relevant measurement
values and data that can be used by professionals track progress, and providing important
indicators. Boasting multiple measurement frequencies and sophisticated algorithms, Charder
stands by our devices with clinical trials and over ten years of original peer-reviewed scientific
research, for results you can trust.
11

12

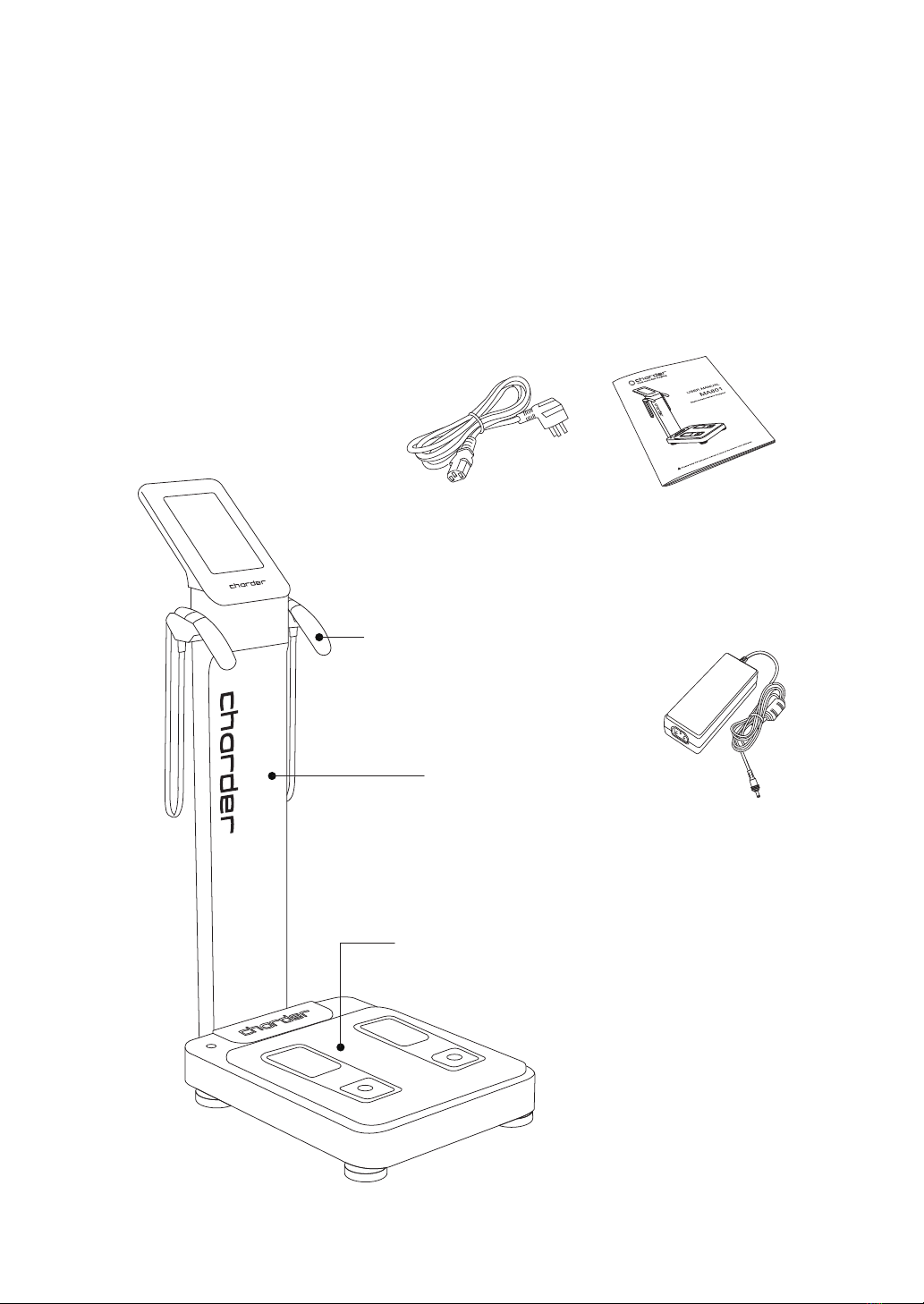

III. INSTALLATION
A. Contents
Unboxing accessories
 MA801 body composition analyzer
 Power adapter DC 12V, 3A, 60VA
 Power cord
 User manual
Column
Measuring Platform
Hand electrodes
Power cord User manual
Power adapter

13

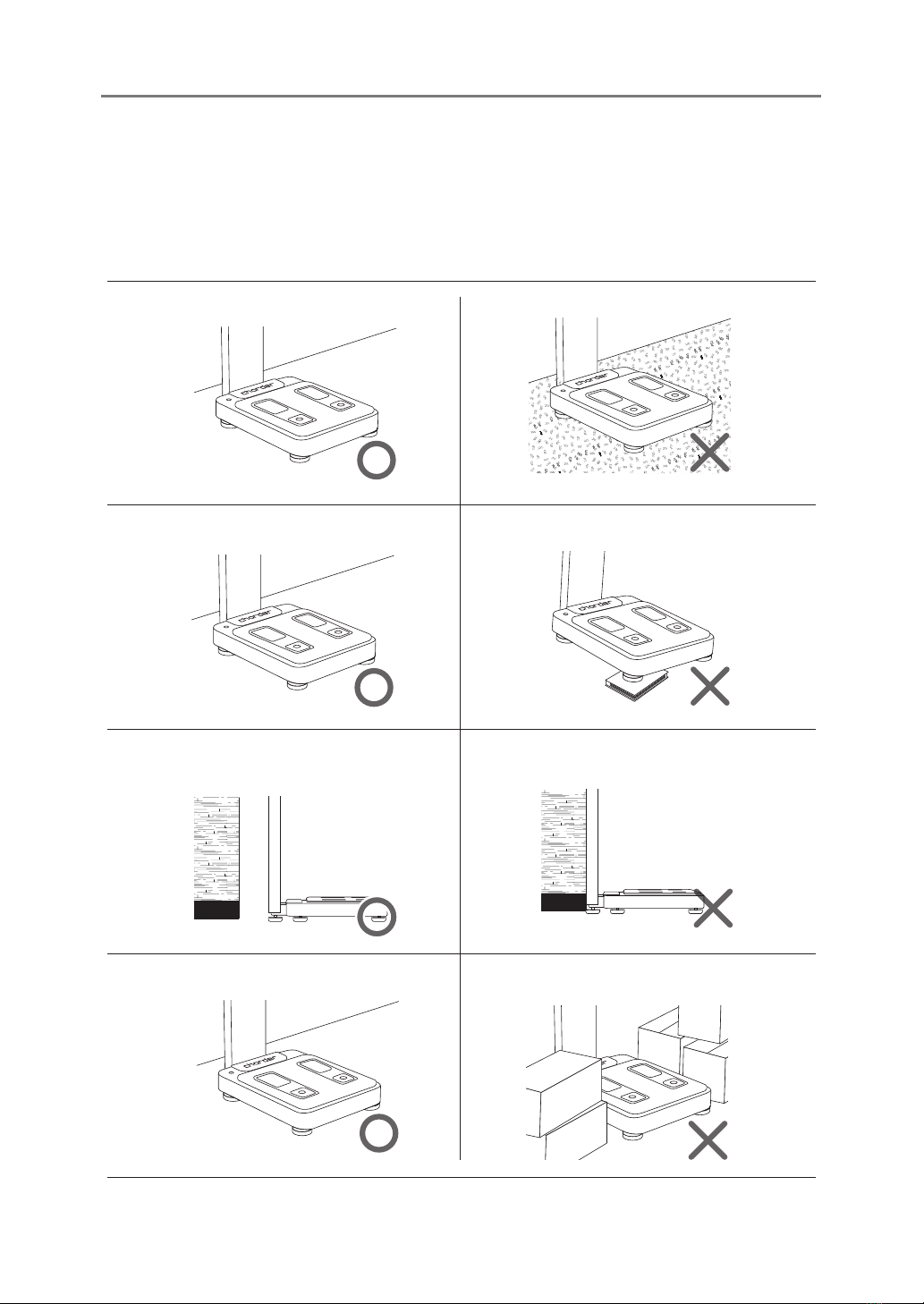

III. INSTALLATION
B. Environment
The device should be placed on a flat and hard surface. Usage on carpet may result in
static electricity, which may damage the equipment and cause inaccuracies in
measurement.
placed on hard surface
clear surroundings
keep space between the wall
flat surface
placed on the carpet
uneven surface
placed against the wall
objects placed around the device

14

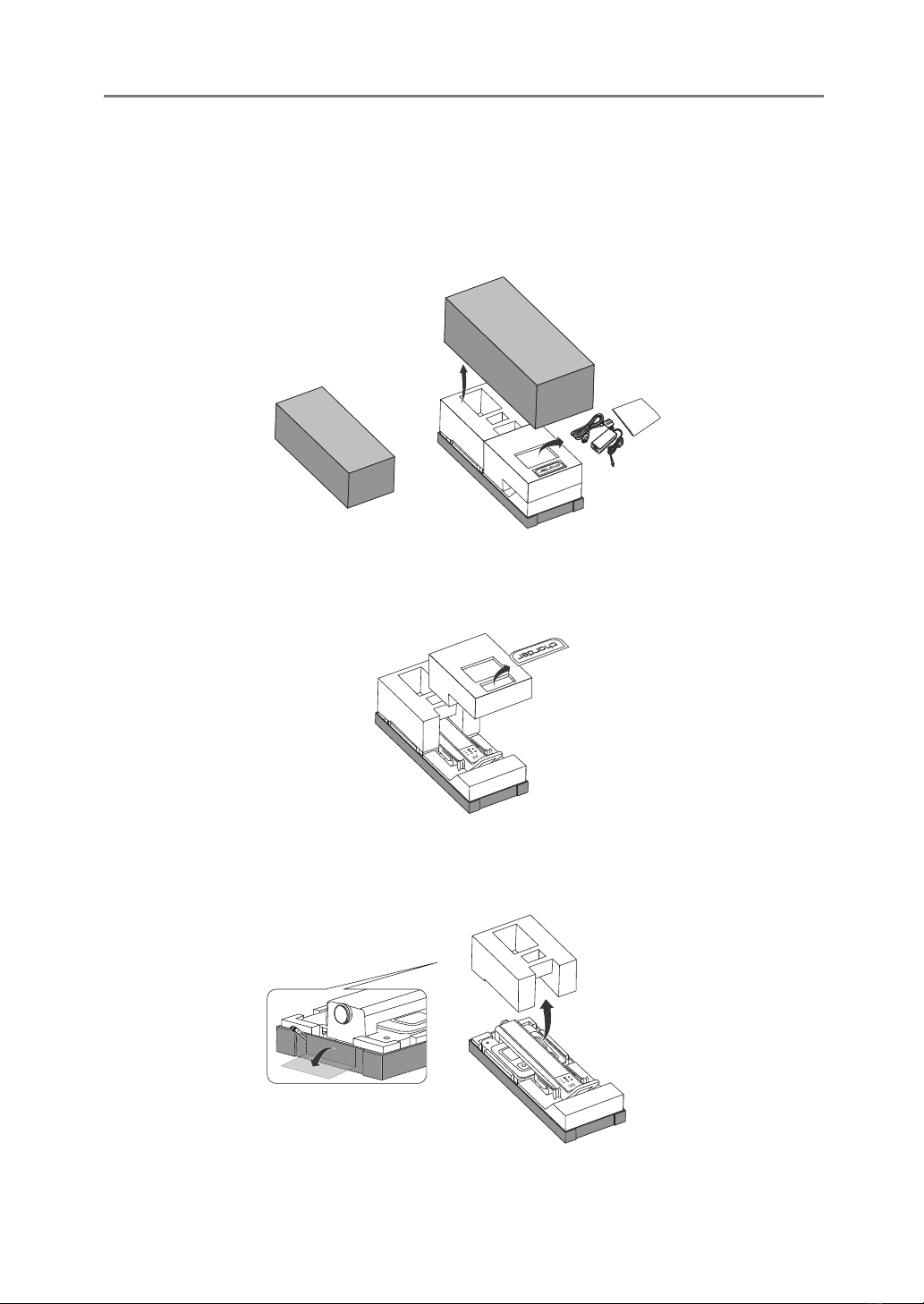

III. INSTALLATION
C. Installation Instructions
1. Lift box cover.
Take user manual and power adapter out of box
2. Remove polyethylene foam from box and joint cover from polyethylene
3. Remove second piece of polyethylene foam from box

15
III. INSTALLATION
4. Raise display column up in an upright position
5. Take hand electrodes out from box and place them on hand electrodes holder on the display
6. Use M6 hex driver found on the back of joint cover to tighten column and base platfrm.
7. Place joint cover into its place (a clicking sound will be made)
NOTE：Two people are needed to remove MA801 from box
1
1
2
4. 5.
6. 7.

Bubble level adjustment instruction
16
III. INSTALLATION

17

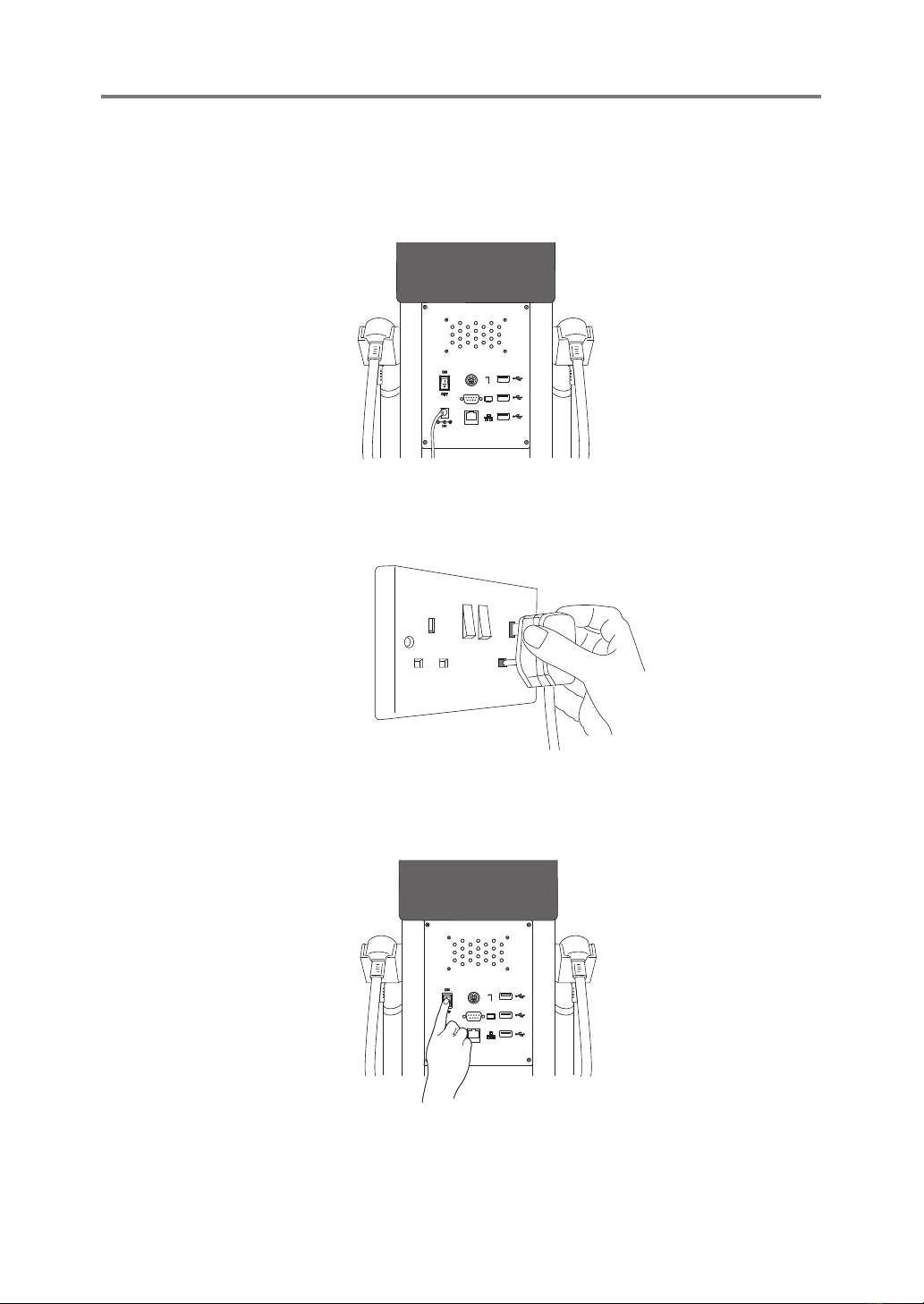

III. INSTALLATION
Plug 12V Charder power adapter in the AC jack.
Plug power adapter into the mains
Turn power switch ON to start the device

18
Left hand electrode
Bubble level
Foot electrode
Adjustable feet
Touch panel display
Right hand electrode
Column
Foldable joint
Sole electrode
IV. EXTERIOR AND PANEL DEFINITION

19

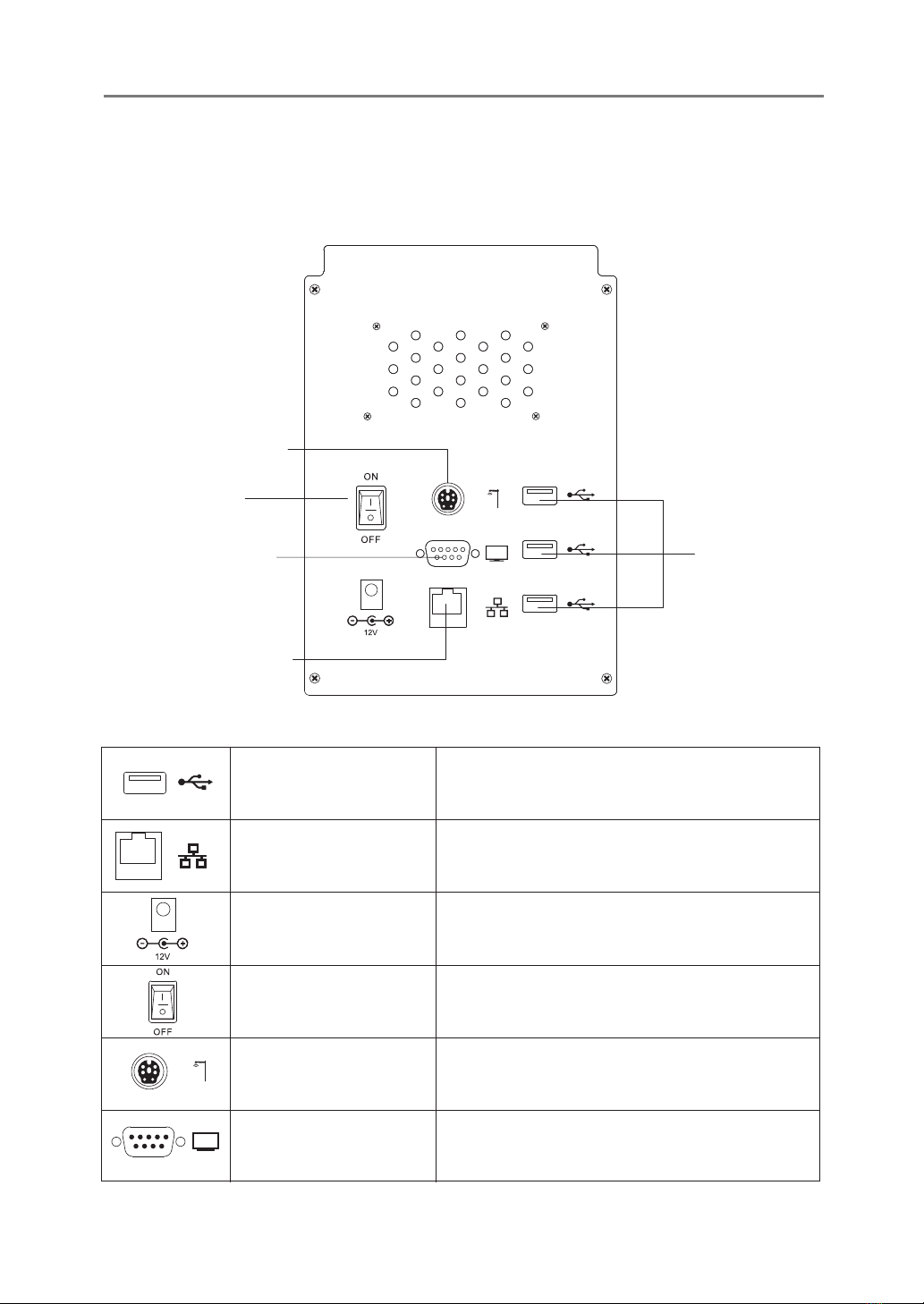

IV. EXTERIOR AND PANEL DEFINITION
Rear panel definition
USB port
LAN port
Power jack plug
Power switch
9 pin mini DIN plug
RS232 serial port
For connecting to a printer or USB flash drive
For connecting the MA801 to a network
For connecting to a power adapter
For switching the MA801 on and off
For connecting with height rod
For connecting with a PC
9 pin mini DIN plug
Power switch
RS232 serial port
12V Power input
LAN port (Ethernet)
USB port
