Chariot CV28 User manual

86037810 CHARIOT® VACUUM 12/16/06

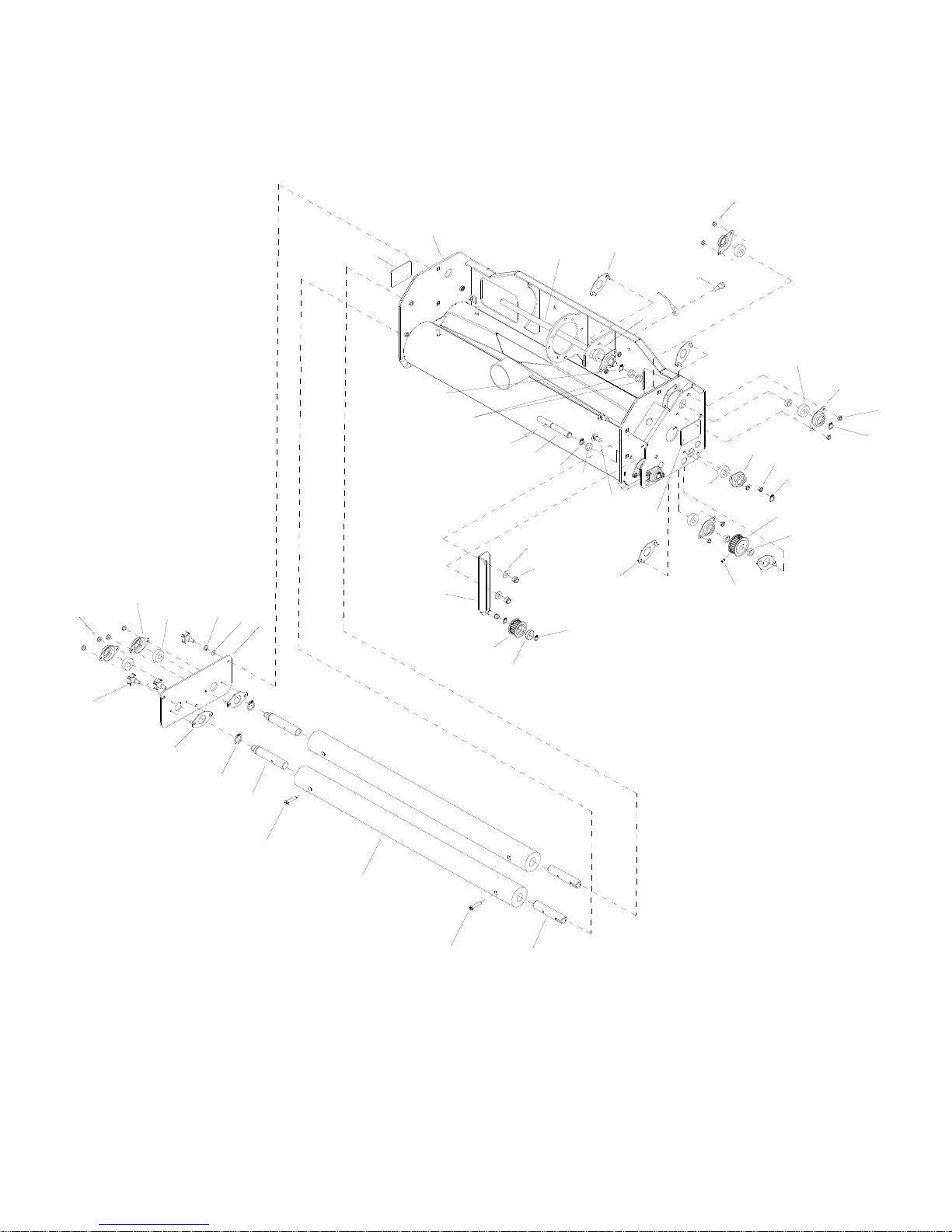

PARTS
®

BRUSH DECK
86037810 CHARIOT® VACUUM 07/31/08
5-1
10
9
814
14
9
10
8
8
20 26 25
24
23
19
27
1
18
22
21
6
19
14
17
16
15
31
13 12
11
10 9
8
7
6
54
3
2
28
28
30
29
14
6
9
32
33

BRUSH DECK
86037810 CHARIOT® VACUUM 01/12/09 5-2
REF PART NO. PRV NO. QTY DESCRIPTION SERIAL NO.
FROM NOTES:
1 86272350 66194 2 PIN, DOWEL GROOVE 3/16” X 3/4”L
2 86230700 12536 2 BRUSH, 27.75 X 4.0 OD
3 86227730 03130 2 AXLE, BRUSH DRIVE RECIEVER STUB
4 86227720 03129 2 AXLE, BRUSH BEARING STUB
5 86008710 80623 4 RING, 3/4” EXT SNAP H-D
6 86079420 620113 9 PLATE, LOCK W/STUDS
7 86200500 140-11 3 KNOB, RT/TANK *(12) WAS 70893
8 86271900 57294 18 NUT, 10-24 HEX NYLOCK THIN SS
9 86319050 - 9 BEARING, SHIELDED 1.125 OD X .500 ID ** WAS 09019
10 86000920 09055 9 BEARING FLANGE
11 86079430 620114 1 PLATE, BRUSH DOOR
12 86229010 09162 2 BEARING, 22 X 10 X 6 SS
13 86250740 64118 1 PULLEY, TIMING 5MM HTD 22T 15W
14 86272810 67132 7 RING, 1/2 EXT. SNAP H-D
15 86068460 78943 1 BRACKET, BELT TENSIONER
16 86279630 87212 2 WASHER, .344 ID X .13 OD X .09 T PLT
17 86270830 57023 2 NUT, 5/16-18 HEX NYLOCK SS
18 86277130 70795 2 SCR, 5/16-18 X 1.0 CARRIAGE SS
19 86279350 87140 8 WASHER, WAVE 1/2ID X 3/4D X .125
20 86092260 29278 1 DECK, BRUSH VACUUM
21 86227710 03128 2 AXLE, BRUSH DRIVER STUB
22 86254330 730401 5 SPACER. .504 ID X .690 OD X .25 L
23 86250750 64119 3 PULLEY, TIMING 5MM HTD 30T, 15W
24 86229450 11050 1 BELT, TIMING, 5MM X 12MM 2-SIDED
25 86278330 70641 1 SHOULDER BOLT, 3/8OD X 3/8L SS
26 86227700 03127 1 AXLE, .50DIA X 14 W/FLATS, JACK
27 86278100 70894 3 SET SCR, 10-32 X .5 SOC CUP PT SS
28 86277650 70895 4 SCR, ¼-20 X 1.25 PFHMS SS
29 86010780 87162 3 WASHER, 1/4 SPLIT LOCK PLTD
30 86010630 87013 3 WASHER, 1/4 ID X 5/8 OD SS
31 86272830 67138 2 RING, 3/8 EXT SNAP
32 86296990 - 1 LABEL, BELT ROUTING, IVAC *(1)
33 86244500 501107 1 LABEL, BRUSH ORIENTATION *(1)
* SEE SERIAL NUMBER PAGE
**CALL MANUFACTURER FOR SERIAL NUMBER

BRUSH DECK LINKAGE
86037810 CHARIOT® VACUUM 09/23/08
5-3
6
13
6
3
16 17
2
85
12 6
11
9
10
4
65
8
6547
48
5
13
32
8
8
6
13
6
14
19 24
22
21
23
15
4
18
25
262728
29
30
31 5
6
18
32
32
12
12
2728
1
20
34
33

BRUSH DECK LINKAGE
86037810 CHARIOT® VACUUM 09/23/08 5-4
REF PART NO. PRV NO. QTY DESCRIPTION SERIAL NO.
FROM NOTES:
1 86273920 70049 4 SCR, 1/4-20 X 1.75 PPHMS SS
2 86063340 270141 1 COVER, DECK SIDE, RIGHT
3 86063350 270142 1 COVER, DECK SIDE, LEFT
4 86228840 09124 6 BEARING, FLANGED .314ID X .502 OD
5 86010670 87029 16 WASHER, 5/16 FLAT SS
6 86270830 57023 28 NUT, 5/16-18 HEX NYLOCK SS
7 86073550 51420 2 BRKT, HEAD ATTACH
8 86259420 87232 10 WASHER, THRUST .51 ID X 1 OD BRO
9 86068410 14838 1 BRACE, ANGLE
10 86088730 14819 1 BAR, TIE, DECK
11 86073560 51421 2 BRKT, HEAD ATTACH
12 86277030 70780 8 SCR, 5/16-18 X 1.25 CARRIAGE SS
13 86276070 70593 8 SCR, 5/16-18 X 3/4 CARRIAGE SS
14 86255000 730385 4 SPRING, EXT. .75 OD X 3.5L
15 86068420 29279 1 BRACKET, SCRUB DECK MOUNTING
16 86010780 87162 4 WASHER, 1/4 SPLIT LOCK PLTD
17 86010810 87191 4 WASHER, 1/4 ID X 1.0 OD FLAT SS
18 86226830 73268 2 SPRING, EXT .68D X 3.00L X .098W
19 86235410 78946 1 EDGING, 3/16” GRIP X 2.0 LG
20 86189050 790464 4 NUT, WELL 1/4-20 HD
21 86236560 43002 1 FOAM, SOUND INSUL, LFT CVR *(2)
22 86236550 43001 1 FOAM, SOUND INSUL, RT CVR *(2)
23 86236570 43003 1 FOAM, SOUND INSUL, UNDR CARR *(2)
24 86068360 141900 1 BRACKET, SCRUB DECK MOUNTING *(3)
25 86072210 141901 1 BRACKET, SPRING TENSIONER *(3)
26 86068370 141903 1 BRACKET, SPRING ANCHOR *(3)
27 86279510 87171 2 WASHER, 3/8 FLAT
28 86271930 57297 2 NUT, 3/8-16 HEX NYLOCK SS
29 86279130 87083 2 WASHER, 5/16 SPLIT LOCK PLTD
30 86006560 70083 4 SCR, 5/16-18 X 1 HHCS SS NP
31 86276870 70748 1 SCR, 3/8-16 X 2.50 CARRIAGE SS
32 86276710 70717 6 SCR, 5/16-18 X 2.0 CARRIAGE SS
33 86270900 57037 2 NUT, 1/4-20 WING SS *(12)
34 86276610 70697 2 SCR, 1/4-20 X 1.25 PPHMS SS ** WAS
70049
* SEE SERIAL NUMBER PAGE
** CALL MANUFACTURER FOR SERIAL NUMBER

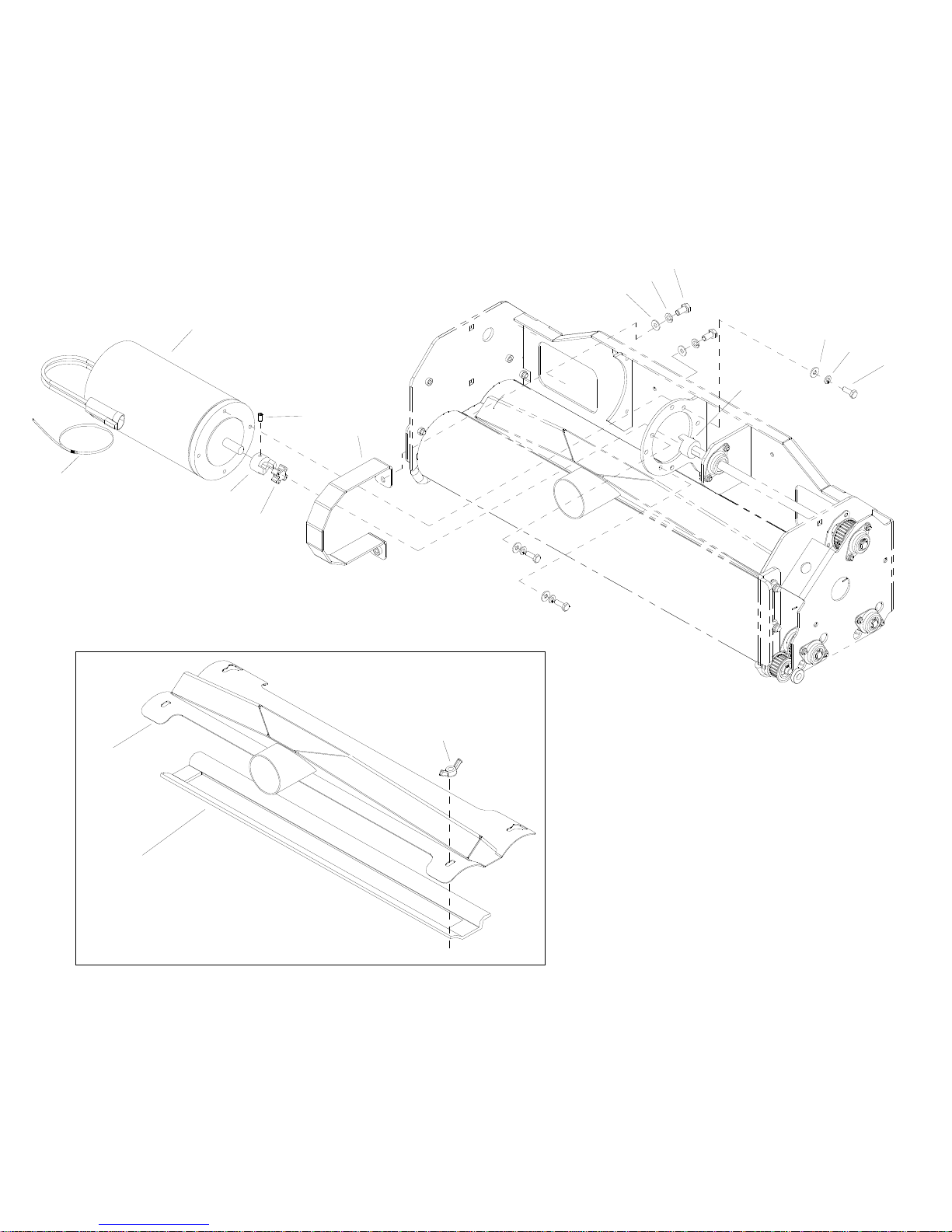

BRUSH DECK MOTOR & NOZZLE
86037810 CHARIOT® VACUUM 11/14/07
5-5
15
2
11
10
9
5
4
8
7
6
3
2
1
14
13
12

BRUSH DECK MOTOR & NOZZLE
86037810 CHARIOT® VACUUM 11/14/07 5-6
REF PART NO. PRV NO. QTY DESCRIPTION SERIAL NO.
FROM NOTES:
1 86222130 53275 1 MOTOR, 36VDC, 20A, .5HP *(4) WAS 53638
2 86234610 22112 2 COUPLER, .501 ID, 1/2 JAW “D” *(4) WAS 22108
3 86234600 22109 1 COUPLER, SPIDER, SHL070, HYTREL
4 86088100 730403 1 STRAP, BRUSH MOTOR
5 86078040 58006 1 NOZZLE, VACUUM *(5)
6 86276780 70728 2 SCR, 5/16-18 X 3/4 HHCS SS
7 86010630 87013 3 WASHER, 1/4 ID X 5/8 OD SS
8 86010780 87162 3 WASHER, 1/4 SPLIT LOCK PLTD
9 86273780 70015 3 SCR, 1/4-20 X 3/4 HHCS SS NP
10 86010670 87029 2 WASHER, 5/16 FLAT SS
11 86279130 87083 2 WASHER, 5/16 SPLIT LOCK PLTD
12 86264940 27051 2 CABLE TIE, 11.38” UL/CSA
13 86277930 70119 2 SET SCR, 1/4-20 X 3/8 KCP DL
14 86271720 57246 4 NUT, 1/4-20 WING NYLOCK ZINC *(5)
15 86238060 36247 1 GASKET, 3.50 W X 25.75L X .19T *(5)
16 OPEN
* SEE SERIAL NUMBER PAGE

BRUSH DECK LIFT
86037810 CHARIOT® VACUUM 08/14/07
5-7
31
21
17
17
9
14
14
9
9
9
9
14
14
14 13
13
13
11
11
29
28 26
25
24
23
22
10
20
18
16
15
14
13 12 11
10 9
8
7
6
5
43
2
130
32

BRUSH DECK LIFT
86037810 CHARIOT® VACUUM 12/16/06 5-8
REF PART NO. PRV NO. QTY DESCRIPTION SERIAL NO.
FROM NOTES:
1 86238350 36214 1 GRIP, 3/16 X 1.00 BLUE
2 86076610 38319 1 HANDLE, SQUEEGEE LIFT
3 86257170 72200 1 SWITCH, DPDT, SNAP ACTION
4 86250240 72201 1 PLUNGER, SWITCH, OVERTRAVEL
5 86009560 82053 1 PIN, CLEVIS 1/4 X .63 PLTD
6 86271660 57233 2 NUT, 4-40 HEX NYLOCK
7 86007020 70673 1 SCR, 5/16-18 X 1.25 HHCS SS NP
8 86231570 270105 1 CABLE, SQG LIFT SCRUBPLUS
9 86270830 57023 8 NUT, 5/16-18 HEX NYLOCK SS
10 86276070 70593 2 SCR, 5/16-18 X 3/4 CARRIAGE SS DELUXE ONLY
11 86223370 66464 4 PULLEY, PLASTIC 3.0 DIA.
12 86073600 66833 1 BRKT, PULLEY RETAINER, SINGLE
13 86231150 09151 5 BUSHING FLANGE, .314 ID X.502 OD
14 86010670 87029 8 WASHER, 5/16 FLAT SS
15 86083500 66832 1 PLATE, PULLEY RETAINER, CORNER
16 86083490 66831 1 PLATE, PULLEY MOUNT, CORNER
17 86276760 70724 4 SCR, 5/16-18 X 1.25 BSHCS SS
18 86066130 89501 1 ASM, HANDLE RETAINER *(6)
19 OPEN - - - - -
20 86091820 140807 1 BRKT, SIDE CHANNEL R
21 86271840 57285 2 NUT, 5/16-18 HEX NYLOCK THIN SS DELUXE ONLY
22 86068400 14623 1 BRKT, CABLE MOUNT DELUXE ONLY
23 86083440 66824 1 PLATE, PULLEY MOUNTING, CENTER
24 86277460 70847 1 SCR, 5/16-18 X 5/8 BSHCS SS
25 86259420 87232 2 WASHER, THRUST .51 ID X 1 OD BRO
26 86276010 70580 2 SCR, 4-40 X 1.0 PPHMS
27 86279450 87161 2 WASHER, #6 FLAT SAE PLTD
28 86008650 80604 1 COTTER, 1/4” RING
29 86254280 730331 1 SPACER, 1.00 OD X .32 ID X .375
30 86277130 70795 1 SCR, 5/16-18 X 1.00 CARRIAGE SS DELUXE ONLY
31 86231760 27725 1 CABLE ASM, SQUEEGEE TC DELUXE ONLY
* SEE SERIAL NUMBER PAGE

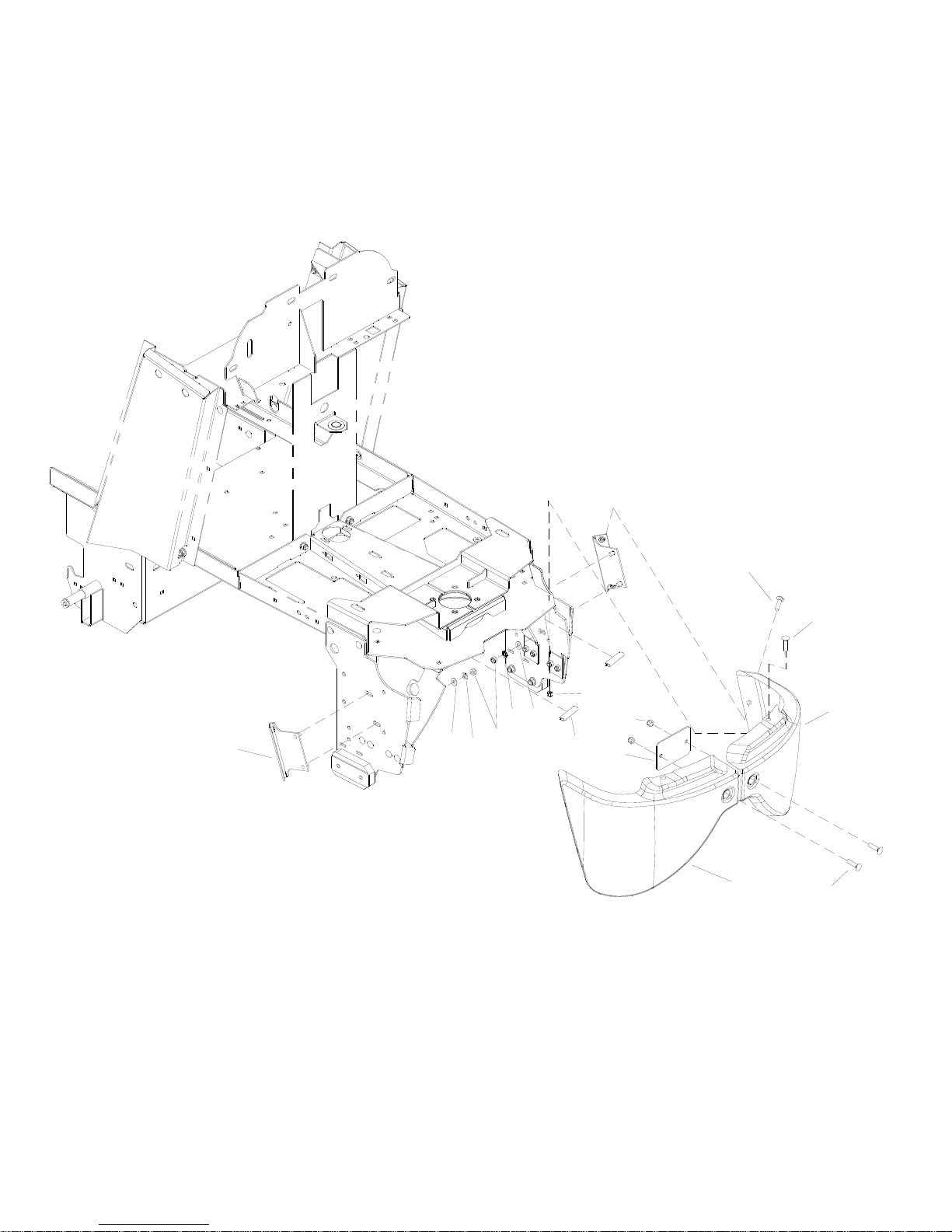

BUMPER
86037810 CHARIOT® VACUUM 12/16/06
5-9
8
6
2
1
5
1
4
3
710 910 711 6

BUMPER
86037810 CHARIOT® VACUUM 12/16/06 5-10
REF PART NO. PRV NO. QTY DESCRIPTION SERIAL NO.
FROM NOTES:
1 86276890 70752 6 SCR, 5/16-18X3/4 PTHMS SS
2 86007070 70849 2 SCR, 5/16-18 X 1.00 PPHMS SS
3 86063230 140813 1 BUMPER, LEFT
4 86063240 140814 1 BUMPER, RIGHT
5 86071020 140783 1 BRKT, FRONT BUMPER
6 86270830 57023 4 NUT, 5/16-18 HEX NYLOCK SS
7 86010670 87029 4 WASHER, 5/16 FLAT SS
8 86070730 140729 2 BRKT, BUMPER MOUNT, SIDE
9 86197040 57264 4 NUT, 5/16-18 HEX ACORN PLTD
10 86279130 87083 4 WASHER, 5/16 SPLIT LOCK PLTD
11 86251750 67602 2 RISER, BUMPER

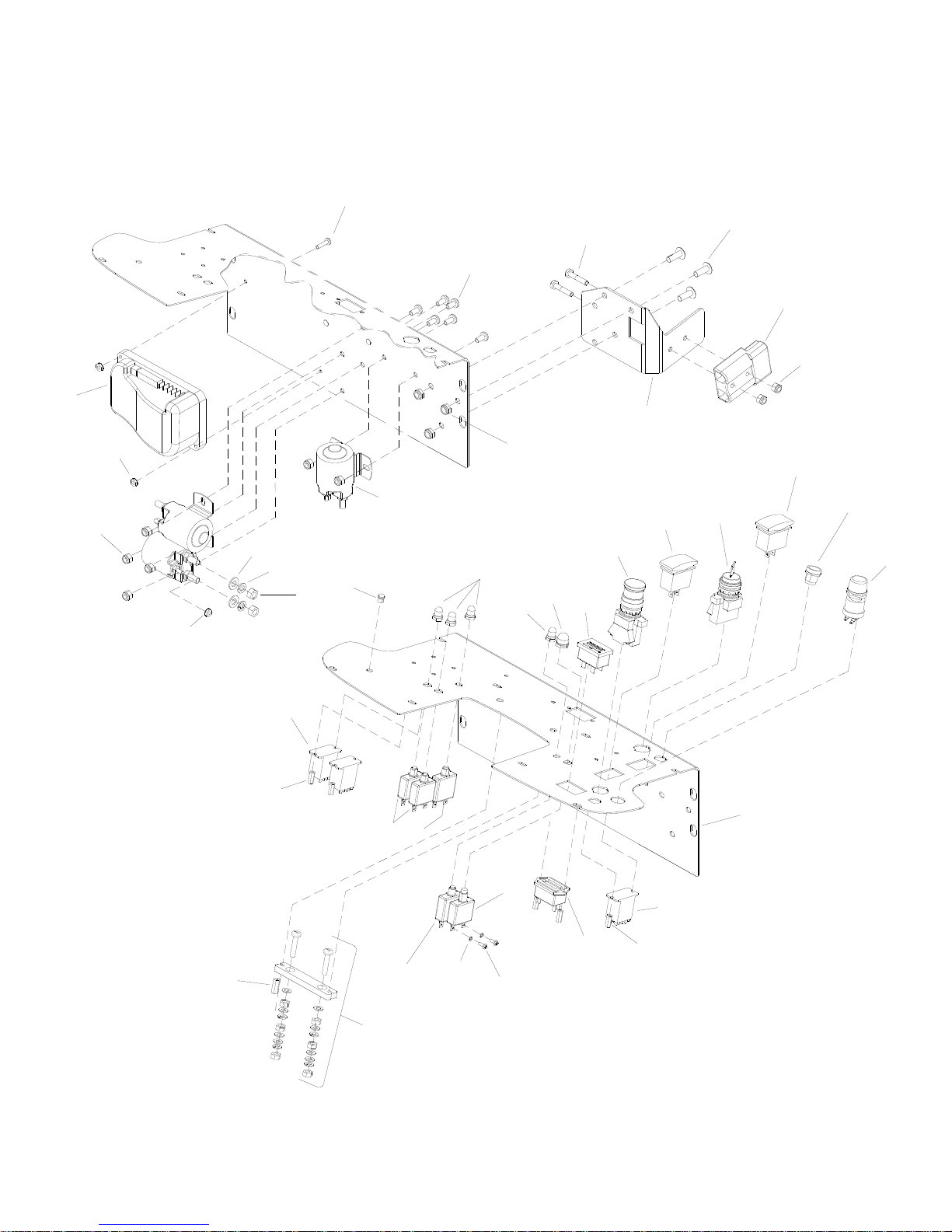

CONTROL PANEL
86037810 CHARIOT® VACUUM 10/23/07
5-11
30
24
23
6
13
31
30
29
31 27 2
25
24
23
22
21
20
19
18
17
16
14A
13
12
11
10
9
8
7
6
5
4
3
2
1
28
16 15
26
33
34
14B

CONTROL PANEL
86037810 CHARIOT® VACUUM 10/23/07 5-12
REF PART NO. PRV NO. QTY DESCRIPTION SERIAL NO.
FROM NOTES:
1 86273980 70066 2 SCR, 10-32 X 3/4 PPHMS SS
2 86223740 70872 6 SCR, 1/4-20 X .59 PPHMS SSC
3 86273820 70019 2 SCR, 1/4-20 X 1.25 HHCS SS
4 86277480 70850 3 SCR, 5/16-18 X 1/2 PTHMS SS
5 86008760 80682 1 CONN, 175 DCA GRY W/O TERMS
6 86005810 57245 8 NUT, 1/4-20 HEX NYLOCK SS
7 86070720 140728 1 BRKT, BATT CONN BASIC
8 86271840 57285 3 NUT, 5/16-18 HEX NYLOCK THIN SS
9 86006370 67315 3 RELAY, 36VDC 100 AMP HVY DUTY
10 86010670 87029 6 WASHER, 5/16 FLAT SS
11 86279130 87083 6 WASHER, 5/16 SPLIT LOCK PLTD
12 86271120 57125 6 NUT, 5/16-18 BRASS
13 86005700 57104 5 NUT, 10-32 W/STAR WASHER PLTD
14A 86002760 270092 1 CONTROLLER, CHAIN DRIVE BASIC CHAIN
DRIVE ONLY
14B 86027740 27911 1 CONTROLLER, GEAR BASIC
* * GEAR DRIVE ONLY
15 86008900 80845 1 BOOT, SEAL-PUSH BUTTON 7/16-28
16 86002010 14942 4 BOOT, 3/8 CIRCUIT BREAKER BASIC (3)
DELUXE (4)
17 86005560 54199 1 METER, 36V LED BATTERY
18 86007180 72160 1 SWITCH, EMERGENCY STOP
19 86007190 72161 1 SWITCH KEY DPST
20 86007130 72128 1 SWITCH, DPDT 2-POSITION ROCKER
21 86257280 81371 1 SWITCH, PUSH BUTTON
22 86078180 61481 1 PANEL, VACUUM
23 86251410 67506 3 RELAY, 15A 36V MINI
24 86255900 73538 10 STANDOFF, 6-32 X 5/8 HEX NYL
25 86005530 54154 1 METER, 12-48 VDC LED HOUR
26 86257110 72189 1 SWITCH, 4P3T FIXED POS ROCKER
27 86279300 87134 2 WASHER, #6 LOCK
28 86001910 14606 1 BREAKER, 30A 50VDC CIRCUIT
29 86229770 140805 1 BLOCK, SHUNT MOUNT
30 86257140 72196 1 SWITCH ASM, SEALED PB RND GRN
31 86002000 14717 2 BREAKER, 3 AMP 1681-090-300 BASIC (1)
DELUXE (2)
32 86250210 66873 1 PLUG, DOME .375 BASIC (NOT
SHOWN)
33 86230080 141044 2 BREAKER, 22A 250VAC, 50VDC *(4)
34 86246630 82996 1 LIGHT, INDICATOR, RED
* SEE SERIAL NUMBER PAGE
** CALL MANUFACTURER FOR SERIAL NUMBER

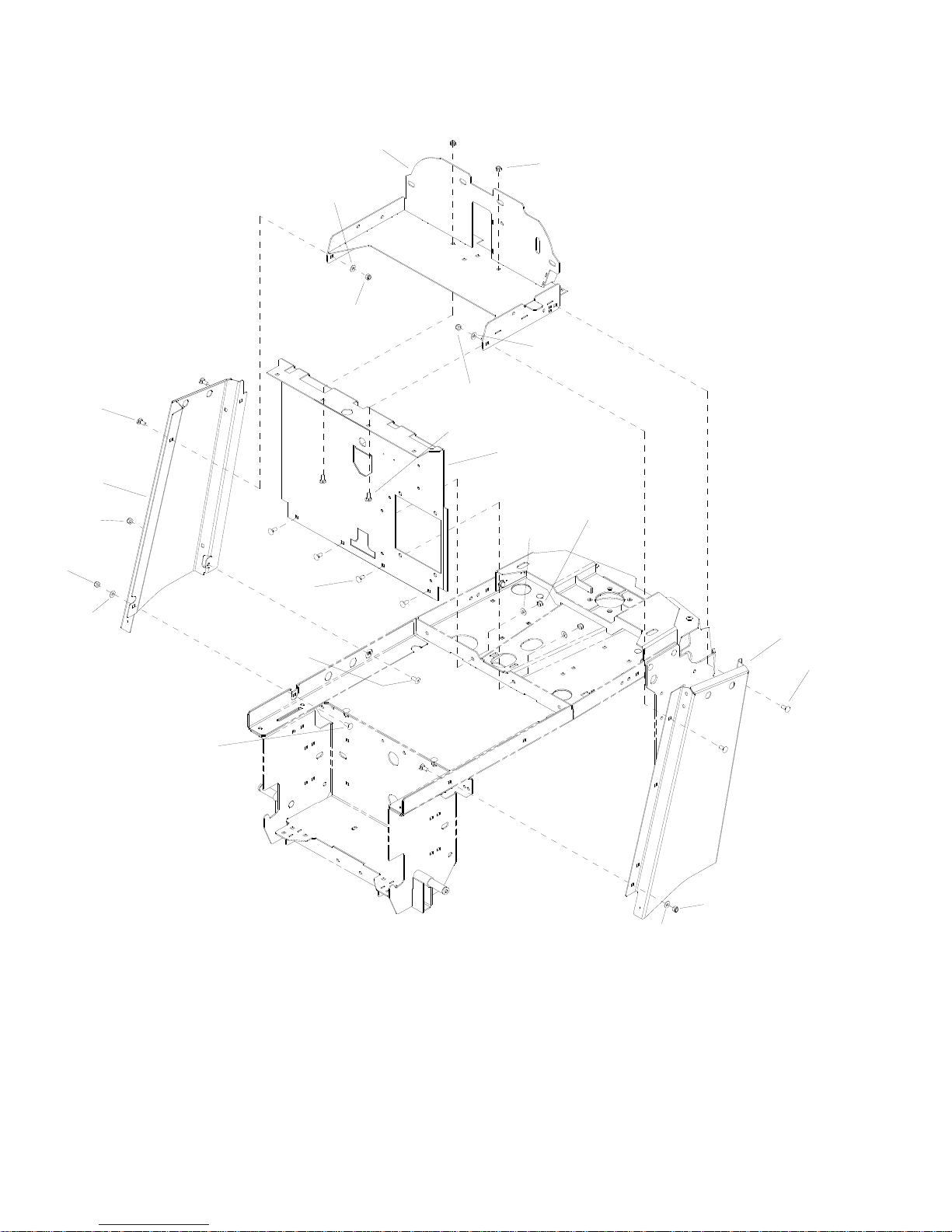

CONTROL PANEL HOUSING
86037810 CHARIOT® VACUUM 12/16/06
5-13
7
8
10
9
4
11
15
6
3
3
2

CONTROL PANEL HOUSING
86037810 CHARIOT® VACUUM 02/20/07 5-14
REF PART NO. PRV NO. QTY DESCRIPTION SERIAL NO.
FROM NOTES:
1 86005810 57245 4 NUT, 1/4-20 HEX NYLOCK SS
2 86290540 - 6 SCR, 10-32 X 1/2 TORX SS BLK NP
3 86277480 70850 6 SCR, 5/16-18 X1/2 PTHMS SS
4 86070710 140726 1 BRKT, LEFT CONSOLE MOUNT
5 86237900 35278 3 GASKET, .125T X .25W X 23L
6 86062220 270117 1 CONSOLE, BURNISHER
7 86070700 140725 1 BRKT, RIGHT CONSOLE MOUNT
8 86279750 87252 4 WASHER, RET, PUSHNUT, 5/16 BOLT
9 86089650 78524 4 TUBE, 5/8 OD X .357 ID X 1.57
10 86277420 70841 4 SCR, 5/16-18 X 2.5 PTHMS SS
11 86010630 87013 4 WASHER, 1/4 ID X 5/8 OD SS

DECAL
86037810 CHARIOT® VACUUM 01/06/09
5-15
4
6
21
5
3

DECAL
86037810 CHARIOT® VACUUM 01/06/09 5-16
REF PART NO. PRV NO. QTY DESCRIPTION SERIAL NO.
FROM NOTES:
1 86004970 50990 1 LABEL, WINDSOR LOGO DOMED
2 86244800 501228 1 LABEL, CHARIOT IVACUUM RT WAS 500884
3 86244360 501071 1 LABEL, PANEL R VAC
4 86244190 500882 1 LABEL, PANEL BASIC LEFT
5 86243990 500780 1 LABEL, COVER PANEL
6 86244810 501229 1 LABEL, CHARIOT IVACUUM LT WAS 500885
NOTE: See “SAFETY LABEL LOCATION” page for safety label information.

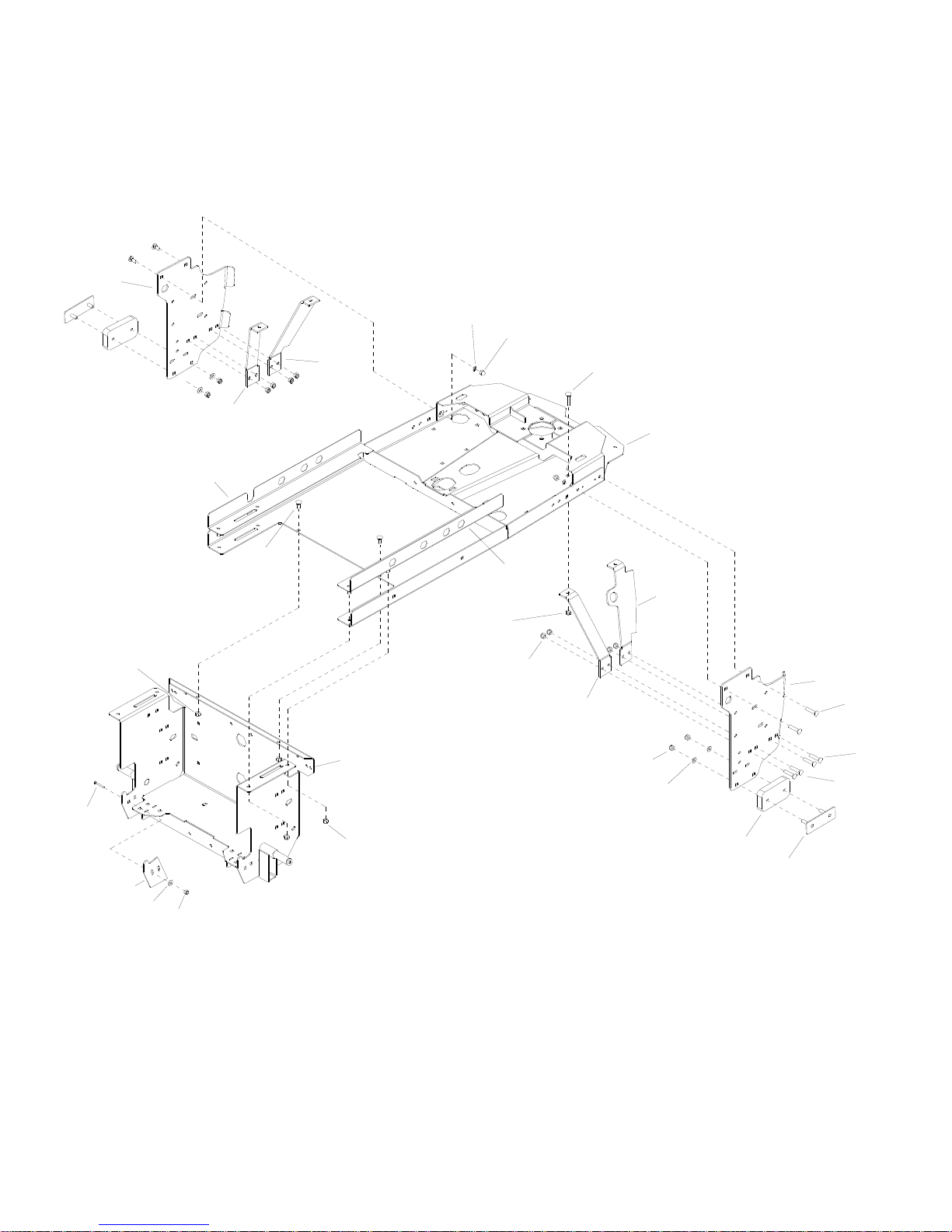

FRAME-LOWER
86037810 CHARIOT® VACUUM 12/16/06
5-17
3
11
2
3
9
9
9
3
4
13
5
15
14
8
16
12
3
17
3
1
10
21
18 19 20
6
3
12
7

FRAME-LOWER
86037810 CHARIOT® VACUUM 12/16/06 5-18
REF PART NO. PRV NO. QTY DESCRIPTION SERIAL NO.
FROM NOTES:
1 86092510 34440 1 FRAME, MAIN ASM
2 86088760 75458 1 TRAY, SLIDE, LEFT
3 86270830 57023 18 NUT, 5/16-18 HEX NYLOCK SS
4 86071430 140863 1 BRKT, BRACE, RGT FRONT
5 86071120 140811 1 BRKT, TIP BRACE, RIGHT, REAR
6 86010670 87029 4 WASHER, 5/16 FLAT SS
7 86064300 140790 2 PAD, TIPPING BAR
8 86070740 140730 1 BRKT, LINKAGE, RIGHT
9 86276070 70593 16 SCR, 5/16-18 X 3/4 CARRIAGE SS
10 86091420 05251 1 AXLE, REAR WELDMENT
11 86088750 75457 1 TRAY, SLIDE, RIGHT
12 86079320 620101 2 PLATE, PAD RETAINER
13 86071130 140812 1 BRKT, TIP BRACE, LEFT, REAR
14 86070750 140731 1 BRKT, LINKAGE, LEFT
15 86070760 140733 1 BRKT, BRACE, LEFT FRONT
16 86279130 87083 4 WASHER, 5/16 SPLIT LOCK PLTD
17 86197040 57264 4 NUT, 5/16-18 HEX ACORN PLTD
18 86079290 620097 2 PLATE, REAR COVER ADJ.
19 86010630 87013 4 WASHER, 1/4 ID X 5/8 OD SS
20 86271870 57290 4 NUT, 1/4-20 HEX NYLOCK THIN SS
21 86276950 70772 4 SCR, 1/4-20 X 3/4 CARRIAGE SS

FRAME-UPPER
86037810 CHARIOT® VACUUM 12/16/06
5-19
1
2
2
2
2
2
2
2
3
3
3
3
3
44
4
4
5
6
7
84
