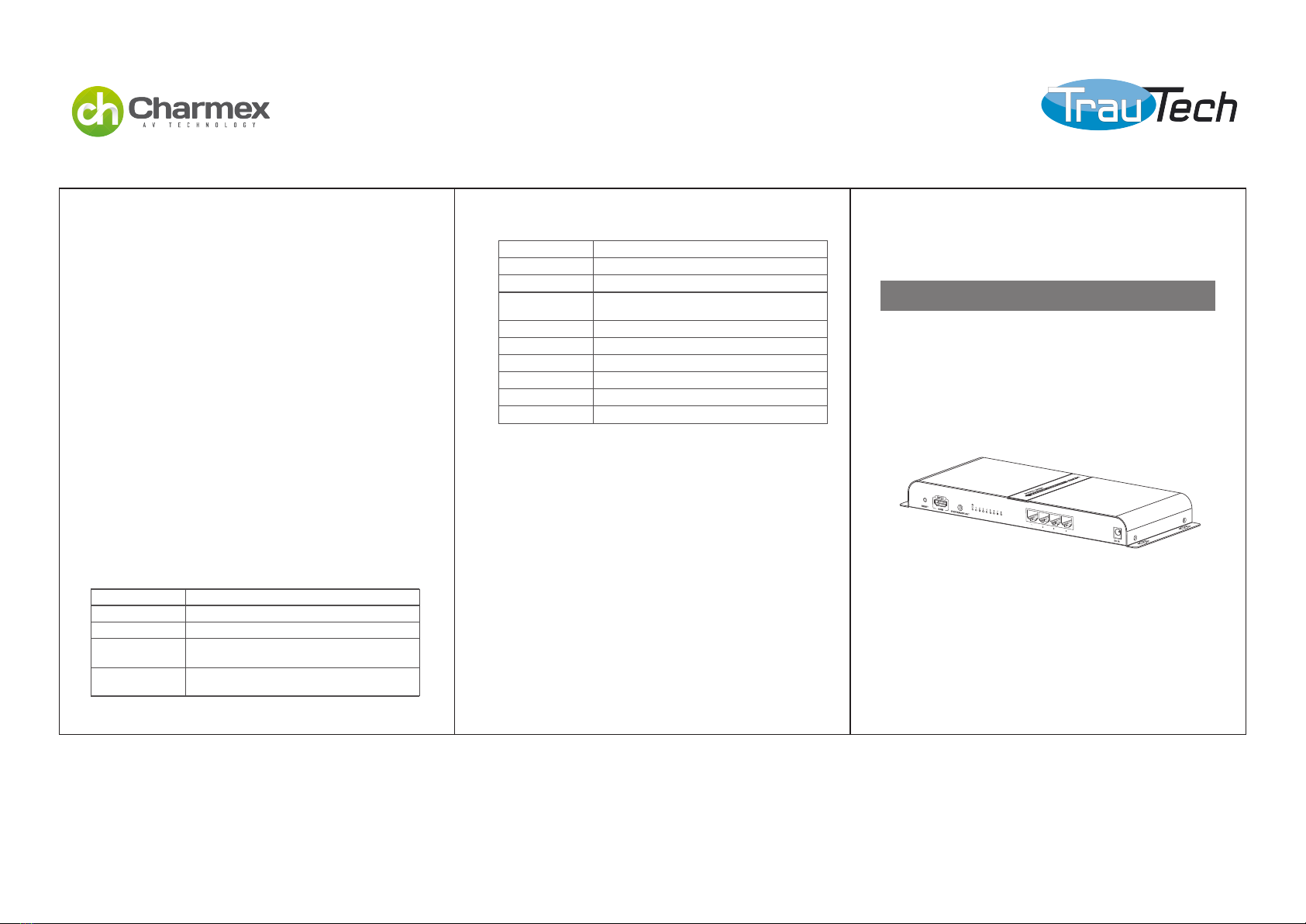

Charmex TrauTech TSH314-HD User manual

Specification
Support resolutions 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz,
720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
full HD over single CAT6
Items
3. Connection instruction:
• FAQ
Q: TV display “Please check the TX input signal”?
A: 1）please check if there is An HDMI signal input of TX.
2）Try to connect the signal source directly to display device to see
if there is signal output from source device or change the signal
source, HDMI cables and try again.
Q: Display not fluent and stable?
A: 1）Please check the cable length between TX(sender) and RX
(receiver) is within the required range.
2）Press“reset” button on the RX/RX panel, reset and reconnect.
• Specification
Working temperature 0℃～60℃
Power supply DC12V/3A
Power Consumption
Dimension
<24W
299(W) x 110.7(D) x 29.6(H) mm
430g
Black
Weight
Disclaimer
HDbitT 1 to 4 HDMI Extender Splitter
User manual
Q: TV display “waiting for connection” on the bottom right corner?
A: 1）Please check if the power supply of TX (sender) and RX(receiver)
is well connected and the power indicator led lights on.
2）Make sure all cables are firmly connected.
The product name and brand name may be registered trademark of related
manufacturers.TM and ® may be omitted on the user manual. The pictures
on the user manual are just for reference,and there may be some slight
difference with the real products.
We reserve the rights to make changes without further notice to a product
or system described herein to improve reliability, function or design.
HDMI signal Compatible with HDCP
Transport protocol HDbitT
Up to 120meters transmission distance for 1080p 60Hz
Transmit distance
1). Connect HDMI input with HDMI output of source device.
2). Connect IR blaster extension cable to the IR extender out port.
3). Connect RJ45 port with RJ45 input port of HDMI extender RX.
4). Connect HDMI output of HDMI extender RX to HDMI input of HDTV and
set the TV source input to correct HDMI input channel.
5). Power on the device (power indicator led lights) and it works.
4 x LED
indicator leds
IR signal Support 20~60kHz IR device
Input 1 x HDMI
Output 4 x RJ45
Connection
Color
Code: TSH314-HD
www.charmex.net | [email protected] | Tel. [phone] (Barcelona) Tel. [phone] (Madrid) Tel. [phone] (Bogotá)

HDMI extender TX*1
User manual *1
DC12V/3A power adapter*1
1. HDMI source device(computer graphics card, DVD,PS3, HD
monitoring equipment etc)
2. HDMI display device like SDTV, HDTV, and projector with HDMI port.
3. HDMI extender RX which supports HDBitT transport protocol
4.
IR blaster extension cable *1
Reset
button
HDMI
input
IR blaster
extension port
Signal link LED
RJ45 output Power input
(DC12V)
• Introduction
This product combines the extender and splitter function to split 1 HDMI
signal to 4 identical HDMI signals via network cable and it is used as a
sender to work with 4 receivers to transmit these 4 HDMI signals up to
120meters.
With the IR signal transmission to control the source device operation
in long distance, it is widely applied in HD audio visual display room, HDTV,
Set top box, DVD etc exhibition center and digital monitoring system.
• Package contents
Important Safety Notes:
1. Do not plug-in/out the network cables and IR cables when it is in using.
2. Use DC12V only. Make sure the specification matched if using 3rd
party DC adapters.
• Panel description
• Installation Requirement
• Features:
2. Connection
1. network cable
Follow the standard of IEEE-568B:
1- Orange/white
2- Orange
3- Green/white
4- Blue
• Connection and operation
5- Blue/white
6- Green
7- Brown/white
8- Brown
HDMI EXTENDER TX(Sender)
HDMI EXTENDER
RX(Receiver)
DVD
TV TV
TV TV
Cable
1. Support 1 HDMI input to 4 HDbitT outputs.
2. Up to 120meters transmission distance over single cat6 (high quality
cable can reach 150meters).
3. Compatible with the receiver device which supports HDbitT transport
protocol.
4. Compatible with HDCP.
5. Metal housing and mountable design.
UTP/STP cat5/5e/6 cable, follow standard IEEE-568B
Network cable length supported between every connection:
CAT5 80m
CAT5E 100m
CAT6 120m
