CTL Series
Comm-Link Control System Cable
utp & CoMMunICatIon CaBles

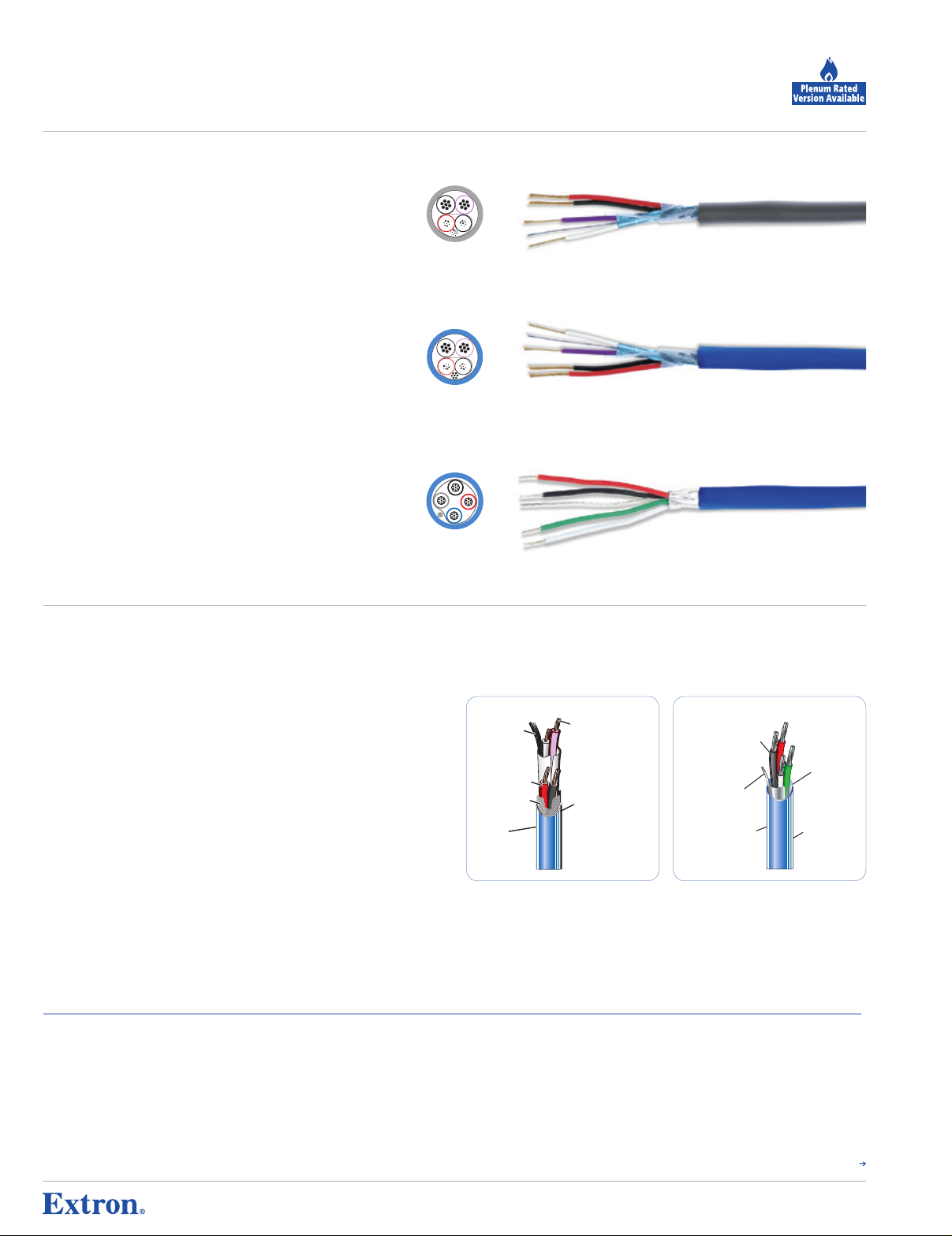

CTL
Comm-Link Control System Cable
unique FeatuRes
•Two 18 AWG conductors and a low capacitance shielded twisted pair
with drain wire in a single jacket
•NEC CM rated, non-plenum cable
CTLP
Comm-Link Control System Cable
unique FeatuRes
•Two 18 AWG conductors and a low capacitance shielded twisted pair
with drain wire in a single jacket
•NEC CMP rated, plenum cable
MoDel VeRsion DesCRiPtion PaRt #
Comm-Link Non-Plenum
CTL/500 Non-Plenum 500' (150 m) spool....................................................................... 22-148-02
CTL/1000 Non-Plenum 1000' (300 m) spool ..................................................................... 22-148-03
Comm-Link Plenum
CTLP/500 Plenum 500' (150 m) spool ............................................................................ 22-119-02
CTLP/1000 Plenum 1000' (300 m) spool........................................................................... 22-119-03
Low Capacitance Dual Plenum
CTL24LC-2P/1000 Plenum 1000' (300 m) spool........................................................................... 22-195-03
CoMMon FeatuRes
•Plenum and Non-Plenum rated versions available
— Depending on the model,
Extron Comm-Link cable is available with a plenum or non plenum-rated SuperFlex
jacket. Plenum-rated cable is for use in open air spaces without conduit, thereby reducing
installation cost, where National Electric Code CM or CMP cable must be installed.
•SuperFlex jacket with sequential numbering
— Comm-Link cable features the
smooth SuperFlex jacket with sequential numbering that enables quick calculation of
the cable used and remaining on the spool.
•Spools of 500 feet (150 m) & 1,000 feet (300 m)
DesCRiPtion
The Extron CTL Series Comm-Link Control Systems Cable is ideal for connecting control
system components. The CTL and CTLP models are perfectly suited for carrying control
communications due to the low capacitance rating on the data pair wires, while the additional
conductors transmit power and communications. The CTL24LC-2P cable is ideal for RS-232,
RS-422 or RS-485 serial control applications. This twisted pair cable provides the fast signal
rise times required by today's control systems, resulting in reliable communications and
executed commands, with the overall shield isolating interference and emission.
CTL24LC-2P
Low Capacitance Serial Control Dual Cable
unique FeatuRes
•High performance cable for distribution of serial control
•Two twisted pair 24 AWG tinned copper insulated conductors within
an overall outer aluminum polyester foil shield and a tinned copper
drain wire wrapped in a single jacket
•NEC CMP rated, plenum cable
