TCM Series Operation Manual

Motorized Test Stand

Model 100 and 350

Contents

Reference and Registration ......................................1

Welcome ...............................................................1

Warnings...............................................................2

Overview...............................................................3

Introduction ............................................................3

Parts Included with the TCM Series....................................3

Chatillon Force Gauges...............................................3

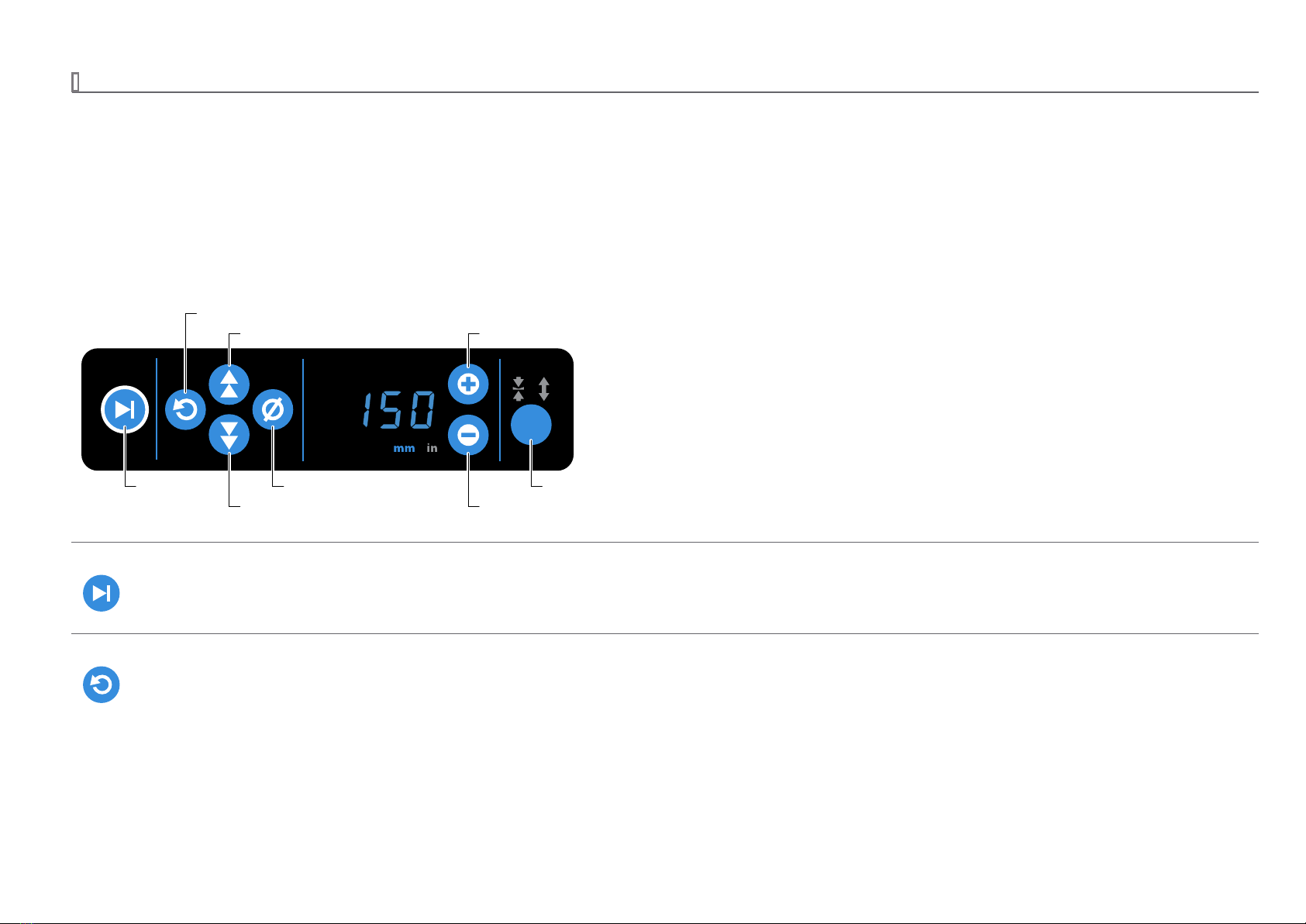

Front Panel Buttons .....................................................4

Start/Stop ...........................................................4

Return to Zero (RTZ)..................................................4

Jog Up ..............................................................5

Jog Down ...........................................................5

Zero.................................................................5

Speed Up............................................................5

Speed Down.........................................................5

Mode ...............................................................6

Front Panel Indicators and Display .......................................6

Speed Display .......................................................6

Millimeters per Minute ...............................................7

Inches per Minute....................................................7

Compression ........................................................7

Tension..............................................................7

Modes of Operation .....................................................7

Compression-Standard...............................................7

Tension-Standard ....................................................7

Compression-Cycle ..................................................8

Tension-Cycle........................................................8

Rear Panel Ports and Connections........................................9

Communication Port .................................................9

USB Port.............................................................9

Digital Force Gauge (DFG) Port .......................................9

Main Power Switch..................................................10

Main Power Fuse....................................................10

IEC Power Cord Connection .........................................10

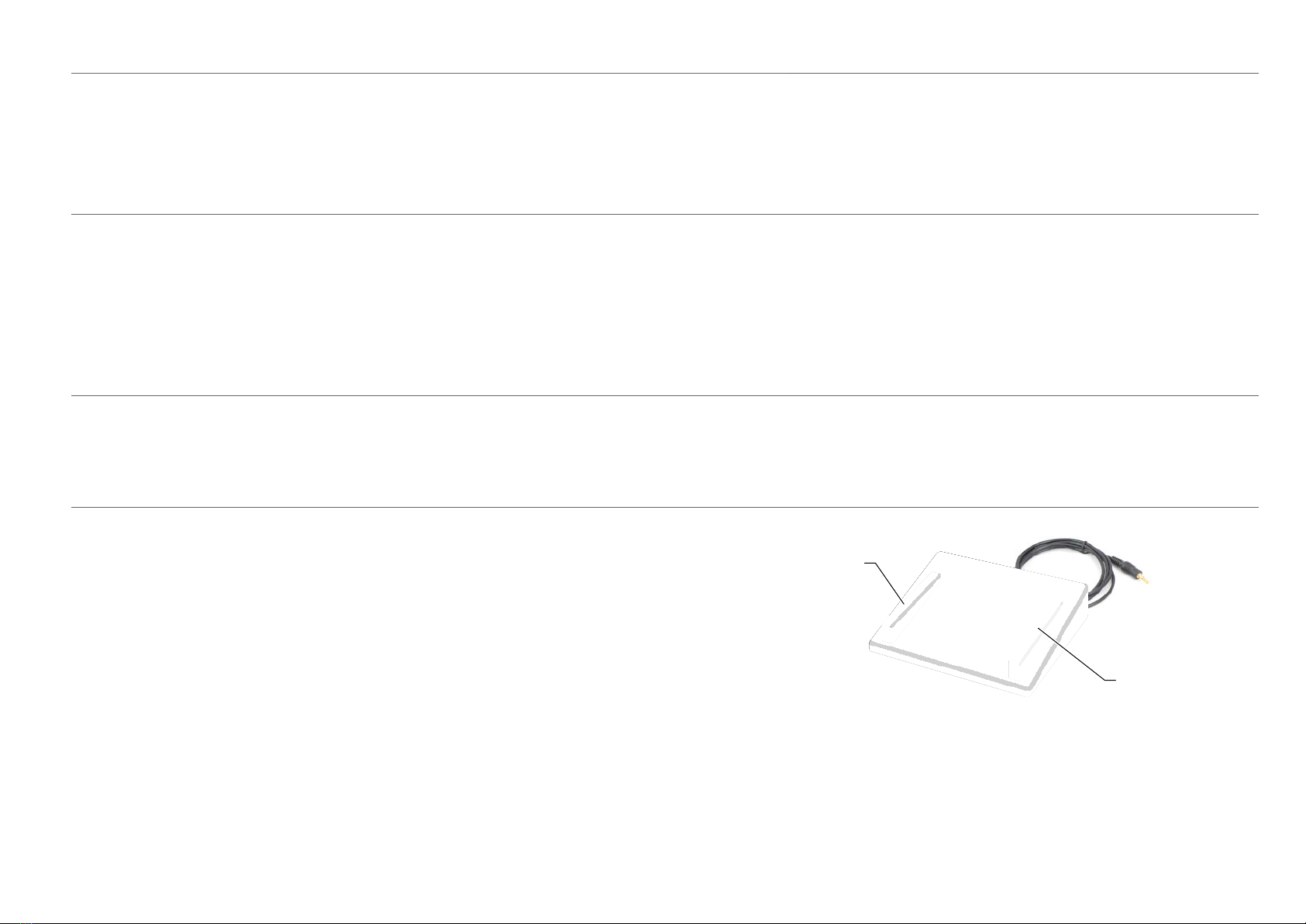

Remote Foot Switch.................................................10

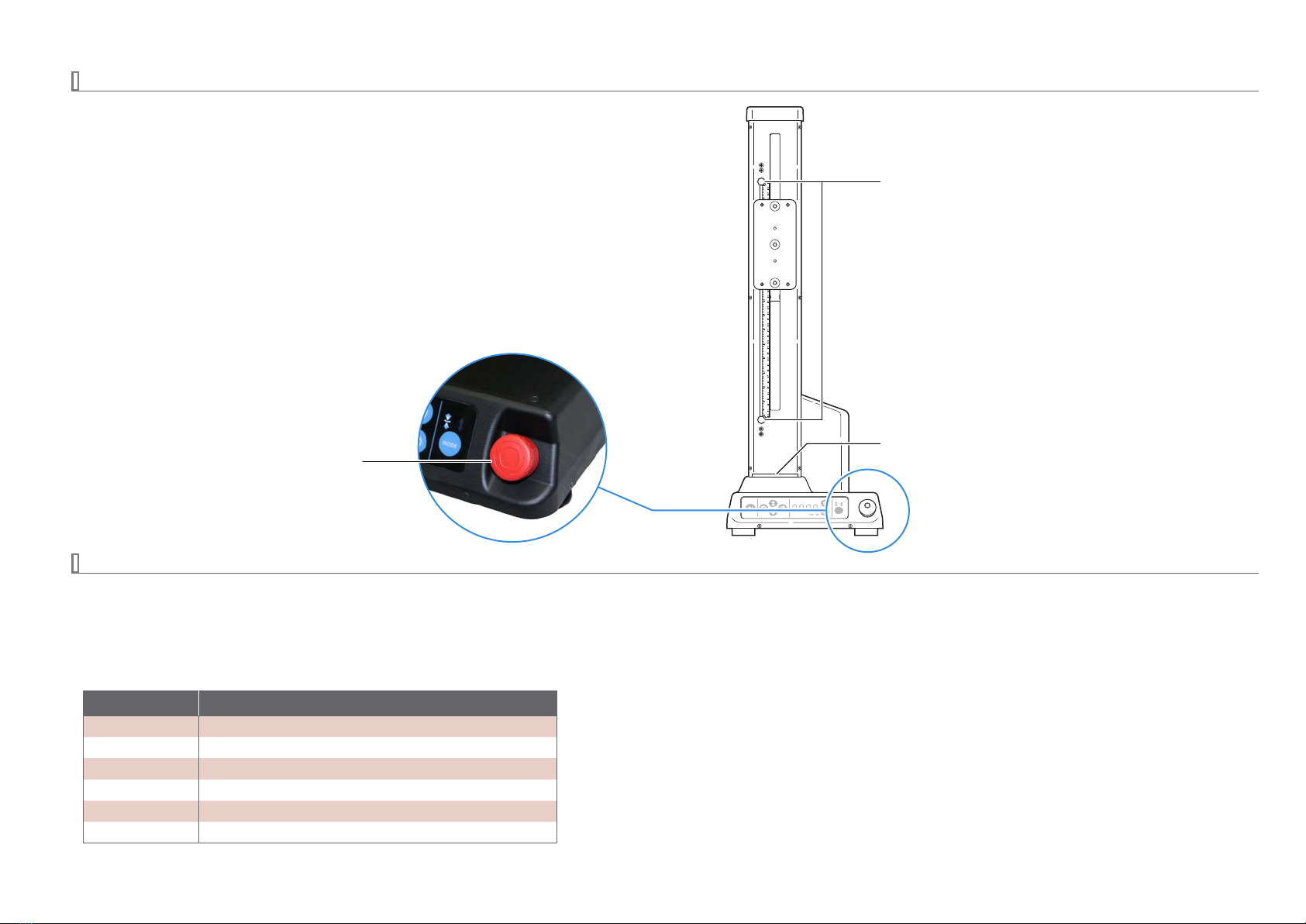

Emergency Switch .....................................................11

Fault and Error Codes...................................................11

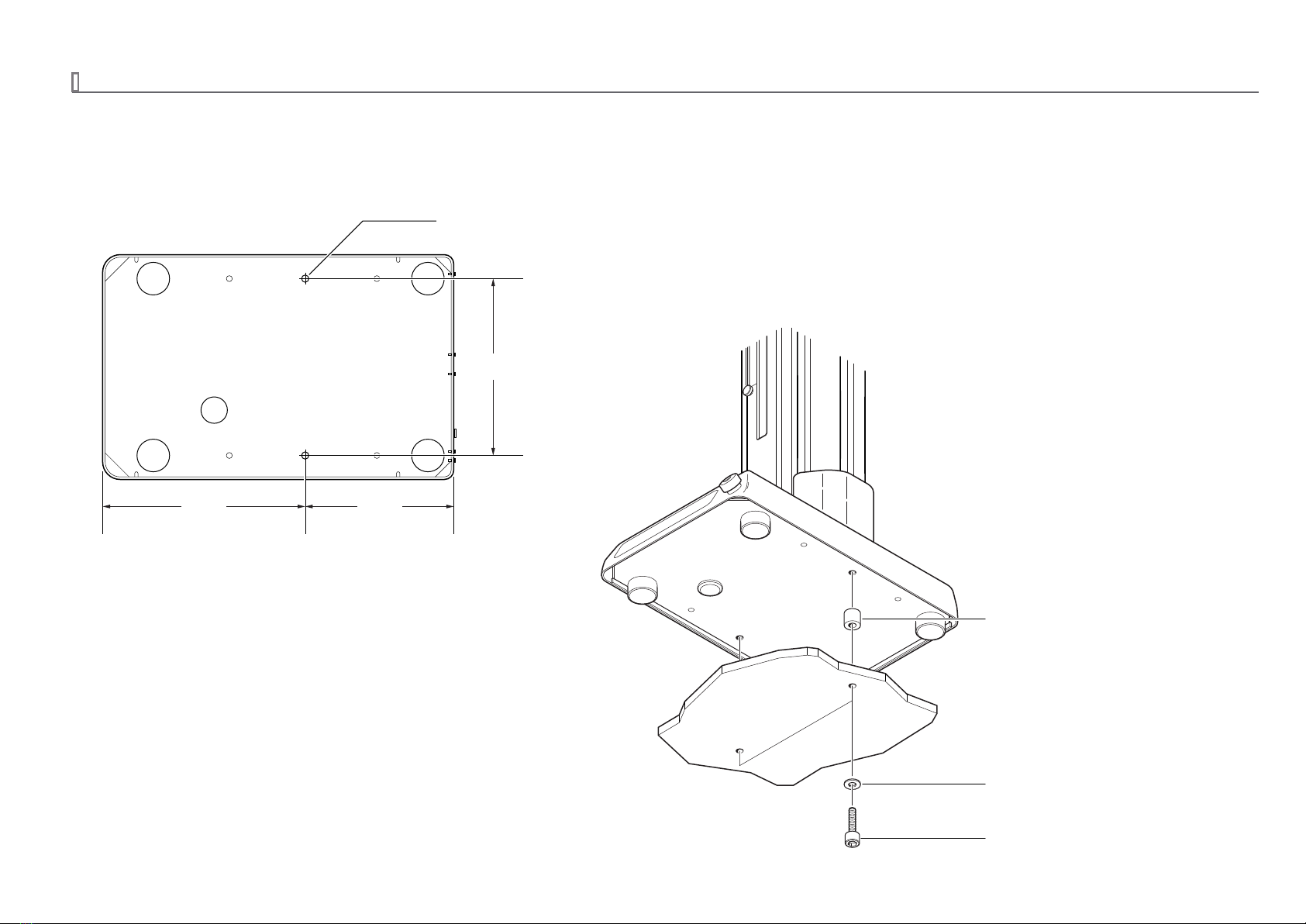

Securing the TCM to a Workbench ......................................12

Speciﬁcations .......................................................13

TCM Dimensions .......................................................14

TCM Mounting Plate Options ...........................................15

Standard Mounting Plate ............................................15

Optional Multi-Thread Plate Kit (p/n SPK-TCM-005) ......................15

Support ...............................................................16

Optional Accessories ...................................................16

Returning product to AMETEK ..........................................17

Warranty ..............................................................17

Reference and Registration 1

TCM Operation Manual

Reference and Registration



WELCOME

Thank you for your purchase of the TCM Series Motorized Test Stand. Your TCM is a combination of leading edge technology and rugged industrial design.

To get the most out of future improvements and updates, be sure to register your product on our website. There, you will also nd a collection of resources

to help you get the most out of your motorized test stand. We are constantly updating documentation ( Manuals & Data Sheets; Product Release Notes ) in

addition to software and certicates. So check back on the website periodically for the latest news and information regarding your TCM and other related

products you may nd of interest.

We hope the TCM meets your expectations. We’re interested in any comments or suggestions you might have to help us improve the product and to help us

enhance your user experience.

Product Registration

Software

Documentation

Certicates

Release Notes

Comments

Warnings 2

TCM Operation Manual

Warnings

! Operators of TCM Series Materials Testers must heed the following warnings at all times.

Crush Hazard—Allow only one person to handle or operate

the system at a time. Operator injury may result if more than

one person operates the system. Before working inside the hazard area be-

tween grips or xtures, ensure that no other personnel can operate the

computer or any of the system controls.

Crush Hazard—Take care when installing or removing a

specimen, assembly, structure, or load string component.

Installation or removal of a specimen, assembly, structure, or load string

component involves working inside the hazard area between the grips and

xtures. Keep clear of the jaws of a grip or xture at all times. Keep clear of

the hazard area between the grips or xtures during actuator or crosshead

movement. Ensure that all actuator or crosshead movements necessary for

installation or removal are slow and, where possible, at a low force setting.

Hazard—Press the Emergency Stop button whenever you

consider that an unsafe condition exists. The Emergency Stop

button removes power or electrical drive from the testing system and

brings the hazardous elements of the system to a stop as quickly as possi-

ble. It does not isolate the system from electrical power—other means are

provided to disconnect the electrical supply. If you are concerned that safe-

ty may be compromised, stop the test using the Emergency Stop button.

Investigate and resolve the situation that caused the use of the Emergency

Stop button before you reset it.

Flying Debris Hazard—Make sure that test specimens are

installed correctly in grips or xtures in order to eliminate

stresses that can cause breakage of grip jaws or xture components. In-

correct installation of test specimens creates stresses in grip jaws or xture

components that can result in breakage of these components. The high en-

ergies involved can cause the broken parts to be projected forcefully some

distance from the test area. Install specimens in the center of the grip jaws

in line with the load path. Insert specimens into the jaws by at least the

amount recommended in your grip documentation. This amount can vary

between 66% to 100% insertion depth. Refer to supplied instructions for

your specic grips. Use any centering and alignment devices provided.

Hazard—Protect electrical cables from damage and inadver-

tent disconnection. The loss of controlling and feedback signals

that can result from a disconnected or damaged cable causes an open loop

condition that may drive the actuator or crosshead rapidly to its extremes

of motion. Protect all electrical cables, particularly transducer cables, from

damage. Never route cables across the oor without protection, nor sus-

pend cables overhead under excessive strain. Use padding to avoid chang

where cables are routed around corners or through wall openings.

Electrical Hazard—Disconnect the electrical power mains be-

fore removing the covers to electrical equipment. Disconnect

equipment from the electrical power mains before removing any electrical

safety covers or replacing fuses. Do not reconnect the power source while

the covers are removed. Ret covers as soon as possible.

High/Low Temperature Hazard—Wear protective clothing

when handling equipment at temperature extremes. Mate-

rials testing is often carried out an non-ambient temperatures

using ovens, furnaces, or cryogenic chambers. Extreme tempera-

ture means an operating temperature exceeding 60° C (140° F) or

below 0° C (32° F). Use protective clothing such as gloves when handling

equipment at these temperatures. Display a warning notice concerning low

or high temperature operation whenever temperature control equipment

is in use. You should note that the hazard from extreme temperature can

extend beyond the immediate area of the test.

Hazard—Do not place a testing system o-line from comput-

er control without rst ensuring that no actuator or crosshead

movement will occur upon transfer to manual control. The actuator or

crosshead will immediately respond to manual control settings when the

system is placed o-line from computer control. Before transferring to man-

ual control, make sure that the control settings are such that unexpected

actuator or crosshead movement cannot occur.

Robotic Motion Hazard—Keep clear of the operating enve-

lope of a robotic device unless the device is deactivated. The

robot in an automated testing system presents a hazard because its move-

ments are dicult to predict.The robot can go instantly from a waiting state

to high speed operation in several axis of motion. During system operation,

remain outside of the operating envelope of the robot. Deactivate the ro-

bot before entering the envelope for any purpose, such as reloading the

specimen magazine.

Hazard—Set the appropriate limits before performing tests.

Operational limits are included within the testing system to sus-

pend motion or shut o the system when upper and/or lower bounds of

actuator or crosshead travel, or force or strain are reached during testing.

Correct setting of operational limits by the operator, prior to testing, will

reduce the risk of damage to test article and system, and associated hazard

to the operator.

Rotating Machinery Hazard—Never operate the machine

with the covers removed. If a cover must be removed, rst dis-

connect equipment from mains power. Do not reconnect any power supply

while the covers are removed. Ret covers as soon as possible.

Explosion Hazard—Wear eye protection and use protective

shields or screens whenever any possibility exists of a hazard

from the failure of a specimen, assembly, or structure under test. Wear

eye protection and use protective shields or screens whenever a risk of in-

jury to operators and observers exists from the failure of a test specimen,

assembly, or structure, particularly where explosive disintegration may oc-

cur. Due to the wide range of specimen materials, assemblies, or structures

that may be tested, any hazard resulting from the failure of a test specimen,

assembly, or structure is entirely the responsibility of the owner and user of

the equipment.

Hazard—Ensure components of the load string are correct-

ly pre-loaded to minimize the risk of fatigue failure. Visually

inspect highly stressed components such as grips and threaded adapters

prior to every test for signs of wear or fatigue damage.

Always maintain a clean work area free of debris or obstruc-

tions. Remove load from any samples and ensure machine is not

moving before cleaning or removing debris from the machine.

Hazard—From Stored Potential Energy. If power is lost while

a sample if under load, the crosshead may remain in its current

position. In this case, it can only be moved by restoring power. Until such

time, a stored potential energy in the sample may present a hazard.

Ensure adequate lighting of work area. Install machine in an area

that will not allow the user to become distracted.

Hazard—Risk of electric shock. Never operate machine with

covers removed.

Hazard—Risk of electric shock. Do not replace the mains power

cord with an inadequately rated cord.

Hazard—Risk of tipping over. User must take proper precau-

tions to assure unit does not tip over. See manual for securing

information.

! CAUTION: User-performed maintenance is not required, and should

not be performed on the TCM Motorized Test Stand. If maintenance is

required, please contact AMETEK for service.

IMPORTANT: When the machine has been installed and before it is ready for use, the nal user’s Authorized Environmental Health and Safety Ocer must conduct the nal Risk Assess-

ment on the machine, including all such safety measures (shields, guards, etc.) to satisfy the requirements of the Machinery Directive and EHSR (Essential Health and Safety Requirements).

The user’s Authorized Environmental Health and Safety Ocer must take the necessary steps to ensure the safety of the operator, other people, machines and property by providing

guards, shields, screen, adequate lighting, adequate ventilation. Factors aecting required safety measures include industry, application, material under test, and location of use.

Overview 3

TCM Operation Manual

Overview



INTRODUCTION

Two CHATILLON® TCM Series motorized test stands are available and covered by this Operation Manual:

• TCM100 Series (100 lbf, 500 N)

• TCM350 Series (350 lbf, 2500 N)

TCM Series motorized testers are designed to be use with Chatillon DF Series digital force gauges.

The TCM Series has a compact design, making it ideal for the laboratory or production environment. The machine is designed for benchtop installations.

These testers are designed to operate in a vertical orientation

Parts Included with the TCM Series

XStandard Accessories (p/n SPK-TCM-002)

Description Part Number Qty

1/2-20F Thread Base Plate 6344-01 1

Base Plate Screws 6541 2

Hex Key 5mm NC002924 1

Magnetic Cable Clip 6590 2

4" Cable Ties CBT/1046/00 4

Safety Sheet and Registration Card 6615 1

Users Manual (FR) – Only with TCM -230 Version 6616 1

SCR, PHFH, 10-32X.63, SS 6539 4

Screwdriver, PH, 90Deg, Oset 6474 1

Power Cable — 1

TCM USB to PC USB Cable, 3M (ForceTest & Flash Memory Upgrade) SPK-TCM-016 1

TCM to DFG Cable (RS232 & Load Limit Communication to TCM) SPK-TCM-018 1

XTCM Version A Accessories (p/n SPK-TCM-003)

Description Part Number Qty

1/2-20M to 5/16-18M Coupling 17162 1

1/2-20M to 10/32M Coupling NC003238 1

XTCM Version B Accessories (p/n SPK-TCM-004)

Description Part Number Qty

C-Spanner Wrench Spanner, Wrench 42 mm diameter SPT/0244/00 1

5/8" Eye Adapter to 1/2-20 Male Thread with Pin & Locking Rings SPK-TLC-003 1

5/8" Eye End Kit and Grip Pin for Gauges SPK-TCM-001 1

1/2-20M to

5/16-18M

1/2-20M to

10/32M

5/8" Eye End Kit

and Grip Pin for Gauges

Chatillon Force Gauges

The following Chatillon force gauges are recommended for use with the TCM Series:

• DFX II Series (Integral Loadcell) •DFS II R Series (Dedicated Remote Loadcell with Outputs)

• DFE II Series (Integral Loadcell with Outputs) •DFS II R ND Series (Non Dedicated Remote Detachable Loadcell with Outputs)

• DFS II Series (Integral Loadcell with Outputs)

Overview 4

TCM Operation Manual



FRONT PANEL BUTTONS

There are eight touch sensitive buttons on the front panel of the TCM used to set the crosshead speed, set the modes of operation and control the motion of

the crosshead. The haptic buttons vibrate when the command is registered by the TCM.

The buttons are as follows:

• Start/Stop

• Return to Zero (RTZ)

• Jog Up

• Jog Down

Start/Stop

The Start button will begin a test at the speed indicated on the display. The direction of the test is indicated by the ashing Compression or Tension

arrows. The Stop button will end any travel movement of the TCM and the display will ash END. To start, hold for more than 0.5 seconds.

Return to Zero (RTZ)

Hold the RTZ button for 0.5 seconds to start the return to the home location at max speed (unregulated max speed, but ≥ 40 in/min).

During return, the display will ash between RTZ and UP or DN to indicate the direction of travel. Once the unit has reached the home position, RTZ

will revert back to indicating the net machine travel speed and show 0000 to indicate that the crosshead has reached the Zero Position.

• Zero (or Home Position)

• Speed Up

• Speed Down

• Mode

MODE

SPEED

STOP

START

Return to Zero

Jog Up Speed Up

Jog Down Speed Down

Zero ModeStart/Stop

Overview 5

TCM Operation Manual

Jog Up

Jog crosshead in the positive direction at speed indicated on display. UP will briey appear on the display indicating success and will ash STOP upon

the button release.

When the Mode is set to Tension, and the Jog Up button is pressed, the crosshead will move up at the set speed. The message on the display will ash

between UP and the set speed.

When the mode is set to Compression, and the Jog Up button is pressed, the crosshead will move up at maximum speed. The message on the display will

ash between UP and JOG.

Jog Down

Jog crosshead in the negative direction at the speed indicated on display. DN will briey appear on the display indicating success and will ash STOP

upon the button release.

When the mode is set to Tension, and the Jog Down button is pressed, the crosshead will move down at maximum speed. The message on the display will

ash between DN and JOG.

When the mode is set to Compression, and the Jog Down button is pressed, the crosshead will move down at the set speed. The message on the display will

ash between DN and the set speed.

Note: The jog speed will always be at unregulated maximum speed (> 40 in/min) when jogging away from the test area relative to the Tension or

Compression selected Mode.

Zero

Hold the Zero button for 0.5 seconds to zero the TCM position. On release, the home or zero location will be set internally to the machine. After zero-

ing the TCM position, the display will show ZERO to indicate the unit has been zeroed. The display will then alternate between 0000 and the current

speed in the home position. If the Head is moved away from the zero position, only the speed will be displayed to conrm that the TCM is away from

the zero position.

Speed Up

Increase speed indicated on the display by 0.1 in/min or by 1 mm/min, depending on the units indicated. Pressing and holding this button will rapidly

increase the speed.

Note: 40.0 in/min and 1016 mm/min are the maximum speeds allowed.

Speed Down

Decrease speed indicated on the display by 0.1in/min or by 1mm/min, depending on the units indicated. Pressing and holding this button will rapidly

decrease the speed.

Note: 0.2 in/min and 5 mm/min are the minimum speeds allowed.

Overview 6

TCM Operation Manual

Mode

The Mode button is used for two purposes. It sets the mode of crosshead operation for the TCM and it is used to set the crosshead

speed units.

On <1s duration button press, switch between the following modes:

Tension Compression Cycle / Tension Cycle / Compression Tension.

Note: The mode selection will continue to repeat after the Cycle / Compression has been reached.

Holding the button for 5 or more seconds will toggle units between: in mm in



FRONT PANEL INDICATORS AND DISPLAY

There are ve indicators on the front panel of the TCM used to indicate the crosshead speed, speed units, mode of operation, and control the motion

of the crosshead.

The indicators are as follows:

• Speed Indication (Display)

• mm (Millimeters per Minute)

• in (Inches per Minute)

Speed Display

The 7-segment LED display will indicate the speed at which it has been set to run at and will be in the units (inches or millimeters)

selected by the operator.

• Compression

• Tension

MODE

SPEED

STOP

START

Tension

CompressionSpeed Indication

Inches per Minute

Millimeters per Minute

Overview 7

TCM Operation Manual

Millimeters per Minute

When the mm indicator is illuminated, the units for the crosshead speed (as indicated on the Speed Indication Display) will be in millimeters

per minute.

Inches per Minute

When the in indicator is illuminated, the units for the crosshead speed (as indicated on the Speed Indication Display) will be in inches

per minute.

Compression

When the compression arrow indicator is illuminated, the crosshead will move in the compression direction when the Start/Stop button is

depressed. (See Modes of Operation below).

Tension

When this the Tension arrow indicator is illuminated, the crosshead will move in the tension direction when the Start/Stop button is depressed.

(See Modes of Operation below).



MODES OF OPERATION

Note: In all modes, when a DFG is connected to the TCM and a DFG set Force Limit is reached, the TCM will stop and the Message “Load” will be displayed.

Compression-Standard

When only the Compression indicator is illuminated, this indicates the Compression-Standard mode of operation. In this mode, the crosshead will

move in the compression direction (at the speed indicated on the display) when instructed to do so by pressing the Start/Stop button. It will automat-

ically continue in this direction until it reaches the adjustable limit switch position. If the mechanical limit switch is reached, the display will show BOT and the

Set Speed to indicate that the lower (bottom) travel limit switch has been reached. Further, if a force gauge was set to XMIT LIMIT (transmit a force limit), the

TCM will stop when a low signal is sent over the serial port. The XMIT will stop the TCM only when connected to the Test Stand using the XMIT cable (SPK-

TCM-018) into the DFG Port.

When moving in the compression direction, the display will ash alternatively between DN and the current speed.

Tension-Standard

When only the Tension indicator is illuminated, this indicates the Tension-Standard mode of operation. In this mode, the crosshead will move in the

tension direction (at the speed indicated on the display) when instructed to do so by pressing the Start/Stop button. It will automatically continue in this

direction until it reaches the adjustable limit switch position. If the mechanical limit switch is reached, the display will show TOP and the set speed to indicate

that the upper (top) travel limit switch has been reached. Further, if a force gauge was set to XMIT LIMIT (transmit a force limit),the TCM will stop when a high

signal is sent over the serial port. The XMIT will stop the TCM only when connected to the Test Stand using the XMIT cable (SPK-TCM-018) into the DFG Port.

When moving in the tension direction, the display will ash alternatively between UP and the current speed.

Overview 8

TCM Operation Manual

Compression-Cycle

When the Compression indicator is illuminated, and the Tension indicator is dimly lit, this indicates the Compression-Cycle mode of operation. In this

mode, the crosshead will move in the compression direction (at the speed indicated on the display) when instructed to do so by pressing the Start/

Stop button. It will automatically continue in this direction until it reaches the lower adjustable limit switch position, at which point it will change to the ten-

sion direction and continue until it reaches the upper adjustable limit switch position. Upon reaching the upper adjustable limit switch position, it will change

direction again and continue to cycle back and forth between the two limit switch positions. The Cycle mode can also be controlled by Force when setting the

Load Limits on the force gauge and connecting the force gauge to the TCM using cable SPK-TCM-018. When the crosshead is in motion for this mode, the Com-

pression indicator will ash the following messages during the cycle:

DN with the Cycle Count C001, C002…

then UP with the Cycle Count C001, C002.

The Maximum cycle count is 999.

Pressing the Start/Stop button again will stop the crosshead motion. Further, if a force gauge was set to XMIT LIMIT, the TCM will continue to cycle to both lim-

its when a low or high signal is sent to the DFG port.The XMIT will stop the TCM only when connected to the Test Stand using the XMIT cable into the DFG Port.

Tension-Cycle

When the Tension indicator is illuminated, and the Compression indicator is dimly lit, this indicates the Tension-Cycle mode of operation. In this mode,

the crosshead will move in the compression direction (at the speed indicated on the display) when instructed to do so by pressing the Start/Stop

button. It will automatically continue in this direction until it reaches the upper adjustable limit switch position, at which point it will change to the tension

direction and continue until it reaches the lower adjustable limit switch position. Upon reaching the lower adjustable limit switch position, it will change

direction again and continue to cycle back and forth between the two limit switch positions. The Cycle mode can also be controlled by Force when setting

the Load Limits on the force gauge and connecting the force gauge to the TCM using cable SPK-TCM-018. When the crosshead is in motion for this mode, the

Tension indicator will ash the following messages during the cycle:

UP with the Cycle Count C001, C002…

then DN with the Cycle Count C001, C002.

The Maximum cycle count is 999.

Pressing the Start/Stop button again will stop the crosshead motion. Further, if a force gauge was set to XMIT LIMIT, the TCM will continue to cycle to both lim-

its when a low or high signal is sent to the DFG port. The XMIT will stop the TCM only when connected to the Test Stand using the XMIT cable into the DFG Port.

Overview 9

TCM Operation Manual



REAR PANEL PORTS AND CONNECTIONS

The rear panel has provisions for the following functions and connections. These are as follows:

• Communication Port (DB 9-pin Female)

• Digital Force Gauge (DFG) Port DB 9-pin Male

• USB Port

• Remote Foot Switch Port (optional)

Communication Port

The communication port will be used for future TCM enhanced capabilities.

USB Port

This is a USB Type B connector and is electrically isolated from the TCM. The USB port is used for eld updates of rmware and to connect to a PC to run Force-

Test Software and other DAQ systems.. Later releases may also allow this port to be used to exchange other forms of data and communicate to external PCs

for Data Aquisition purposes as ForceTest Software.

Digital Force Gauge (DFG) Port

The DFG Port allows the TCM to receive RS232 signals and allow the tester to stop when a set force limit is reached.

XConguration 1

Connection for Stopping and cycling a DFG at a set load Limit.

XConguration 2

DFG load limit detection and data communication to PC for ForceTest and DAQs systems.

• Main Power Switch

• Main Power Fuse

• IEC Power Cord Connection

USB Port

Communication Port Remote Foot Switch Main Power Fuse

IEC Power Cord

Connection

DFG Port Main Power

Switch

XConguration 3

ForceSetup.com—Utility for future TCM setup capabilities.

Digital Force Gauge Cable: SPK-TCM-018 TCM

Digital Force Gauge Cable: SPK-TCM-018 Cable: SPK-TCM-016TCM PC

Cable: SPK-TCM-016TCM PC

Overview 10

TCM Operation Manual

Main Power Switch

This switch controls the main power to the TCM. Flip the switch next to the power cord inlet to turn the machine ON or OFF. When the machine is OFF, the

speed indicator display is not illuminated.

When rst turning the machine OFF, you may note that it takes a few seconds for the speed indicator display to extinguish. This is normal and due to the

capacitors’stored power that eventually discharges.

Main Power Fuse

The unit has a ceramic 5 mm x 20 mm 1.5 Amp slow-blow fuse. If for some reason the fuse needs to be replaced, use a fuse with same ratings as indicated.

To replace the fuse, follow these steps. First make sure the Main Power Switch is in the o position. Unplug the power cord from the outlet. Unplug the power

cord from the back of the TCM base. Now, using a screwdriver, pry open the fuse cover by inserting the blade of the screwdriver from the side the power cord

was in the back of the TCM and pry outward. Remove the old fuse and replace with the new one. Push fuse door back in place, plug the power cord back into

the TCM and then the power outlet. Turn on the Main Power Switch and check that the TCM powers up properly by observing the display and indicators on

the front panel of the TCM.

IEC Power Cord Connection

The input AC Mains Power requires no selection between 120 and 240 VAC as its power supply can automatically accommodate 100-240 VAC (50-60 Hz) nom-

inal. The appropriate IEC power cord was supplied with the TCM at time of order. To install the power cord, rst plug the appropriate power cord into the TCM

and then into the power outlet. To remove the power cord, rst unplug the power cord from the outlet and then remove the cord from the TCM.

Remote Foot Switch

The TCM Series can be equipped with the optional remote footswitch for controlling the crosshead movement. The Remote

Footswitch (p/n NC002910) plugs into the rear of the TCM Series console at the stereo input jack.

! CAUTION: Do not plug the Remote Foot Switch into the console while the crosshead is moving. AMETEK recommends

that the power to the TCM Series be O before connecting the Remote Foot Switch.

XCrosshead Direction Control

The right pedal on the Footswitch Controller causes the crosshead to move in an UPWARD direction. Press and hold to move the crosshead.

Release the foot pedal to stop the crosshead movement.

The left pedal on the Footswitch Controller causes the crosshead to move in a DOWNWARD direction. Press and hold to move the crosshead. Release the foot

pedal to stop the crosshead movement.

Releasing the foot pedal will stop the crosshead from moving.

Note: Make sure power is O at the TCM Series tester before inserting the remote Footswitch Controller. The Footswitch Controller has an 8 foot (2.5 m)

length cable with stereo jack connector. The connector is inserted into the back of the TCM Series console.

Control

Down

Control

Overview 11

TCM Operation Manual



EMERGENCY SWITCH

The Emergency switch is the large red button located in the front and on the right side of the base cover,

next to the front panel. When this button is depressed, power is removed from the tester.

XActivate Emergency Stop

To activate the emergency stop button, press rmly in a downward direction. The stop button will latch

and lock into position.

XRelease the Emergency Button

Power is returned to the tester when the emergency stop button is released to the UP position.

To release the emergency stop button, rst switch machine power OFF from the main power entry on the

back, then press rmly down on the stop button and turn in a clockwise direction. This will disengage the

lock and return the emergency stop button to its normal position.



FAULT AND ERROR CODES

The TCM can detect and display several types of faults and errors. These error codes will be displayed on the same display that indicates the crosshead speed.

If one of the faults or errors are detected, the display will display only the fault/error code and no longer indicate the crosshead speed.

Also, if in fault or error state, three (3) quick audible beeps will sound followed by a 3 second delay and then sound again in a repeating cycle until power is

turned o to the TCM and the fault condition is no longer present (except where noted). Below is a list of the faults and error codes:

Display Indication Fault / Error Descripiton

FE Firmware (due to hardware) error.

LOAD *Machine detected an overload and will log it.

STAL Motor was detected as being stalled.

HOT Electronics or motor is too hot.

FATL Fatal system error. This can include motor issues, setup issues, etc.

LSF Limit switch fault. Both upper & lower limit switches are ON.

*A power recycle is not needed. You will only be able to drive the opposite direction of the overload or stall event.

MODE

SPEED

STOP

START

Emergency Switch

Travel Limit Switches

Accessory Mounting Plate

Overview 12

TCM Operation Manual



SECURING THE TCM TO A WORKBENCH

The TCM Series Motorized Test Stand is a heavy piece of equipment and cannot normally tip over. However, if there is the possibility that users can pull against

the vertical column, then there is a risk that the machine may be pulled over.

It is required that the TCM be secured to a workbench using the two (2) tapped holes in the base of the machine. The template below shows the location of of

the two holes, and can serve as a guide for drilling two holes in the workbench to receive the two M8 mounting bolts.

Front

M8 x 1.25 (2x)

8 N-m max. 8 mm max thread insertion

216.0 mm

(8.5 in)

181.0 mm

(7.1 in)

248.0 mm

(9.7 in)

The TCM Series includes two (2) mounting bolts, two spacers and two washers as part of

the standard mounting kit. If the supplied mounting bolts are the wrong length for your

workbench, they may be substitueted with standard M8 bolts of the proper length. Spacer (2x)

Washer (2x)

Mounting Bolt (2x)

Specications 13

TCM Operation Manual

Speciﬁcations

Load Capacity

TCM100 . . . . . . . . . . . . . 100 lbf (500 N)

TCM350 . . . . . . . . . . . . . 350 lbf (1500 N)

Travel

Standard . . . . . . . . . . . . 16 inches (~406 mm)

Extended . . . . . . . . . . . . 32 inches (~812 mm)

Speed

XSpeed Range

0.2 to 40.0 inches per minute (5 to 1016 millimeters per minute)

XSpeed Accuracy

± 0.1% of Set Speed (unloaded)

Frame Deection

TCM100 . . . . . . . . . . . . . Less than 1 mm (0.04") at full load capacity

TCM350 . . . . . . . . . . . . . Less than 2 mm (0.06") at full load capacity

Measurement System

Chatillon DF Series Digital Force Gauge

Temperature

XOperating Temperature

50 to 104° F (10 to 40° C)

Input Power

85-264 VAC at 47-63 Hz

Current . . . . . . . . . . . . . . 1 Amp Maximum

Relative Humidity

20 to 85% (non-condensing)

Weight

XTester Weight

Standard . . . . . . . . . . . . 57 lbs (25.9 kg) approximate

Extended . . . . . . . . . . . . 69 lbs (31.3 kg) approximate

XShipping Weight

Standard . . . . . . . . . . . . 197 lbs (90 kg)

Extended . . . . . . . . . . . . 209 lbs (94 kg)

Part Numbering System

Model/Force Crosshead Travel Height Power Mounting

100 lbf / 500 N .... TCM100 Standard 16"...............S 115 VAC 60 Hz, US Power Cord........................ -115 1/2-20F thread in base and 1/2-20M to 5/16-18M and 1/2-20M to 10-32M Couplings ...-A

350 lbf / 1500 N ... TCM350 Extended 32" ..............E 230 VAC 50 Hz, UK and EU Power Cord ................ -230 1/2-20F thread in base and 5/8” Eye End Adapter Kit for base and DFG ................. -B

230 VAC 50 Hz, China & Australia Power Cord ... -230CNAU

SAMPLE PART NUMBERS

TCM100S-115-A .......100 lbf/400 N unit with standard 16"crosshead travel height, 115 VAC 60 Hz US power cord, 1/2-20F thread in base and 1/2-20M to 5/16-18M and 1/2-20M to 10-32M couplings.

TCM350E-230-B .......350 lbf/1500 N unit with extended 32”crosshead travel height, 230 VAC 50 Hz UK and EU power cord, 1/2-20F thread in base, and 5/8”Eye End Adapters for the base and DFG.

Specications 14

TCM Operation Manual



TCM DIMENSIONS

MODE

SPEED

STOP

START

Standard

754.0 mm

(29.7 in)

275.0 mm

(10.8 in)

Extended

(1161.0 m m)

(46.0 in)

431.0 mm

(17.0 in)

108.0 mm

(4.3 in)

See

Following

Page

Specications 15

TCM Operation Manual



TCM MOUNTING PLATE OPTIONS

Standard Mounting Plate

Optional Multi-Thread Plate Kit (p/n SPK-TCM-005)

60.0

2x Ø 9.0 THRU

Ø 17.3 x 90°

Ø 80.0

30.0

± 0.10

60.0

22.5

2x Ø 9.0 THRU

Ø 17.3 x 90°

Ø 80.0

Ø 14.0

6x M6 x1.0 6H THRU

30.0

± 0.10

45.0

90.0

10-32 UNF 2B

M6 x 1.0 6H

A-A

45.0

M12 x 1.75 6H

1/4-28 UNF 2B

5/16-18 UNC 2B

3x 12.70

3x 25.40

45.0

Support 16

TCM Operation Manual

Support



OPTIONAL ACCESSORIES

Description Part Number Qty

Multi-thread Plate Kit SPK-TCM-005 1

T-Slot Table SPK-TCM-011 1

Foot Switch NC002910 1

Splinter Shield SPK-TCM-012 1

Remote Load Cell Adapter Kit SPK-TCM-014 1

3" Compression Platen SPK-TCM-013 —

3" Platen 17012 1

5/16-18M #10-32F P-10020 1

MODE

SPEED

STOP

START

T-Slot Table

SPK-TCM-011

Support 17

TCM Operation Manual



United Kingdom

Tel +44 (0)1243 833 370

[email protected]

France

Tel +33 (0)1 30 68 89 40

general.lloyd-instruments

@ametek.com

Germany

Tel +49 (0)2159 9136 510

info.mct-[email protected]

Denmark

Tel +45 4816 8000

[email protected]

USA

Florida

Tel +1 (800) 527 9999

[email protected]

India

Tel +91 22 2836 4750

[email protected]

China

Shanghai

Tel +86 21 5868 5111

Beijing

Tel +86 10 8526 2111-19

[email protected]

Singapore

Tel +65 6484 2388

[email protected]



RETURNING PRODUCT TO AMETEK

Please contact your sales representative to complete a Return Material Authorization (RMA) form and/or receive an RMA number.

Return/shipping instructions will be provided with the RMA number.



WARRANTY

This instrument is warranted against defects in workmanship, material and design for two (2) years from date of delivery to the extent that AMETEK will, at its

sole option, repair or replace the instrument or any part thereof which is defective, provided, however, that this warranty shall not apply to instruments subject-

ed to tampering or, abuse, or exposed to highly corrosive conditions.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES WHETHER EXPRESS OR IMPLIED AND AMETEK HEREBY DISCLAIMS ALL OTHER WARRANTIES, INCLUDING,

WITHOUT LIMITATION, ANY WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE OR MERCHANTABILITY. AMETEK SHALL NOT BE LIABLE FOR ANY INCIDENTAL

OR CONSEQUENTIAL DAMAGES, INCLUDING, BUT NOT LIMITED TO, ANY ANTICIPATED OR LOST PROFITS.

This warranty is voidable if the purchaser fails to follow any and all instructions, warnings or cautions in the instrument’s Operation Manual.

If a manufacturing defect is found, AMETEK will replace or repair the instrument or replace any defective part thereof without charge; however, AMETEK’s obli-

gation hereunder does not include the cost of transportation, which must be borne by the customer. AMETEK assumes no responsibility for damage in transit,
