Cheego CCA3-W User manual

Smart Baby Monitor
CCA3 - W / User Guide

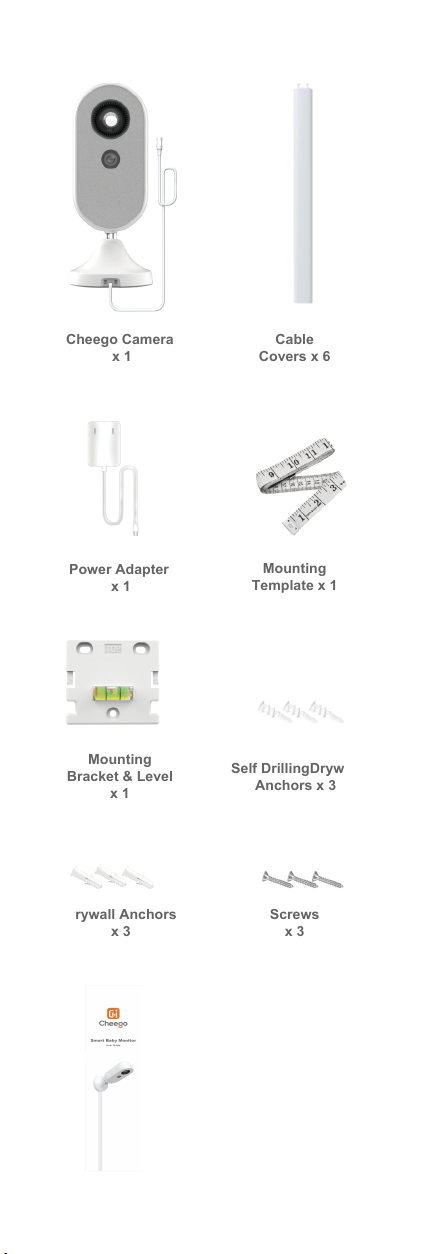

Cheego Camera
x 1
Cable
Covers x 6
Power Adapter
x 1
Mounting
Template x 1
Mounting
Bracket & Level
x 1
Self DrillingDrywall
Anchors x 3
Drywall Anchors
x 3
User Guide
x 1
Screws
x 3
WHAT’S IN THE BOX

PRODUCT OVERVIEW
LED Touch
Sensor
Temperature
Module
Camera
Module
Speaker
Night Lamp
Reset
Button

SAFETY

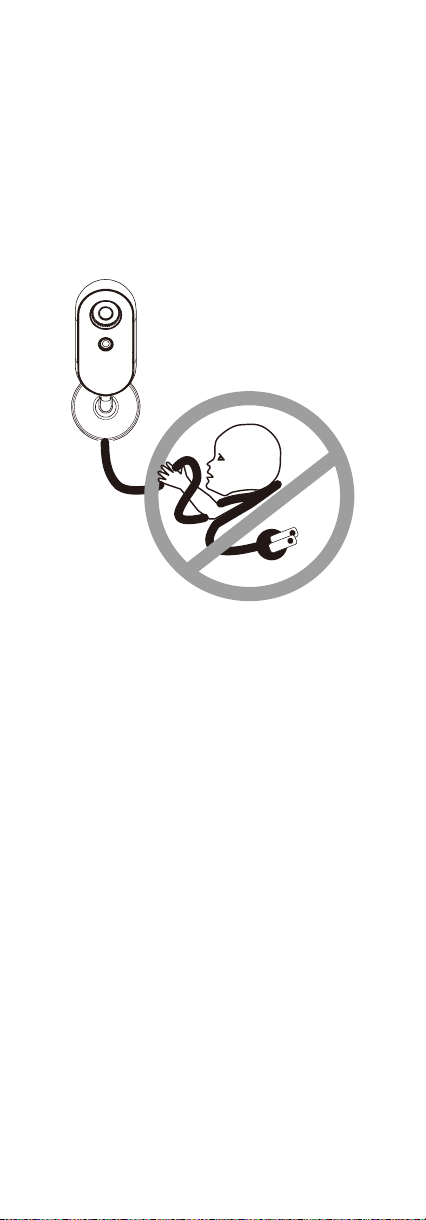

WARNING: Strangulation Hazard—
Children have STRANGLED in cords.
NEVER attempt to use cord without the
protective covering. Check protective
covering before each use to ensure that
the cord is not exposed to your child.
Immediately discontinue use if protective
covering is damaged or broken.
• This device is designed to be
mounted behind a standard crib and
against the wall.
• Adult assembly is required. Keep
small parts away from children when
assembling.
• This product cannot replace adult
supervision. Ensure your child’s health
by checking on him/her regularly.
• This device is designed for indoor use
only.
• This product and its packaging are not
toys. Do not allow children to play with
them.
• Falling warning---In order to prevent
products fell to hurt, be sure to install
the monitor in a stable location, tighten
the screws, securely monitor your
device.
• Make sure the camera could capture
the baby’s facial image clearly after the
installation.
• accept any interference received,
• tested and found to comply with the
pursuant to Part 15 of the FCC Rules.

• This device is designed to be
mounted behind a standard crib and
against the wall.
• Adult assembly is required. Keep
small parts away from children when
assembling.
• This product cannot replace adult
supervision. Ensure your child’s health
by checking on him/her regularly.
• This device is designed for indoor use
only.
• This product and its packaging are not
toys. Do not allow children to play with
them.
• Falling warning---In order to prevent
products fell to hurt, be sure to install
the monitor in a stable location, tighten
the screws, securely monitor your
device.
• Make sure the camera could capture
the baby’s facial image clearly after the
installation.
• accept any interference received,
• tested and found to comply with the
pursuant to Part 15 of the FCC Rules.
Installation
Position your crib against the wall where
you will mount Cheego Camera.
Be sure to check that there are no studs
in the center of the crib and that the
power outlet is out of your child's reach.
1.Using the included Mounting
Template, find the 20" (50cm) position
from the headboard of the crib and
mark it (as➀) on your wall.
Once complete, move the crib out of
your way.
2.Pull straight and vertical the Mounting
Template, then align with the mark ➀.
Once in position, make a mark on your
wall at 60" (150cm)(as➁).
20in (50cm) 60in (150cm)
60in (150cm)

3.Align the screw holes at the lowest
part of the mounting bracket(mark➁)
then adjust it using the built-in level.
Once level, mark the wall through the
two top holes in the bracket(as➂➃).
6.Align the mounting bracket with the
three anchors, and insert screws into
the anchors and screw in halfway.
5.Insert three anchors until flush with
wall.
1/4 " (6mm)
4.Drill 1/4"(6mm) holes in the three
marked spots(➁➂➃).

9.Organize the power cable, peel the
tape backing off the Cable Covers, and
firmly adhere the bottom of the cable
covers to the wall.
Connect the power cable with the DC
Power Adapter, plug the power adapter
into your outlet. Make sure that the
power outlet you use is not within your
child's reach.
8.Place Cheego Camera over Mounting
Bracket and press it down until it clicks.
7.Adjust the Mounting Bracket using
the built-in level. Once level, tighten the
three screws.
PRESS
SLIDE
Connect with the DC Power Adapter
Organize the extra power cables with velcro.

INSTRUCTIONS
Get start Cheego Smart app
Download the Cheego Smart App from
Apple Store or Google Play. Or scan
the QR code in the user guide.
Boot
Please connect the camera with the
power adapter. And the LED light will
be automatically turned on and off.
Please wait about 35 seconds before
the device boot up successfully.
GET START CHEEGO SMART APP
Cheego Smart APP will upgrade
and update. The actual operation may
be different from the above description.
Please follow the instructions in the
current version.
When
connecting,
please keep the
network good
and the monitor
turned on. 5GHz
Wi-Fi network
is unavailable.
Please set it to
2.4GHz first.
Download & Register
“Cheego Smart”APP

CHEEGO SMART
APPLICATION SETUP
GUIDE
•Download the Cheego Smart App and
set up your account.
• Follow the in-app instructions to set up
your Cheego Smart Camera. Choose:
Homepage > Add your device > Scan
QR code to connect>Pair succeed>
Choose installation way> Choose
installation position
• You can choose to follow the
assembly instructions in-app or in this
booklet.
SPECIFICATIONS
Model
Resolution
Lens
Field of View
Connectivity
Support
System
TF card
Mounting
Power DC12V / 1A
0-40℃
90X90X215mm
420g
Working
Temperature
Dimensions
Item Weight
CCA3-W
1296P
f=2.8mm / F2.0
140° (Diagonal)
Wi-Fi 2.4GHz
Android 7.0 or IOS
11.0 or above
32GB
Wall Mount
（Standard
Package）
Floor Stand Mount
（Need to
Purchase a
Replacement
Floor Stand）

FEATURES
INTRODUCTION
Live Video And Two-Way Audio
Cheego 3MP ultra HD camera and
high-quality speaker provide a fantastic
connection with your baby anywhere
and anytime.
Crying Detection&
Soothing Music
Cheego baby monitor automatically
plays soothing musics& turns on the
night lamp (at night), and sends alarm
messages to the APP when it detected
baby's crying.
Smart Thermometer
With built-in AI chip& sensor, Cheego
uses advanced algorithm to realize ±
0.3 degrees high precision forehead
temperature monitoring
Sleep Nanny
Cheego captures and analyzes baby's
sleep with AI technology in real time,
and sends alarm messages to the APP
if your baby wakes up.
Moments
Cheego uses an advanced algorithm
to capture photos and videos of baby’s
wonderful moments. Record your
baby's precious time.
Virtual Fence Detection
Cheego sends instant notifications
through the APP when the baby is out
of the virtual fence.
Danger Zone Detection
Set the electronic area as the danger
zone, when baby enters the danger
zone, Cheego provides voice warning
and sends alarm messages to the APP.
Temperature and
Humidity Detection
Embeded high precision temperature&
humidity sensor, Cheego checks the
room temperature and humidity in real
time to make baby more comfortable.
Non-Invasive Night Vision
Non-invasive infrared sensor makes
clear vision in the dark.

FAQ
WiFi cannot be connected
when configuring the network
(configuration is not successful)
Idon't hear the connection
succeeded when I scan QR code
Suggestions:
What should I do if the camera
goes offline (device icon gray)?
Suggestions:
What should I do if I can't
connect my device after the
upgrade?
What should I do if the call has
an echo?
Setup routers to a 2.4GHz Wi-Fi
network
1). Screen is too dark
2). Too far or too close from the lens
3). Reflection
QR code cannot be recognized, the
possible reasons are as follows:
1). The phone screen is facing the lens
2). Adjust phone screen brightness
3). Adjust the distance between the
phone and the lens
1). Shut down and reboot your device
2). If the Wi-Fi was changed, please
follow the RESET instruction to reset
your camera.
The possible reasons are as follows:
1). Check the WiFi network
2). Shut down and reboot your device
3). Re-setup the device ( After the
device is powered on, scan reset QR
code within ten minutes ) , rebind the
device.
When making a call, please try to keep
the mobile phone more than 10 meters
away from the device. The echo and
howling caused by the short distance
call is a normal phenomenon.
What should I do if mobile phone
cannot receive the notification?
Go to mobile “setting”→“Cheego
smart”→“Allow notification”

What should I do if mobile phone
cannot receive the notification?
What should I do if body
temperature check failed?
Suggestion:
How to RESET the camera?
GUARANTEE &
WARRANTY
SATISFACTION GUARANTEE &
RETURN POLICY
LIMITED WARRANTY
2). Please confirm that the working
environment of the equipment is 0-40
°C. Ambient temperatures that are too
low or too high can affect the accuracy
of the measurement and cause the
temperature measurement to fail.
3). Before temperature measurement,
if there is a temperature difference
between the monitor and the
measurement environment, please
leave the monitor for at least 50
minutes.
press the RESET button on the camera
with 5 seconds, click "Reset Device
Step by Step" in Cheeg Smart APP,
then do it step by step
Thank you for purchasing Cheego
products. If you are not completely
satisfied with your purchase, you may
return the product for a full refund
within 30 calendar days of setting up
a hardware product ( icheego.com) or
within 15 days of activating an online
product (Cheego authorized online
reseller). This satisfaction guarantee
requires proof of purchase from an
authorized seller. Purchases from 3rd
party retailers will need to be returned
to the original place of purchase.
This limited warranty contains important
information about your rights and
obligations, as well as limitations and
exclusions that may apply to you.
1). When temperature measurement
starts, a red circle will appear in your
phone screen. Make sure your baby’s
forehead is in the circle and stillness

This limited warranty only applies if
you are the original purchaser, use
and operate the product in the United
States or Canada. Please note if you
are not resident of the United States
or Canada, this Limited Warranty &
Return Policy does not apply to you.
PRODUCTS OBTAINED FROM
UNAUTHORIZED RETAILERS ARE
NOT COVERED BY THIS LIMITED
WARRANTY.
Please be aware that there are some
retailers and websites that claim to be
authorized retailers of Cheego when
they are not. Note that when you
purchase from these unauthorized
retailers, you are taking a risk, including
a risk that these products are used or
defective, and this limited warranty will
not apply.
Period of coverage. Warrants to the
owner of the enclosed product that
the product contained in this box
(“Product”) will be free from defects
in materials and workmanship for a
period of one (1) year from the date
of delivery following the original retail
purchase (the “Warranty Period”). If you
believe you have received a defective
product, we will either repair or replace
the defective product or its defective
component part(s) in accordance with
the terms of this limited warranty.
We warranty replacement for the
remaining unexpired period of the
original product’s warranty. This limited
warranty is the only warranty available
for our products.
1.WHAT THIS LIMITED
WARRANTY COVERS?

2.WHAT THIS LIMITED
WARRANTY DOES NOT COVER?
3.NOT A MEDICAL DEVICE.
•Products marked as “sample” or “Not
for Sale”, or sold “AS IS”;
• Ineligible Products that have been
subject to:
(a)Modifications, alterations, tampering,
or improper maintenance or repairs;
(b)Handling, storage, installation,
testing, or use not in accordance
with the Terms of Service or other
instructions provided by Cheego;
(c)Abuse or misuse of the Product;
(d)Damages caused by Acts of God,
including but not limited to lightning,
flood, tornado, earthquake, or
hurricane;
• Consumables parts, including but not
limited to batteries, unless damage
is due to defects in materials or
workmanship of the product;
• You use unauthorized service
providers for maintenance or repair;
• Unauthorized use of the Product
or software can impair the Product’s
performance;
• This limited warranty does not
warrant to covered any software, even
if packaged or sold with the Products;
• Refer to the licensing agreement
accompanying the software for details
of your rights with respect to its use;
• This limited warranty does not warrant
that the operation of the product will be
uninterrupted or error-free;
• This warranty cannot be transferred
from the original end-user to others for
any such transfer.
The products are not medical devices
and are not intended to be used as a
medical devices.
4.DISCLAIMER OF
WARRANTIES.
EXCEPT AS STATED ABOVE IN
SECTION 1 OF THIS LIMITED
WARRANTY, AND TO THE MAXIMUM
EXTENT PERMITTED BY APPLICABLE
LAW, CHEEGO DISCLAIMS ALL

5.YOUR RIGHTS AND THIS
LIMITED WARRANTY.
EXPRESS, IMPLIED, AND STATUTORY
WARRANTIES AND CONDITIONS
WITH RESPECT TO THE PRODUCT,
INCLUDING THE IMPLIED WARRANTIES
OF MERCHANTABILITY, FITNESS
FOR A PARTICULAR PURPOSE
AND NON-INFRINGEMENT. TO THE
MAXIMUM EXTENT PERMITTED BY
APPLICABLE LAW, CHEEGO ALSO
LIMITS THE DURATION OF ANY
APPLICABLE IMPLIED WARRANTIES
OR CONDITIONS TO THE DURATION
OF THIS LIMITED WARRANTY.FOR
THE AVOIDANCE OF DOUBT, NOTHING
IN THIS CLAUSE 6 IS INTENDED TO
EXCLUDE ANY WARRANTIES OR
GUARANTEES WHICH CANNOT BE
EXCLUDED UNDER APPLICABLE
LAWS.zz
WE LIMIT THE APPLICABILITY OF
IMPLIED WARRANTIES, INCLUDING
THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, TO
THE DURATION OF THIS LIMITED
WARRANTY. TO THE EXTENT
PERMITTED BY LAW, WE DISCLAIM
ALL OTHER WARRANTIES OF ANY
KIND. SOME STATES AND COUNTRIES
DO NOT ALLOW LIMITATIONS ON
IMPLIED WARRANTIES, SO THE
ABOVE LIMITATION MAY NOT APPLY
TO YOU. OUR SOLE LIABILITY FOR
ANY DEFECT SHALL BE AS SET
FORTH IN THIS LIMITED WARRANTY
AND EXCLUDES ANY CLAIMS FOR
INCIDENTAL OR CONSEQUENTIAL
DAMAGES. SOME STATES AND
COUNTRIES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE
LIMITATIONENTITY IS AUTHORIZED
TO MAKE ANY OTHER WARRANTY ON
OUR BEHALF. THIS WARRANTY
GIVES YOU SPECIFIC LEGAL RIGHTS.
YOU MAY ALSO HAVE OTHER RIGHTS
WHICH VARY FROM STATE TO STATE
AND COUNTRY TO COUNTRY. OR
EXCLUSION MAY NOT APPLY TO YOU.
NO PERSON OR

COMPLIANCE
DECLARATION OF CONFORMITY
PRODUCT USE WARNING
RADIO FREQUENCY (RF)
EXPOSURE STATEMENT
Hereby, Hangzhou Cheego Technology
Co., Ltd. Room 603, Bldg. E2, 3# Xiyuan
8 Road, Hangzhou, 310030, China,
declares that the equipment Model
CCA3 is in compliance
with Directive 2014/53/EU.
This product is meant for indoor use
only.
This equipment should be installed and
operated with a minimum distance of 20
cm between the camera and the human
body.
This symbol means the product
must not be discarded as household
waste, and should be delivered to
an appropriate collection facility for
recycling. Proper disposal and recycling
helps protect natural resources, human
health and the environment. For more
information on disposal and recycling
of this product, contact your local
municipality, disposal service or the
shop where you bought this product.
