User’s Manual
SK51102
1-to-1 2.5” SATA HDD
Storage Kit
Version A0
December / 10 / 2008

2
SK51102 ver. A0
User
’
s Manual
www.chenbro.com
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: [phone] Fax: [phone] Email: [e-mail]
Copyright
Copyright © 2006 CHENBRO Micom Co., Ltd.. All rights reserved.
Unless otherwise indicated, all materials in this manual are copyrighted by CHENBRO Micom Co., Ltd.. All rights
reserved. No part of this manual, either text or image may be used for any purpose other than internal use within
purchasing company. Therefore, reproduction, modification in any form or by any means, electronic, mechanical or
otherwise, for reasons other than internal use, is strictly prohibited without prior written permission.
CHENBRO Micom Co., Ltd. reserves the right to make improvement and modification to the products indicated in
this manual at any time. Specifications are therefore subject to change without prior notice.
Information provided in this manual is intended to be accurate and reliable. However, CHENBRO Micom Co., Ltd.,
assumes no responsibility for its use, nor for any infringements upon the rights of third parties, which may result from
its use.
Technical Support
CHENBRO works hard to offer our customers maximum performance from our chassis. But in case you
have any problem with our product you can find supports from the following resources.
Web Support
Detail information of our products is in our website. You can find technical updates, installation guides, FAQs,
technical specifications and more. Our web address is: www.chenbro.com.
Email Support
You can also fill out the technical support form at our Technical Support page. You technical issue inquiries will be
sent directly to our support professionals.
Phone Support
You can also contact CHENBRO HQ or branch office for immediate support; their contact Information is as
following:
CHENBRO HQ CHENBRO Europe B.V. CHENBRO Micom (USA) Inc.
Tel: [phone] Tel: [phone] Tel: [phone]
Fax: [phone] Fax: [phone] Fax : [phone]

3
SK51102 ver. A0
User
’
s Manual
www.chenbro.com
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: [phone] Fax: [phone] Email: [e-mail]
Contents
Copyright......................................................................................................................................................2
Technical Support......................................................................................................................................2
Contents.......................................................................................................................................................3
Revision History.........................................................................................................................................4
Safety Information .....................................................................................................................................5
Conventions Used in this Manual..........................................................................................................5
Getting Start with the SK51102 Storage Kit........................................................................................6
Unpacking and Checking the Contents.......................................................................................6
Technical Specifications..........................................................................................................................6
Compatible CHENBRO Chassis.............................................................................................................6
Introduction.................................................................................................................................................7
Functional Specification..........................................................................................................................7
General..................................................................................................................................................7
Host / Drive / Power Backplane Interface....................................................................................7
Mechanical Dimension .............................................................................................................................8
Components Description.........................................................................................................................9
Front View............................................................................................................................................9
Rear View .............................................................................................................................................9
Connector & Switch Definition.............................................................................................................10
HDD Failure Signal Connector .....................................................................................................10
Setting for HDD Failure Signal Cable Connection (SK51102)..................................... 10
Setting for HDD Failure Signal Cable Connection (RAID Card) ................................. 10
Installation Procedures..........................................................................................................................11
Hot-swap HDD Assembly...............................................................................................................11

4
SK51102 ver. A0
User
’
s Manual
www.chenbro.com
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: [phone] Fax: [phone] Email: [e-mail]
Revision History
Date Modifications
Dec. / 10 / 2008 zFirst Release

5
SK51102 ver. A0
User
’
s Manual
www.chenbro.com
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: [phone] Fax: [phone] Email: [e-mail]
Safety Information
zRead the installation instructions before connecting SK51102 to the power source.
zOnly trained and qualified personnel should be allowed to install, replace or service this equipment.
zNever install this product in a wet environment.
zPosition system cables and power cables carefully; route system cable and the power cable and plug so
that they cannot be stepped on or tripped over. Be sure that nothing rests on your system components’
cables or power cable.
Conventions Used in this Manual
The following conventions are used in this manual.
Important Icon:
Provides important information on the current topic that must not be overlooked.

6
SK51102 ver. A0
User
’
s Manual
www.chenbro.com
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: [phone] Fax: [phone] Email: [e-mail]
Getting Start with the SK51102 Storage Kit
Thank you for purchasing SK51102! This section covers unpacking and identifying components.
Unpacking and Checking the Contents
The complete SK51102 package includes the following items:
Item Description Quantity Picture
SK51102 storage cage 1
Hot-swap 2.5” Hard Disk Drive (HDD) tray 1
SATA cable, 700mm 1
HDD failure signal cable, 2P to 2P, 600mm 1
Screw: M3 (4mm) for HDD assembling 4
Screw: M2 (3mm) for SK51102 and chassis assembling 4
Technical Specifications
Occupancy 1 x Slim ODD Drive Bay
Capacity 1 x 2.5” SATA Hot-swap HDD
Dimension (WxHxD) 128 x 12.7 x 129.4 (mm)
5 x 0.5 x 5.1 (inch)
Weight 227 g
Compatible CHENBRO Chassis
zRM11704B / RM12404B / RM12500 / RM12800 / RM13106 / RM13204 /
RM21508B / RM21706 / RM21804 / RM31212B / RM31408 / RM31616
RM41416B / RM41500 / RM42200 / RM51224B / RM51424 / RM51924B
zPC719 / PC781

7
SK51102 ver. A0
User
’
s Manual
www.chenbro.com
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: [phone] Fax: [phone] Email: [e-mail]
Introduction
The CHENBRO SK51102 can house one Hot-swap 2.5” SATA HDD in one slim ODD bay converter. The ability
for conversion allows existing server or PC to perform with one Hot-swap HDD and keep the flexibility.
In all, SK51102 is the best solution as value added feature and performance.
Functional Specification
General
zSupport up to SATA-II (3.0 Gb/s)
zCompatible with 2.5” SATA HDD (9.5 mm height)
zSupport inrush current control for HDD Hot-swapping
zLED indicate activity and failure
Host / Drive / Power Backplane Interface
z1 to 1 connection for 2.5” SATA HDD
z1x SATA / SAS Signal + Power (7+15 pin) connector at HDD side of backplane
z1 x SATA / SAS interface (7 pin)
z1 x DC power connectors (4-pin FDD power connector)
SK51102 supports 9.5 mm high 2.5” HDD only
The HDD activity LDE is available for SATA-II HDDs.
If SATA-I HDD applied, the HDD activity LED will not work.

8
SK51102 ver. A0
User
’
s Manual
www.chenbro.com
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: [phone] Fax: [phone] Email: [e-mail]
Mechanical Dimension
Units: mm

9
SK51102 ver. A0
User
’
s Manual
www.chenbro.com
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: [phone] Fax: [phone] Email: [e-mail]
Components Description
Front View
Device Function
1 2.5” HDD Hot-swap Tray Refer to Page 11
2 HDD Power LED Blue LED On - HDD Power On
3 HDD activity / failure LED Green LED On - HDD active
Red LED On - HDD failure
Rear View
Device Function
1 SATA Connector Connect to motherboard / RAID card
2 HDD failure signal connector Refer to Page 10
3 HDD Access signal connector Reserved for HDD Access signal
4 Power Connector Power input
1
4
2
3
21
3

10
SK51102 ver. A0
User
’
s Manual
www.chenbro.com
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: [phone] Fax: [phone] Email: [e-mail]

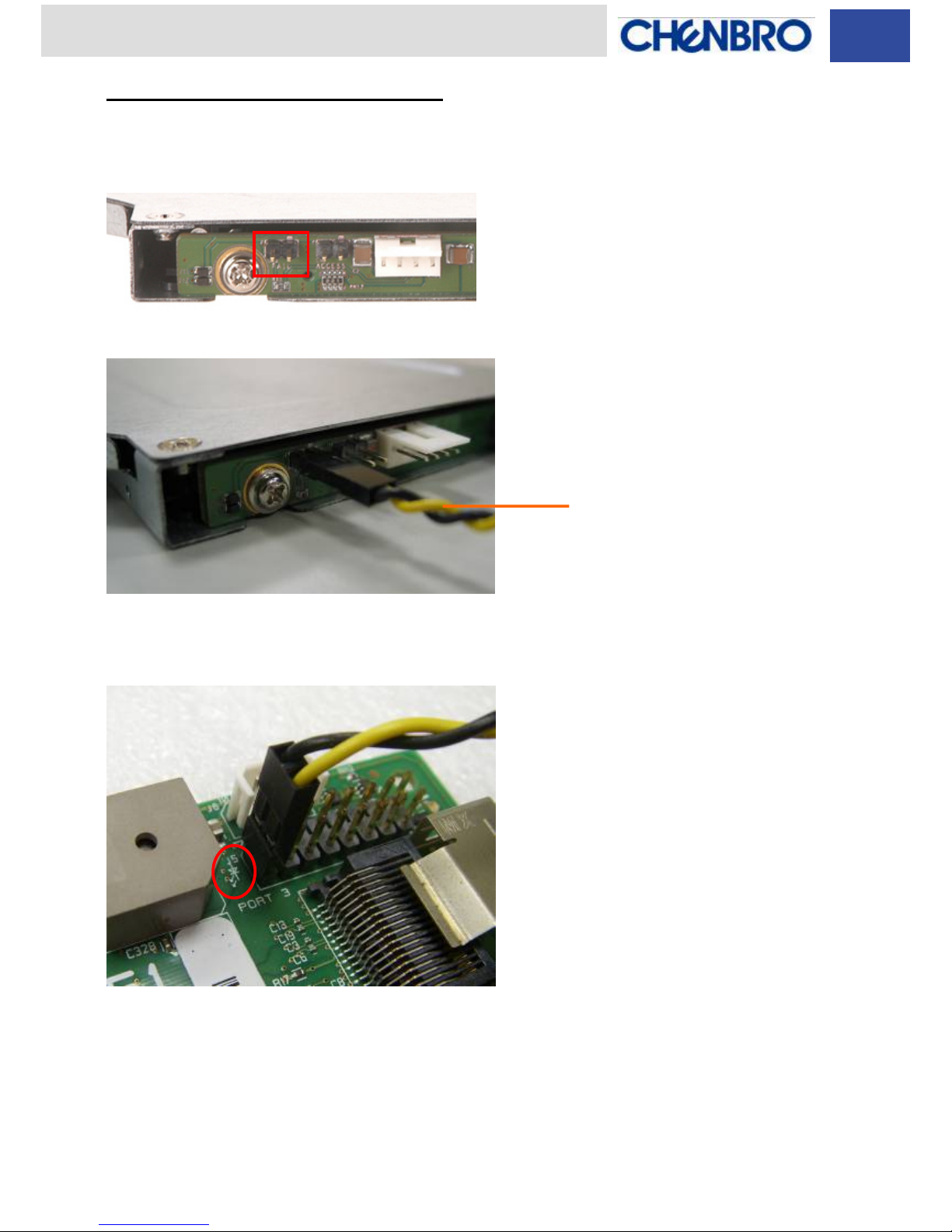

Connector & Switch Definition
HDD Failure Signal Connector
This connector is for the SAS / SATA RAID card with HDD failure signal support such as LSI MegaRAID
8308ELP. Connect the 2-pin cable on SK51102 backplane and RAID card to activate the HDD failure LED.
Setting for HDD Failure Signal Cable Connection (SK51102)
Setting for HDD Failure Signal Cable Connection (RAID Card)
Connect the yellow wire of the cable to the CATHODE of the HDD failure connector on RAID card.
Refer to your RAID card’s user manual for the detailed pin definition.
HDD Failure Signal Cable:
26H115311-001

11
SK51102 ver. A0
User
’
s Manual
www.chenbro.com
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: [phone] Fax: [phone] Email: [e-mail]
Installation Procedures
The following is the installation procedures of HDD assembly.
Hot-swap HDD Assembly
a. Push the blue latch of HDD tray
b. Pull it out from the cage
c. Remove the supporter

12
SK51102 ver. A0
User
’
s Manual
www.chenbro.com
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: [phone] Fax: [phone] Email: [e-mail]
d. Attach HDD with four screws per tray
e. Insert HDD tray to the cage
