Cherry G83-14601LPAEU-2 Instruction manual

Main Applications
Rack Mount Systems
Airlines
Education/Schools
Banking
Medical Equipment
Automotive Equipment
POS/POT
Office/Data Entry
White Box PCs
Field Services
Test Equipment
Kiosk Applications
POS/POT
Manufacturing
Transport
Key Features
•USB keyboard with fingerprint slide
sensor and PC/SC smart card reader
•AuthenTec’s AES2501B slide sensor
features a 192 x 16 pixel array
•Smart card reader
CardMan 3121-compatible
Main Part Numbers

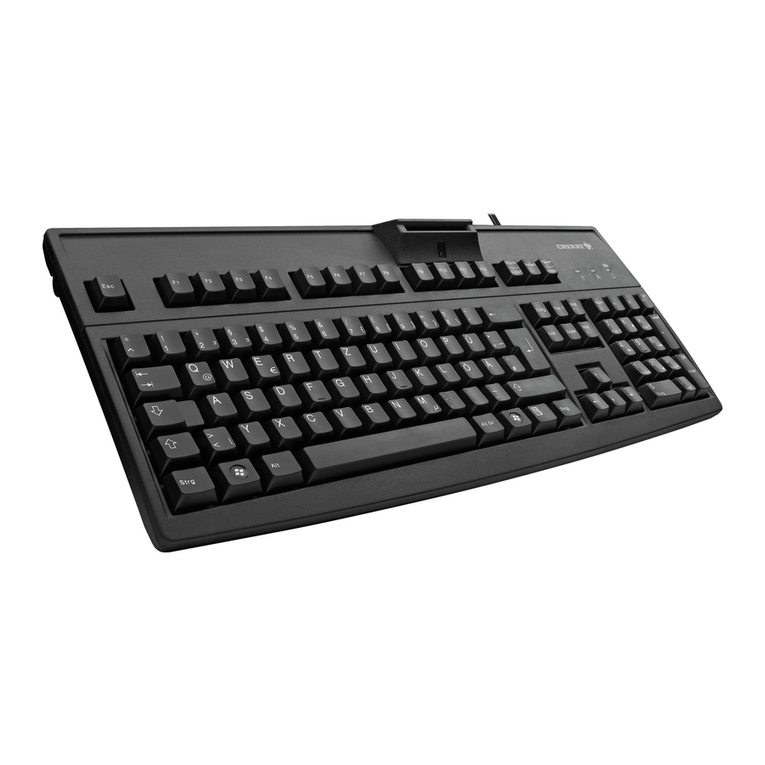

G83-14601LPAEU-2
Black, 105-key USB keyboard
with fingerprint slide sensor and
PC/SC Smart Card Reader.
Full QWERTY Keyboard
with Integrated Fingerprint
Slide Sensor and PC/SC
Smart Card Reader
Integrated Security Devices
G83-14601
FingerTIP ID Board
with Smart Card

Main Part Numbers Technical Data
Interface
USB bus powered
Smart Card Interface
Reads and writes all ISO 7816 cards
Supports T=0, T=1, I2C (S=8),
2-wire (S=10), 3-wire (S=9)
Smart Card Speed:
412,903 bps
Smart Card Clock:
4.8 MHz
Current Consumption
max. 150 mA
Cable Length
approx. 1.75 m
Number of Keys
104 = international layout
105 = european layout
Weight
approx. 1190 g (without packaging)
approx. 1500 g (with packaging)
Operating System
Microsoft WHQL Windows™ 2000, XP
Storage Temperature
-20°C to 60°C
Operating Temperature
0°C to 50°C
Agency Approvals
FCC, GS, CE, c-tick, GOST-R, VCCI, VL
Dimensions
approx. 17.9" x 7.7" x 2.1" (keyboard)
approx. 19.4" x 10.0" x 2.3" (packaging)
Packaging Units
40 keyboards per master carton
2 master cartons per pallet
Keyswitch Lifetime
>20 million operations
System Requirements
USB Interface
Windows 2000 or XP, Linux
Insertion Cycles
approx. 100,000
Sensor Resolution
500 dpi
Delivery Volume
1 FingerTIP ID Board
1 printed manual
1 CD-ROM with smart card reader drivers
and fingerprint test application
Warranty
2 Years
For information on repairs or
warranty status contact:
Cherry Technical Support
Phone: [phone]
E-Mail: [email protected]
