Chevron Tfdvd7002d User manual

Instruction Manual

Please read this manual carefully before operation.

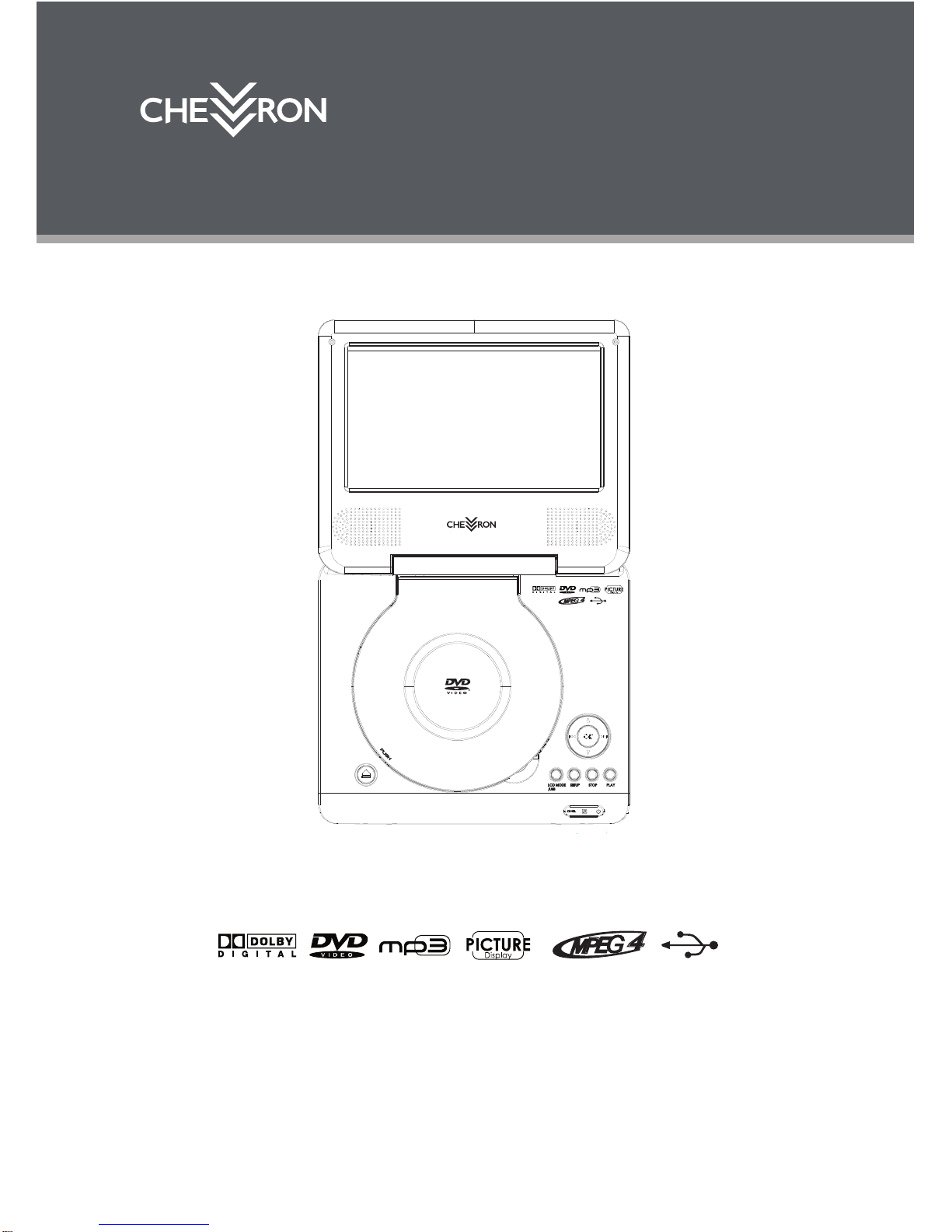

7″ Widescreen TFT LCD Portable DVD/CD/MP3 Player

TFDVD7002D

For Customer Use:

Enter below the serial number that is located on the

bottom of the unit. Retain this information for future

reference.

Model No. TFDVD7002D

Serial No.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF FIRE AND ELEC-

TRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK)

OF THE UNIT. REFER SERVICING ONLY TO QUALIFIED

SERVICE PERSONNEL.

The lightning ﬂash with arrowhead symbol within an equilateral triangle is intended to alert

the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure

that may be of sufﬁcient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the pres-

ence of important operation and servicing instructions in the literature accompanying the

appliance.

WARNING:

To prevent ﬁre or shock hazard, do not expose this device to rain or moisture. Dangerous high voltage is present inside the

enclosure. Do not open the cabinet.

Handling the cords on this product will expose you to lead, a chemical known to the State of California to cause cancer, and

birth defects or other reproductive harm. Wash hands after handling.

CAUTION:

This Digital Video Disc player employs a laser system. To prevent direct exposure to the laser beam, do not try to open the

enclosure or defeat the safety interlocks. When open and the interlocks are defeated, visible laser radiation is present.

To prevent electric shock, match wide blade of plug to wide slot of outlet and fully insert.

Use of controls, adjustments, or performance of procedures other than those speciﬁed herein may result in hazardous radiation

exposure. DO NOT STARE INTO THE BEAM.

NOTICE:

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property

rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other

limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

FCC Notice:

PRECAUTIONS

FCC Statement:this device complies with Part 15 of the FCC Rules. Operation is subject to the follow-

ing two conditions:

(1) This device may not cause harmful interference, and(2) This device must accept any interference

received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for Class B digital devic-

es, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can radi-

ate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is encouraged to try

to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and

receiver.- Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.- Consult the dealer or an experienced radio/TV technician for help.

Use of shielded cable is required to comply with Class B limits in Subpart B of Part 15 of the FCC

rules.

For recycling or disposal information about this product, please

contact your local authorities or the Electronics Industries Alliance:

www.eiae.org.

PRECAUTIONS

Do not make any changes or modiﬁcations to the equipment unless otherwise speciﬁed in

the manual. If such changes or modiﬁcations should be made, you could be required to stop

operation of the equipment.

IMPORTANT SAFETY INSTRUCTIONS

Read Instructions: All the safety and operating instructions should be read before the product 1. is operated.

Retain Instructions: The safety and operating instructions should be retained for future refer-2. ence.

Heed Warnings: All warnings on the product and in the operating instructions should be3. adhered to.

Follow Instructions: All operating and usage instructions should be followed.4.

Cleaning: Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners 5. or aerosol cleaners. Use a damp cloth for cleaning.

Attachments: Use only attachments recommended by the manufacturer. Use of other attach-6.

ments may be hazardous.

Water and Moisture: Do not use this product near water (e.g., near a bath tub, washbowl,7.

kitchen sink, laundry tub, in wet basements, or near a swimming pool and the like).

Heat: The product should be situated away from heat sources such as radiators, heat regis-8.

ters, stoves, or other products (including ampliers) that produce heat.

Accessories: Do not place this product on an unstable cart, stand, tri-9.

pod, bracket, or table. Use only with carts, stands, tripods, brackets,

or tables recommended by the manufacturer or sold with the prod-

uct. Any mounting of the product should follow the manufacturer’s

instructions and should use a mounting accessory recommended

by the manufacturer.

A product and cart combination should be moved with care. Quick 10.

stops, excessive force, and uneven surfaces may cause the product

and cart combination to overturn.

Ventilation:Slotsand openings in the cabinetare provided forventilation11. to ensure reliable operation of the product and to protect it from overheating. These openings

should never be blocked by placing the product on a bed, sofa, rug, or other similar surface.

This product should not be placed in a built-in installation such as a bookcase or rack unless

proper ventilation is provided or the manufacturer instructions have been adhered to.

Power Sources: This product should be operated only from the type of power source indi-12.

cated on the rating label. If you are not sure of the type of power supply to your home, consult

your product dealer or local power company. For products intended to operate from battery

power or other sources, refer to the operating instructions.

Power Sources:13. Do not connect the power plug to a power outlet other than that which is

indicated here and on the label as this may result in the risk of re or electric shock. Do not

handle the power plug with wet hands. Doing so may cause electric shock.

Power Lines: An outside antenna system should not be located in the vicinity of overhead 14. power lines or other electric light or power circuits, or where it can fall into such power lines

or circuits. When installing an outside antenna system, extreme care should be taken to keep

from touching such power lines or circuits, as contact with them might be fatal.

Battery: Danger of explosion if battery is incorrectly replaced. Replace only with the same or 15.

equivalent type. Battery pack or batteries installed shall not be exposed to excessive heat

such as sunshine, re or the like.

12V Car Power Adaptor: 16. Disconnect this car power adaptor when not in use. Not for use in

24V vehicles.

Using the unit in a Vehicle17. : On no account should this unit be used by the driver of a moving

IMPORTANT SAFETY INSTRUCTIONS

motor vehicle, or left unsecured in the vehicle whilst driving. If this unit is being used by a

passenger in your vehicle, be sure that it is secured or held safely, and does not obstruct any

safety device (i.e. airbag, seat belt etc.) that is tted. All passengers should wear seat belts

when using this unit in a moving vehicle. If in doubt, please contact your vehicle manufacturer

for further advice. Using other car power adaptors could damage the unit.

Using18. Headphones or Earphones: Hearing experts advise against the constant use of per-

sonal stereos played at high volume. Constant high volume use can lead to hearing loss.

If you experience ringing in the ears or hearing loss, discontinue use and seek medical

advise.

Grounding or Polarization: This product may be equipped with a polarized alternating-current 19.

line plug that has one blade wider than the other. This plug will only t into the power outlet in

one direction. This is a safety feature. If you are unable to insert the plug fully into the outlet,

try reversing the direction of the plug. If the plug should still fail to t, contact an electrician to

replace the obsolete outlet. Do not defeat the safety purpose of the polarized plug.

Power-Cord Protection: Power supply cords should be routed so that they are not likely to 20.

be walked on or pinched by items placed upon or against them, paying particular attention to

cords at plugs, convenience receptacles, and at the point which they exit from the product.

Protective Attachment Plug: The product may be equipped with an attachment plug with 21.

overload protection. This is a safety feature. See the operating instructions for replacement

or directions to reset the protective device. If replacement of the plug is required, be sure the

service technician has used a replacement plug that has the same overload protection as the

original plug as specied by the manufacturer.

Outdoor Antenna Grounding: If an outside antenna is connected to the product, be sure the22.

antenna system is grounded so as to provide some protection against voltage surges and

built-up static charges. Article 810 of the National Electrical Code, ANS/NFPA 70 provides

information with regard to proper grounding of the mast and supporting structure, ground-

ing of the lead-in wire to an antenna-discharge unit, size of grounding conductors, location

of antenna-discharge unit, connection to grounding electrodes, and requirements for the

grounding electrode (see gure).

Lightning: For added protection for this product, unplug it from the wall outlet and disconnect23.

the antenna or cable system during a lightning storm or when it is left unattended and unused

IMPORTANT SAFETY INSTRUCTIONS

for long periods of time. This will prevent damage to the product due to lightning or power-line

surges.

If at any time in the future you should need to dispose of this product please note24.

that Waste electrical products should not be disposed of with household waste.

Please recycle where facilities exist. Check with your Local Authority or retailer for

recycling advice.(Waste Electrical and Electronic Equipment Directive)

Overloading: Do not overload wall outlets, extension cords, or integral convenience25.

receptacles as this can result in a risk of re or electric shock.

Object and Liquid Entry: Never push objects of any kind into this product through openings 26.

as they may touch dangerous voltage points or shout-out parts that could result in a re or

electric shock. Never spill liquid of any kind on the product.

Servicing: Do not attempt to service this product yourself as opening or removing covers may 27.

expose you to dangerous voltage or other hazards. Refer all servicing to qualied service

personnel.

Damage Requiring Service: Unplug this product from the wall outlet and refer servicing to 28.

qualied service personnel under the following conditions: a) when the power-supply or plug

is damaged; b) if liquid has been spilled or if objects have fallen into the product; c) if the

product has been exposed to rain or water; d) if the product does not operate normally by fol-

lowing the operating instructions. Adjust only those controls that are covered by the operating

instructions as improper adjustment of other controls may result in damage and will often

require extensive work by a qualied technician to restore the product to its normal operation;

e) if the product has been dropped or damaged in any way; f) when the product exhibits a

distinct change in performance—this indicates a need for service.

Replacement Parts: When replacement parts are required, be sure that your service techni-29.

cian has used replacement parts specied by the manufacturer or have the same charac-

teristics as the original part. Unauthorized substitutions may result in re, electric shock, or

other hazards.

Safety Check: Upon completion of any service or repairs to this product, ask the service tech-30.

nician to perform safety checks to ensure that the product is in proper operating condition.

Wall or Ceiling Mounting: The product should be mounted to a wall or ceiling only as recom-31.

mended by the manufacturer.

TABLE OF CONTENTS

PRECAUTIONS...............................................................................................................................2

IMPORTANT SAFETY INSTRUCTIONS........................................................................................4

TABLE OF CONTENTS...................................................................................................................7

PACKAGE CONTENTS...................................................................................................................9

ABOUT OPTICAL DISCS..............................................................................................................10

Disc Requirements.................................................................................................................10

Disc Care and Maintenance ..................................................................................................10

Handling a Disc..............................................................................................................10

Cleaning a Disc..............................................................................................................10

LOCATION OF CONTROLS..........................................................................................................11

Front View..............................................................................................................................11

Right View..............................................................................................................................12

Left View ................................................................................................................................12

Bottom View...........................................................................................................................12

Remote Control......................................................................................................................13

CONNECTIONS ............................................................................................................................14

Audio & Video Connections...................................................................................................14

USB Connection....................................................................................................................14

Headphone Connection.........................................................................................................14

Power Connection .................................................................................................................15

Connecting to the wall outlet .........................................................................................15

Using the car plug..........................................................................................................15

Using the Built- in battery ......................................................................................................15

GETTING STARTED .....................................................................................................................16

Using the Remote Control .....................................................................................................16

Power Supply .........................................................................................................................16

BASIC OPERATIONS....................................................................................................................17

Basic Playback.......................................................................................................................17

Play/Pause/Stop ....................................................................................................................17

Next /Previous (Skip) .............................................................................................................17

Forward/Reverse (Search) ....................................................................................................17

Slow........................................................................................................................................17

Menu Navigation....................................................................................................................17

Numeric Keypad ....................................................................................................................18

Adjusting the Volume.............................................................................................................18

Disc Error Messages .............................................................................................................18

Power Management...............................................................................................................18

FUNCTION BUTTONS..................................................................................................................19

Display / Setup .......................................................................................................................19

Zoom......................................................................................................................................19

Multi-Subtitle / Audio / Angle.................................................................................................19

Menu / Title ............................................................................................................................19

Repeat A-B Mode..................................................................................................................19

Repeat Playback of a chapter / Title / All of a Disc ..............................................................19

LCD Menu..............................................................................................................................20

SETUP...........................................................................................................................................21

Language...............................................................................................................................21

Video......................................................................................................................................21

Audio......................................................................................................................................22

Rating.....................................................................................................................................22

Misc........................................................................................................................................22

SPECIFICATIONS .........................................................................................................................23

TROUBLESHOOTING...................................................................................................................24

TABLE OF CONTENTS

Please make sure the following items are included in the package. If any items are missing, please

contact your local dealer.

PACKAGE CONTENTS

1 2

AC Adapter

Title

Main Unit Remote Control

Earphones

ABOUT OPTICAL DISCS

Disc Requirements

This DVD player supports playback of the following discs.

Type Disc Mark Content Type Disc Size Max. Playback Time

DVD-Video Discs Audio + Video

(moving picture) 12 cm

133 min (SS-SL)

242 min (SS-DL)

266 min (DS-SL)

484 min (DS-DL)

Audio Compact Discs (CDs) Audio 12 cm 74 min

JPEG CDs -- Still Picture 12 cm --

This unit can play back CD-R and CD-RW discs that contain JPEG picture les. Discs not listed

above are not supported by this unit (eg, PC CD-ROM, CD-Extra, CD-G, CD-I, etc.)

Disc Care and Maintenance

Optical discs (DVDs, CDs) contain high-density compressed data and need proper handling.

Handling a Disc

Hold a DVD/CD by its edges. Avoid touch-• ing the recorded side of the disc. To remove

a DVD/CD from its storage case, press down

on the center retention mechanism of the case

and lift the disc out.

Do not subject discs to prolonged exposure to direct sunlight, high humidity, or high tem-• peratures.

Do not bend or press discs.•

To reduce the risk of scratches, always put discs back in their case after use. Store discs •

vertically in a cabinet.

Do not place stickers or labels on either side of a disc.•

Cleaning a Disc

Use a dry, soft cloth to wipe off any ngerprints and dusts from the playing surface of the disc.

Wipe in a straight line radially from the center to the outside edge of the disc. Small dust particles

and light stains will not affect playback quality.

Never use chemicals such as record sprays, anti-static sprays, benzene, or thinners to clean •

a disc. Doing so will damage the surface of the disc permanently.

LOCATION OF CONTROLS

Power on IndicatorRemote SensorCharging Indicator

7″ TFT LCD

Speaker

Enter Button

DirectionButtons

Play/Pause Button

Stop Button

Setup Button

LCDMode/USB Button

Open Button

Next (Right)Button

Previous (Left) Button

Front View

Direction / Enter buttons

Press the direction buttons to select an item and

press the Enter button to conﬁrm.

Fast Forward /Reverse

Press the Next button to skip forward one track.

Press the Previous button to skip back one track.

Press and hold the NEXT / PREVIOUS button

to fast forward/reverse during video / audio play-

back.

Play/Pause button

To start/pause playback of a loaded disc.

Stop

Press once to prestop the playback, press twice

to stop completely.

Setup

To access the setup menu which various features

of the player can be adjusted in.

LCD Mode/USB

Brieﬂy press this button to display the LCD•menu.

Brightness

Contrast

Color

Mode : 16:9

Reset

Press up/down direction button to highlight1. item and then make adjustment by left/right

direction button.

Pressup/downdirectionbutton toselectMode2. and then press the Enter button to toggle the

screen dimension between 16:9 and 4:3.

Select RESET and press ENTER to return the3. settings of brightness, contrast and color to

their factory default settings.

To access the USB mode• , insert a USB ﬂash

drive into the USB port. In stop mode or with

no disc loaded, press and hold LCD Mode/

USB button for a short while to display the

Disc/USB menu, you can access a DVD/USB

using this menu.

Power on Indicator

Remote Sensor

Charging Indicator

Lights red when charging the battery.•Goes off when the battery is fully charged.•

LOCATION OF CONTROLS

Right View

DC 9V IN Jack

To connect to the AC Adapter / DC 16V Car adapter for power supply.

USB Port

For use with USB ﬂash drives.

Power Switch

To turn on/off the unit.

Video Jack

To connect to an external TV screen by the AV cable.

Audio Jack

To connect to an external speaker system by the AV cable.

Headphone Jack

Volume Dial

To Adjust the Volume Level.

Bottom View

Ventilation Slots

Battery compartment

Battery Compartment

Ventilation Slots

USB Port

DC 9V in Jack

Power Switch

Video Jack

Audio Jack

HeadphoneJack

Volume Dial

LOCATION OF CONTROLS

Remote Control

Display/Setup

Power

Fast Reverse

Play/Pause

Numeric Buttons

LCD Mode/USB

Zoom

Subtitle

Repeat A-B

Repeat All

Audio

Angle

Title

Fast Forward

Direction Buttons

Enter

Title

CONNECTIONS

Audio and Video Connections

Refer to the owner’s manual of the external device as well.1. Before connecting the power source,2. ensure that all the connections are properly done.

USB Connection

Insert the USB into the USB port on the left panel of the main unit.1. With no disc loaded or in stop mode,

press and hold the LCD MODE/USB button to enter source mode. Press the Up/Down direction button to

select USB and then press ENTER to access.

It takes a short while for the unit’s reading data. After the device is detected, the screen will display the 2.

working menu, press the direction buttons to select the desired le from the menu and press Play/Pause to

start playback.

Be sure that your unit is at low volume level before con-

necting the headphones. Increase the volume gradually

for your comfortable listening.

CAUTION:

Hearing experts advise against the constant use of per-

sonal stereos played at high volume. Constant high vol-

ume use can lead to hearing loss. If you experience ring-

ing in the ears or hearing loss, discontinue use and seek

medical advise.

Headphone Connection

To Headphone Jack

Power Connections

To DC 9V in Jack

AC adapter:

This AC adapter operates on

100-240V~~50/60Hz 0.3A MAX

DC OUT: 9V

DC current: 1.0A MAX

Connecting to the wall outlet•

CONNECTIONS

Caution:

Do not connect the power plug to a•power outlet other than that which

is indicated here and on the label

as this may result in the risk of ﬁre

or electric shock.

Do not handle the power plug with•wet hands. Doing so may cause

electric shock.

Only use AC adapters of the type•speciﬁed here. Failure todosomay

case a ﬁre or damage the player.

Using the Built- in battery

The unit has a built-in rechargeable battery (lithium-polymer). Charge the built-in battery before using it for the

ﬁrst time. It takes about 4 hours to fully charge the battery.

Make sure that the power switch is set to the Off position before charging.•To charge the built-in battery, just connect the AC adapter to the player and a speciﬁed wall outlet. See•above. (The Battery Charge indicator will light red while it is charging; it will go off when the battery is

fully charged.)

The built-in rechargeable battery can be used for approximately 300 charge-cycles without any notice-•able change in performance.

When the built-in battery power is low, the low battery icon will ﬂash on the upper right corner of the•screen for a while, and then the player will turn itself off automatically.

Note:Use the speciﬁed charger.•Never dispose of in ﬁre or heat up.•Do not use in high temperature or near heat sources.•Do not open the cover.•Refer servicing only to qualiﬁed service personnel.•To get the longest service life of the built-in battery, charge at indoor-temperature.•

GETTING STARTED

Using the Remote Control

To load a battery in the remote:

Pull in the direction of the arrow.1. Slide the compartment out.2.

Place the battery in the compartment with the positive side ( + ) facing up.3. Push the compartment in to close.4.

Point the remote at the remote sensor of the photo frame at a distance of no more than 15″ • and at an angle no greater than 60 degrees.

Batteries will last for about one year under typical usage. •

Replace the batteries if the remote is no longer working.• Do not spill water on the remote control.•

Do not use the remote control for other equipment at the same time.• Remove the batteries if the remote control will not be in use for an extended period of time.•

See Power Connections section.

BASIC OPERATIONS

Prepare the connections and power supply.

Load a disc.

Press the Open button to open the disc compartment lid. Load a disc with the label-side facing up. Close

the lid manually. If a single-sided disc is loaded upside-down, the player will display “BAD DISC”.

Start playback.

Press Play/Pause button to start playback (some discs may start playing automatically).

Play/Pause/Stop

Press• to play the disc for the rst time.

Press• during playback to pause. Press again to resume playback.

Press• during playback to stop the disc (“Pre-Stop”). Press to resume playback.

Press• when the disc is “Pre-Stopped” to stop playback completely. (When is pressed, the

disc will start playing from the beginning.)

Next/Previous (Skip)

Press• to skip forward one track (DVD, CD, MP3, etc).

Press• to skip back one track (DVD, CD, MP3, etc).

Forward/Reverse (Search)

Press / to fast-forward / reverse through the disc.

Each successive press of• / will change the rate of fast-forward / reverse playback.

Slow

To slow-forward/reverse through the disc, press the DOWN/UP direction button.

Each successive press of DOWN/UP direction button will change the rate of slow-motion•

playback.

Press• to resume normal playback.

BASIC OPERATIONS

Adjusting the Volume

Turn the Volume Control dial to adjust the volume level up or down.•

Disc Error Messages

The following messages will be displayed on-screen if there is a problem with the format of the loaded disc.

WRONG REGIONAL DISC.• The region code of the disc does not match the player’s region code (Region

1).

WRONG PASSWORD.• The parental rating level of the disc is higher than the parental rating level setting

of the player. The player will not play the disc.

BAD DISC. T• he player is equipped with automatic disc quality detection software. If the player detects

a disc that is damaged or has a format problem, it may play the disc at a lower quality or stop play com-

pletely, depending on how damaged the disc is.

Note:

DVD disc production quality may vary; some discs may deviate from the industry standard.

Some incorrectly-formatted discs may still play, however, the playback and operational quality of the disc may

be substandard.

Power Management

If the player will not be in use for a long period of time, set the Power Switch to the OFF position and unplug

the player.

FUNCTION BUTTONS

Display/Setup

Press the DISPLAY button once to show playback information.•

Press it twice to enter the player’s setup menu. Enter the Setup menu to adjust the player’s • internal settings, please see the SETUP section for more details.

Zoom

Press ZOOM to change the magnication level of the picture.

During DVD playback, each successive press of ZOOM will change the level of magnication • to:

Zoom 1x, Zoom 2x, Zoom 3x, Zoom Off.

In picture mode, each successive press of ZOOM will change the level of magnication to: •

Zoom 1x, Zoom 2x, Zoom 3x, Zoom Off.

When the magnication level is greater than Normal/100%, use the direction keys to pan around

the magnied picture.

Note: The picture quality will decrease as the zoom level increases.

Multi-Subtitle / Audio / Angle

During playback of a DVD that has been mastered with subtitles, press SUBTITLE to view the •

available subtitle tracks. (A DVD may have up to 32 selectable subtitles.)

During playback of a DVD that has been mastered with alternate language/audio tracks, press •

AUDIO to hear the alternate tracks. (A DVD may have up to 8 selectable audio tracks.)

During playback of a DVD that has been mastered with multiple angles, press ANGLE to view •

the available alternate camera angles. (A DVD may have up to 9 selectable angles.)

Menu / Title

Press the MENU button during DVD playback to return to the DVD’s Main menu.

Press the TITLE button during DVD playback to return to the DVD’s Title menu.

Repeat A-B Mode

To repeat playback of a specic section of a disc (loop):

Press A-B to set the desired start point (“A”) of the section to be repeated.1. Press A-B again to set the desired end point (“B” )of the section to be repeated.2.
