Philips PD9122 User manual

Register your product and get support at
www.philips.com/welcome
Always there to help you
Brugervejledning 25
Gebruiksaanwijzing 69
Manuale utente 113
Användarhandbok 157
User manual 3
Benutzerhandbuch 47
Mode d'emploi 91
Manual del usuario 135
PD9122
Question?
Contact
Philips
PD9122_12_UM_01_V2.0.indb 1 8/9/2012 3:36:49 PM

3EN
Contents
1 Important 5
Safety and notice 5
Safety 5
Compliance 6
Care of the environment 7
Copyright 8
Warranty 9
2 Your portable DVD player 10
What's in the box 10
Overview of the main unit 11
Overview of the second screen 13
3 Get started 14
Prepare 14
Connect power 16
Switch on/off 17
Select OSD language 17
4 Play music or movies 18
Play discs 18
Connect additional equipment 21
English
PD9122_12_UM_01_V2.0.indb 3 8/9/2012 3:36:49 PM

4EN
5 Adjust settings 22
Set the main unit 22
6 Product information 23
7 Troubleshooting 24
PD9122_12_UM_01_V2.0.indb 4 8/9/2012 3:36:49 PM

5EN
1 Important
Safety and notice
Read and understand all instructions before you use this product. If damage is
caused by failure to follow the instructions, the warranty does not apply.
Safety
Only use attachments/accessories specied by the manufacturer.
The product shall not be exposed to dripping or splashing.
Do not place any sources of danger on the product (e.g. liquid lled objects,
lighted candles).
Batteries (battery pack or batteries installed) shall not be exposed to excessive
heat such as sunshine, re or the like.
Danger of explosion if battery is incorrectly replaced. Replace only with the same
or equivalent type.
Modication of the product could result in hazardous radiation of EMC or
other unsafe operation.
Warning
•Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect
device shall remain readily operable.
Warning
•Never remove the casing of this product.
•Never lubricate any part of this product.
•Never place this product on other electrical equipment.
•Keep this product away from direct sunlight, naked ames or heat.
•Never look into the laser beam inside this product.
•Ensure that you always have easy access to the power cord, plug or adaptor to disconnect the
product from the power.
English
PD9122_12_UM_01_V2.0.indb 5 8/9/2012 3:36:49 PM

6EN
Hearing safety
A pleine puissance, l’écoute prolongée du baladeur peut endommager l’oreille
de l’utilisateur.
Warning
•To prevent possible hearing damage, do not listen at high volume levels for long periods.
The maximum output voltage of the player is not greater than 150 mV.
Compliance
This product complies with the radio interference requirements of the European
Community.
This apparatus includes this label:
Note
•The type plate is located on the bottom of the product.
PD9122_12_UM_01_V2.0.indb 6 8/9/2012 3:36:50 PM

7EN
Care of the environment
Environmental information
All unnecessary packaging has been omitted.We have tried to make the packaging
easy to separate into three materials: cardboard (box), polystyrene foam (buffer)
and polyethylene (bags, protective foam sheet.)
Your system consists of materials which can be recycled and reused if
disassembled by a specialized company. Please observe the local regulations
regarding the disposal of packaging materials, and old equipment.
Your product is designed and manufactured with high quality materials and
components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a product it means that
the product is covered by the European Directive 2002/96/EC.
Please inform yourself about the local separate collection system for electrical and
electronic products.
Please act according to your local rules and do not dispose of your old products
with your normal household waste. Correct disposal of your old product helps to
prevent potential negative consequences for the environment and human health.
Your product contains batteries covered by the European Directive 2006/66/EC,
which cannot be disposed with normal household waste.Please inform yourself
about the local rules on separate collection of batteries because correct disposal
helps to prevent negative consequences for the environmental and human health.
English
PD9122_12_UM_01_V2.0.indb 7 8/9/2012 3:36:51 PM

8EN
Copyright
This item incorporates copy protection technology that is protected by U.S.
patents and other intellectual property rights of Rovi Corporation. Reverse
engineering and disassembly are prohibited.
Specications are subject to change without notice. Trademarks are the property
of Koninklijke Philips Electronics N.V or their respective owners. Philips reserves
the right to change products at any time without being obliged to adjust earlier
supplies accordingly.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX.LLC, a
subsidiary of Rovi Corporation. This is an ofcial DivX Certied®device that plays
DivX video. Visit divx.com for more information and software tools to convert
your les into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certied®device must be
registered in order to play purchased DivX Video-on-Demand (VOD) movies.
To obtain your registration code, locate the DivX VOD section in your device
setup menu. Go to vod.divx.com for more information on how to complete your
registration.
PD9122_12_UM_01_V2.0.indb 8 8/9/2012 3:36:52 PM

9EN
Warranty
• Never attempt to repair the product, this could lead to the risk of injury,
damage to the product and will void your warranty.
• Use the product and accessories only as intended by the manufacturer.The
caution sign printed on the back of the product indicates risk of electric
shock.
• Never remove the cover of the product.Always contact Philips Customer
Support for service or repairs.
• Any operation expressly prohibited in this manual, or any adjustments and
assembly procedures not recommended or authorized in this manual shall
void the warranty.
English
PD9122_12_UM_01_V2.0.indb 9 8/9/2012 3:36:52 PM

10 EN
2 Your portable DVD player
You can play the following discs on the DVD player (including CD-R, CD-RW,
DVD±R and DVD±RW):
• DVD-Video
• Video CD
• Audio CD
• MP3 CD
• DivX
• Discs with JPEG les
What's in the box
Check and identify the contents of your package:
• Main unit x 1
• Second screen x 1
• AC power adaptor x 1, ASUC12E-090080 (Philips) & DSA-9PFB-09
FEU090080
• Car adaptor x 1
• AV cable x 2
• Fastening strap x 2
• User manual x 1
PD9122_12_UM_01_V2.0.indb 10 8/9/2012 3:36:52 PM

11EN
Overview of the main unit
a
• Turns on/off DVD player.
b RESET
• When the player hangs up, press it with a ball-point pen or similar tool
to reset the player.
c VOL +/-
• Increases or decreases volume.
d
• Headphone jack.
e AV OUT
• Audio/video output jack.
ahi jklm
b
c
d
e
f
g
English
PD9122_12_UM_01_V2.0.indb 11 8/9/2012 3:36:53 PM

12 EN
f DC IN
• Power supply socket.
g , , ,
• Navigates menus.
,
• Searches backward/forward at different speeds.
/OK
• Conrms an entry or selection.
• Starts, pauses or resumes disc play.
• Stops disc play.
h AV MODE
• Switches between PAL and NTSC mode.
i SETUP
• Accesses or exits the setup menu.
j ,
• Skips to the previous or next title, chapter, or track.
k OPEN
• Opens the disc compartment.
l DISC MENU
• For DVD, accesses or exits disc menu.
• For VCD, turns on or off PBC (Playback Control) mode.
• For VCD version 2.0 or SVCD with PBC turned on, returns to the
menu.
m OPTIONS
• Accesses options relating to the current activity or selection.
PD9122_12_UM_01_V2.0.indb 12 8/9/2012 3:36:55 PM

13EN
Overview of the second screen
a DC IN
• Power supply socket.
b AV IN
• Audio/video input jack.
c
• Headphone jack.
d VOL -/+
• Decreases or increases volume.
e BRIGHTNESS -/+
• Adjusts screen brightness.
f OFF/ON
• Turns off/on the second screen.
English
PD9122_12_UM_01_V2.0.indb 13 8/9/2012 3:36:55 PM

14 EN
3 Get started
Caution
•Use the controls only as stated in this user manual.
•Always follow the instructions in this chapter in sequence.
If you contact Philips, you will be asked for the model and serial number of your
player.The model number and serial number are on the bottom of your player.
Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Prepare
Mount the unit in your car
To use the player in your car, attach the main unit and the second screen to the
back of the front seat headrests.
1 Pull the strap through the loops on the back of the main unit.
2 Hold the buckle with the marked arrow facing you, then attach the buckle
to the strap.
3 Position the main unit at the back of the headrest, then fasten the buckle.
4 Pull the strap to secure the main unit to the headrest.
• To attach the second screen, repeat the above steps.
PD9122_12_UM_01_V2.0.indb 14 8/9/2012 3:36:56 PM

15EN

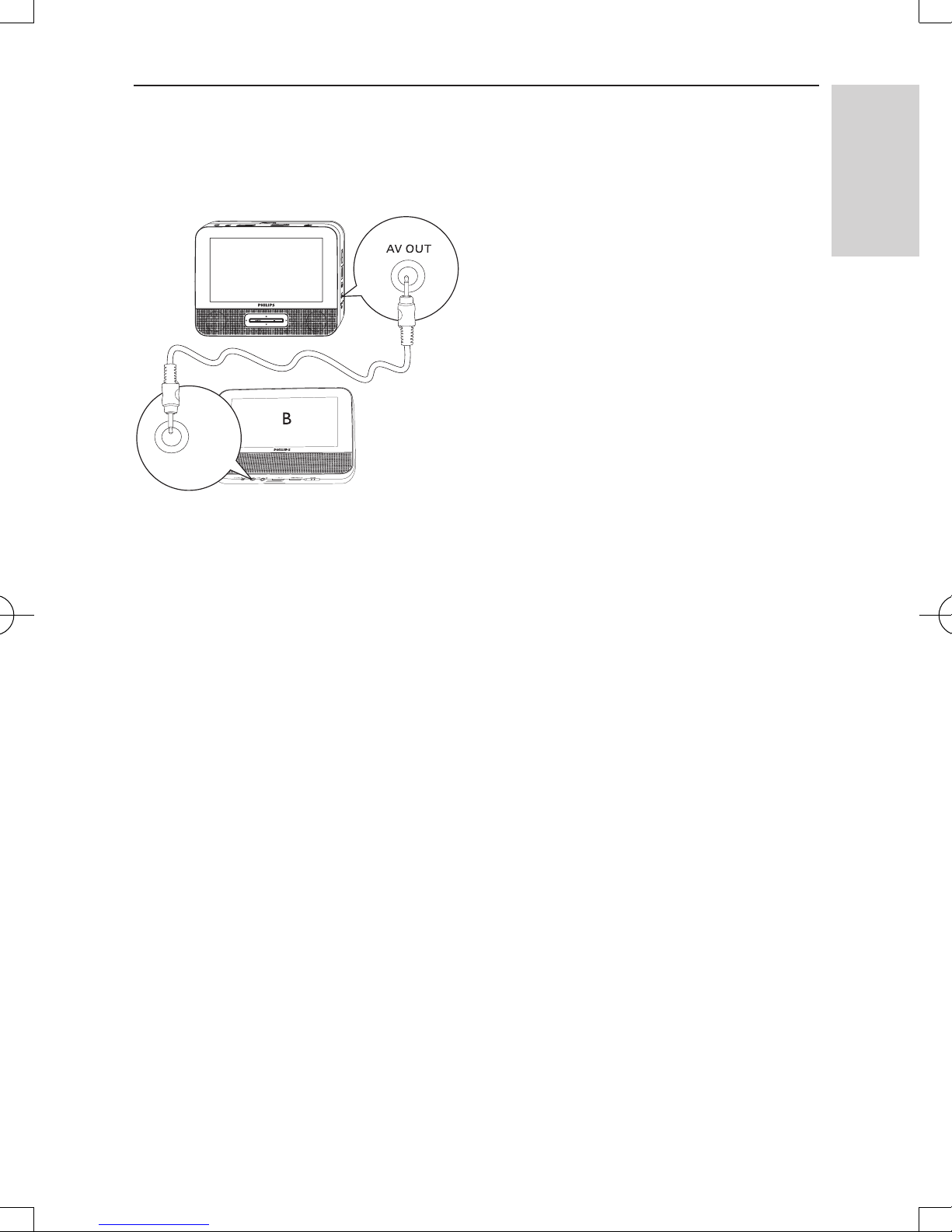

Use a player as dual screen
Connect the second screen to the main unit.You can watch on the second screen
the movies that play on the main unit.
Connect the supplied AV cable to
• AV OUT on the main unit,
• AV IN on the second screen.
AV IN
A
English
PD9122_12_UM_01_V2.0.indb 15 8/9/2012 3:36:57 PM

16 EN
Connect power
Connect power through the car adaptor
A: main unit; B: second screen; C: car cigarette lighter
Connect the car adaptor to:
• DC IN on the main unit and the second screen,
• the cigarette lighter socket in your car.
Tip
•At home, you can use the AC power adaptor with the player.
PD9122_12_UM_01_V2.0.indb 16 8/9/2012 3:36:58 PM

17EN
Switch on/off
1 Press to switch on the player.
• To switch on the second screen, slide the OFF/ON switch on the
second screen to the ON position.To switch off, slide the OFF/ON
switch to the OFF position.
2 To switch off the player, press .
Select OSD language
You can select a different language for the onscreen display text.
1 Press SETUP.
» The setup menu is displayed.
2 Select [General] > [Language].
3 Press / to select a language.
4 Press /OK to conrm.
5 Press SETUP to exit.
English
PD9122_12_UM_01_V2.0.indb 17 8/9/2012 3:36:58 PM

18 EN
4 Play music or movies
Play discs
1 Slide OPEN on the player.
2 Insert the disc with label side facing up.
3 Push down to close the disc compartment.
» Play starts automatically. If not, press /OK.
• If a menu is displayed, select an item, then press /OK to start play.
• To pause, press /OK. Press again to resume play.
• To stop, press twice.
• To select the previous/next item, press or .
• To start search within video/audio, press or once or more.
Play options
Select subtitle language
For DVDs that contain two or more subtitle languages,
1 Press OPTIONS.
» The option menu is displayed.
2 Select [Subtitles], then press /OK.
3 Press / to select a subtitle.
4 Press /OK to conrm.
5 Press OPTIONS to exit.
Select audio language
For DVDs that contain two or more audio languages.
1 Press OPTIONS.
» The setup menu is displayed.
2 Select [Audio language], then press /OK.
3 Press / to select a language.
4 Press /OK to conrm.
PD9122_12_UM_01_V2.0.indb 18 8/9/2012 3:36:59 PM

19EN
Repeat
During play, you can select different repeat options.
1 Press OPTIONS.
» The option menu is displayed.
2 Select [Repeat] and press /OK.
» The repeat options are displayed.
For DVD
• [Repeat A]: the start of the section to repeat
• [Repeat B]: the end of the section to repeat
• [Repeat Chapter]: repeat the current chapter
• [Repeat Title]: repeat the current title or track
• [Repeat all]: repeat all titles on the disc
• [Repeat Off]: switch off the repeat mode
For VCD
• [Repeat A]: the start of the section to repeat
• [Repeat B]: the end of the section to repeat
• [Repeat 1]: repeat the current track
• [Repeat all]: repeat all tracks on the disc
• [Repeat Off]: switch off the repeat mode
For MP3/CD/DivX
• [Repeat 1]: repeat the current track
• [Repeat Folder]: repeat all the tracks in current folder
• [Off]: switch off the repeat mode
3 Select an option, then press /OK to conrm.
Tip
•For VCDs, if PBC is on, you cannot repeat items.
Random play
For audio CDs and MP3 CDs, you can play all tracks in random order.
1 Press OPTIONS.
» The option menu is displayed.
2 Select [Shufe All] and press /OK.
3 Select [On] or [Off].
4 Press /OK to conrm.
English
PD9122_12_UM_01_V2.0.indb 19 8/9/2012 3:36:59 PM

20 EN
Zoom
For DVDs, VCDs and JPEG CDs, you can zoom in and out for video images or
pictures.
1 Press OPTIONS.
» The option menu is displayed.
2 Select [Zoom & Pan] and press /OK.
3 Press /OK repeatedly to zoom in and out.
4 When the video image or picture is enlarged, press
, , , to pan through it.
Display play information
For DVDs and VCDs, you can view the play information during play.
1 Press OPTIONS.
» The option menu is displayed.
2 Select [Display] and press /OK to conrm.
» For DVDs, title number, chapter number and elapsed play time is
displayed. For VCDs, track number and elapsed play time is displayed.
Select audio mode
When you play VCDs, you can select an audio mode.
1 Press OPTIONS.
» The option menu is displayed.
2 Select [Audio], then press /OK.
3 Press / to select audio channel: [Stereo], [Left-mono] or [Right-mono].
Rotate pictures
For JPEG CDs only.While the JPEG is displayed:
• Press to ip up/down.
• Press to ip left/right.
PD9122_12_UM_01_V2.0.indb 20 8/9/2012 3:37:00 PM

21EN
Connect additional equipment
You can connect the player to a TV or an amplier to enjoy DVDs.
Connect to a TV
Caution
•Turn off your player before connecting to any additional equipment.
Match the color of the AV cables (the AV cable connected to TV is not supplied)
with the jacks:
• the yellow cable is for the yellow video jack
• the red/white cable is for the red/white audio jacks.
L
R
VIDEO IN
English
PD9122_12_UM_01_V2.0.indb 21 8/9/2012 3:37:00 PM
