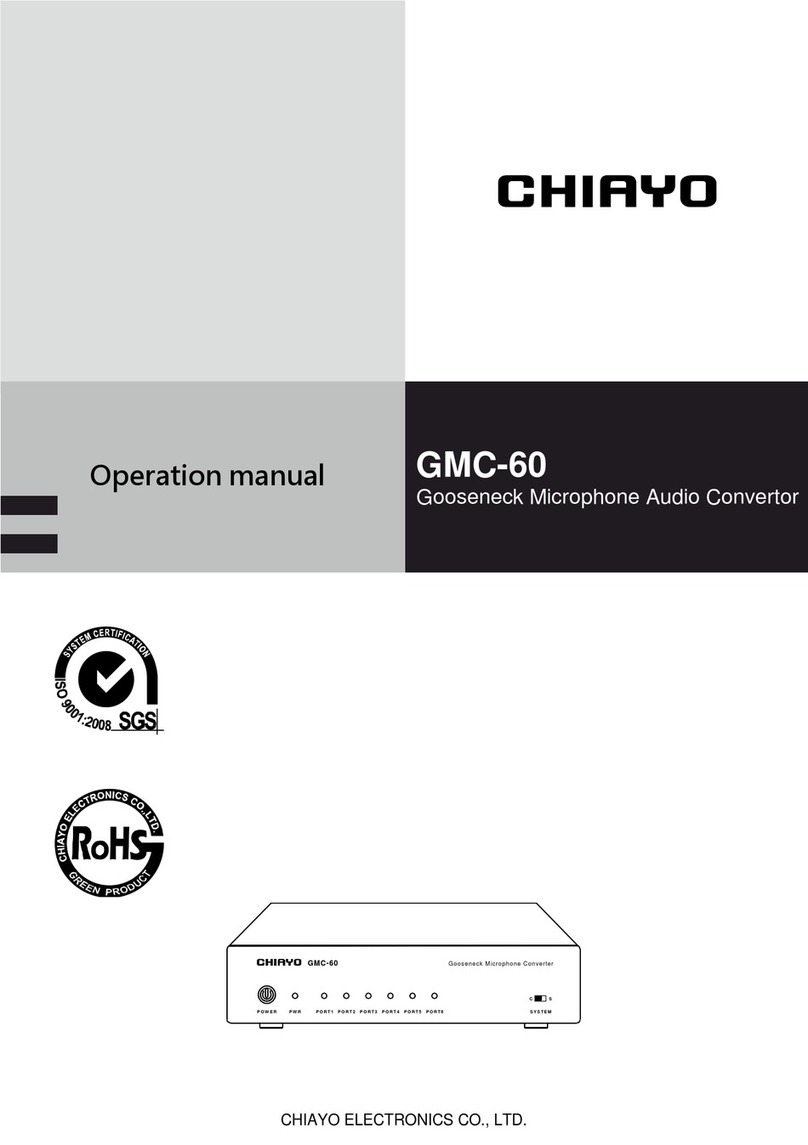

Chiayo GMC-60 User manual

CHIAYO ELECTRONICS CO., LTD.
Operation manual
GMC-60
Gooseneck Microphone Audio Convertor
POWER PW R PORT1 PO R T 2 P O R T3 PORT4 PORT5 PORT6 SYSTEM
C S
Gooseneck Microphone ConverterGMC-60

1
GMC-60 Gooseneck Microphone Audio Convertor
Parts and functions
Note: Port ①～⑥indicators do not function with GM-143 RJ-45 unlockable versions ( ). To
operate the locking port ( ) connection, please refer to P.6.
Advisory
1.DO NOT TURN ON the power of the GMC-60 convertor before all network cables are all
connected and installation is completed.
2.The network cable Cat.5e / Cat.6 UTP has to meet TIA/EIA-568-B.2 standards with copper
wires of 24AWG-1/0.49A*4P (CM/UL).
3.To achieve best performance and stable functionality, it’s recommended to use standard
CHIAYO CAT.5e network cables which are available in 2M, 5M and 10M length.
Do not use cables of unknown origin because they will cause unexpected system
abnormalities.
4.The chairman unit GM-243C can be located anywhere in the loop.
5.This conference system may consist of up to 120 units with max two GM-243C chairman units.
6.To prevent feedback noise, please adjust the GAIN knob to control the sensitivity of the
microphone, and set a proper output volume on the amplifier or mixer before operating the
system.
7.If it’s necessary to DIY cables, be sure to examine them with RJ-45 cable tester until they are
no problem before installation.
POW ER P WR POR T1 PORT2 P ORT 3 POR T4 PO RT5 P ORT 6 SYS T EM
C S
Gooseneck Microphone ConverterGMC-60
POR T1POR T2P ORT 3PO RT4POR T5P ORT 6LINK DC INLINE OU T BALAN CED
15V 4.3A
Power ON/OFF
Power indicator
Input port indicator
Chairman-Delegate system switch
Series connection port
Input port
DC input (15V 4.3A)
Unbalanced audio
output (Φ6.3mm)
Balanced audio
output (XLR)

2
Instructions
Connecting GM-243 microphones
1. There are six ports on the back of convertor. Each port can be connected with max 10 GM-
243 units. Each convertor can support 60 units at most.
►►Max 10 units connected to each port (①～⑥).
2. If the GM-243 units are correctly connected to the rear port, the corresponding indicator on
the front panel will light soild.
System integration
1. When more than 60 units are required or the ports aren’t enough, GMC-60 can link to
another convertor via its rear port to support more GM-243 units.
IMPORTANT! Each system expansion max includes two GMC-60 convertors and 120 GM-
243 units. For more-unit installation, please set up another system with GMC-60 to cover the
rest GM-243 units and output the audio to the amplifier / mixer.
2. Only the GM-243C’s chairman priority function is integrated as the same system, power
supply and audio connection must be separately operated on each GMC-60 convetor (refer
to P.5).
POWER PWR PORT1 PORT2 PORT3 PORT4 PORT5 PORT6 SYSTEM
C S
Gooseneck Microphone ConverterGMC-60
PORT1PORT2PORT3PORT 4PORT5PORT6LI NK DC INLINE OUT BALANCE D
15 V 4 .3 A
PORT1PORT2PORT3PORT 4PORT5PORT 6LINK D C INLINE OUT BALA NCED
15 V 4 .3 A
 

3
GMC-60 Gooseneck Microphone Audio Convertor
Installation of GM-243 ≦60 units
▌SCENARIO A
If system includes one or two GM-243C
chairman unit, slide the SYSTEM SWITCH of
the convertor to ‘C’position.
▌SCENARIO B
If the system includes no GM-243C chairman
unit, slide the SYSTEM SWITCH of the
convertor to ‘S’position
slide to C
slide to S
for GM-243C chairman unit for GM-243S delegate unit
Installation of 60 units ＜GM-243 ≦120 units
▌SCENARIO A
The system includes one or two GM-243C chairman units, slide the SYSTEM SWITCH of both
convertors to ‘C’position.
slide to C
PO W E R PW R P O RT 1 POR T 2 POR T3 PO R T4 PO R T5 PO R T6 SY S TE M
C S
Goosen eckMicrophoneCon verterGMC-60
S S S
S S S S S
S S S S
S
S
S S
C C
SYSTEM
CS
PO W E R PW R P O RT 1 POR T 2 POR T 3 POR T4 PO R T5 PO R T6 SY S TE M
C S
Goosen eckMicrophoneCon verterGMC-60
S S S S S
S S S S S
S S
S
S
S S S S
SYSTEM
C S
C
S
PO W ER PW R P ORT 1 PO R T2 PO R T3 PO R T4 P O RT 5 POR T6 SY STE M
C S
GooseneckMicrophone ConverterGMC-60
S S S
S S S S S
S S S S
S
S
S S
PO W ER PW R P ORT 1 PO R T2 PO R T3 PO R T4 P O RT 5 POR T 6 SY STE M
C S
GooseneckMicrophone ConverterGMC-60
S S S S S
S S S S S
S S
S
S
S S S S
C C
SYSTEM
CS
SYSTEM
CS
LINK

4
Instructions
▌SCENARIO B
If the system includes no GM-243C chairman unit, slide the SYSTEM SWITCH of both
convertors to ‘S’position.
slide to S
PO W ER PW R P ORT 1 POR T2 PO R T3 PO R T4 P O RT 5 POR T6 SY STE M
C S
GooseneckMicrophone ConverterGMC-60
S S S S S
S S S S S
S S S S
S
S
S S
PO W ER PW R P ORT 1 POR T2 PO R T3 PO R T4 P O RT 5 P OR T6 SY STE M
C S
GooseneckMicrophone ConverterGMC-60
S S S S S
S S S S S
S S
S
S
S S S S
C C
SYSTEM
CS
SYSTEM
CS
LINK

5
GMC-60 Gooseneck Microphone Audio Convertor
Audio output
Unbalanced output
Balanced output
¼” PHONE PLUG connector provides
unbalanced audio output signal from this jack to
the mixer/amplifier. Use an audio output cable
with ¼” PHONE PLUG connectors. Connect
one end from the unbalanced output jack of the
convertor, and the other end to the “LINE IN” or
“AUX IN” jack of the mixer / amplifier.
XLR connector provides balanced audio output
signal from this jack to the mixer/amplifier. Use
an audio output cable with “XLR” or “Cannon”
connector, connect one end to the balanced
output jack of the convertor, and the other end
to the “MIC IN” jack of the mixer / amplifier.
Single GMC-60 convertor
Single GMC-60 convertor
Linked GMC-60 convertors
Linked GMC-60 convertors
PORT 1PORT 2POR T3POR T4PO RT5PORT 6LINK DC INLINE O UT BAL ANCED
15V 4.3 A
PORT 1PORT 2PO RT3P ORT4POR T5P ORT6LINK DC INLINE O UT BAL ANCED
15V 4.3 A
PORT 1PORT2PO RT3PORT 4PORT5P ORT6LINK DC INLINE O UT BA LANCED
15V 4.3 A
PORT 1PORT2PO RT3PORT 4PORT5P ORT6LINK DC INLINE O UT BA LANCED
15V 4.3 A
PORT 1PORT2POR T3POR T4PORT 5PORT 6LIN K DC INLINE O UT BAL ANCED
15V 4.3 A
PORT 1PORT2POR T3POR T4PORT 5PORT 6LIN K DC I NLINE O UT BAL ANCED
15V 4.3 A
Separate DC input
and audio output
on the convertor.
Amplifier
LINE/AUX IN
▼
Mixer MIC IN
▼
Amplifier
LINE/AUX IN
▼
Separate DC input
and audio output
on the convertor.
Mixer MIC IN
▼

6
Instructions
Insert the plug
Pull out the plug
1 2 3
4 5 6
7 8 9
Lock bar
Use finger to
push the lock bar
to the bottom Done!
1 2
3 4 5
6 7 8
Lock bar
Prepare to unlock
Push lock bar Locked!
