Chicago Electric 40315 User manual

7” TILE SAW
Chrome Plated - Bench Top
Model 40315
ASSEMBLY AND OPERATING INSTRUCTIONS
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our Web site at: http://www.harborfreight.com
Copyright©2005 by Harbor Freight Tools®. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced
in any shape or form without the express written consent of Harbor Freight Tools.
For technical questions, please call 1-800-444-3353.
Manual Revised 04/05
TO PREVENT SERIOUS INJURY,
READ AND UNDERSTAND ALL WARNINGS
AND INSTRUCTIONS BEFORE USE.
®

SKU 40315 For technical questions, please call 1-800-444-3353. Page 2
PRODUCT SPECIFICATIONS
SAVE THIS MANUAL
You will need this manual for the safety warnings and precautions, assembly, operating,
inspection, maintenance and cleaning procedures, parts list and assembly diagram.
Keep your invoice with this manual. Write the invoice number on the inside of the front
cover. Keep this manual and invoice in a safe and dry place for future reference.
GENERAL SAFETY RULES
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS
Failure to follow all instructions listed below may result in
electric shock, fire, and/or serious injury.
SAVE THESE INSTRUCTIONS
WORK AREA
1. Keep your work area clean and well lit. Cluttered benches and dark areas
invite accidents.
2. Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases, or dust. Power tools create sparks
which may ignite the dust or fumes.
Item Description
Electrical Requirements 120VAC / 60Hz / 4.8 Start Up Amps
3565 RPM
Power Cord Plug Type: 3 Prong, Grounded
Power Cord Length: 7 Feet
Cutting Wheel Size/Type 7” Diameter / Rated 8500 RPM / Wet Diamond Bonded
Cutting Wheel RPM Rating Minimum 3600 RPM
Material Cutting Capacity Maximum 12” Wide x 1” High
Rotating Angle of Table 0°-45°in 1°Increments
Table Dimensions 15-3/4” x 16-1/2” x 7-13/16”
Accessories Diagonal Cutting Fixture / Plastic Tub / 7” Cutting Wheel
Unit Weight 32.5 Pounds
235591
REV 02/07

SKU 40315 For technical questions, please call 1-800-444-3353. Page 3
3. Keep bystanders, children, and visitors away while operating a power tool.
Distractions can cause you to lose control. Protect others in the work area from
debris such as chips and sparks. Provide barriers or shields as needed.
ELECTRICAL SAFETY
4. Grounded tools must be plugged into an outlet properly installed and
grounded in accordance with all codes and ordinances. Never remove the
grounding prong or modify the plug in any way. Do not use any adapter
plugs. Check with a qualified electrician if you are in doubt as to whether
the outlet is properly grounded. If the tools should electrically malfunction or
break down, grounding provides a low resistance path to carry electricity away
from the user.
5. Double insulated tools are equipped with a polarized plug (one blade is
wider than the other). This plug will fit in a polarized outlet only one way. If
the plug does not fit fully in the outlet, reverse the plug. If it still does not
fit, contact a qualified electrician to install a polarized outlet. Do not
change the plug in any way. Double insulation eliminates the need for the
three wire grounded power cord and grounded power supply system.
6. Avoid body contact with grounded surfaces such as pipes, radiators,
ranges, and refrigerators. There is an increased risk of electric shock if your
body is grounded.
7. Do not expose power tools to rain or wet conditions. Water entering a power
tool will increase the risk of electric shock.
8. Do not abuse the Power Cord. Never use the Power Cord to carry the tools
or pull the Plug from an outlet. Keep the Power Cord away from heat, oil,
sharp edges, or moving parts. Replace damaged Power Cords immedi-
ately. Damaged Power Cords increase the risk of electric shock.
9. When operating a power tool outside, use an outdoor extension cord
marked “W-A” or “W”. These extension cords are rated for outdoor use, and
reduce the risk of electric shock.
PERSONAL SAFETY
10. Stay alert. Watch what you are doing, and use common sense when oper-
ating a power tool. Do not use a power tool while tired or under the influ-
ence of drugs, alcohol, or medication. A moment of inattention while operat-
ing power tools may result in serious personal injury.

SKU 40315 For technical questions, please call 1-800-444-3353. Page 4
11. Dress properly. Do not wear loose clothing or jewelry. Contain long hair.
Keep your hair, clothing, and gloves away from moving parts. Loose
clothes, jewelry, or long hair can be caught in moving parts.
12. Avoid accidental starting. Be sure the Power Switch is off before plugging
in. Carrying power tools with your finger on the Power Switch, or plugging in
power tools with the Power Switch on, invites accidents.
13. Remove adjusting keys or wrenches before turning the power tool on. A
wrench or a key that is left attached to a rotating part of the power tool may result
in personal injury.
14. Do not overreach. Keep proper footing and balance at all times. Proper
footing and balance enables better control of the power tool in unexpected
situations.
15. Use safety equipment. Always wear eye protection. Dust mask, nonskid
safety shoes, hard hat, or hearing protection must be used for appropriate
conditions.
TOOL USE AND CARE
16. Use clamps (not included) or other practical ways to secure and support
the workpiece to a stable platform. Holding the work by hand or against your
body is unstable and may lead to loss of control.
17. Do not force the tool. Use the correct tool for your application. The correct
tool will do the job better and safer at the rate for which it is designed.
18. Do not use the power tool if the Power Switch does not turn it on or off.
Any tool that cannot be controlled with the Power Switch is dangerous and must
be replaced.
19. Disconnect the Power Cord Plug from the power source before making any
adjustments, changing accessories, or storing the tool. Such preventive
safety measures reduce the risk of starting the tool accidentally.
20. Store idle tools out of reach of children and other untrained persons. Tools
are dangerous in the hands of untrained users.
21. Maintain tools with care. Keep cutting tools sharp and clean. Properly
maintained tools with a sharp cutting edge are less likely to bind and are easier
to control. Do not use a damaged tool. Tag damaged tools “Do not use” until
repaired.

SKU 40315 For technical questions, please call 1-800-444-3353. Page 5
22. Check for misalignment or binding of moving parts, breakage of parts, and
any other condition that may affect the tool’s operation. If damaged, have
the tool serviced before using. Many accidents are caused by poorly main-
tained tools.
23. Use only accessories that are recommended by the manufacturer for your
model. Accessories that may be suitable for one tool may become hazardous
when used on another tool.
SERVICE
24. Tool service must be performed only by qualified repair personnel. Service
or maintenance performed by unqualified personnel could result in a risk of injury.
25. When servicing a tool, use only identical replacement parts. Follow
instructions in the “Inspection, Maintenance, And Cleaning” section of this
manual. Use of unauthorized parts or failure to follow maintenance instructions
may create a risk of electric shock or injury.
SPECIFIC SAFETY RULES
1. Avoid serious eye injury. ALWAYS wear ANSI-approved safety impact eye
glasses underneath an ANSI-approved safety impact full face shield when as-
sembling and operating the Tile Saw.
2. Dress safely. Do not wear loose clothing or jewelry as they can become caught
in moving parts. Wear a protective hair covering to prevent long hair from be
coming caught in moving parts. If wearing long-sleeve shirt, roll sleeves up
above the elbows.
3. Make sure the Power Switch (21) is in its “OFF” position before plugging
the Power Cord/Plug (34) into an electrical outlet.
4. Do not abuse the Power Cord/Plug (34). Do not pull the Power Cord to discon-
nect the Plug from an electrical outlet. Do not move the Tile Saw with the Power
Cord/Plug in the outlet. Keep the Power Cord/Plug away from heat, oil, sharp,
edges, and its own Cutting Wheel Blade (8).
5. Never leave the Tile Saw unattended while it is running. Always turn off the
tool, unplug the tool from its electrical outlet, and wait until its Cutting Wheel
Blade (8) stops rotating before leaving the area.
6. Do not handle the Power Switch (21) or Power Cord Plug (34) with wet
hands.
7. Keep all Guards in place and in proper working order.

SKU 40315 For technical questions, please call 1-800-444-3353. Page 6
8. Industrial applications must follow OSHA requirements.
9. Remove adjusting keys and wrenches. Check to make sure all adjusting keys
and wrenches are removed from this tool before turning it on.
10. Never attempt to remove material stuck in the moving parts of the Tile Saw
while the tool is turned on, plugged in, or running.
11. When replacing the Cutting Wheel Blade (8) make sure it is replaced with a
7” diameter,minimum 8500 RPM rated, 1” round arbor hole,wet diamond
bonded Cutting Wheel Blade.
12. To avoid accidental injury, always wear heavy duty work gloves when chang-
ing the Cutting Wheel Blade (8).
13. Make sure the Cutting Wheel Blade (8) is wet at all times when cutting.
14. When operating theTile Saw, always make sure to fill theTray (17) with enough
clean, cold water to cover the lower edge of the Cutting Wheel Blade (8), but
not so deep as to spill over the edge of theTray. Make sure the water supply for
the Tile Saw is not dirty, sandy, and does not contain any corrosive chemical prod-
ucts. Change the water when necessary while in use and rinse out the Tray (17)
after every use.
15. Keep hands and fingers away from the cutting area and Cutting Wheel Blade
(8). Use a “push stick” (not included) if necessary.
16. Check Blade Guard (49) for proper up/down movement before each use.
Do not operate the Tile Saw if the Blade Guard does not move freely. Make sure
the Blade Guard moves freely and does not touch the Cutting Saw Blade (8) or
any other part of the Tile Saw, in all angles and depths of cut.
17. Make sure the Tile Saw is located on a flat, level, sturdy surface capable of
supporting the weight of the Tile Saw, workpieces, and any additional tools.
18. Use the Tile Saw only for cutting ceramic tile, quarry tile, marble, terra cotta,
and slate with a maximum thickness of 1 inch.
19. Do not use the Tile Saw for cutting metals or for cutting curves.
20. Before using the Tile Saw, make sure the Cutting Wheel Blade (8) is prop-
erly mounted on the Saw Arbor. Make sure the Blade is balanced, and is not
cracked or bent.
21. The Cutting Wheel Blade (8) will become hot while cutting. Allow the Blade
to completely cool before handling.
22. Allow the Cutting Wheel Blade (8) to spin up to full speed before feeding a
workpiece into it. When turning off the Tile Saw, allow the Cutting Wheel Blade
to spin down and stop on its own. Do not press against the Blade to stop it.

SKU 40315 For technical questions, please call 1-800-444-3353. Page 7

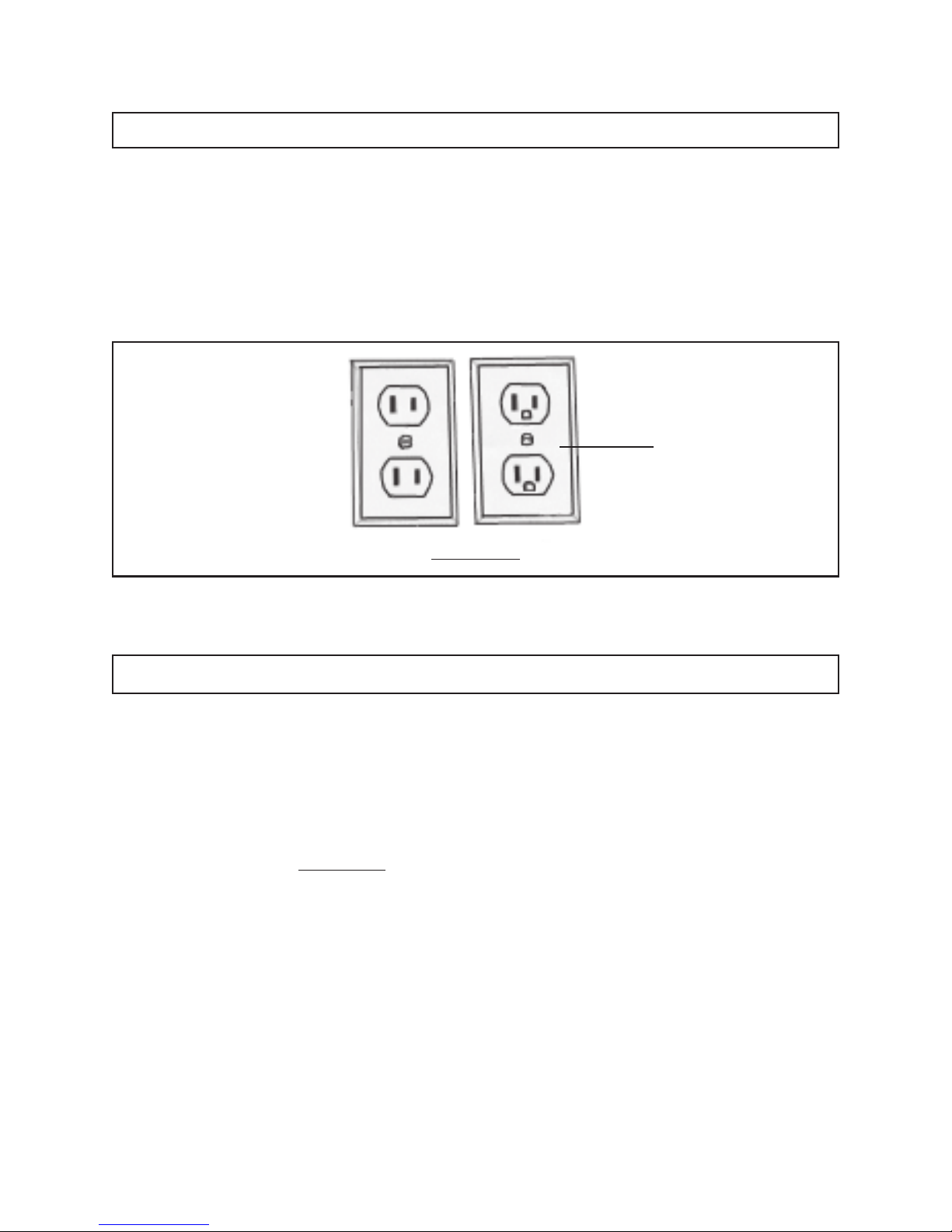

DRIP LOOP
TILE SAW
POWER CORD/PLUG
(34)
FIGURE A
120 VOLT
GROUNDED
ELECTRICAL
OUTLET
23. Do not force the workpiece into the Cutting Wheel Blade (8) when cutting.
Apply moderate pressure, allowing the Blade to cut without being forced.
24. Turn off the Tile Saw and allow the Cutting Wheel Blade (8) to stop on its
own if the Blade is to be backed out of an uncompleted cut.
25. Never attempt to cut more than one tile at a time.
26. Never attempt to cut freehand. Make sure the tile to be cut is pressed firmly
against the Cutting Guide (57).
27. Make sure the Table (51) and surrounding area are clear with the exception
of the tile to be cut.
28. Keep all electrical connections dry and off the ground.
29. Always arrange a “drip loop” in the Power Cord (34) connecting theTile Saw to
a 120 volt, grounded, electrical outlet. A drip loop is that part of the Power Cord
below the level of the outlet, or the connector if an extension cord is used, to prevent
water from traveling along the Power Cord and coming in contact with the outlet. If
the Power Plug or electrical outlet does get wet, do not unplug the Power Cord.
Disconnect the fuse or circuit breaker that supplies power to the outlet. Then, un-
plug and examine for presence of water in the outlet. (See Figure A.)

SKU 40315 For technical questions, please call 1-800-444-3353. Page 8
33. Turn off the Tile Saw, unplug its Power Cord/Plug (34) from its 120 volt,
grounded, electrical outlet, and allow the tool to completely stop prior
to performing any inspection, maintenance, or cleaning on the unit.
34. Use the right tool or attachment for the job. Do not attempt to force a small
tool or attachment to do the work of a larger industrial tool. There are certain
applications for which this product was designed. It will do the job better and
more safely at the rate for which it was intended. Do not modify this product,
and do not use this product for a purpose for which it was not intended.
36. WARNING! Some dust created by power sanding, sawing, grinding, drill
ing, and other construction activities, contain chemicals known (to the State of
California) to cause cancer, birth defects or other reproductive harm. Some
examples of these chemicals are: lead from lead-based paints, crystalline silica
from bricks and cement or other masonry products, arsenic and chromium from
chemically treated lumber. Your risk from these exposures varies, how often you
do this type of work. To reduce your exposure to these chemicals: work in a well
ventilated area, and work with approved safety equipment, such as those dust
masks that are specially designed to filter out microscopic particles.
( California Health & Safety Code 25249.5, et seq.)
30. Avoid splashing water on the Motor (42), Power Switch (21), Power Cord/
Plug (34), or any other electrical component.
31. Make sure to stand on a dry, insulated surface such as a rubber mat while
using the Tile Saw.
32. Never attempt to stand on the Tile Saw. Doing so may cause the Saw to tip,
causing personal injury and/or property damage.
35. WARNING! People with pacemakers should consult their physician(s)
before using this product. Operation of electrical equipment in close proximity to
a heart pacemaker could cause interference or failure of the pacemaker.
37. WARNING! The warnings, precautions, and instructions discussed in this
manual cannot cover all possible conditions and situations that may occur. The
operator must understand that common sense and caution are factors which
cannot be built into this product, but must be supplied by the operator.
SAVE THESE INSTRUCTIONS

SKU 40315 For technical questions, please call 1-800-444-3353. Page 9
WARNING!
Improperly connecting the grounding wire can result in the risk of electric
shock. Check with a qualified electrician if you are in doubt as to whether the
outlet is properly grounded. Do not modify the power cord plug provided with
the tool. Never remove the grounding prong from the plug. Do not use the
tool if the power cord or plug is damaged. If damaged, have it repaired by
a service facility before use. If the plug will not fit the outlet, have a proper
outlet installed by a qualified electrician.
GROUNDED TOOLS: TOOLS WITH THREE PRONG PLUGS
1. Tools marked with “Grounding Required” have a three wire cord and three prong
grounding plug. The plug must be connected to a properly grounded outlet. If
the tool should electrically malfunction or break down, grounding provides a low
resistance path to carry electricity away from the user, reducing the risk of elec-
tric shock. (See Figure B.)
GROUNDING
2. The grounding prong in the plug is connected through the green wire inside the
cord to the grounding system in the tool. The green wire in the cord must be the
only wire connected to the tool’s grounding system and must never be attached
to an electrically “live” terminal. (See Figure B.)
3. Your tool must be plugged into an appropriate outlet, properly installed and
grounded in accordance with all codes and ordinances. The plug and outlet

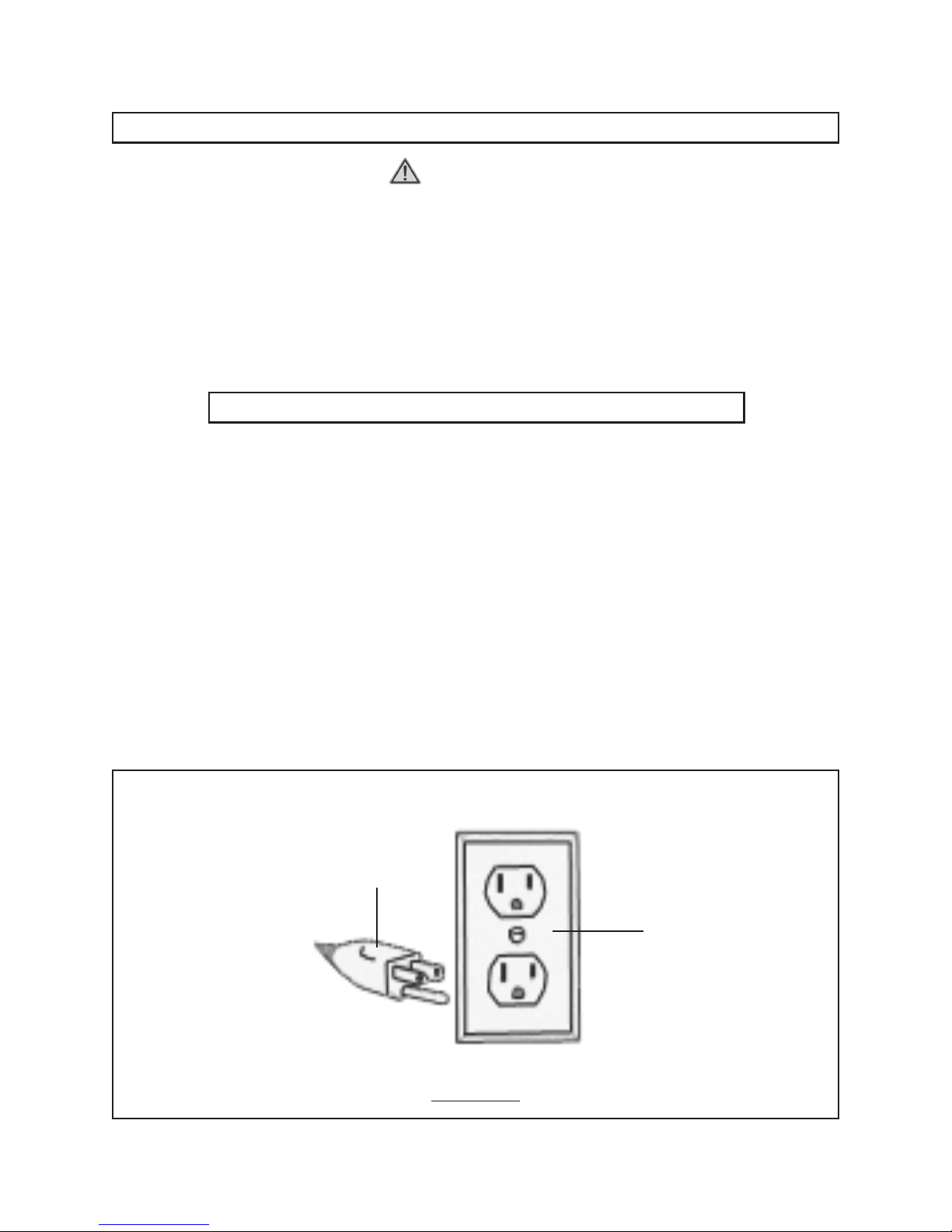

should look like those in the following illustration. (See Figure B.)
THIS
PRODUCT
USES A
3-PRONG PLUG
120 VOLT, GROUNDED,
ELECTRICAL OUTLET
FIGURE B

SKU 40315 For technical questions, please call 1-800-444-3353. Page 10
DOUBLE INSULATED TOOLS: TOOLS WITH TWO PRONG PLUGS
4. Tools marked “Double Insulated” do not require grounding. They have a special
double insulation system which satisfies OSHA requirements and complies with
the applicable standards of Underwriters Laboratories, Inc., the Canadian
Standard Association, and the National Electrical Code. (See Figure C.)
5. Double insulated tools may be used in either of the 120 volt outlets shown in the
following illustration. (See Figure C.)
FIGURE C
120 VOLT, GROUNDED,
ELECTRICAL OUTLET
EXTENSION CORDS
1. Grounded tools require a three wire extension cord. Double Insulated tools
can use either a two or three wire extension cord.
2. As the distance from the supply outlet increases, you must use a heavier gauge
extension cord. Using extension cords with inadequately sized wire causes a
serious drop in voltage, resulting in loss of power and possible tool damage.
(See Figure D, next page.)
3. The smaller the gauge number of the wire, the greater the capacity of the cord.
For example, a 14 gauge cord can carry a higher current than a 16 gauge cord.
(See Figure D.)
4. If using more than one extension cord to make up the total length, make sure
each cord contains at least the minimum wire size required. (See Figure C.)
5. If you are using one extension cord for more than one tool, add the nameplate
amperes and use the sum to determine the required minimum cord size.
(See Figure D.)

SKU 40315 For technical questions, please call 1-800-444-3353. Page 11
6. If you are using an extension cord outdoors, make sure it is marked with the
suffix “W-A” (“W” in Canada) to indicate it is acceptable for outdoor use.
7. Make sure your extension cord is properly wired and in good electrical condition.
Always replace a damaged extension cord or have it repaired by a qualified
electrician before using it.
8. Protect your extension cords from sharp objects, excessive heat, and damp or
wet areas.
RECOMMENDED MINIMUM WIRE GAUGE FOR EXTENSION CORDS*
(120 VOLT)
NAMEPLATE
AMPERES
(
At Full Load
)
EXTENSION CORD LENGTH
25
Feet
50
Feet
75
Feet
100
Feet
150
Feet
0 – 2.0 18 18 18 18 16
2.1 – 3.4 18 18 18 16 14
3.5 – 5.0 18 18 16 14 12
5.1 – 7.0 18 16 14 12 12
7.1 – 12.0 18 14 12 10 -
12.1 – 16.0 14 12 10 - -
16.1 – 20.0 12 10 - - -
* Based on limiting the line voltage drop
to five volts at 150% of the rated amperes.
FIGURE D
SYMBOLOGY
No Load Revolutions
per Minute (RPM)
Double Insulated
Canadian Standards
Association
Underwriters
Laboratories, Inc.
Volts Alternating Current
V ~
AAmperes
xxxx/min.
no
FIGURE E

SKU 40315 For technical questions, please call 1-800-444-3353. Page 12
UNPACKING
When unpacking, check to make sure all the parts shown on the Parts List on page 16
are included. If any parts are missing or broken, please call Harbor Freight Tools at the
number shown on the cover of this manual as soon as possible.
1. WARNING! Make sure the Power Switch (21) of the Tile Saw is in its
“OFF” position and its Power Cord/Plug (34) is unplugged from the electri-
cal outlet prior to performing any assembly.
2. The Tile Saw may be
temporarily placed upon a workbench for use. Also, the
Tile Saw may be permanently mounted on a workbench.
3. CAUTION! Make sure the workbench on which the Tile Saw will be tempo-
rarily or permanently used is flat, level, and sturdy enough to support the weight
of the Tile Saw, any workpieces, and any additional tools.
4. To permanently mount the Tile Saw on a workbench, place the Tile Saw in the
desired work location on the workbench. Use the four 7/16” wide x 3-1/2” long
mounting slots at the base of the Inner Cover (16) as a template to mark the
areas where four 7/16” diameter mounting holes should be drilled through the
workbench.
5. Temporarily remove the Tile Saw, and drill the four 7/16” diameter mounting holes
through the workbench, making sure no hidden electric cords or cables are in the
drilling path.
6. Once the mounting holes are drilled, align the four 7/16” wide x 3-1/2” long
mounting slots in the base of the Inner Cover (16) with the four predrilled mount-
ing holes in the workbench. Secure the Tile Saw to the workbench, using four
appropriate length Bolts, Lock Washers, and Nuts (not included).
ASSEMBLY AND OPERATING INSTRUCTIONS
NOTE:
For additional references to the parts mentioned in the
following pages, refer to the Assembly Diagram on page 17.
To Permanently Mount The Tile Saw On A Workbench:

SKU 40315 For technical questions, please call 1-800-444-3353. Page 13
ONOFF
To Attach The Star Knob:
1. The Star Knob (53) is used to lock the Cutting Guide (57) in position. The Cutting
Guide is used to set the desired width of cut when cutting a workpiece.
(See Figure F.)
2. To attach the Star Knob (53), place the Cutting Guide (57) on the Table (51) of
the Tile Saw. Place the Clamping Plate (56) behind the edge of the Table. Insert
the threaded portion of the Star Knob through the Cutting Guide and screw the
Star Knob into the Clamping Plate. (See Figure F.)
STAR KNOB
(53)
CLAMPING PLATE
(56)
EDGE OF
TABLE
(51)
CUTTING GUIDE
(57)
FIGURE F
To Prepare To Cut:
1. Fill the Tray (17) with water and carefully slide the Tray under the Cutting Wheel
Blade (8). Make sure the water level is deep enough to cover the lower edge of the
Cutting Wheel Blade, but not so deep as to spill over the edge of the Tray. (See
Figure G.)
TRAY
(17)
FIGURE G
TABLE
(51)
POWER SWITCH
(21) STAR KNOB
(20)
CUTTING GUIDE
(57)
CUTTING WHEEL BLADE
(8)
STAR KNOB (53)

SKU 40315 For technical questions, please call 1-800-444-3353. Page 14
2. Loosen the Star Knob (20), and adjust the Cutting Guide (57) to the desired
cutting width . Then, retighten the Star Knob. (See Figure G.)
3. If necessary, loosen the second Star Knob (20) and tilt the Table (51) to adjust
the angle of the cut. Then, retighten the Star Knob. (See Figure G.)
4. Connect the Power Cord/Plug (34) of the Tile Saw to the nearest 120 volt, grounded,
electrical outlet.
5. Put on your ANSI-approved safety impact eye glasses underneath an ANSI-
approved safety impact full face shield.
6. Turn the Power Switch (21) to its “ON” position, and allow the Cutting Wheel
Blade (8) to spin up to full speed. (See Figure G.)
7. Check to make sure the Cutting Wheel Blade (8) is picking up water from the Tray
(17). If not, turn off the Tile Saw. Unplug the machine, and refill the Tray to the
appropriate level. Then, restart the Tile Saw. (See Figure G.)
8. Place the workpiece you are cutting firmly against the Cutting Guide (57), and slowly
feed the workpiece into the revolving Cutting Wheel Blade (8).
(See Figure G.)
9. CAUTION! Make sure to keep hands and fingers away from the Cutting
Wheel Blade (8). Also, make sure to hold the workpiece you are cutting firmly
against the Cutting Guide (57) throughout the cutting process. Failure to do so
may cause the workpiece to be propelled by the Cutting Wheel Blade toward
your body and/or into the Tile Saw. (See Figure G.)
10. Once the cut is complete, turn the Power Switch (21) to its “OFF” position.
Unplug the Power Cord/Plug (34) from its electrical outlet. Allow the Cutting
Wheel Blade (8) to stop on its own. Then, remove the workpiece and any scrap
material from the Table (51) of the Tile Saw. (See Figure G.)
11. Remove and empty the Tray (17) of its contents, and thoroughly rinse
the Tray with clean, cold water. Then, replace the Tray.
(See Figure G.)
12. Make sure to store the Tile Saw in a safe, clean, dry location out of reach of
children and other unauthorized people.
ONOFF

SKU 40315 For technical questions, please call 1-800-444-3353. Page 15
INSPECTION, MAINTENANCE, AND CLEANING
1. WARNING! Always turn theTool Saw’s Power Switch (21) to its “OFF” po-
sition and unplug the tool from its electrical outlet and before performing any
inspection, maintenance, or cleaning.
2. Before each use: Inspect the general condition of the Tile Saw. Check for mis-
alignment or binding of moving parts, loose, cracked or broken parts, damaged
Power Cord, and any other condition that may affect its safe operation. If a problem
occurs with the Tool Saw, have the problem corrected before further use. Do not
use damaged equipment.
3. To install a Cutting Wheel Blade (8):
A. Make certain power is disonnected and the power switch is in the “OFF” posi-
tion.
B. Empty the Tray (17). Turn it 90° (sideways) and remove it.
C. Remove the Screws (2) and Washers (3). Remove the Front Cover (1), and Rear
Blade Cover (58).
D. Use the prongs on the Spanner Wrench (59) to hold the Outside Flange (7) while
you use the Nut Driver (60) to remove the Nut (4). Remove the old Cutting Wheel
Blade.
E. Install a new 7” diameter, 1” round arbor hole, wet, diamond-bonded Cutting
Wheel Blade rated at a minimum of 8500 RPM.
F. Replace the Outside Flange (7) and Nut (4). Use the Spanner (59) to hold the
Outside Flange (7) while you tighten the Nut (4) securely with the Nut Driver
(60).
G. Replace the Front Cover (1), Rear Blade Cover (58), Screws (2), Washers (3),
and Tray (17) in the reverse order of removal.
4. To clean: Wipe with a damp cloth, vacuum or use compressed air. Do not use
solvents.
5. When storing: Store the Tile Saw in a safe, clean, dry, location out of reach of
children and other unauthorized people.
6. CAUTION! All maintenance, service, or repairs not listed in this manual are
only to be attempted by a qualified service technician.
REV 03/06

SKU 40315 For technical questions, please call 1-800-444-3353. Page 16
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS DIAGRAM IN THIS
MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER NOR DISTRIBUTOR MAKES
ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALI-
FIED TO MAKE ANY REPAIRS TO THE PRODUCT OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTI-
FIED AND LICENSED TECHNICIANS AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK
AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACE-
MENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS
THERETO.
PARTS LIST
traPnoitpircseDtraPnoitpircseDtraPnoitpircseD
1revoCtnorF12hctiwSrewoP14eriWdaeLrotoM
2)01x4M(wercS22laeShctiwS24rotoM
3)4M(rehsaW32revoChctiwS34revoCraeR
4)21M(tuN42pilCtelnI44eldnaH
5)21M(rehsaWkcoL52ralloCrebbuR54)6M(rehsaW
6)21M(rehsaW6
2)4M(rehsaW64)01x6M(tloB
7egnalFedistuO72)01x4M(wercS74redloH
8edalBleehWgnittuC82)4M(tuNreppoC84paCerauqS
9egnalFrenn
I92)4M(rehsaWkcoL94drauGedalB
01gniRgnilacS03)4M(rehsaW05ngiSytefaS
11)21x5M(tloB13lanimreTdesserPdloC15elbaT
21)5M(reh
saWkcoL23)22x4M(wercSreppoC25reluR
31)5M(rehsaW33eniLnoitalusnI35)6M(bonKratS
41)6x3M(tloB43gulP/droCrewoP45)6M(rehsa
W
51rettilpS53etalpemaN55)61x6M(tloB
61revoCrennI63ngiSdnuorG65etalPgnipmalC
71yarT73rotcennoCA01,eloH375ediuGgnittuC
81)
6M(tuN83pmalCdroC85revoCedalBraeR
91)01x6M(tloB93)61x4M(wercS95hcnerWrennapS
02)61x8M(bonKratS04)61x3M(wercS06revirDt
uN
REV 03/06

SKU 40315 For technical questions, please call 1-800-444-3353. Page 17
NOTE:
Some parts are listed and shown for illustration purposes only,
and are not available individually as replacement parts.
ASSEMBLY DIAGRAM
REV 03/06

SKU 40315 For technical questions, please call 1-800-444-3353. Page 18
ELECTRICAL SCHEMATIC
K=Switch / D=Motor / J=Terminal / B=Thermal Protection
L1=Main Coil / L2=Sub-Coil / C=Capacitor / H=Capacitor Box
