CP8252 Series
Impact Wrench
Original Instructions
Copyright 2012, Chicago Pneumatic Tool Co. LLC
All rights reserved. Any unauthorized use or copying of
the contents or part thereof is prohibited. This applies in
particular to trademarks, model denominations, part numbers
and drawings. Use only authorized parts. Any damage or
malfunction caused by the use of unauthorized parts is not
covered by Warranty or Product Liability.
MANUFACTURER’S LIMITED WARRANTY
Limited Warranty: The “Products” of the Chicago Pneumatic Tool
Co. LLC (“CP”) are warranted to be free from defects in material and
workmanship for one year from the date of purchase. This Warranty
applies only to Products purchased new from CP or its authorized dealers.
Of course, this Warranty does not apply to products which have been
abused, misused, modied, or repaired by someone other than CP or its
Authorized Service Representatives. If a CP Product proves defective in
material or workmanship within one year after purchase, return it to any
CP Factory Service Center or Authorized Service Center for CP tools,
transportation prepaid, enclosing your name and address, adequate
proof of date of purchase, and a short description of the defect. CP will,
at its option, repair or replace defective Products free of charge. Repairs
or replacements are warranted as described above for the remainder of
the original warranty period. CP’s sole liability and your exclusive remedy
under this Warranty is limited to repair or replacement of the defective
Product. (There Are No Other Warranties Expressed Or Implied And
CP Shall Not Be Liable For Incidental, Consequential, Or Special
Damages, Or Any Other Damages, Costs Or Expenses Excepting
Only The Cost Or Expense Of Repair Or Replacement As Described
Above.)
English
EN
Noise & Vibration Declaration
Sound pressure level CP8252-P and CP8252-R: 94 dB(A),
uncertainty 3 dB(A), in accordance with EN ISO 15744. For
sound power, add 11 dB(A).
Vibration value:
CP8252-P and CP8252-R: 8.8 m/s², uncertainty k = 3.6,
re. ISO 28927-2.
Declaration of noise and vibration emission
All values are current as of the date of this publication. For the
latest information please visit cp.com.
These declared values were obtained by laboratory type
testing in accordance with the stated standards and are
suitable for comparison with the declared values of other
tools tested in accordance with the same standards. These
declared values are not adequate for use in risk assessments
and values measured in individual work places may be higher.
The actual exposure values and risk of harm experienced by
an individual user are unique and depend upon the way the
user works, the workpiece and the workstation design, as well
upon the exposure time and the physical condition of the user.
We, Chicago Pneumatic, cannot be held liable for the
consequences of using the declared values, instead of
values reecting the actual exposure, in an individual risk
assessment in a work place situation over which we have no
control.
This tool may cause hand-arm vibration syndrome if its
use is not adequately managed. An EU guide to managing
hand-arm vibration can be found at www.pneurop.eu/uploads/
documents/pdf/PN3-02-NV_Declaration_info_sheet_0111.pdf
We recommend a programme of health surveillance to
detect early symptoms which may relate to noise or vibration
exposure, so that management procedures can be modied to
help prevent future impairment.
INSTRUCTION MANUAL
Machine Type:
This product is designed for installing and removing threaded
fasteners in wood, metal and plastic. No other use permitted.
For professional use only.
Air Supply Requirements
1. Supply tool with 90 psig (6.2 bar) of clean, dry air. Higher
pressure drastically reduces tool life.

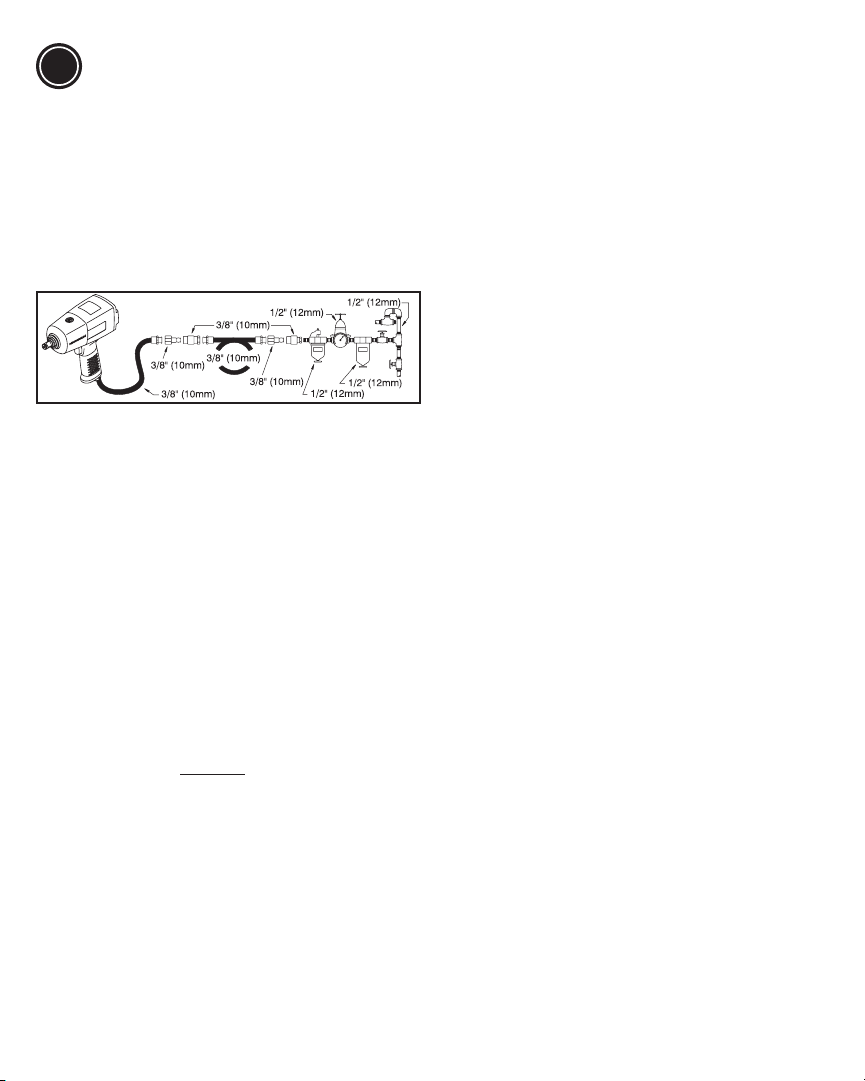

2. Connect tool to air line using pipe, hose and tting sizes
shown in the diagram below.
Lubrication
1. Use an air line lubricator with SAE #10 oil, adjusted to
two (2) drops per minute. If an air line lubricator cannot be
used, add air motor oil to the inlet once a day.
2. Use 0.25 oz. (7 g) of CP Pneu-Lube Synthetic Clutch
Grease 8940158455.
Operation
1. The intended use of this impact wrench is with impact rated
sockets operating upon threaded fasteners. To operate,
pull trigger on handle. To operate in forward rotation, turn
reverse valve toward forward arrow position. To operate in
reverse, turn valve toward reverse arrow position.
2. This impact wrench is equipped with a regulator to enable
adjustment of output power. Turn the regulator lever to # 3
for maximum power, to # 1 for minimum power.
Maintenance
1. After rst year, disassemble and inspect air motor and
impacting clutch every three (3) months if the tool is used
every day. Replace damaged or worn parts.
2. High wear parts are underlined in the parts list.
3. To keep downtime to a minimum, the following service kits
are recommended:
Tune-Up Kit: see part list 2050521483
Technical Data
Free speed; CP8252-P and CP8252-R: 9 000 RPM
