chinavasion CVLC-G163 User manual

. .: :t:
'i*.:'f, SER=.ffirfrI SYSTEM
.i .
=€-
+s:
Model: CVLC-G163
rcf's nnanual

Thanks for your purchasing, please read this manual carefully
before operating the system.. It gives you general information for your I'
safe and better operation.
Inspect i on
Check the following items after open the package.
1. Laser light I pc
2.3 PIN cable: I pc
3. User's manual: 1 pc
Technical parameters
1. Laser diode: DPSS, Violet 405nm
2. Power supply: AC100-250V, 50---60H2
3. Laser power: 100mw
4. Motor: N1.8 high precision step motor
5. Control mode: Sound control/autolDmx
6. Dimensions: 295mm x 220mm x 148mm
7. Net weight: 2.8KG
8. Gross weight: 3.5KG
/-\ fiINfCilil
Aai?ir3J*Hi1tx",'u'-Kl"s,yff A

Manual
When using this laser, the effect will be changed
When you change the sound and rhythm, the machine
speed and direction.
Function Setting
O:OFF l:ON X:OFF or ON
DIPSIllITCH CHART FUCTION
#1 #2 #3 #4 #5 #6 #7 #8 #9 #10
0xxxx x xx x ISOUNDACTIVE
1xxxxxxx x IAUTO MODE
0SET DMX ADDRESS FOR DMX MODE 0DM)USLAVE
DIPSWITH CHART
Installation r
Firstly, be sure that the using voltage is match with the voltage
marked on the base of the laser lighting ;
Installation should be made by professional technician. fix the laser
lighting and adjust the angle of the laser lighting to you need;
Please check whether the fan and the exhaust is blocked;
There is a hole for connection. when hang the laser lighting, be sure
the cable can undertake l0 times of the lighting weight;
The laser lighting should be fixed;
It is essential to be earthed well for the sake of safety"
DMX512
This laser light is controlled by the standard DMX. Please connect
controlling panel with the lighting as following
-t, -1.r-j-.t-"'---f.,
tr;4 @@@
Before using the DMX512 controller, you should set the channel
address. It can be set 001-51 I address, every binary address switch has
a digital no, please refer to:
No. Dieital No. No. Dieital No.
1st 16th 32
2nd 27th 64
3rd 48th 128
4th 89th 256
5th t6 1Oth Function
switch
follow the music.
will change its
I
I
i.
1
a
J.
4,
5.
6.
il
i, I
,s
tl
itr
'il
,ii
,,;
2

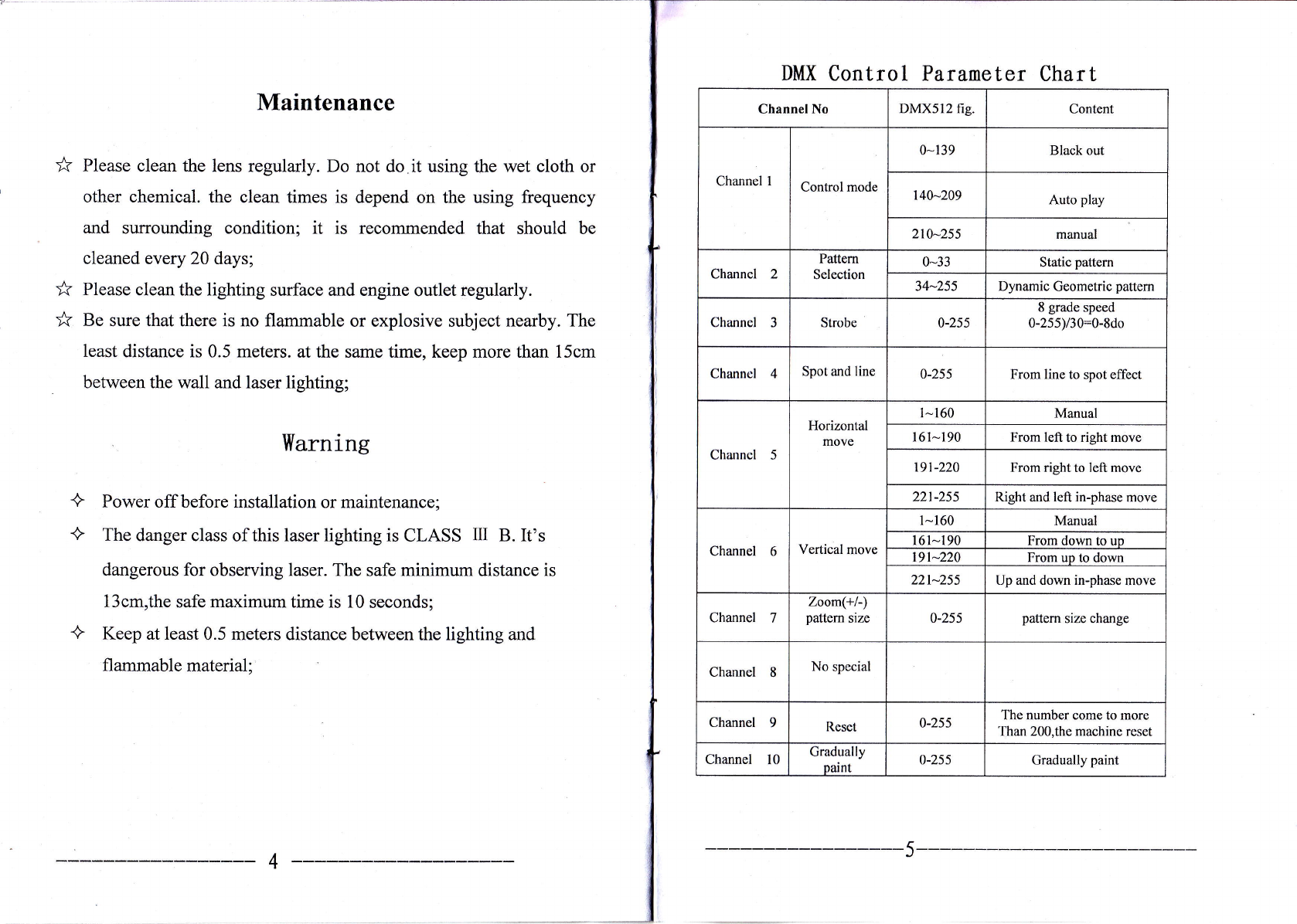

Maintenance
* Please clean the lens regularly. Do not do it using the wet cloth or
other chemical. the clean times is depend on the using frequency
and surrounding condition; it is recommended that should be
cleaned every 20 days;
* Please clean the lighting surface and engine outlet regularly.
*' ge sure that there is no flammable or explosive subject nearby. The
least distance is 0.5 meters. at the same time, keep more than 15cm
between the wall and laser lighting;
l{arning
Power off before installation or maintenance;
The danger class of this laser lighting is CLASS III B. It's
dangerous for observing laser. The safe minimum distance is
13cm,the safe maximum time is 10 seconds;
Keep at least 0.5 meters distance between the lighting and
flammable material:
DMX Control Parameter Chart
<>
Channel No DMX512 fig. Content
Channel IControl mode
0-139 Black out
140-209 Auto play
210-255 manual
Channel 2Pattem
Selection 0-33 Static pattem
34-255 Dynamic Geometric pattern
Channel 3Strobe 0^255 8 grade speed
0-255)/30=0-8do
Channel 4Spot and line 0-255 From line to spot effect
Channcl 5
Horizontal
move
l-r60 Manual
t61-190 From left to right move
t9t-220 From right to left move
221-255 Right and left in-phase move
Channel 6Vertical move
l-160 Manual
t61-190 From down to up
t91-220 From up to down
221-255 Up and down in-phase move
Chaxnel 7Zoom(+/-)
pattem size 0-255 pattern size change
Channel 8No special
Channel 9Reset o-255 The number come to more
lfhan 200,the machine reset
Channel t0 Gradually
naint 0-255 Gradually paint
