T,aser Show System
CVLC.LTI24
User ilIanual
Thanks for your purchasing, please read this manual carefully before
operating the system. It gives you general information for your safety
and better operation.

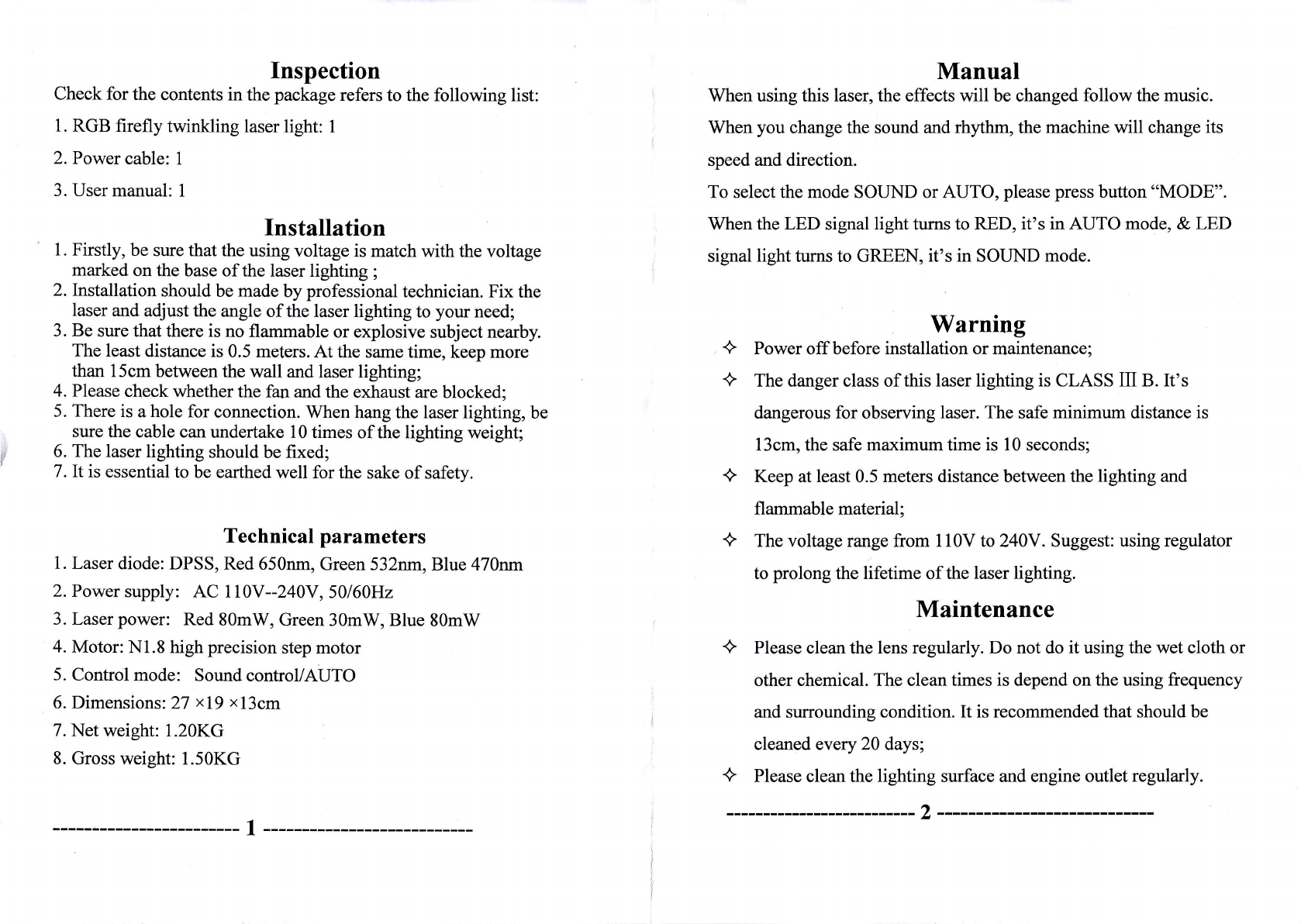

Inspection
Check for the contents in the package refers to the following list:
1. RGB firefly twinkling laser light: I
2. Power cable: 1
3. User manual: 1
Installation
1. Firstly, be sure that the using voltage is match with the voltage
marked on the base of the laser lighting ;
2. Installation should be made by professional technician. Fix the
laser and adjust the angle of the laser lighting to your need;
3. Be sure that there is no flammable or explosive subject nearby.
The least distance is 0.5 meters. At the same time, keep more
than 15cm between the wall and laser lighting;
4. Please check whether the fan and the exhaust are blocked'
5. There is a hole for connection. When hang the laser lightilg, be
sure the cable can undertake 10 times of the lighting weight;
6. The laser lighting should be fixed;
7. It is essential to be earthed well for the sake of safety.
Technical parameters
1. Laser diode: DPSS, Red 650nm, Green 532nrt, Blue 470nm
2. Power supply: AC l10V--240Y,50160H2
3. Laser power: Red 80mW, Green 30mW, Blue 80mW
4. Motor: N1.8 high precision step motor
5. Control mode: Sound control/AUTO
6. Dimensions:27 x19 xl3cm
7. Net weight: 1.20KG
8. Gross weight: 1.50KG
Manual
When using this laser, the effects will be changed follow the music.
When you change the sound and rhythm, the machine will change its
speed and direction.
To select the mode SOLiND or AUTO, please press button "MODE".
When the LED signal light turns to RED, it's in AUTO mode, & LED
signal light turns to GREEN, it's in SOUND mode.
Warning
. + Power off before installation or maintenance;
+ The danger class of this laser lighting is CLASS III B. It's
dangerous for observing laser. The safe minimum distance is
l3cm, the safe maximum time is l0 seconds;
+ Keep at least 0.5 meters distance between the lighting and
flammable material;
+ The voltage range from l10V to 240V. Suggest: using regulator
to prolong the lifetime of the laser lighting.
Maintenance
+ Please clean the lens regularly. Do not do it using the wet cloth or
other chemical. The clean times is depend on the using frequency
and surrounding condition. It is recommended that should be
cleaned every 20 days;
+ Please clean the lighting surface and engine outlet regularly.

Notices
X Non-professional do not dismantle or repair the laser lighting.
When there is a problem, please inquire with the professional
or contact with the local dealer;
X Oo not exposure in the wet or dirty condition;
X Prevent the laser lighting from strong vibration or punch;
X Prevent other subject enter into the lighting;
X Ensure the fan is not blocked;
X Before power on, be sure electric outlet is connected well with
the socket;
X Oo not turn on and turn offfrequently, avoid to turn on the
power for a long time;
X Please power off the lighting for 15 minutes after running two
hours, ensure that the laser system is in well cooling state;
X Oo not looking at the laser source using telescope
X po not touch the laser lighting by wet hand and forcefully pull
the power line;
X ttre distance between lighting and casting medium should be
more than 1 meters;
X When to be transported, use the original package.
