Chinavasion Cvvj-i136 User manual

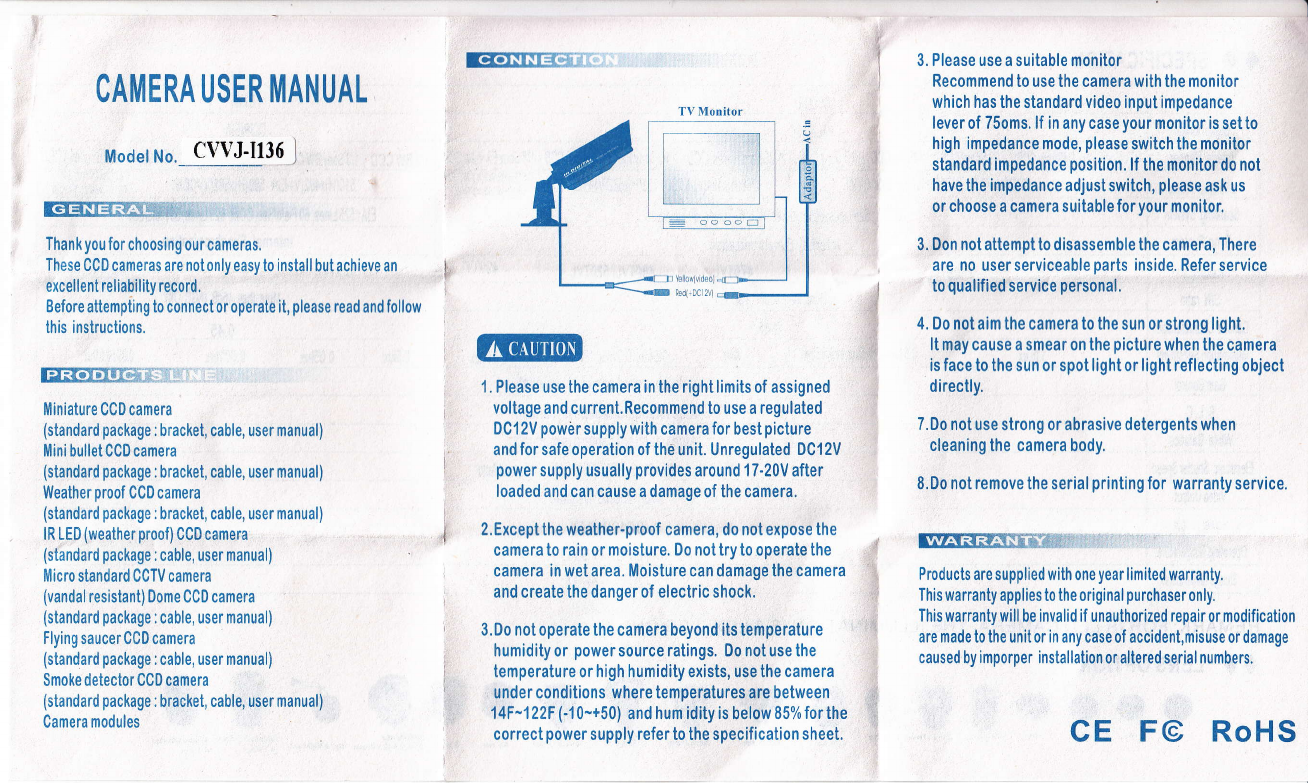

CA]lllERA USER ]vlANUAL

Model No cvvJ-il36

Er3lIq€Y &r',"

Thank you for choosing our cameras,

These CCD cameras are not only easy to install but achieve an

excellent reliability record.

Before attempting to connect or operate it, please read and follow

this instructions.

EEre:mX3lm;.C,li::i i .,

Miniature CCD camera

(standard package : bracket, cable, user manual)

Mini bullet CCD camera

(standard package : bracket, cable, user manual)

Weather proof CCD camera

(standard package : bracket, cable, user manual)

lR LED (weather proof) CCD camera

(standard package : cable, user manual)

Micro standard CCTV camera

(vandal resistant) Dome CCD camera

(standard package : cable, user manual)

Flying saucer CCD camera

(standard package : cable, user manual)

Smoke detector CCD camera

(standard package : bracket, cable, user manual)

Camera modules

rel-trNtrrqi

ledl-DCl rU

1. Please use the camera in the right limits of assigned

voltage and current.Recommend to use a regulated

DC12V powOr supply with camera for best picture

andforsafeoperation of the unit. Unregulated DC12V

power supply usually provides around 1 7-20V after

loaded and can cause a damage of the camera.

2.Except the weather-proof camera, do not expose the

camera to rain or moisture. Do not try to operate the

camera in wet area, Moisture can damage the camera

and create the danger of electric shock.

3.Do not operate the camera beyond its temperature

humidityor powersource ratings. Do notusethe

temperature or high humidity exists, use the camera

under conditions where temperatures are between

14F-122F (-10-+50) and hum idity is below 85% for the

correct power supply refer to the specification sheet.

3. Please use a suitable monitor

Recommend to use the camera with the monitor

which has the standard video input impedance

lever of 75oms. lf in any case your monitor is set to

high impedance mode, please switch the monitor

standard impedance position. lf the monitor do not

havethe impedance adjustswitch, please ask us

or choose a camera suitable for your monitor.

3. Don not attempt to disassemble the camera, There

are n0 userserviceableparts inside. Referservice

to qualified service personal.

4. Do not aim the camera to the sun or strong light,

It may cause a smear on the picture when the camera

is face to the sun or spot light or light reflecting object

directly.

7.Do not use strong or abrasive detergents when

cleaning the camera body.

8,Do not remove the serial printing for warranty service.

!,!IFIE INi?:6IHi

Products are supplied with one year limited warranty.

This warranty applies to the original purchaser only.

This warranty will be invalid if unauthorized repair or modification

are made to the unit or in any case of accident,misuse or damage

caused by imporper installation or altered serial numbers.

CE F@ RoHS

I I sprctFtcATtoN

B/W

Shnalformat CCIR/EIA

lmaqe Sensor 1/3color CCDI 1/4SharpCCD | 1/3SharpCCD 1/4SonyCCD liSJi.nyCCD 1/3SharpHi+esCCD 1/3SonyHi+es{Ex.view)CCDlli3SonyEx.vier,rCCO 1/3BWCCD I 1/3SonvBWCCD li3SonyEx.viewCCl /3 Sony Hi+es (Ex'vrew) CCD

Effective Plxels 51 0(H)x4e2(V)-NIsc 500(H)x582(v)-PAL 76s{H)x4e4{tl).NTSC 752(H)ltss2{ti).PAL I llllXllilllYl}f' 510{H)x4e2(tl).ElA 500(H)x5s2(\').ccrR ffi[][Illli.iirr
