ChlorKing SAG Series User manual

1
ChlorKing® Sentry UV
SENTRY AQUA GUARD
LOW PRESSURE UV LIGHT
SYSTEM
Installation, Operation, and
Maintenance Manual
FOR ALL SAG MODELS

2
TABLE OF CONTENTS
1.0 DESCRIPTION 3
1.1 General Information 3
1.2 Principals of Operation 4
1.3 General Specifications and Sizing Guidelines 4
2.0 INSTALLATION 20
2.1 Unpacking 20
2.2 Storage 20
2.3 Safety Considerations 20
2.4 Plan Ahead 23
2.5 Power Supply Installation 23
2.6 UV Chamber Installation 23
2.7 Quartz Sleeve Installation 24
2.8 Lamp Installation 25
2.9 Plumbing the UV Chamber 25
2.10 Plumbing the Strainer 26
2.11 Plumbing the Pressure Switch 26
2.12 Plumbing the Air Bleed for Vertical Mount Chambers 28
2.13 System Wiring 29
2.14 Safety Cover Wiring 29
2.15 UV Sensor Installation 29
2.16 Bonding the System 29
3.0 OPERATION 30
3.1 Start-up Procedures 30
3.2 UV Meter Operation 30
4.0 MAINTENANCE 30
4.1 Routine Maintenance 30
4.2 Recommended Broken Lamp Handling Practices 34
5.0 WARRANTY INFORMATION 34
5.1 How to Obtain Help 34
5.2 Returning a ChlorKing® - Sentry UV Product 34
5.3 Activating/Validating Warranty and Making a Warranty Claim 35
5.4 Warranties for Housing, Parts, Lamps, and Ballasts 35
5.5 Warranty for Quartz Sleeves 36
5.6 General Conditions and Limitations 36
Note: This manual is subject to change at any time based on system improvements, design
changes, authorized modifications or new information. Please consult ChlorKing-Sentry UV
for the latest revision.
Manufacturer:
ChlorKing-Sentry UV
2935 Northeast Parkway
Atlanta, GA 30360
1-800-536-8180

3
SECTION 1
DESCRIPTION
1.1 GENERAL INFORMATION
The Sentry Aqua Guard system is a low pressure, high output amalgam, ultraviolet light
sterilizer designed for commercial swimming pool applications. The Sentry Aqua Guard
is capable of sterilizing and oxidizing up to 1141 gallons per minute of water. The
system operates at light wavelengths of 254nm for sterilizing and 185nm for oxidizing.
The Sentry Aqua Guard is designed for commercial service and can be run 24 hours a
day. The Sentry Aqua Guard components are outlined in Figure 1:

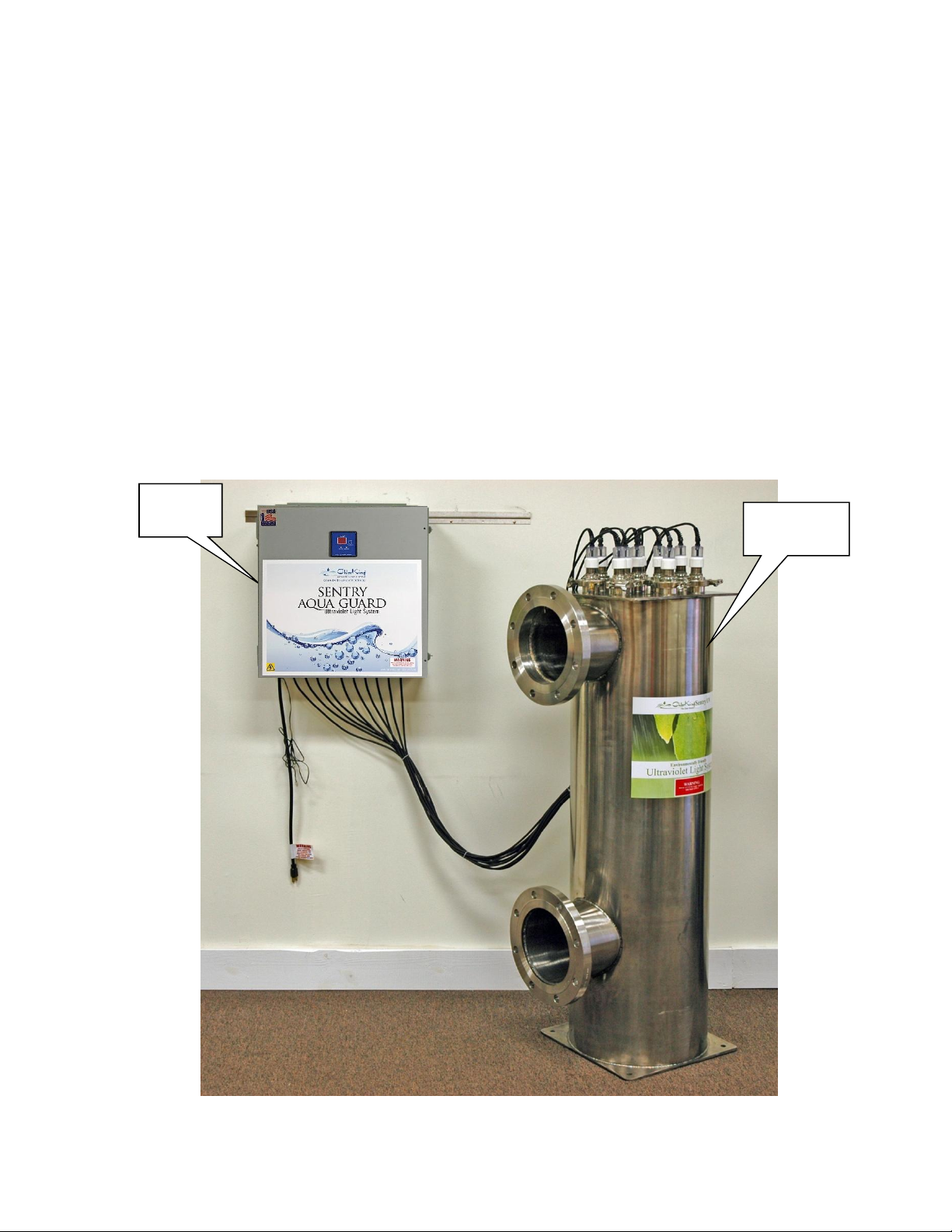

Figure 1
UV Light
Chamber
Power
Supply

4
1.2 PRINCIPALS OF OPERATION
UV Light Chamber (See Figure 1)
The UV Light Chamber is made from highly polished 316L stainless steel or 316L
stainless steel lined PVC. Quartz sleeves separate the low pressure, high output
amalgam germicidal lamps from the water. The water to be treated flows into the
bottom of the chamber. Once in the chamber, the germicidal bulbs produce a minimum
3-log reduction in pathogens. The water is then returned to the source.
Power Supply (See Figure 1)
The power supply provides the current to start and maintain the germicidal lamps. A
visual indication of bulb output is displayed on the face of the power supply and a
counter is located in the power supply to display hours of operation.
1.3 GENERAL SPECIFICATIONS AND SIZING GUIDELINES
This unit has demonstrated an ability to provide three log inactivation of Enterococcus
faecium and Pseudomonas aeruginosa. This unit has not demonstrated an ability to
provide three log kill or inactivation of Cryptosporidium parvum. This product is
designed for supplementary disinfection and is intended for use with appropriate
residual levels of EPA registered disinfecting chemicals. Specific residual levels of EPA
registered disinfecting chemicals may be required by the regulatory agency having
authority.
MODEL NUMBERS AND DESCRIPTION:
SAG120A120 – Sentry Aqua Guard 120A 120
SAG120A230 – Sentry Aqua Guard 120A 230
SAG120A120PVC – Sentry Aqua Guard 120A 120 PVC
SAG240A120 – Sentry Aqua Guard 240A 120
SAG240A230 – Sentry Aqua Guard 240A 230
SAG240A120PVC – Sentry Aqua Guard 120A 120 PVC
SAG480A120 – Sentry Aqua Guard 480A 120
SAG480A230 – Sentry Aqua Guard 480A 230
SAG480A120PVC – Sentry Aqua Guard 480A 120 PVC
SAG720A120 – Sentry Aqua Guard 720A 120
SAG720A230 – Sentry Aqua Guard 720A 230
SAG960A120 – Sentry Aqua Guard 960A 120
SAG960A230 – Sentry Aqua Guard 960A 230
SAG1200A120 – Sentry Aqua Guard 1200A 120
SAG1200A230 – Sentry Aqua Guard 1200A 230

5
FLOW, PRESSURE, AND CHAMBER SPECIFICATIONS:
Model #
Rated
Pressure
(psi)
Max
Rated
Flow
(gpm)
Rated
Power
(KW)
Number
of Bulbs
Volume of
Chamber
(Gallons)
Length and
Diameter of
Chamber
SAG120A120
50
up to 46
120
1
2.16
45”L 4.5”D
SAG120A230
50
up to 46
120
1
2.16
45”L 4.5”D
SAG120A120PVC
50
up to 61
120
1
4.85
45.625”L x 6”D
SAG240A120
50
up to 119
240
2
4.85
45”L x 6.625”D
SAG240A230
50
up to 119
240
2
4.85
45”L x 6.625”D
SAG240A120PVC
50
up to 150
240
2
8.6
47.375”L x 8”D
SAG480A120
50
up to 350
480
4
13.48
49.5”L x 10.75”D
SAG480A230
50
up to 350
480
4
13.48
49.5”L x 10.75”D
SAG480A120PVC
50
up to 350
480
4
12.9
47.4”L x 10.75”D
SAG720A120
50
up to 620
720
6
23.55
53.5”L x 12.75”D
SAG720A230
50
up to 620
720
6
23.55
53.5”L x 12.75”D
SAG960A120
50
up to 770
960
8
23.55
53.5”L x 12.75”D
SAG960A230
50
up to 770
960
8
23.55
53.5”L x 12.75”D
SAG1200A120 50
up to
1141 1200 10 42 53.5”L x 16”D
SAG1200A230 50
up to
1141 1200 10 42 53.5”L x 16”D

6

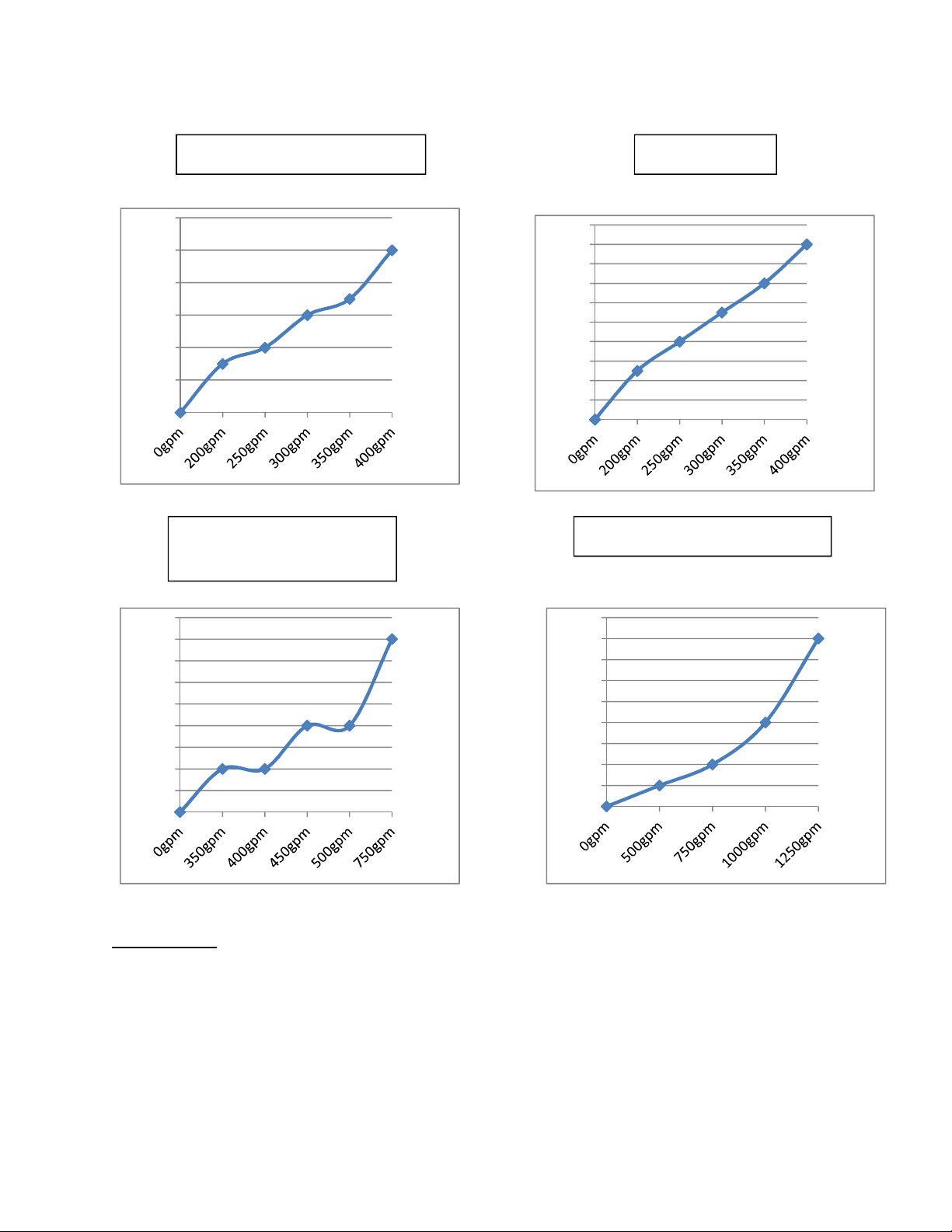

HEAD LOSS DATA in ft of H2O:
0.000.007
0.02
0.03
0.04
0.06
0.08
0.1
0.13
0.00
0.02
0.04
0.06
0.08
0.10
0.12
0.14
0gpm
20gpm 30gpm 40gpm 50gpm 60gpm 70gpm 80gpm
100gpm
SAG120A120 and SAG120A230
0.00
0.09
0.12
0.15
0.2
0.24
0.3
0.00
0.05
0.10
0.15
0.20
0.25
0.30
0.35
SAG120A120PVC
SAG240A120 and SAG240A230
0.00
0.006
0.008
0.010.01
0.020.02
0.04
0.07
0.1
0.00
0.02
0.04
0.06
0.08
0.10
0.12
0gpm
50gpm 60gpm 70gpm 80gpm 90gpm
100gpm 150gpm 200gpm 250gpm
0.00
0.04 0.05 0.06
0.09
0.13
0.17
0.22
0.00
0.05
0.10
0.15
0.20
0.25
SAG240A120PVC

7
LAMP LIFE:
13,000 hours of operation
0.00
0.03
0.04
0.06
0.07
0.1
0.00
0.02
0.04
0.06
0.08
0.10
0.12
SAG480A120 and SAG480A230
SAG480A120PVC
0.00
0.05
0.08
0.11
0.14
0.18
0.00
0.02
0.04
0.06
0.08
0.10
0.12
0.14
0.16
0.18
0.20
SAG720A120, SAG720A230,
SAG960A120, SAG920A230
SAG1200A120 and SAG1200A230
0.00
0.01 0.01
0.02 0.02
0.04
0.00
0.01
0.01
0.02
0.02
0.03
0.03
0.04
0.04
0.05
0.00
0.005
0.01
0.02
0.04
0.00
0.01
0.01
0.02
0.02
0.03
0.03
0.04
0.04
0.05

8
ELECTRICAL SPECIFICATIONS:
Model # Rated Voltage
(AC)
Rated Amps
SAG120A120
120
1.5
SAG120A230
230
.75
SAG120A120PVC
120
1.5
SAG240A120
120
3
SAG240A230
230
1.5
SAG240A120PVC
120
3
SAG480A120
120
6
SAG480A230
230
3
SAG480A120PVC
120
6
SAG720A120
120
9
SAG720A230
230
4.5
SAG960A120
120
10.5
SAG960A230
230
5.25
SAG1200A120
120
12.5
SAG1200A230
230
6.25
SIZING GUIDELINES
Sentry Aqua Guard UV Sterilizers will effectively treat water up to the maximum rated
flow for each size unit (END of lamp life). See flow calculator on the next page.
UV sizing must comply with local codes. Please contact your local health department
for specific requirements or contact your local ChlorKing representative for assistance.

9
The chart and temperature compensation formula below are used to determine the
maximum system flow rate for satisfactory system performance.
Select the chart for your UV model and a flow rate from the chart based on the
% Transmittance (%T) of the pool. If you are unsure of the %T, use 95%. The flow rate
must then be compensated for temperatures less than 88°F. Determine the average
pool temperature and use the formula below to determine the maximum flow rate.
avT = average pool temperature
((100 - ) 88° - avT) / 100) x GPM
Example for model SAG120A120PVC, 95%T, and average pool temperature of 84°:
((100 - ) 88° - 84°) / 100) x 61 GPM
((100 - ) 4) / 100) x 61
(96 / 100) x 61
.96 x 61
58.56 GPM
SAG120A120PVC
%T
GPM
100
75
99
73
97
67
96
64
95
61
94
60
93
58
92
56
91
54
90
53
85
44
80
37
75
31
SAG120A120
%T
GPM
100
52
99
51
97
48
96
47
95
46
94
45
93
44
92
43
91
42
90
41
85
35
80
31
75
27
SAG240A120PVC
%T
GPM
100
154
99
150
97
141
96
137
95
133
94
129
93
125
92
121
91
117
90
109
85
92
80
79
75
67
SAG240A120
%T
GPM
100
138
99
135
97
127
96
123
95
119
94
115
93
111
92
107
91
103
90
99
85
80
80
67
75
56

10

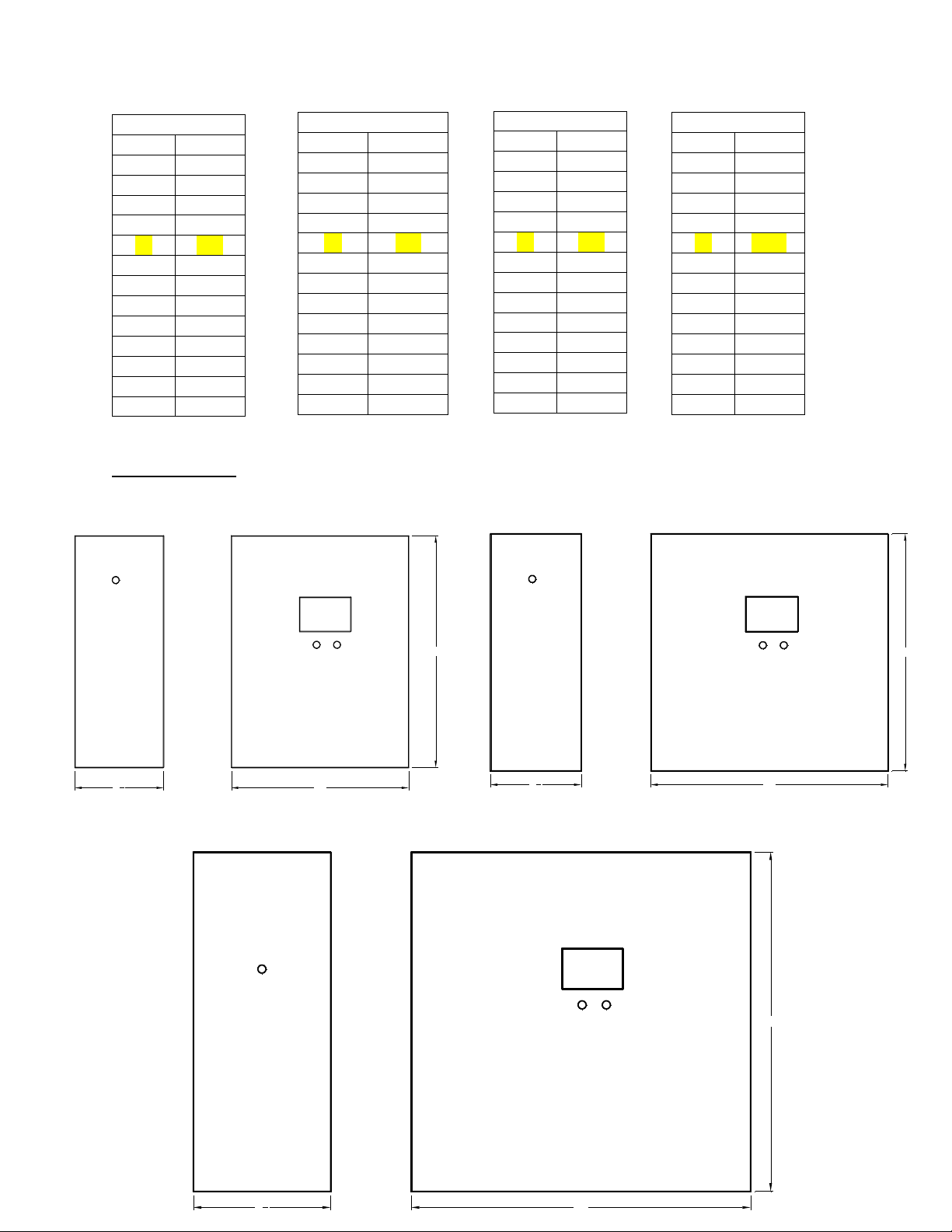

DIMENSIONS:
SAG480 ALL
%T
GPM
100
426
99
411
97
381
96
367
95
352
94
337
93
322
92
307
91
293
90
278
85
204
80
164
75
131
SAG720A120
%T
GPM
100
762
99
734
97
677
96
649
95
620
94
592
93
564
92
535
91
507
90
479
85
337
80
264
75
208
SAG960A120
%T
GPM
100
945
99
910
97
840
96
805
95
770
94
735
93
700
92
665
91
630
90
595
85
420
80
330
75
262
SAG1200A120
%T
GPM
100
1423
99
1367
97
1254
96
1197
95
1141
94
1084
93
1028
92
971
91
915
90
858
85
576
80
442
75
346
120W and 240W Power Supply
61
213
17
480W and 720W Power Supply
61
217
17
960W and 1200W Power Supply
81
221
21

11

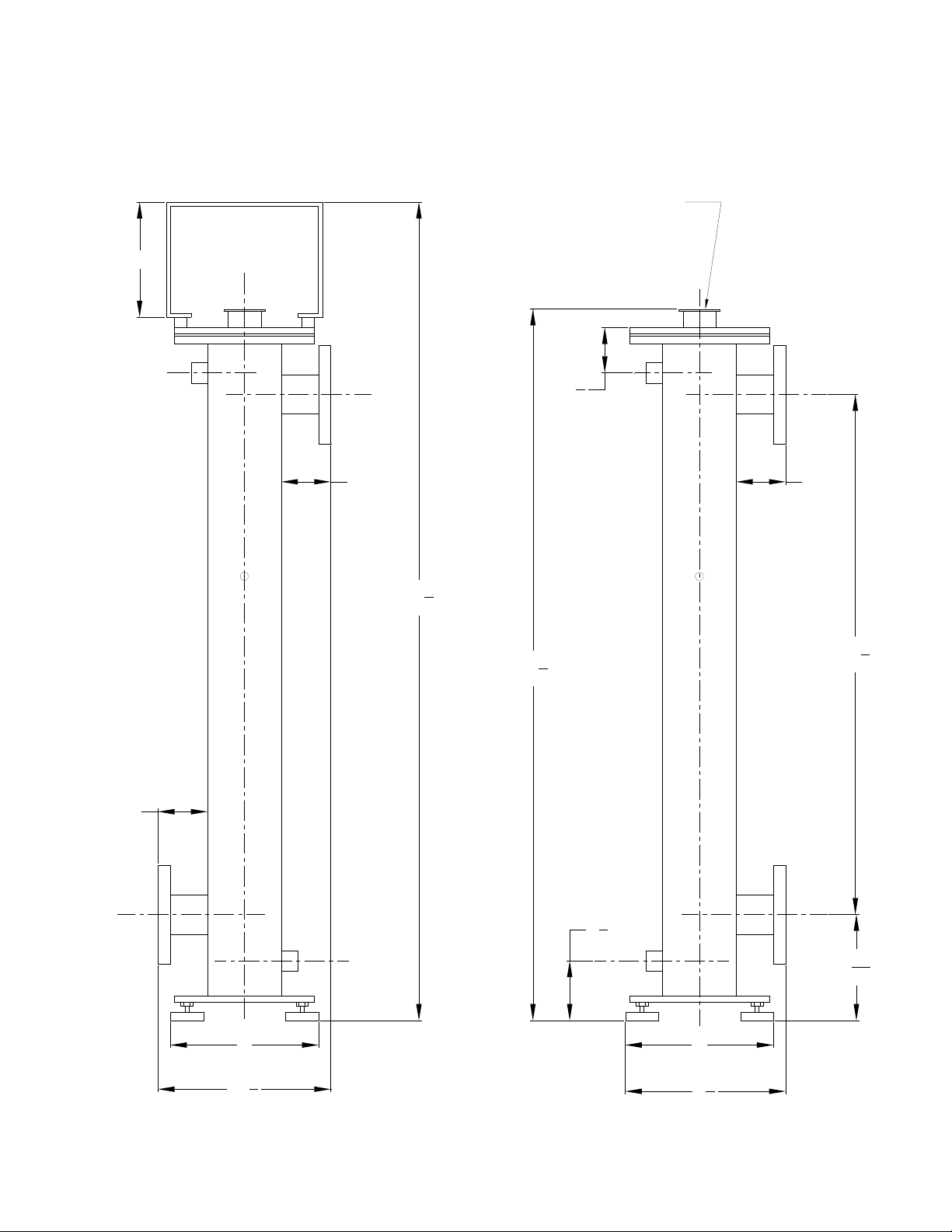

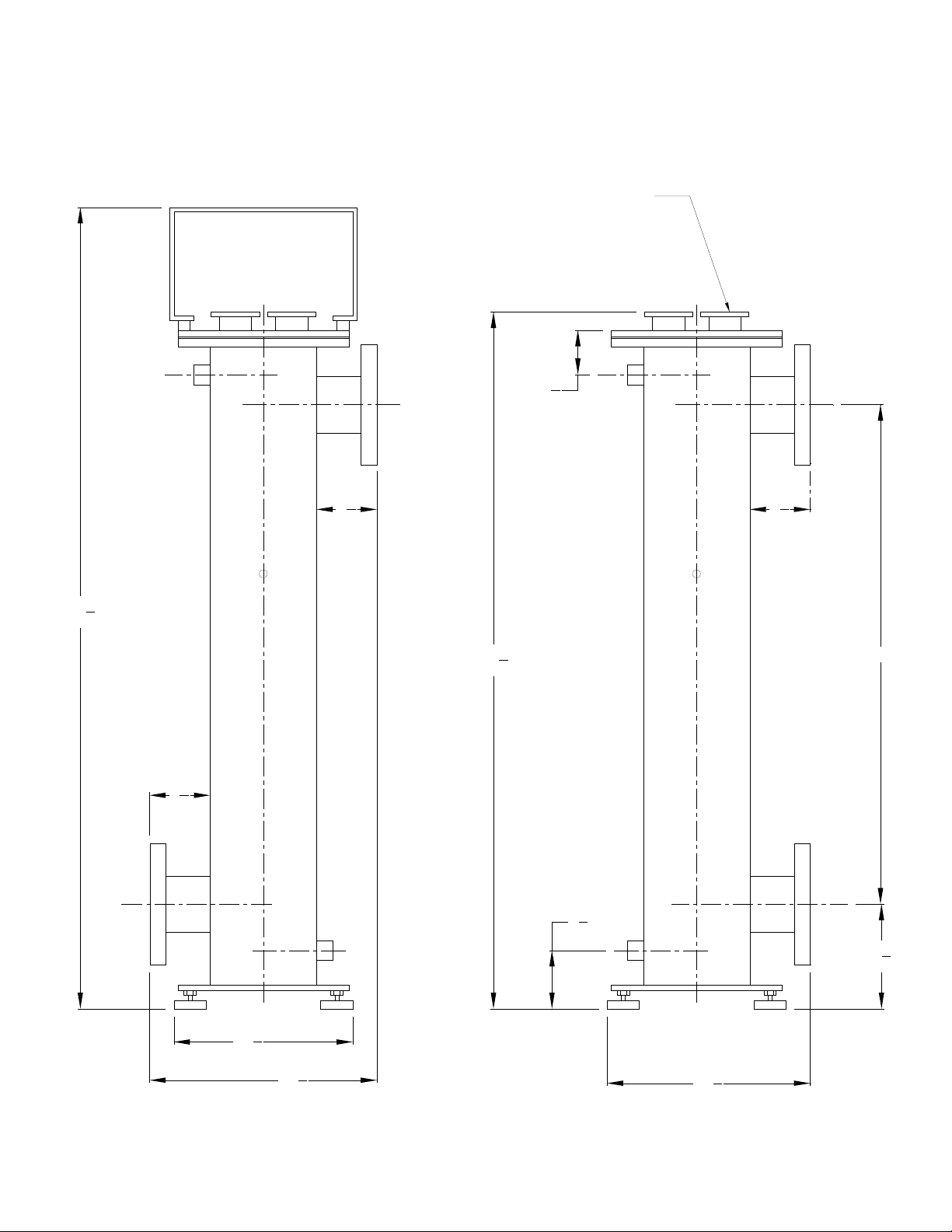

120 Watt Chamber Installation Dimensions (Rev 2)
2" Flanges
Flanges Opposed Flanges Same Side
3
3
101
2
9
493
4
Keep 32"
clear above
this point to
allow for
removal of
quartz sleeve
7
3
9
431
4
93
4
67
16
315
8
35
8
23
4

12
120 Watt PVC Chamber R1
11
145
8
42 5
16
7
15
16
55
16
28 7
16
35
16
5
8
7
49
15
16
Keep 32"
clear above
this point to
allow for
removal of
quartz sleeve

13

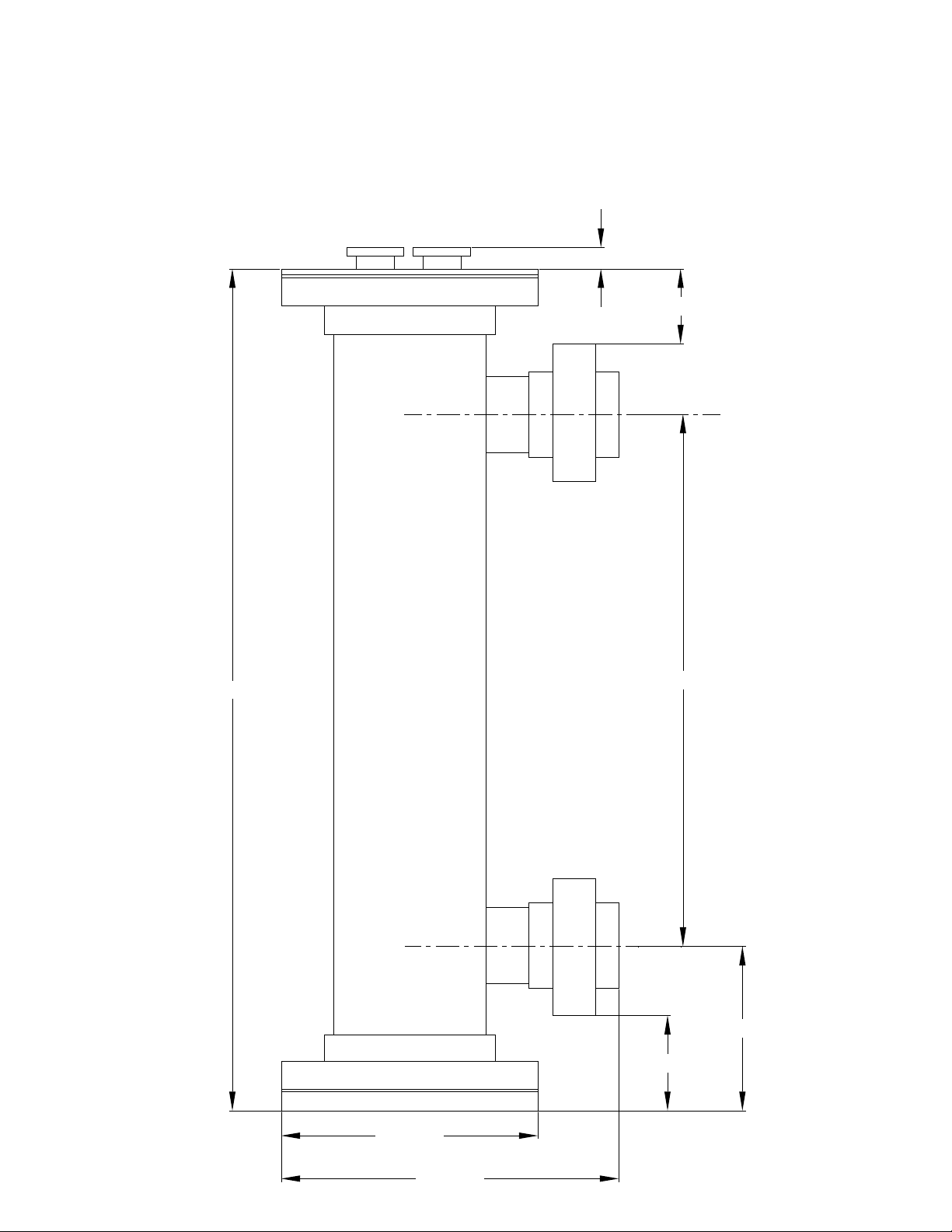

240 Watt Chamber Installation Dimensions (Rev 2)
3" Flanges
Flanges Opposed Flanges Same Side
141
8
33
4
111
8
33
4
493
4
Keep 32"
clear above
this point to
allow for
removal of
quartz sleeve
33
4
35
8
61
2
31
23
4
431
4
125
8

14
240 Watt PVC Chamber R1
17.750
44.188
8.625
13.500
27.938
5.000
3.938
1.125

15

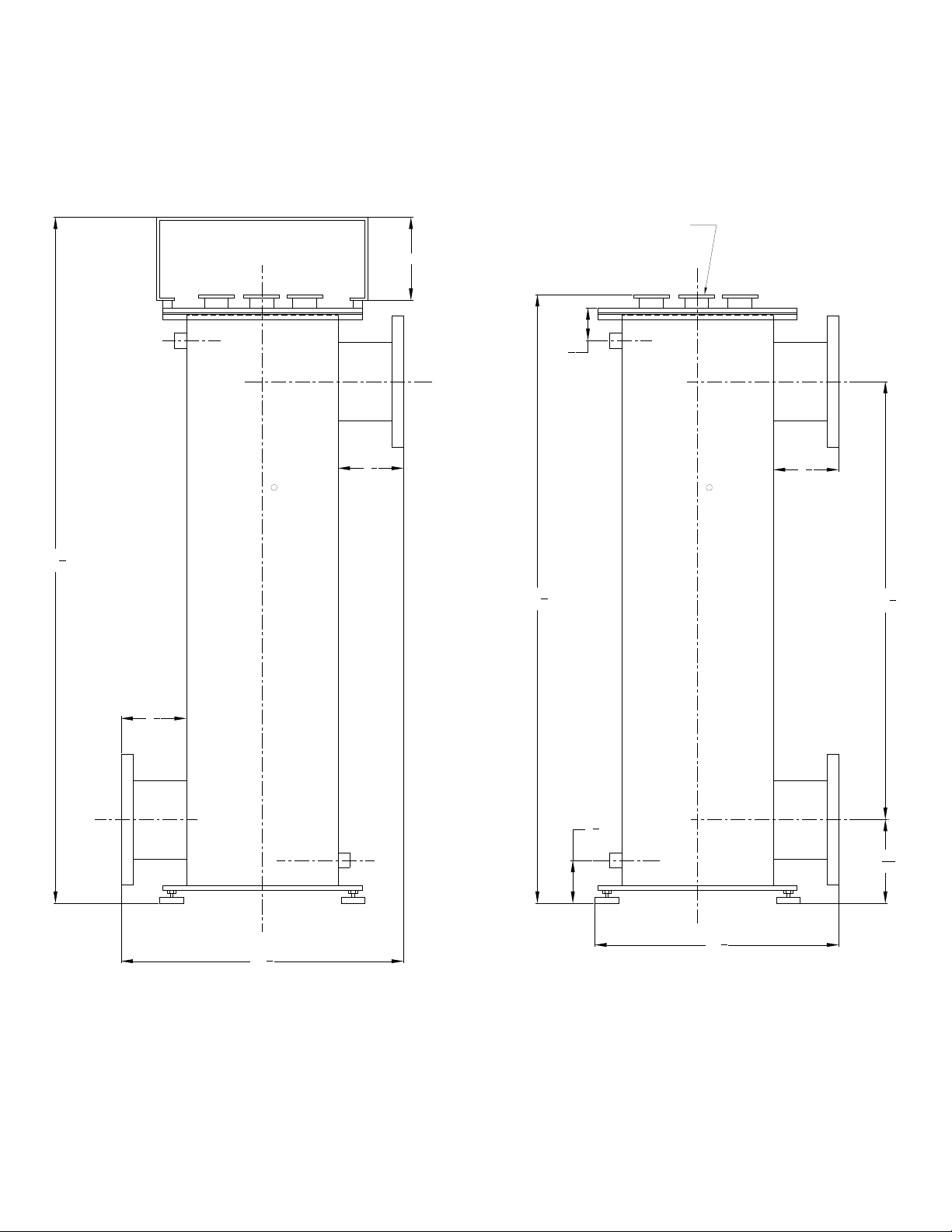

480 Watt Chamber Installation Dimensions (Rev 2)
4" Flanges
Flanges Same Side
Flanges Opposed
201
4
43
4
43
4
151
4
7
Keep 32"
clear above
this point to
allow for
removal of
quartz sleeve
533
4
43
4
471
4
23
4
6
35
35
8
173
4

16
521
4
451
2
16
183
8
93
4
51
4
Keep 32"
clear above
this point to
allow for
removal of
quartz sleeve
25 7
16
5
480 Watt PVC Chamber
7

17
720 Watt & 960 Watt Chamber Installation Dimensions
6" Flanges
Flanges Same Side
Flanges Opposed
Keep 32"
clear above
this point to
allow for
removal of
quartz sleeve
573
4
7
51
2
51
2
233
4
201
2
511
4
35
8
71
16
367
8
23
4
51
2

18
1200 Watt Chamber Installation Dimensions (Rev 2)
8" Flanges
Flanges Same Side
Flanges Opposed
271
2
53
4
24
53
4
Keep 32"
clear above
this point to
allow for
removal of
quartz sleeve
53
4
343
4
81
8
35
8
23
4
511
4
201
2
573
4

19

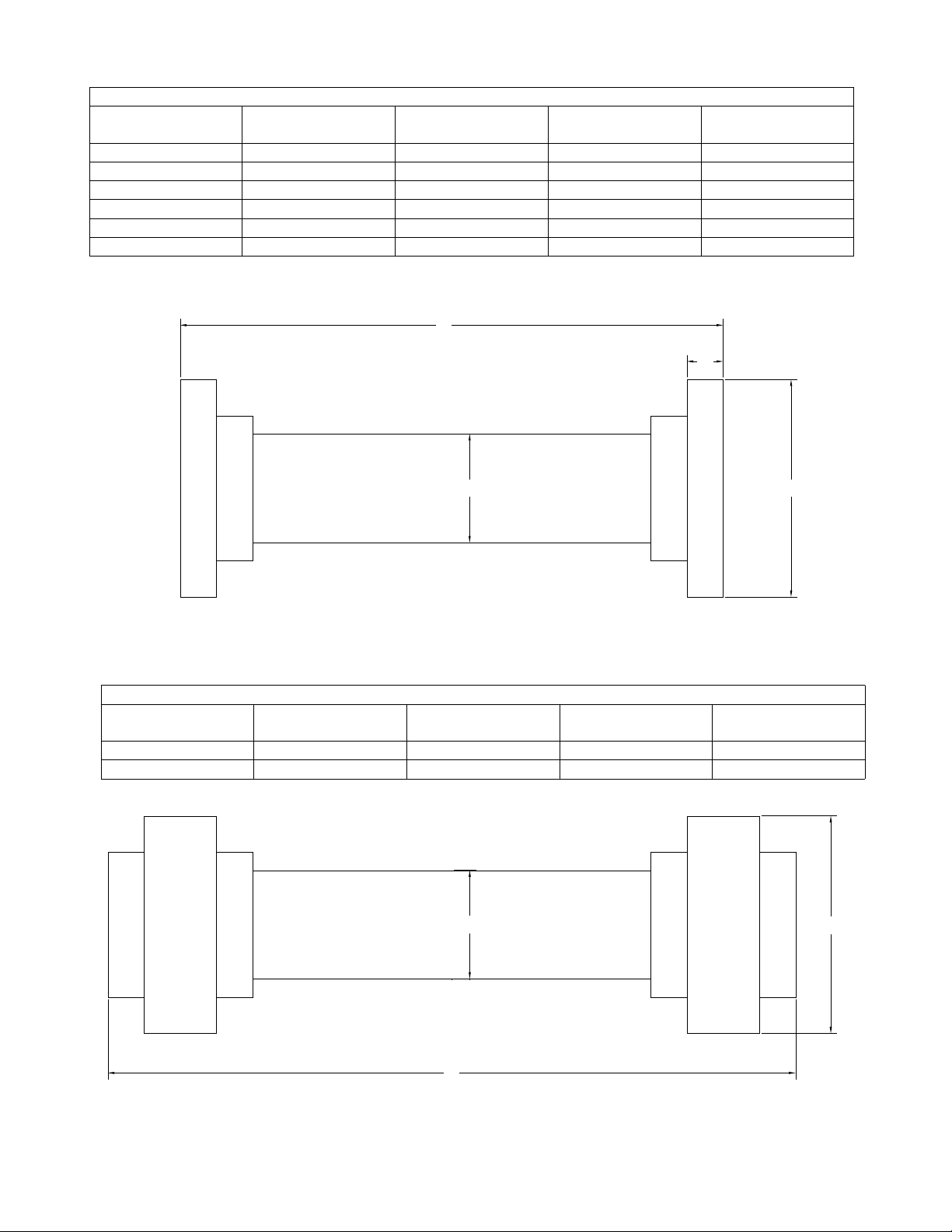

Strainer Spool Dimensions (Flanged)
Nominal Pipe Size Pipe OD (A) Flange OD (B) Flange Thickness (C) Overall length (D)
22 1/2 6 3/4 15 1/2
3 3 1/2 7 1/2 116 1/4
4 4 1/2 9 117 1/4
66 1/2 11 1 1/4 17 1/4
8 8 1/2 13 1/2 1 3/8 18 1/2
10 10 3/4 15 3/4 1 3/4 18 3/4
A
C
D
A
B
B
D
Strainer Spool Dimensions (Union)
Nominal Pipe Size Pipe OD (A) Union OD (B) Overall length (D)
22 1/2 5 1/4 20 1/2
3 3 1/2 7 1/8 21 3/4

20
SECTION 2
INSTALLATION
2.1 UNPACKING
Units are shipped from the factory. In the event of damages during shipping, it is the
responsibility of the customer to notify the carrier immediately and to file a damage
claim. Open the crate carefully and examine all material inside.
2.2 STORAGE
When storing units, use the original packaging and store under a shelter to protect the
contents from weather.
2.3 SAFETY CONSIDERATIONS
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS
WHEN INSTALLING, OPERATING, AND MAINTAINING THIS EQUIPMENT, KEEP
SAFETY CONSIDERATIONS FOREMOST. USE PROPER TOOLS, PROTECTIVE
CLOTHING, AND EYE PROTECTION WHEN WORKING ON OR INSTALLING THE
EQUIPMENT. FOLLOW THE INSTRUCTIONS IN THIS MANUAL AND TAKE ANY
ADDITIONAL SAFETY MEASURES APPROPRIATE. BE EXTREMELY CAREFUL IN
THE PRESENCE OF HAZARDOUS SUBSTANCES.
THE PERSONNEL RESPONSIBLE FOR INSTALLATION, OPERATION, AND
MAINTENANCE OF THIS EQUIPMENT MUST BE FULLY FAMILIAR WITH THE
CONTENTS OF THIS MANUAL.
ANY SERVICING OF THIS EQUIPMENT MUST BE DONE WITH THE UNIT FULLY
OFF AND DISCONNECTED FROM THE POWER SOURCE AND ALL PRESSURE
BLED FROM THE LIQUID LINES.
