ChoiceMMed MD300W11 User manual

WRIST PULSE OXIMETER
INSTRUCTION MANUAL
(Non-Medical Equipment)
Edition: V1.0W11

V1.0W11 WRIST PULSE OXIMETER
2
Copyright
Our company owns all rights to this unpublished work and intends to maintain this work as confidential. Our
company may also seek to maintain this work as an unpublished copyright. This publication is to be used
solely for the purpose of reference, operation, maintenance or repair of our equipment. No part of this can
be disseminated for other purposes.
In the event of inadvertent or deliberate publication, our company intends to enforce its rights to this work
under copyright laws as a published work. Those having access to this manual may not copy, use, or
disclose the information in this work unless expressly authorized by our company to do so.
All information contained in this manual is believed to be correct. Our company shall not be liable for errors
contained herein nor for incidental or consequential damages in connection with the furnishing,
performance, or use of this material. This publication may refer to information and protected by copyrights
or patents and does not convey any license under the patent rights of our company, nor the rights of others.
Our company does not assume any liability arising out of any infringements of patents or other rights of third
parties.
Content of the manual is subject to changes without prior notice.
ALL RIGHTS RESERVED
Issue date: NOV 12, 2009

V1.0W11 WRIST PULSE OXIMETER
3
Caution! Read this entire manual carefully before using the wrist oximeter.
The information in this manual has been checked carefully and is believed to be accurate. In the interest of
continued product development, our company reserves the rights to make changes and improvements to
this manual and the products it describes at any time, without notice or obligation.
Precautions for use
Read and follow all safety instructions before using the Wrist Oximeter.
Contraindications
DO NOT use the Wrist Oximeter in a magnetic resonance imaging (MRI) environment.
Explosion Hazard: Do not use the Wrist Oximeter in an explosive atmosphere or in the presence of
flammable anesthetics or gas.
Warnings!
General operation of the Wrist Oximeter might be affected by the presence of an electrosurgical unit
(ESU).
The wrist oximeter has no alarms. It will not sound if the amount of oximeter in your body is low or if
your pulse rate is too high or too low.
Do not use the wrist oximeter when the alarms are required！
Discontinue use of adhesive tape strips if the user exhibits an allergic reaction to the adhesive
material.
Do not place the wrist oximeter in liquid or clean it with agents containing ammonium chloride，
isopropyl alcohol，or products that are not listed in this instructions manual.
The wrist oximeter must be able to measure your pulse properly to give you an accurate reading. Do
not put the device on the same arm when using a blood pressure cuff or monitor.

V1.0W11 WRIST PULSE OXIMETER
4
Do not stretch the adhesive tape while applying the pulse oximeter sensor.
Ensure that the wrist band fits comfortably on the user’s arm. Do not over-tighten the wrist band.
Pulse oximeter readings might be affected while users are being defibrillated.
Radios and cell phones or similar devices may affect the wrist oximeter and should be kept at least 7
feet away from the device.
Use in emergency vehicles with communication systems may affect accuracy.
SpO2measurements may be adversely affected in the presence of high ambient light.
The device should not be used adjacent to or stacked with other equipment. If adjacent or stacked
use is necessary, the device should be observed carefully to verify normal operation.
The use of accessories, sensors, and cables other than those listed in this manual may result in
increased emission and /or decreased immunity of this device.
DO NOT use the oximeter for diagnosing or treating any illnesses.
Cautions!
Before using any sensor, carefully read the direction for use.
Do not, under any circumstance, perform any testing or maintenance on the wrist oximeter before
and after it is being used.
Verify that all visible indicators appear during the start-up (initialization) sequence. If any indicator
does not appear, do not use wrist oximeter. Contact Choice Customer support for assistance.
Field strengths from fixed transmitters，such as base stations for radio (cellular/cordless) telephones
and land mobile radios，amateur radio，AM and FM radio broadcast towers and TVbroadcast towers
may affect accuracy.

V1.0W11 WRIST PULSE OXIMETER
5
If the wrist oximeter fails to respond as described, refer to “Error code”or discontinue until the
situation has been corrected by qualified personal.
Do not remove any covers other than the battery cover when replacing battery. There are no user-
serviceable parts inside.
Battery might leak or explode if used or disposed of improperly. Remove the battery if the oximeter
will be stored for more than 1 months.
Follow local governing ordinances and recycling instructions for disposal or recycling of the device
and device components including batteries.
The wrist oximeter is a precision electronic instrument and must be repaired by trained personnel
only.
The wrist oximeter measures arterial oxygen saturation of functional hemoglobin. Significant levels
of dysfunctional hemoglobin(caused by sickle cell anemia, carbon monoxide，etc.) could affect the
accuracy of the measurement.
Check the pulse oximeter sensor application site frequently to determine the positioning of the
sensor and the circulation and skin sensitivity of the user. If there is any discomfort on your
measured application，relocate the sensor to another finger.
Do not tamper with, or hang lanyard from the flexible circuit.
Warning!
DO NOT use the wrist oximeter when the alarms are required!
Unpacking and inspecting the wrist oximeter
Contact the carrier immediately if the shipping carton for the wrist oximeter is damaged.
Confirm that the items listed below are packed with the wrist oximeter:

V1.0W11 WRIST PULSE OXIMETER
6
Contents of package:
One 1.5V AAAalkaline Battery.
An instruction manual
Finger-clip sensor (model: M-50G07CSO)
One reusable wristband
MedView software CD
Data cable

V1.0W11 WRIST PULSE OXIMETER
7
CONTENT
1. General Description............................................................................................................................. 8
2. Inserting and Replacing the Batteries.........................................................................................10
3. Setting up the Wrist Oximeter and Attaching the Sensor.................................................... 11
4. Measurement.......................................................................................................................................17
5. Specifications......................................................................................................................................18
6. Error code.............................................................................................................................................21
7. Key symbols ........................................................................................................................................21
8. Maintenance and storage................................................................................................................22
9. Warranty and Repair..........................................................................................................................22
APPENDIX A Declaration of manufacturer..................................................................................25

V1.0W11 WRIST PULSE OXIMETER
8
1. General Description
The MD300W11 wrist pulse oximeter is not a medical device. It is just a device which is used for testing the
blood oxygen saturation and pulse rate. This device can help sport enthusiasts acquaint themselves with
their body situation during or after sport activities. It is intended to be used by outdoor sport enthusiast,
mountain climber, high-altitude sporter and gymnasium exerciser.
Scope of application: Outdoor sport; Athletics sport; Gymnasium exercise.
Note: The illustrations used in this manual may differ slightly from the appearance of the actual product.
1.1 Know your unit
Pic. 1
Description of picture 1:
①SpO2: Real-time SpO2value measured. (Now the value is 98%)
②PR: Real-time pulse rate value measured.(now the value is 65 pbm)

V1.0W11 WRIST PULSE OXIMETER
9
③: Pulse Strength bar graph, the height of the pulse bar graph is proportional to
the pulse amplitude.
④: Battery box cover.
⑤: Reusable Wristband
⑥: OK button / parameter selection button
⑦: Power / data setting button, press this button for a long time, you can turn on
or turn off the unit; under setting menu, press this button for a short time, you can set
the data.
⑧: Low battery voltage
⑨: Sensor
1.2 Product Features
Exquisite, compact & light design.
Displaying & recording SpO2&PR rate.
Wearing around wrist, very compact design, easy-to-carry on hand, a weight of only 26g.
Asafe and convenient design of keeping sweat outside the product.
One AAAbattery, easy to replace
Low power consumption.

V1.0W11 WRIST PULSE OXIMETER
10
Pic. 2

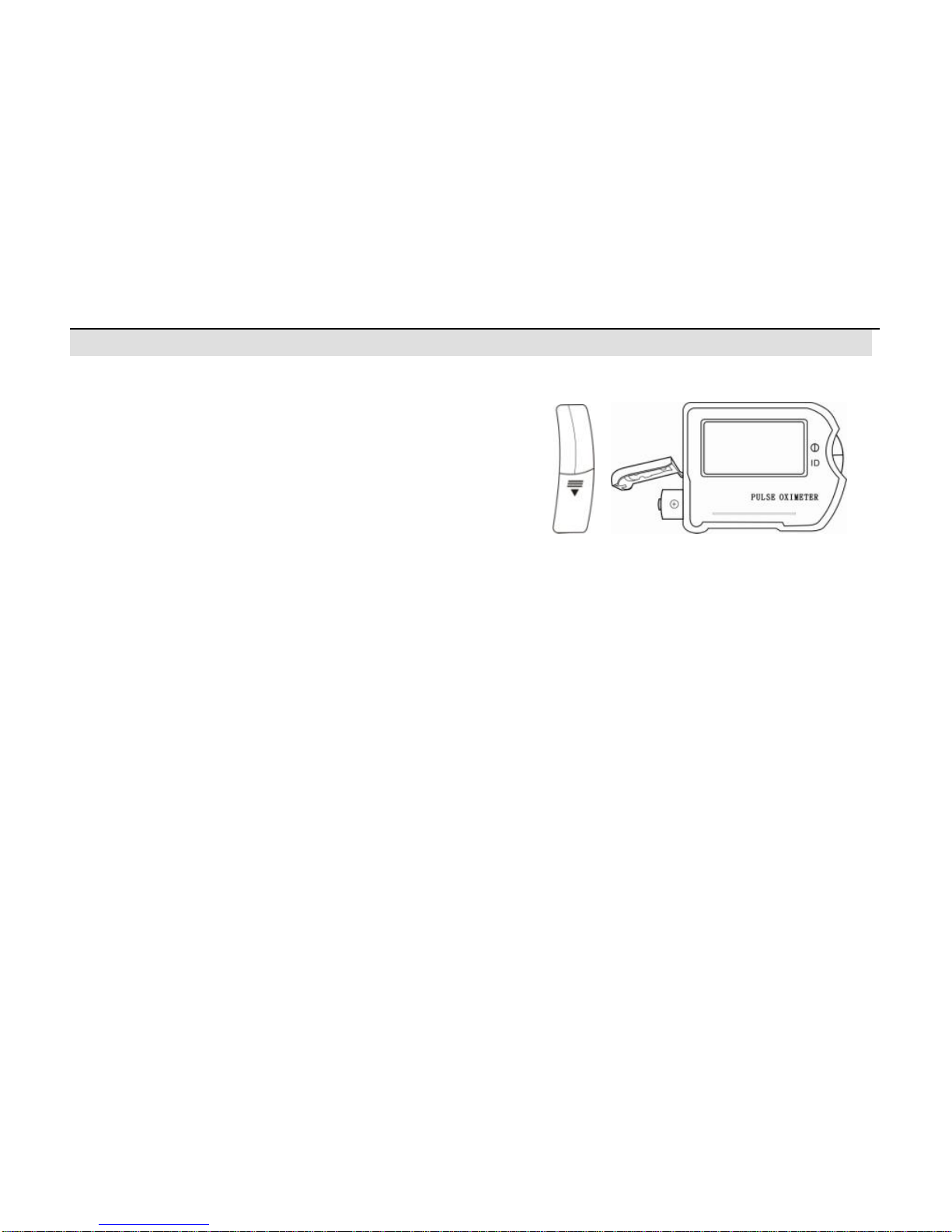

2. Inserting and Replacing the Batteries
(1). Pull the battery cover indicated by the arrow, and lift the end of the cover upwards.
Note: Do not pull too hard on the cover.
(2). Insert one battery as indicated in Picture 2.
Note: Make sure that install the battery with correct battery
polarity.
(3). Remove the old battery and discard or recycle them
according to local applicable regulations.
(4). Carefully re-position the battery cover. Do not force the
cover into place; it fits only when positioned properly.
(5). If the wrist oximeter does not turn on when you press the power on button, reinsert the battery.
Note:
The battery indicator will appear when the voltage is too low, please replace the battery in time.
The Wrist Oximeter contains non-volatile memory, so removing or replacing batteries will not affect the
data saved in memory. Stored data will remain in memory until overwritten by newer data or cleared from
memory with MedView software.

V1.0W11 WRIST PULSE OXIMETER
11
3. Setting up the Wrist Oximeter and Attaching the Sensor
3.1 Use the following procedure to thread the wrist strap and attach the sensor.
1. Begin threading the short of the wrist strap through the spring bars on the rear of the Wrist Oximeter.
As illustrated below, the spring bar near the top of the Wrist Oximeter should be threaded first.
2. Continue threading the wrist strap until it is pulled securely through both spring bars on the rear of the
Wrist Oximeter.
.
Pic. 3 Pic. 4 Pic.5
3. Press the long segment of the wrist strap securely against the already-threaded strap. The Wrist
Oximeter is now securely mounted on the wrist strap.
Pic. 6 Pic. 7
4. Apply the wrist band securely and comfortably around the user’s wrist.

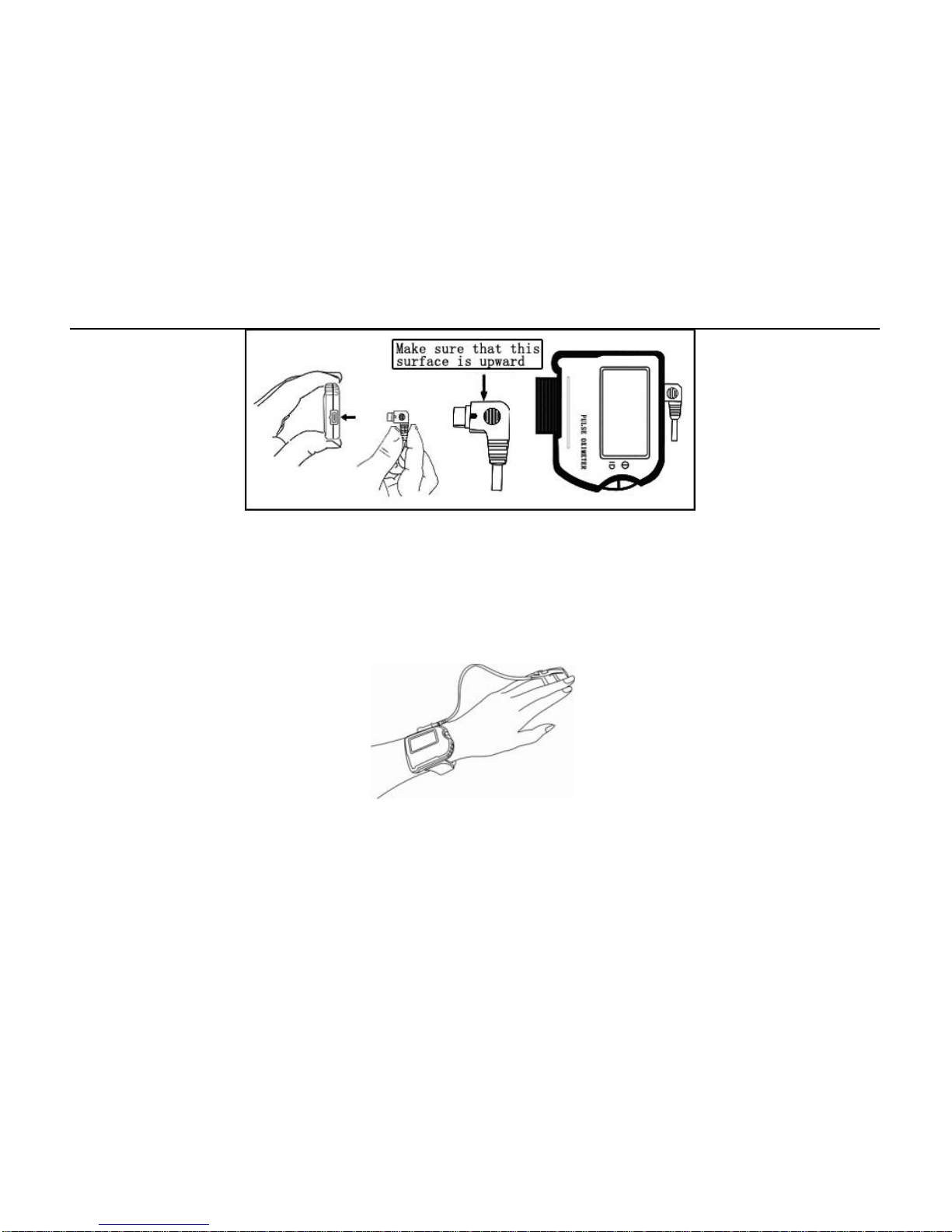

5. Plug the sensor into the connector at the top of the wrist oximeter, ensuring that the sensor is plugged
correctly and firmly, refers to picture 8.

V1.0W11 WRIST PULSE OXIMETER
12
Pic.8
NOTE: DO NOT insert the sensor incorrectly; otherwise there is no Oxygen Saturation signal.
1. Place the user’s finger inside the sensor. Refer to the respective sensor instructions for specific
information about placement and user safety, shown as picture 9.
2. Place the user’s finger inside the sensor. Refer to the respective sensor instructions for specific
information about placement and user safety, shown as picture 9.
Pic.9

V1.0W11 WRIST PULSE OXIMETER
13
3.2 ID &Time setting
Please set the ID number and time before the first measurement. Set different ID numbers for
different users.

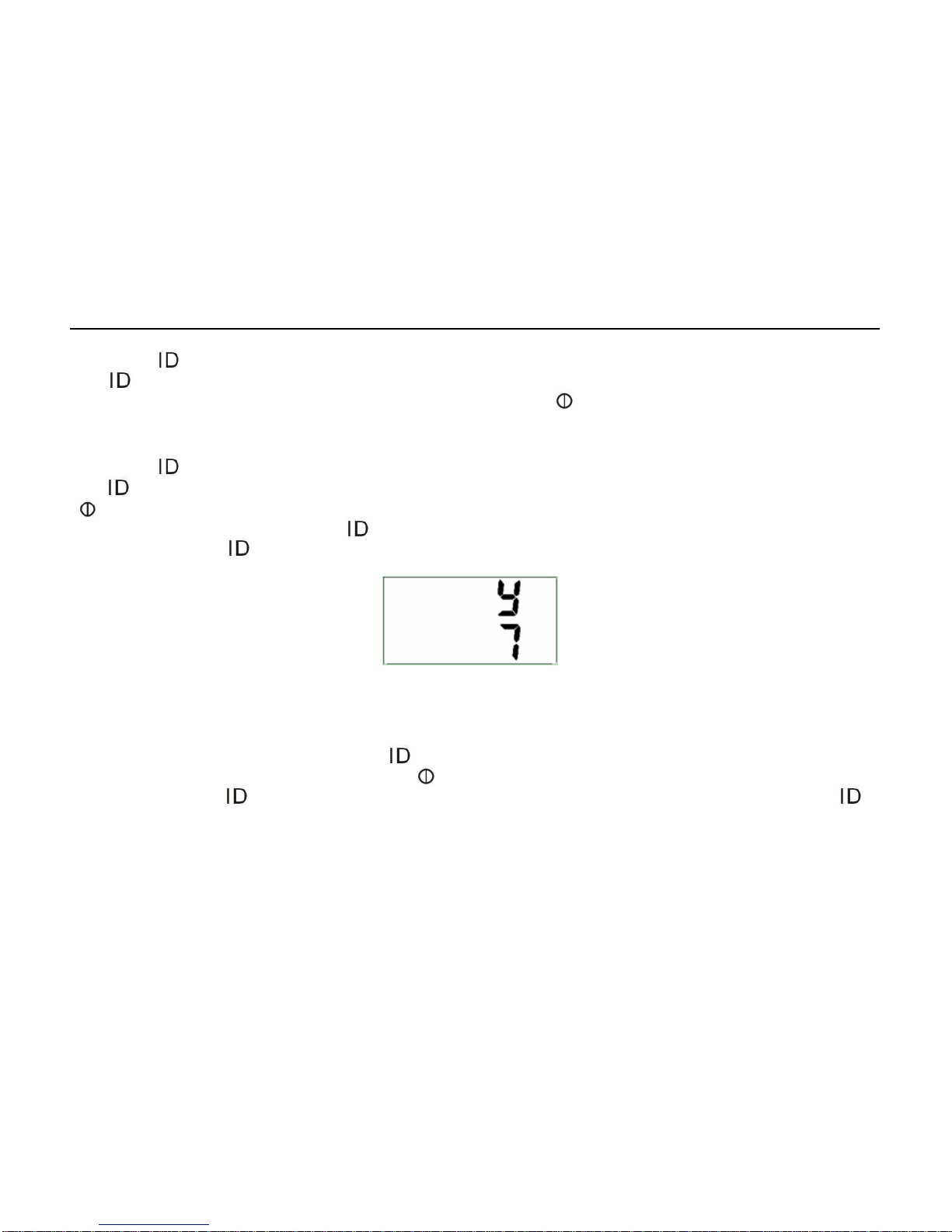

3.2.1 ID Setting
Press the “ ” button for about three seconds to start up the unit.
Refer to picture 10. Pic.10
The display screen will be highlighted for self-test when powered on. And then the next screen will display
the version of the software.
If there is no probe inserted, after powering on, the following information will appear shown as Pic.11. If the
probe is inserted into the oximeter but no finger, the information will be shown as Pic.12.
Pic.11Pic.12Pic.13
Regardless of the information press the “ ” button for about 3 seconds, then you will enter into the
screen(Pic.13):
Then press the “ ” button and the Id number will change from 1~10. Set the number and then press the
“ ” button for a short time, you will save the settings and enter into the time setting screen. If you press the
“ ” button for about 3 seconds, you will return to the measuring screen.
Note: If the ID number is one, the measurement result will be saved automatically.

V1.0W11 WRIST PULSE OXIMETER
14
3.2.2 Time setting
Press the “ ” button for about three seconds to enter into the parameter setting screen. And then press
the “ ” button for one second repeatedly, the parameter will display as following order: ID, Y (year), No
(month), d (date), H (hour), N1 (minute), S (seconds). Press the “ ” to set the correct number.
3.2.2.1 Year setting
Press the “ ” button for about three seconds to enter into the parameter setting screen. And then press
the “ ” button for one second repeatedly, to enter into the year setting picture shown as picture 14. Press
“ ” button to set the right year. The setting range is 0~20, it means that the year is from 2000 to 2020. After
finishing setting the year, press the “ ” button for about one second to enter into other parameter setting
screen or press the “ ” button for about three seconds to return to the measuring screen.
Pic.14
3.2.2.2 Month setting
After finishing setting the year, press the “ ” button for about one second to enter into the month setting
screen shown as Pic.15, And then press the “ ” button to set the right month. The setting range is 1~12.
And then press the “ ” button for about one second to enter into the date setting screen or press the “ ”
button for about three seconds to return to the measuring screen.

V1.0W11 WRIST PULSE OXIMETER
15
Pic.15
3.2.2.3 Date setting
After finishing setting the month, press the “ ” button for about one second to enter into the date setting
screen shown as Pic.16, and then press the “ ” button to set the right date. The setting range is 1~31. And
then press the “ ” button for about one second to enter into the hour setting screen or press the “ ”
button for about three seconds to return to the measuring screen.
Pic.16
3.2.2.4 Hour setting
After finishing setting the date, press the “ ” button for about one second to enter into the hour setting
screen shown as Pic.17, and then press the “ ” button to set the right hour. The setting
range is 0~23. And then press the “ ” button for about one second to enter into the minute setting screen
or press the “ ” button for about three seconds to return to the measuring screen.

V1.0W11 WRIST PULSE OXIMETER
16
Pic.17
3.2.2.5 Minute setting
After finishing setting the hour, press the “ ” button for about one second to enter into the minute setting
screen shown as Pic.18, and then press the “ ” button to set the right minute. The setting range is 0~59.
And then press the “ ” button for about one second to enter into the minute setting screen or press the
“ ” button for about three seconds to return to the measuring screen.
Pic.18
3.2.2.6 Second setting
After finishing setting the minute, press the “ ” button for about one second to enter into the second
setting screen shown as Pic.19, and then press the “ ” button to set the right minute. The setting range is
0~59. And then press the “ ” button for about one second to enter into the minute setting screen or press
the “ ” button for about three seconds to return to the measuring screen.
After setting parameter, you can measure the SpO2 & PR.

V1.0W11 WRIST PULSE OXIMETER
17
Pic.19
4. Measurement
(1). After parameter setting, you can press the “ ” button for about three seconds to return to the
measuring screen.
Place the user’s finger inside the sensor shown as the picture 20. Refer to the respective sensor
instructions for specific information about placement and user safety.
The signal searching picture is shown as Pic.21.
Pic.20 Pic.21 Pic.22
(2). The measuring result shown as Pic.22.
Description of picture 22: The SpO2value is 89% and the PR value is 68bpm.
Important：Any of the following conditions may reduce the performance of the wrist oximter:
-----Flickering or very bright light；
-----Weak pulse quality；

V1.0W11 WRIST PULSE OXIMETER
18
-----Arterial catheters；
-----Nail polish，and/or artificial nails；
-----Any tests recently performed on you that required an injection of intravascular dyes.
NOTE: Inaccurate measurement can be caused by：
Incorrect application of the sensor.
Placement of the sensor on an extremity with a blood pressure cuff, arterial catheter, or intravascular
line.
User’s moving.
5. Specifications
5.1 Parameters
SpO2:
Display range：0%～100%
Measuring range：70%～100%
Measuring accurate:80%～100%±2% ; 70%～79%±3% ; ＜70% unspecified.
PR
Displaying range:0～254bpm
Measuring range: 30～235bpm
Measuring accurate: 30～100bpm ±2bpm ; 101~235bpm ±2%.
5.2 Operating conditions
Temperature: 5℃～40℃

V1.0W11 WRIST PULSE OXIMETER
19
Relative humidity: ≤80%, no condensation
Atmosphere pressure: 86kPa～106kPa
Power supply:DC 1.5V
Battery: One AAA alkaline battery.
Continuous measurement time:Twelve hours
5.3 Package & Storage conditions
Temperature: -20℃～55℃
Relative humidity: ≤93%, no condensation
5.4 weight & Dimensions
Weight: 26g
Dimension: 60mmX50mmX20mm （length×width×height）
5.5 Automatic storage
Total storage time: 30 h
Frequency: the interval between two records is 1s.
Note: Data is saved automatically, when the oximeter is started. If the register of the oximeter is full, the
newest data will replace the oldest data.
5.6 Data transmission
Transmission method: Cable transmission
Data Cable Interface: USB
Note: Connect the oximeter with the computer by the data cable, then you can transmit data saved in the
oximeter to the computer through the transmission software, refers to the transmission software’s
manual.

V1.0W11 WRIST PULSE OXIMETER
20
5.7 Indication function
Battery power indication: When the battery voltage is less than 1.2V, the low power indication light will
be lighted; when the battery voltage is less than 1.1V, the unit will power off automatically.
Probe off indication: when the probe is not connected to the unit, the following indication picture will
appear. Refer to Pic.11.
No finger indication: when the probe is connected to the unit but the finger is out, the following indication
picture will appear. Refer to Pic.12.
Error 1 indication, refer to picture 23; Error 2 indication, refer to picture 24; Error 13 indication, refer to
picture 25.
Pic.24
Pic.23
Pic.25
