48" and 52" Hyflo® Fans
Installation and Operators Instruction Manual
MV1832P
November 2016

Fan and Fan Framing Dimensions 48" and 52" Hyflo® Fans Installation and Operators Instruction Manual
2MV1832P
z
Fan Dimensions
Fan Spacing
The Fan Inlet and exhaust must be kept clear of obstructions. Failure to keep the Fan
airflow path clear of obstructions could cause loss of Fan performance and Fan damage.
Fan and Fan Framing Dimensions
MV1832-003 7/04
Item 48" Hyflo®
49451-XX
48" Hyflo®
(9 Inch Panels)
49515-XX
52" Hyflo®
49511-XX
52" Hyflo®
(9 Inch Panels)
49519-XX
1 Bottom Length 41-7/8" [106.36 cm] 41-7/8" [106.36 cm] 44" [111.76 cm] 44" [111.76 cm]
2 Vertical Dim. of Cone 59" [149.9 cm] 59" [149.9 cm] 64" [162.56 cm] 64" [162.56 cm]
3 Shroud Mounting Surface 5-1/8" [13.02 cm] 9-1/8" [23.18 cm] 5-1/8" [13.02 cm] 9-1/8" [23.18 cm]
4 Screen Depth 12.35" [31.37 cm] 12.35" [31.37 cm] 12.35" [31.37 cm] 12.35" [31.37 cm]
5 Vertical Dimension of Cone 2-5/16" [5.87 cm] 2-5/16" [5.87 cm] 4-1/8" [10.48 cm] 4-1/8" [10.48 cm]
Figure 1. Fan Dimensions
5
2
13
4
MV1747-017 04/03
2
3
2
Item 48" Hyflo®52" Hyflo®
1 4" [10.16 cm] Minimum 8" [20.32 cm] Minimum*
2 55" [139.7 cm] 56-1/2" [143.51 cm]
*52" models can be mounted 3.5" apart if Cone Clips are
used. See Figures 16 and 17.
Figure 2. Fan Spacing
Planning the layout of the spacing between Fans is very
important. Spacing too close together will cause interference
between the discharge Cones. The Rough Opening
dimensions for Fans are shown above.
1
Do Not operate these Fans with a variable speed control device. Operating static pressure should be less
than 0.15 inches water column.

48" and 52" Hyflo® Fans Installation and Operators Instruction Manual Fan Assembly/Installation
MV1832P 3
Assembly for 9" Panel Models (models 49515-XX and 49519-XX)

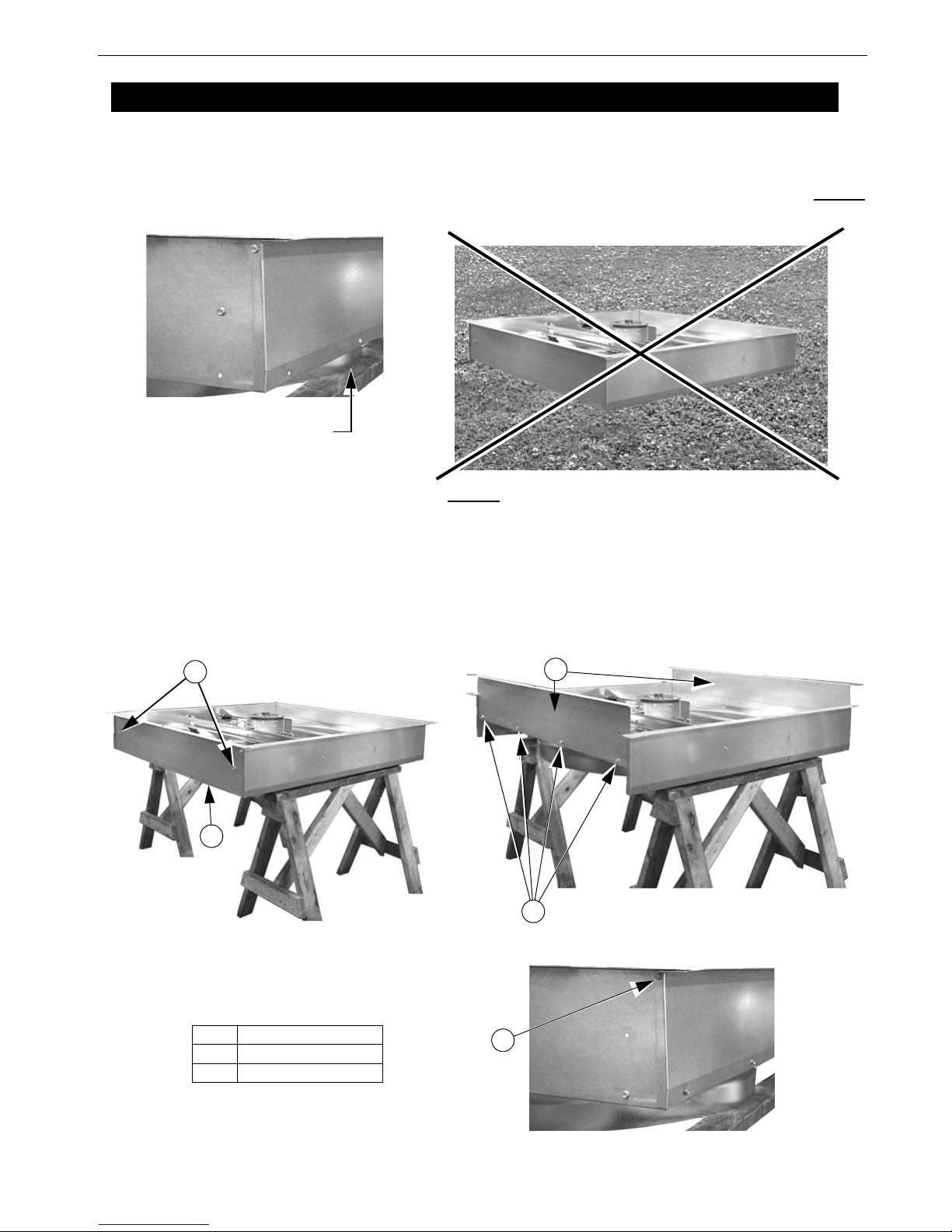

Hyflo® Fans with 9" panels need to be repositioned from their shipping position before they can be installed.
Remove the Fan from the Crate, and with the Blade down, rest the Fan Shroud orifice on sawhorses. Do Not
rest the Fan on the blade. (See Figure 3 below)
Remove the 1/4 x 1/2" Screws from the Side Panels (Figure 4). Shift the Panels up until the second set of
holes in the Panels line up with the holes in the Shroud (Figure 5). Re-attach the Panels with the 1/4 x 1/2"
Screws as shown. Repeat the same procedure for the Top and Bottom Panels. The additional 1/4 x 1/2"
Screws that are required are included in the Parts Package. Once all of the Panels have been shifted attach
the Panels at the corners with 1/4 x 1/2" Screws.
Fan Assembly/Installation
Fan Shroud orifice
resting on Sawhorse
Figure 3. Orifice resting on
Sawhorse Do Not lay Fan on the ground with the weight of the Fan
on the Fan Blade.
Item Description
1 Side Panel
2 1/4 x 1/2" Screw
Figure 4. 9" Remove Screws
Figure 5. Shift Side Panels and re-attach
Figure 6. Attach Panels at Corners
3
2
3
1
3
2
3
1
3
2

Fan Assembly/Installation 48" and 52" Hyflo® Fans Installation and Operators Instruction Manual
4MV1832P

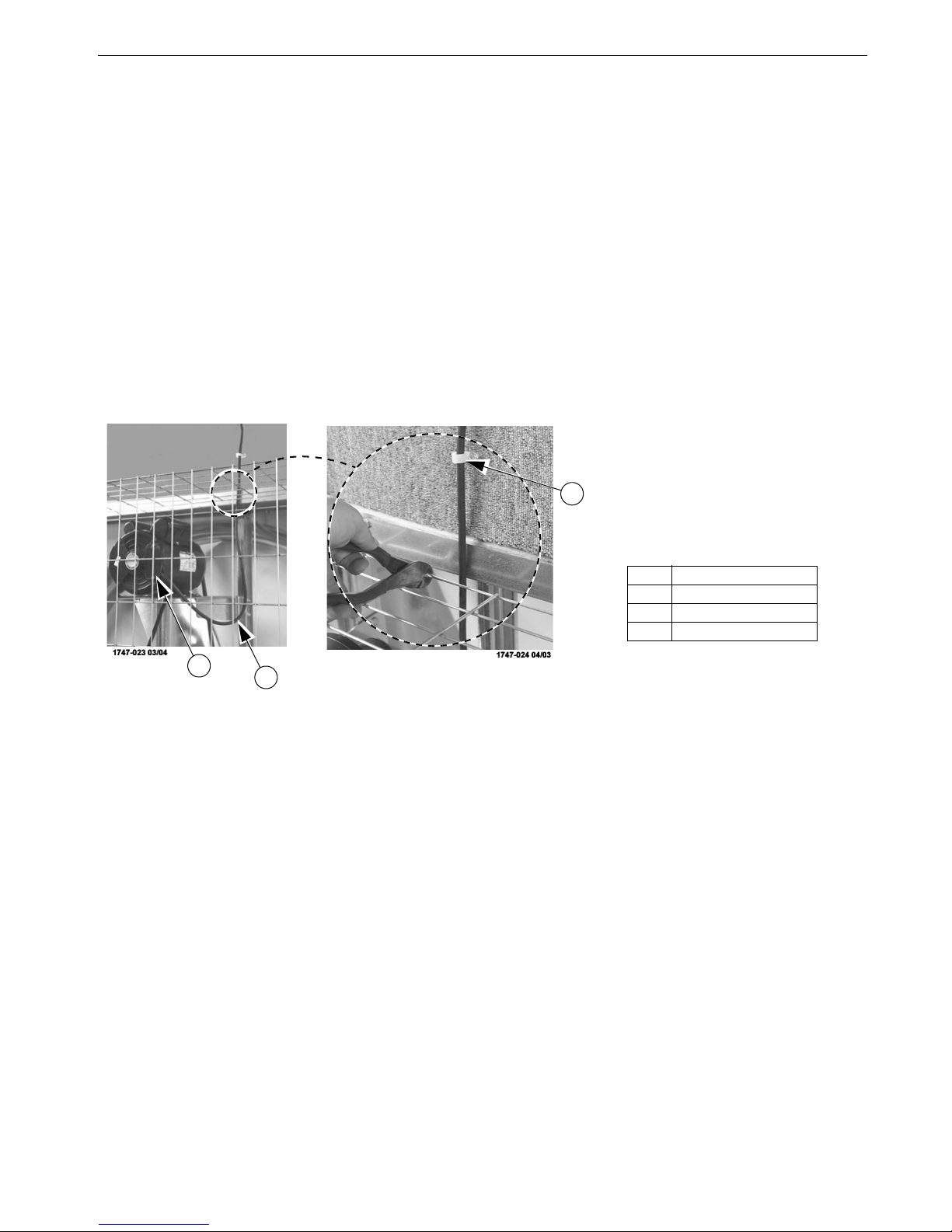

Screen Clips
Set the Fan into the framed opening, but leave it hang out a few inches to allow for the insertion of four
Screen Clips (Item 1, Figure 7). With the Screen Clips oriented with the tab lock as shown, push them into
the slots in the Fan Housing Panels and rotate them forward until they lock into place as shown. Slide the
Fan forward flush with the rough opening making sure that the Clips do not fall out.
Item Description
1 Screen Clip
Step 1: Set Fan into Rough
opening Step 3: Rotate Screen Clip to
lock into place
Step 2: Insert Screen Clip into slot
1Orient Screen Clip
Tab Lock
with tab lock as shown
Figure 7. Installing Screen
Clips
Step 4: Repeat Steps 1 through 3 for Bottom Screen Clips

48" and 52" Hyflo® Fans Installation and Operators Instruction Manual Fan Assembly/Installation
MV1832P 5
Attaching the Fan to the Wall
Slide the Fan assembly into the rough opening and starting with the two side hole locations (Detail A), use
1/4 x 1-3/4" Lag Screws (Item 1, Figure 8), two Nylon Washers (Item 2), and a Screen Retainer (Item 3)
to attach the Fan to the Wall as shown. Use 1/4 x 1-3/4" Lag Screws to attach the Fan at the four corners
(Detail B), and at center Top and Bottom (Detail C) as shown.
Securing Screen Clips on 52" Fans only
For 52" Fan applications, the Screen Clips (Item 4) on the Top Panel need to be secured in place by installing
a Lag Screw through the holes in the Panel and into the Framing as shown in Detail "D".
Motor Installation
Rotate the Motor Support Bracket into the upright position by removing the Upper Carriage Bolt and Nut
and loosening the Lower Bolt and Nut (See Figure 9). Rotate the Motor Support Bracket until it is
perpendicular to the Fan Posts and fasten with (4) 5/16 Carriage Bolts and (4) 5/16 Flange Nuts. Note that
the Nuts go outside the Posts. Remove the Motor from the Crate and attach it to the Motor Support Bracket
with (4) 5/16 Carriage Bolts and (4) 5/16 Flange Nuts as shown.
3
3
Figure 8. Installing Screen
Clips
Corner Hole Detail "B"
Center Hole Detail "A"
A
B
A
B
31
2
3
1
Key Description
1 1/4 x 1-3/4 SS Lag Screw
2 Nylon Washer
3 Screen Retainer
4Screen Clip
C
C
Top & Bottom Detail "C"
3
1
52" Screen Clip
B,D B,D
Detail "D"
3
1
3
4
Figure 9. Attaching the Motor Support Bracket
Item Description
1 Motor Support Bracket
2 5/16 Carriage Bolt
3 5/16 Flange Nut
Lower Nut and Bolt
Hidden by Fan Post
3
2
3
1
3
3
3
3 2 3
3
3
2
3
2
Upper

Fan Assembly/Installation 48" and 52" Hyflo® Fans Installation and Operators Instruction Manual
6MV1832P
Belt Installation

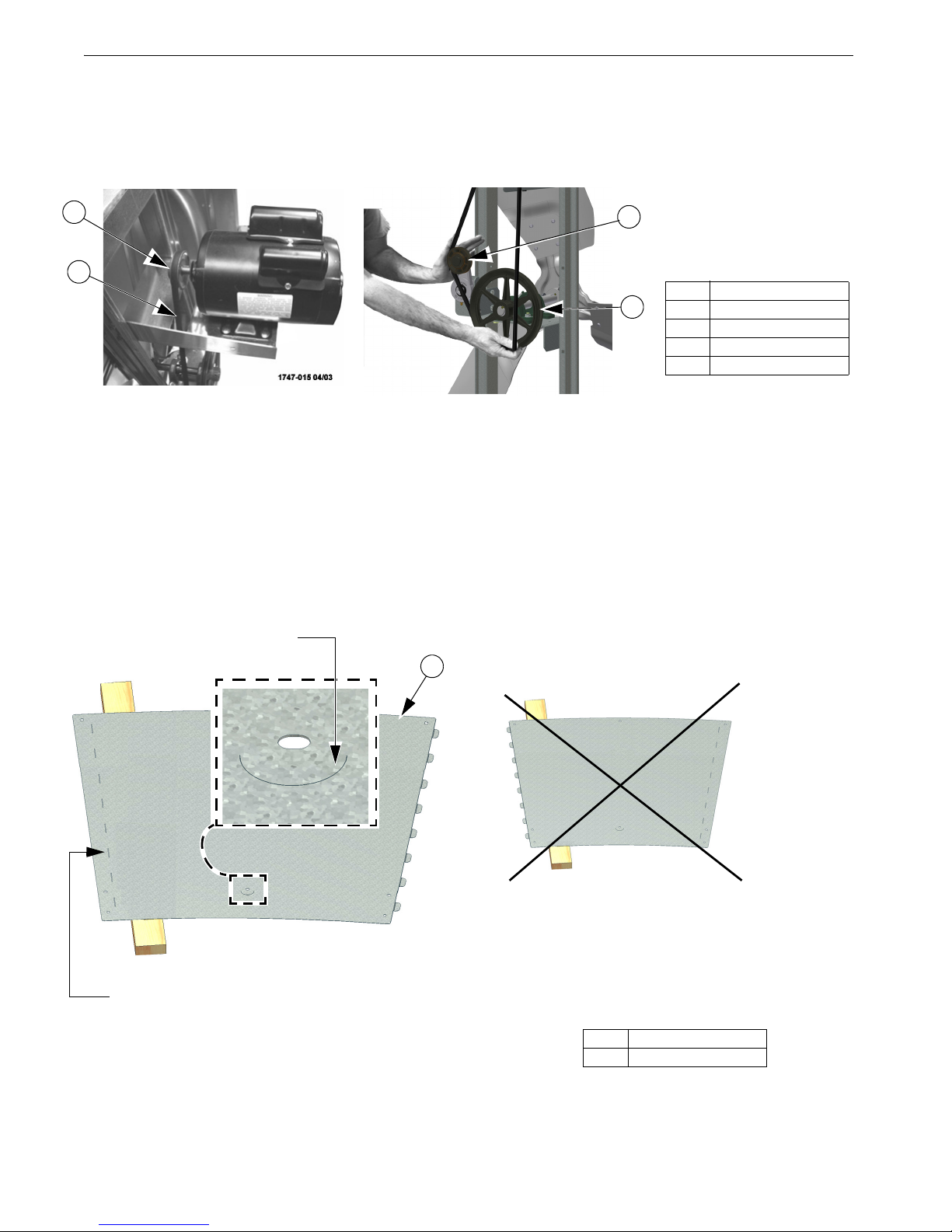

Guide the Belt through the Opening in the Motor Support Bracket and loop it over the Motor Sheave. Guide the Belt
around the Tensioner Sheave and push on it to get enough slack to put the Belt on the Driven Sheave as shown in
Figure 10. Make sure the Belt does not rub against the Motor Support Bracket.
Cone Assembly and Installation
3
Item Description
1Belt
2 Motor Sheave
3 Tensioner Sheave
4 Driven Sheave
1
3
2
4
Figure 10. Installing the Belt
Figure 11. Assembling Cone Panels
Slots in Cone Panel
C-Shaped Drain Tab
3
1
Item Description
1 Cone Panel
Wrong! Cone Panel is upside down
Step 1: Lay a Cone Panel down (Drain Tab at the bottom and slots to the left) and Prop the end up (Slotted
end) with a 2 x 4 board.

48" and 52" Hyflo® Fans Installation and Operators Instruction Manual Fan Assembly/Installation MV1832P 7
All Four Cone Panels Connected
Holes Nearest Cone Panels Edge
Step 5: Fasten the Cone Panels together with (4) 5/16" x 1/2"
Hex Bolts threaded from inside the finished Cone.
Do not tighten down the Nuts at this time. Leave the
Nuts loose until the Cone is attached to the Fan.
Step 4: Stand the Panels up on edge and curl the Panels
around making a Cone shape with the smaller
diameter up. Insert the Tabs of the last Panel into
the Slots of the 1st and allow the Cone to take its
shape.
Step 2: Insert the Tabs of the second Cone Panel into the
slots of the 1st Panel and lay it down locking the
two Panels together.
Step 3: Repeat Step 2 until all four Cone Panels are
locked together.
Figure 13. Assembling the Cone

Fan Assembly/Installation 48" and 52" Hyflo® Fans Installation and Operators Instruction Manual
8MV1832P
Installing Door Assembly
3
1
3
2
Figure 13. Installing the Door Assembly
Do not install Nuts
3
533
4
Item Description
1Tape
2 Nylon Cable
3 5/16 x 1-1/4" Bolt
4 5/16 Flange Nut
5 Door Center Brace
3
3
3
3
Step 1: Remove the Tape (Item 1) holding the Nylon Cable to the Door.
Step 2: Line up the Four Holes in the Door Ring with the holes in the Cone and thread (4) 5/16 x 1-1/4" Bolts
(Item 3) in until they are tight. Do not install Nuts at this time. These Bolts will be use later to attach
the Cone Brackets to the Cone Assembly
Step 3: Use (2) 5/16 x 1-1/4" Bolts (Item 3) and (2) 5/16" Flange Nuts (Item 4) to attach the Ring to the Cone
using the holes located on both sides near the Door Center Brace (Item 5) as shown. The Nuts go
outside the Cone.

48" and 52" Hyflo® Fans Installation and Operators Instruction Manual Fan Assembly/Installation
MV1832P 9
Attaching the Door Stop Cable (Nylon Cable) and Grill.
3
3
3
4
Nylon Cable
Flush with Cone
3
3
Item Description
1 Bottom Grill Eyehook
2 Door Stop Cable (Nylon Cable)
3 5/16-18 x .625 Carriage Bolt
4 5/16-18 Flange Nut
3
1
Figure 14. Installing the Door Stop Cable
Top of Door
3
2
3
4
Picture of Nylon Cable Secured
Step 1: Line up the Grill Eyehooks with the holes in the Cone. Thread the free end of the Nylon Cable
(Item 2) through the Bottom Grill Eyehook (Item 1) until it is flush with the Cone and secure it with
a 5/16-18 Carriage Bolt (Item 3) and Flange Nut (Item 4) as shown.
Step 2: Use 5/16 Carriage Bolts (Item 3) and Nuts (Item 4) to fasten
the Grill to the Cone at the remaining 7 locations.

Fan Assembly/Installation 48" and 52" Hyflo® Fans Installation and Operators Instruction Manual
10 MV1832P
Installing Fans 60"-64-1/2" on Center
If 52" Fans need to be installed 60"-64-1/2" on center, Cone Clips can be used to keep Cones from interfering with
one another. First, cut the two legs from the horizontal Screen wire as shown in Figure 16 below.
Holding a Cone Clip in place, Push in the side of the Cone and fasten with 5/16 x 1/2" Carriage Bolts and Flange
Nuts as shown in Figure 17 below.
Figure 16. Cutting Screen Legs for Installing Cone Clips
3
1
3
2
Item Description Part No.
1 Cone Clip 49504
2 5/16 x 1/2 Carriage Bolt -
3 5/16 Flange Nut -
52" Cone Fans with Cone Clips
Figure 17. Attaching Cone Clips
3
3

48" and 52" Hyflo® Fans Installation and Operators Instruction Manual Fan Assembly/Installation
MV1832P 11
Assembling the Cone to the Fan
Use 5/16 x 5/8" Carriage Bolts and 5/16 Flange Nuts to attach the four Cone Brackets to the Fan Shroud as shown
in Figure 18.
Mounting the Cone and Door Assembly on the Fan requires at least two people. Pick up and orient the Cone with
the Door Stop Cable (Item 1, Figure 19) attached at the top and rest the Cone on top of the Fan Orifice as shown.
Attach the top of the Cone to the Cone Brackets (Item 2) with the Bolts that were previously threaded through the
Ring and Cone and secure with 5/16 Flange Nuts (Item 3). Only hand tighten the Nuts at this time. Working around
the Fan Orifice from inside the fan, in a circular motion Slide the Cone over the Fan Orifice. The Cone will Fit snug.
Use the Bolts previously threaded through the Ring and Cone and the 5/16 Flange Nuts to secure the bottom of the
Cone to the Fan as shown. Use a Level and rotate the Cone until the Door center rail is Vertical (See Figure). Now
tighten all Hardware.
Figure 18. Attaching the Cone Brackets
Item Description
1 Cone Bracket
2 5/16 x 5/8" Carriage Bolt
3 5/16 Flange Nut
3
1
3
2
3
3
2
Cone resting on Fan Orifice
3
2
3
3
Item Description
1 Door Stop Cable
2 Cone Bracket
3 5/16 Flange Nut
Door Center Rail Vertical
Figure 19. Attaching the Cone
3
3
3
1

Fan Assembly/Installation 48" and 52" Hyflo® Fans Installation and Operators Instruction Manual
12 MV1832P
Door Spring Assembly
On the Door Assembly, at the middle of the Door Center Brace, attach the Spring Mounting Bracket (Included in
the Parts Package) as shown in Figure 20 below.
Hook the rounded ends of the Door Springs onto the Spring Mounting Bracket. Stretch the Door Springs out and
hook them in the 3/32" holes in the Doors (See Figure 21).
Item Description
1 Door Center Brace
2 Spring Mounting Bracket
3
2
3
1
Figure 20. Attaching the Spring
Figure 21. Attaching the Door Springs
3
1
Item Description
1 Spring Mounting Bracket
2 Door Spring
3 3/32" Hole in Door
3
2
3
3

48" and 52" Hyflo® Fans Installation and Operators Instruction Manual Fan Assembly/Installation
MV1832P 13
Cone Drain Tabs

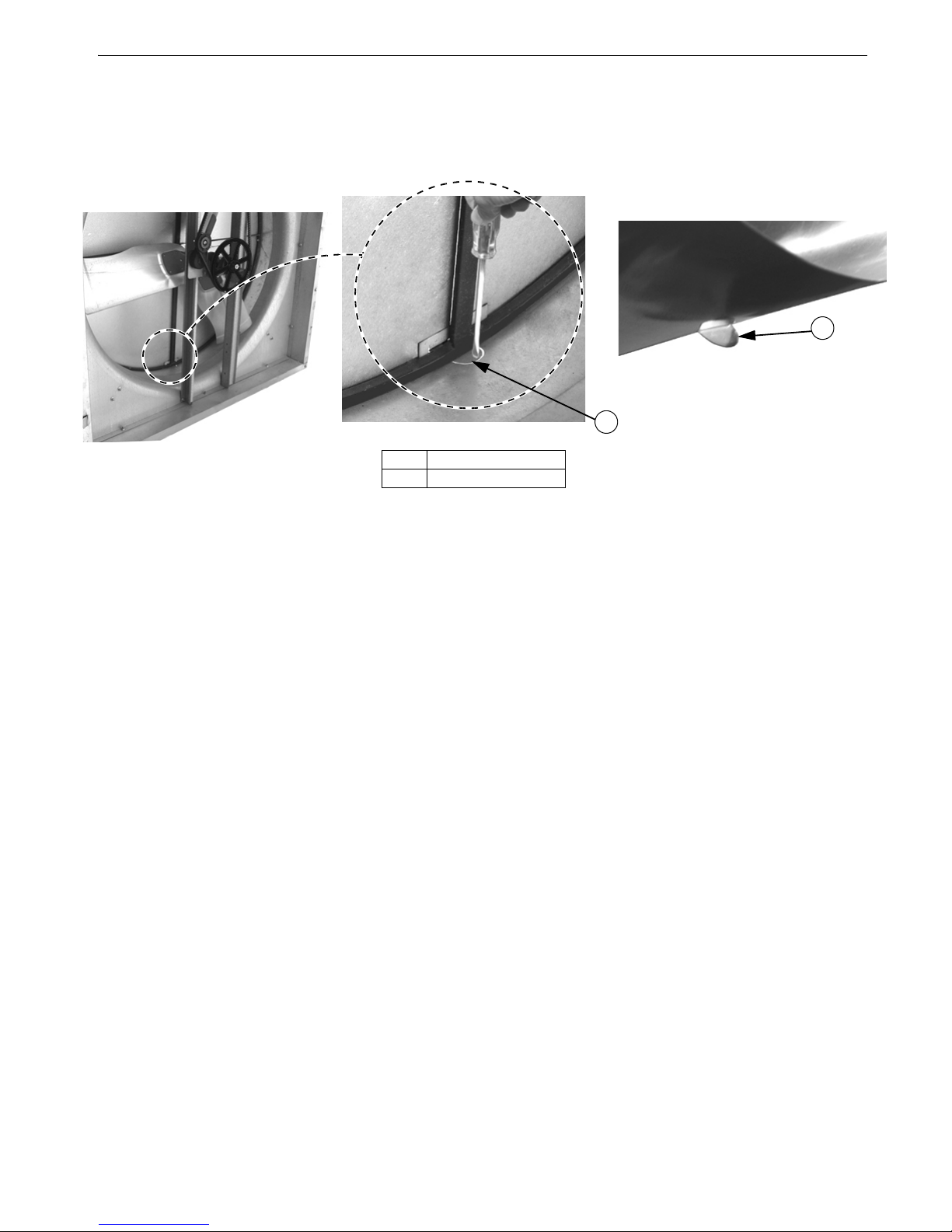

The Fan Cone is designed with a C-Shaped Drain Tab located at the back of the Bottom Cone Panel. Use a screw
driver to push the Drain Tab out as shown in Figure 22 below.
Figure 22. Cone Drain Tab
Item Description
1Drain Tab
3
1
3
1

48" and 52" Hyflo® Fans Installation and Operators Instruction Manual Fan Assembly/Installation
MV1832P 14
Assembling the screen
2. Install a spring (54480) in the
upper left corner following
steps A through D below. After
Step D is complete go to step 3.
A) Slide a Spring (54480)
over both Screen Panel Wires
exactly as shown.
B) Rotate the Spring Counter-
Clockwise until the end of the
Spring snaps over the Side Panel
Wire.
Snapped over Side Panel Wire
C) Slide and Pull Spring over
Corner Panel Wire.
D) Twist Spring Clockwise until it is passed
the outside wire and snapped firmly in place.
Spring snapped firmly
between wires.
1. Fold the Screen Sides as shown.
3. Rotate the Screen in the direction
shown installing a Spring at a second
corner. Repeat for remaining Corners.
Install Spring
per steps
A-D below.
Keep Rotating
Installing a Spring
at each Corner.
Adjust Screen Panels
so they are as even
as possible
Slide
Pull
Corner Wire

48" and 52" Hyflo® Fans Installation and Operators Instruction Manual Fan Assembly/Installation
MV1832P 15
Wiring
1. Check that the electrical power being supplied to the Fan matches the electrical Specifications on the Fan and
Motor Decals.
2. Remove the Motor Access Cover.
3. Install an electrical disconnect within reach of each Fan installed.
4. Connect the cord to the motor according to the wiring diagram on the motor. Verify that the motor is connected
for counter clockwise rotation (viewing the back of the motor, opposite the shaft end.)
5. Follow local, state, and national electrical codes for wiring. Cut out one section of the Screen to route the cord
out of the Fan: This will allow for the Screen to be removed without interfering with the Cord. (See Figure 23).
Attach the cord to the Wall using a Lag Screw and Cord Clip. Allow enough slack in the cord to form a "drip
loop" for moisture to fall away from the cord and not into the motor
NOTE: For variable frequency drive wiring, see instruction located in the 52"
Hyflo frequency drive kit (part no. 51738).
Item Description
1 Motor Access Cover
2 Cord Clip
3 Drip Loop
3
1
3
2
3
3
Figure 23. Cut out Screen for Motor Wiring

Fan Assembly/Installation 48" and 52" Hyflo® Fans Installation and Operators Instruction Manual
16 MV1832P
Installing the Screen
1/8" Tab
Screen Wire
3
3
Front of Screen Cut away for Clarity
Screen Wire
Item Description
1Screen
2Screen Clip
3 Screen Retainer
3
1
3
2
3
2
3
3
Figure 24. Installing the Screen
Step 1: Hang the Screen (Item 1) on the four Screen Clips (Item 2) and position it so the Screen Wire is
captured between 1/8" tall Tabs and Screen Retainers (Item 3).
Step 2: Rotate the two Screen Retainers to
capture the Screen.

48" and 52" Hyflo® Fans Installation and Operators Instruction Manual Maintenance
MV1832P 17
IMPORTANT! Disconnect Power Prior To Maintaining Or Cleaning The Fan. The fan may start automatically
causing serious injury or death.
• Service and repair of fans should be done only by a qualified technician.
•Minimize contact of moisture or corrosive chemicals to the surfaces of the fan components to maximize fan life.
•After washing fans, operate fans long enough to remove moisture from all fan surfaces.
• Keep the fan clean for maximum life and best performance. Do Not spray water on the Fan Shaft Bearings, the
Belt Tensioner, or the Motor.
• Periodically check the V-Belt and replace if necessary. A worn Belt will cause a substantial drop in Fan perfor-
mance or it can break and cause Fan failure. If a Belt rides below the Sheave edge, replace the belt. (See Figure
25 below)
• Check Belt Tension. The Belt should be
tensioned just tight enough to minimize
Belt slippage. Over tensioning the belt
will cause premature Belt and Bearing
wear. With a new Belt the Idler Sheave
indicator mark should line up with the
third notch in the Tensioner Housing (See
Figure 26).
• Keep Shutters, Blades, and Housing clear
of obstacles for best air performance.
•Check Sheaves for wear. Replace if a Sheave groove is worn. (See Figure 27)
Maintenance
Bad Belt
Good Belt
1747-054 04/03
Bad Belt (Needs Replaced)
Figure 25. Belt Condition
Third Notch Idler Sheave Indicator Mark
Figure 26. Idler Sheave Indicator
Belt Tensioner
Bad Sheave
1747-053 04/03
Bad Sheave (Needs Replaced)
Good Sheave
Figure 27. Sheave Condition

Maintenance 48" and 52" Hyflo® Fans Installation and Operators Instruction Manual
18 MV1832P

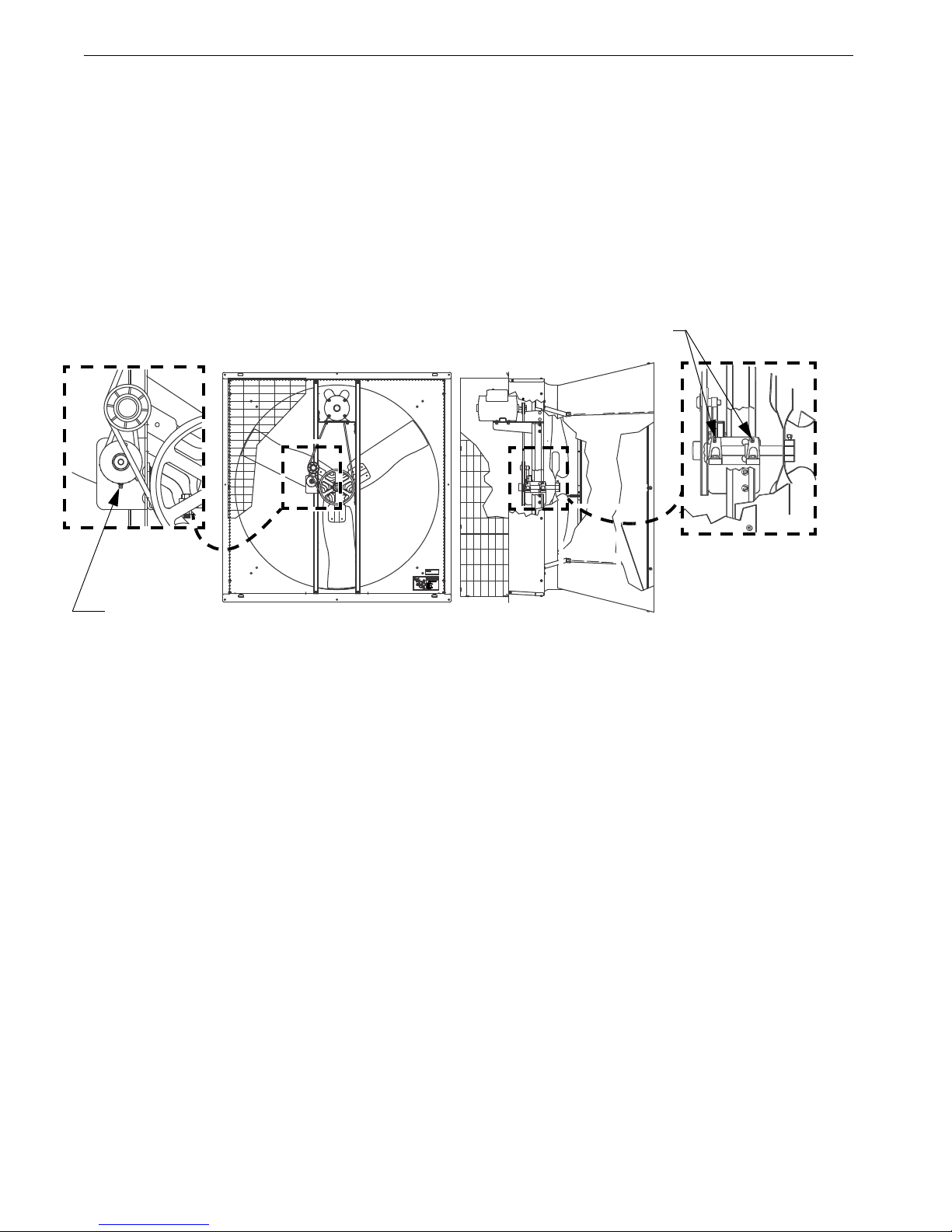

Fan Bearing and Belt Tensioner Lubrication
• Grease zerks are provided for lubrication on the fan shaft bearings and the belt tensioner.
• Lubricate the fan every 2-6 months or whenever these components get wet.
• Disconnect power to the fan before lubricating.
• Clean the zerk before lubricating to prevent contamination from entering the bearing.
• Use a high quality lithium based, NLGI #2, grease such as Shell Gadus S2 V100 2. Do not use incompatible greases
containing aluminum, barium, calcium, bentonite clay or polyurea thickeners.
• Slowly rotate the fan shaft by hand while slowly applying the grease. Rapidly applying grease to a stationary bearing
can damage the bearing seals.
• Apply about .10 oz (2.8 g, 3.1 cc) of grease at a time or until a slight amount of grease can be seen purging from the
seal.
Grease Zerk
Grease Zerk

48" and 52" Hyflo® Fans Installation and Operators Instruction Manual Maintenance
MV1832P 19
This page left blank intentionally.....

Hyflo® Fan Parts (Manufactured after July 2007) 48" and 52" Hyflo® Fans Installation and Operators Instruction Manual 20 MV1832P
See page 22 for Fans manufactured September 2004 to July, 2007.
Hyflo® Fan Parts (Manufactured after July 2007)
3
10
3
4
3
16
15
3
14
3
63
3
3
3
25
3
3
32
3
31
28
333
3
26
2
11
3
20
38
3
9
3
3
34
3
29
3
30
3
27
3
5
13
12
Fan Part Number
Note: For Fans with Part Numbers
beginning with 48320 or 48483 refer
to Chore-Time manual MV1747
24
3
35
DOM MMDDYY
Date of Manufacture (Month-Day-Year)
3
3
22
21
Shutter Clips and Nylon Washers
included in parts package.
19
36
3
7
18
1
3
23
3
37
