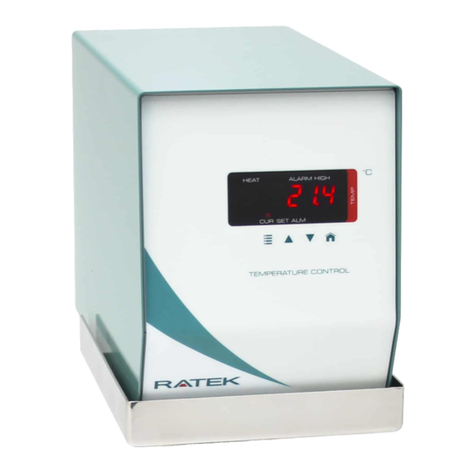

User Manual TH7000 – Digital Immersion Heater Circulator

Ratek TH7000 Digital Immersion Heater Circulator - User Manual
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Page 2 of 23
Thank you
Thank you for purchasing a Ratek product.
This User Manual will assist you in the correct installation and operation of the Digital Immersion Heater Circulator, as well as explain
the safety requirements for its use.
Important: Please read the contents of this User Manual before unpacking and operating the product.
Unpacking and Checking
Once you have read these instructions in full and understand the installation and safety requirements including those for unpacking the
carton, please carefully open the packing and slowly remove the product. Carefully inspect the condition of the product to ensure it has
not been damaged in transit. Any damage should be reported immediately to the responsible carrier. If the product is damaged in any
way, re-pack the product into the supplied packaging and notify the responsible carrier immediately.
Important: Do not operate the equipment if it has been damaged in any way. Any failures resulting through the use of a
damaged product will not be covered by the product warranty.
Carton Contents
Ensure that you have received all items outlined below before proceeding. If you have not received all components in the supplied
carton, please re-pack the carton and notify a Ratek Service representative immediately. Contact details are provided in the section of
this User Manual titled “Ratek Service Contact Information”
-TH7000 Ratek Immersion Heater Circulator
-User Manual

Ratek TH7000 Digital Immersion Heater Circulator - User Manual
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Page 3 of 23
Table Of Contents Page
Cash Bo
INTENDED USE ............................................................................................................................................................................................ 4
Suitable Articles For Use With This Immersion Heater Circulator................................................................................................................. 4
Unsuitable Articles For Use With This Immersion Heater Circulator ............................................................................................................. 4
Suitable Environments For The Immersion Heater Circulator....................................................................................................................... 4
General Operation.................................................................................................................................................................................. 4
OPERATOR RESPONSIBILITY – SAFETY CONSIDERATIONS .............................................................................................................................. 4
Conditions of Operation .......................................................................................................................................................................... 4
Safety Labels And Markings .................................................................................................................................................................... 5
PREPARATION ............................................................................................................................................................................................. 7
Identification of Controls & Functions ....................................................................................................................................................... 7
Recommended Liquids............................................................................................................................................................................. 8
Safety Warnings .................................................................................................................................................................................... 8
Safety Recommendations........................................................................................................................................................................ 8
Preparation & Installation ..................................................................................................................................................................... 10
Unpacking and Installing........................................................................................................................................................................ 10
Filling The Water Bath .......................................................................................................................................................................... 11
Adjusting the Mounting Clamp............................................................................................................................................................... 12
Switching On The Immersion Heater Circulator ....................................................................................................................................... 13
OPERATING INSTRUCTIONS........................................................................................................................................................................ 14
Setting the Over Temperature Alarm ..................................................................................................................................................... 14
Loading/Un-Loading the Water Bath ....................................................................................................................................................... 15
Switching Off The Immersion Heater Circulator ....................................................................................................................................... 15
Over Temperature Safety Cutout........................................................................................................................................................... 1
Storing & Relocating ............................................................................................................................................................................ 1
ROUTINE CLEANING AND MAINTENANCE.................................................................................................................................................... 17
Cleaning.............................................................................................................................................................................................. 17
Maintenance ....................................................................................................................................................................................... 18
Over-Temperature Safety Cutout Test.................................................................................................................................................... 18
TECHNICAL SPECIFICATIONS ...................................................................................................................................................................... 20
DISPOSAL ................................................................................................................................................................................................. 20
EMC CONFORMITY..................................................................................................................................................................................... 20
RATEK SERVICE CONTACT INFORMATION.................................................................................................................................................... 21
TROUBLESHOOTING.................................................................................................................................................................................... 21
WARRANTY CONDITIONS........................................................................................................................................................................... 21

Ratek TH7000 Digital Immersion Heater Circulator - User Manual
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Page 4 of 23
Intended Use
This Immersion Heater Circulator is intended for the purpose of heating water in a laboratory water bath or inside other containers
designed for the purpose. The operator may load a suitable article into the water bath for the purpose of controlled temperature
application. The Immersion Heater Circulator is intended for use with tap water or filtered water only, as well as suitable additives
where required as outlined in this User Manual.
The Immersion Heater Circulator is not intended for use with any medium other than those outlined in this User Manual. The Immersion
Heater Circulator is not intended to provide direct contact between the medium (water) and an unprotected medical, food, biological or
medico-techno item. In all cases the item should be enclosed in a suitable vessel as described below to protect it from coming into
contact with the Immersion Heater Circulator.
Suitable Articles For Use With This Immersion Heater Circulator
•Plastic or glass laboratory test tubes that are sealed, waterproof and rated to withstand the intended temperature.
•Plastic or stainless steel laboratory test tube racks that are rated to withstand the intended temperature.
• An example of a suitable article would be a sealed plastic laboratory centrifuge tube filled with blood.
Unsuitable Articles For Use With This Immersion Heater Circulator
•Any item where the article is not waterproof or may result in its contents coming into contact with the Immersion Heater
Circulator or the heating medium (water).
•Any item that is not rated to withstand the intended temperature.
• An example of an unsuitable article would be an exposed piece of animal or plant matter.
Suitable Environments For The Immersion Heater Circulator
The Immersion Heater Circulator is intended for use in a clean laboratory environment only where adequate ventilation, a good
power supply and provisions for routine cleaning are available. The Immersion Heater Circulator should not be used outdoors or
in dirty, dusty, steamy, humid or windy environments. The acceptable operating conditions are outlined further in this User
Manual.
General Operation
•The Immersion Heater Circulator is mounted onto a suitable laboratory water bath or other rigid water container using
the adjustable mounting clamp, retort mounting boss or water bath bridge plate.
•The water bath or vessel is filled with water following the safety guidelines contained within this User Manual.
•The Immersion Heater Circulator is plugged into an appropriate power source. It is powered by an alternating current
power supply with protective earth and with the appropriate receptacle, rated voltage and frequency for the country of
its intended use. Further details on power requirements are outlined in this User Manual.
•A suitable article (as defined above) is placed inside the water bath or vessel.
•The Immersion Heater Circulator is operated via a combination of front and rear panel buttons and switches consisting of
a power switch, temperature control buttons and menu buttons. These controls allow the operator to set a required
water temperature as well as the over-temperature alarm set point..
•The Immersion Heater Circulator should be operated strictly in accordance with the Operating Instructions outlined
further in this User Manual.
Operator Responsibility – Safety Considerations
When operated in strict accordance with this User Manual, plus routine cleaning and maintenance being carried out, the product shall
provide safe operation for the operator. The operator should be aware of the following before installing and operating the product :
Conditions of Operation
*Note: The term “operator” referred to in this User Manual is the primary person who has been tasked to install, maintain
and train in the usage of this equipment. Other personnel shall be referred to as “users”.

Ratek TH7000 Digital Immersion Heater Circulator - User Manual
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Page 5 of 23
•The operator shall be aware that the protection provided by the equipment may be impaired if the equipment is used with
accessories not provided or recommended by the manufacturer, is modified in any way or is used in a manner not
specified by the manufacturer.
•The operator is responsible for ensuring all users of the product are qualified to do so, and are well versed in common
safety concepts. The product should only be operated by an adult who has read and understood this User Manual
provided in the appropriate language in its entirety.
•Any user must be informed by the responsible operator of any potential hazards that may arise through the use of this
equipment in the course of their work, including any local environmental hazards not related directly to the Immersion
Heater Circulator. They should also be able to demonstrate that they understand any preventative safety measures in
operation prior to operating the equipment.
•The operator shall agree to accept responsibility for the use of the equipment in accordance with this User Manual, and
be fully aware that the equipment is designed for commercial use.
•It is assumed that the user and operator have had experience in a commercial environment, and had appropriate training
in how to perform their work safely in accordance with any local operational health and safety regulations. The operator
and all users should be well versed in local emergency procedures as per the workplace safety regulations in effect.
•Avoid any direct impact with any surface of the equipment, including the casing, cover panel, element or control panel.
•Important: Do not use any sharp or pointed metal objects anywhere near the equipment, in particular the control panel.
•Avoid using the equipment near any other vibrating equipment or source of excessive vibration.
•Ensure the equipment is cleaned and maintained in accordance with this User Manual.
•Ensure that all original safety warning labels are in an adequate, legible condition and are firmly affixed to the equipment
before using the product.
•Plug the equipment directly into a wall power outlet. Do not plug the equipment into a multi-socket adapter of any kind.
•The equipment is intended for operation in a controlled electromagnetic environment. Avoid the use of transmitting
devices (e.g. cellular or mobile telephones) near the equipment whilst operating. A minimum distance of 2 Metres from
the product is recommended for any transmitting device.
•Important: The equipment must only be installed and operated in well ventilated areas. The unit is not intended for use
in explosive atmospheres, in confined spaces or inside any other piece of laboratory equipment such as humidity cabinets
or incubators.
•The allowed operating environment must be between 5° Celsius and 40° Celsius ambient air temperature. Be aware that
the ambient air temperature will limit the minimum controllable water temperature. The ambient air temperature must be
at least 7° Celsius lower than the desired controllable water temperature.
•The maximum allowed relative humidity of the operating environment is 80%.
•The equipment should not be stored in direct sunlight, near chemicals, or other contaminants.
•If any of these safety recommendations cannot be achieved or the equipment has been damaged in any way, the
equipment should not be installed or operated.
•Important : If you have any concerns or questions relating to operator or user safety, please contact the appropriate
Ratek Customer Service department before installing and operating the unit. Contact details are provided in this User
Manual.
Safety Labels And Markings
The equipment is provided with safety caution labels. An explanation of each caution label is provided below. It is the
responsibility of the operator and user to fully understand the meaning of these warning labels prior to operating the
equipment.
Very Important: Particular care should be taken when working near the heating element at the bottom of the Immersion
Heater Circulator. At all times during operation the safety guard MUST REMAIN FITTED to the Immersion Heater Circulator to
avoid possible burns or scalds from the heating element.
The operator or user must also take extreme care when the bath is working at temperatures above 50° C as steam will be
present and can cause scalding.

Ratek TH7000 Digital Immersion Heater Circulator - User Manual
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Page of 23
Caution Labels Definition
Colours: Black on a yellow background
The Immersion Heater Circulator is powered by an alternating current power
supply sufficient to cause harm if contact with the electrical supply is made.
Under no circumstances should any part of the equipment be opened, un-
screwed, loosened or disassembled whilst power is applied to the unit. Only
authorized service agents are permitted to remove covers. This label is fitted by
the manufacturer and must not be removed under any circumstances.
Colours: Black on a yellow background
The Immersion Heater Circulator uses a very high temperature heating element
which can cause burns if contact with the element surface is made during
operation. Under no circumstances should the heating element be touched whilst
in operation. This label is fitted by the manufacturer and must not be removed
under any circumstances.
Colours: Black on a yellow background
The Immersion Heater Circulator is designed for heating water to temperatures
that can cause burns or scalding. Use extreme caution when working near hot
water or steam to avoid injury. Under no circumstances should the heating
element be touched whilst in operation. This label is fitted by the manufacturer
and must not be removed under any circumstances.

Ratek TH7000 Digital Immersion Heater Circulator - User Manual
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Page 7 of 23
Preparation
You must take the time to familiarize yourself completely with the following operating procedures before installing or operating the
Immersion Heater Circulator in order to achieve the best performance and maximum attainable user safety.
Identification of Controls & Functions
The figure below indicates all key controls and components of the Immersion Heater Circulator with their corresponding numerical
element labeled.
Figure 1

Ratek TH7000 Digital Immersion Heater Circulator - User Manual
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Page 8 of 23
Recommended Liquids
Care should be taken when selecting the most appropriate heating medium for use with the Immersion Heater Circulator to ensure
optimum performance and user safety. Please refer to the table below as a guide :
Primary Temp Range °C Recommended Medium Comments
0 ~ 30
0 ~ 100
80% water, 20% laboratory ethylene
glycol
Laboratory ethylene glycol will prevent freezing at 0°C and
reduce evaporation at 100°C and as such is a good all purpose
heating medium. Use a lid to reduce the dilution of the medium
caused by condensing water vapour from the air.
Recommended over water alone for most applications
between 0° and 100°C
5 ~ 0 Water Water alone is suitable for most low temperature applications,
however laboratory ethylene glycol should be used if working
above 0°C to reduce evaporation, reduce the chance of
scalding by steam and help maintain temperature stability. At
temperatures approaching 100°C the temperature stability
will be affected due to localised boiling if laboratory ethylene
glycol is not used . This unit should not be used to boil
water.
Safety Warnings
Throughout this User Manual, specific warnings will be supplied which relate to the current operation being referred to. These warnings
are supplied in addition to the main warning labels affixed to the product and the key points outlined in the section of this User Manual
titled ‘Operator Responsibility – Safety Considerations’.
A graphical symbol as pictured below will be used next to each warning with accompanying text, the danger level for each is described
below :
CAUTION
Indicates a possibly dangerous situation which may result in serious injury or threat to life as a result of scalding or
burns if the situation is not avoided.
CAUTION
Indicates a possibly highly dangerous situation which may result in serious injury or threat to life as a result of
electric shock if the situation is not avoided.
CAUTION
Indicates a possibly harmful situation which may result in injury or damage to product or property if the situation is
not avoided.
Safety Recommendations
The following safety recommendations must be followed to prevent damage or injury. In addition to these safety recommendations,
it is assumed that the user and operator have had experience in a commercial environment, and had appropriate training in how to
perform their work safely in accordance with any local operational health and safety regulations. The operator and all users should
be well versed in local emergency procedures as per the workplace safety regulations in effect.
CAUTION
If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment
may be impaired.

Ratek TH7000 Digital Immersion Heater Circulator - User Manual
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Page 9 of 23
CAUTION
The equipment must only be used with a protective earth power socket. The earth contact provides protection to
the user and the equipment. If you do not have a protective earth power socket, or you are unsure as to whether
you have a protective earth power socket, do not connect the equipment. In such cases you should consult your
workplace administrator or electrical maintenance staff to determine if a protective earth power socket is available.
A surge protected power outlet is strongly recommended as it provides some protection for the equipment
in areas of poor electrical quality as well as providing some protection against lightning strikes. The
equipment should be operated on a good, reliable supply of power at all times.
Note: The Immersion Heater Circulator should not be operated on the same electrical circuit as other high voltage
household appliances such as fridges, clothes dryers, washing machines or other continuous operation high voltage
devices. These types of devices can create power fluctuations that are undesirable for electrically sensitive
equipment. Consult your workplace administrator or electrical maintenance staff if you are unsure.
CAUTION
The Immersion Heater Circulator is intended for use with tap water or filtered water only. De-ionized or distilled
water can cause corrosion. Recommended water additives are outlined further in this User Manual. Use with any
other medium is not permitted.
The use of flammable liquids may cause serious injury or danger to life.
CAUTION
Always work above the level of the Immersion Heater Circulator to avoid spillage of dangerously hot water. At no
point should the user, operator, animal or any other perishable object be situated directly beneath the Immersion
Heater Circulator or water bath.
-ALWAYS wear protective eyewear when working with hot liquids.
-ALWAYS place the water bath on a strong, even, dry, flat waterproof surface which is made of inflammable
material. Placing the Immersion Heater Circulator on an unstable water bath could cause hot water to spill.
-ALWAYS turn off the mains power switch when the unit is not in operation and turn off the mains power
supply at the outlet.
-ALWAYS turn off the mains power switch and unplug the equipment from the mains power supply outlet
before emptying the water bath or moving the equipment.
-ALWAYS be careful of water condensation above or near the Immersion Heater Circulator and ensure at all
times that the condensation cannot come in contact with the Immersion Heater Circulator control panel or
mains power lead. Ensure benches are kept dry at all times.
-ALWAYS operate the Immersion Heater Circulator in a well ventilated area with adequate clearance around
the Immersion Heater Circulator as indicated.
-ALWAYS be careful of steam and avoid making contact.
-NEVER operate the Immersion Heater Circulator without water in the water bath.
-NEVER empty the water bath while it contains hot water. Always allow the water to cool to ambient room
temperature before emptying.
-NEVER operate the equipment if you believe it is damaged in any way.
-NEVER operate the Immersion Heater Circulator if the mains power supply cable is damaged in any way
-NEVER use any sharp or metal objects near the Immersion Heater Circulator control panel.
-NEVER lift the Immersion Heater Circulator if you have an existing injury that impairs your ability to lift.

Ratek TH7000 Digital Immersion Heater Circulator - User Manual
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Page 10 of 23
Preparation & Installation
The Immersion Heater Circulator should be installed and operated in strict accordance with the following instructions.
CAUTION
The Immersion Heater Circulator is not for use in explosive atmospheres as there is a risk of fire, explosion, burns or
scalding present under these conditions.
CAUTION
Be careful when lifting and observe your local operational health and safety requirements for lifting before unpacking
the carton.
Unpacking and Installing
-Carefully remove all packaging material from the Immersion Heater Circulator, as well as the supplied User
Manual and any other supplied accessories.
-Carefully inspect the Immersion Heater Circulator, mains power lead and all packaging for any signs of damage. If
any signs of damage are present, do not install or operate the equipment. Contact the supplier of your
equipment if you have a received a damaged product.
-Ensure the water bath to be used is empty, clean and dry and has a suitable area to accommodate the
Immersion Heater Circulator.
-Ensure that there is a minimum unobstructed distance of 300 millimetres between the left, right and rear panels
of the Immersion Heater Circulator and any other object or wall.
-Ensure that there is a minimum unobstructed distance of 1 metre above the top of the water bath to allow for
adequate ventilation and for steam to dissipate.
-Ensure that there is a suitable mains power supply outlet within reach of the supplied mains power lead without
placing any strain whatsoever on the lead, socket or plug. The Immersion Heater Circulator should not be
plugged into any double-adapter, power board, or power point splitter of any kind but instead directly into a
correctly earthed wall mounted power socket.
-Ensure that there is a minimum unobstructed distance of 1 metre in front of the Immersion Heater Circulator to
allow adequate room for the user to maintain a safe operating distance of 300 millimetres.
-Place the Immersion Heater Circulator in an upright position with the adjustable clamp over the side wall of the
water bath whilst supporting the front of the unit.
-If the clamp requires adjustment to suit the side wall of the water bath, refer to the section of this User Manual
titled “Adjusting the Mounting Clamp”.
-Slowly tighten the clamp screw to secure the unit to the side wall of the water bath, do not over-tighten.
CAUTION
The Immersion Heater Circulator is designed for the purpose of heating immersed plastic or glass sealed laboratory
test tubes, flasks or bottles suitable for use at the water temperature selected by the operator.
The contents of these test tubes is the sole responsibility of the user or operator, and the use of corrosive,
flammable, combustible, hazardous, environmentally unsafe or otherwise dangerous materials within the immersed
container is done so at the risk and liability of the user or operator.

Ratek TH7000 Digital Immersion Heater Circulator - User Manual
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Page 11 of 23
ALWAYS be 100% sure of the contents of your containers, the expected behavior once heated and the applicable
safety measures that should be employed when handling such substances.
ALWAYS ensure your containers are firmly sealed and there is no chance of the sample leaking into the water bath .
ALWAYS use plastic, stainless-steel or plastic powder-coated tubes racks and accessories in the water bath . This
will assist to prevent corrosion and thus help to extend the useful life of the Immersion Heater Circulator.
CAUTION
Poor water quality can lead to corrosion of the Immersion Heater Circulator even though it is constructed from high
quality stainless steel, and eventually lead to a potentially hazardous situation. The Immersion Heater Circulator is
intended for use with tap water or filtered water only.
Depending on local conditions, the water supply may be ferrous or overly chlorinated. Both of these conditions may
lead to corrosion if used with the Immersion Heater Circulator.
Distilled or de-ionized water may lead to corrosion if used with the Immersion Heater Circulator.
Use of any liquid medium other than that recommended above will void the product warranty.
Contact the supplier of your Immersion Heater Circulator before filling the water bath if you are unsure of your
water supply.
CAUTION
Before filling the water bath, ensure the mains power supply outlet is switched off and that the mains lead to the
Immersion Heater Circulator is unplugged from the mains power supply outlet.
The nature of pouring water is unpredictable and should be done carefully away from any electrical supply to avoid
the risk of electric shock.
Filling The Water Bath
CAUTION
Always fill the water bath in a safe manner following the manufacturer’s guidelines where possible. It is important
that power to the Immersion Heater Circulator is switched off at the mains outlet before filling the water bath to
avoid possible electric shock.
CAUTION
Do not over-fill the water bath. If the bath is over-filled, water may spill out and create a hazardous situation if it
comes near an electrical current.
The minimum water depth is 120 millimetres below the bath rim.
The maximum water depth is 20 millimetres below the bath rim.
If the water level falls below this minimum level during operation, the unit should be powered off, disconnected from
the mains electrical supply and the water level topped up with cold water. Be aware that this may result in the rapid
decrease in the water temperature and the effect of this in relation to the current procedure being carried out must
be considered.

Ratek TH7000 Digital Immersion Heater Circulator - User Manual
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Page 12 of 23
No liability will be accepted if in the normal course of operation the contents of the containers being heated are
damaged due to insufficient water levels or inappropriate temperatures being applied as a result of re-filling.
Adjusting the Mounting Clamp
The Immersion Heater Circulator features an adjustable clamp that allows the unit to be mounted on water baths
and tanks with side walls varying from 1mm to 3mm wide. Before adjusting the clamp, ensure the equipment is
disconnected from the mains power supply and the element is cold. The adjustment is performed in 2 steps as
illustrated below. Step 1 – Turn the unit upside down and gently rest it on the lid on a non-scratch surface. Using a
phillips head screwdriver, loosen the 2 clamp screws as illustrated below with half a turn anti-clockwise. The clamp
bracket can now slide in and out to the required depth as required. Once the depth has been set, re-tighten the 2
clamp screws by gently tightening in a clockwise direction. Step 2 – Once the unit is placed on the bath, gently
tighten the thumb-screw by turning in a clockwise direction until the unit is secured to the bath.
Step 1 – Use a phillips head screwdriver to adjust the clamp depth Step 2 – Use the thumb-screw to tighten against the bath
Connecting Power
CAUTION
The equipment must only be used with a protective earth power socket. The earth contact provides protection to
the user and the equipment. If you do not have a protective earth power socket, or you are unsure as to whether
you have a protective earth power socket, do not connect the equipment. In such cases you should consult your
workplace administrator or electrical maintenance staff to determine if a protective earth power socket is available.
The mains power supply must be rated to match the power requirement as identified on the product identification
label on the rear panel. This is normally expressed in the format of Voltage Range and Frequency. A surge protected
power outlet is strongly recommended as it provides some protection for the equipment in areas of poor
electrical quality as well as providing some protection against lightning strikes. The equipment should be
operated on a good, reliable supply of power at all times.
Note: The Immersion Heater Circulator should not be operated on the same electrical circuit as other high voltage
household appliances such as fridges, clothes dryers, washing machines or other continuous operation high voltage
devices. These types of devices can create power fluctuations that are undesirable for electrically sensitive
equipment. Consult your workplace administrator or electrical maintenance staff if you are unsure.
IMPORTANT : Use of an incorrect power supply will void the product warranty. If you are unsure about the
rating of your power supply, consult your workplace administrator or electrical maintenance staff to
determine if your power supply is suitable for use with this product before connecting the power lead.

Ratek TH7000 Digital Immersion Heater Circulator - User Manual
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Page 13 of 23
CAUTION
Regularly check the mains power lead condition over the life of the product, and do not operate the equipment if you
suspect there is damage to any part of the equipment or the mains power lead.
Do not operate the equipment if you suspect the power lead has been stretched, over-extended or damaged in any
way.
-Insert the plug end of the mains power supply lead firmly into a properly rated, protective earthed wall
mounted power supply outlet.
-If there are double-adapters or oversized DC power packs causing obstruction of the mains power lead plug,
these should first be removed.
-Ensuring your hands are dry, switch on the power on the mains power supply outlet.
Switching On The Immersion Heater Circulator
CAUTION
Ensure you have filled the water bath to at least the minimum required level before switching on power. Failure to do
so may create a hazardous situation that can cause burns, scalding and create a fire risk.
-Before switching on the immersion heater circulator, determine the temperature you wish to operate the bath at.
-If you wish to heat your containers from ambient temperature, you should load the bath prior to switching on the
unit. See the section titled “Loading the Water Bath” below.
-If you wish to add your containers to warm or hot water, this should be done with extreme care once the
temperature of the water bath has stabilized.
-Once you are ready to begin heating the water, switch the Mains Power Switch to the position marked with a
vertical line. The Current/Set Temperature Display will illuminate to indicate the heating system is active.
-If the last set temperature is greater than the current water temperature, the Heating Element Indicator will
light red and either flash to indicate intermittent heating or remain lit constantly to indicate constant heating.
CAUTION
Once the Heating Element Indicator is lit, the heating element is active and the surface of the element will remain
extremely hot whilst heating and for many minutes even after power to the unit has been disconnected. Once the
Heating Element Indicator has lit, under no circumstances should you place any part of your body near the heating
element. The residual heat of the element creates a hazardous situation sufficient to cause burns or scalding if
contact with the element is made.

Ratek TH7000 Digital Immersion Heater Circulator - User Manual
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Page 14 of 23
Operating Instructions
CAUTION
If the temperature of the water in the water bath is critical to your application, ensure the Immersion Heater
Circulator is left for at least 10 minutes to stabilize after the temperature has reached the set-point before you
insert your containers and samples into the water. Verify the water temperature using a thermometer.
Temperature stability is affected by water bath size, ambient temperature, position of the circulator, lid usage and
the heating medium. All of these factors should be considered to achieve best results.
CAUTION
Temperatures above 50 degrees are sufficient to cause steam and are also capable of causing burns or scalding.
Exercise extreme care paying particular attention to steam and splashing of water when the Immersion Heater
Circulator is operating at these high temperatures, particularly whilst loading and unloading, containers, racks or
accessories. ALWAYS use appropriate tools (such as silicon insulated tongs) to lower such containers into the
water to avoid your hands coming into contact with hot water.
General Operation
-The Current/Set Temperature Display indicates the current water temperature in the bath by default.
-To view the current Set temperature, press until the SET indicator lights red. The currently configured set
temperature is now displayed.
-To adjust the set temperature, press or to increase or decrease the desired temperature accordingly.
Once finished, press to return to normal operating mode. The current temperature will be displayed.
-If the set temperature is greater than the current water temperature, the Heating Element Indicator will light up
and either flash to indicate intermittent heating or remain lit constantly to indicate constant heating.
-Once the water temperature nears the set point, the temperature control circuit will start to intermittently
engage the element to reduce the rate of heating.
-For best results, a Ratek insulated water bath should be used, as well as a lid to reduce evaporation and heat
loss.
- Note: It is normal for the temperature to exceed the set point slightly whilst the temperature in the bath
stabilizes. The bath temperature will drop back down to the set temperature and then the proportional
temperature control will attempt to maintain the set temperature.
Setting the Over Temperature Alarm
The TH7000 is equipped with an over-temperature visible alarm, which is configurable by the user.
The alarm is configured as a deviation alarm whereby it operates relative to the desired set point. If the current
temperature deviates from the set temperature by the margin configured by the user, the alarm will activate.
To configure the alarm set point :
-Press repeatedly until the ALM indicator lights red.
- Press or to set the desired deviation for the over-temperature alarm.
Important : The over-temperature alarm should be entered as a positive value.

Ratek TH7000 Digital Immersion Heater Circulator - User Manual
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Page 15 of 23
Once finished, press to return to normal operating mode. The current temperature will be
displayed.
Loading Un-Loading the Water Bath
CAUTION
NEVER place your hands near the heating element whilst the Immersion Heater Circulator is heating as serious burns
and scalding could result.
ALWAYS use appropriate tools (such as silicon insulated tongs) to load and unload items from the water to avoid
your hands coming into contact with hot water or the heating element.
CAUTION
If using the bath with a lid, be careful when lifting the lid as steam may be present.
ALWAYS remove the lid at arm’s length with your face away from the bath.
ALWAYS use a safety glove when removing the lid as the lid may be hot enough to cause burns or other injury.
NEVER remove the lid with your face directly over the bath. Steam may be present and burns or injury could result.
Be careful when working with hot items removed from the bath as burns or scalding may occur if contact occurs.
Always wear eye protection when loading or unloading items from a hot water bath.
Do not use explosive or volatile containers with this Immersion Heater Circulator.
Ensure all containers remain tightly sealed at all times whilst loading and unloading the water bath.
Only use containers suitable for the water temperature selected.
-When loading, use appropriate tools (such as silicon insulated tongs) to slowly place the required rack, container
or accessory into the bath. Ensure the item will not tip over and will not float. If containers will not stand securely
or will float, a suitable rack or tray should be used which will prevent the container from floating or tipping over.
-When unloading, use appropriate tools (such as silicon insulated tongs) to slowly remove the items and place
them onto a water-proof and heat-proof surface.
-Continue to load or unload your containers, racks or accessories until complete.
Switching Off The Immersion Heater Circulator
-Switch the Mains Power Switch to the position marked with a circle. The Current/Set Temperature Display will go
dark.
CAUTION
Although the heating system may now be inactive, the residual heat in the heating element may be sufficient to
cause serious burns or scalding.
The residual water temperature may also be sufficient to cause burns or scalding.
Allow at least 10 minutes after switching off the heating system to allow the heating element to cool.

Ratek TH7000 Digital Immersion Heater Circulator - User Manual
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Page 1 of 23
Allow the water temperature to reach ambient room temperature before proceeding to empty the water bath.
Unplug the Immersion Heater Circulator from the mains power supply outlet and remove it from the water bath
before emptying. Consult the water bath user manual for instructions on safely emptying the bath.
Over Temperature Safety Cutout
The Immersion Heater Circulator features a manually reset over-temperature safety cutout which cuts power to the
heating element in cases where the heating element has become too hot as a result of an insufficient water level
being maintained in the bath or an unsuitable heating medium has been used.
When the cutout activates, a small click sound may be heard.
Depending on the quality of the water being used, an unpleasant smell may also be noticed as a result of the
impurities in the water becoming hot. This is normal.
-If the over-temperature cutout activates, turn off all power to the Immersion Heater Circulator immediately by
setting the Mains Power Switch to the position marked with a circle.
-Turn off the mains power supply at the outlet.
-Allow the unit to cool for at least 10 minutes.
-Refill the water bath by referring to the section in this User Manual labeled “Filling The Water Bath”.
-On the bottom panel at the rear of the Immersion Heater Circulator, the Over-temperature reset button should
be pressed in gently until it remains in place. A small click sound should be heard.
-The Immersion Heater Circulator is now ready to be re-operated as per the section of this User Manual labeled
“Switching On The Immersion Heater Circulator”.
Storing & Relocating
CAUTION
Be careful when lifting and observe your local operational health and safety requirements for lifting before relocating
the Immersion Heater Circulator. Ask for help if you are unable to move the Immersion Heater Circulator by yourself.
Ensure the heating element is cold before relocating.
The Immersion Heater Circulator should be stored out of direct sunlight at an ambient temperature below 30°
Celsius in a clean and dry location which meets the environmental conditions required as detailed in the technical
specifications of this User Manual.
-Turn off the Mains Power Switch by setting it to the position marked with a circle.
-Unplug the equipment from the mains power supply outlet.
-Ensure all parts of the Immersion Heater Circulator are clean and dry to avoid the potential for corrosion.
-Ensure the Immersion Heater Circulator is stored in a clean and dry location away from potential damage by
accidental knocks and bumps.

Ratek TH7000 Digital Immersion Heater Circulator - User Manual
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Page 17 of 23
Routine Cleaning And Maintenance
To maintain the Immersion Heater Circulator in good, safe working order and ensure maximum product lifespan, regular cleaning and
general maintenance is required. The Immersion Heater Circulator should be cleaned at least once every month for a unit being used on
a daily basis, for infrequently used Immersion Heater Circulators a cleaning frequency of once every 3 months is recommended. On each
occasion, the general maintenance routine should be employed following cleaning with the exception of the over-temperature safety
cutout test which need only be conducted every 2 years of normal operation.
Cleaning
CAUTION
If the Immersion Heater Circulator has been operated recently the heating element may be hot enough to create a
hazard sufficient to burn or scald if contact is made. Ensure the Immersion Heater Circulator element is cold before
cleaning.
Allow the Immersion Heater Circulator to cool for at least 10 minutes after it has last been operated prior to
starting the cleaning procedure.
CAUTION
Do not use abrasive cleaners or solvents on the Immersion Heater Circulator as these may break down certain
components of it’s construction, reducing it’s life and potentially creating a hazardous situation. Use only a mild
household detergent or laboratory sterilization agent when cleaning the Immersion Heater Circulator.
CAUTION
If the Immersion Heater Circulator has been used with any dangerous, chemical or biological substances it should be
decontaminated prior to cleaning. Decontaminate the Immersion Heater Circulator using a decontamination procedure
appropriate to the contaminant, however in all cases ensure the following :
-No decontamination or cleaning agents are used which could cause a hazardous situation to arise as a result
of a reaction with parts of the Immersion Heater Circulator or with any materials contained in it. For
example, substances that may compromise the integrity or function of electrical insulation, electrical
components, stainless steel components or water seals.
-Ratek are consulted prior to decontamination or cleaning being undertaken if there is any doubt about the
compatibility of decontamination or cleaning agents with parts of the Immersion Heater Circulator or with
any materials contained in it.
CAUTION
When cleaning the unit, only use a damp sponge. Do not use a sodden wet sponge. Do not make any part of the
control panel, any exposed control or receptacle or any part of the Immersion Heater Circulator excessively wet. If
these receptacles and controls remain wet once electrical power is restored they can create a hazardous situation
sufficient to cause serious injury or risk to life due to electrical shock. Always ensure the unit and in particular all
controls and switches are completely dry before restoring electrical power.
-Turn off the Mains Power Switch
-Unplug the equipment from the mains power supply outlet.
-Using a mild detergent and damp sponge, clean around the element and circulator being careful not to knock the
over-temperature safety capillary bulb which is clipped to the element. Pay particular attention to any loose
particles that may lead to or accelerate corrosion.

Ratek TH7000 Digital Immersion Heater Circulator - User Manual
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Page 18 of 23
-Once the Immersion Heater Circulator is clean, use a soft dry cloth to dry all surfaces of the Immersion Heater
Circulator paying particular attention to any controls or switches.
-Once cleaning has been completed, it may be re-installed and operated in accordance with this User Manual.
Maintenance
-Turn off the Mains Power Switch
-Unplug the equipment from the mains power supply outlet.
-Under good light, carefully inspect the mains power lead and check for any signs of wear, over-extension or
damage. If you believe the lead to be damaged in any way, contact your supplier to arrange for service.
-Carefully check to ensure all safety warning labels are affixed and in a good readable condition. Refer to the section
in this User Manual titled “Safety Labels & Markings” for a table of factory-fitted warning labels. If any labels are
missing, illegible or otherwise not functional, contact your supplier to obtain new replacement labels before
operating the equipment.
-Ensure all controls and switches are fitted firmly and are in good condition. If any are found to be loose or in poor
condition, have an authorized service technician repair the unit before operating it.
CAUTION
If any controls or switches are found to be loose or in poor condition, do not operate the equipment. Loose or
damaged electrical controls and connections create a hazardous situation sufficient to cause serious injury or risk to
life. Refer the equipment to an authorized service technician for repair.
Over-Temperature Safety Cutout Test
-The over-temperature safety cutout should be tested periodically to ensure correct operation. This test should be
conducted once every 2 years of normal operation.
CAUTION
This test must only be carried out by a qualified service technician. The test involves the heating element
becoming very hot and is sufficient to cause serious burns or scalding if contact with the element is made.
Ensure there are no vapours present that may ignite if heated.
-Turn off the Mains Power Switch
-Unplug the equipment from the mains power supply outlet and remove it from the water bath.
-Empty the water bath
-Fill the water bath with enough cold water to just cover the coil of the heating element.
-Re-fit the Immersion Heater Circulator to the water bath

Ratek TH7000 Digital Immersion Heater Circulator - User Manual
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Page 19 of 23
CAUTION
NEVER touch the heating element whilst conducting the Over-Temperature Safety Cutout Test as serious burns and
scalding could result. The test involves the heating element reaching very high temperatures.
ALWAYS wear eye protection during the Over-Temperature Safety Cutout Test.
ALWAYS maintain a safe working distance of 300mm from the Immersion Heater Circulator during the Over-
Temperature Safety Cutout Test.
-Connect power to the Immersion Heater Circulator and set the Mains Power Switch to the position indicated with
a vertical line.
-Ensure the temperature set-point is set to 100°C, this ensures the heating element will remain on during the test.
Refer to the section of this User Manual labeled “General Operation”.
-The Immersion Heater Circulator will begin heating and the Heating Element Indicator will light up.
-The water in the water bath will gradually boil away until the over-temperature safety cutout is exposed, this may
take some minutes. Do not leave the Immersion Heater Circulator unattended during the test.
-Once the coil of the heating element has become exposed, the over-temperature cutout should have activated.
When the cutout activates, a small click sound may be heard and the over-temperature reset button will pop out. If
the over-temperature cutout has failed to operate or any part of the heating element has begun to glow, the test
has failed and the Immersion Heater Circulator should be turned off immediately to prevent damage to the
Immersion Heater Circulator.
-Depending on the quality of the water being used, an unpleasant smell may also be noticed as a result of the
impurities in the water becoming hot. This is normal.
-Once the test has been completed, turn off power to the Immersion Heater Circulator immediately by setting the
Mains Power Switch to the position marked with a circle.
-If the over-temperature cutout has failed to operate, contact Ratek using the contact details provided in the
section of this User Manual titled “Ratek Service Contact Information”.
CAUTION
NEVER operate the Immersion Heater Circulator if the over-temperature safety cutout test has failed. Operating the
Immersion Heater Circulator without a functional over-temperature safety cutout may result in serious injury, threat
to life, fire or damage to property.
-Turn off the mains power supply at the outlet.
-Allow the unit to cool for at least 10 minutes.
-Refill the water bath.
-On the bottom panel at the rear of the Immersion Heater Circulator, the Over-temperature reset button should be
pressed in gently until it remains in place. A small click sound should be heard.
-If the over-temperature safety cutout test passed, the Immersion Heater Circulator is now ready to be re-
operated as per the section of this User Manual labeled “Switching On The Immersion Heater Circulator”.

Ratek TH7000 Digital Immersion Heater Circulator - User Manual
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Page 20 of 23
Technical Specifications
Temperature Controller Digital PID
Temperature Sensor RTD PT100
Display Resolution 0.1°C
Temperature Control Range 0°C to 100.0°C, (external cooling required for ambient +7ºC or less for stable temperature control)
Safety Features - Re-settable safety thermostat
- Over-current protection
Mains Power Connection 240V / 50 Hz
Replaceable Fuse Type F250V/5AL - M205 miniature glass type. Internal fuse holder requires technician to replace.
Heating Power 1,000 Watts
Total Operating Wattage 1,020 Watts
Minimum Tank Depth 200mm
Minimum Water Level 120mm below tank rim
Maximum Water Level 20mm below tank rim
Overall Dimensions W125 x D190 x H3 0mm
Environmental Conditions Suitable for use according to IEC 1010-1 standard as follows :
-Indoor use
-Altitude up to 2,000 Metres
-Temperature 5° Celsius to 40° Celsius (Ambient temperature will limit the minimum achievable
water temperature)
-Maximum relative humidity 80 % for temperatures up to 31° Celsius decreasing linearly to 50 %
relative humidity at 40° Celsius
-MAINS supply voltage fluctuations up to ±10 % of the nominal voltage
Over-voltage Category – II
Pollution Degree – 2
Disposal
At end of life, this equipment should be disposed of in an environmentally friendly way. This equipment cannot be disposed of with other
general waste, but instead taken to your local or regional waste collection facility for recycling and/or suitable treatment procedure.
For more information about where you can drop off your waste equipment for recycling, please contact your local government office,
your household waste disposal service or your nearest commercial recycling centre.
EMC Conformity
AS/NZS CISPR 14.1:2010 Electromagnetic compatibility - Requirements for household appliances,
electric tools and similar apparatus – Emission. This forms the basis of compliance to the
requirements of the Electromagnetic Compatibility Framework (‘C TICK’).
