Christie Vive Audio LA5C
Speaker
User Manual
020-101278-02

NOTICES
COPYRIGHT AND TRADEMARKS
© 2017 Christie Digital Systems USA Inc. All rights reserved.
All brand names and product names are trademarks, registered trademarks or trade names of their respective holders.
GENERAL
Every effort has been made to ensure accuracy, however in some cases changes in the products or availability could occur which may
not be reflected in this document. Christie reserves the right to make changes to specifications at any time without notice. Performance
specifications are typical, but may vary depending on conditions beyond Christie's control such as maintenance of the product in
proper working conditions. Performance specifications are based on information available at the time of printing. Christie makes no
warranty of any kind with regard to this material, including, but not limited to, implied warranties of fitness for a particular purpose.
Christie will not be liable for errors contained herein or for incidental or consequential damages in connection with the performance or
use of this material. Canadian manufacturing facility is ISO 9001 and 14001 certified.
WARRANTY
Products are warranted under Christie’s standard limited warranty, the complete details of which are available by contacting your
Christie dealer or Christie. In addition to the other limitations that may be specified in Christie’s standard limited warranty and, to the
extent relevant or applicable to your product, the warranty does not cover:
a. Problems or damage occurring during shipment, in either direction.
b. Projector lamps (See Christie’s separate lamp program policy).
c. Problems or damage caused by use of a projector lamp beyond the recommended lamp life, or use of a lamp other than a Christie
lamp supplied by Christie or an authorized distributor of Christie lamps.
d. Problems or damage caused by combination of a product with non-Christie equipment, such as distribution systems, cameras,
DVD players, etc., or use of a product with any non-Christie interface device.
e. Problems or damage caused by the use of any lamp, replacement part or component purchased or obtained from an
unauthorized distributor of Christie lamps, replacement parts or components including, without limitation, any distributor offering
Christie lamps, replacement parts or components through the internet (confirmation of authorized distributors may be obtained
from Christie).
f. Problems or damage caused by misuse, improper power source, accident, fire, flood, lightening, earthquake or other natural
disaster.
g. Problems or damage caused by improper installation/alignment, or by equipment modification, if by other than Christie service
personnel or a Christie authorized repair service provider.
h. Problems or damage caused by use of a product on a motion platform or other movable device where such product has not been
designed, modified or approved by Christie for such use.
i. Problems or damage caused by use of a projector in the presence of an oil-based fog machine or laser-based lighting that is
unrelated to the projector.
j. For LCD projectors, the warranty period specified in the warranty applies only where the LCD projector is in “normal use” which
means the LCD projector is not used more than 8 hours a day, 5 days a week.
k. Except where the product is designed for outdoor use, problems or damage caused by use of the product outdoors unless such
product is protected from precipitation or other adverse weather or environmental conditions and the ambient temperature is
within the recommended ambient temperature set forth in the specifications for such product.
l. Image retention on LCD flat panels.
m.Defects caused by normal wear and tear or otherwise due to normal aging of a product.
The warranty does not apply to any product where the serial number has been removed or obliterated. The warranty also does not
apply to any product sold by a reseller to an end user outside of the country where the reseller is located unless (i) Christie has an office
in the country where the end user is located or (ii) the required international warranty fee has been paid.
The warranty does not obligate Christie to provide any on site warranty service at the product site location.
PREVENTATIVE MAINTENANCE
Preventative maintenance is an important part of the continued and proper operation of your product. Please see the Maintenance
section for specific maintenance items as they relate to your product. Failure to perform maintenance as required, and in accordance
with the maintenance schedule specified by Christie, will void the warranty.
Environmental
The product is designed and manufactured with high-quality materials and components that can be recycled and reused. This symbol means
that electrical and electronic equipment, at their end-of-life, should be disposed of separately from regular waste. Please dispose of the product
appropriately and according to local regulations. In the European Union, there are separate collection systems for used electrical and electronic
products. Please help us to conserve the environment we live in!

Christie Vive Audio LA5C Speaker User Manual 3
020-101278-02 Rev. 1 (07-2017)
Table of Contents
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Technical support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
What’s in the box? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Connect the speaker wire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Fly the LA5C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Ceiling mount the LA5C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
The speaker does not function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
The speaker sound is degraded . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
There is speaker noise or hiss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Physical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Christie Vive Audio LA5C Speaker User Manual 4
020-101278-02 Rev. 1 (07-2017)
Safety Information
• Read this information thoroughly before installing or operating a speaker.
• Read these instructions.
• Keep these instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other devices
(including amplifiers) that produce heat.
• Do not use this apparatus near water.
• Do not install the speaker near water where the electrical components can be exposed to
moisture. Do not place objects containing liquids, such as vases, on the product.
• Clean only with a dry cloth.
• Do not overpower or underpower speaker systems.
• Use only in accordance with manufacturer’s specifications and installation guidelines.
• Exposure to extremely high noise levels may cause permanent hearing loss. Individuals vary
considerably in their susceptibility to noise-induced hearing loss, but nearly everyone will lose
some hearing if exposed to sufficiently intense noise for a sufficient time. These are the
permissible noise level exposures specified by the United States Occupational Safety and Health
Administration (OSHA):
Duration (Consecutive) Sound Pressure Level (dbA), Slow
Responses
8 hrs 90
6 hrs 92
4 hrs 95
3 hrs 97
2 hrs 100
1.5 hrs 102
1 hr 105
30 min 110

Safety Information
Christie Vive Audio LA5C Speaker User Manual 5
020-101278-02 Rev. 1 (07-2017)
• According to the OSHA, any exposure in excess of the above permissible limits could result in
some hearing loss. Earplugs or protectors to the ear canals or over the ears must be worn when
operating this amplification system to prevent permanent hearing loss, if exposure is in excess
of the described limits.
• Two people are required to safely lift and install the speaker.
• Speakers and speakers mounted to brackets must be affixed to a suitable structure following all
local safety standards and regulations.
• Always install all legally required additional redundant safety straps or cables.
• Install the minimum number of rigging wires (refer to Installation for more details) that are
required to suspend the speaker. Observe load ratings and all applicable local safety codes.
• Only use attachments or accessories specified by Christie.
• To reduce the risk of system damage, turn off the power amplifier and then disconnect the
speaker wire before performing a repair or maintenance.
• All servicing must be completed by qualified service personnel. Servicing is required when the
apparatus has been damaged in any way. For example, liquid has been spilled or objects have
fallen onto the apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
• Changes or modifications to the product not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Technical support
Technical support for Christie products is available at:
• North and South America: [phone] or [e-mail],
Middle East, and Africa: [phone] or Support.EM[email protected]
• Asia Pacific: [phone] or Support.APA[email protected]
• Coolux: [phone] or [email protected]
• Christie Managed Services: [phone] or [e-mail]
≤15 min 115
Duration (Consecutive) Sound Pressure Level (dbA), Slow
Responses

Christie Vive Audio LA5C Speaker User Manual 6
020-101278-02 Rev. 1 (07-2017)
Introduction
This user manual provides ceiling surround speaker installation, troubleshooting, and specification
information.
Overview
The LA5C line array ceiling surround speaker is designed for auditoriums with approximately 500 or
more seats. It may also be paired with S115 or S215 subwoofers and bi-amped to create a
surround system with bass management.
It may also be used for a range of other applications, where vertical coverage and maximum throw
distance are appropriate.
The speaker contains an internal passive crossover, allowing it to operate with a single channel amplifier.
Multiple hardware attachment points on the speaker allow for multiple installation options.
What’s in the box?
This table lists the components that are shipped with the LA5C
Quantity Description Part number
1 Christie LA5C line array surround speaker
or
Christie LA5C line array surround speaker with grill
145-134109-XX
or
145-135100-XX

Christie Vive Audio LA5C Speaker User Manual 7
020-101278-02 Rev. 1 (07-2017)
Installation
Complete the following procedures to install the speaker.
Connect the speaker wire
1. Install the speaker according to the mounting instructions provided in this manual.
2. Connect the speaker wire to the positive (A) and negative (B) terminals on the back of the
speaker.
Use a #8 spade lug (part number: 145-159106-XX) if you are creating crimped spade lug
terminations.
• Before installation, inspect all components for cracks, deformations, corrosion, and
missing or damaged parts that could reduce their installation strength.
• A minimum of two people are required to safely lift and install the speaker.
• Speakers must be affixed to a suitable structure following all local safety standards and
regulations.
• Only use attachments or accessories specified by the manufacturer.
Failure to comply could result in death or serious injury.
• Allow speakers exposed to extremely low temperatures to warm for a minimum of one
hour before playing them at typical application levels. Failure to comply may result in
equipment or property damage.
• Speaker wire affects sound quality. Make sure the speaker wire quality and gauge are
appropriate for your application.
The amplifier must be turned off and unplugged before you start this procedure.

Installation
Christie Vive Audio LA5C Speaker User Manual 8
020-101278-02 Rev. 1 (07-2017)
3. Connect the negative and positive speaker wires from the speaker to the corresponding
terminals on the amplifier.
4. Turn on the amplifier and verify that the speaker is receiving power.
Fly the LA5C
The LA5C is flown, according to installer best practices, using four rigging wires and any legally required
redundant safety cables.
APositive (+) connection
BNegative (-) connection

Installation
Christie Vive Audio LA5C Speaker User Manual 9
020-101278-02 Rev. 1 (07-2017)
Ceiling mount the LA5C
1. Remove the four pre-installed M8 button head screws on the back of the speaker.
2. Attach the following bracket to the back of the speaker using the four M8 button head screws.
3. Mount the speaker to the ceiling using the manufacturer documentation provided with the
bracket.
Description Part number
Ceiling mount (MM-3RDX-120) 111-684200-XX

Installation
Christie Vive Audio LA5C Speaker User Manual 10
020-101278-02 Rev. 1 (07-2017)

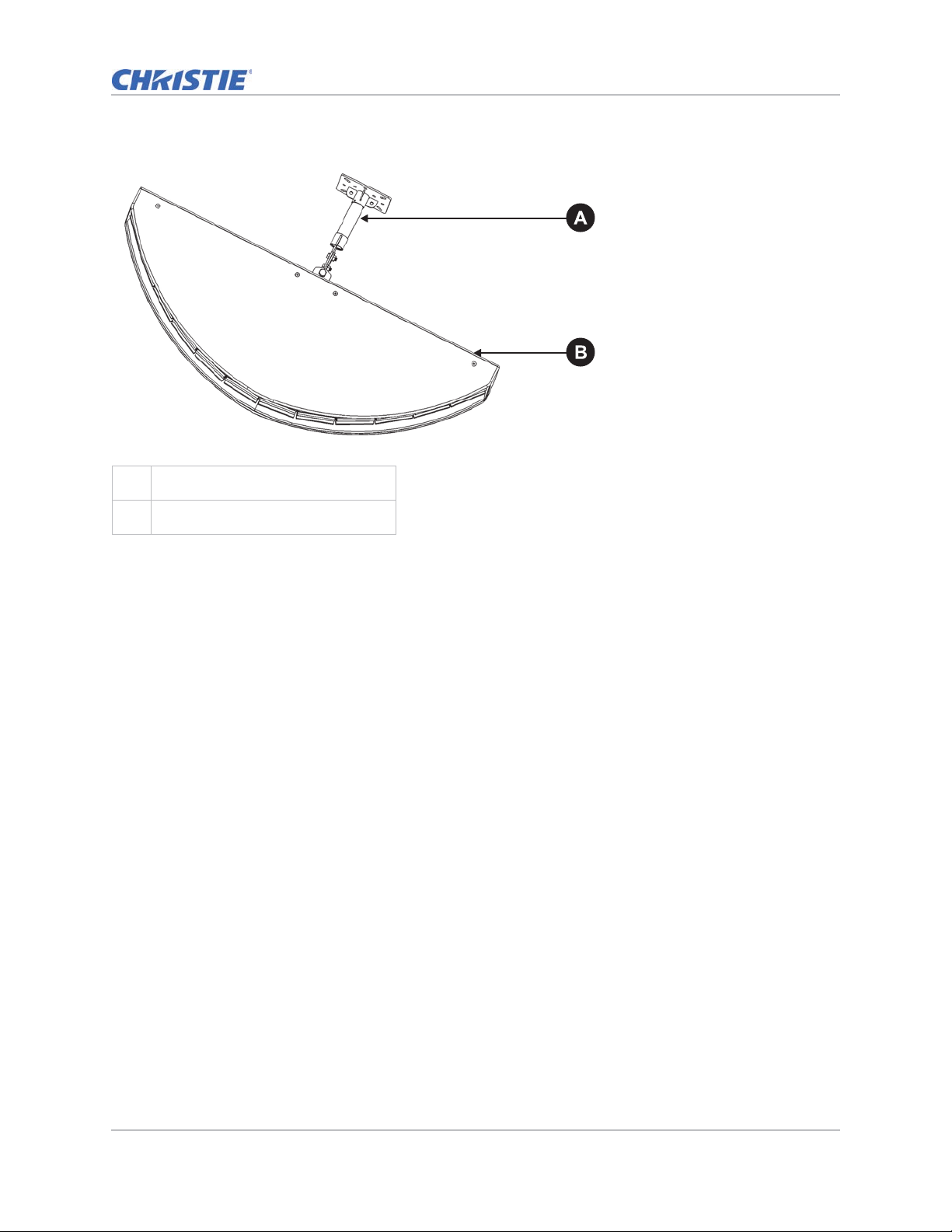

ACeiling mount bracket
BLA5C speaker

Christie Vive Audio LA5C Speaker User Manual 11
020-101278-02 Rev. 1 (07-2017)
Troubleshooting
The speaker does not function
The speaker is connected to the amplifier, but is not producing any sound.
Resolution
• Verify that the speaker is receiving power from the amplifier.
• Verify that the circuit breaker for the main circuit to the amplifier is closed.
• Reset the circuit breaker. If the AC mains breaker continues to open, check the voltage and
amperage of the circuit.
• Verify that the negative and positive speaker wires from the speaker are correctly connected to
the terminals on the amplifier.
The speaker sound is degraded
The speaker is powered on and sound is being produced, but it is distorted.
Resolution
• Visually inspect the speaker for deterioration or holes.
• Reduce the output level of the source.
• Verify that the negative and positive speaker wires from the speaker are securely connected to
the terminals on the amplifier.
• Verify that there are no missing screws. Replace all screws that you removed during
installation.
• Have an authorized dealer complete an audio test (for example, pink noise, frequency sweeps,
and content and program material).
Caution! Failure to comply with the following could result in minor or moderate injury.
• Do not service the speaker. All servicing must be completed by qualified service
personnel.

Troubleshooting
Christie Vive Audio LA5C Speaker User Manual 12
020-101278-02 Rev. 1 (07-2017)
There is speaker noise or hiss
The speaker is producing static noise or hiss when powered.
Resolution
• Mute channels, one at a time, to isolate the problem.
• Verify that the cables are in good working condition.
• Reroute audio cables away from AC power and lighting cables.
• Verify correct gain structuring of B Chain and input and output levels of source devices and
amplifiers.
•Checkthepolarity.

Christie Vive Audio LA5C Speaker User Manual 13
020-101278-02 Rev. 1 (07-2017)
Specifications
Audio
aMeasured at distances of 4 m and 8 m, in free field and on ground plane. Sensitivity is calculated based on the
measured SPL response averaged in the 200 Hz-3 kHz range and scaled back to 1m.
bAES refers to AES2-2012 standard. IEC refers to IEC 60268-5 standard. Maximum continuous SPL is calculated
based on sensitivity and AES power handling. IEC short-term power is tested using IEC pink noise with a 9 dB crest
factor. The crest factor was specifically increased to reflect real life parameters of digital cinema soundtracks.
Maximum peak SPL is calculated using peak voltage during the IEC short-term power test.
cAveraged in the 500 Hz -16 kHz range at -6 dB.
Specification Description
System type Coaxial parabolic ribbon driver line array, two-way, passive, single vented
enclosure.
Driver components Twelve 6 in. ribbon drivers with Kapton diaphragms and neodymium magnets
and twelve 6.5 in. paper/Kevlar composite mid-bass drivers.
Crossover Linear phase, 2-way, passive, symmetric at 1.5 kHz, 24 dB/octave
Frequency responsea60 Hz - 20 kHz @ -6 dB
Maximum sound pressure level
(SPL)b131 dB (AES) continuous, 143 dB, peak
System coveragec120° horizontal dispersion, 120° vertical dispersion
Sensitivityd, 1 W/1 m 101 dB
Recommended amplifier power 1000 W - 2000 W (FTC) at 4 Ohms /Christie CDA3, Christie CDA5, or Christie
CDA7.5 (depending on application)
Rated impedance 4 Ohms

Specifications
Christie Vive Audio LA5C Speaker User Manual 14
020-101278-02 Rev. 1 (07-2017)
Connections
Power
Physical
Parts
Specification Description
Inputs Screw terminal barrier strip
Specification Description
Power handlinga1000 W (AES) continuous, 1500W (IEC) long term, 2000 W (IEC) short-term
(12 dB crest factor)
Specification Description
Enclosure Vented box alignment
18mm marine plywood
Heavily damped and braced
Rated for overhead applications
Dimensions (H x W x D) 26.8 cm x 166 cm x 57.8 cm
(10.6 in.) x (65.3 in.) x (22.7 in.)
Weight (net) 52 kg (115 lb)
Specification Part Number
6.5 in. cones 003-121023-XX
6 in. ribbon driver 003-121021-XX

Specifications
Christie Vive Audio LA5C Speaker User Manual 15
020-101278-02 Rev. 1 (07-2017)
Accessories
Specification Part Number
Ceiling mount (MM-3RDX-120) 111-684200-XX
4x fly cables and hardware 111-685201-XX
Adapter channel 1.5 in.
extension tube 111-688204-XX
Ceiling mount 1.5 in. extension
tube 111-690207-XX
SpeakON Connector (for
amplifier output to speaker) 145-158105-XX
#8 Spade Lug (for speaker input
from amplifier) 145-159106-XX

For the most current technical documentation, please visit www.christiedigital.com
United Kingdom
ph: [phone]
United Arab Emirates
ph: [phone]
Spain
ph: [phone]
Singapore
ph: [phone]
Republic of South Africa
ph: [phone]
Korea (Seoul)
ph: [phone]
Japan (Tokyo)
ph: 81 3 3599 7481
India
ph: [phone]
Germany
ph: [phone]
France
ph: [phone]
Eastern Europe and
Russian Federation
ph: [phone]
China (Shanghai)
ph: [phone]
China (Beijing)
ph: [phone]
Brazil
ph: [phone]
Australia
ph: [phone]
Worldwide offices
Italy
ph: [phone]
Consultant offices
Canada – Kitchener
ph: 519-744-8005
USA – Cypress
ph: 714-236-8610
Corporate offices
