Vive Audio LA3i Speaker

NOTICES
COPYRIGHT AND TRADEMARKS
Copyright © 2020 Christie Digital Systems USA Inc. All rights reserved.
All brand names and product names are trademarks, registered trademarks or trade names of their respective holders.
GENERAL
Every effort has been made to ensure accuracy, however in some cases changes in the products or availability could occur which may not be reflected in this
document. Christie reserves the right to make changes to specifications at any time without notice. Performance specifications are typical, but may vary
depending on conditions beyond Christie's control such as maintenance of the product in proper working conditions. Performance specifications are based on
information available at the time of printing. Christie makes no warranty of any kind with regard to this material, including, but not limited to, implied
warranties of fitness for a particular purpose. Christie will not be liable for errors contained herein or for incidental or consequential damages in connection
with the performance or use of this material. Manufacturing facilities in Canada and China are ISO 9001 certified. Manufacturing facilities in Canada are also
ISO 14001 certified.
WARRANTY
Products are warranted under Christie’s standard limited warranty, the complete details of which are available by contacting your Christie dealer or Christie. In
addition to the other limitations that may be specified in Christie’s standard limited warranty and, to the extent relevant or applicable to your product, the
warranty does not cover:
a. Problems or damage occurring during shipment, in either direction.
b. Problems or damage caused by combination of a product with non-Christie equipment, such as distribution systems, cameras, DVD players, etc., or use
of a product with any non-Christie interface device.
c. Problems or damage caused by misuse, improper power source, accident, fire, flood, lightning, earthquake, or other natural disaster.
d. Problems or damage caused by improper installation/alignment, or by equipment modification, if by other than Christie service personnel or a Christie
authorized repair service provider.
e. Use of third party product enclosures for environmental protection during outside use must be approved by Christie.
f. Problems or damage caused by use of a product on a motion platform or other movable device where such product has not been designed, modified or
approved by Christie for such use.
g. Except where the product is designed for outdoor use, problems or damage caused by use of the product outdoors unless such product is protected from
precipitation or other adverse weather or environmental conditions and the ambient temperature is within the recommended ambient temperature set
forth in the specifications for such product.
h. Defects caused by normal wear and tear or otherwise due to normal aging of a product.
The warranty does not apply to any product where the serial number has been removed or obliterated. The warranty also does not apply to any product sold
by a reseller to an end user outside of the country where the reseller is located unless (i) Christie has an office in the country where the end user is located or
(ii) the required international warranty fee has been paid.
The warranty does not obligate Christie to provide any on site warranty service at the product site location.
PREVENTATIVE MAINTENANCE
Preventative maintenance is an important part of the continued and proper operation of your product. Failure to perform maintenance as required, and in
accordance with the maintenance schedule specified by Christie, will void the warranty.
REGULATORY
The product has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the product is operated in a commercial environment. The product generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of the product in a residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at the user’s own expense. Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment
CAN ICES-3 (A) / NMB-3 (A)
이 기기는 업무용(A급)으로 전자파적합등록을 한 기기이오니 판매자 또는 사용자는 이점을 주의하시기 바라며, 가정 외의 지역에서 사용하는 것을 목적으로 합니다.
ENVIRONMENTAL
The product is designed and manufactured with high-quality materials and components that can be recycled and reused. This symbol means that electrical
and electronic equipment, at their end-of-life, should be disposed of separately from regular waste. Please dispose of the product appropriately and according
to local regulations. In the European Union, there are separate collection systems for used electrical and electronic products. Please help us to conserve the
environment we live in!

Content
Introduction...................................................... 4
Safety and warning guidelines........................................... 4
Installation safety.................................................4
Operation safety..................................................5
Maintenance safety................................................5
Product documentation................................................5
Related documentation..............................................5
Permissible sound pressure level limits......................................6
Cleaning products...................................................6
Included components.................................................6
Installation....................................................... 7
Connecting the speaker wires............................................7
Mounting the LA3i on an S115 or S215 subwoofer...............................7
Wall mounting the LA3i speaker.......................................... 8
Available safety cables................................................9
Troubleshooting..................................................10
The speaker does not function.......................................... 10
The speaker sound is degraded..........................................10
There is audible noise from speaker.......................................11
Technical support...................................................11
LA3i speaker Specifications.........................................12
Audio..........................................................12
Power requirements.................................................13
Physical........................................................ 13
Accessories...................................................... 13
Vive Audio LA3i Speaker User Guide 3
020-103273-01 Rev. 1 (02-2020)
Copyright © 2020 Christie Digital Systems USA, Inc. All rights reserved.

Introduction
The Christie LA3i articulated coaxial line array speaker is designed to be paired with an appropriate
subwoofer and bi-amped as part of a screen channel in auditoriums with up to approximately 400
seats.
It may also be used for a range of other applications, where vertical coverage and maximum throw
distance are appropriate.
The speaker contains an internal passive crossover, allowing it to operate with a single channel
amplifier. Multiple hardware attachment points on the speaker allow for multiple installation options.
Safety and warning guidelines
Read all safety and warning guidelines before installing, operating, or maintaining the speakers.
Installation safety
The following guidelines apply when installing the speakers.
Warning! If not avoided, the following could result in death or serious injury.
• Before installation, inspect all components for cracks, deformations, corrosion, and missing or
damaged parts that could reduce their installation strength.
• A minimum of two people or appropriately rated lift equipment is required to safely lift, install,
or move the product.
• The supporting structure must safely support the combined load of the product, all attached
hardware, and components following all local safety standards and regulations.
• Always install all legally required safety straps or cables.
• Install the minimum number of rigging wires required to suspend the speaker.
• Observe load ratings and applicable local safety codes.
• FIRE AND SHOCK HAZARD! Use only the attachments, accessories, tools, and replacement parts
specified by Christie.
Caution! If not avoided, the following could result in minor or moderate injury.
• FIRE HAZARD! Do not install near any devices that produce heat such as amplifiers, radiators,
heat registers, or stoves.
• Christie products must be installed and serviced by Christie qualified technicians.
Notice. If not avoided, the following could result in property damage.
• Always turn off and disconnect the amplifiers from power before making audio connections or
servicing a speaker.
Vive Audio LA3i Speaker User Guide 4
020-103273-01 Rev. 1 (02-2020)
Copyright © 2020 Christie Digital Systems USA, Inc. All rights reserved.

Operation safety
The following guidelines apply when operating the speakers.
Caution! If not avoided, the following could result in minor or moderate injury.
• To prevent permanent hearing loss, ear protection (ear plugs, canal protectors, or ear muffs)
must be worn when operating the amplification system.
• Do not expose the product to moisture.
• Do not place objects containing liquids on the product.
Notice. If not avoided, the following could result in property damage.
• Speakers exposed to extremely low temperatures must be allowed to warm for a minimum of
one hour before playing them at typical application levels.
Maintenance safety
The following guidelines apply when maintaining the speakers.
Caution! If not avoided, the following could result in minor or moderate injury.
• Only clean the components with Christie approved products.
Notice. If not avoided, the following could result in property damage.
• Always turn off and disconnect the amplifiers from power before making audio connections or
servicing a speaker.
• Any changes to the product not approved by Christie will void the warranty.
Product documentation
For installation, setup, and user information, see the product documentation available on the Christie
website. Read all instructions before using or servicing this product.
1. Access the documentation from the Christie website:
• Go to this URL: http://bit.ly/374HaiA or
https://www.christiedigital.com/en-us/cinema/cinema-products/cinema-speakers/cinema-
surround-speakers.
• Scan the QR code using a QR code reader app on a smartphone or tablet.
2. On the product page, select the model and switch to the Downloads tab.
Related documentation
Additional information on this product is available in the following documents.
•Vive Audio LA3i Speaker Product Safety Guide (P/N: 020-103284-XX)
Introduction
Vive Audio LA3i Speaker User Guide 5
020-103273-01 Rev. 1 (02-2020)
Copyright © 2020 Christie Digital Systems USA, Inc. All rights reserved.

Permissible sound pressure level limits
Exposure to extremely high noise levels may cause permanent hearing loss.
Individuals vary considerably in their susceptibility to noise-induced hearing loss, but nearly everyone
will lose some hearing if exposed to intense noise for a sufficient length of time.
Earplugs or protectors to the ear canals or over the ears must be worn when operating this
amplification system to prevent permanent hearing loss, if exposure is in excess of the following
permissible limits provided by the United States Occupational Safety and Health Administration
(OSHA):
Duration (consecutive) Sound level (dbA), slow responses
8 hrs 90
6 hrs 92
4 hrs 95
3 hrs 97
2 hrs 100
1.5 hrs 102
1 hr 105
30 min 110
≤15 min 115
Cleaning products
Clean the components with the following Christie approved products.
• Clean, dry, microfiber cloth
Included components
This table lists the components that are shipped with the LA3i speaker.
Quantity Description Part number
1 Christie LA3i speaker 145-186106-XX
Introduction
Vive Audio LA3i Speaker User Guide 6
020-103273-01 Rev. 1 (02-2020)
Copyright © 2020 Christie Digital Systems USA, Inc. All rights reserved.

Installation
To install the speaker, complete the following procedures.

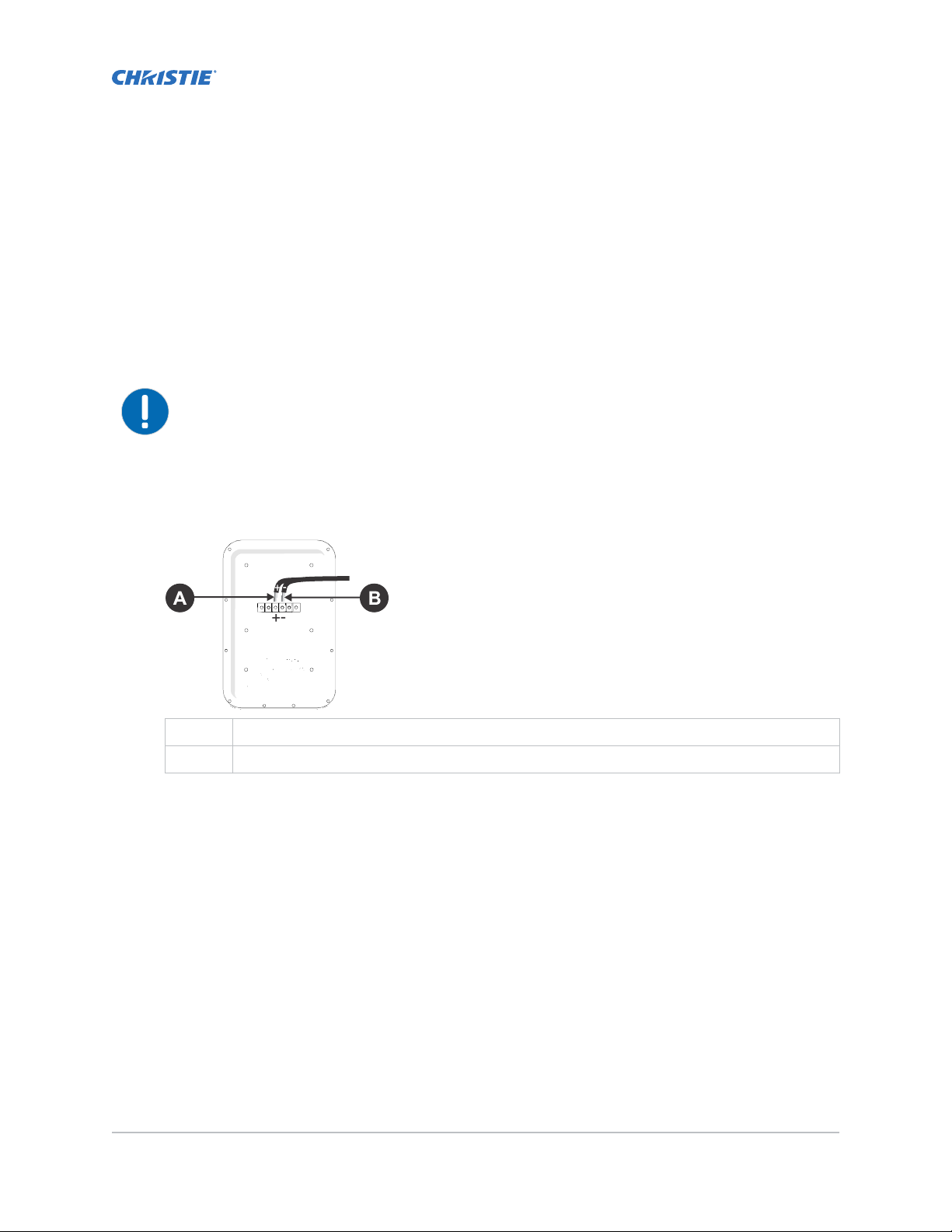

Connecting the speaker wires
Once the speaker is installed, connect the speaker wires to the amplifier.
Notice. If not avoided, the following could result in property damage.
• Always turn off and disconnect the amplifiers from power before making audio connections or
servicing a speaker.
1. Install the speaker according to the mounting instructions provided in this manual.
2. Connect the speaker wire to the positive (A) and negative (B) terminals on the back of the
speaker.
If creating crimped spade lug terminations, use a #8 spade lug (P/N: 145-159106-XX).
A Positive (+) connections
B Negative (-) connections
3. Connect the negative and positive speaker wires from the speaker to the corresponding
terminals on the amplifier
.
4. Turn on the amplifier and verify that the speaker is receiving an input signal by playing a test
signal through the system.
Mounting the LA3i on an S115 or S215
subwoofer
To install the LA3i loudspeaker and a S215 subwoofer on a platform, use the BKT-LA2/LA3i and BKS-
SUB brackets.
For mounting instructions, refer to Christie Vive Audio BKT-LA2 Bracket User Manual (P/N:
020-101282-XX) and Christie Vive Audio BKS-SUB User Manual (P/N: 020-101288-XX).
Vive Audio LA3i Speaker User Guide 7
020-103273-01 Rev. 1 (02-2020)
Copyright © 2020 Christie Digital Systems USA, Inc. All rights reserved.

Wall mounting the LA3i speaker
Use a bracket to install the speaker on a wall.
1. Remove the four pre-installed M8 button head screws on the back of the speaker.
2. Attach the following bracket to the back of the speaker using the four M8 button head screws.
• Wall mount bracket MM-120 (P/N: 111-693200-XX)
3. Mount the speaker to the wall using the manufacturer documentation provided with the
bracket.
A Wall mount bracket
Installation
Vive Audio LA3i Speaker User Guide 8
020-103273-01 Rev. 1 (02-2020)
Copyright © 2020 Christie Digital Systems USA, Inc. All rights reserved.

B LA3i speaker
Available safety cables
When choosing safety cables, always consult a qualified professional. The type of cable required is
based on the speaker model, speaker mount, and installation specifications.
Do not use the backup safety cables as a primary suspension device.
The following cables are available to purchase from Christie:
•18 in safety cable SC-018-BC (P/N: 003-006320-XX)
• 72 in safety cable SC-072-BC (P/N: 003-006321-XX)
If a different cable is required, contact an audio solution provider.
Installation
Vive Audio LA3i Speaker User Guide 9
020-103273-01 Rev. 1 (02-2020)
Copyright © 2020 Christie Digital Systems USA, Inc. All rights reserved.

Troubleshooting
For assistance with common issues, refer to the following troubleshooting topics.
If you cannot resolve your issue with the information provided, contact Christie Technical Support.
The speaker does not function
The speaker is connected to the amplifier, but is not producing any sound.
Resolution
• Verify that the speaker is receiving an input signal from the amplifier.
• Verify that the circuit breaker for the main circuit to the amplifier is closed.
• Verify that amplifier is powered on and attenuators or gain controls are at nominal settings.
• If open, reset the circuit breaker. If the AC mains breaker continues to open, check the voltage
and amperage of the circuit.
• Verify that the speaker wires are correctly connected to the input terminals on the speaker and
the terminals on the amplifier.
The speaker sound is degraded
The speaker is receiving a signal and sound is being output, but it is distorted.
Resolution
• Visually inspect the speaker for deterioration or holes.
• Ensure that the input signal to the amplifier is clean.
• Verify that attenuators or gain controls on amplifies and any audio processors are at nominal
settings.
• Verify that the speaker wires from the speaker are securely connected to the terminals on the
amplifier.
• Verify that the speaker wires are correctly connected to the input terminals on the speaker.
• Verify there are no loose or missing screws. Replace all screws you removed during
installation.
• Have an authorized dealer complete an audio test (for example, pink noise, frequency sweeps,
and content and program material).
Vive Audio LA3i Speaker User Guide 10
020-103273-01 Rev. 1 (02-2020)
Copyright © 2020 Christie Digital Systems USA, Inc. All rights reserved.

There is audible noise from speaker
The speaker is producing audible noise when the amplifier driving it is powered on.
Resolution
• Mute channels, one at a time, to isolate the problem.
• Verify that all line-level cables in the signal chain are in good condition.
• Ensure that the input signal to the amplifier is clean.
• Reroute audio cables away from AC power and lighting cables.
• Verify the correct gain structuring of B chain, input levels, and output levels of source devices
and amplifiers.
Technical support
Technical support for Christie products is available at:
• North and South America: [phone] or [email protected]
• Europe, Middle East, and Africa: [phone] or [email protected]
• Asia Pacific: [phone] or [email protected]
Troubleshooting
Vive Audio LA3i Speaker User Guide 11
020-103273-01 Rev. 1 (02-2020)
Copyright © 2020 Christie Digital Systems USA, Inc. All rights reserved.

LA3i speaker
Specifications
Learn about the product specifications. Due to continuing research, specifications are subject to
change without notice.
Audio
Learn about the audio specifications.
Specification Description
System type Coaxial, two-way, passive, sealed enclosure.
Driver components • 12 x 3.5 in. ribbon drivers with Kapton diaphragm and Neodymium
magnets
•8 x 5.25 in. paper/Kevlar composite mid-bass cone drivers
Crossover @ 1.5kHz, high power, heat sink cooled air core inductors, polypropylene
capacitors
Effective frequency range190 Hz - 20 kHz
Sensitivity2, 1 W/1 m 98 dB
Maximum sound pressure level
(SPL)3
127 dB continuous, 128.8 dB long term, 130 dB short term
System coverage4100° horizontal, 40° vertical
Recommended amplifier power 900 W - 2000 W at 4 Ohms
Rated impedance 4 Ohms
1 According to IEC 60268-5 standard. Calculated at -10dB.
2 Measured at a distance of 4m, free field and ground plane conditions. Sensitivity is calculated based
on the measured SPL response averaged in the 200 Hz-4 kHz range and scaled back to 1m.
3 Continuous power handling tested for 2 hours using IEC noise signal. IEC refers to IEC 60268-5
standard. Maximum continuous SPL is calculated based on sensitivity and power handling.
4 Averaged in 500 Hz -10 kHz range at -6dB. Screen scattering effect will result in slight increase of
coverage at HF.
Vive Audio LA3i Speaker User Guide 12
020-103273-01 Rev. 1 (02-2020)
Copyright © 2020 Christie Digital Systems USA, Inc. All rights reserved.

Power requirements
Learn about the power specifications.
Specification Description
Power handling 800 W continuous, 1200 W long-term, 1600 W short-term
Physical
Learn about the physical specifications.
Specification Description
Input connectors Screw terminal barrier strip.
Enclosure • Closed box alignment
•18 mm marine plywood
• Heavily damped and braced
Dimensions (H x W x D) 30.99 cm x 23.88 cm x 110 cm
(12.2 in.) x (9.4 in.) x (43.3 in.)
Net weight 27.3 kg (60 lb)
Accessories
The following optional accessories are available to be used with the speakers.
Accessory Part number
Christie Vive Audio S115 Subwoofer 145-108100-XX
Christie Vive Audio S215 Subwoofer 145-103105-XX
BKT-LA2/LA3i Tilt Bracket (for mounting on the Christie S115 or
S215)
145-150107-XX
BKS-SUB bracket (for platform mounting) 145-110103-XX
Wall mount bracket (MM-120) 111-693200-XX
SpeakON Connector (for amplifier output to speaker) 145-158105-XX
#8 Spade Lug (for speaker input from amplifier) 145-159106-XX
18 in safety cable SC-018-BC 003-006320-XX
72 in safety cable SC-072-BC 003-006321-XX
LA3i speaker Specifications
Vive Audio LA3i Speaker User Guide 13
020-103273-01 Rev. 1 (02-2020)
Copyright © 2020 Christie Digital Systems USA, Inc. All rights reserved.

For the most current technical documentation, visit www.christiedigital.com.
Christie Digital Systems Canada Inc.
ph: 519 744 8005
Christie Digital Systems USA, Inc.
ph: 714 236 8610
Corporate offices
United Kingdom
ph: [phone]
Middle East
ph: [phone]
Spain
ph:[phone]
Singapore
ph:[phone]
Africa
ph:[phone] Korea (Seoul)
ph:[phone]
Japan (Tokyo)
ph:81 3 3599 7481
India
ph:[phone]
Germany
ph: [phone]
France
ph: [phone]
Russia
ph: [phone]
China (Shanghai)
ph:[phone]
China (Beijing)
ph:[phone]
Brazil
ph:[phone]
Australia
ph:[phone]
Worldwide offices
Italy
ph: [phone]
Independant sales
consultant offices
Mexico
ph:[phone] United States (Arizona)
ph: 602 943 5700
Columbia
ph: [phone]
