Chrysler 200 2011 User manual

291697.ps 11C41-126-AA Chrysler 1" gutter 09/17/2010 16:27:50
200
OWNER’S MANUAL
2011
200
OWNER’S MANUAL
2011
Chrysler Group LLC
11C41-126-AA First Edition Printed in U.S.A.
Chrysler Group LLC
11C41-126-AA First Edition Printed in U.S.A.
2011 2002011 200

VEHICLES SOLD IN CANADA
With respect to any Vehicles Sold in Canada, the name
Chrysler Group LLC shall be deemed to be deleted and
the name Chrysler Canada Inc. used in substitution
therefore.
DRIVING AND ALCOHOL
Drunken driving is one of the most frequent causes of
accidents.
Your driving ability can be seriously impaired with blood
alcohol levels far below the legal minimum. If you are
drinking, don’t drive. Ride with a designated non-drinking
driver, call a cab, a friend, or use public transportation.
WARNING!
Driving after drinking can lead to an accident. Your
perceptions are less sharp, your reflexes are slower,
and your judgment is impaired when you have been
drinking. Never drink and then drive.
This manual illustrates and describes the operation of
features and equipment that are either standard or op-
tional on this vehicle. This manual may also include a
description of features and equipment that are no longer
available or were not ordered on this vehicle. Please
disregard any features and equipment described in this
manual that are not on this vehicle.
Chrysler Group LLC reserves the right to make changes
in design and specifications, and/or make additions to or
improvements to its products without imposing any
obligation upon itself to install them on products previ-
ously manufactured.
Copyright © 2010 Chrysler Group LLC

TABLE OF CONTENTS
SECTION PAGE
1
INTRODUCTION ............................................................3
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE ..............................9
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE ............................. 89
4
UNDERSTANDING YOUR INSTRUMENT PANEL ..................................183
5
STARTING AND OPERATING ................................................283
6
WHAT TO DO IN EMERGENCIES ............................................. 371
7
MAINTAINING YOUR VEHICLE ..............................................391
8
MAINTENANCE SCHEDULES .................................................441
9
IF YOU NEED CONSUMER ASSISTANCE ........................................ 457
10
INDEX ...................................................................467
1
2
3
4
5
6
7
8
9
10

INTRODUCTION
CONTENTS
䡵Introduction ........................... 4
䡵How To Use This Manual .................. 4
䡵Warnings And Cautions ................... 6
䡵Vehicle Identification Number .............. 6
䡵Vehicle Modifications/Alterations ............ 7
1

INTRODUCTION
Congratulations on selecting your new Chrysler Group
LLC vehicle. Be assured that it represents precision
workmanship, distinctive styling, and high quality - all
essentials that are traditional to our vehicles.
This Owner’s Manual has been prepared with the assis-
tance of service and engineering specialists to acquaint
you with the operation and maintenance of your vehicle.
It is supplemented by Warranty Information, and various
customer-oriented documents. Please take the time to
read these publications carefully. Following the instruc-
tions and recommendations in this manual will help
assure safe and enjoyable operation of your vehicle.
NOTE: After reviewing the owner information, it
should be stored in the vehicle for convenient referenc-
ing and remain with the vehicle when sold.
When it comes to service, remember that your authorized
dealer knows your vehicle best, has factory-trained tech-
nicians and genuine MOPAR威parts, and cares about
your satisfaction.
HOW TO USE THIS MANUAL
Consult the Table of Contents to determine which section
contains the information you desire.
Since the specification of your vehicle depends on the
items of equipment ordered, certain descriptions and
illustrations may differ from your vehicle’s equipment
The detailed index at the back of this Owner’s Manual
contains a complete listing of all subjects.
Consult the following table for a description of the
symbols that may be used on your vehicle or throughout
this Owner’s Manual:
4 INTRODUCTION

INTRODUCTION 5

WARNINGS AND CAUTIONS
This Owner’s Manual contains WARNINGS against op-
erating procedures that could result in a collision or
bodily injury. It also contains CAUTIONS against proce-
dures that could result in damage to your vehicle. If you
do not read this entire manual, you may miss important
information. Observe all Warnings and Cautions.
VEHICLE IDENTIFICATION NUMBER
The Vehicle Identification Number (VIN) is on the left
front corner of the instrument panel and is visible from
outside of the vehicle through the windshield. This
number also appears stamped on the right front door sill
under the sill moulding and printed on the Automobile
Information Disclosure Label affixed to a window on
your vehicle, the vehicle registration and title.
The stamped VIN is located on the right front door sill
under the sill moulding.
Vehicle Identification Number
6 INTRODUCTION

NOTE: It is illegal to remove or alter the VIN.
VEHICLE MODIFICATIONS/ALTERATIONS
WARNING!
Any modifications or alterations to this vehicle could
seriously affect its roadworthiness and safety and
may lead to a accident resulting in serious injury or
death.
Stamped VIN Location
1
INTRODUCTION 7

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
䡵A Word About Your Keys ................. 12
▫Ignition Key Removal .................. 12
▫Key-In-Ignition Reminder ............... 14
▫Locking The Doors With The Key .......... 14
䡵Sentry Key威.......................... 15
▫Replacement Keys ..................... 16
▫Customer Key Programming ............. 16
▫General Information ................... 17
䡵Vehicle Security Alarm — If Equipped ........ 18
▫Rearming The System .................. 18
▫To Arm The System ................... 18
▫To Disarm The System ................. 19
䡵Illuminated Entry — If Equipped ........... 20
䡵Remote Keyless Entry (RKE) — If Equipped . . . 20
▫To Unlock The Doors .................. 21
▫To Lock The Doors .................... 23
▫To Unlatch The Trunk .................. 24
2

▫Remote Open Window Feature —
If Equipped ......................... 25
▫Using The Panic Alarm ................. 25
▫Programming Additional Transmitters ...... 25
▫Transmitter Battery Replacement .......... 25
▫General Information ................... 26
䡵Remote Start System — If Equipped ......... 27
▫How To Use Remote Start ............... 27
䡵Door Locks ........................... 30
▫Manual Door Locks ................... 30
▫Power Door Locks .................... 31
▫Child-Protection Door Lock System —
Rear Doors .......................... 33
䡵Power Windows ....................... 34
▫Power Window Switches ................ 34
▫Auto Window Down — If Equipped ....... 35
▫Auto Window Up — If Equipped .......... 36
▫Window Lockout Switch ................ 37
▫Wind Buffeting ....................... 37
䡵Trunk Lock And Release ................. 38
䡵Trunk Safety Warning ................... 39
▫Trunk Internal Emergency Release ......... 39
䡵Occupant Restraints ..................... 39
▫Lap/Shoulder Belts .................... 43
▫Lap/Shoulder Belt Untwisting Procedure .... 47
▫Adjustable Upper Shoulder Belt Anchorage . . . 48
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

▫Rear Seat Belts ....................... 49
▫Seat Belts In Passenger Seating Positions ..... 49
▫Automatic Locking Retractor Mode (ALR) —
If Equipped ......................... 49
▫Energy Management Feature ............. 50
▫Seat Belt Pretensioners ................. 51
▫Supplemental Active Head Restraints
(AHR) — If Equipped .................. 51
▫Enhanced Seat Belt Use Reminder System
(BeltAlert威) ......................... 55
▫BeltAlert威Programming ................ 56
▫Seat Belts And Pregnant Women .......... 57
▫Seat Belt Extender ..................... 57
▫Supplemental Restraint System (SRS) —
Air Bags ............................ 57
▫Air Bag System Components ............. 59
▫Advanced Front Air Bag Features .......... 60
▫Air Bag Deployment Sensors And Controls . . . 64
▫Event Data Recorder (EDR) .............. 71
▫Child Restraints ...................... 72
▫Transporting Pets ..................... 83
䡵Engine Break-In Recommendations .......... 83
䡵Safety Tips ........................... 84
▫Transporting Passengers ................ 84
▫Exhaust Gas ......................... 84
▫Safety Checks You Should Make Inside The
Vehicle ............................. 85
▫Periodic Safety Checks You Should Make
Outside The Vehicle ................... 87
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11

A WORD ABOUT YOUR KEYS
The authorized dealer that sold you your vehicle has the
key code numbers for your vehicle locks. These numbers
can be used to order duplicate keys from your authorized
dealer. Ask your authorized dealer for these numbers
and keep them in a safe place.
You can insert the double-sided keys into the locks with
either side up.
Ignition Key Removal
Automatic Transaxle
Place the shift lever in PARK. Turn the ignition switch to
the ACC position, push the key and cylinder inward,
rotate the key to the LOCK position, and remove the key.
Vehicle Key
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:
• If you try to remove the key before you place the shift
lever in PARK, the key may become trapped tempo-
rarily in the ignition switch lock cylinder. If this
occurs, rotate the key to the right slightly, then remove
the key as described. If a malfunction occurs, the
system will trap the key in the ignition switch lock
cylinder to warn you that this safety feature is inop-
erable. The engine can be started and stopped, but the
key cannot be removed until you obtain service.
• For vehicles not equipped with the Electronic Vehicle
Information Center (EVIC), the power window
switches, radio, hands–free system (if equipped), and
power outlets will remain active for 45 seconds after
the ignition switch is turned to the LOCK position.
Opening either door will cancel this feature.

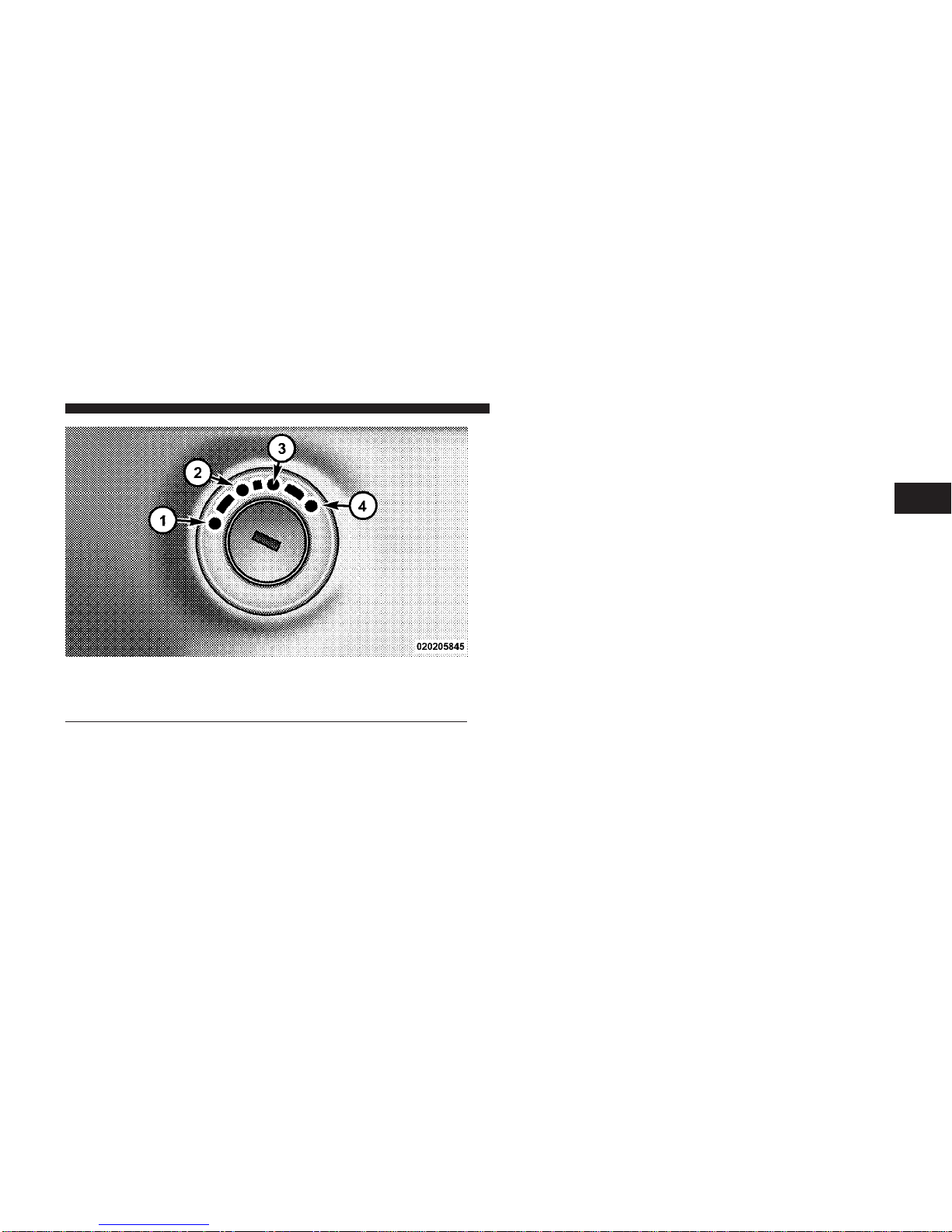

Ignition Switch Positions
1 — LOCK 3 — ON/RUN
2 — ACC (ACCESSORY) 4 — START
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

• For vehicles equipped with the Electronic Vehicle In-
formation Center (EVIC), the power window switches,
radio, hands–free system (if equipped), and power
outlets will remain active for up to 10 minutes after the
ignition switch is turned to the LOCK position. Open-
ing either front door will cancel this feature. The time
for this feature is programmable. Refer to “Electronic
Vehicle Information Center (EVIC)/Personal Settings
(Customer-Programmable Features)” in “Understand-
ing Your Instrument Panel” for further information.
WARNING!
Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be seri-
ously or fatally injured. Don’t leave the keys in the
ignition. A child could operate power windows,
other controls, or move the vehicle.
CAUTION!
An unlocked car is an invitation to thieves. Always
remove key from the ignition and lock all doors
when leaving the vehicle unattended.
Key-In-Ignition Reminder
Opening the driver’s door when the key is in the ignition
sounds a signal to remind you to remove the key.
NOTE:
• The Key-In-Ignition reminder only sounds when the
ignition key is placed in the LOCK or ACC position.
• With either front door open, and the key in the
ignition, both the power door locks and Remote Key-
less Entry (RKE) transmitter will not function.
Locking the Doors with the Key
There is only one external door lock cylinder which is
located in the driver’s door.
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

You can insert the key with either side up. To lock the
door, turn the key rearward. To unlock the door, turn the
key forward. For door lock lubrication, see “Maintenance
Procedures” in “Maintaining Your Vehicle” of this
manual.
SENTRY KEY姞
The Sentry Key威Immobilizer System prevents unauthor-
ized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses ignition keys, which have an embedded
electronic chip (transponder), to prevent unauthorized
vehicle operation. Therefore, only keys that are pro-
grammed to the vehicle can be used to start and operate
the vehicle. The system will shut the engine off in two
seconds if someone uses an invalid key to start the
engine.
NOTE: A key which has not been programmed is also
considered an invalid key even if it is cut to fit the
ignition switch lock cylinder for that vehicle.
During normal operation, after turning on the ignition
switch, the Vehicle Security Light will turn on for three
seconds for a bulb check. If the light remains on after the
bulb check, it indicates that there is a problem with the
electronics. In addition, if the light begins to flash after
the bulb check, it indicates that someone used an invalid
key to start the engine. Either of these conditions will
result in the engine being shut off after two seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 sec-
onds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible by an authorized dealer.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

CAUTION!
The Sentry Key威Immobilizer system is not compat-
ible with some after-market remote starting systems.
Use of these systems may result in vehicle starting
problems and loss of security protection.
All of the keys provided with your vehicle have been
programmed to the vehicle electronics.
Replacement Keys
NOTE: Only keys that have been programmed to the
vehicle electronics can be used to start the vehicle. Once
a Sentry Key威has been programmed to a vehicle, it
cannot be programmed to any other vehicle.
CAUTION!
Always remove the Sentry Key威from the vehicle and
lock all doors when leaving the vehicle unattended.
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
The PIN is required for authorized dealer replacement of
keys. Duplication of keys may be performed at an
authorized dealer or by using the Customer Key Pro-
gramming procedure. This procedure consists of pro-
gramming a blank key to the vehicle electronics. A blank
key is one which has never been programmed.
NOTE: When having the Sentry Key威Immobilizer
System serviced, bring all vehicle keys with you to the
authorized dealer.
Customer Key Programming
You can program new keys to the system if you have two
valid Sentry Keys威by performing the following proce-
dure:
1. Cut the additional Sentry Key威Transponder blank(s)
to match the ignition switch lock cylinder key code.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

2. Insert the first valid key into the ignition switch. Turn
the ignition switch to the ON/RUN position for at least
three seconds, but no longer than 15 seconds. Then, turn
the ignition switch to the LOCK position and remove the
first key.
3. Insert the second valid key into the ignition switch.
Turn the ignition switch to the ON/RUN position within
15 seconds. After ten seconds, a chime will sound. In
addition, the Vehicle Security Light will begin to flash.
Turn the ignition switch to the LOCK position and
remove the second key.
4. Insert a blank Sentry Key威into the ignition switch.
Turn the ignition switch to the ON/RUN position within
60 seconds. After 10 seconds, a single chime will sound.
In addition, the Vehicle Security Light will stop flashing.
To indicate that programming is complete, the indicator
light will turn on again for three seconds and then turn
off.
The new Sentry Key威is programmed. The Remote
Keyless Entry (RKE) transmitter will also be pro-
grammed during this procedure.
Repeat this procedure to program up to eight keys. If you
do not have a programmed Sentry Key威contact your
authorized dealer for details.
NOTE: If a programmed key is lost, see your authorized
dealer to have all remaining keys erased from the sys-
tems memory. This will prevent the lost key from starting
your vehicle. The remaining keys must then be repro-
grammed. All vehicle keys must be taken to your autho-
rized dealer at the time of service to be reprogrammed.
General Information
The Sentry Key威system complies with FCC rules part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
• This device may not cause harmful interference.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

• This device must accept any interference that may be
received, including interference that may cause unde-
sired operation.
VEHICLE SECURITY ALARM — IF EQUIPPED
The Vehicle Security Alarm monitors the doors and trunk
for unauthorized entry and ignition switch for unauthor-
ized operation. While the Vehicle Security Alarm is
armed, interior switches for door locks and decklid
release are disabled.
If something triggers the alarm, the Vehicle Security
Alarm will signal for about 18 minutes. For the first three
minutes, the horn will sound intermittently and the
headlights, park lamps and/or turn signals will flash and
the Vehicle Security Light in the cluster will flash. Then
the exterior lights will flash for another 15 minutes.
Rearming The System
If something triggers the alarm, and no action is taken to
disarm it, the Vehicle Security Alarm will turn off the
horn after three minutes, turn off all of the visual signals
after 15 minutes, and then the Vehicle Security Alarm will
rearm itself.
To Arm The System
1. Remove the keys from the ignition switch and get out
of the vehicle.
2. Lock the door using either the power door lock switch
(one door must be open) or the LOCK button on the
Remote Keyless Entry (RKE) transmitter (doors can be
open or closed), and close all doors.
NOTE: The Vehicle Security Alarm will not arm if you
lock the doors with the manual door lock plungers.
3. The Vehicle Security Light in the instrument cluster
will flash for 16 seconds. This shows that the Vehicle
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
