CHP - 5350DL / CHP-5351DL
• Read the user's manual thoroughly before using the unit.
• Design and color may differ from the picture.
• Unit appearance, specification, etc. are subject to change without prior notice if
necessary for improving unit performance.
• The rated voltage of this unit is 220-240 V~ / 50 Hz only
Use 's manual
휘카페 4_영문매뉴얼_*이과수공기청정기-수정 16. 2. 22. 오후 2:47 페이지 2

01
Unit features
Coffee capsule extract function for Italian flavor of coffee
Extract function for coffee and tea is applied to allow users to enjoy Italian flavor of coffee and tea.
Reverse osmosis purifying system without pump
This unit serves purified water from reverse osmosis system without booster pump. This decreases the function noise
and power consumption accordingly.
All-in-one water purifier with caffe
Water with 3 different temperature (hot, cold and ambient), ice and extract function offer various beverages on
user's preference.
Detachable capsule holder and hygienic operation
Extract method is easy to follow by inserting a capsule to the holder and push the desired beverage button. Detachable
capsule holder helps to stay clean by rinsing it with water simply.
ACS smart cleaning function
This makes users not to worry about contamination by bacteria as it empties the ambient water and cold tank automati-
cally every 4 days in fixed time and fill the clean water which is sterilized by UV sterilizer.
Selection key for optimized taste of various coffee capsules
Buttons for Espresso, Americano and Tea are designed for the best taste of its coffee and tea.
Easy and quick extract for Americano
In case “AMERICANO” button is applied, hot water is added while extracting coffee.
Compact size (width: 29 cm)
Compact-sized water purifier can be installed by effectively utilizing the space.
Extended water dispensing space
It is convenient to take water with any shape of bottle as height of water dispensing space is up to 25 cm.
Dual heating system
Hot water is made by standby heating mode or hot tank heating mode. User can easily select the mode by their prefer-
ence. It enhances energy efficiency.
24 hour natural water circulation system(N.W.P.W)
ChungHo Nais purification system is designed to allow water to continuously flow for 24 hours within the water purifier by
adopting a natural circulation method. This mode, entitled N.W.P.W. applies the natural weight of water pressure in order
to supply always clean and fresh water. (patent : No.105585)
ilter structure is designed for user friendly
It is convenient to replace filters as they could be detached by lifting them.
Easy maintenance system
It is more convenient that empty water tank within 11 minutes by pressing the button once for cleaning inside.
123456
7
8910111213
This appliance is intended to be used in household and simila applications such as
-staff kitchen areas in shops, offices and other working environments
-farm houses
-by clients in hotels, motels and other residential type environments
-bed and breakfast type environments
휘카페 4_영문매뉴얼_*이과수공기청정기-수정 16. 2. 22. 오후 2:47 페이지 3

We greatly appreciate your purchase of "WHI CA E -Ⅳ ". This unit is manufactured according to standard specifica-
tion, and produced with a reliability test on all integrated components. The system is tested thoroughly on strict quality
guidelines including temperature, moisture, shock, dust, vibration, drop, etc. We are sure that these various production
processes will provide the utmost customer satisfaction in both quality and excellence.
Befo e installing o using the unit, ead this use 's manual tho oughly and keep it fo you futu e efe ence.
1.제품의특징02
G eetings
Safety precautions 03~06
Names of each part 07
Installation cautions 08
Installation method 09
How to extract coffee and tea 10
Display and coffee extract button 10
Extracting coffee and tea 10
Using coffee and tea extract method 11~13
LCD display for coffee extract 11
Extracting coffee and tea 11~13
Descaling coffee outlet 13
Coffee recipe 14
Operation 15
Display and function settings (A) 15
Water dispensing selection (B) 15
Usage 16~19
unction setting and releasing 16~17
Ice and water dispensing method 18~19
Smart cleaning function 19
Cautions during use 20
Cleaning 21~23
Ice dispensing spout 21
Water dispensing spout 21
Water tank 21~23
Capsule holder 23
Coffee outlet packing 23
Drip tray 23
Maintenance 24
ilters 25
ilter function 25
ilter service life 25
Replacement 26
Specification 27
low diagram 28
Recommended replacement part 28
Troubleshooting 29
휘카페 4_영문매뉴얼_*이과수공기청정기-수정 16. 2. 22. 오후 2:47 페이지 4

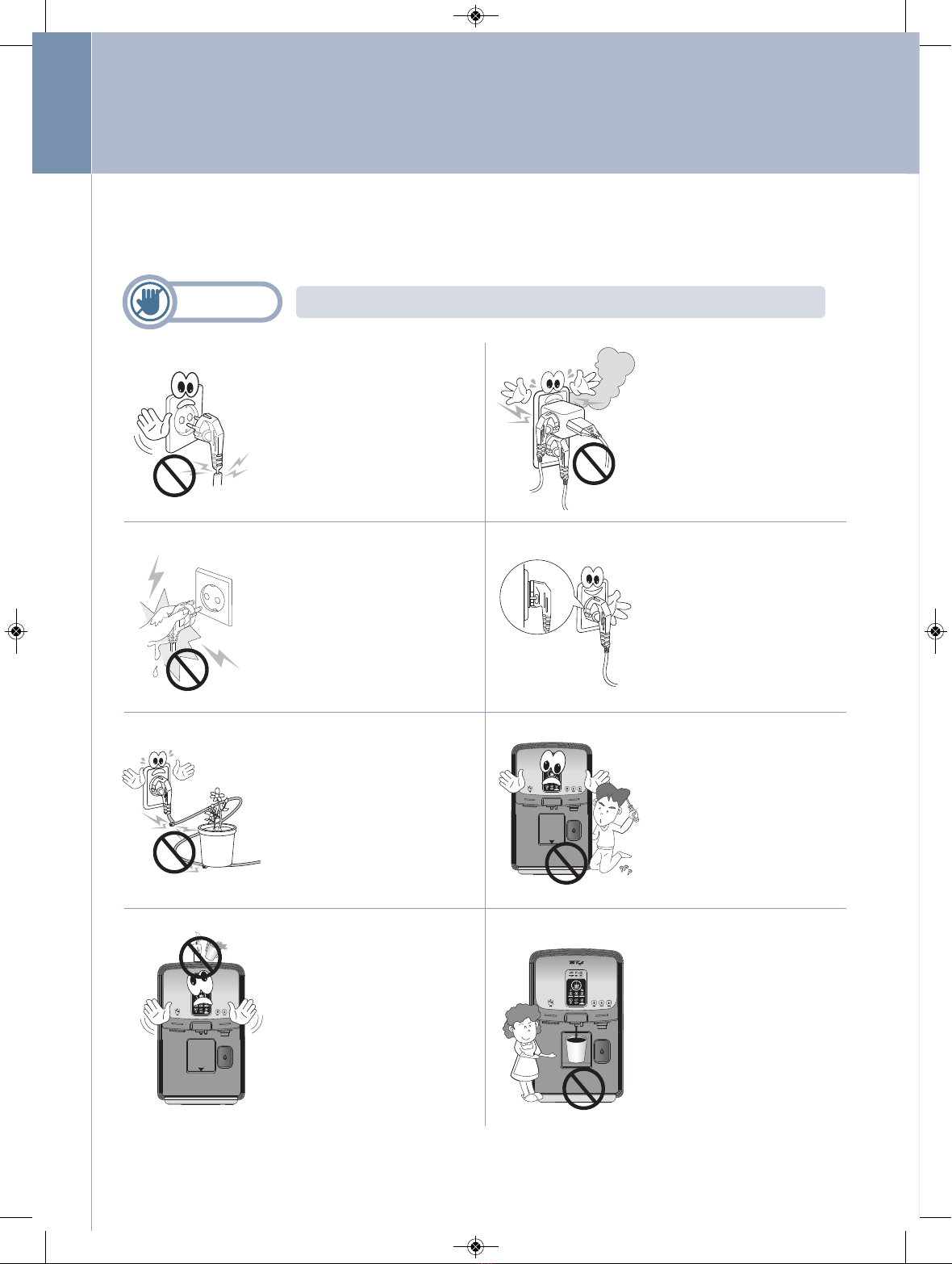

● When the power cord has
been damaged, change the
power cord in order to
prevent danger such as an
electric shock, etc.
(Do not use damaged or
loose wall outlets. An electric
shock or fire may occur.)
● Keep the cord out of heavy
traffic areas.
(This can lead to overheating
the outlet.)
● Insert the plug to the outlet
firmly to avoid loosening.
(Unstable connection may
cause a fire.)
● Do not bend the power cord
excessively or put heavy
objects over the power cord.
(An electric shock or fire may
occur.)
● If the unit is damaged or
malfunctioning, do not disa-
ssemble, repair, or remodel it
on your own.
● Do not put candles, lit
cigarettes, etc. on the unit.
(There is danger of a fire.)
● Do not put a bowl containing
water, chemicals, small
metals, etc. on the unit.
(If these materials drop into
the inside of the unit, this
may cause an electric shock
or fire.)
Associated with the possibility for serious injury or death.
Danger
Cautions are divided into 2 categories : ‘Danger’ and ‘Caution’
Safety p ecautions
● Leave the unit unplugged,
before cleaning the inside
of the unit.
(An electric shock or fire
may occur.)
● Do not touch the power plug
with wet hands.
(An electric shock may occur.)
● While coffee is extracting, do not
stay close to coffee outlet.
(Coffee splashes and it can cause
burns.)
03
휘카페 4_영문매뉴얼_*이과수공기청정기-수정 16. 2. 22. 오후 2:47 페이지 5

● Do not reuse the capsule.
(Capsule can have deformation
and it cause leakage.)
● Use designated capsule size
only.
(Do not use other sized
capsules. Different size can
cause malfunction and burns.)
● Remove used capsule from
the capsule holder.
(Leaving the capsule for long
time can cause germ
and mold in the holder.)
● Be careful of burns when you
throw away capsules after
extract.
(Small amount of hot
water remaining capsule
holder can cause burns.)
● Do not insert finger to the coffee
outlet with capsule holder sepa-
rated.
( inger can be injured by being
caught.)
● While coffee is extracting,
never try to separate
capsule holder.
(Coffee machine can have
damage and hot beverage
can cause burns.)
● Close supervision is required
when any appliance is used
by or near children.
● Make sure that drip tray is
properly installed when you
extract coffee.
(Hot coffee can spill over.)
● Do not try to extract coffee or
tea without cup.
(Beverage can overflow from
drip tray and it can cause
burns.)
Associated with the possibility of injury, property damage and reduced performance of unit.
Caution
25mm36mm
04
Safety p ecautions
휘카페 4_영문매뉴얼_*이과수공기청정기-수정 16. 2. 22. 오후 2:47 페이지 6

05
● To avoid burns from beverage,
use containers such as a cup
during coffee extract.
● To avoid burns from hot water,
use containers such as a cup
during hot water dispensing.
● Do not install the unit in a place
where the temperature may
drop below 32 ° (0 °C).
● Do not operate the unit standing
unbalanced.
(It can cause malfunction.)
● Do not tilt the unit over 45° dur-
ing transportation.
(Severe inclination can cause
performance degradation.)
● Do not install the unit in a
sloped or unstable position.
(This can cause a reduced
performance, system damage
or overall trouble.)
Associated with the possibility of injury, property damage and reduced performance of unit.
Caution
Safety p ecautions
●
When taking ice, place a contain-
er close to the ice dispensing hole
not to drop ice on the floor.
(Be careful in order not to allow
containers such as cups, etc. to
be inserted into the inside of ice
dispensing hole.)
●
When taking ice, avoid using a
glass cup and avoid taking ice
with cup filled with beverage, cof-
fee etc.
(A glass cup can be broken by
abrupt temperature change or the
ice strike. Beverage and coffee
can splash into ice dispensing
hole and it can cause mold.)
●
Do not put foreign materials
into the ice dispensing hole
or block the dispensing hole.
(This can cause system mal-
function.)
휘카페 4_영문매뉴얼_*이과수공기청정기-수정 16. 2. 22. 오후 2:47 페이지 7

06

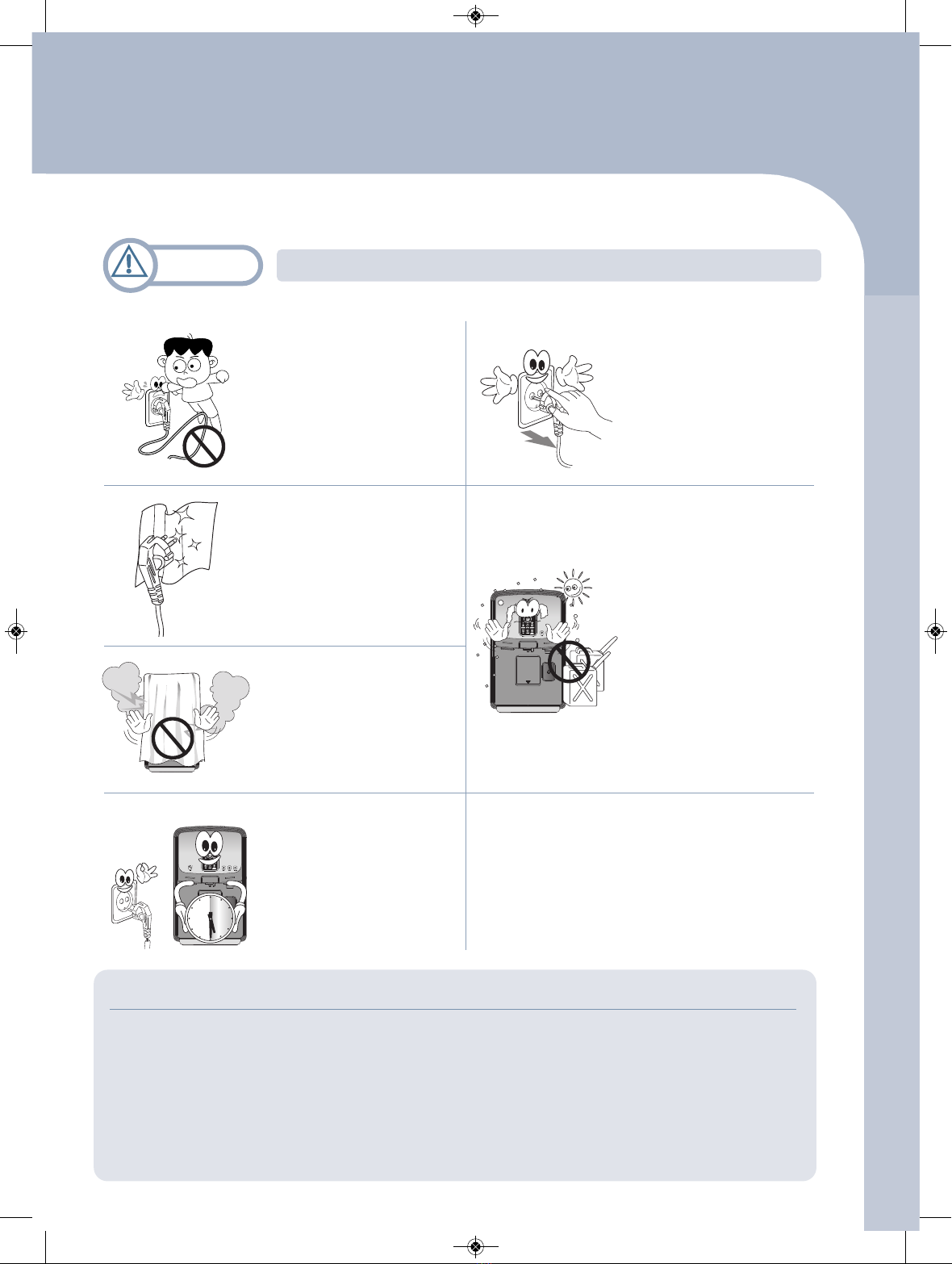

● If there is dust, water or etc.
on the power plug pin, wipe it
off well.
(Wipe it off dust, water or etc. on
the power plug pin before con-
nection.)
30 Minutes
● After transporting the unit, do
not supply the power for at
least 30 minutes to stabilize the
unit.
● To disconnect the unit, be sure
to pull by the plug and not the
cord.
(Be sure to pull by the plug, not
the cord to disconnect the unit.)
● After installation, arrange the
power cord so that it will not
be stepped on or stepped
over.
● Do not put any covering on the
rear and side of the unit.
Blocking ventilation holes may
raise inside temperature and
cause system malfunction
or even system stoppage.
● Do not install the unit in or
around largely damp areas,
at a place near flammable
materials, or at a place
exposed to rain or snow.
(There is danger of an
electric shock or fire.)
Symptoms under normal operations
1. During use of the unit, a murmuring water-flow sound, a clattering ice dropping sound, etc. may occur
during cold water making process or ice making process.
2. Opaque ice may occasionally be served, but there is no abnormality in unit performance or ice quality.
3. TDSs (Total Dissolved Solids) found in ambient water, cold water, and ice may vary from one another.
(This is a result of the freezing point method.)
4. After the system power source is interrupted and then again restarted, irregular ice may temporarily be
served.
● Keep tube fixed properly so as not to
splash around area with water from brine tube.
Associated with the possibility of injury, property damage and reduced performance of unit.
Caution
Safety p ecautions
휘카페 4_영문매뉴얼_*이과수공기청정기-수정 16. 2. 22. 오후 2:47 페이지 8

07
Names of each pa t
Drain switch
Drip tray
Hot tank heating/Off/Standby
heating selection switch
Ice dispensing touch button
Ice dispensing display
Water dispensing button
Water dispensing spout
Grill
Hot/Ambi./Cold water display
Hot water : Red, Ambient water : Green, Cold water : Blue
ICE/LOCK setting touch button
Ice dispensing spout
Capsule holder
Water tray
Lock display
Ice making display
Ice full display
Water full display
Hot water display
Hot water selection touch button
Coffee extract display and control panel
Cold water selection touch button
Ambient water selection touch button
휘카페 4_영문매뉴얼_*이과수공기청정기-수정 16. 2. 22. 오후 2:47 페이지 9

08
Installation cautions
When transporting the unit, do not tilt it over 45°
*Severe tilting can cause performance degradation.
Keep the unit approximately 8" (20 cm) away from the wall for proper ventilation.
Use the following water quality range.
• Water pressure : 1.4~7 kgf/㎠(137~686 kPa) • Water temperature : 39~100 ° (4~38 °C)
• pH : 5.8~8.5 • Water hardness : 300 ppm or less
• Evaporated residue : 500 ppm or less • Water quality : Biologically safe water quality
*When using the water out of range, discuss it with the distributor. If not, the unit can be
excluded from the stated warranty.
Do not connect hot water over 100 °(38 °C) to this unit.
*This can cause trouble and malfunction.
When connecting tube, ensure that the tube is not bent or pressed down by any heavy objects.
*If tube is bent or pressed, water does not flow well and can cause problems.
The highest point of installed brine tube must be less than 12"(30 cm) away from the flat floor.
Total length of brine tube must be less than 118"(3 m). Otherwise, water is not drained well.
When installing more than one unit(water purifier, shower softener, etc.), tubes of source water, brine
water need to be independent for one another.
Adjust the tube so that brine water may not splash around area.
*Brine water can easily be used for other purposes, such as bathroom cleaning, house cleaning, laundering,
washing, etc. Never use the brine water for drinking or cooking.
Do not install the unit at the following places.
• Near fire or heater • Near flammable material • Wet place • Near the toilet
• A place exposed to rain or snow • A place exposed to direct sunlight
• Near chemicals(volatile material, organic solvent, etc.)
• A place below 32 ° (0 °C) or a place with the possibility of dropping below 32 ° (0 °C).
• A place above 104 ° (40 °C) or a place with the possibility of rising above 104 ° (40 °C).
Install the unit at a place where the surface is flat, and after installation, always adjust the level of the unit
by using a level gauge.
* More 3˚ tilting can cause performance degradation.
Do not place any electric heater near the rear of the unit.
1234567891011
휘카페 4_영문매뉴얼_*이과수공기청정기-수정 16. 2. 22. 오후 2:47 페이지 10

09
Installation method
123689457
Connect tube to brine on the rear of the product. And then, connect tube to
drain hole such as sink, toilet etc..
Turn on water supply valve connected to the house and position the adapter
(source water valve) "OPEN".
Do not plug in the power for 30 minutes in order to stabilize the cooling system
and safe use of unit.
Check if water is supplied into the unit properly and any leakages on every
connection.
After 1 hour has passed from supplying the power, check if water is coming
out by pressing the water dispensing button.
Empty the water in the tank when "WATER ULL" lights on.
30 Minutes
Install horizontally.
Shut off water supply valve and separate the connector part of tap water in
order to connect an adapter(source water valve). Then, connect the adapter.
* If a sealing rubber(packing) is missing or the thread of a screw is damaged, it may occur
water leakage.
* The unit is recommended to install on the sink or table above 80 cm from the floor.
Connect the adapter(source water valve) and a water inlet on the rear of the
unit with a tube.
휘카페 4_영문매뉴얼_*이과수공기청정기-수정 16. 2. 22. 오후 2:47 페이지 11

10
Soft Americano
extracting button
How to ext act coffee and tea

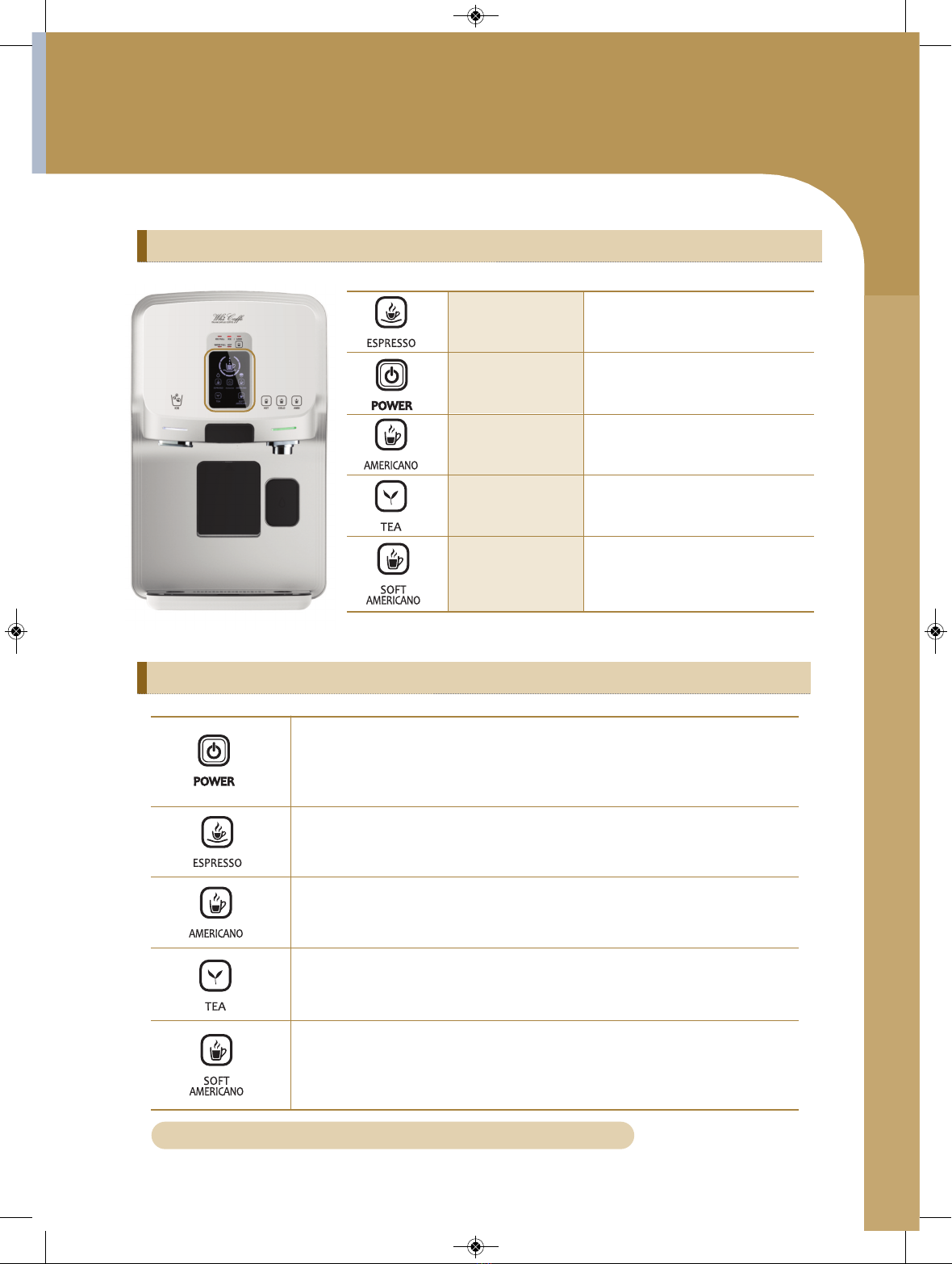

Display and coffee extract button
Extracting coffee and tea
Americano
extracting button
Tea
extracting button
Turns ON/O the extract function
Power/Warm-up
button
Used to extract the Espresso.
Espresso
extracting button
Used to extract the Americano.
Used to extract the Tea.
Used to extract the Soft
Americano.
●
Power button
Press "POWER" to turn on the heater before extracting Espresso/Americano
/Tea/Soft Americano.
Power LED will blink to indicate pre-heated water is ready to extract.
●
Espresso
Press "ESPRESSO" to extract the coffee after inserting the coffee capsule.
Press "ESPRESSO" again to release this function.
●
Americano
Press "AMERICANO" to extract the coffee after inserting the coffee capsule.
Press "AMERICANO" again to release this function.
●
Tea
Press "TEA" to extract the tea after inserting the tea capsule.
Press "TEA" again to release this function.
●
Soft Americano
Press "SO T AMERICANO" to extract the coffee after inserting the coffee cap-
sule. Press "SO T AMERICANO" again to release this function.
※ Use the container(More than 230 ml) for Soft Americano extract.
*Refer to the details on how to use the function on 11~13 page.
휘카페 4_영문매뉴얼_*이과수공기청정기-수정 16. 2. 22. 오후 2:47 페이지 12

ESPRESSO/AMERICANO/
SO T AMERICANO/TEA
extracting
ESPRESSO/AMERICANO/
SO T AMERICANO/TEA
extraction completed
11
Using coffee and tea ext act method
LCD display for coffee extract
Before heating Heating Heating completion
(Standby)
No capsule
ESPRESSO/AMERICANO/
SO T AMERICANO/TEA
preparing extraction
Not enough water
*When Americano / Soft Americano is selected, there is possibility that hot Americano will not be
extracted if hot water function is off and heating is not completed.
Extracting coffee and tea
1. Press “POWER”
*While pre-heating, extraction preparation LED is light-
ing in turns.
*After completion of heating, every extraction button is
lighting with beep sound.(Sound : Ding-Ding-Ding)
2. Pull out capsule holder.
3. Insert the coffee or tea capsule to the holder
and push it.
휘카페 4_영문매뉴얼_*이과수공기청정기-수정 16. 2. 22. 오후 2:47 페이지 13

12
4. Put the cup on the drip tray.
* When users use small size of cup, press the button in
the bottom of drip tray to take it out.
* Coffee in 6.5 oz(180 ml) sized cup can spill over when
user extract Soft Americano and be careful of burns
when you are holding the cup. Use big sized mug or
paper cup bigger than 8 oz(230 ml).
Using coffee and tea ext act method
How to use drip tray
<Low>
or low height of tumbler or
big sized mug
<High>
or general sized paper cup
(Around 180 ml)
• Adjust height of drip tray when extracting the coffee so as not to splash around area and for abundant
Coffee Crema.
• How to adjust height of drip tray
<Middle>
or mug or big sized paper
cup(Less than 400 ml)
* Take down the drip tray 1 more time as it has protection function at 60 degree to prevent fingers from
being caught.
* Check if drip tray is fixed properly by moving it up and down.
1. Press the button in the
bottom of drip tray.
3. Hook the drip tray to the
groove and detach a hand
from the drip tray to fix it.
2. Pull out the drip tray by
pressing both sides of but-
tons to adjust the height.
* Do not extract the coffee by leaning the cup
to the hump. Coffee can be spilt over and
this can cause burns.
• Cup holder function of drip tray
1. There are groove for paper cup and hump
for mug on the drip tray to fix the cups stably
while extracting the coffee.
휘카페 4_영문매뉴얼_*이과수공기청정기-수정 16. 2. 22. 오후 2:47 페이지 14

13
Using coffee and tea ext act method
7. Extracting is completed with beep sound.
(Sound : Ding-Ding-Ding)
8. Remove capsule and water in capsule holder.
*Extracting can generate small amount of
water in capsule holder. It is normal operation.
9. Add the "HOT", "COLD" or "AMBI." water on user's preference.
*or iced coffee, we recommend that you take ice cubes
first and extract coffee.
*When extracting the coffee or tea, be careful as beverage is hot.
*Do not separate capsule holder while extracting the coffee or tea. There is danger of
burns.
* or iced coffee, we recommend that you take ice cubes first and extract coffee to
avoid spattering beverage and burns. It can cause germ and mold in ice spout.
* Use big sized cup(More than 230 ml) when extracting Soft Americano.
Check point!
5. Press the "ESPRESSO", "AMERICANO", "TEA" or
“SO T AMERICANO” on user's preference.
*Use designated capsule size only.
6. Coffee or tea is extracted by high pressure.
*Extracting the coffee or tea causes noise and vibration
from motor and high pressure pump.
This is normal operation.
1. Pull out the coffee/tea capsule from the capsule holder.
2. Press "POWER" button for 5 seconds when the power is off.
3. "CLEAN" button LED is blinking and starts to clean up.
4. Place big-sized cup as high pressured water comes out from the
unit.
5. Hot and ambient water come out for 12 seconds to clean up the
coffee outlet.
Descaling coffee outlet
5 SECONDS
*Make sure that capsule holder is empty for cleaning.
*After warm-up completion, coffee or tea can be extracted immediately.
휘카페 4_영문매뉴얼_*이과수공기청정기-수정 16. 2. 22. 오후 2:47 페이지 15

14
Coffee ecipe
*1 shot means a cup of extracted espresso.
Recipe
Ingredients : Espresso arabica 100(1 shot) + Ice(10 cubes) + Water(100 ml)
1. ill the glass with chilled filtered water and ice.
2. Pour the espresso over the ice.
Ingredients : Espresso lunch(1 shot) + Ice cream(1 scoop)
1. Put the 1 scoop of ice cream in the glass.
2. Pour the espresso over the ice cream.
3. Put topping like nuts on user's preference.
Ingredients : Espresso lunch(2 shots) + Ice(8 cubes) + Milk(120 ml)
1. Put the 8 cubes of ice in the glass.
2. Add the chilled milk.
3. Pour the 2 shots of espresso over the ice.
Ingredients : Espresso morning(1 shot) + Ice(6 cubes) + Syrup(15 ml)
1. ill the cocktail shaker(Tumbler) with ice and syrup.
2. Shake the cocktail shaker after pouring 1 shot of espresso.
3. Take the crema with coffee to the transparent glass.
Ingredients : Espresso morning(2 shots) + Milk(120 ml) + Ice(10 cubes) + Vanilla syrup(20 ml)
1. Put the vanilla syrup in the glass.
2. Add the ice and milk.
3. Pour the espresso slowly in the glass.
Ingredients : Espresso arabica 100(1 shot) + Milk(100 ml) + Ice(6 cubes) + Chocolate syrup(15 ml)
1. Put the chocolate syrup in the glass.
2. Pour the espresso to melt the chocolate syrup.
3. Pour the milk into the glass and quickly stir it. And then add the ice.
4. Put the whipping cream on the top and decorate it on user's preference.
Ingredients : Espresso morning(1 shot) + Whipping cream
1. Extract the espresso in the warm demitasse glass.
2. Put the whipping cream rapidly.
Ingredients : Espresso arabica 100(1 shot) + Honey yuzu(4 spoons) + Ice(10 cubes) +
Water(100 ml)
1. Put the 4 spoons(Tea spoon) of honey yuzu and water in the glass and stir them.
2. Put the 10 cubes of ice.
3. Extract the espresso and pour it in the glass.
*Putting extra 10 ml of hot water can easily melt the honey yuzu.
Ingredients : Espresso arabica 100(1 shot) + Sugar(5 g) + Hot water(75 ml) + Ice(8~9 cubes)
1. Put the hot water in the warm glass.
2. Put the sugar and stir it.
3. Add the 1 shot of espresso and put the whipping cream on it.
4. Decorate it on user's preference adding cinnamon, nuts or syrup.
Menu
Iced Americano
Affogato
Iced Caffe Latte
Shakerato
Iced Vanilla Latte
Caffe Mocha
Espresso Con Panna
Yuzu Americano
Caffe Vienna
휘카페 4_영문매뉴얼_*이과수공기청정기-수정 16. 2. 22. 오후 2:47 페이지 16

ICE ULL LED
Ice making / Hot
water function
Lock setting button
15
Ope ation
ICE LED
LOCK LED
Lights up when ice storage is full.
(Red)
Lights up when "ICE" is set. (Red)
Lights up when "LOCK" is set. (Red)
WATER ULL LED
Lights up when ambient water tank is
full. (Red)
HOT LED
Lights up when "HOT" is set.
(HOT TANK HEATING : RED,
STANDBY HEATING : YELLOW)
Display and function settings (A)
HOT TANK HEAT-
ING/O /STANDBY
HEATING
SELECTION SWITCH
ON
OFF
DRAIN
SWITCH
Press the switch up and middle and
down to select the HOT TANK HEATING
/O /STANDBY HEATING.
Press the switch up and down to select
the drain setting/releasing.
CDCD
*Hot tank heating mode : Hot water is always served.
*Standby heating mode : Hot water is made in short time when it is in need.
AB
AMBICOLD(COLD WATER
SELECTION)
HOT(HOT WATER
SELECTION)
WATER DISPENS-
ING BUTTON
Used to take water into a container
such as a cup after selecting the
desired water selection among hot,
cold and ambient water.
Used to set/release Ice making/Lock-
ing function
ICE(ICE DIS-
PENSER)
Used to take ice.
Used to take hot water.
Used to take cold water.
Used to take ambient water.
Water dispensing selection (B)
B
휘카페 4_영문매뉴얼_*이과수공기청정기-수정 16. 2. 22. 오후 2:47 페이지 17

16
• Hot tank heating function setting
1. Press heating selection switch attached on the rear.
2. "HOT" LED is on(Red).
• Standby heating function setting
1. Press heating selection switch attached on the rear.
2. "HOT" LED is on(Yellow).
• Hot tank heating / Standby heating function releasing
1. Press heating selection switch attached on the rear.
2. "HOT" LED is O .
unction setting and releasing
■
Lock function (Ice/Hot water locking function) setting
1. Press "ICE/LOCK" touch button softly for over 3 seconds.
2. "LOCK" LED (Red) is turned on and lock function is set.
(Setting sound : Ding~Ding~Ding~)
3. Hot water operation, ice dispensing function will not work
after the lock function is set.
*LOCK" is designed to avoid any accidental burns or spout of ice cube due to carelessness.
■
Lock function releasing
1. Press "ICE/LOCK" touch button softly for over 3 seconds.
2. "LOCK" LED (Red) is turned off and the lock function is released. (Releasing sound : Ding~Ding~Ding~)
3. Hot water operation, ice dispensing function work when the setting of lock function is released.
■
Ice-making function setting
1. Press "ICE/LOCK" touch button for 12 seconds.
*Press the "ICE/LOCK" touch button for 3 seconds to change the lock function. And then,
keep pressing the "ICE/LOCK" touch button until 12 seconds to set the ice-making
function. After setting the ice-making function, set the lock function again according to
user's preference.
2. "ICE" LED (Red) is turned on and ice making function is set.
(Setting sound : Ding~ Ding~ Ding~)
■
Ice-making function releasing
1. Press "ICE/LOCK" touch button for 12 seconds.
2. "ICE" LED(Red) is turned off and the ice making function is released.
(Releasing sound : Ding~Ding~Ding~)
*When it is released, ice-making function will be disabled. However, ice is served until the ice storage is empty.
*Press the "ICE/LOCK" touch button for 3 seconds to change the lock function. And then, keep pressing the "ICE/LOCK"
touch button until 12 seconds to release the ice-making function. After releasing the ice-making function, set the lock fun-
ction again according to user's preference.
3 SECONDS12 SECONDS
Usage
휘카페 4_영문매뉴얼_*이과수공기청정기-수정 16. 2. 22. 오후 2:47 페이지 18

17
Usage
●
Beep function releasing
1. Touch ambient water selection button for 10 seconds to release the beep
sound.
2. LED of Ice full/water full/ice making/hot water blinks with beep sound when
it is released.(Ddiri~Ddiring)
10SECONDS
●
Constant water dispensing function
1. It is the function to use constant water dispensing. Please push the button for
2 seconds. It beeps and this function is set.
(LED blinks when using this function.)
2. If you touch the dispensing button when constant dispensing function is set, it
beeps and the water is continuously dispensed.
*
If constant water is set but not taking water, then the function will be automatically released
after 10 seconds.
*
When dispensing the water continuously, approximate 0.5 Liter is automatically
dispensed. Actual amount of water might be different.
●
Constant water dispensing function releasing
When dispensing ambient or cold water continuously, if you
touch the dispensing selection button or the dispensing but-
ton, it beeps and this function is released.
2SECONDSor
●
Beep function setting
1. Touch ambient water selection button for 10 seconds to set the beep sound.
2. LED of Ice full/water full/ice making/hot water blinks with beep sound when it
is set. (Ddiri~Ddiring)
10SECONDS
휘카페 4_영문매뉴얼_*이과수공기청정기-수정 16. 2. 22. 오후 2:47 페이지 19

18

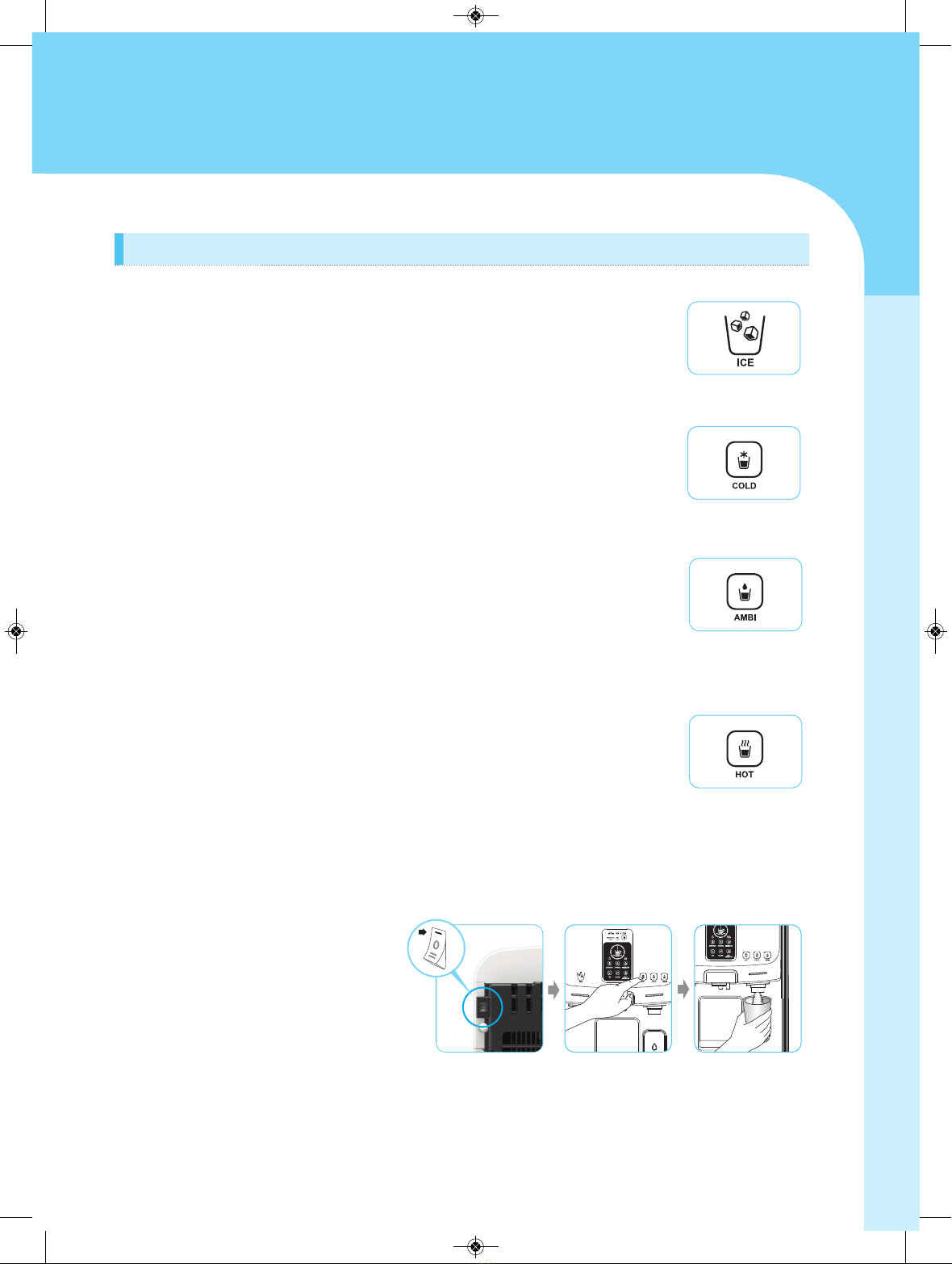

Ice and water dispensing method
● Ice dispensing mode
If "ICE"(ice dispenser) touch button is pressed, the door of the ice storage
is opened and ice is served from the dispensing hole.
● Cold water dispensing mode
If "COLD"(cold water selection) touch button is selected and water dispensing
button is pressed, cold water is served.
● Ambient water dispensing mode
If "AMBI."(ambient water selection) touch button is selected and water dispens-
ing button is pressed, ambient water is served.
* If you don't use the ambient water when the ambient water is chosen, it will automat-
ically convert to cold water mode.
● Hot water dispensing mode
If "HOT"(hot water selection) touch button is selected and the water dispens-
ing button is pressed, hot water is served.
* If "LOCK" function (Ice and hot water dispensing lock) is set, hot water is not served.
Use it after releasing the lock function.
* If you don't use the hot water when the hot water is chosen, it will automatically convert
to cold water mode.
● Hot tank heating water dispensing mode
1. Press heating selection switch atta-
ched on the rear.
2. If "HOT"(Hot water selection) touch
button is selected and "WATER
DISPENSING BUTTON" is pressed,
hot water is served.
Usage
휘카페 4_영문매뉴얼_*이과수공기청정기-수정 16. 2. 22. 오후 2:47 페이지 20
